Principle Components Analysis - Infant Ap vs. WP
Excluding ELISA-based total IgG - Standardized by Total IgG - 7 response clusters
Lisa Gallagher, David Kook, Alec Buetow, Scot Zens
Last updated: 2024-11-25
Checks: 7 0
Knit directory:
madi-biostat-project3-SDY8003-Thailand/
This reproducible R Markdown analysis was created with workflowr (version 1.7.1). The Checks tab describes the reproducibility checks that were applied when the results were created. The Past versions tab lists the development history.
Great! Since the R Markdown file has been committed to the Git repository, you know the exact version of the code that produced these results.
Great job! The global environment was empty. Objects defined in the global environment can affect the analysis in your R Markdown file in unknown ways. For reproduciblity it’s best to always run the code in an empty environment.
The command set.seed(20231106) was run prior to running
the code in the R Markdown file. Setting a seed ensures that any results
that rely on randomness, e.g. subsampling or permutations, are
reproducible.
Great job! Recording the operating system, R version, and package versions is critical for reproducibility.
Nice! There were no cached chunks for this analysis, so you can be confident that you successfully produced the results during this run.
Great job! Using relative paths to the files within your workflowr project makes it easier to run your code on other machines.
Great! You are using Git for version control. Tracking code development and connecting the code version to the results is critical for reproducibility.
The results in this page were generated with repository version 4461231. See the Past versions tab to see a history of the changes made to the R Markdown and HTML files.
Note that you need to be careful to ensure that all relevant files for
the analysis have been committed to Git prior to generating the results
(you can use wflow_publish or
wflow_git_commit). workflowr only checks the R Markdown
file, but you know if there are other scripts or data files that it
depends on. Below is the status of the Git repository when the results
were generated:
Ignored files:
Ignored: .DS_Store
Ignored: .RData
Ignored: .Rhistory
Ignored: .Rproj.user/
Ignored: analysis/.DS_Store
Ignored: data/.DS_Store
Ignored: figure/
Note that any generated files, e.g. HTML, png, CSS, etc., are not included in this status report because it is ok for generated content to have uncommitted changes.
These are the previous versions of the repository in which changes were
made to the R Markdown
(analysis/loop_pca_sigg_apwp_noEL7.Rmd) and HTML
(docs/loop_pca_sigg_apwp_noEL7.html) files. If you’ve
configured a remote Git repository (see ?wflow_git_remote),
click on the hyperlinks in the table below to view the files as they
were in that past version.
| File | Version | Author | Date | Message |
|---|---|---|---|---|
| Rmd | 4461231 | alecbuetow | 2024-11-25 | corrected mislabeled file name |
| Rmd | 5dae9d3 | alecbuetow | 2024-11-25 | added supervised clusters |
| Rmd | c432a7f | Michael S. Zens | 2024-09-16 | added feature_comparisions and fixed the deimension reduction for 6 variations of clustering for each manuscript. |
| Rmd | 9d33ff3 | f006zvn1 | 2024-08-19 | dimensionality reduction executed, pngs and html updated |
| html | 9d33ff3 | f006zvn1 | 2024-08-19 | dimensionality reduction executed, pngs and html updated |
| Rmd | 94fa346 | f006zvn1 | 2024-08-12 | handled cases with insufficient features, added UMAP to dimensionality reduction section |
| Rmd | 4c89856 | Michael S. Zens | 2024-06-13 | filled out covariate analysis |
| html | 4c89856 | Michael S. Zens | 2024-06-13 | filled out covariate analysis |
| Rmd | 3a1ebaf | Michael S. Zens | 2024-06-06 | Changed the basis for all dataframes - used imputation and single source in the connection.R code. |
| Rmd | dd04d76 | Michael S. Zens | 2024-05-31 | working on covariate analysis in the pca loop |
| Rmd | 5d4b6f5 | Michael S. Zens | 2024-05-14 | addressed a tanglex merge conflict |
| Rmd | db918a1 | Michael S. Zens | 2024-05-14 | fixed confounder tables and PCA function to adjust for confounders |
| html | db918a1 | Michael S. Zens | 2024-05-14 | fixed confounder tables and PCA function to adjust for confounders |
| Rmd | a738faa | Michael S. Zens | 2024-05-09 | fixed the confounding |
| html | a738faa | Michael S. Zens | 2024-05-09 | fixed the confounding |
| Rmd | ed92971 | Michael S. Zens | 2024-05-08 | added standard diff |
| Rmd | 688280f | Michael S. Zens | 2024-04-24 | expanded set of ap-wp analyses following David and Lisa |
| html | 688280f | Michael S. Zens | 2024-04-24 | expanded set of ap-wp analyses following David and Lisa |
Infant AP vs. WP visit:vaccinated - vaccinated : PCA Results
Antigen: PT
Features: PT_IgG1, PT_IgG, PT_IgG2, PT_IgG4, PT_ADCD, PT_ADCP, PT_ADNP, PT_FcgR2a, PT_FcgR3b, PT_IgG3

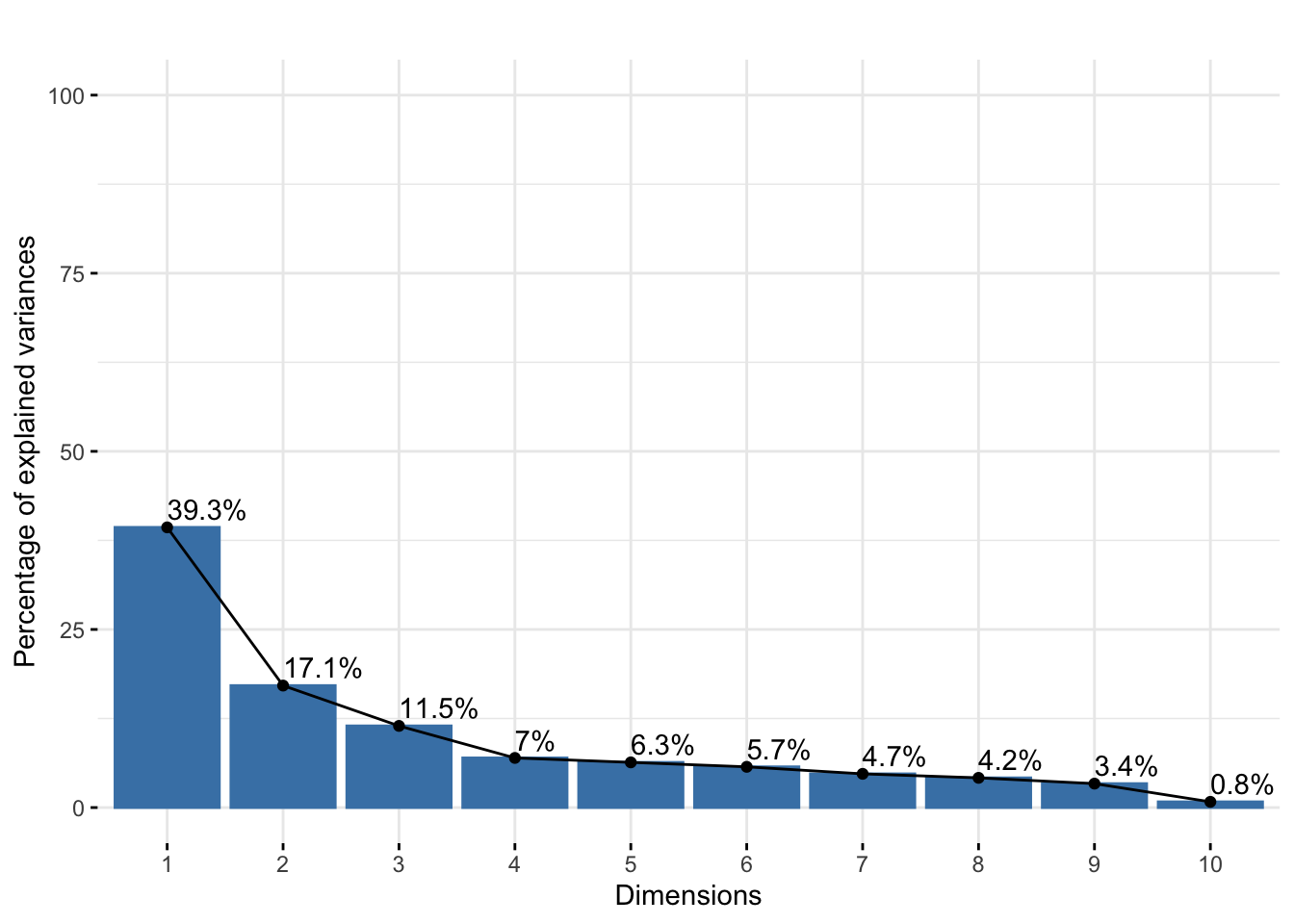

Proportion of Variance
Summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | |
|---|---|---|---|---|---|
| Standard deviation | 1.983 | 1.309 | 1.071 | 0.835 | 0.796 |
| Proportion of Variance | 0.393 | 0.171 | 0.115 | 0.070 | 0.063 |
| Cumulative Proportion | 0.393 | 0.565 | 0.679 | 0.749 | 0.812 |

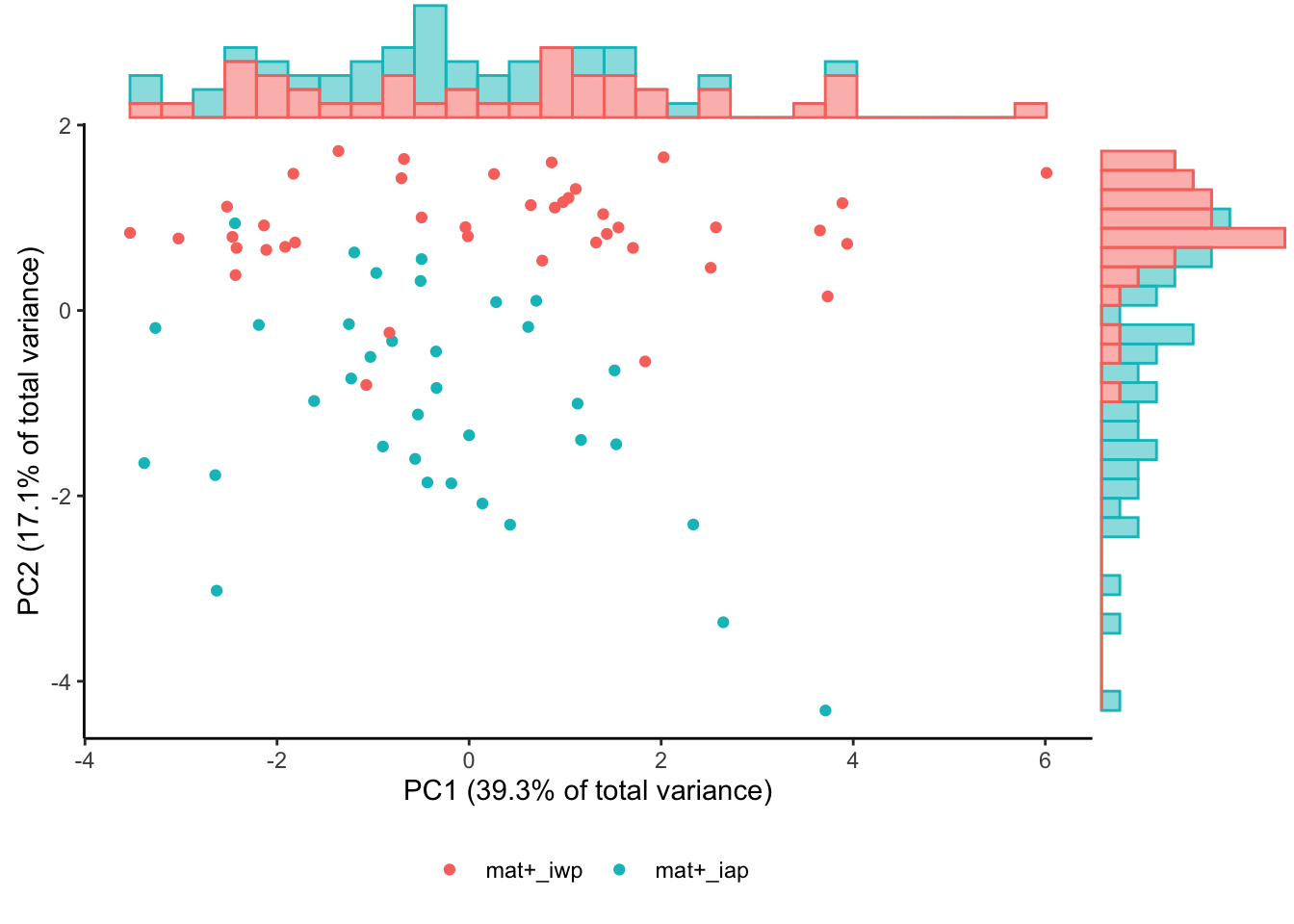

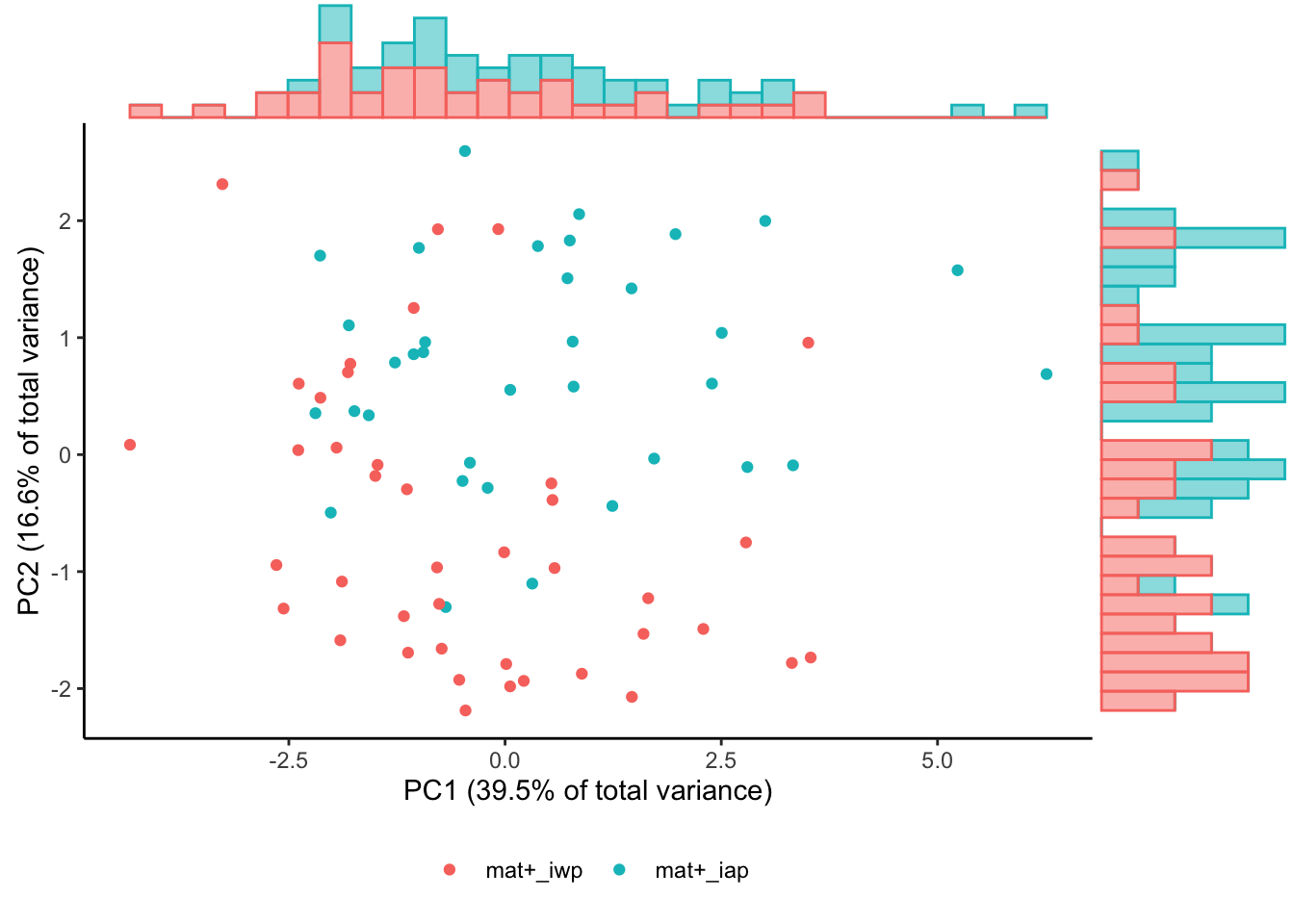

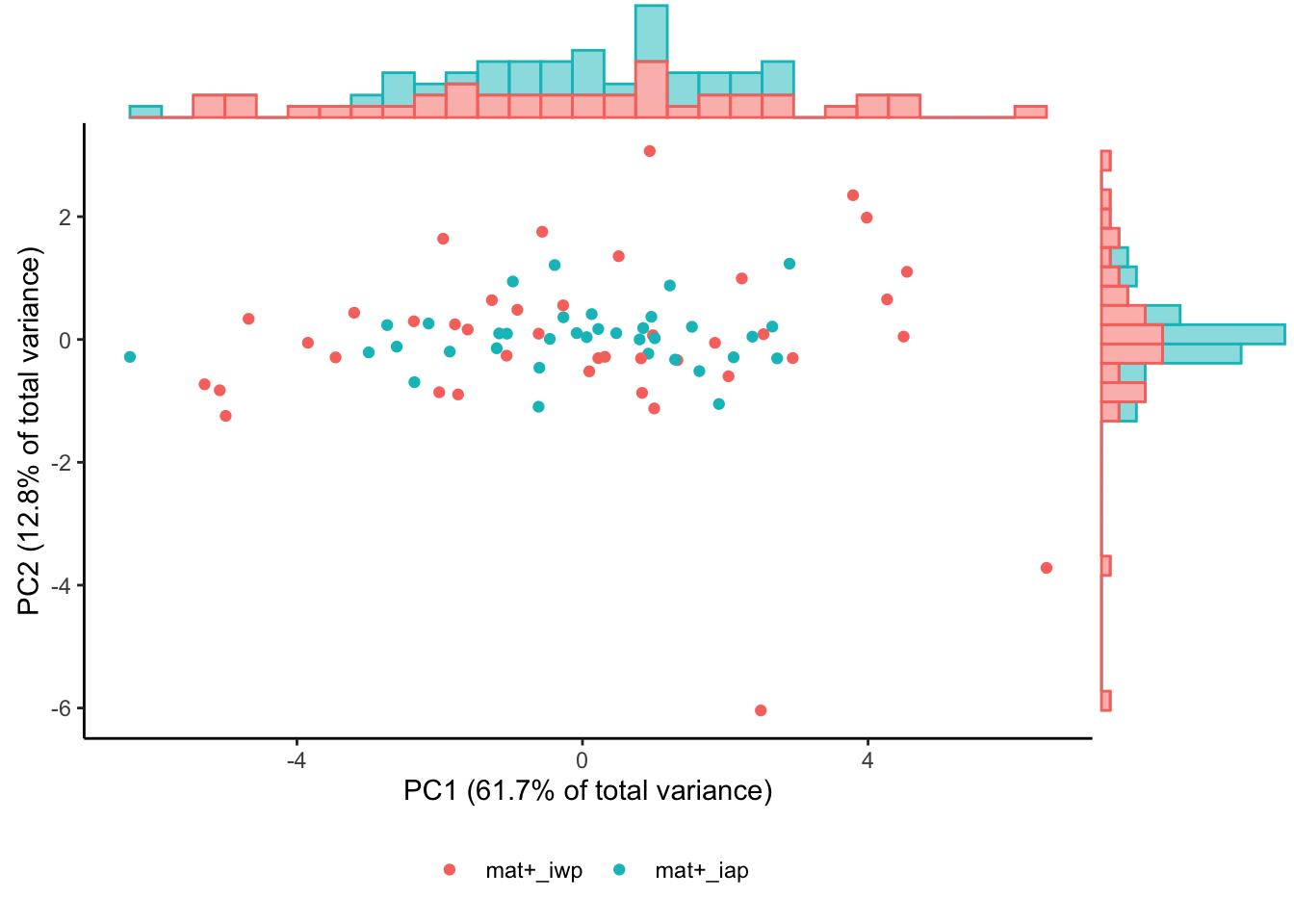

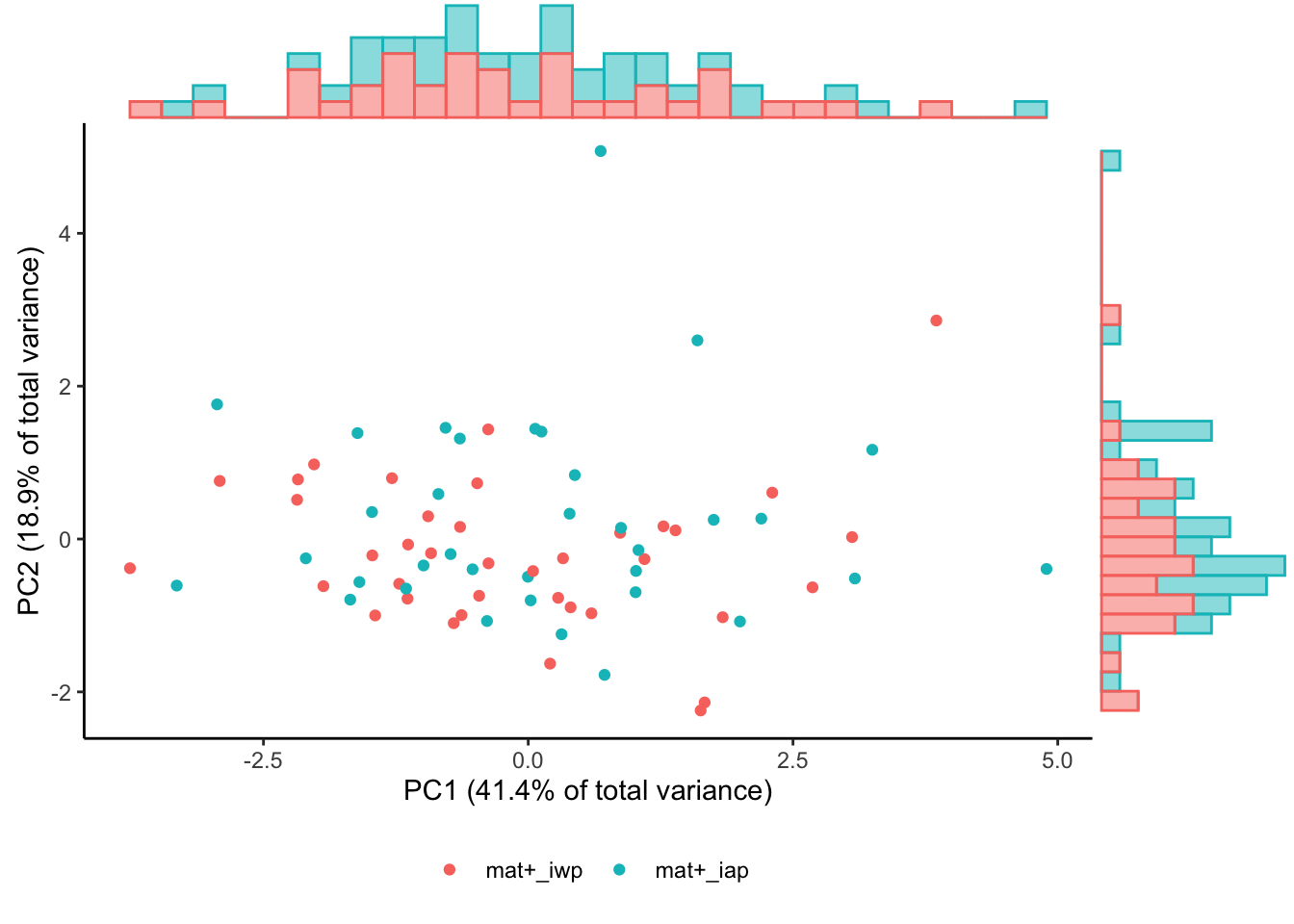

Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Infant AP vs. WP vaccinated PT PC1: p=.13
Infant AP vs. WP vaccinated PT PC2: p<.0001

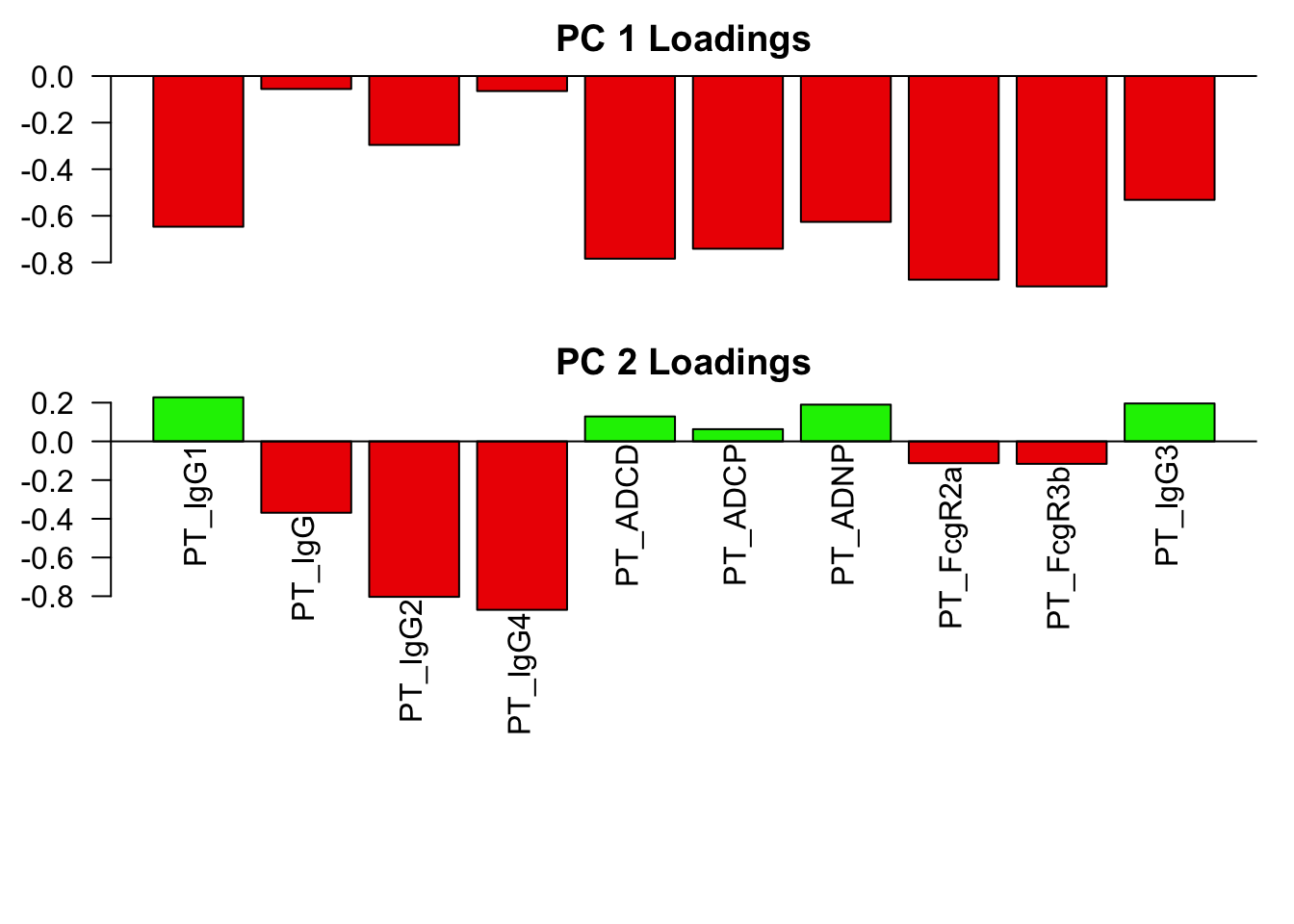

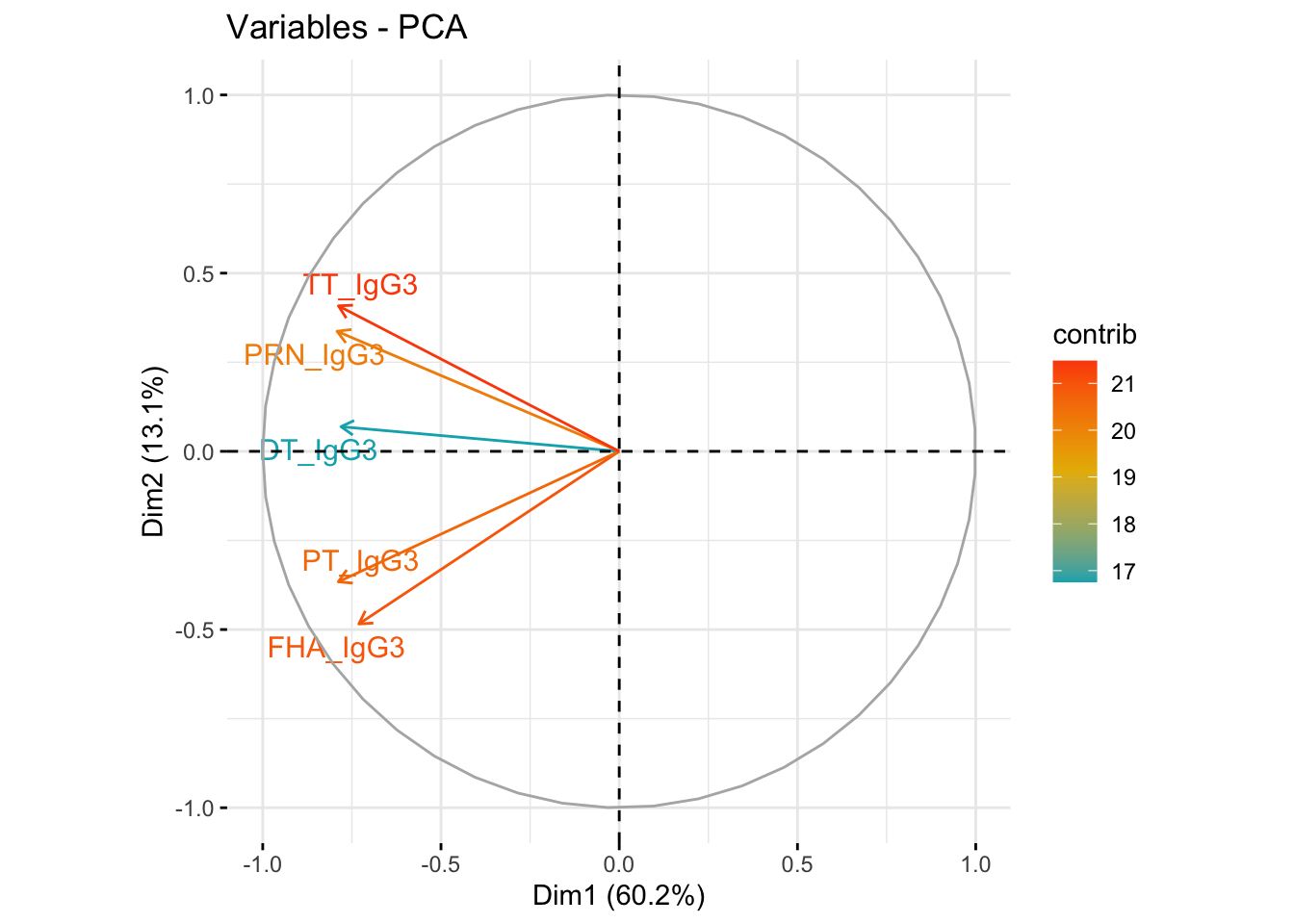

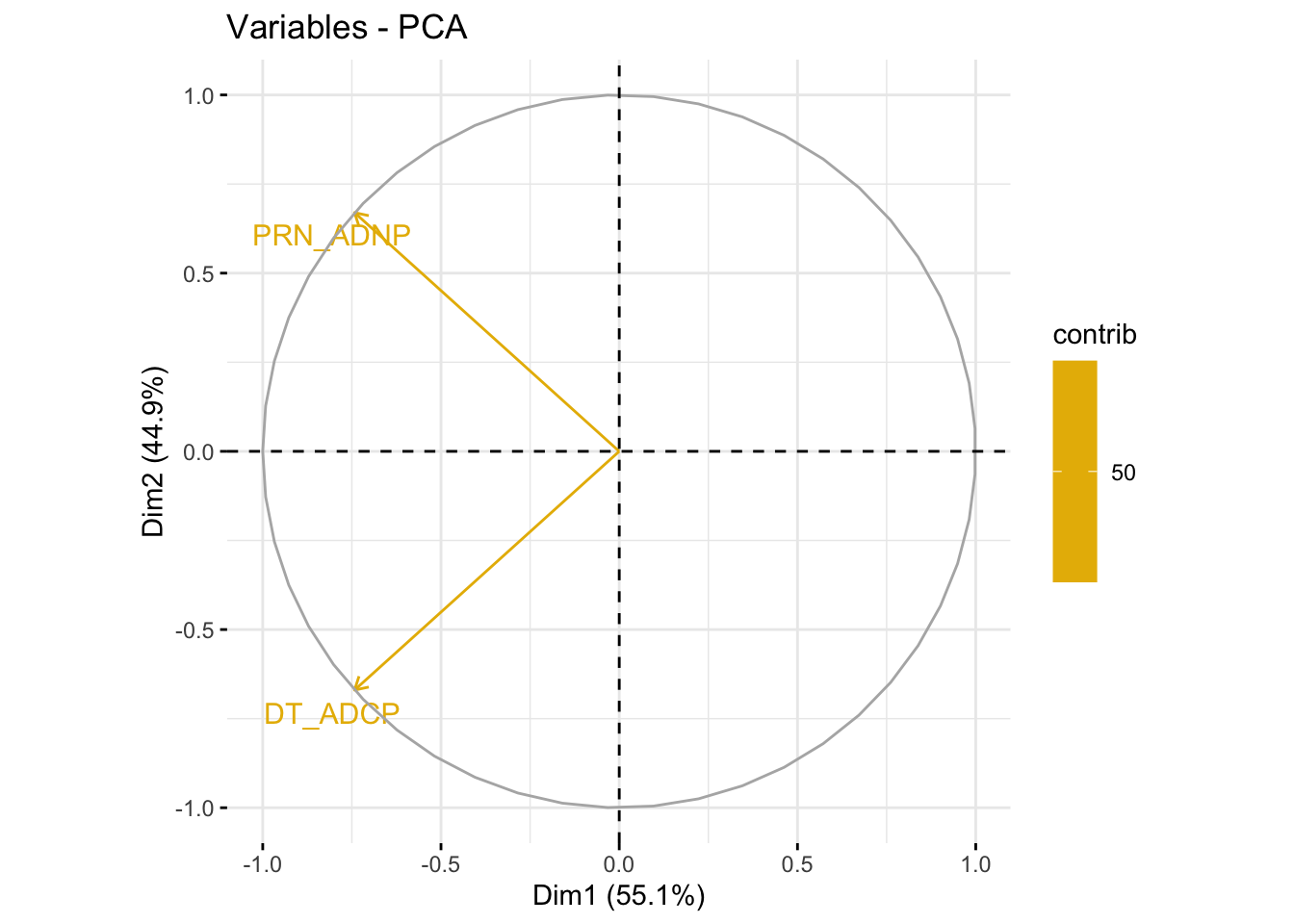

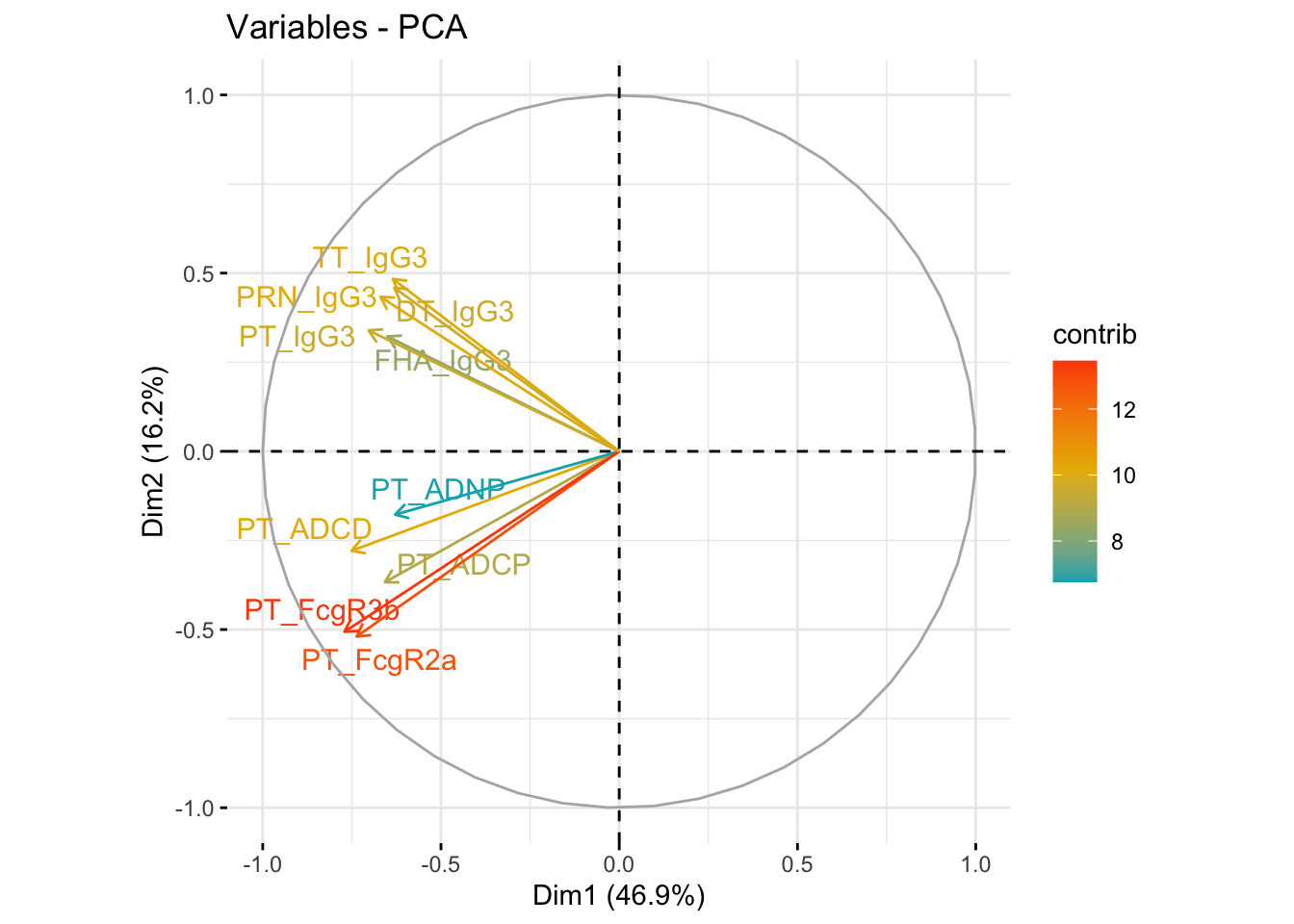

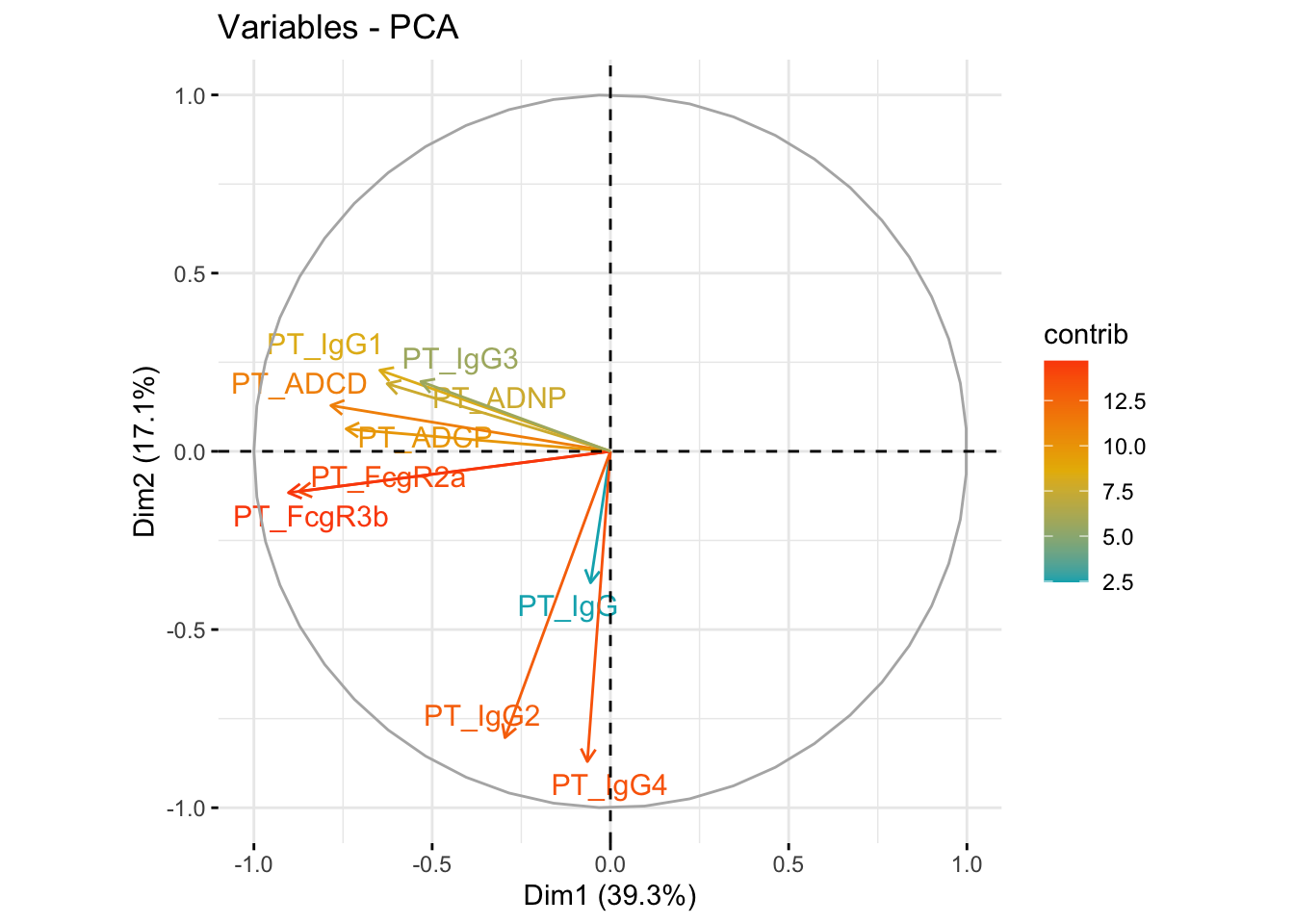

Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution

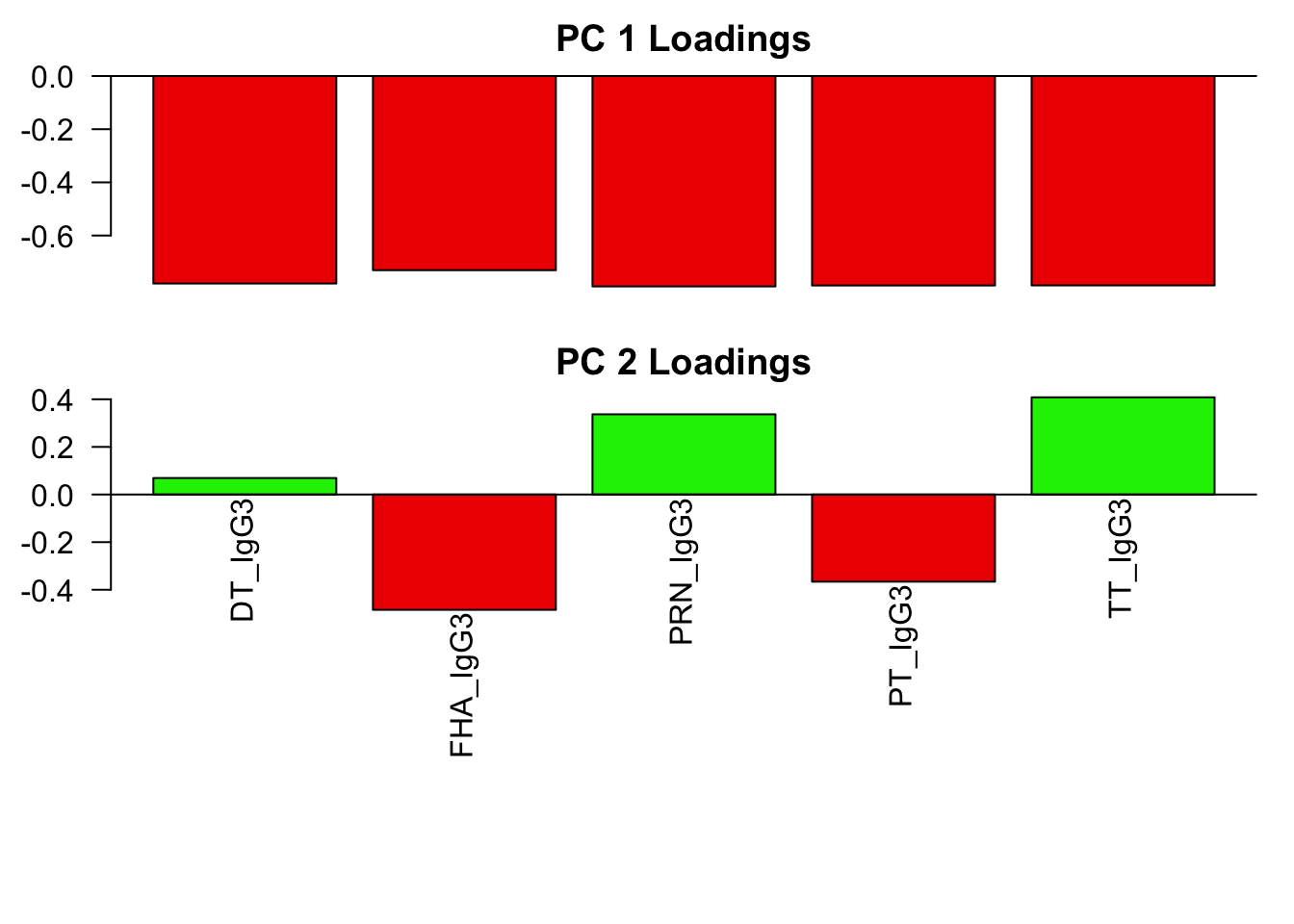

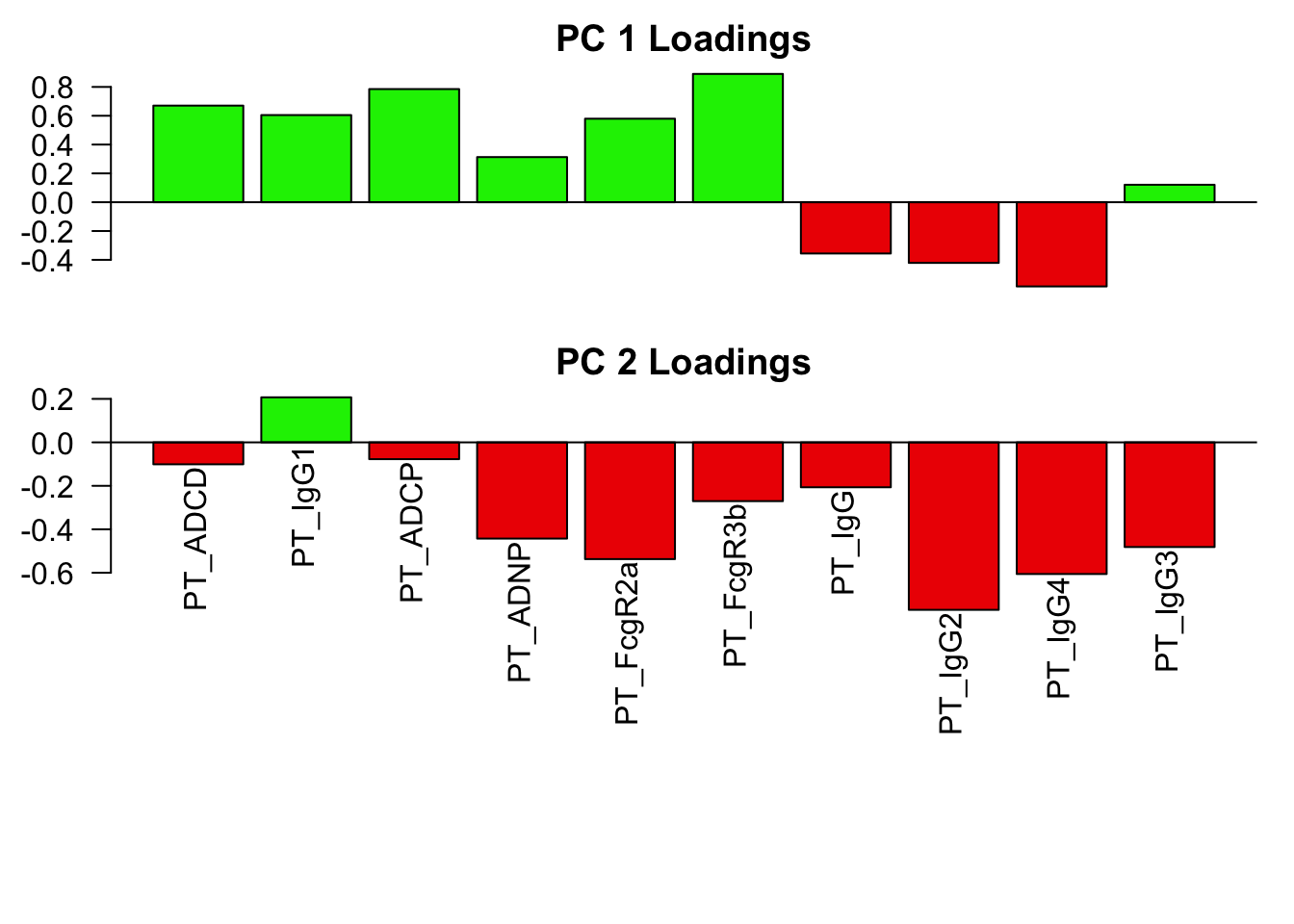

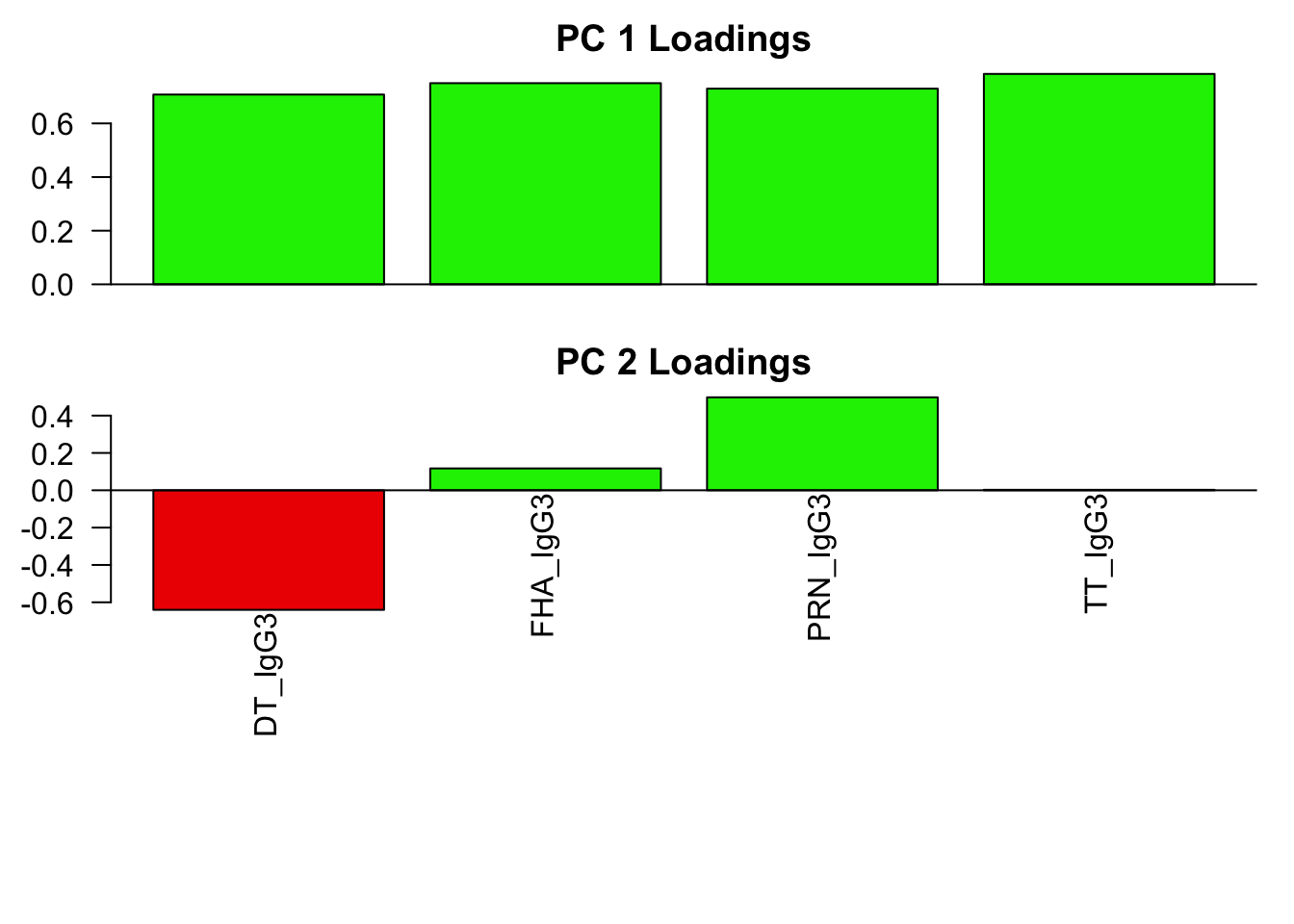

**Loadings
plot

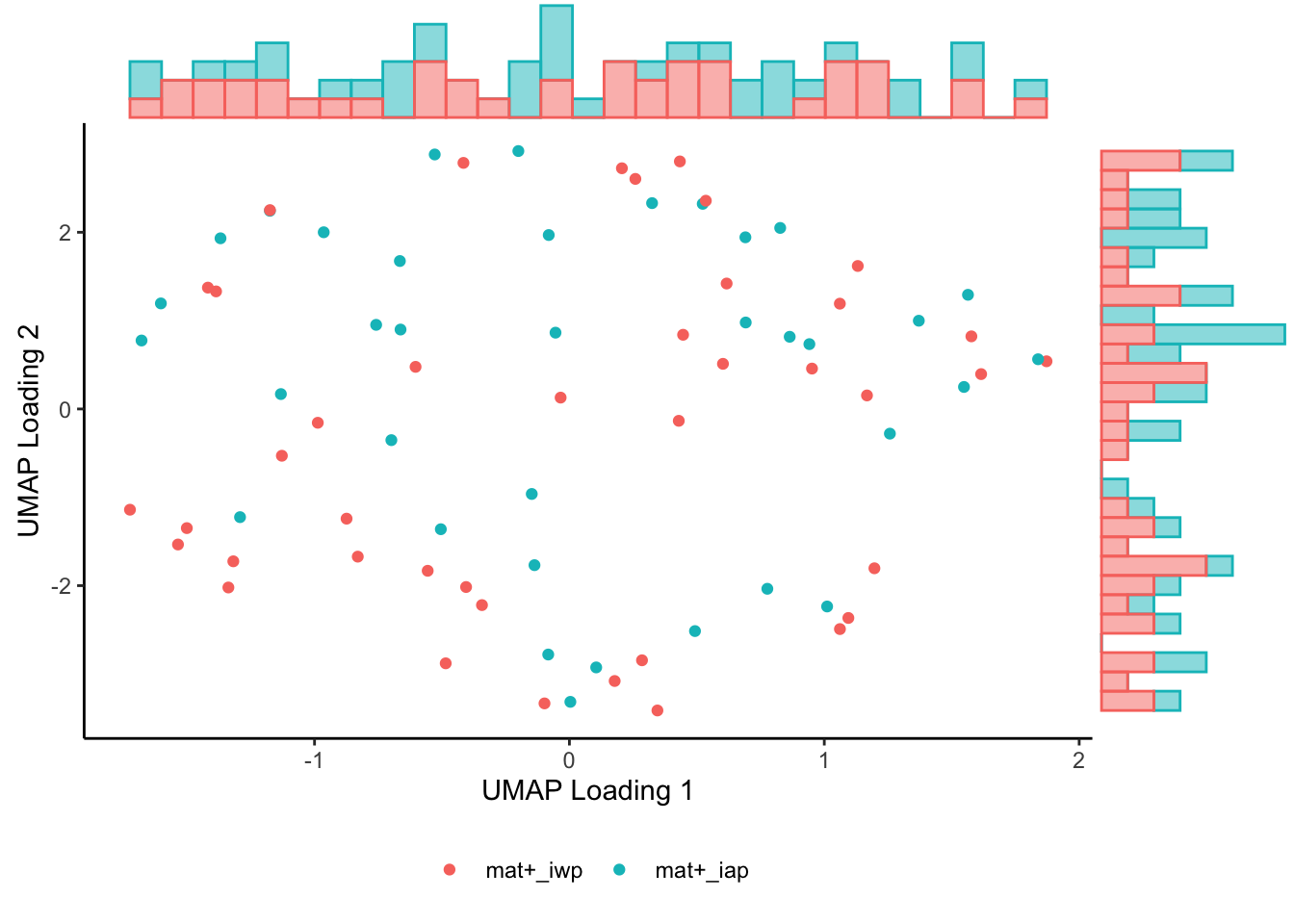

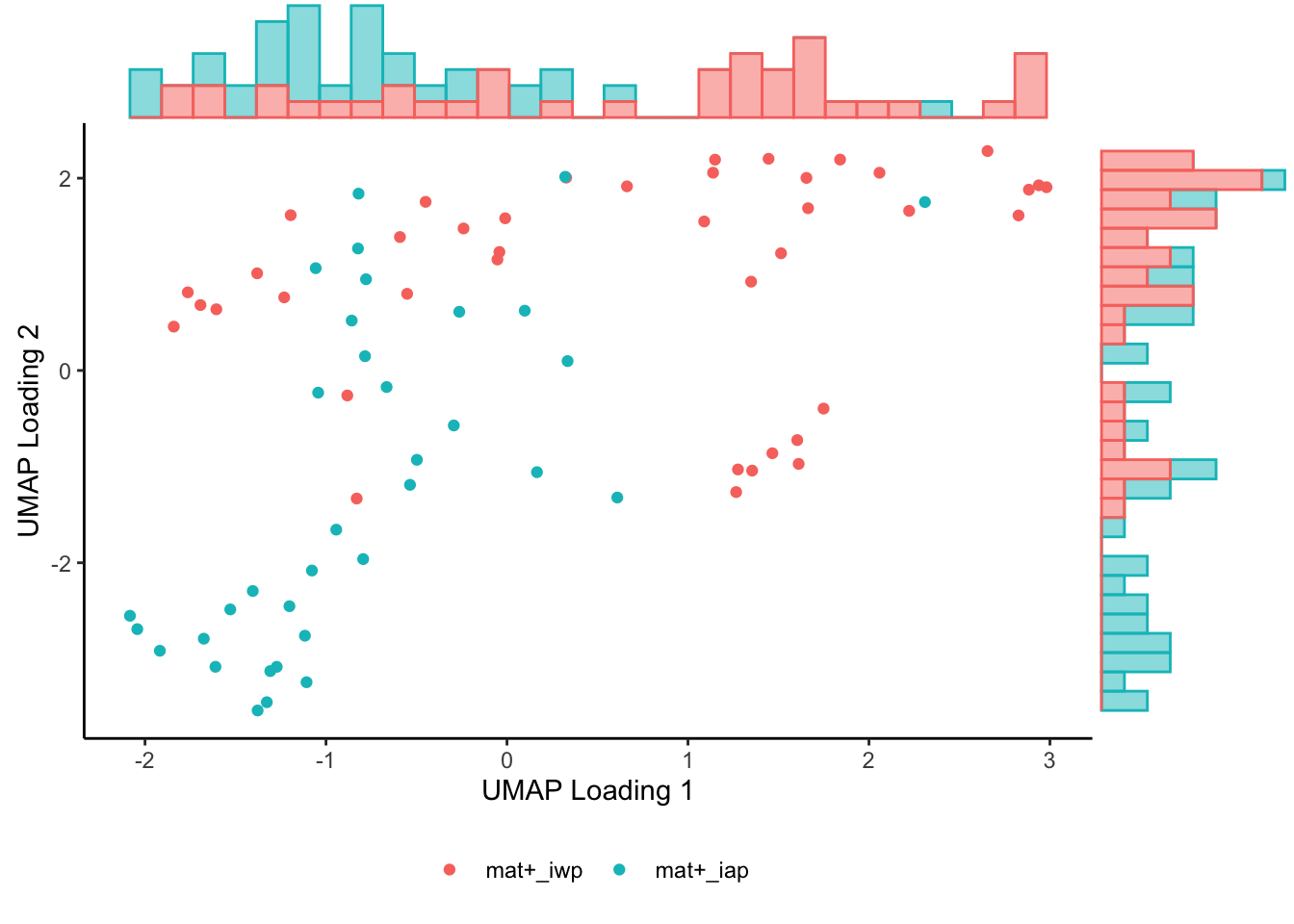

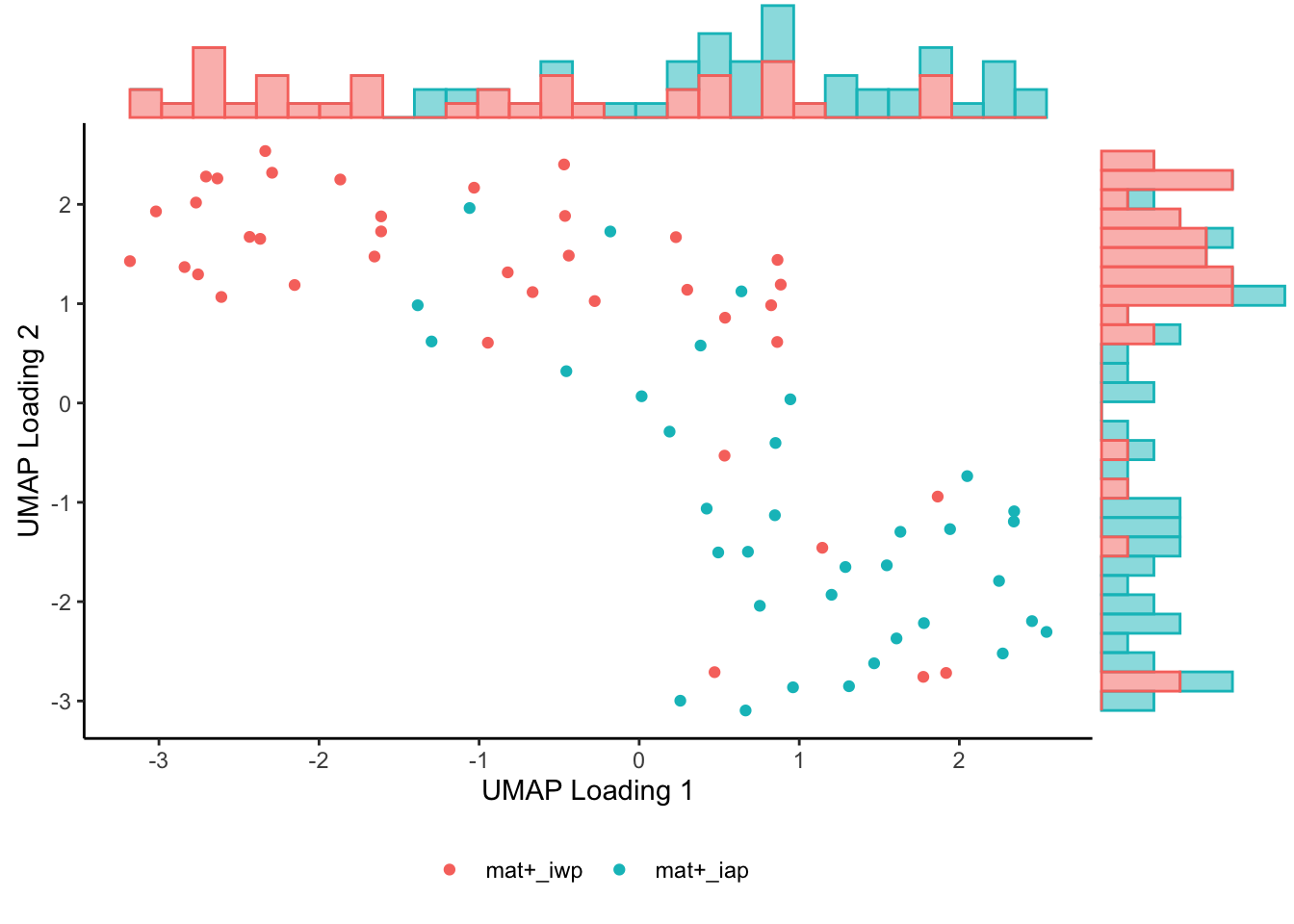

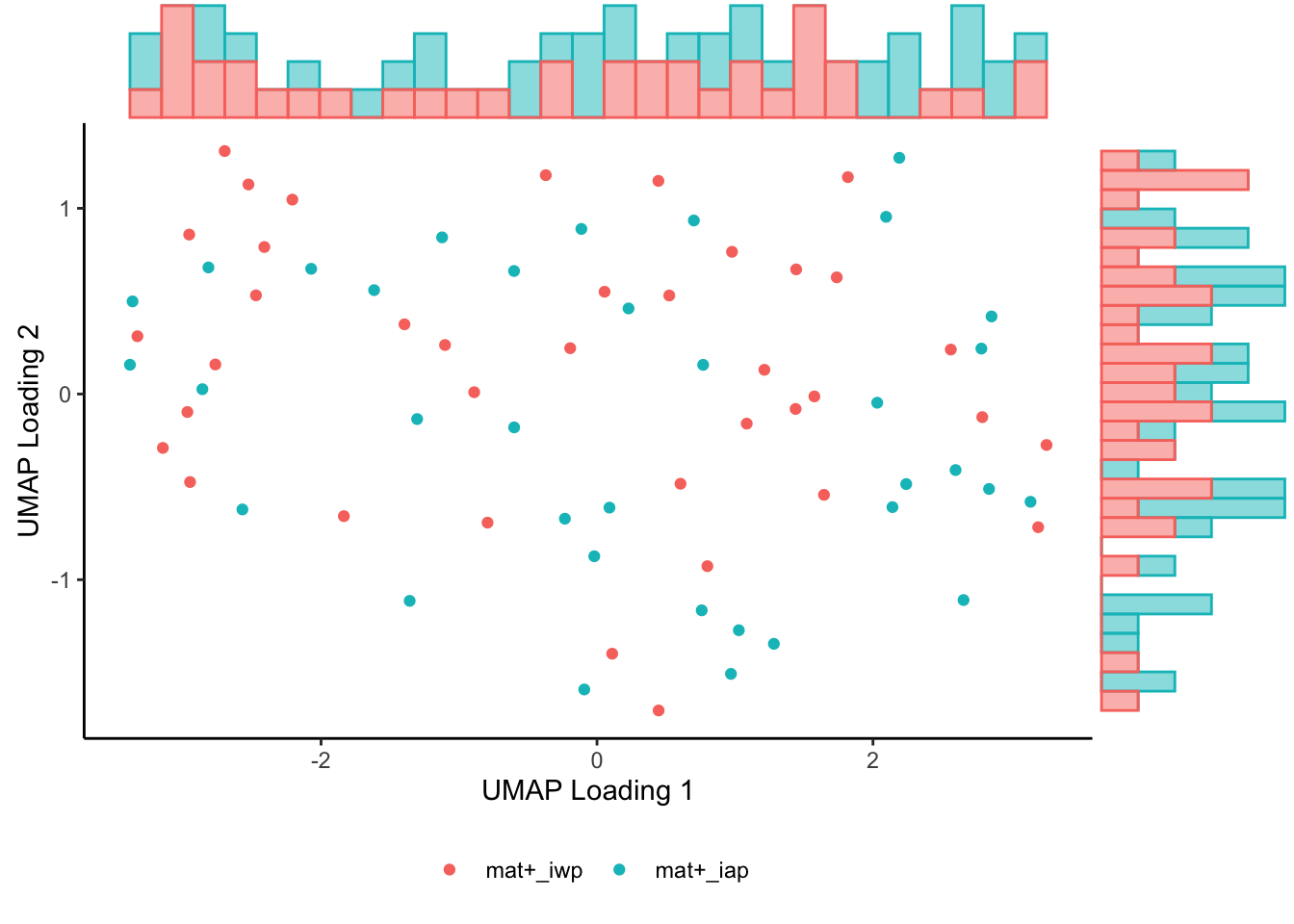

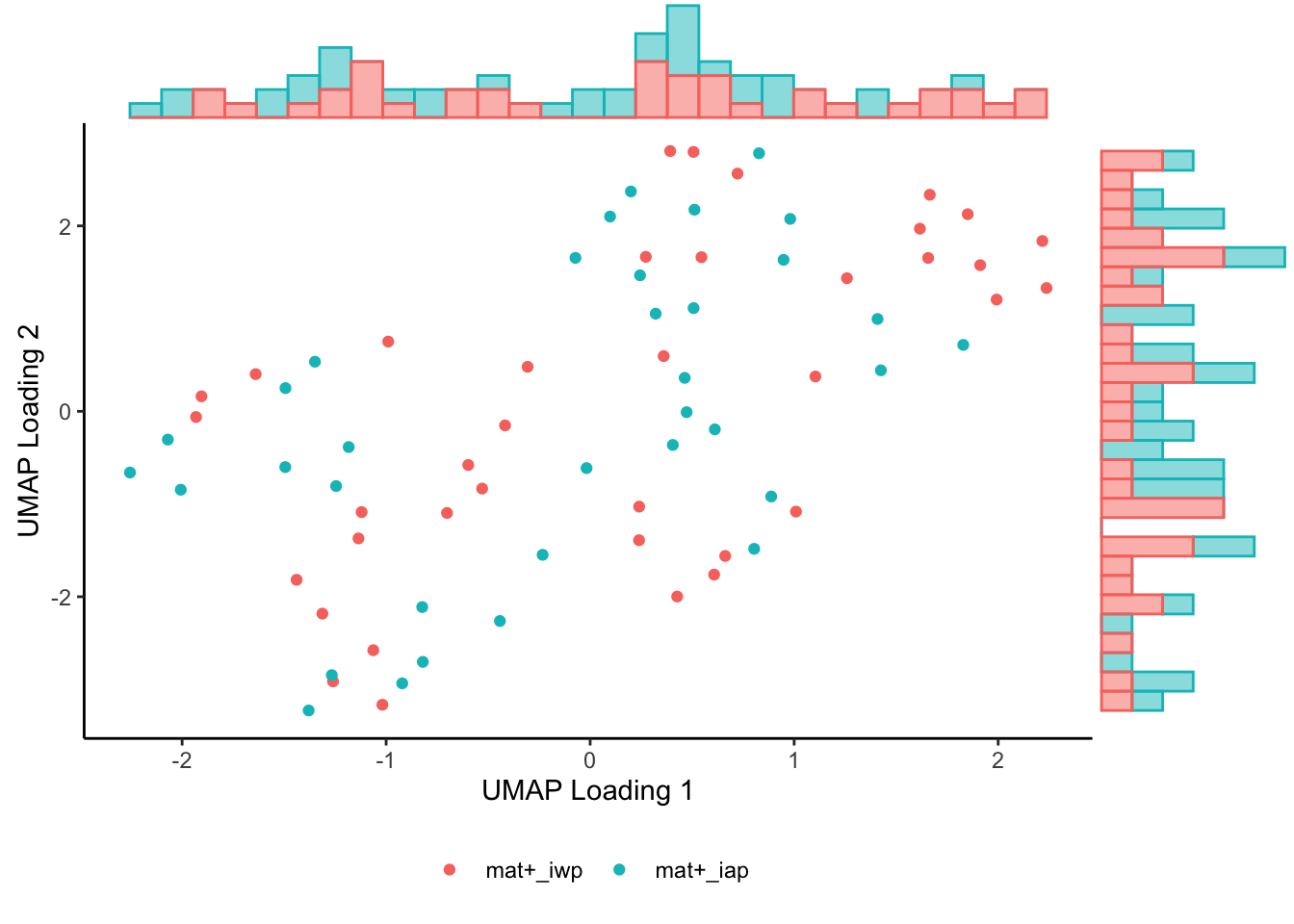

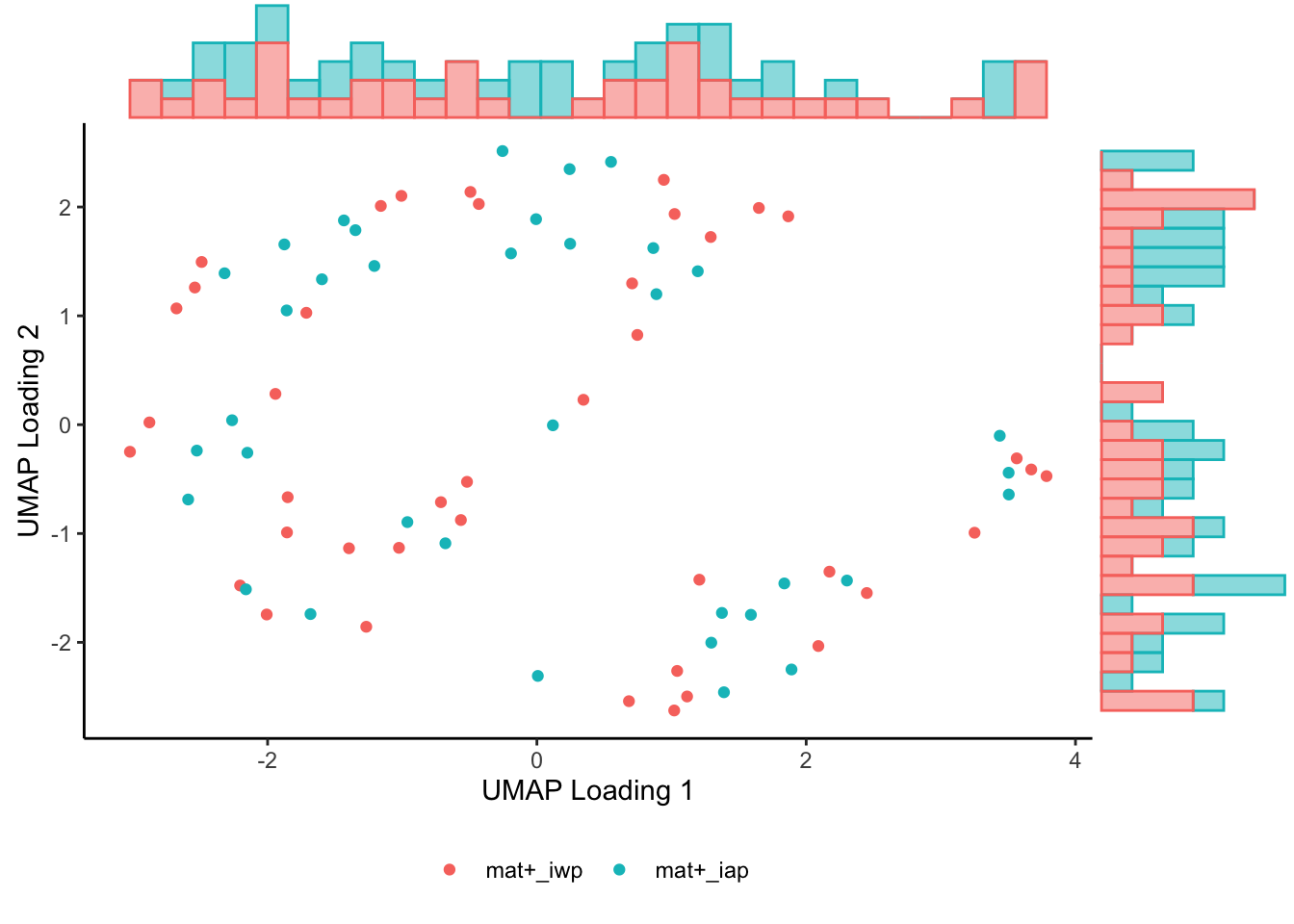

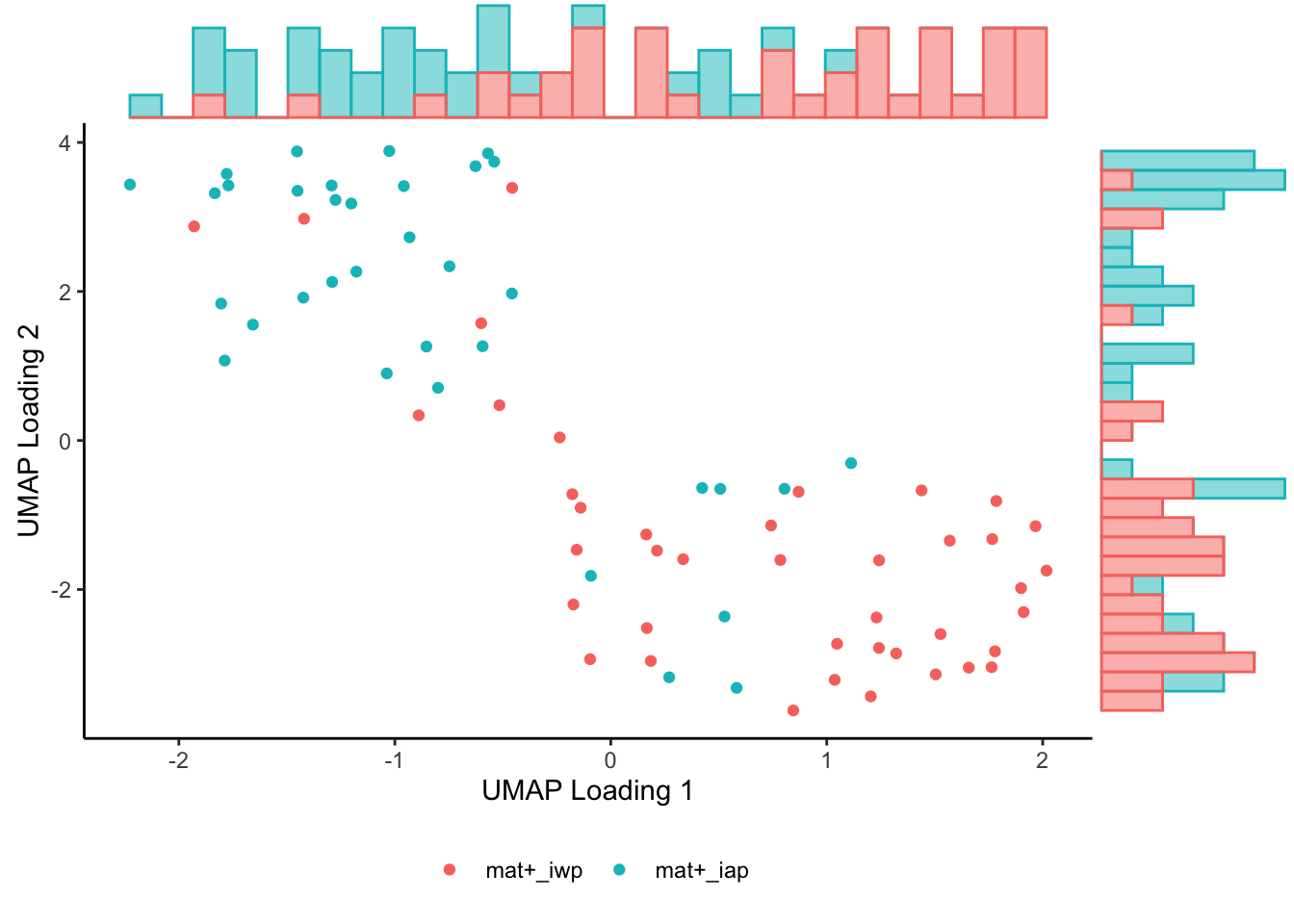

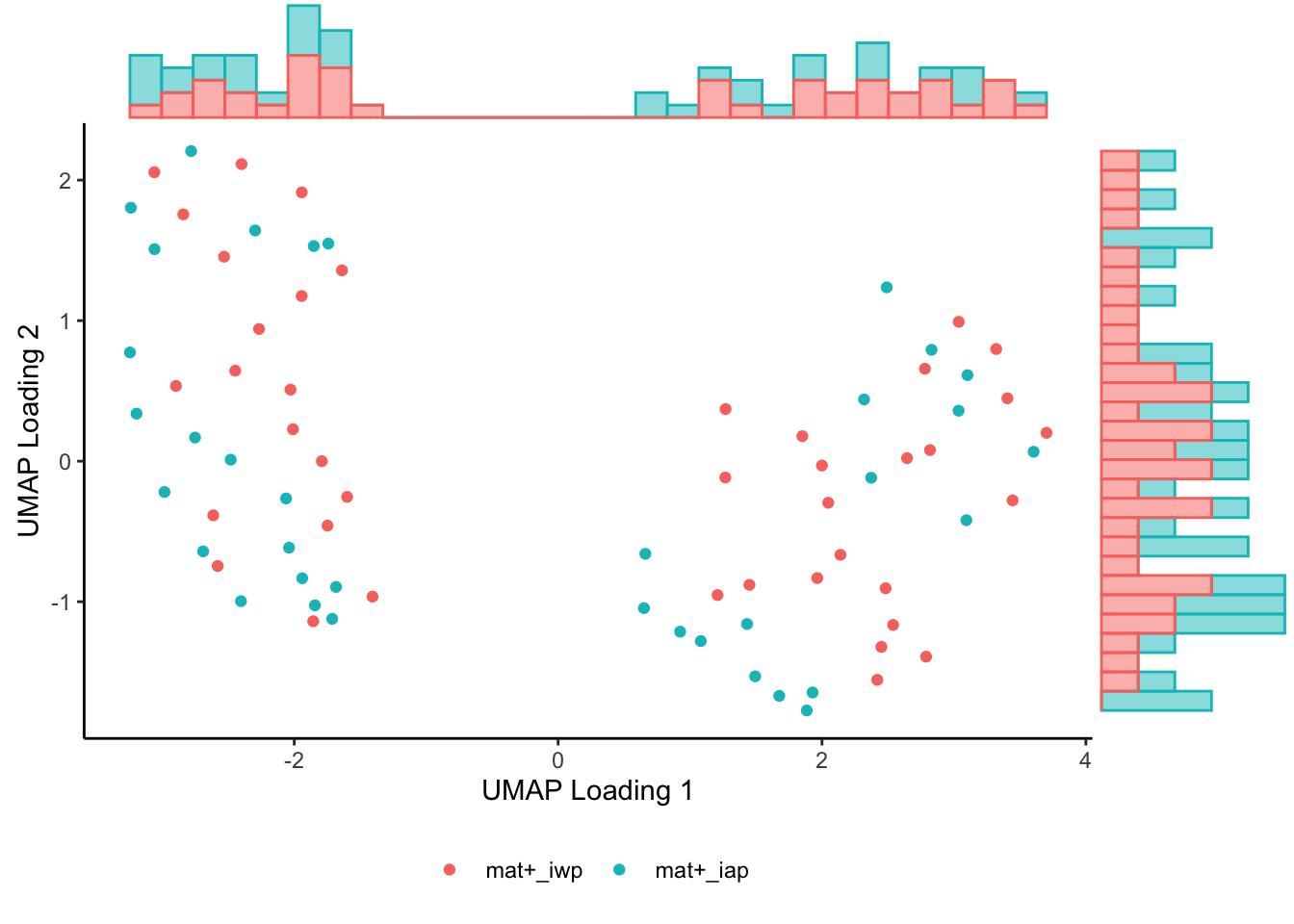

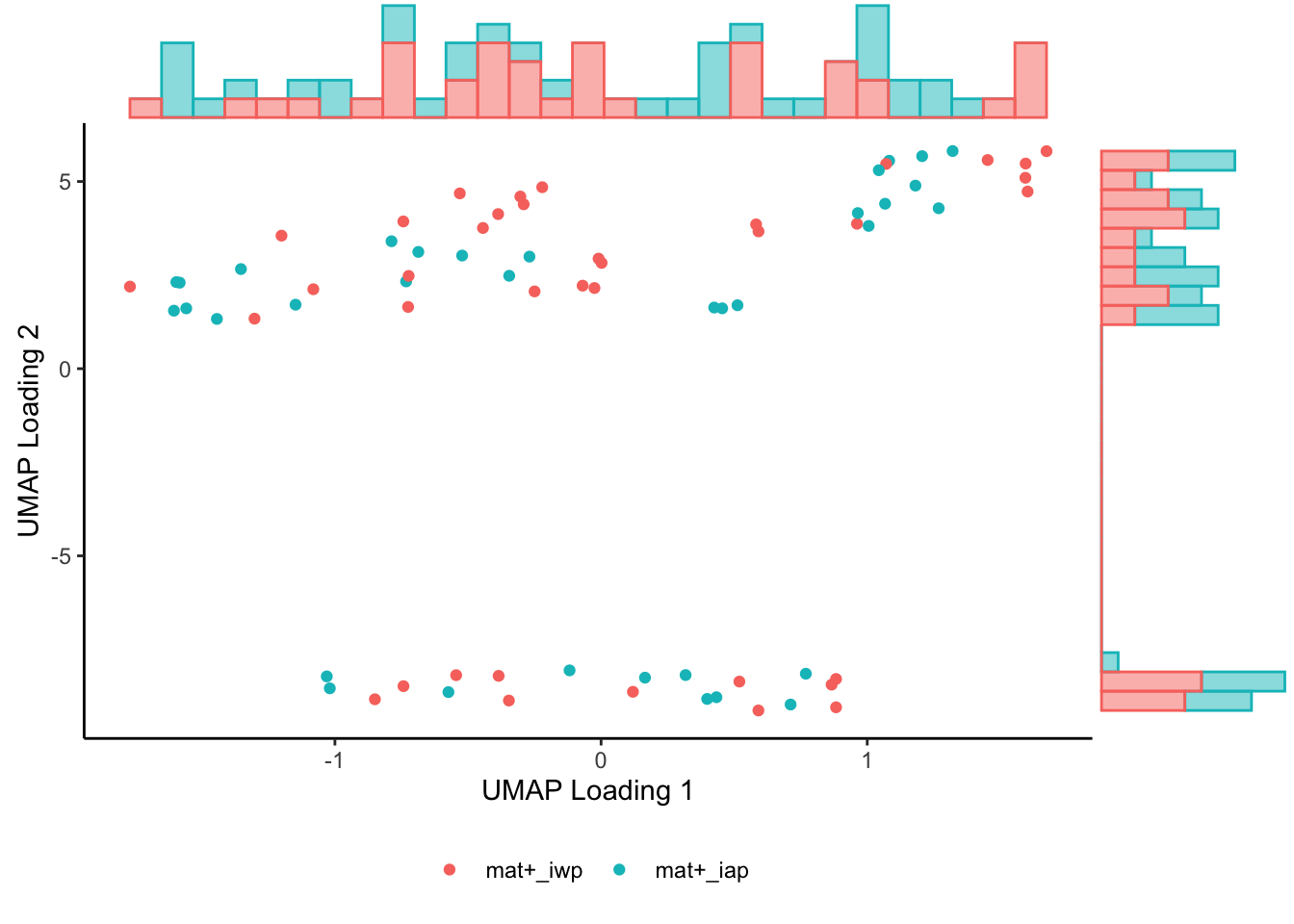

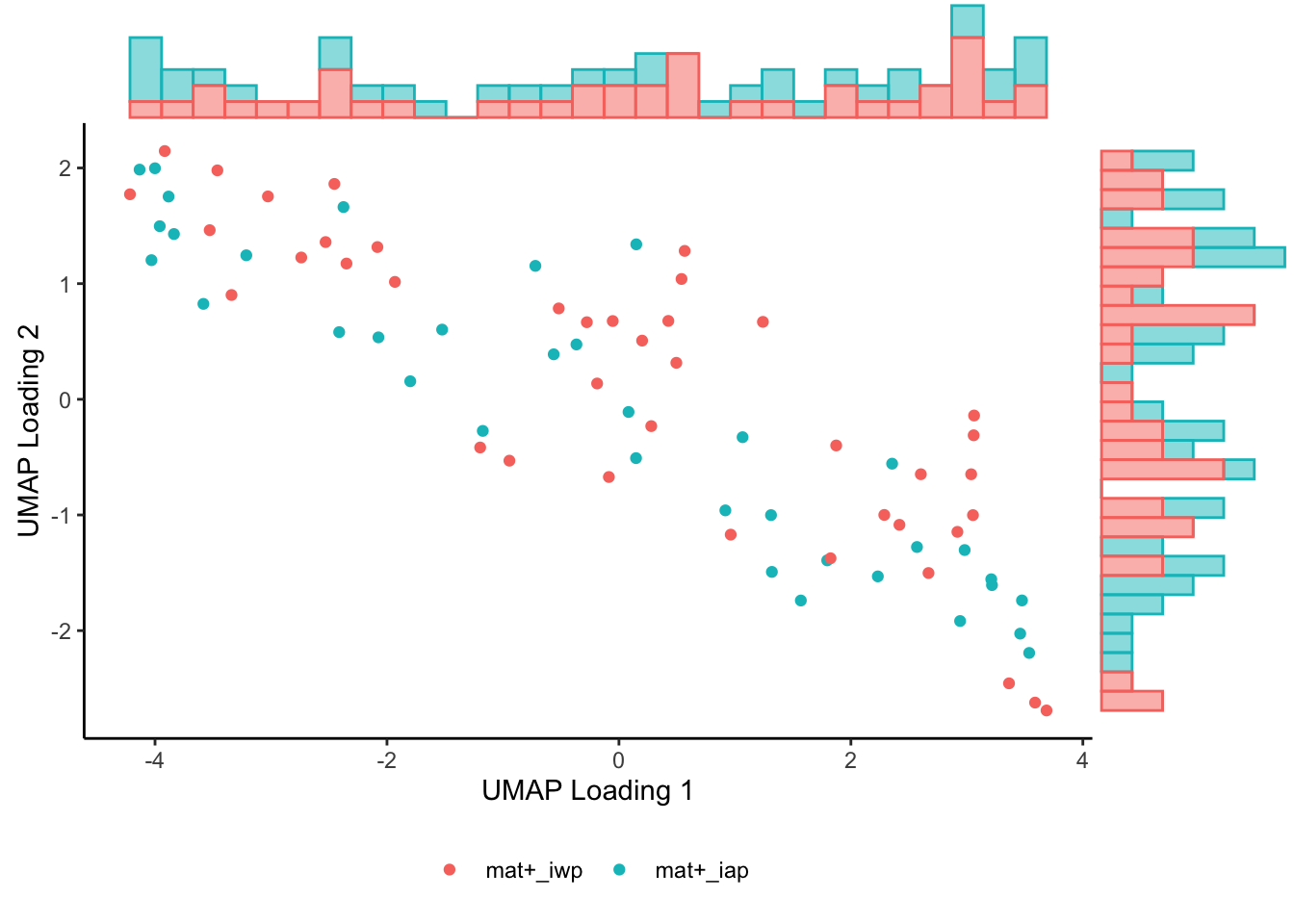

Plot of UMAP1 vs UMAP2 Loadings
Comparison of UMAP loadings by arm
Infant AP vs. WP vaccinated PT UMAP1: p<.0001
Infant AP vs. WP vaccinated PT UMAP2: p<.0001
Antigen: FHA
Features: FHA_ADCD, FHA_ADCP, FHA_ADNP, FHA_FcgR2a, FHA_FcgR3b, FHA_IgG, FHA_IgG1, FHA_IgG2, FHA_IgG4, FHA_IgG3

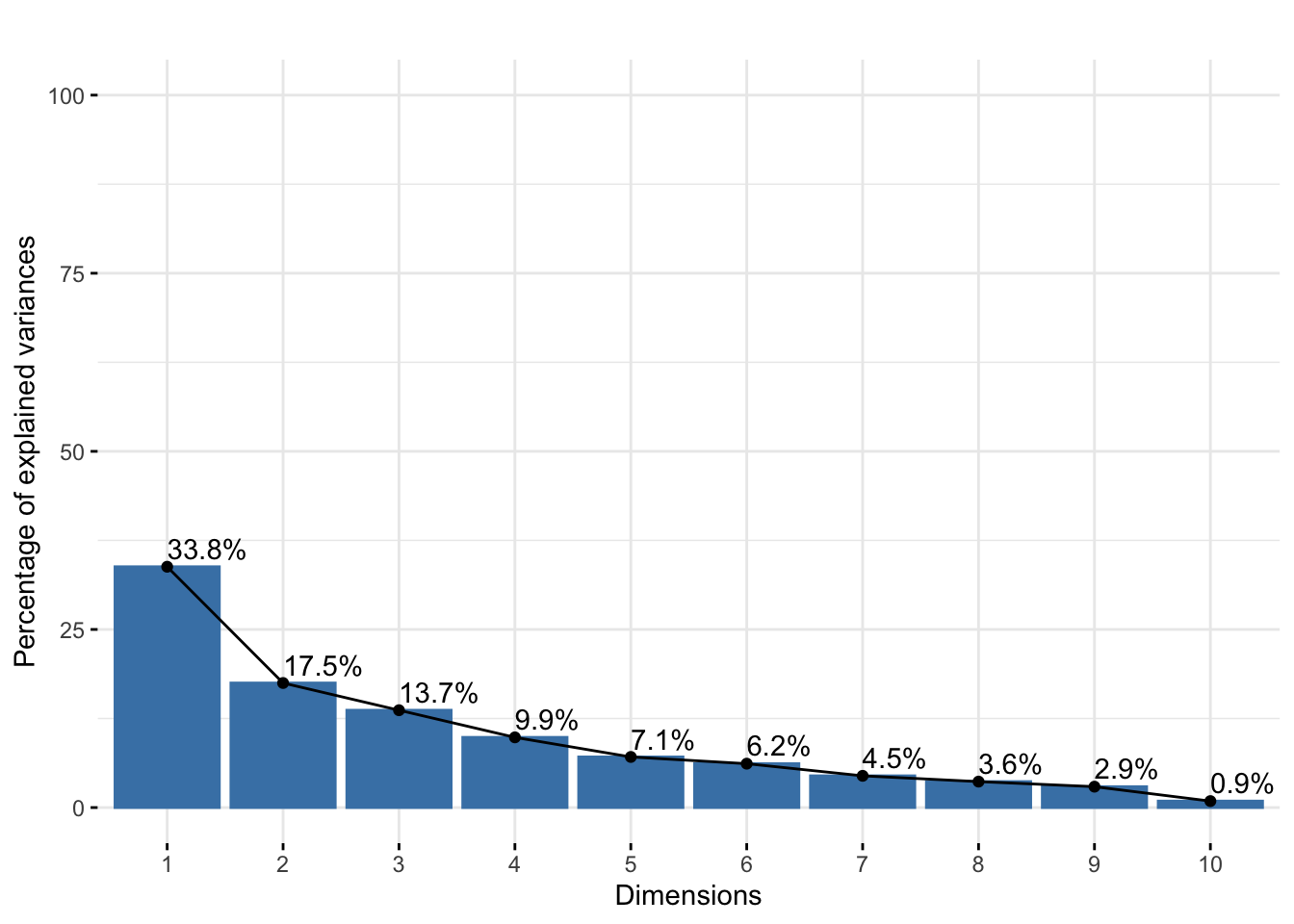

Proportion of Variance
Summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | |
|---|---|---|---|---|---|
| Standard deviation | 1.839 | 1.322 | 1.169 | 0.993 | 0.843 |
| Proportion of Variance | 0.338 | 0.175 | 0.137 | 0.099 | 0.071 |
| Cumulative Proportion | 0.338 | 0.513 | 0.649 | 0.748 | 0.819 |

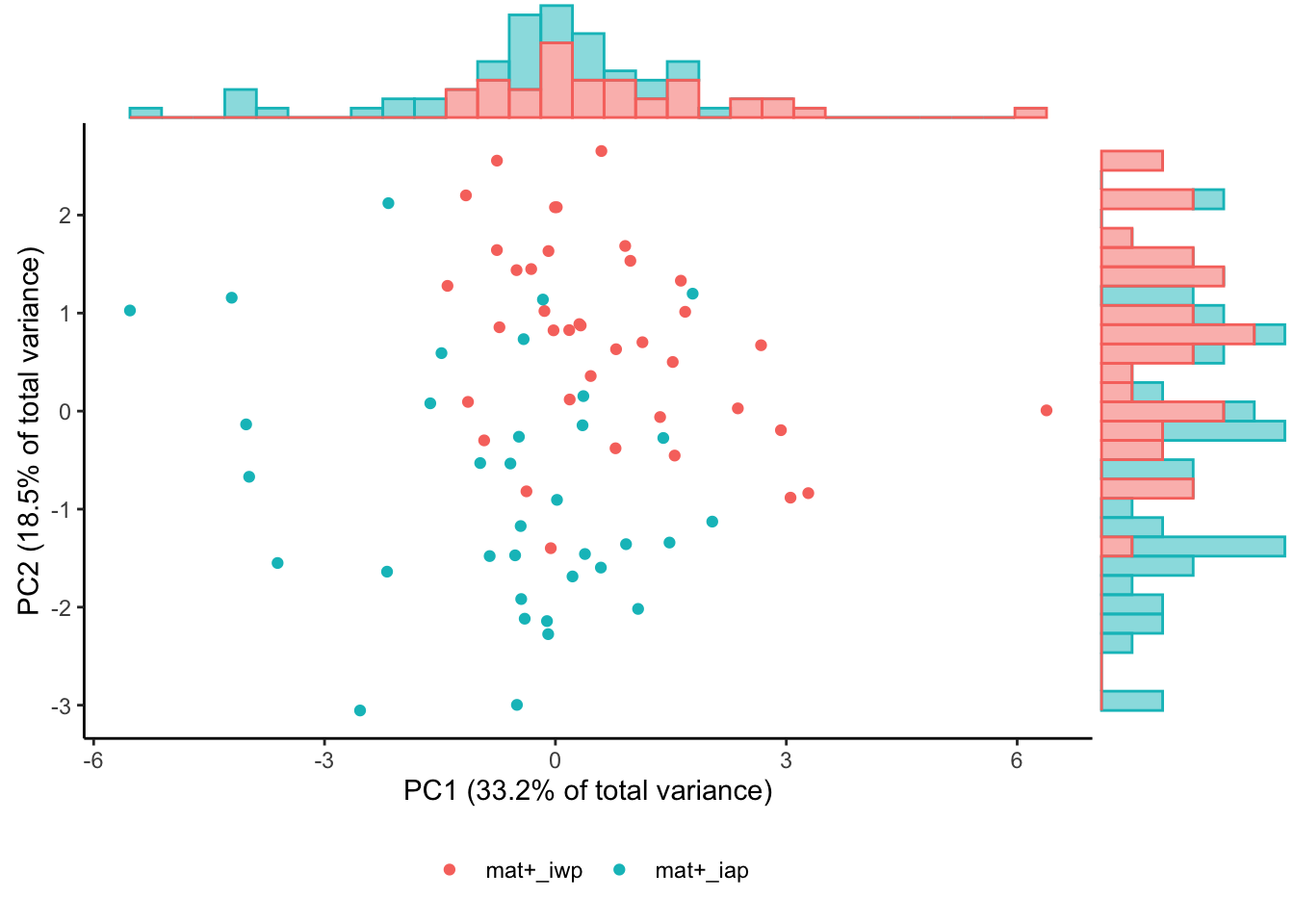

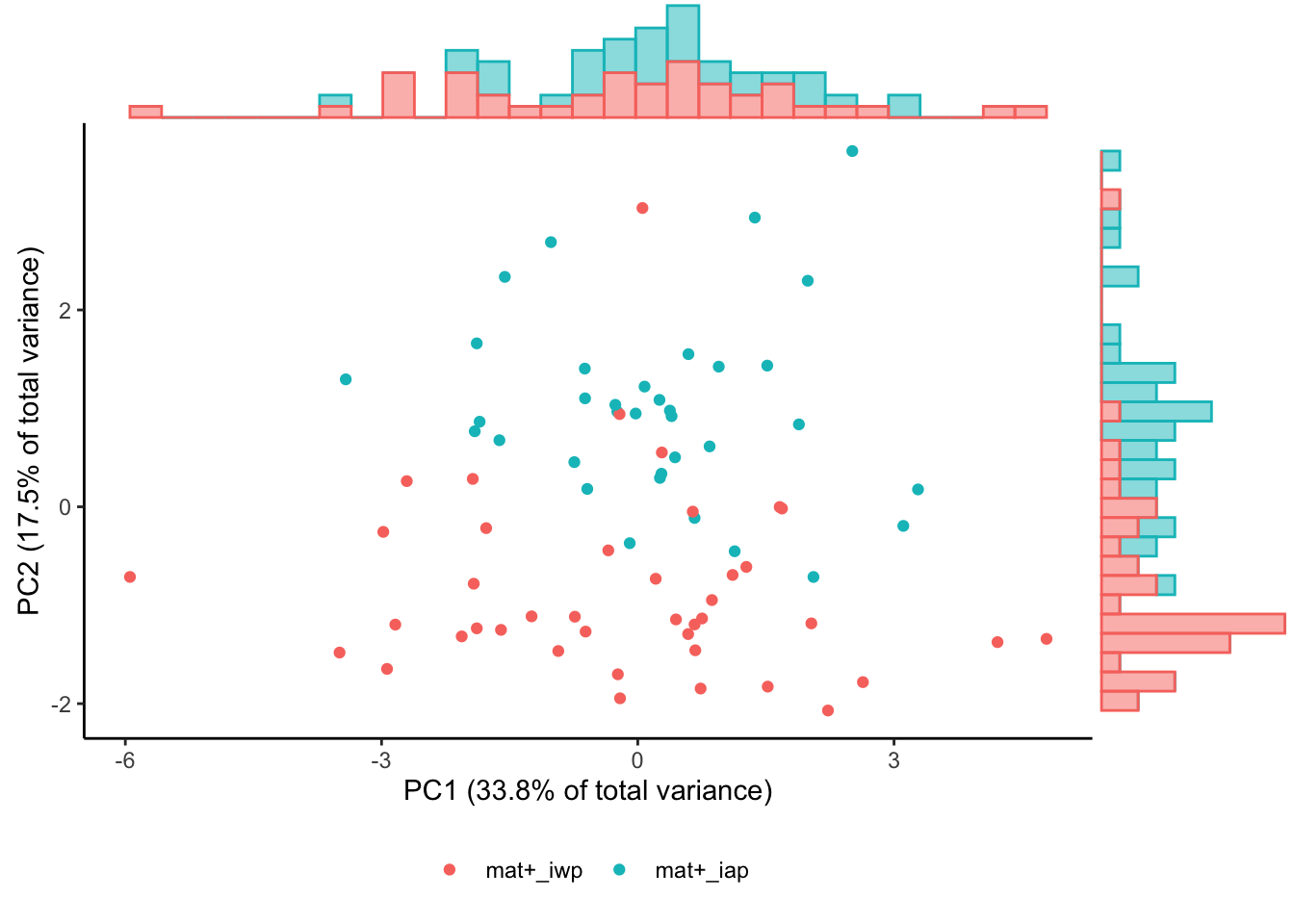

Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Infant AP vs. WP vaccinated FHA PC1: p=.34
Infant AP vs. WP vaccinated FHA PC2: p<.0001

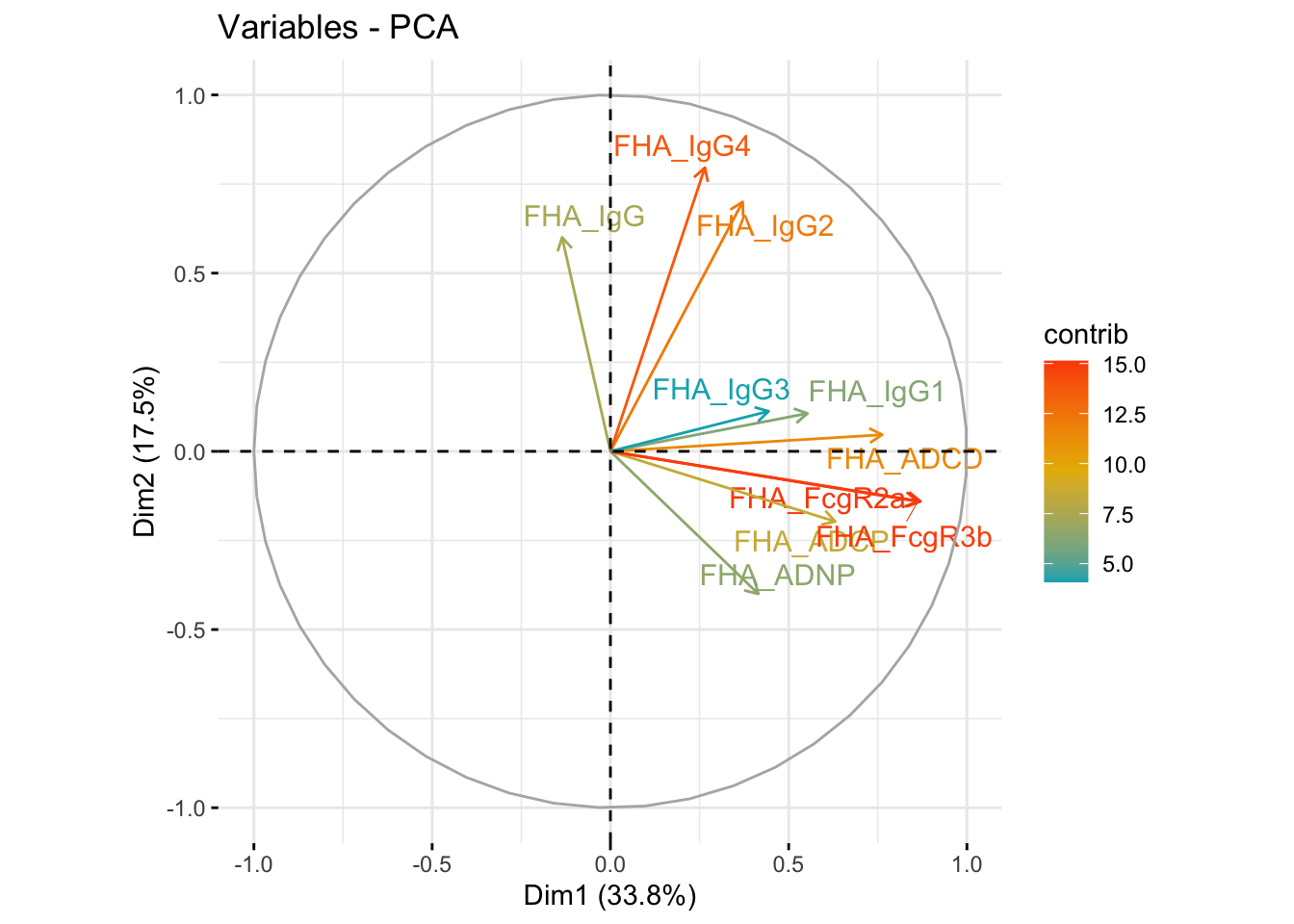

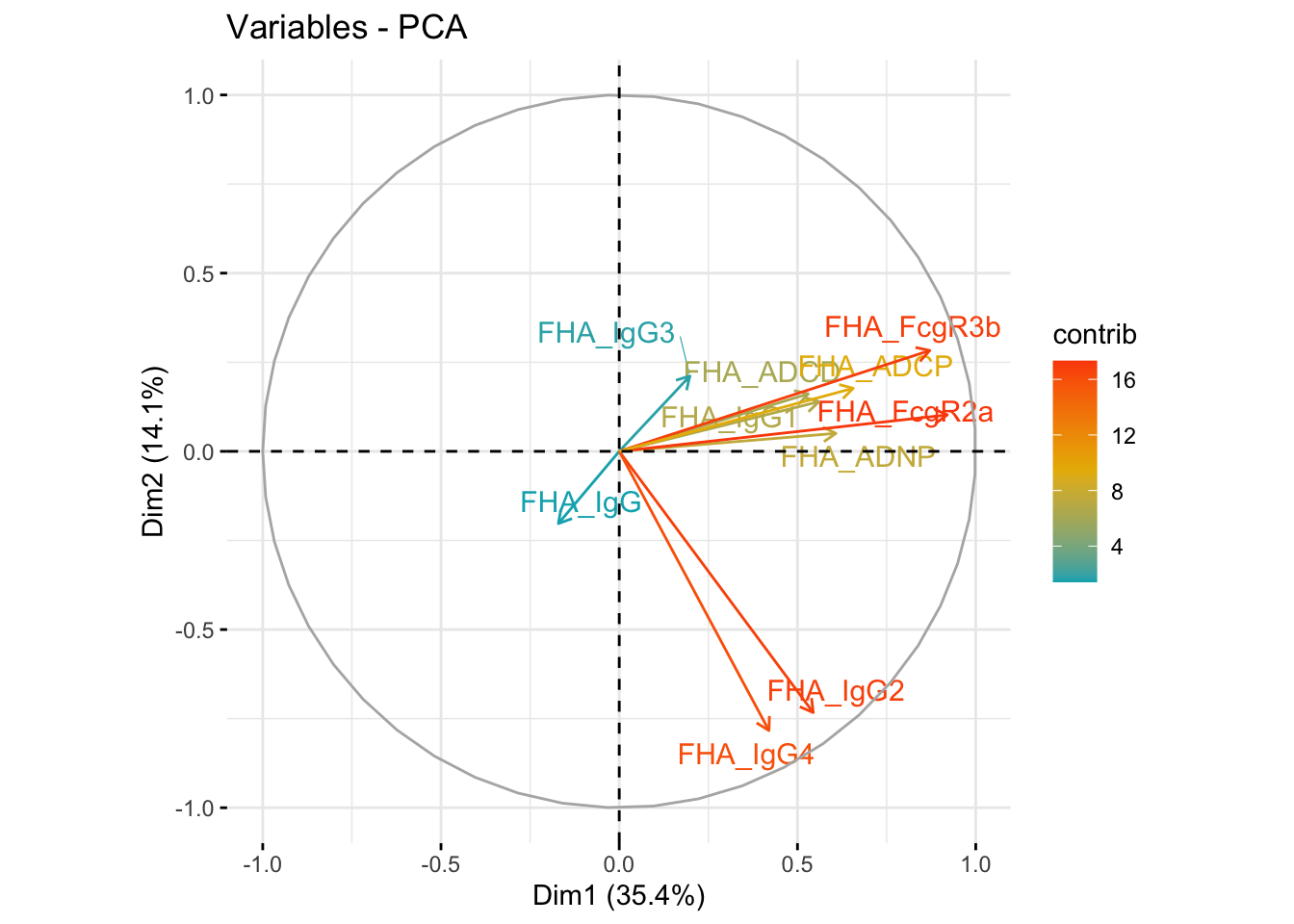

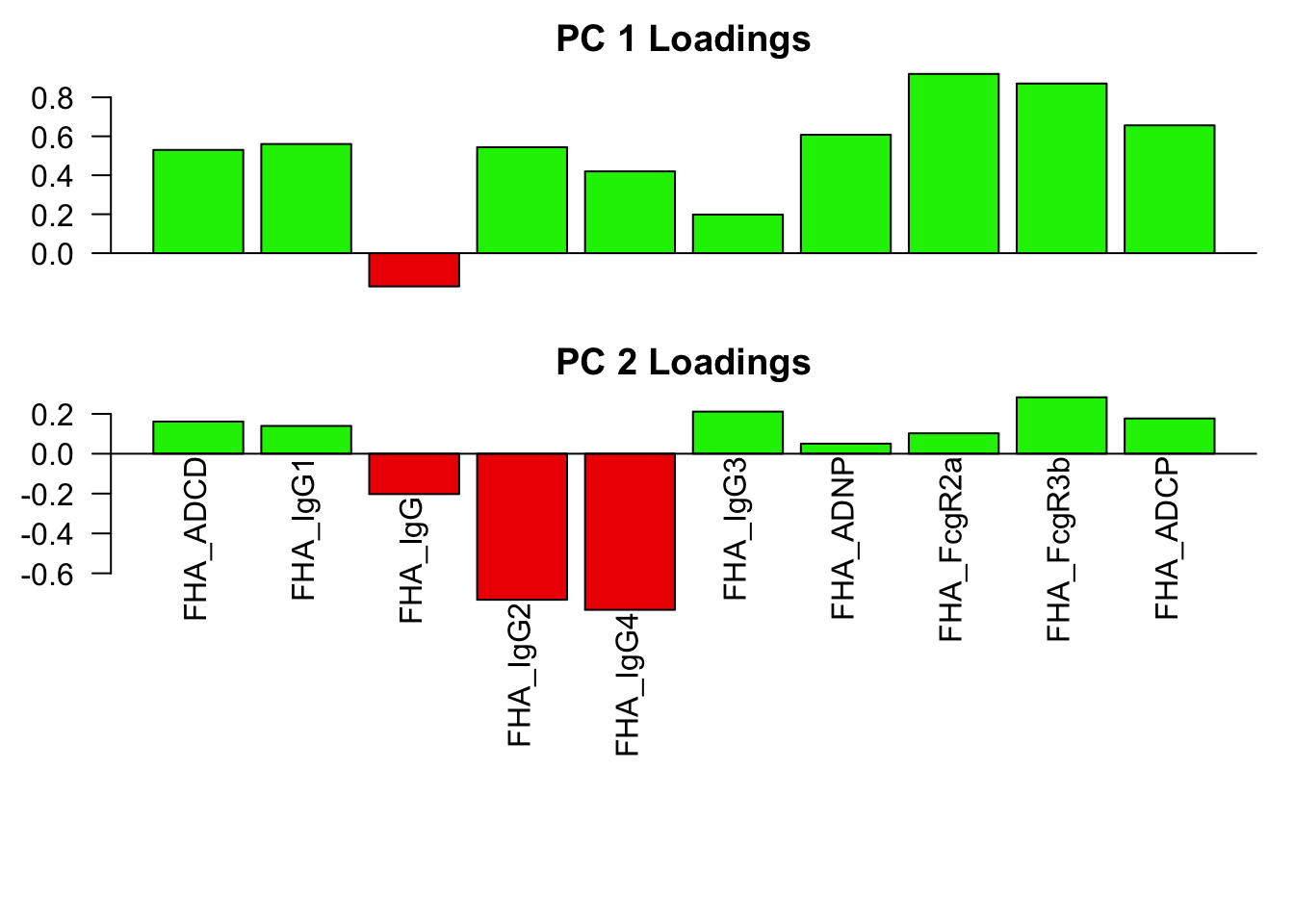

Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution
**Loadings
plot

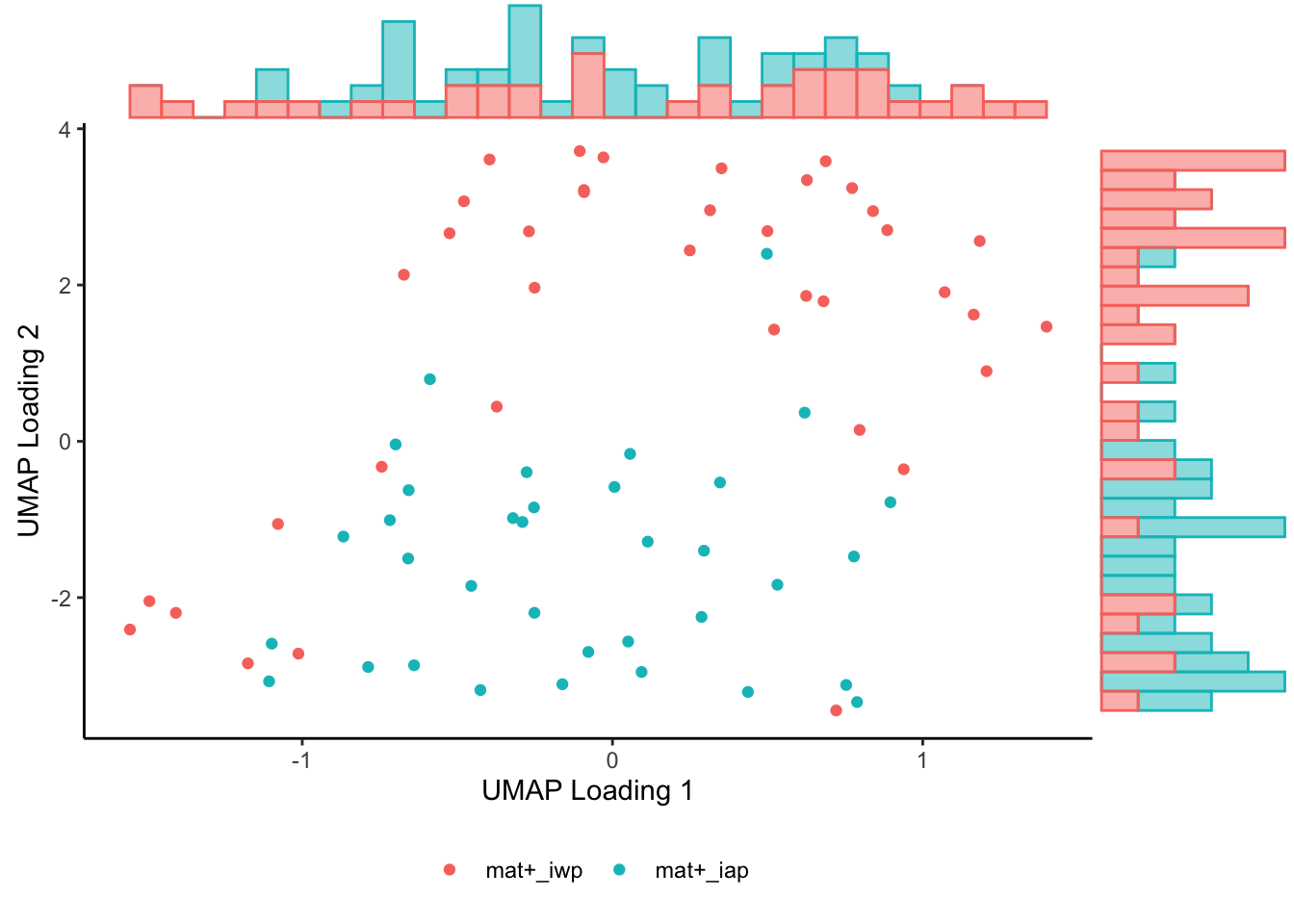

Plot of UMAP1 vs UMAP2 Loadings
Comparison of UMAP loadings by arm
Infant AP vs. WP vaccinated FHA UMAP1: p<.0001
Infant AP vs. WP vaccinated FHA UMAP2: p<.0001
Antigen: PRN
Features: PRN_ADCD, PRN_ADNP, PRN_ADCP, PRN_FcgR2a, PRN_FcgR3b, PRN_IgG, PRN_IgG1, PRN_IgG2, PRN_IgG4, PRN_IgG3

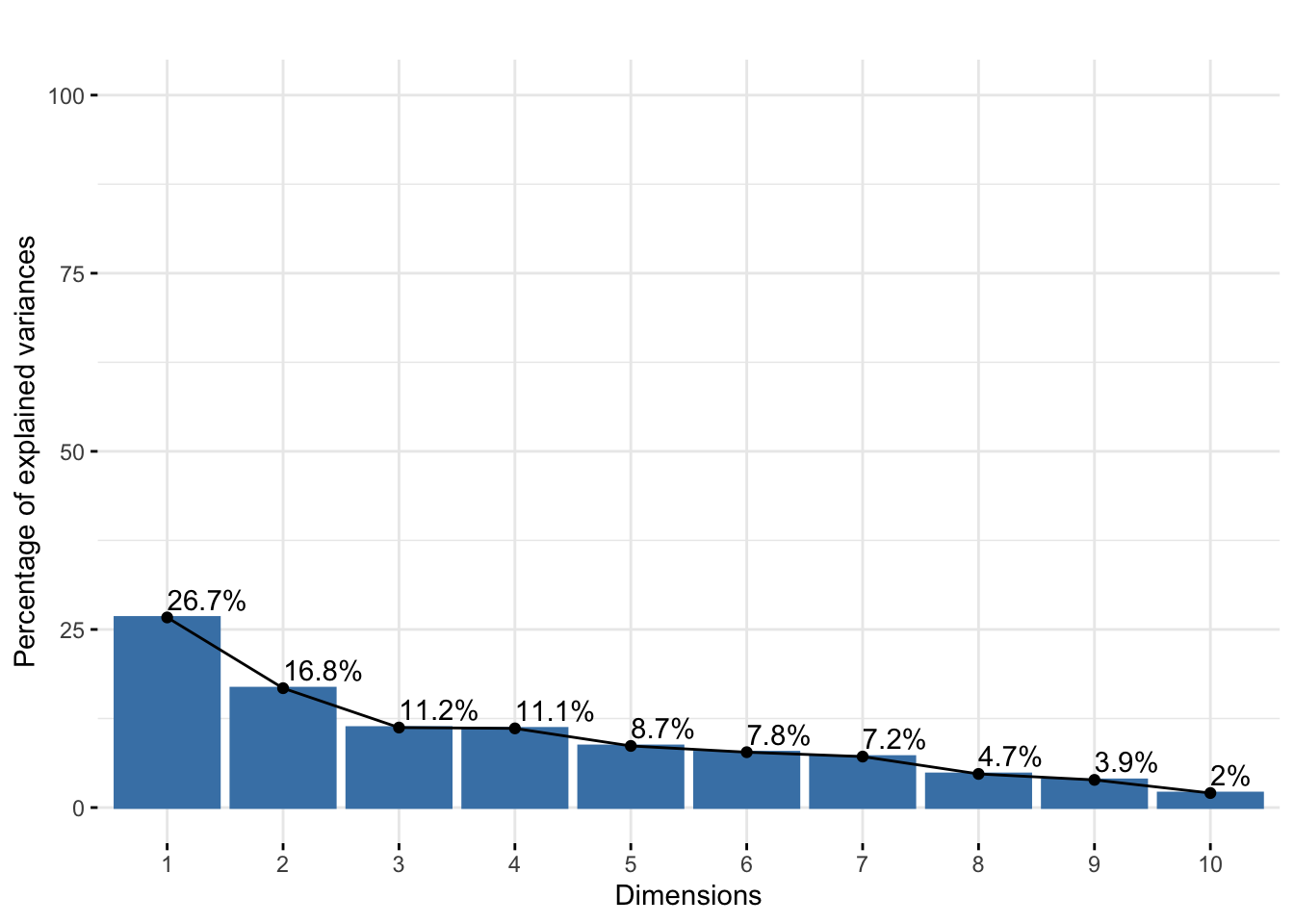

Proportion of Variance
Summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | |
|---|---|---|---|---|---|
| Standard deviation | 1.634 | 1.294 | 1.060 | 1.054 | 0.930 |
| Proportion of Variance | 0.267 | 0.168 | 0.112 | 0.111 | 0.087 |
| Cumulative Proportion | 0.267 | 0.434 | 0.547 | 0.658 | 0.744 |

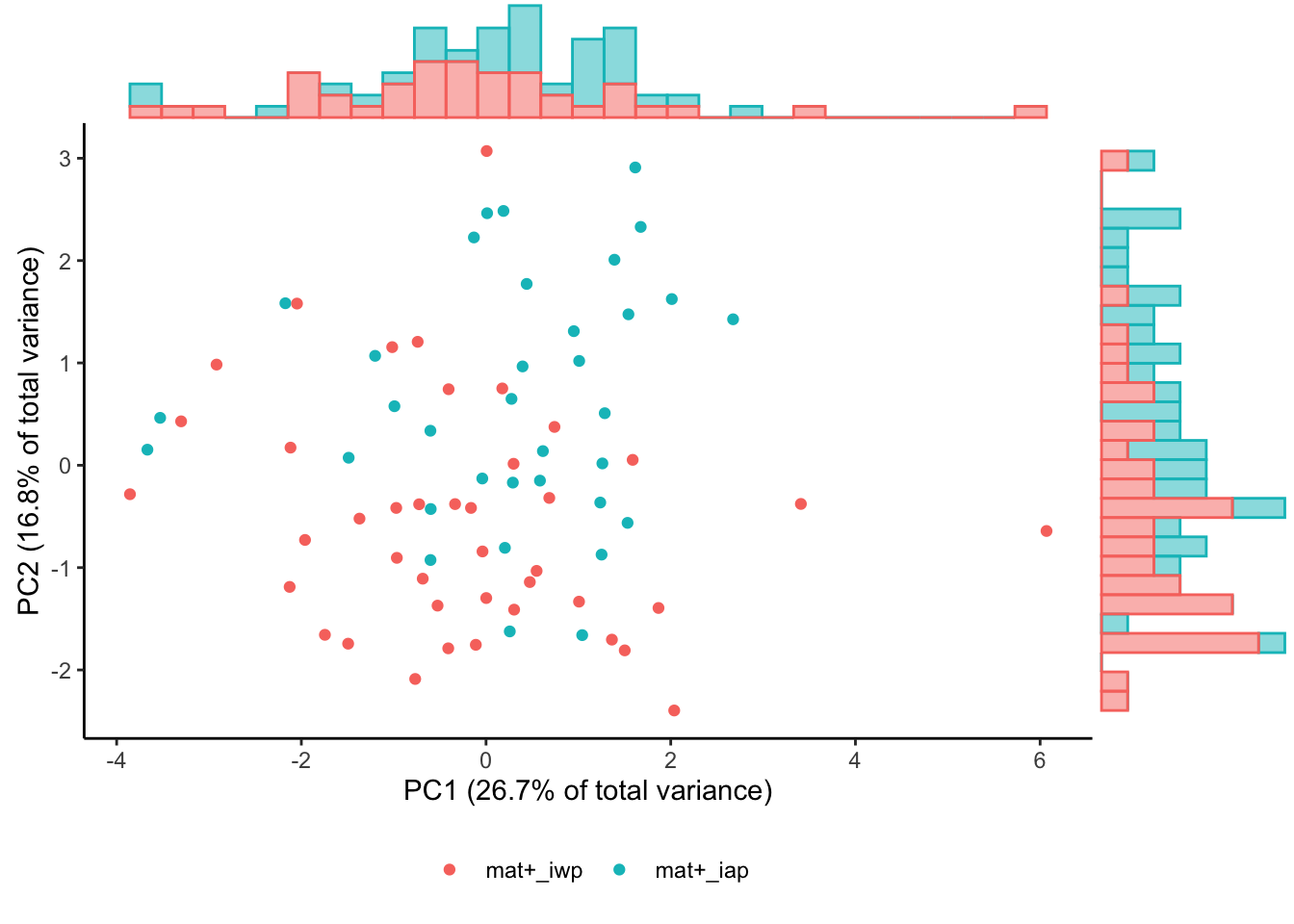

Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Infant AP vs. WP vaccinated PRN PC1: p=.21
Infant AP vs. WP vaccinated PRN PC2: p<.0001

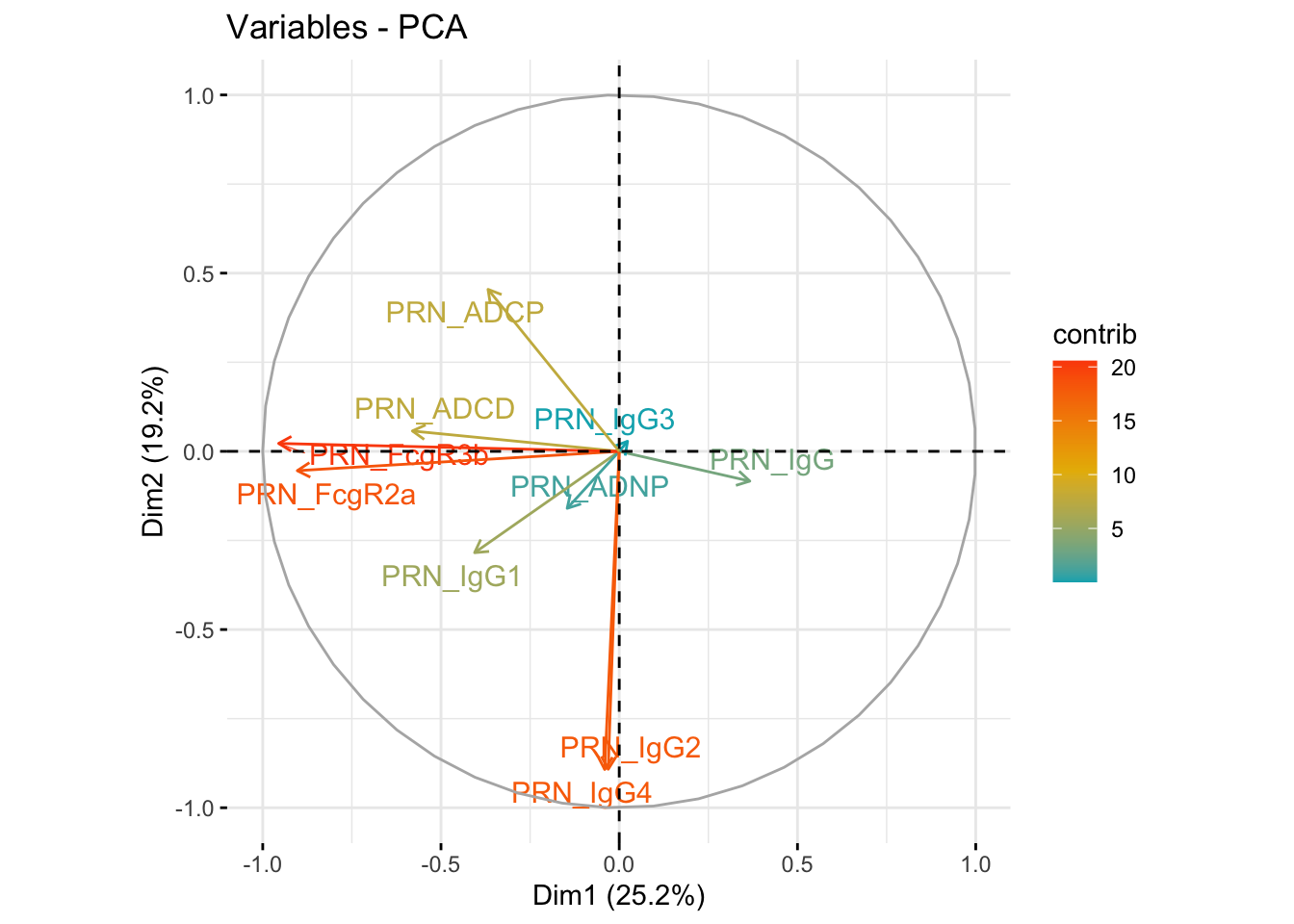

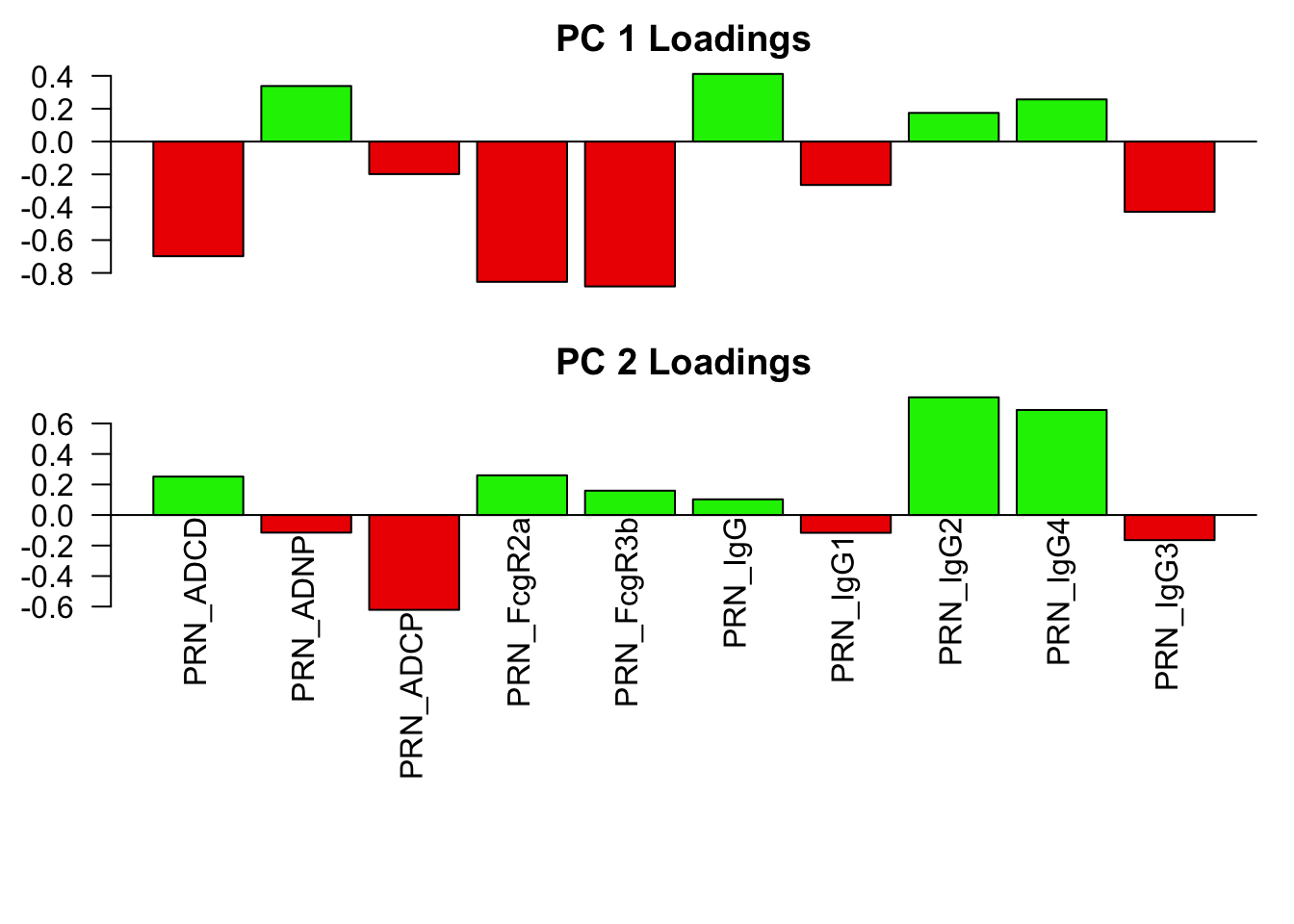

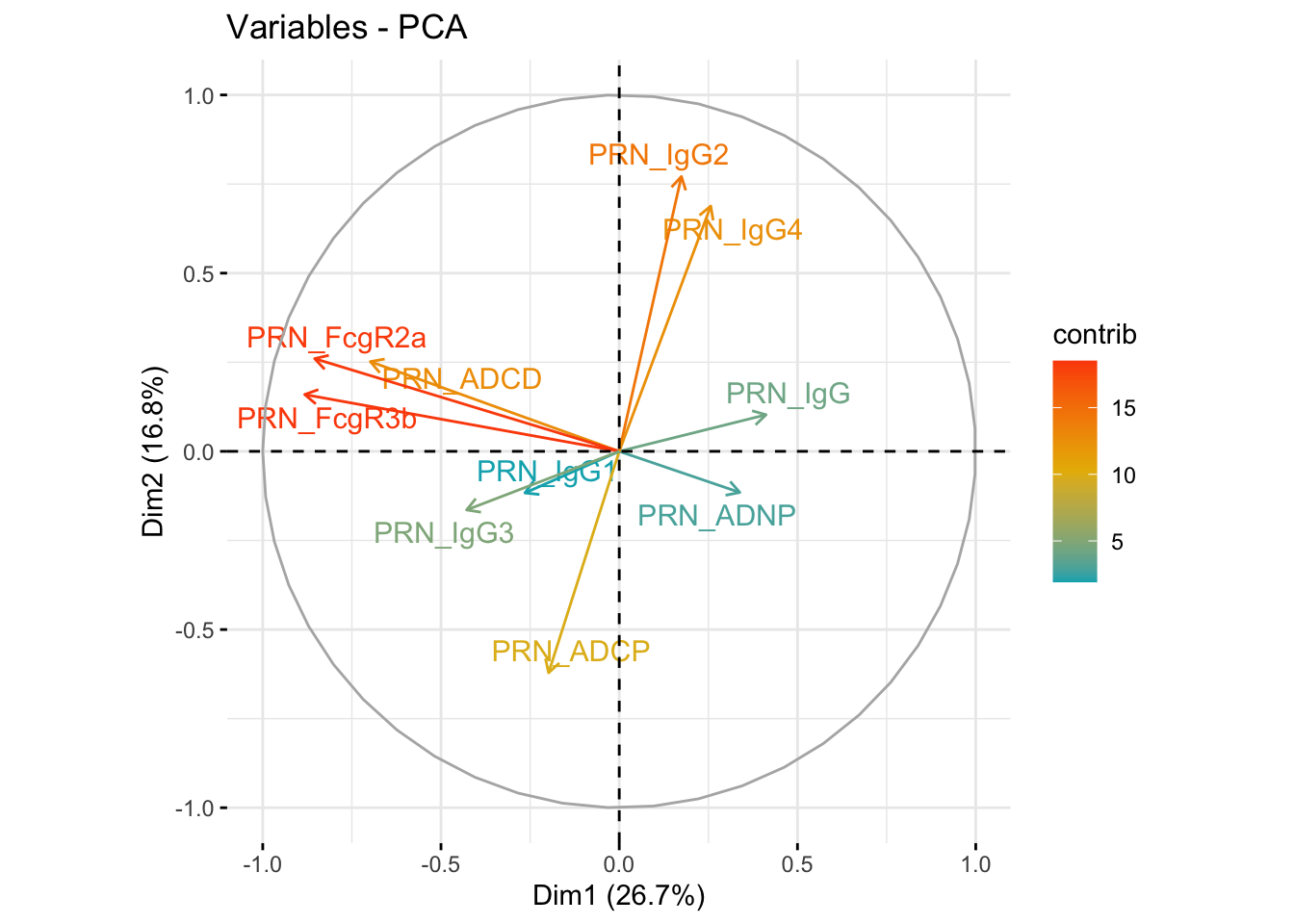

Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution

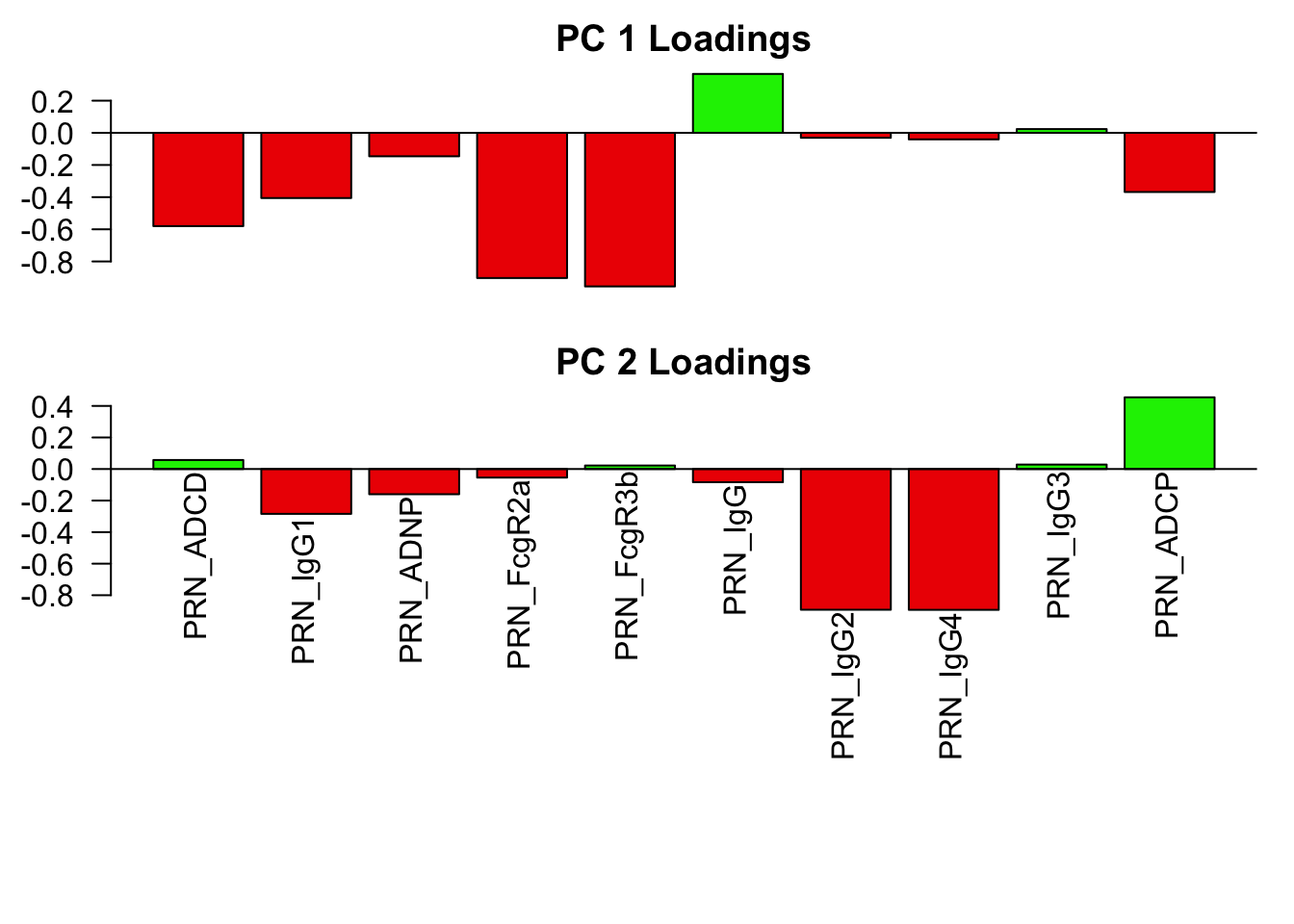

**Loadings
plot

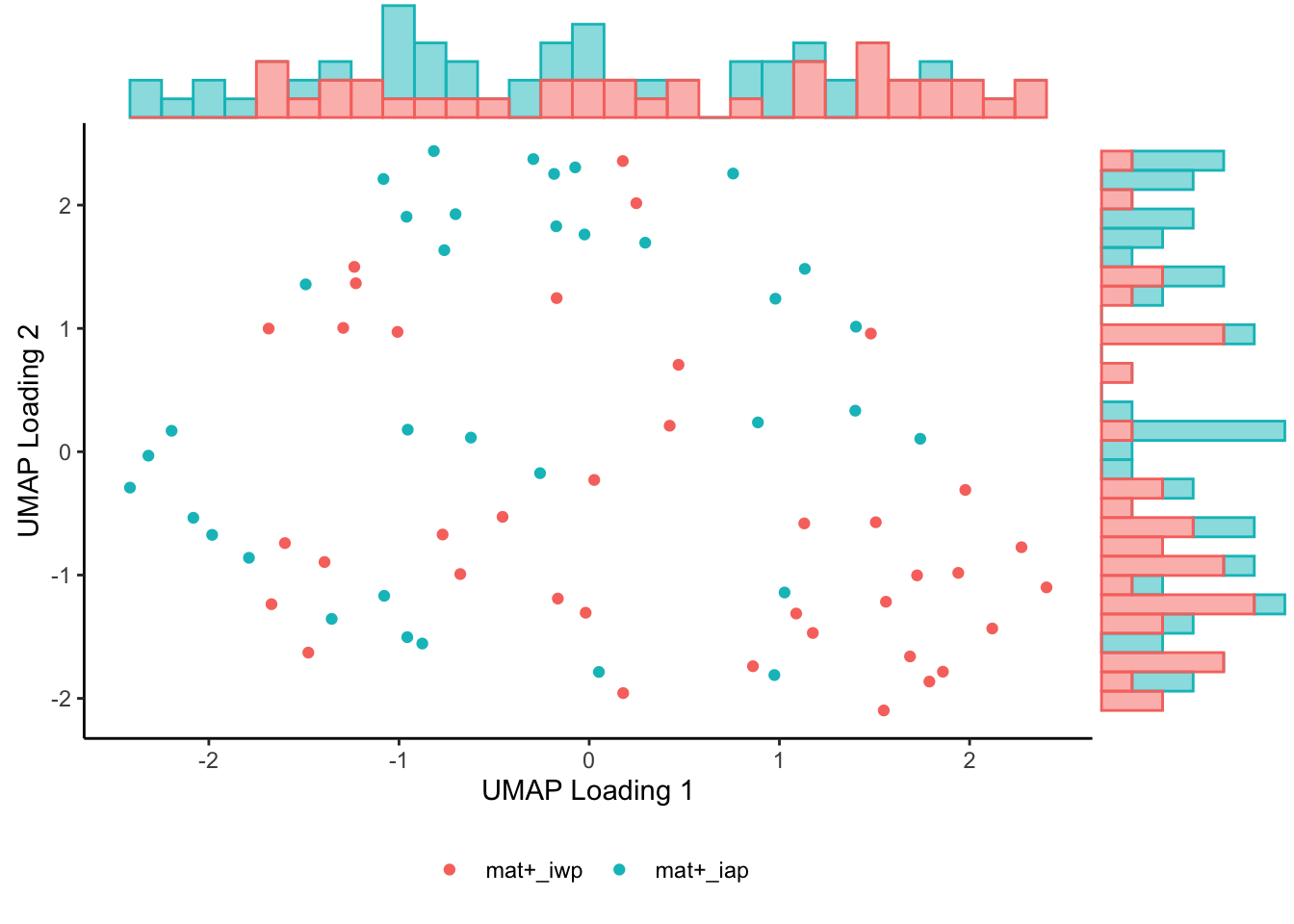

Plot of UMAP1 vs UMAP2 Loadings
Comparison of UMAP loadings by arm
Infant AP vs. WP vaccinated PRN UMAP1: p<.0001
Infant AP vs. WP vaccinated PRN UMAP2: p=.0023
Antigen: DT
Features: DT_ADCD, DT_FcgR2a, DT_FcgR3b, DT_ADCP, DT_ADNP, DT_IgG, DT_IgG1, DT_IgG2, DT_IgG4, DT_IgG3

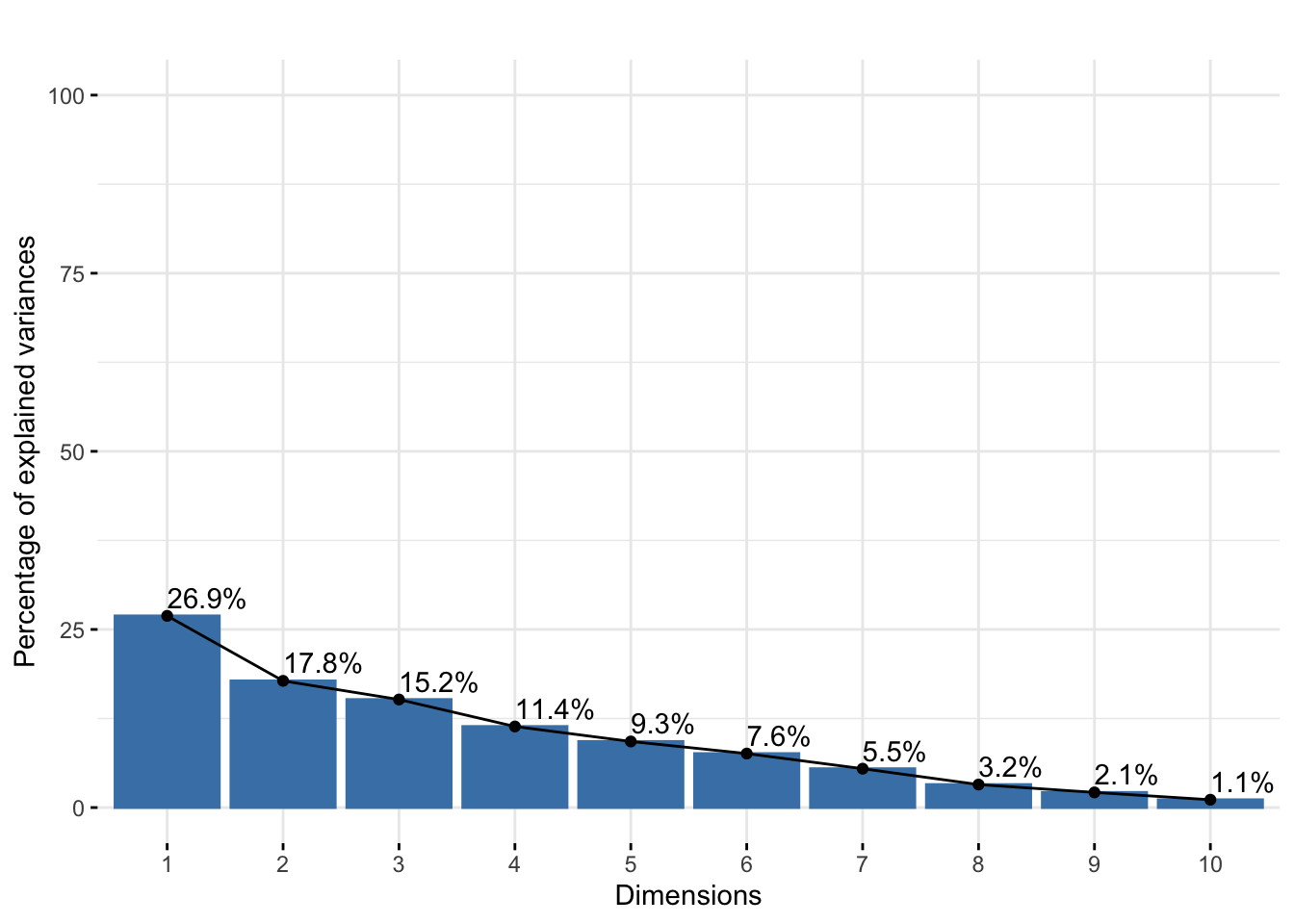

Proportion of Variance
Summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | |
|---|---|---|---|---|---|
| Standard deviation | 1.640 | 1.334 | 1.231 | 1.067 | 0.963 |
| Proportion of Variance | 0.269 | 0.178 | 0.152 | 0.114 | 0.093 |
| Cumulative Proportion | 0.269 | 0.447 | 0.599 | 0.712 | 0.805 |
Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Infant AP vs. WP vaccinated DT PC1: p=.15
Infant AP vs. WP vaccinated DT PC2: p<.0001

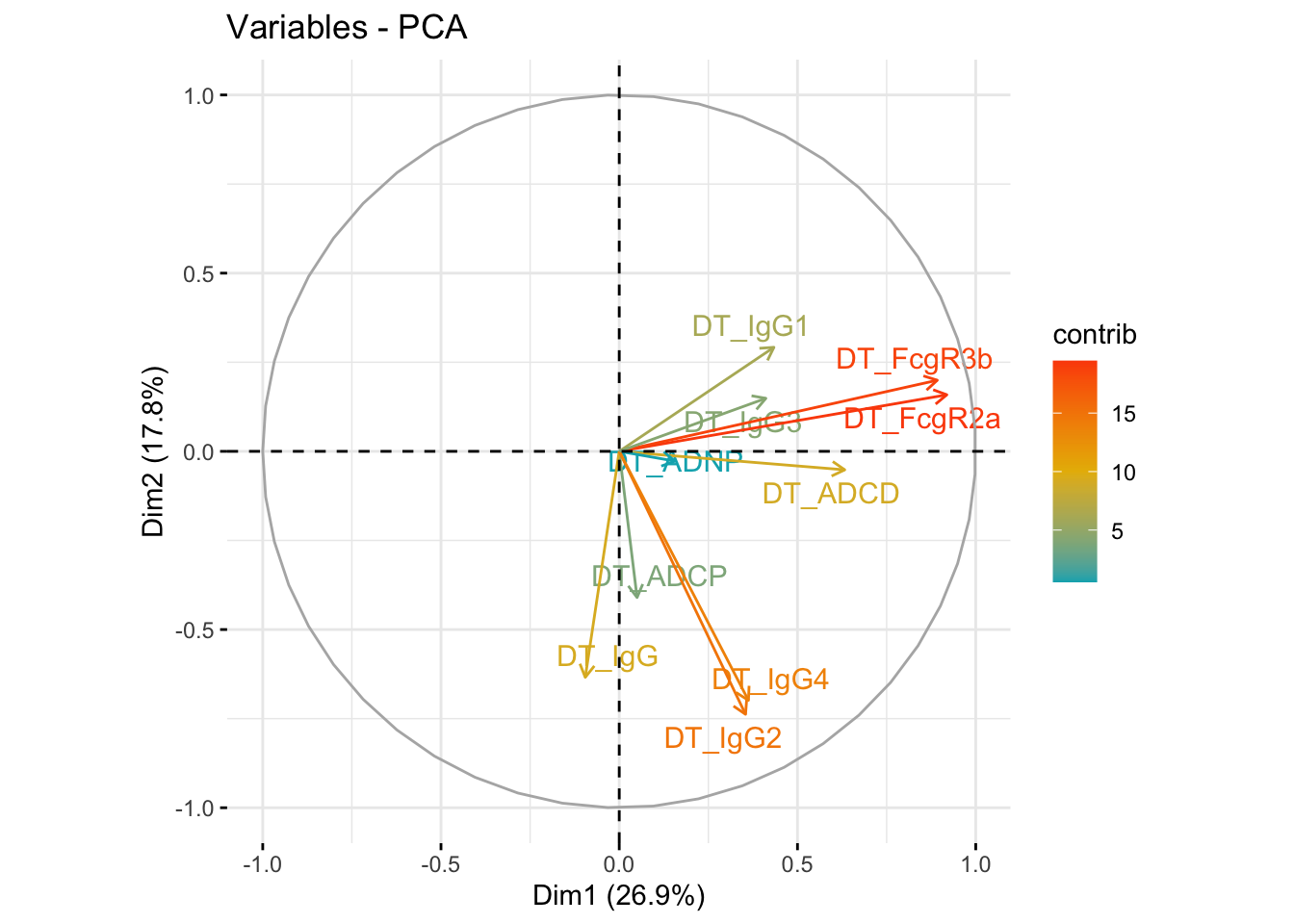

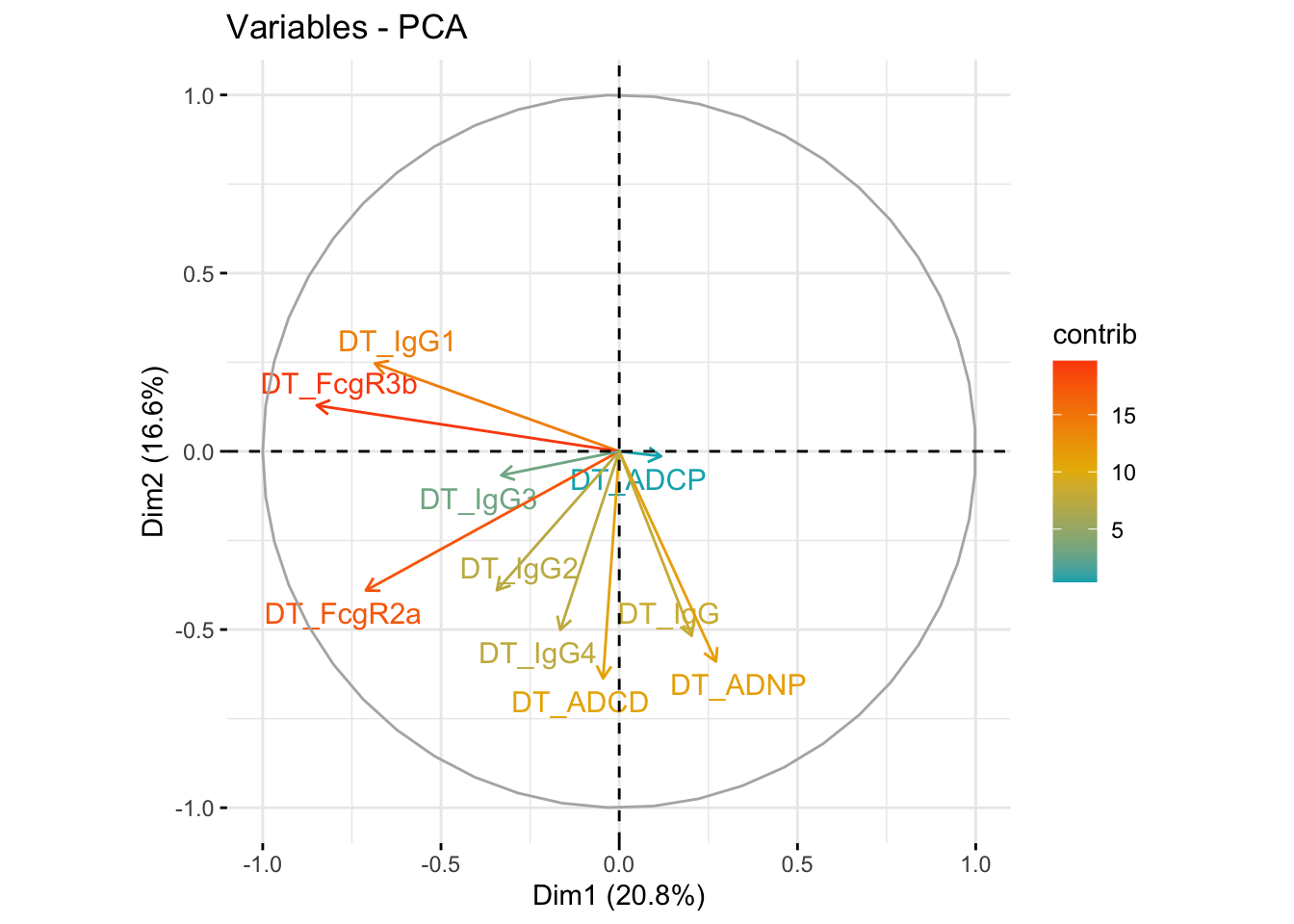

Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution
**Loadings
plot
Plot of UMAP1 vs UMAP2 Loadings
Comparison of UMAP loadings by arm
Infant AP vs. WP vaccinated DT UMAP1: p<.0001
Infant AP vs. WP vaccinated DT UMAP2: p<.0001
Antigen: TT
Features: TT_ADCD, TT_ADCP, TT_ADNP, TT_FcgR2a, TT_FcgR3b, TT_IgG, TT_IgG1, TT_IgG2, TT_IgG4, TT_IgG3
Proportion of Variance
Summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | |
|---|---|---|---|---|---|
| Standard deviation | 1.986 | 1.290 | 0.969 | 0.957 | 0.866 |
| Proportion of Variance | 0.395 | 0.166 | 0.094 | 0.092 | 0.075 |
| Cumulative Proportion | 0.395 | 0.561 | 0.655 | 0.747 | 0.822 |
Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Infant AP vs. WP vaccinated TT PC1: p=.041
Infant AP vs. WP vaccinated TT PC2: p<.0001

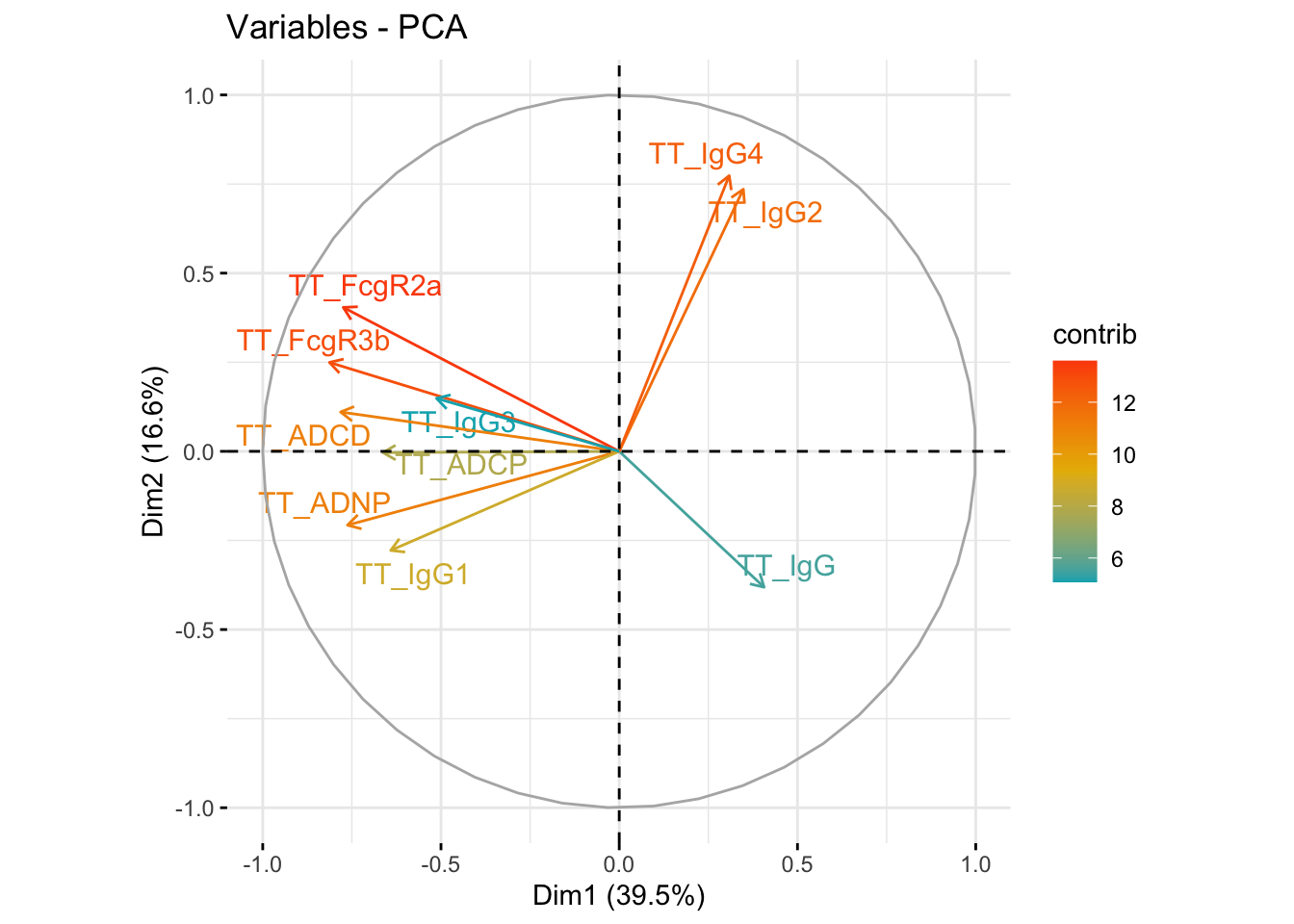

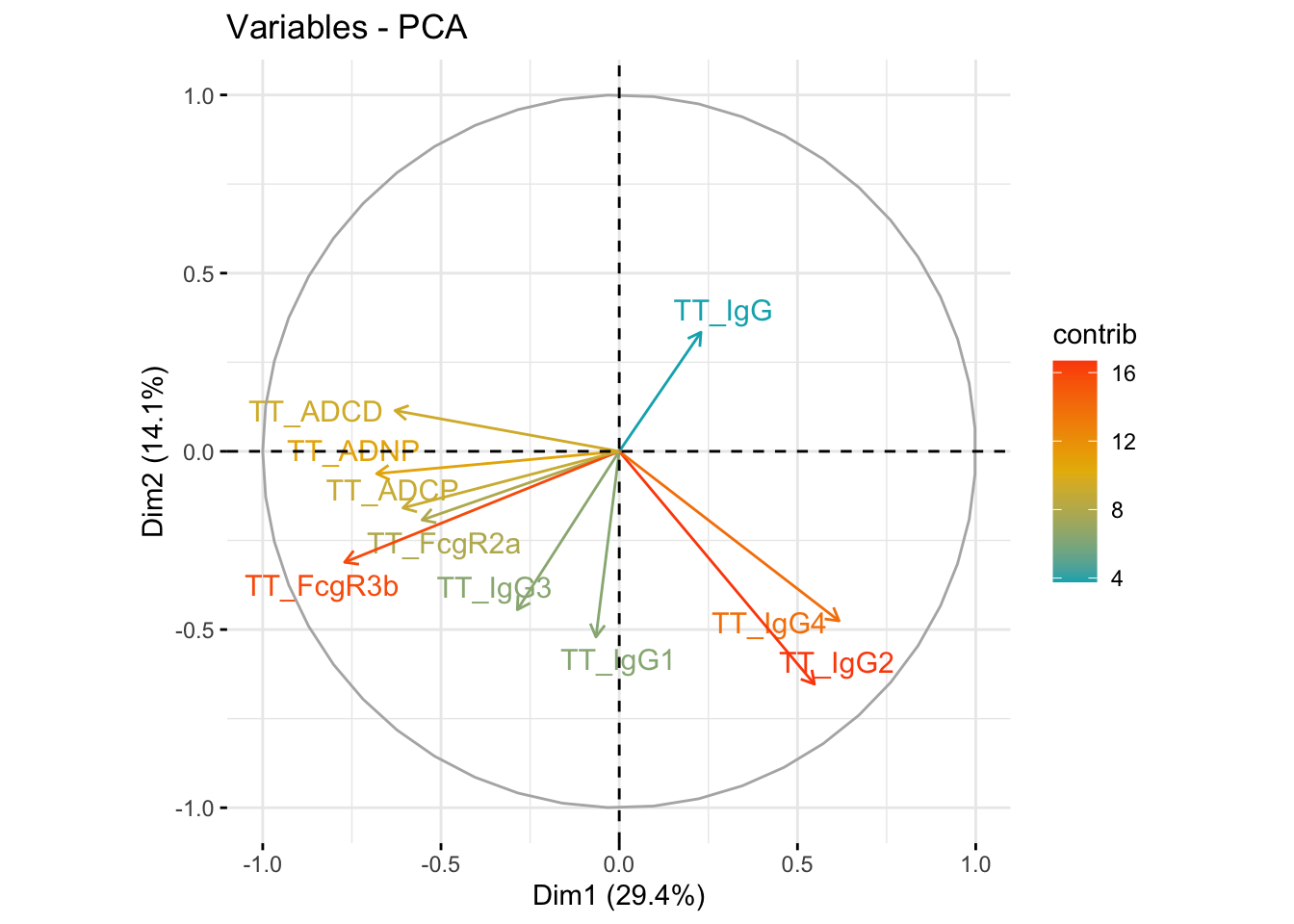

Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution

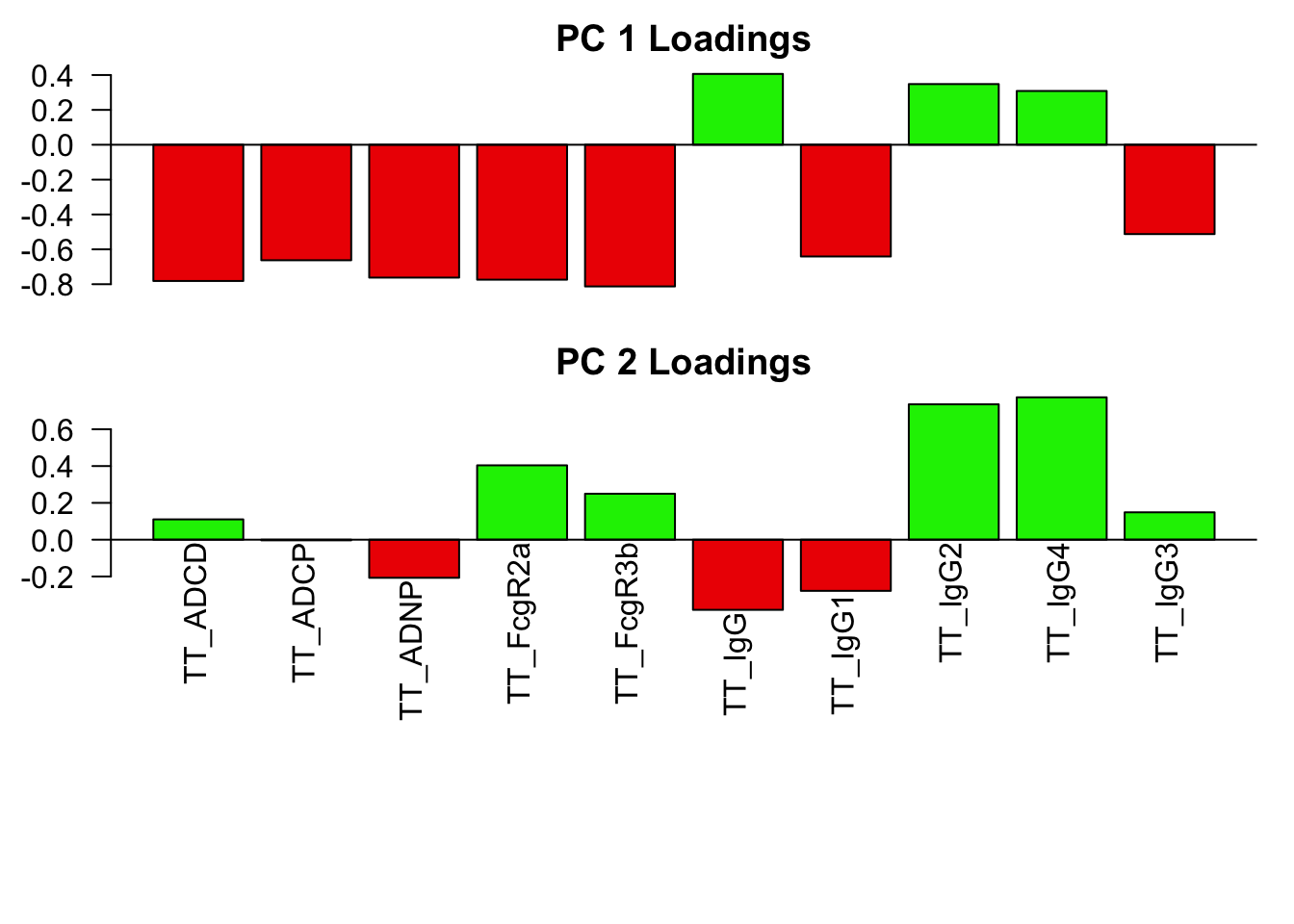

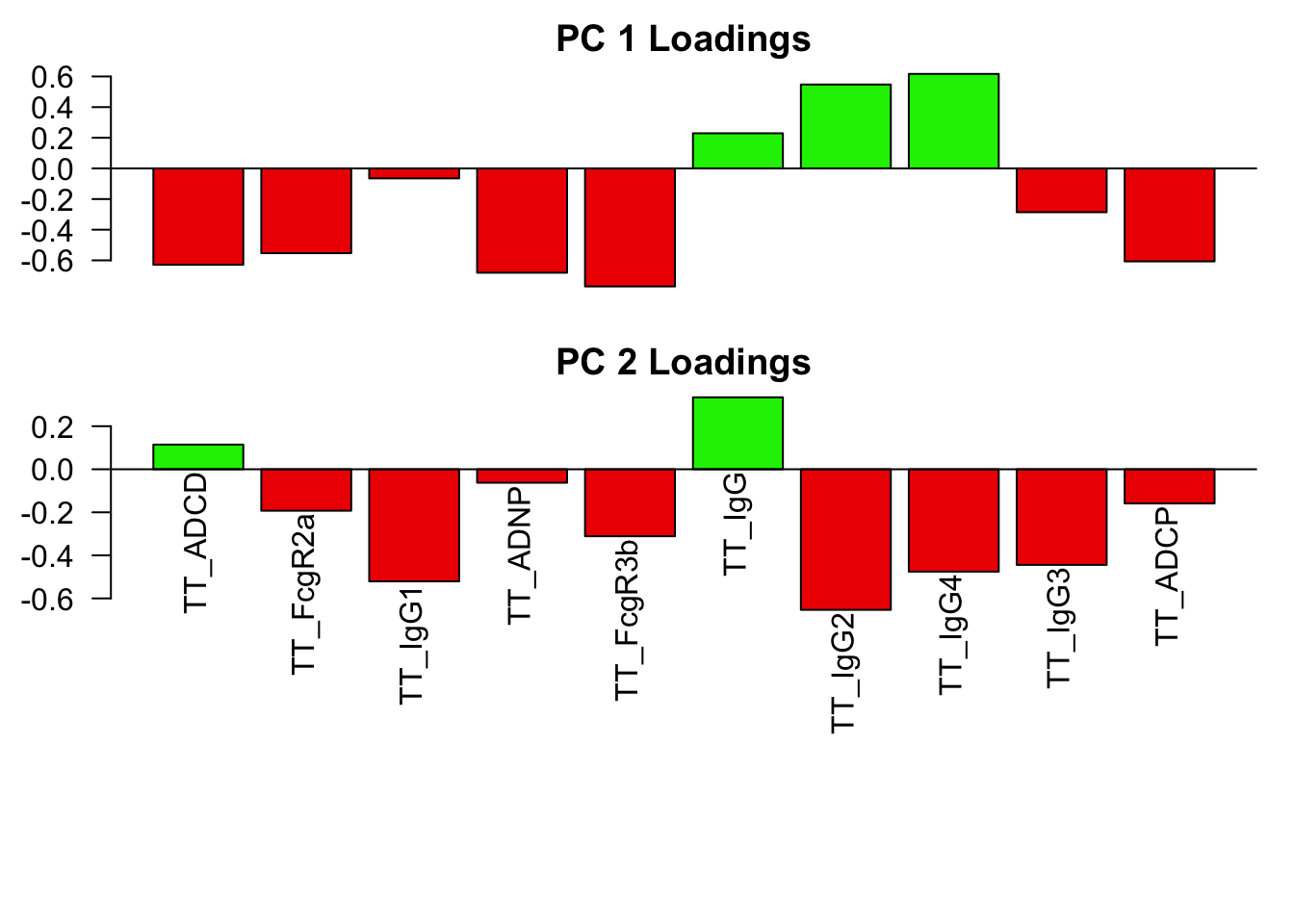

**Loadings
plot
Plot of UMAP1 vs UMAP2 Loadings
Comparison of UMAP loadings by arm
Infant AP vs. WP vaccinated TT UMAP1: p=.003
Infant AP vs. WP vaccinated TT UMAP2: p<.0001
Feature Cluster: IgG2 / IgG4
Features: DT_IgG2, DT_IgG4, FHA_IgG2, FHA_IgG4, PRN_IgG2, PRN_IgG4, PT_IgG2, PT_IgG4, TT_IgG2, TT_IgG4

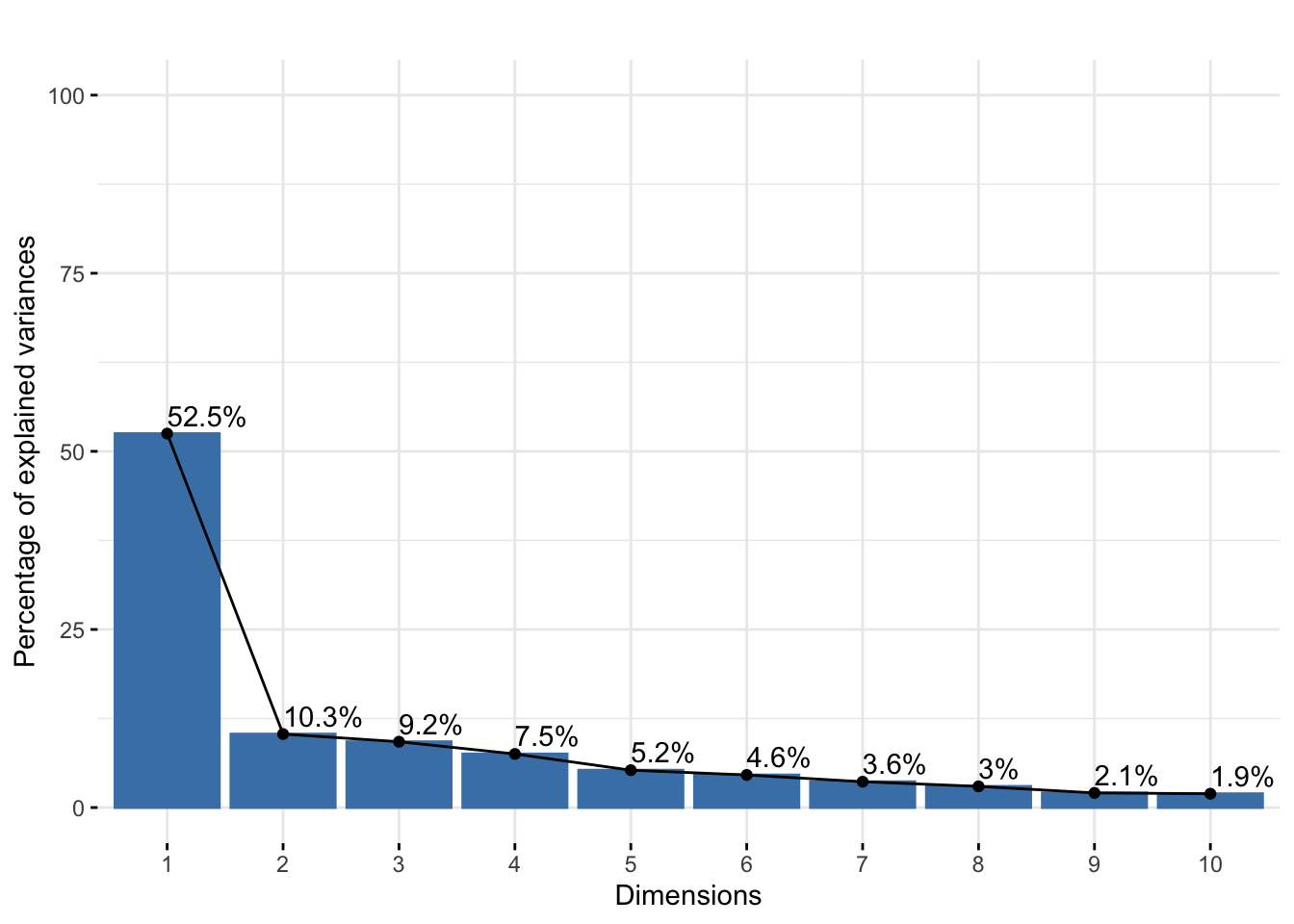

Proportion of Variance
summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | PC6 | PC7 | PC8 | PC9 | PC10 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Standard deviation | 2.291 | 1.016 | 0.961 | 0.868 | 0.724 | 0.677 | 0.602 | 0.545 | 0.453 | 0.441 |
| Proportion of Variance | 0.525 | 0.103 | 0.092 | 0.075 | 0.052 | 0.046 | 0.036 | 0.030 | 0.021 | 0.019 |
| Cumulative Proportion | 0.525 | 0.628 | 0.721 | 0.796 | 0.848 | 0.894 | 0.930 | 0.960 | 0.981 | 1.000 |

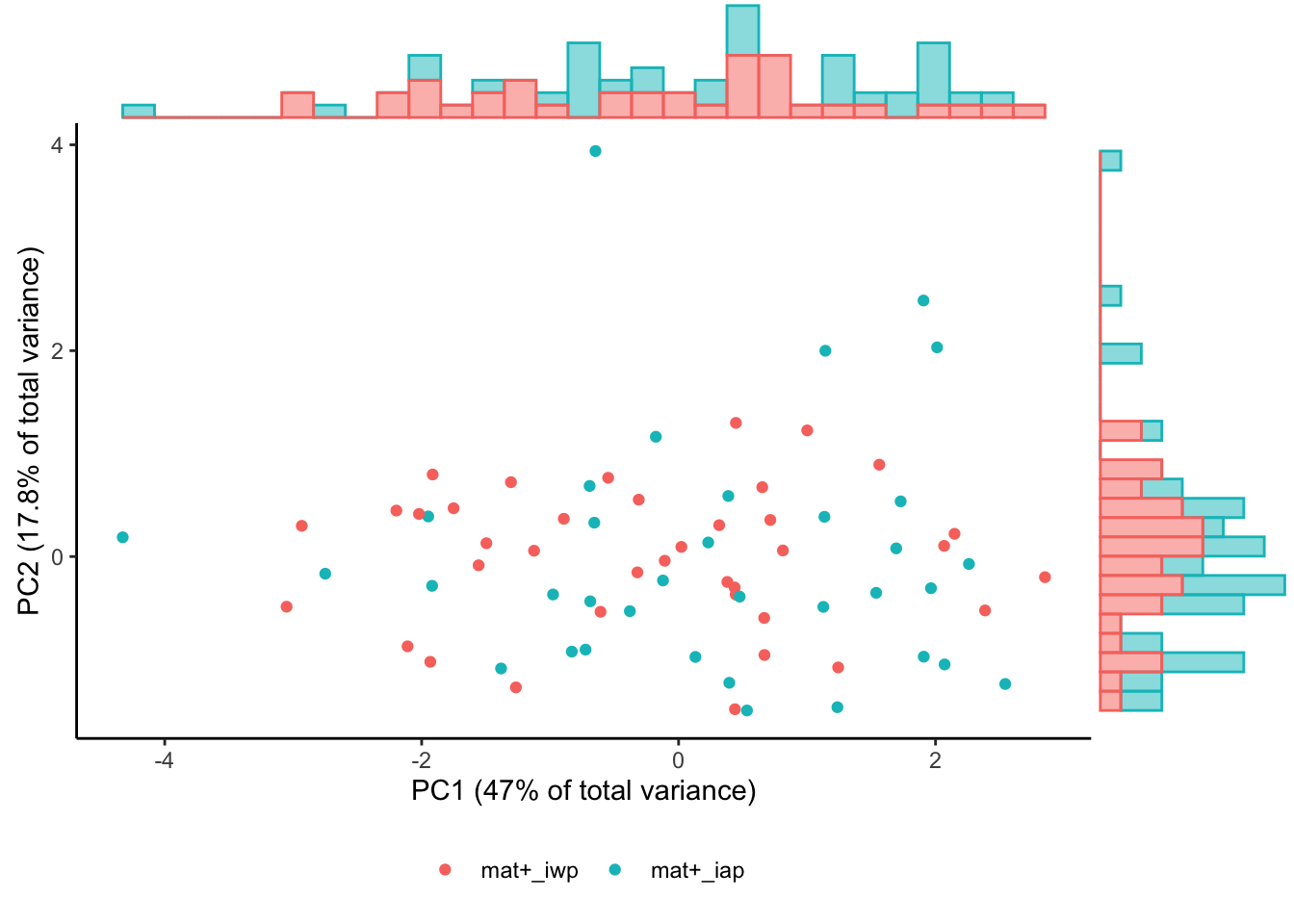

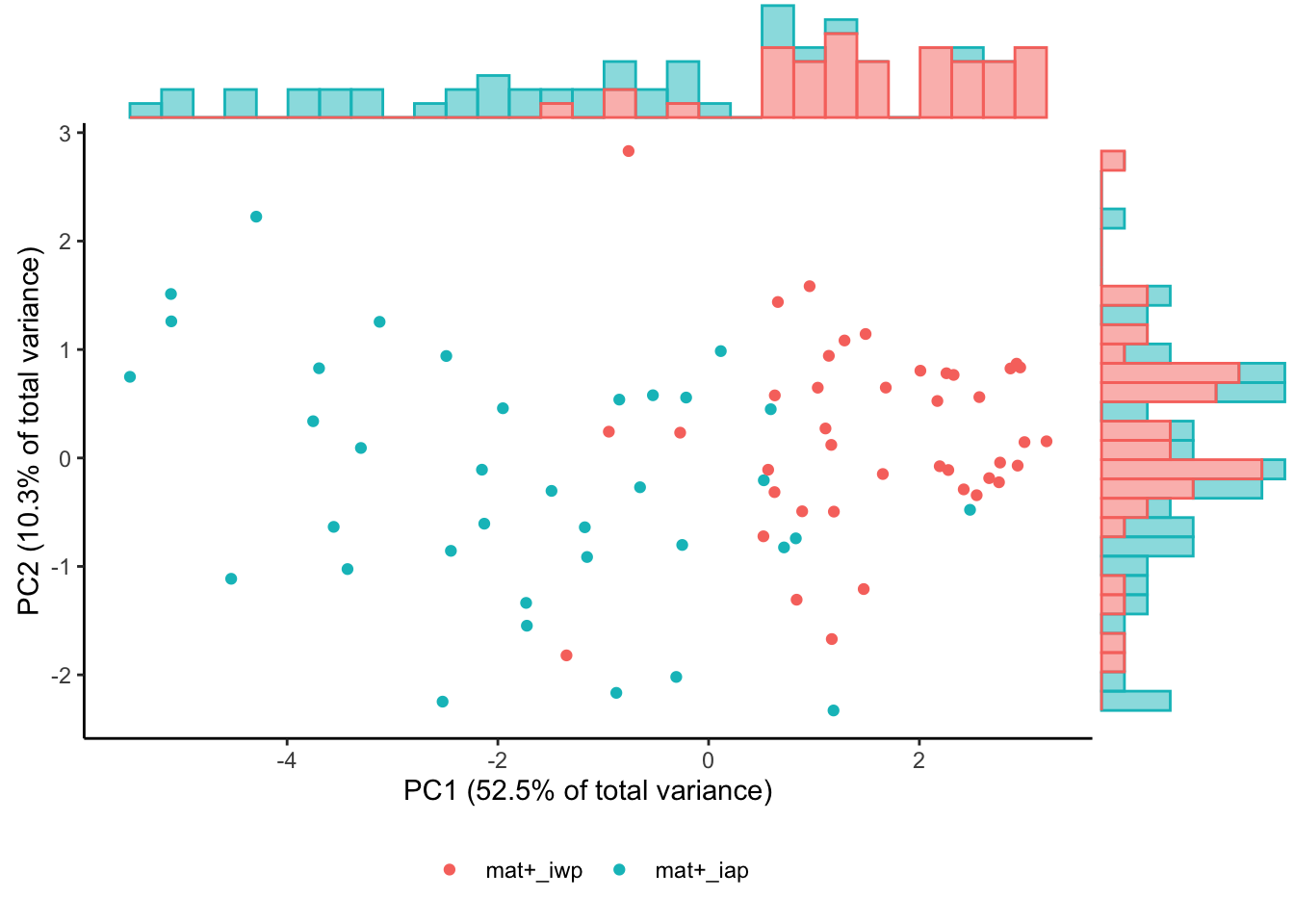

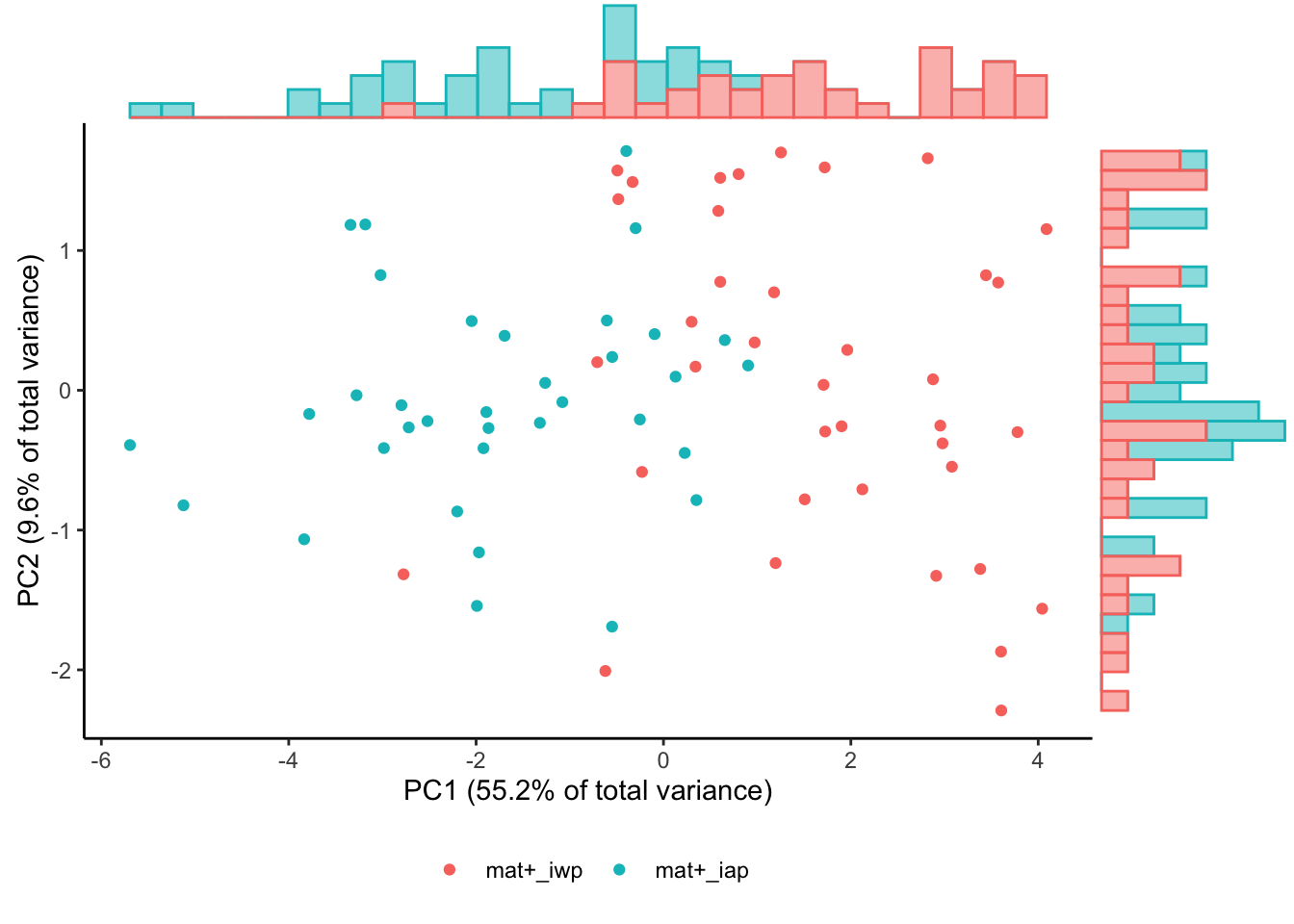

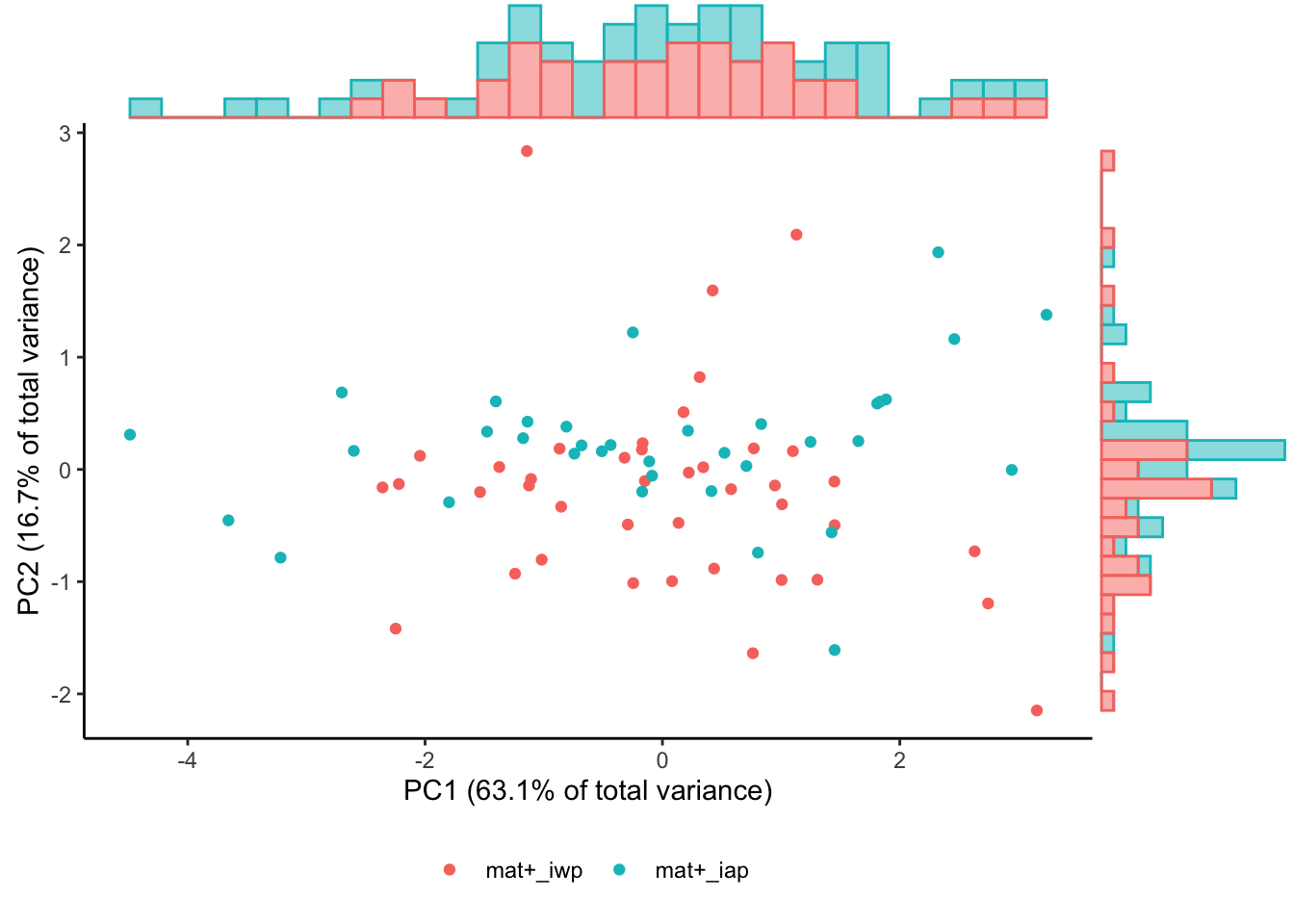

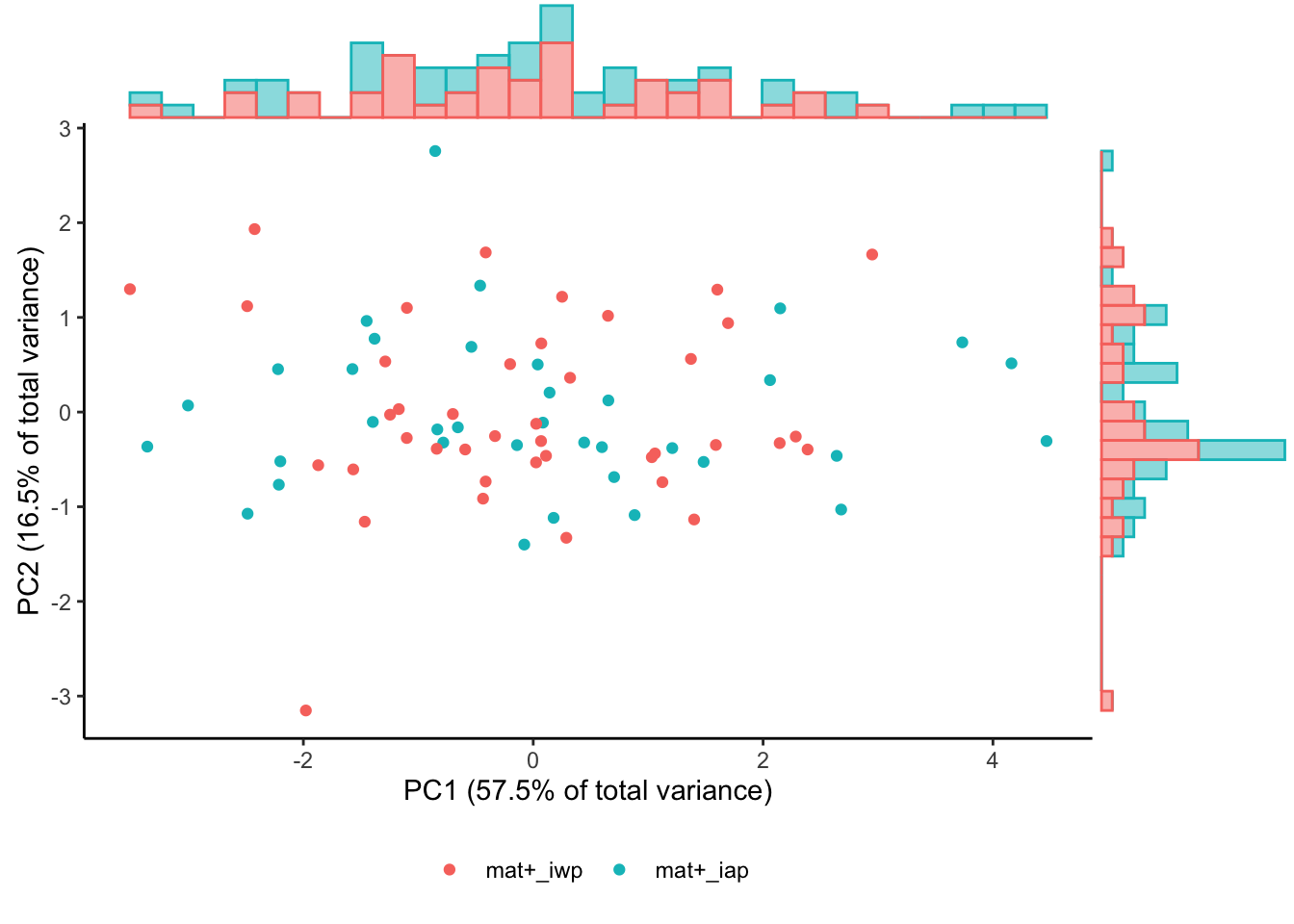

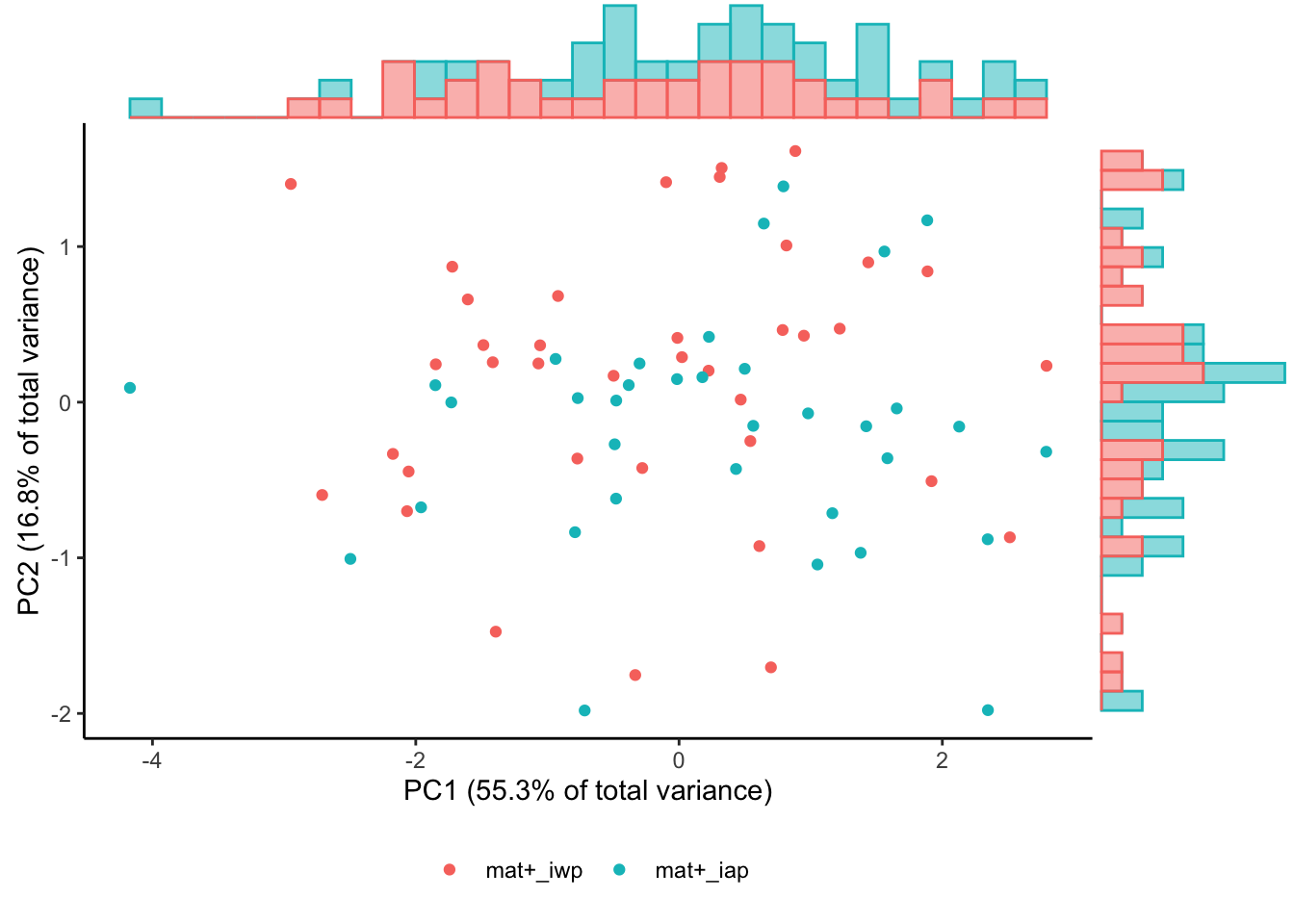

Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Infant AP vs. WP vaccinated Feature Cluster IgG2 / IgG4 PC1:
p<.0001
Infant AP vs. WP vaccinated Feature Cluster IgG2 / IgG4 PC2: p=.063

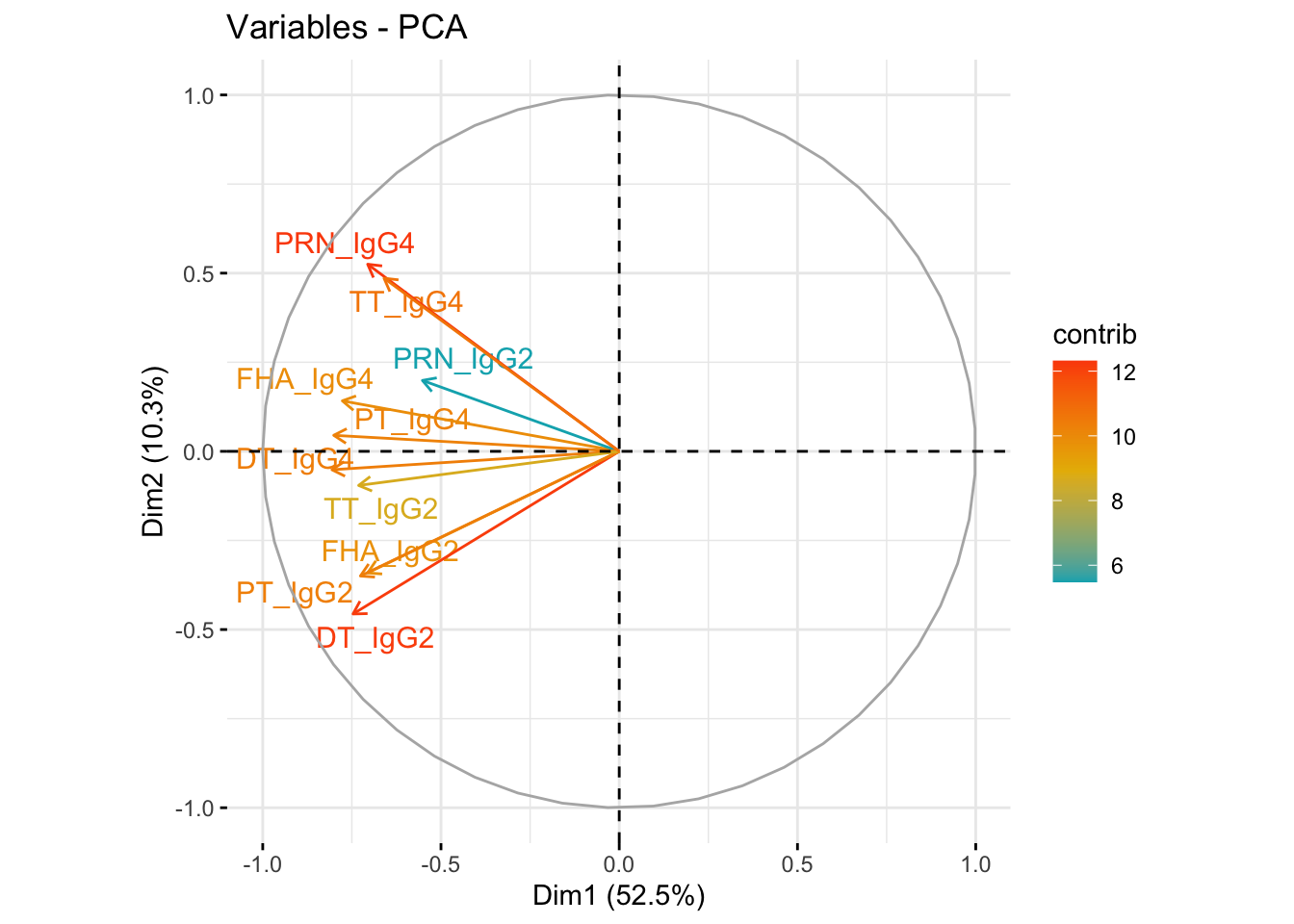

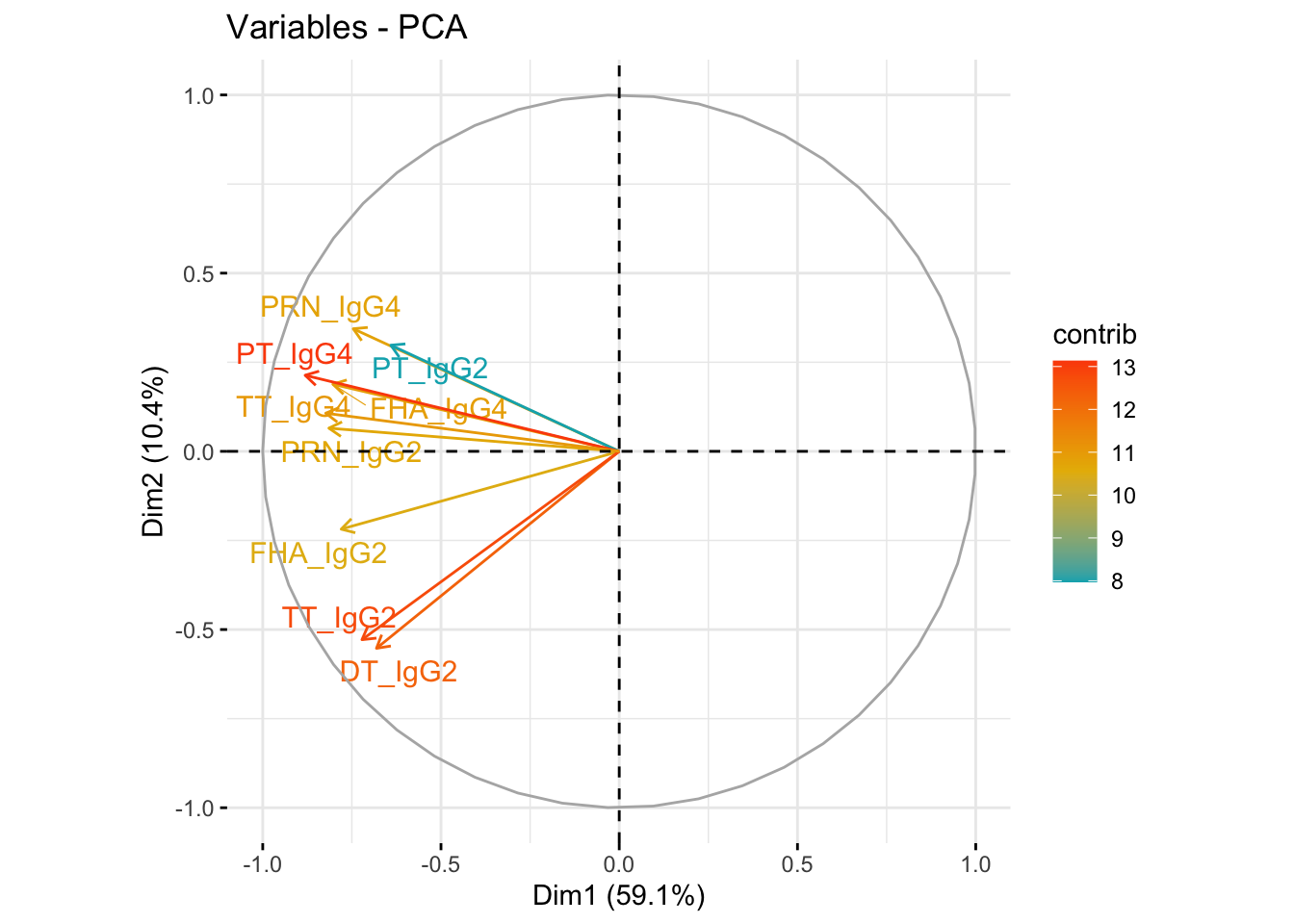

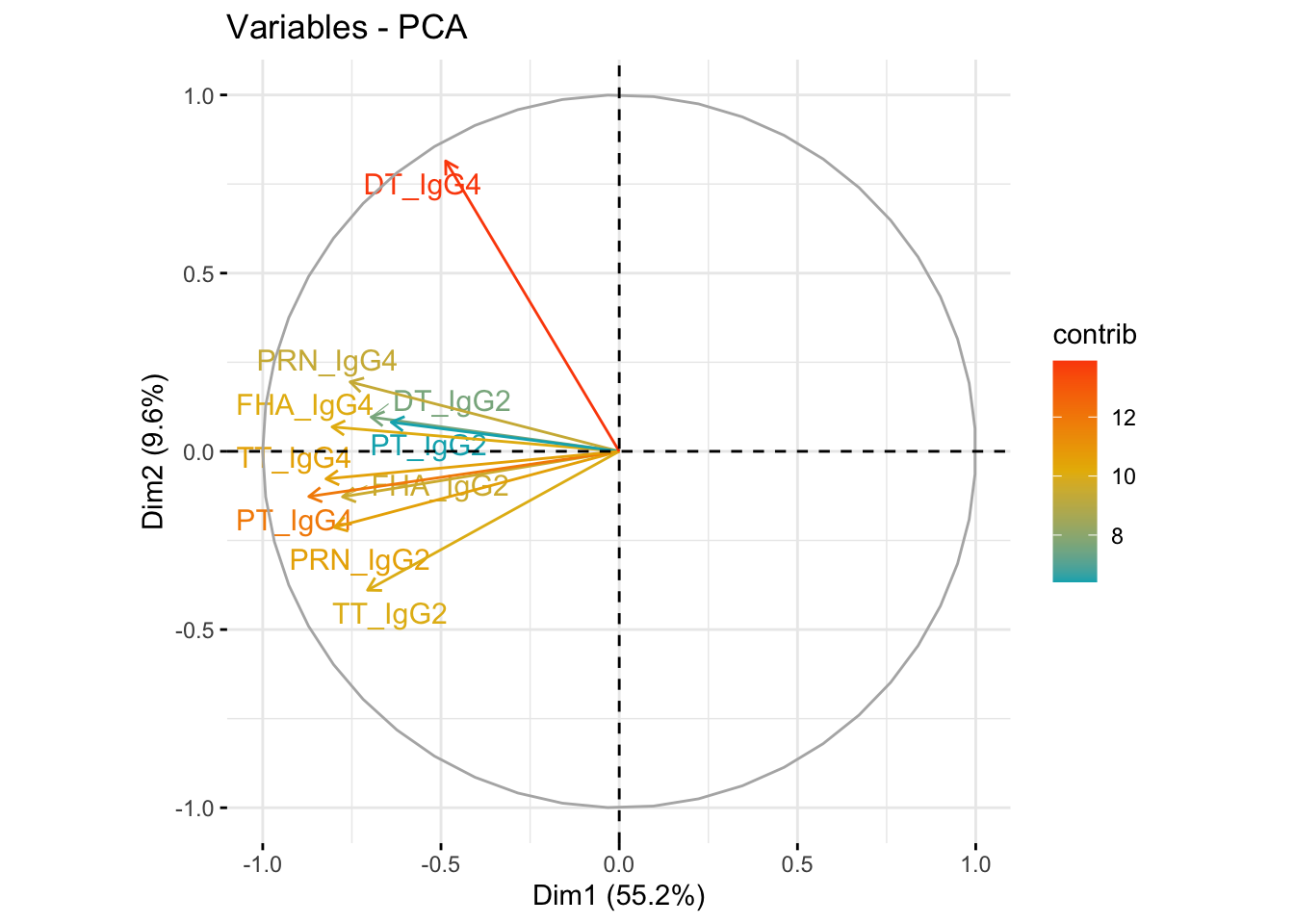

Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by

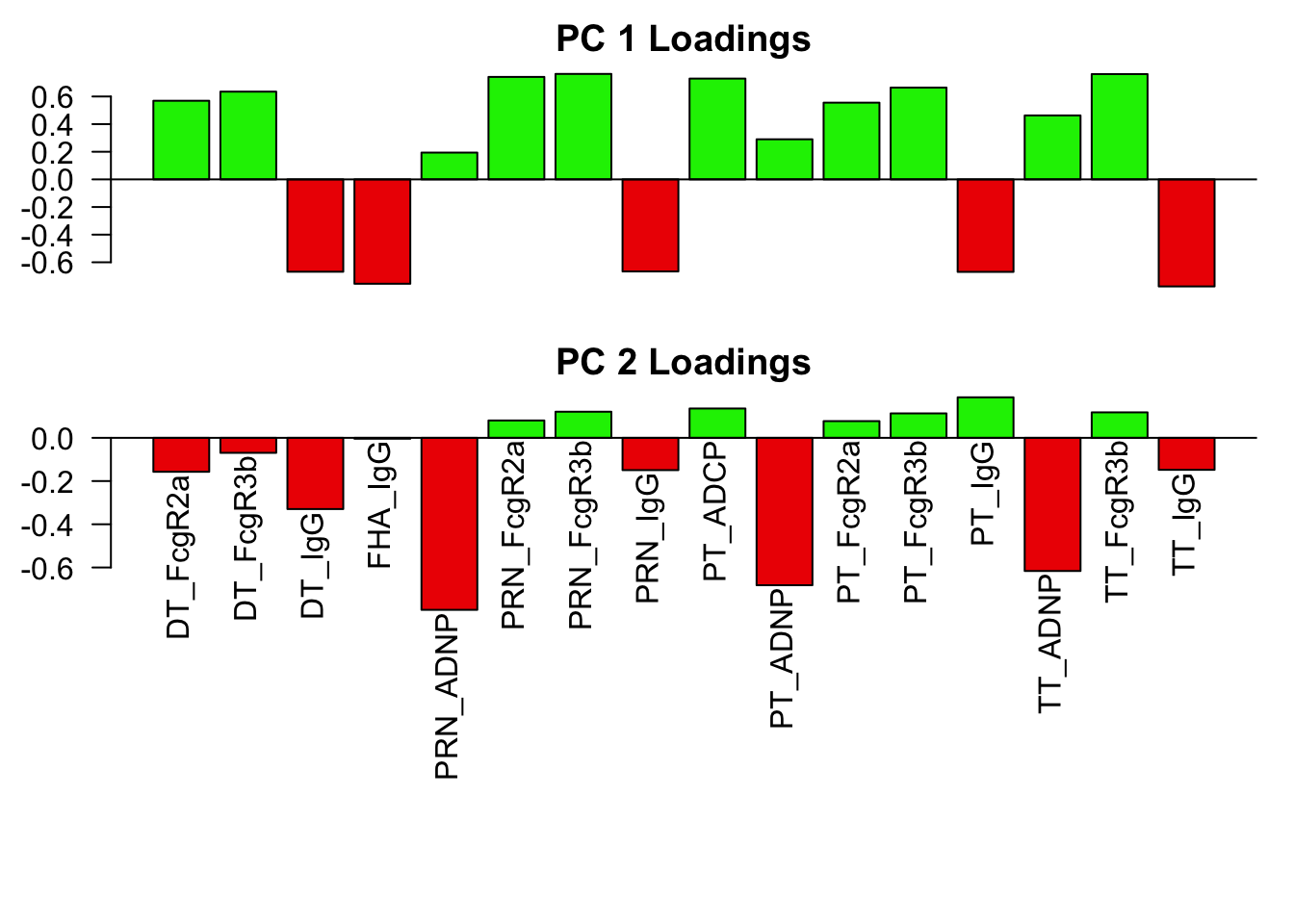

variance contribution

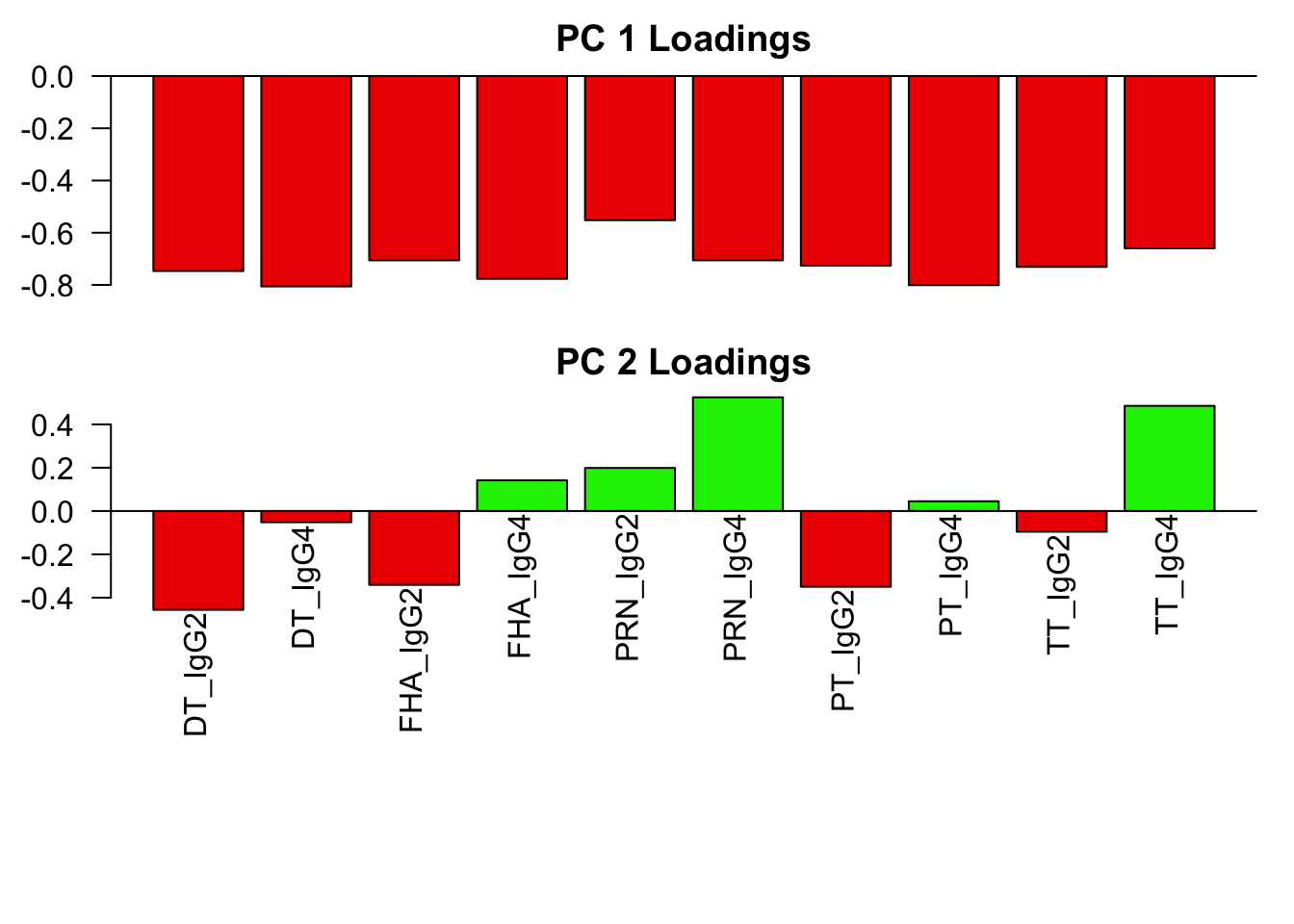

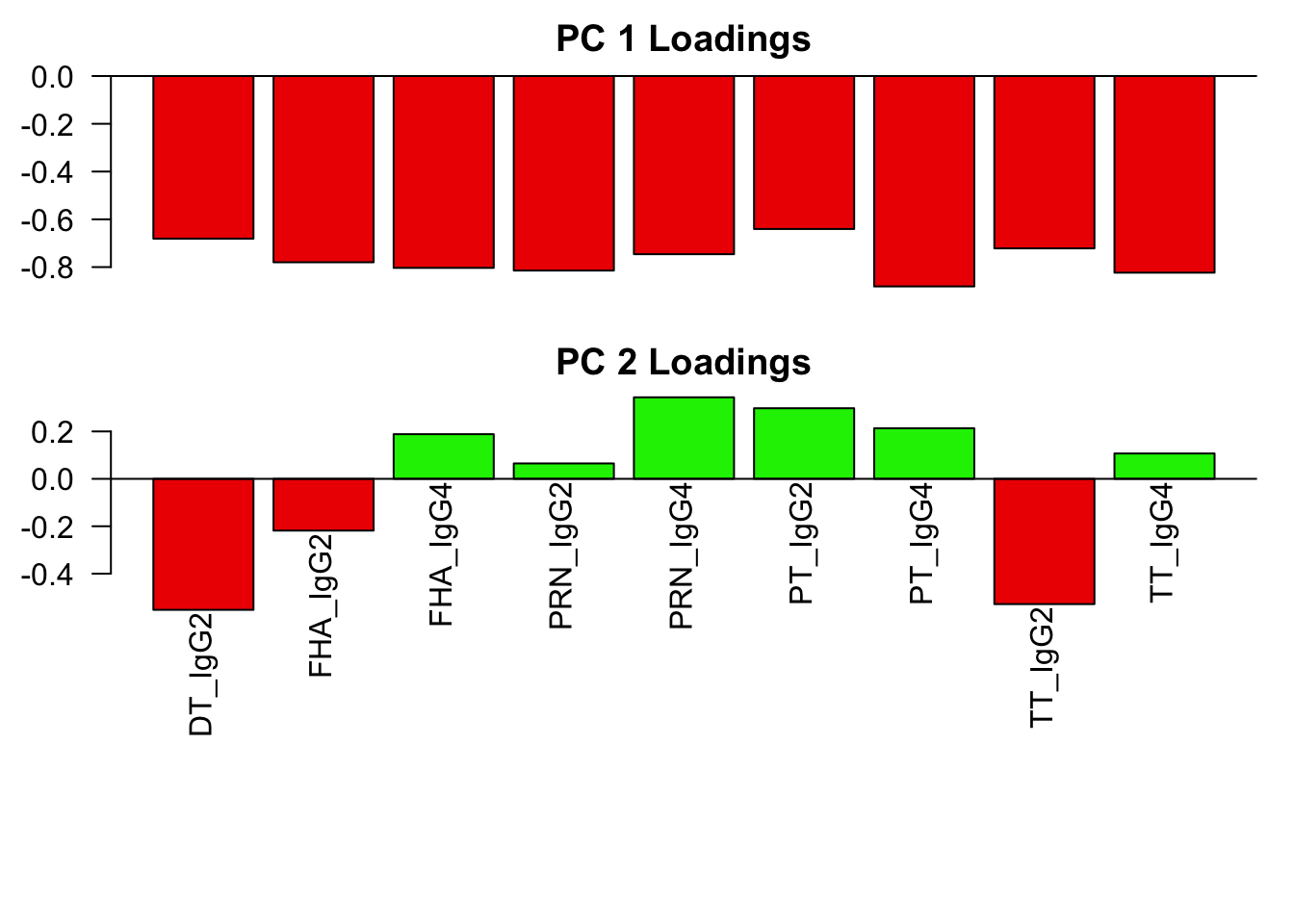

**Loadings
plot
Plot of UMAP1 vs UMAP2 Loadings
Comparison of UMAP loadings by arm
Infant AP vs. WP vaccinated TT UMAP1: p<.0001
Infant AP vs. WP vaccinated TT UMAP2: p<.0001
Feature Cluster: ADCD
Features: DT_ADCD, FHA_ADCD, PRN_ADCD, TT_ADCD, PT_ADCD

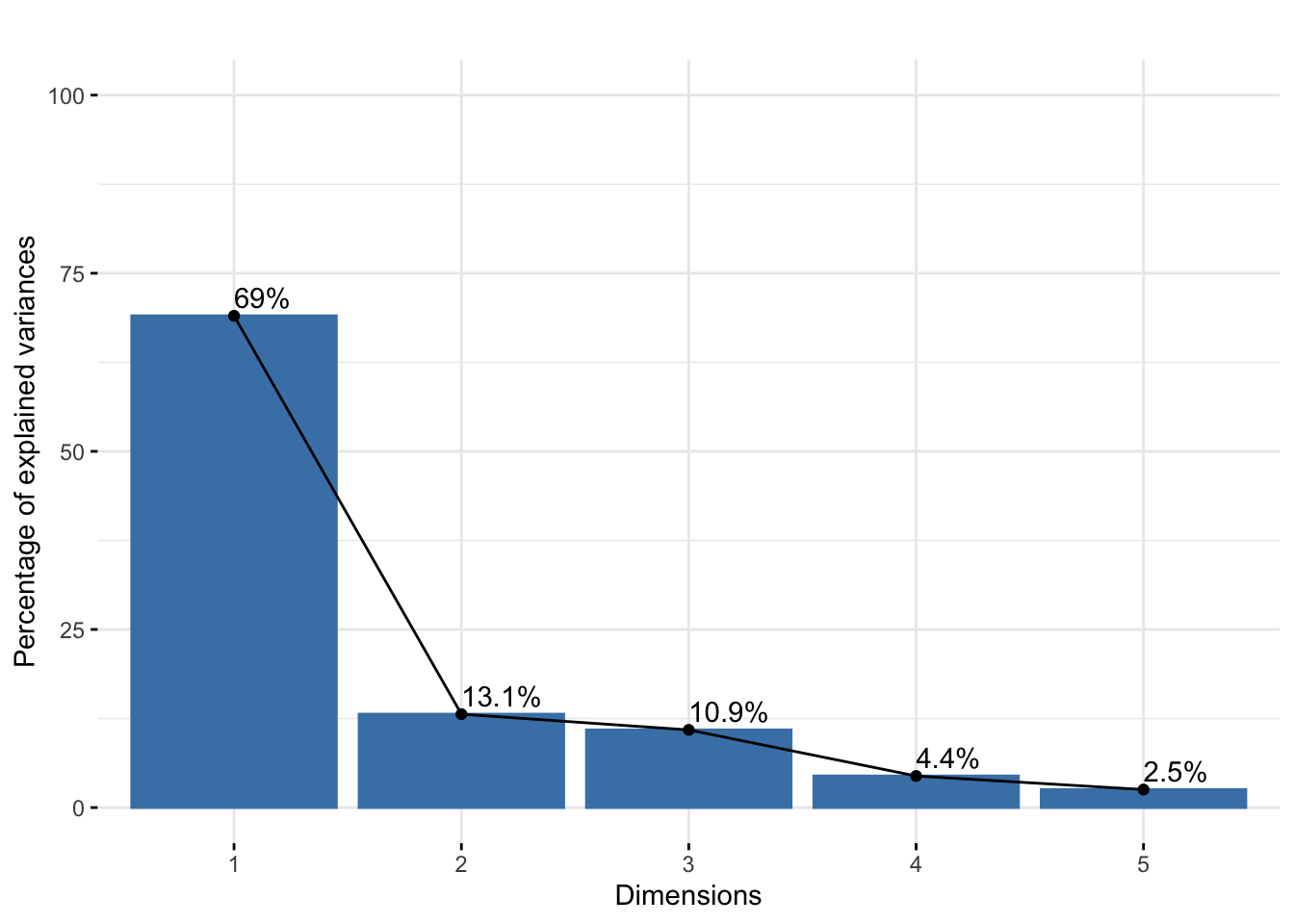

Proportion of Variance
summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | |
|---|---|---|---|---|---|
| Standard deviation | 1.858 | 0.810 | 0.738 | 0.471 | 0.356 |
| Proportion of Variance | 0.690 | 0.131 | 0.109 | 0.044 | 0.025 |
| Cumulative Proportion | 0.690 | 0.821 | 0.930 | 0.975 | 1.000 |
Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Infant AP vs. WP vaccinated Feature Cluster ADCD PC1: p=.77
Infant AP vs. WP vaccinated Feature Cluster ADCD PC2: p=.37

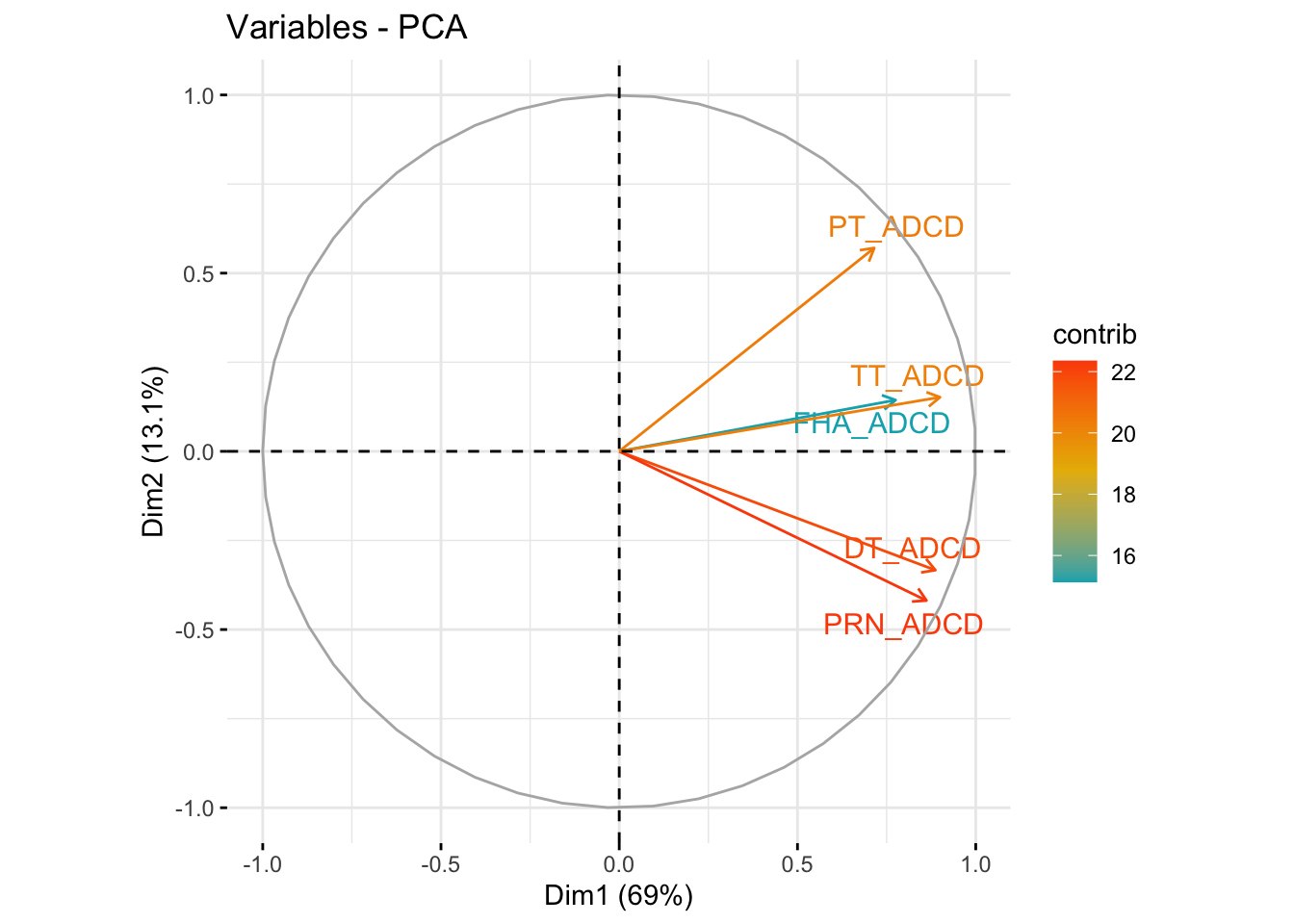

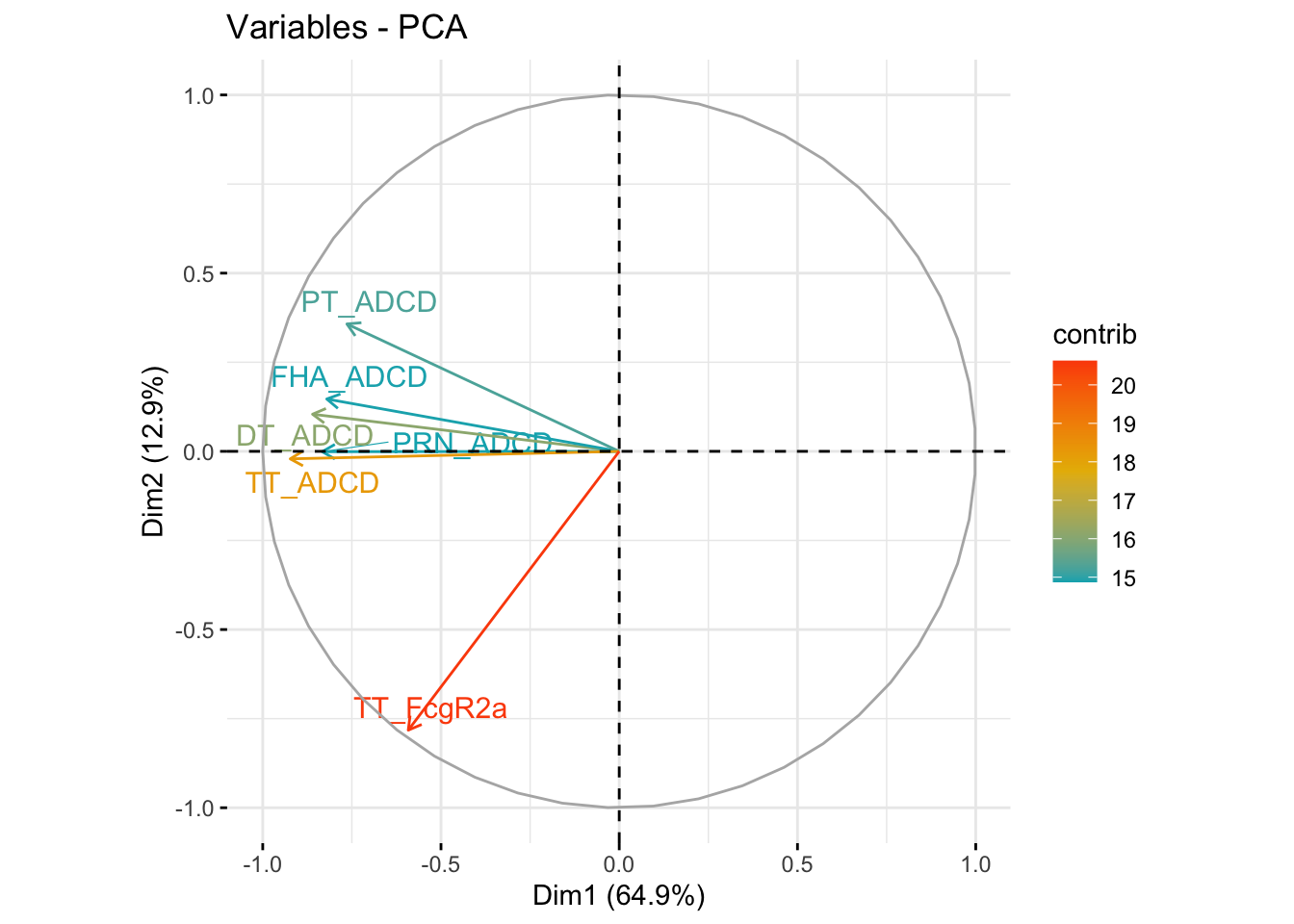

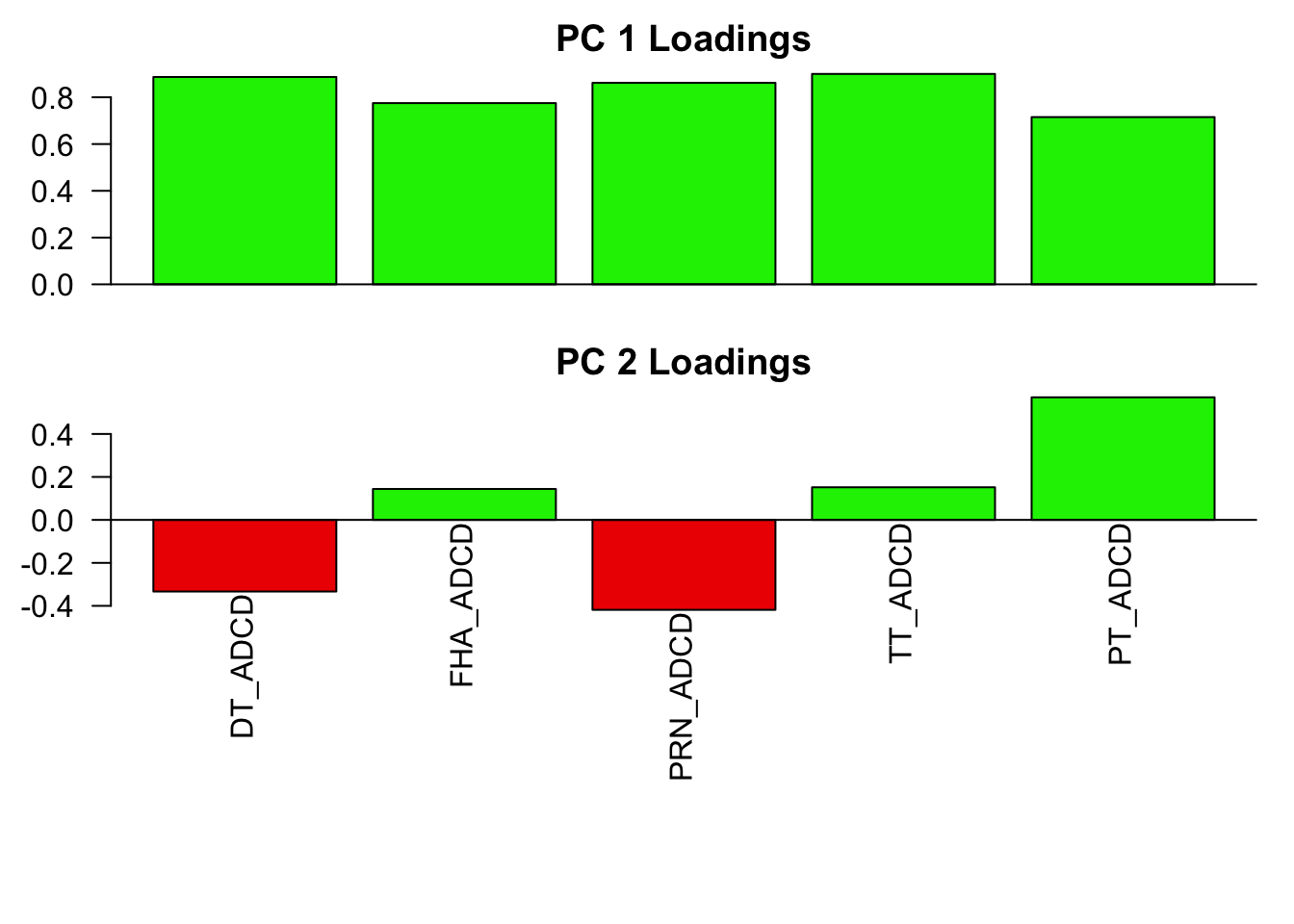

Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution

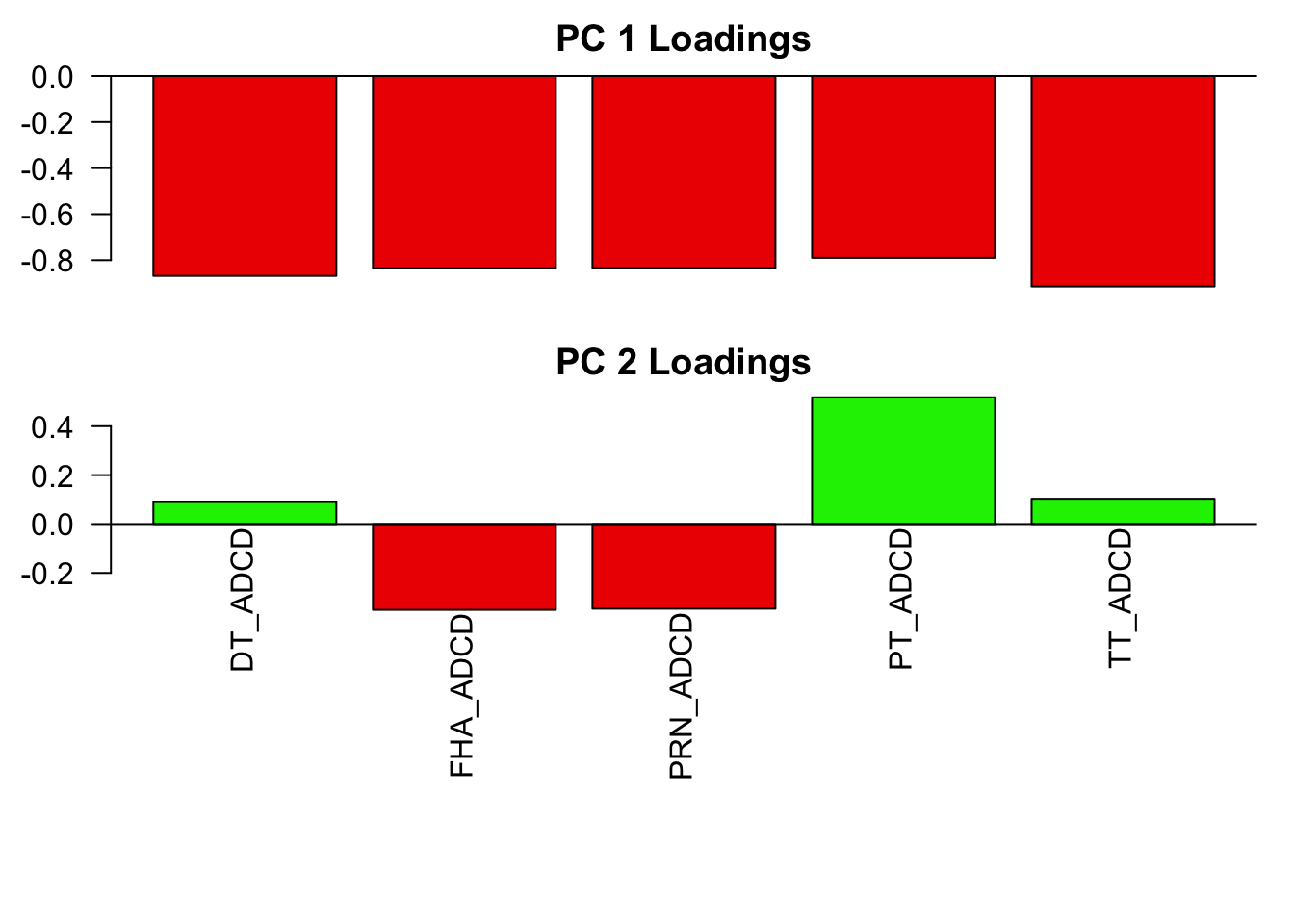

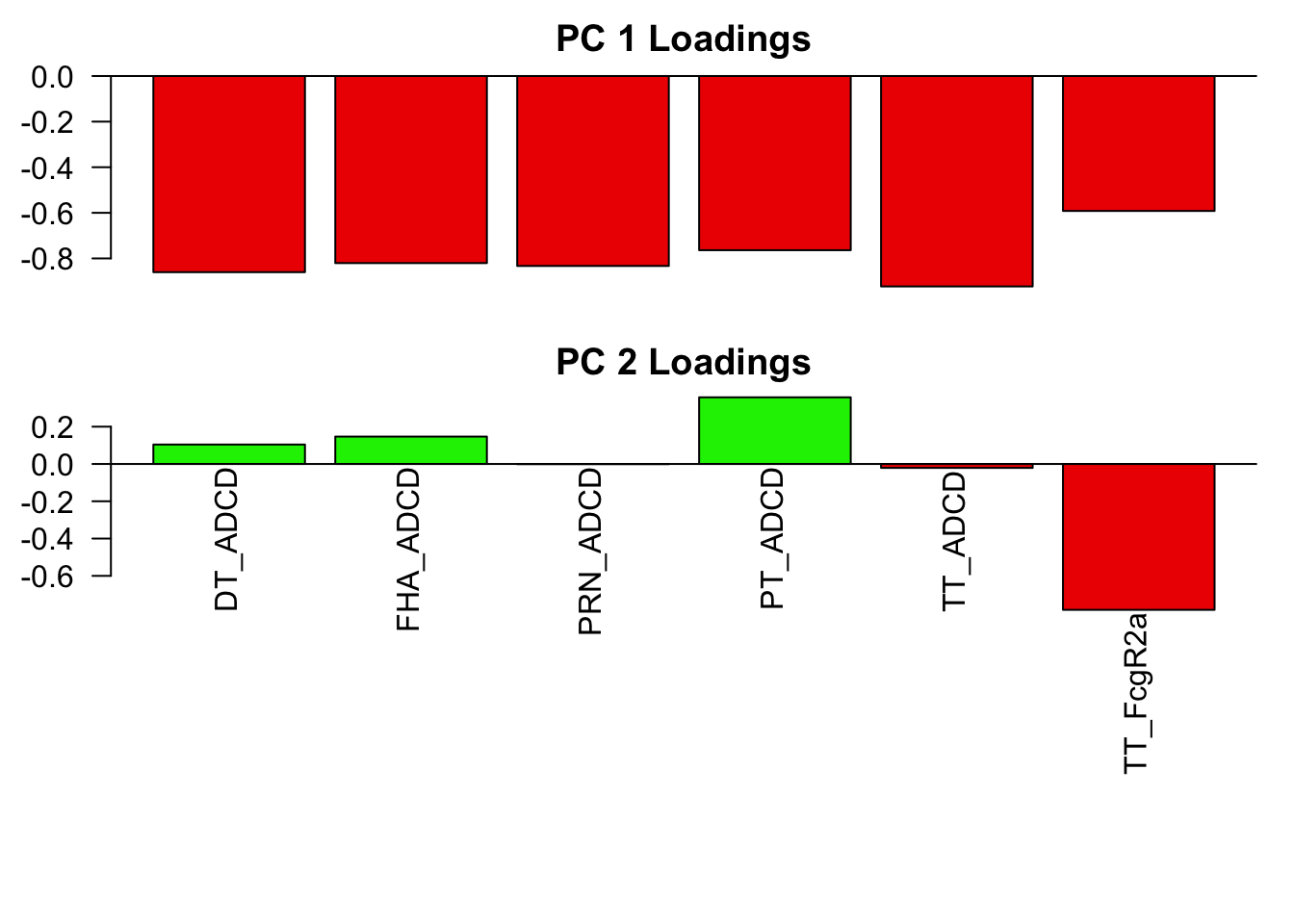

**Loadings
plot
Plot of UMAP1 vs UMAP2 Loadings
Comparison of UMAP loadings by arm
Infant AP vs. WP vaccinated TT UMAP1: p=.058
Infant AP vs. WP vaccinated TT UMAP2: p=.84
Feature Cluster: ADNP / ADCP

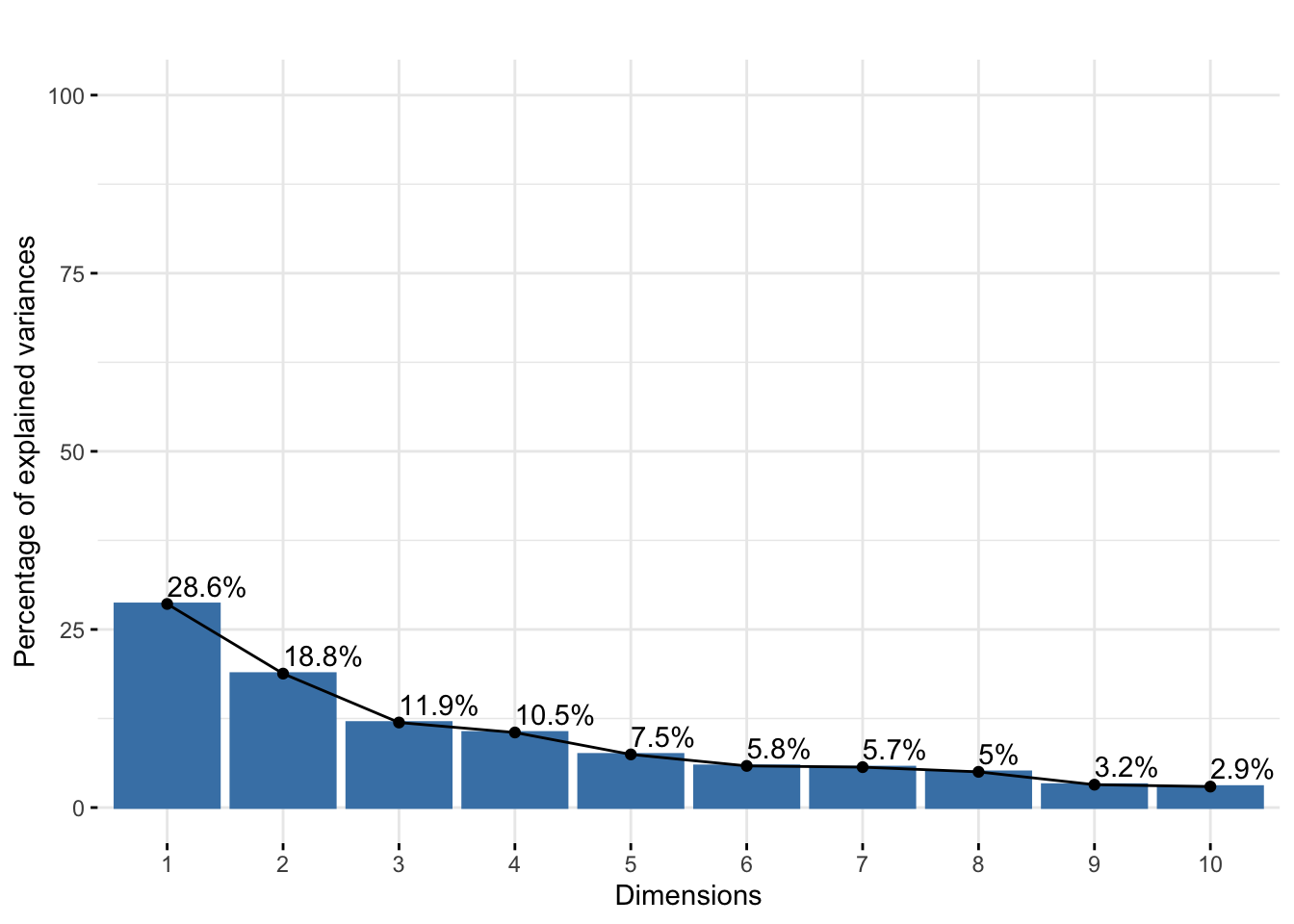

Features: TT_ADCP, TT_ADNP, DT_ADCP, PRN_ADNP, DT_ADNP, FHA_ADCP, FHA_ADNP, PRN_ADCP, PT_ADCP, PT_ADNP
Proportion of Variance
summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | PC6 | PC7 | PC8 | PC9 | PC10 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Standard deviation | 1.691 | 1.371 | 1.093 | 1.027 | 0.864 | 0.765 | 0.753 | 0.708 | 0.567 | 0.542 |
| Proportion of Variance | 0.286 | 0.188 | 0.119 | 0.105 | 0.075 | 0.058 | 0.057 | 0.050 | 0.032 | 0.029 |
| Cumulative Proportion | 0.286 | 0.474 | 0.593 | 0.699 | 0.773 | 0.832 | 0.888 | 0.938 | 0.971 | 1.000 |

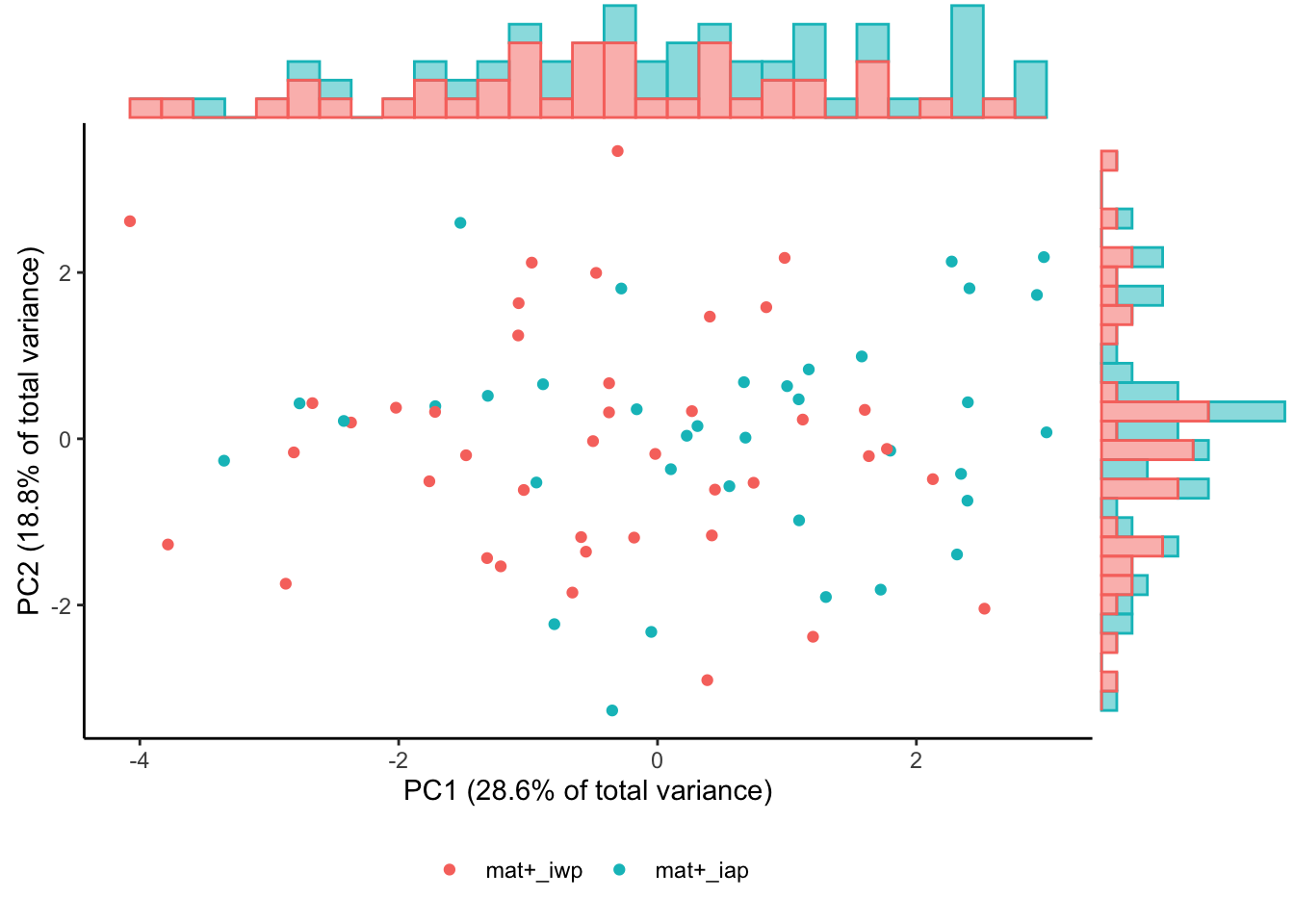

Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Infant AP vs. WP vaccinated Feature Cluster ADNP / ADCP PC1:
p=.007
Infant AP vs. WP vaccinated Feature Cluster ADNP / ADCP PC2: p=.72

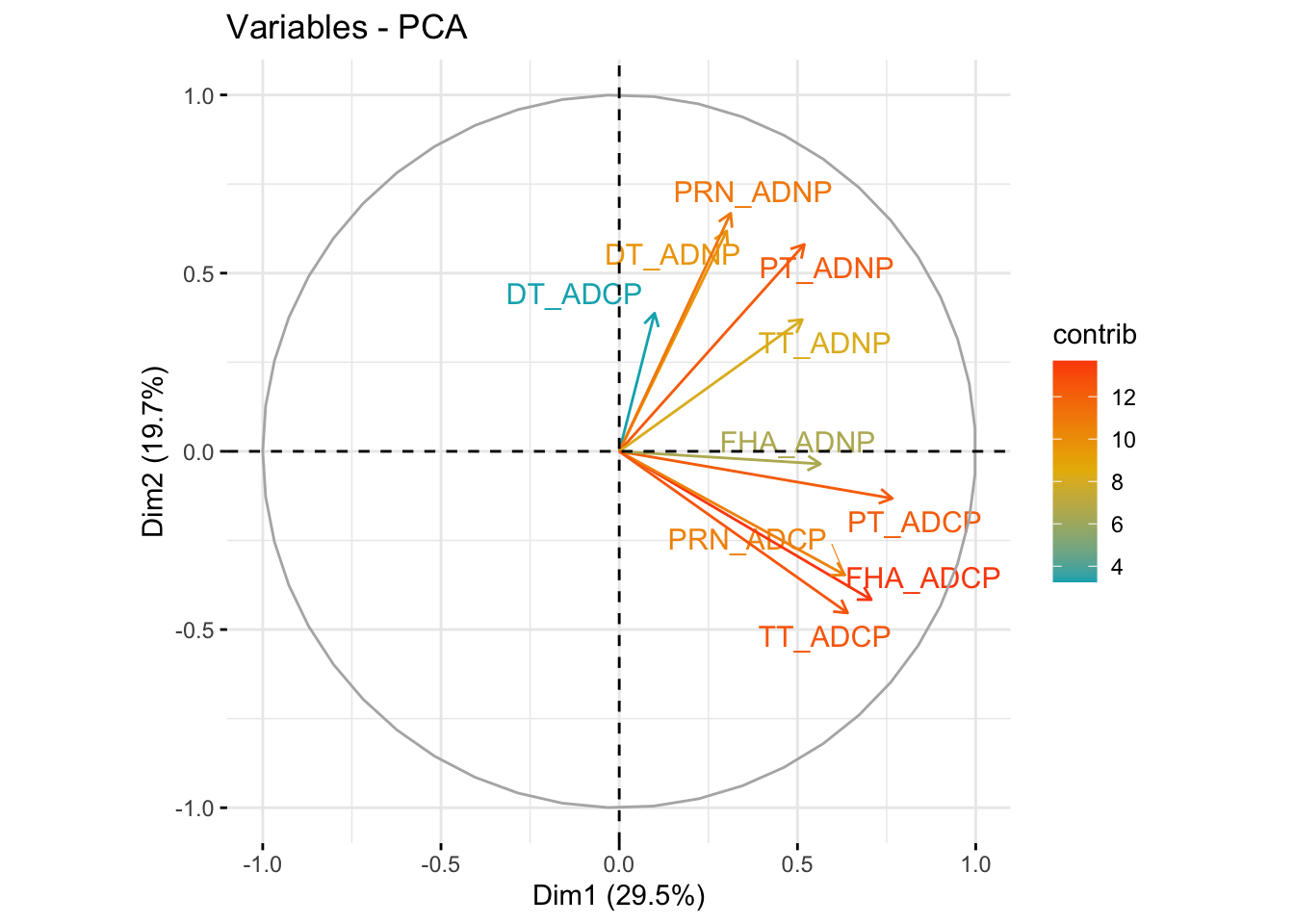

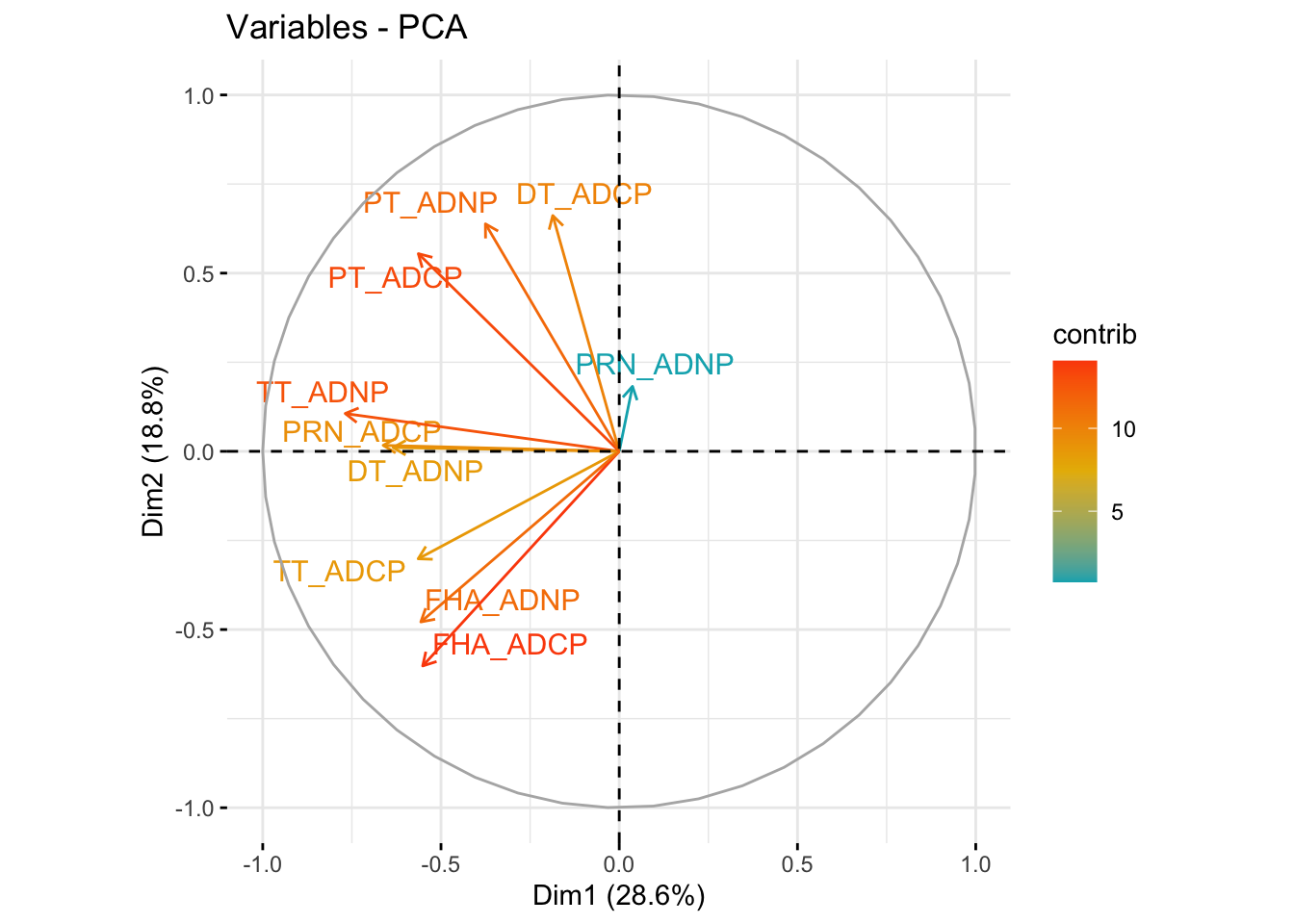

Plot of PCA Eigen Vectors

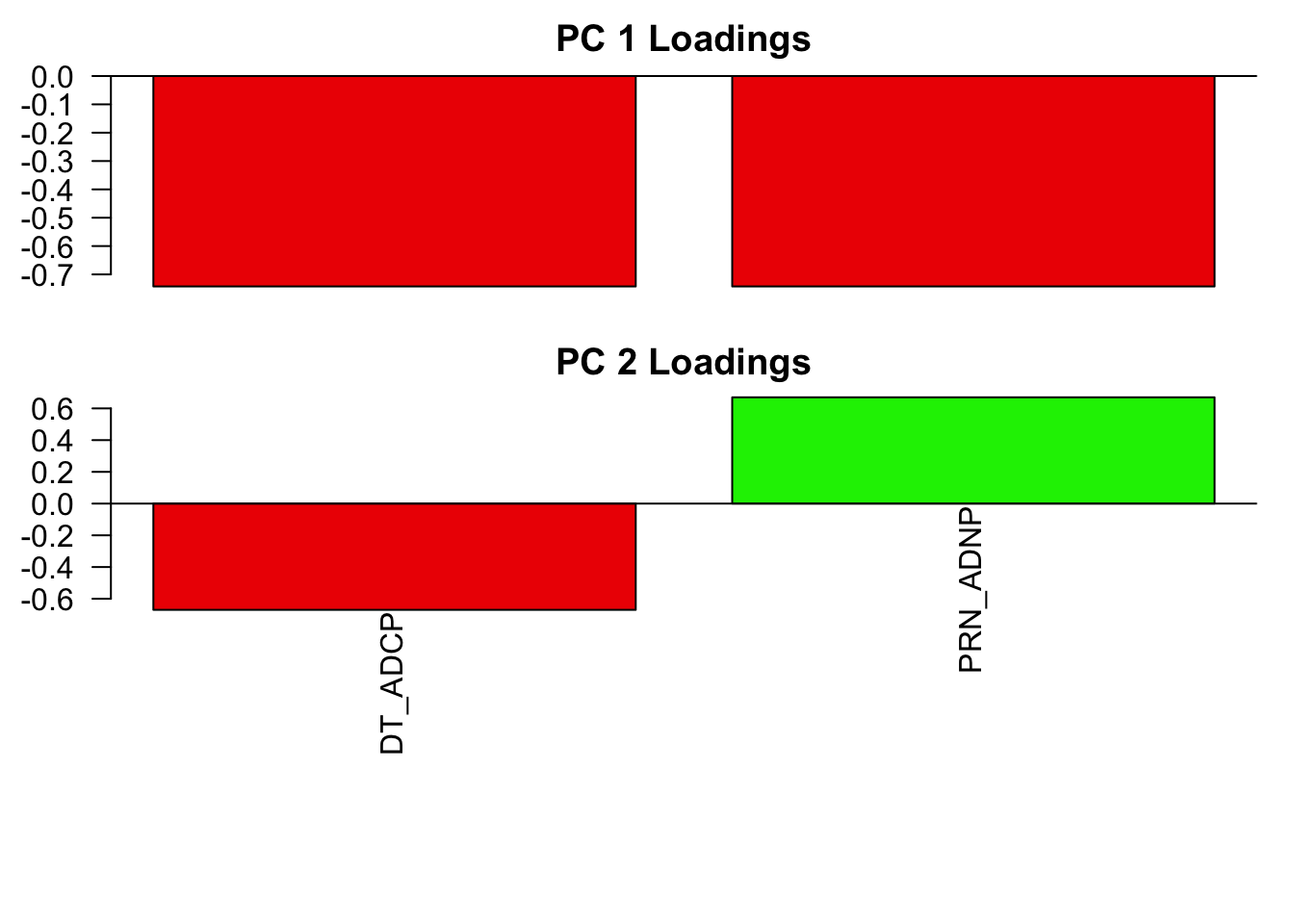

Correlation between features and each PC score - colored by
variance contribution

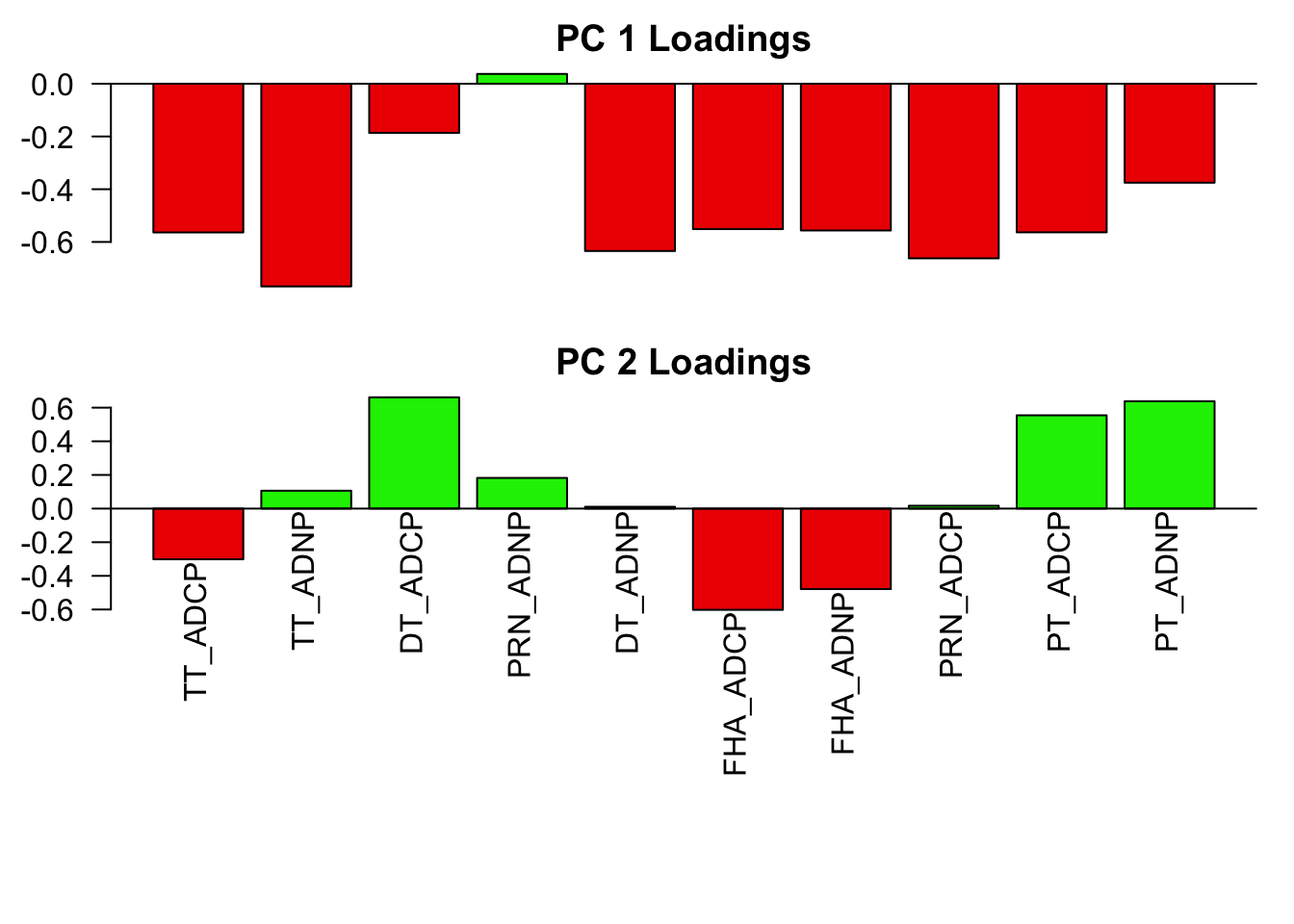

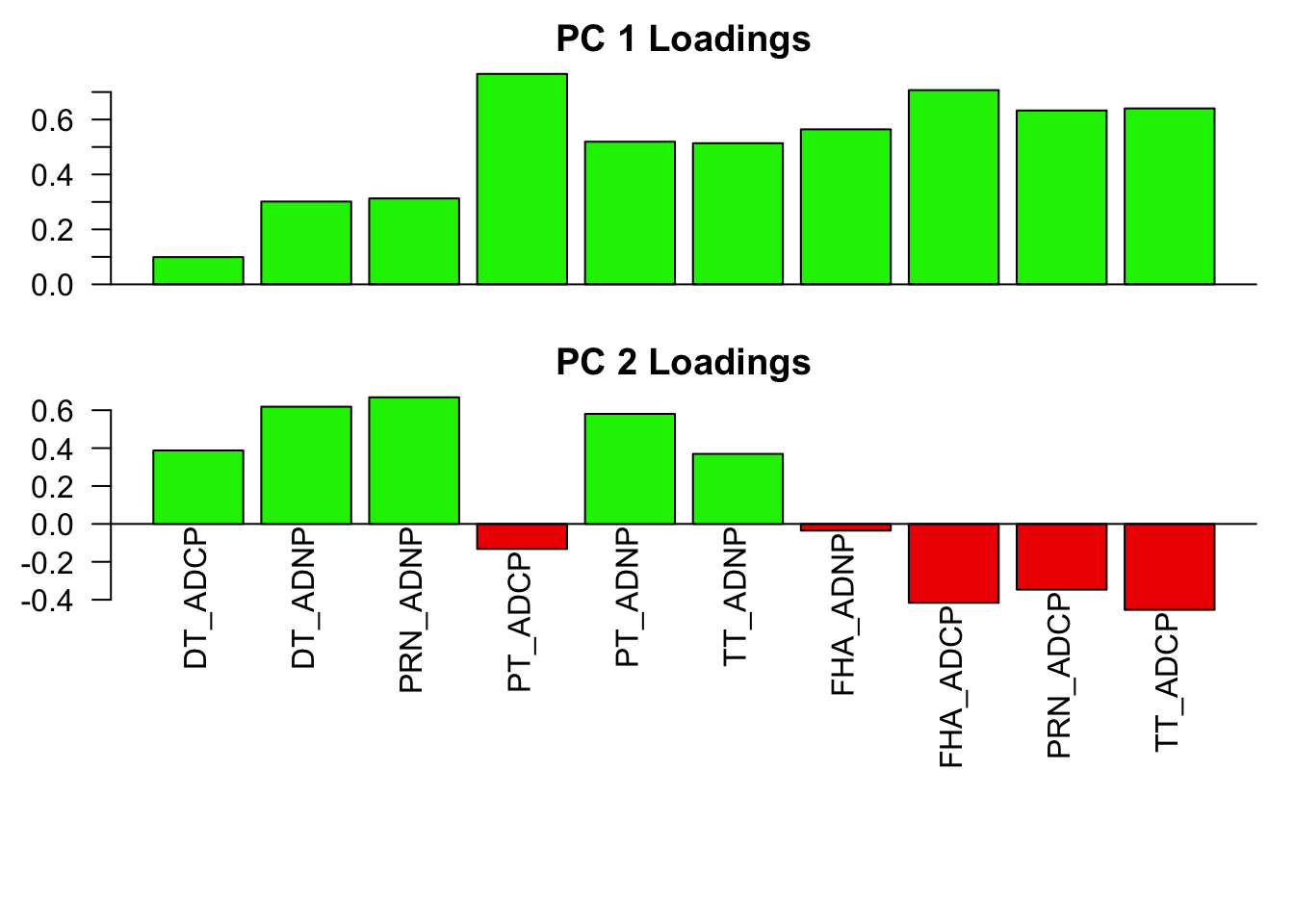

**Loadings
plot

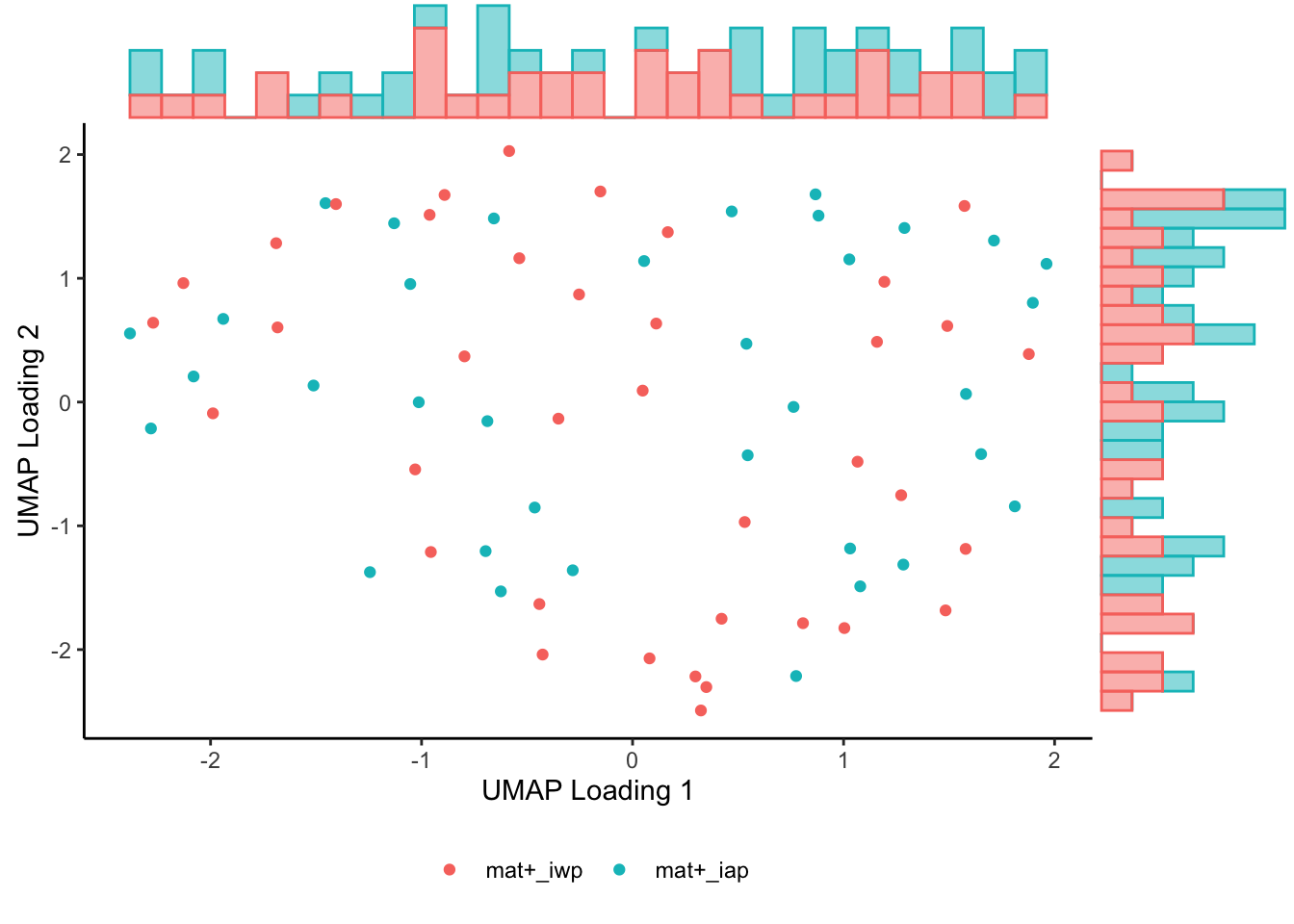

Plot of UMAP1 vs UMAP2 Loadings
Comparison of UMAP loadings by arm
Infant AP vs. WP vaccinated TT UMAP1: p=.0027
Infant AP vs. WP vaccinated TT UMAP2: p=.18
Feature Cluster: FcgR2a / FcgR3b
Features: DT_FcgR2a, DT_FcgR3b, TT_FcgR2a, FHA_FcgR2a, FHA_FcgR3b, PRN_FcgR2a, PRN_FcgR3b, TT_FcgR3b, PT_FcgR2a, PT_FcgR3b

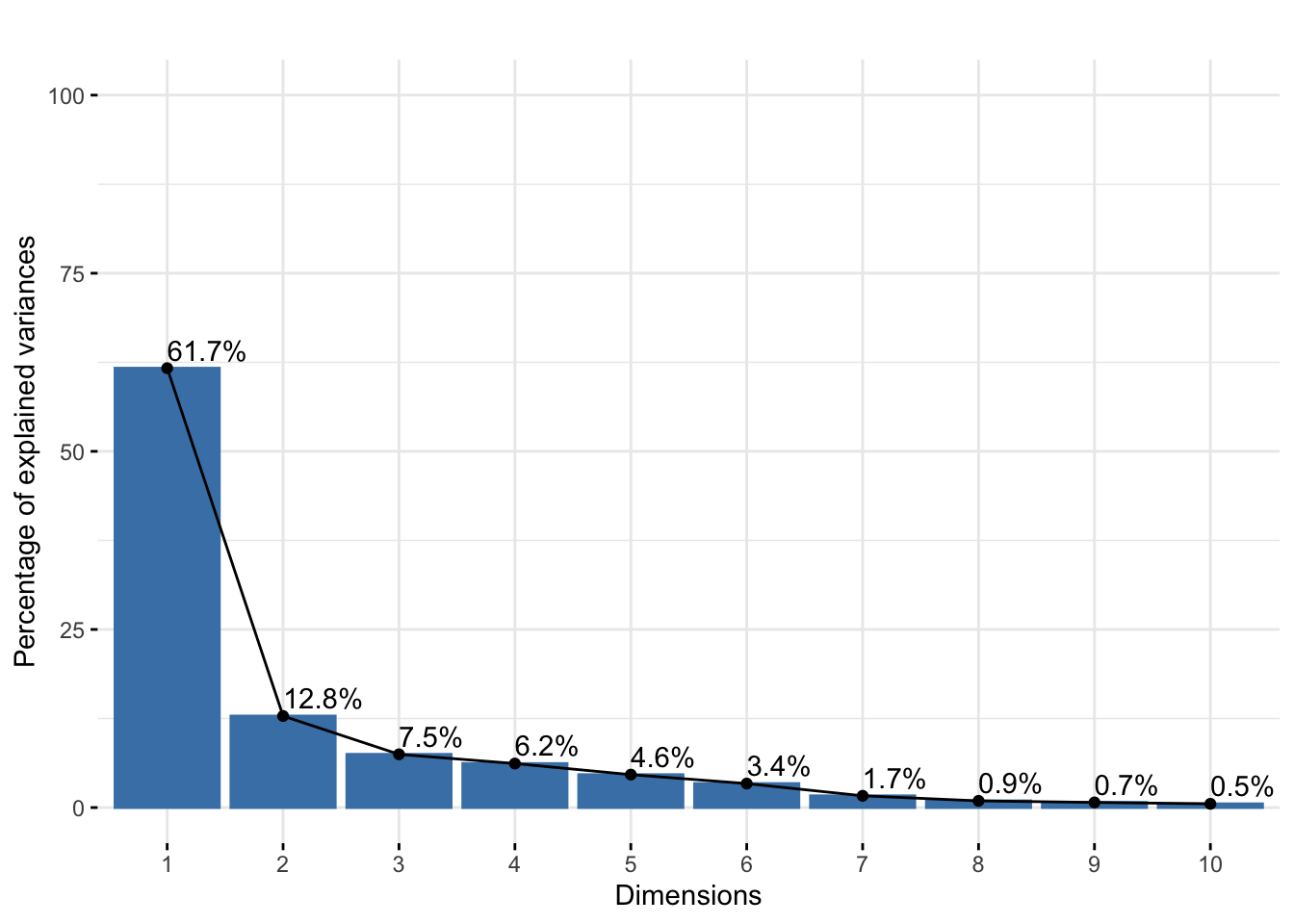

Proportion of Variance
summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | PC6 | PC7 | PC8 | PC9 | PC10 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Standard deviation | 2.483 | 1.134 | 0.865 | 0.786 | 0.680 | 0.580 | 0.406 | 0.306 | 0.268 | 0.229 |
| Proportion of Variance | 0.617 | 0.128 | 0.075 | 0.062 | 0.046 | 0.034 | 0.016 | 0.009 | 0.007 | 0.005 |
| Cumulative Proportion | 0.617 | 0.745 | 0.820 | 0.882 | 0.928 | 0.962 | 0.978 | 0.988 | 0.995 | 1.000 |
Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Infant AP vs. WP vaccinated Feature Cluster FcgR2a / FcgR3b PC1:
p=.85
Infant AP vs. WP vaccinated Feature Cluster FcgR2a / FcgR3b PC2:
p=.79

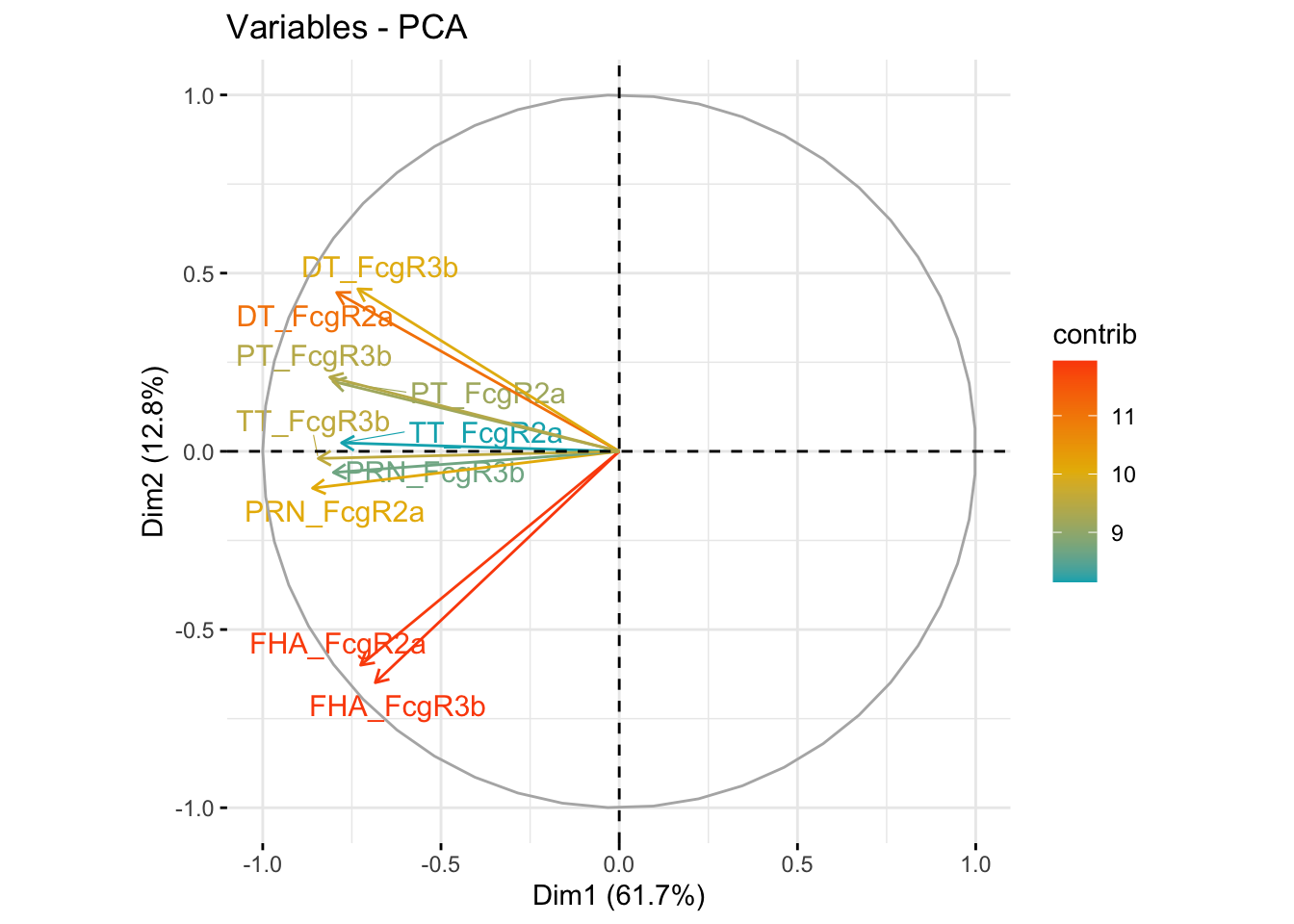

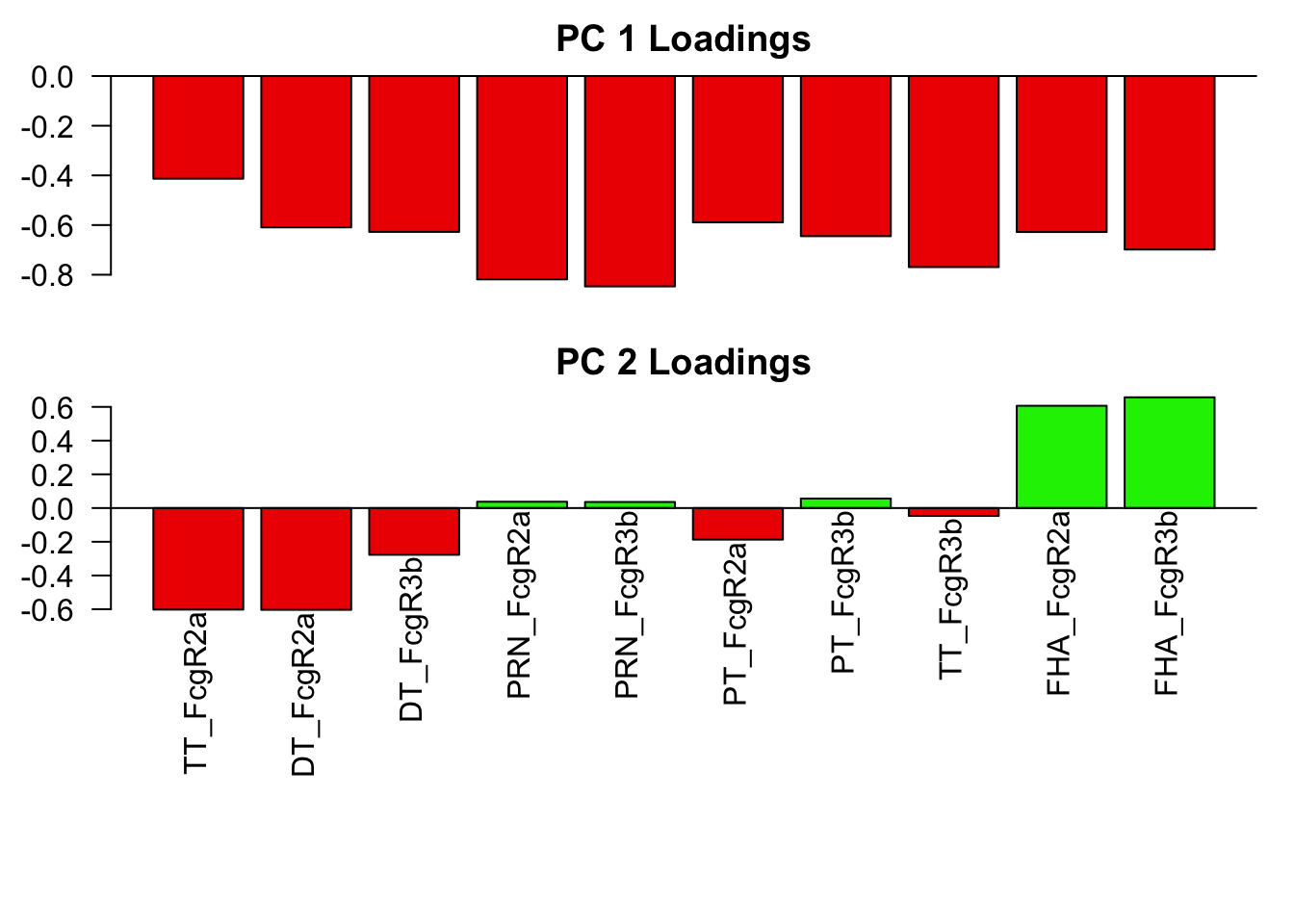

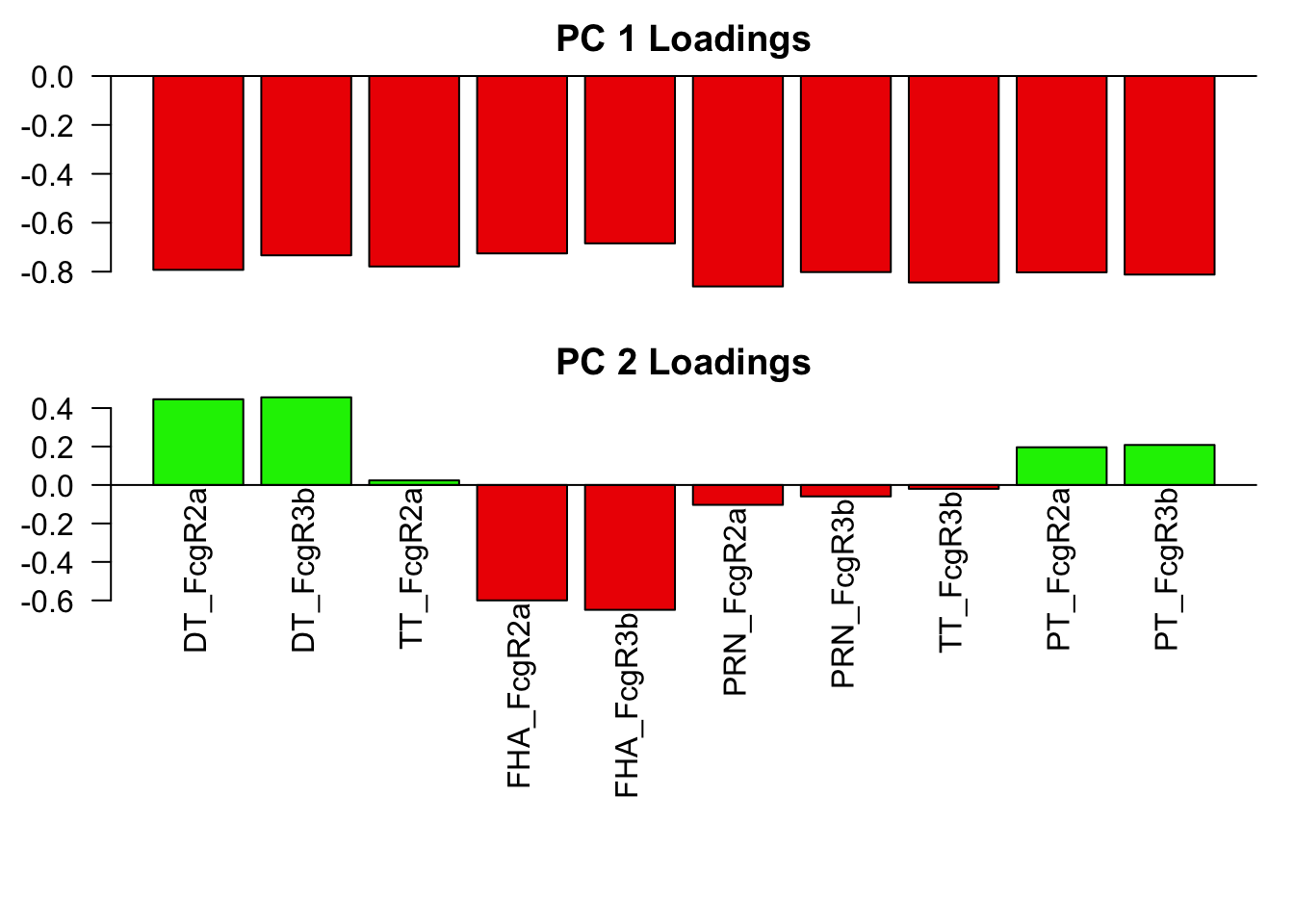

Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution
**Loadings
plot
Plot of UMAP1 vs UMAP2 Loadings
Comparison of UMAP loadings by arm
Infant AP vs. WP vaccinated TT UMAP1: p=.69
Infant AP vs. WP vaccinated TT UMAP2: p=.79

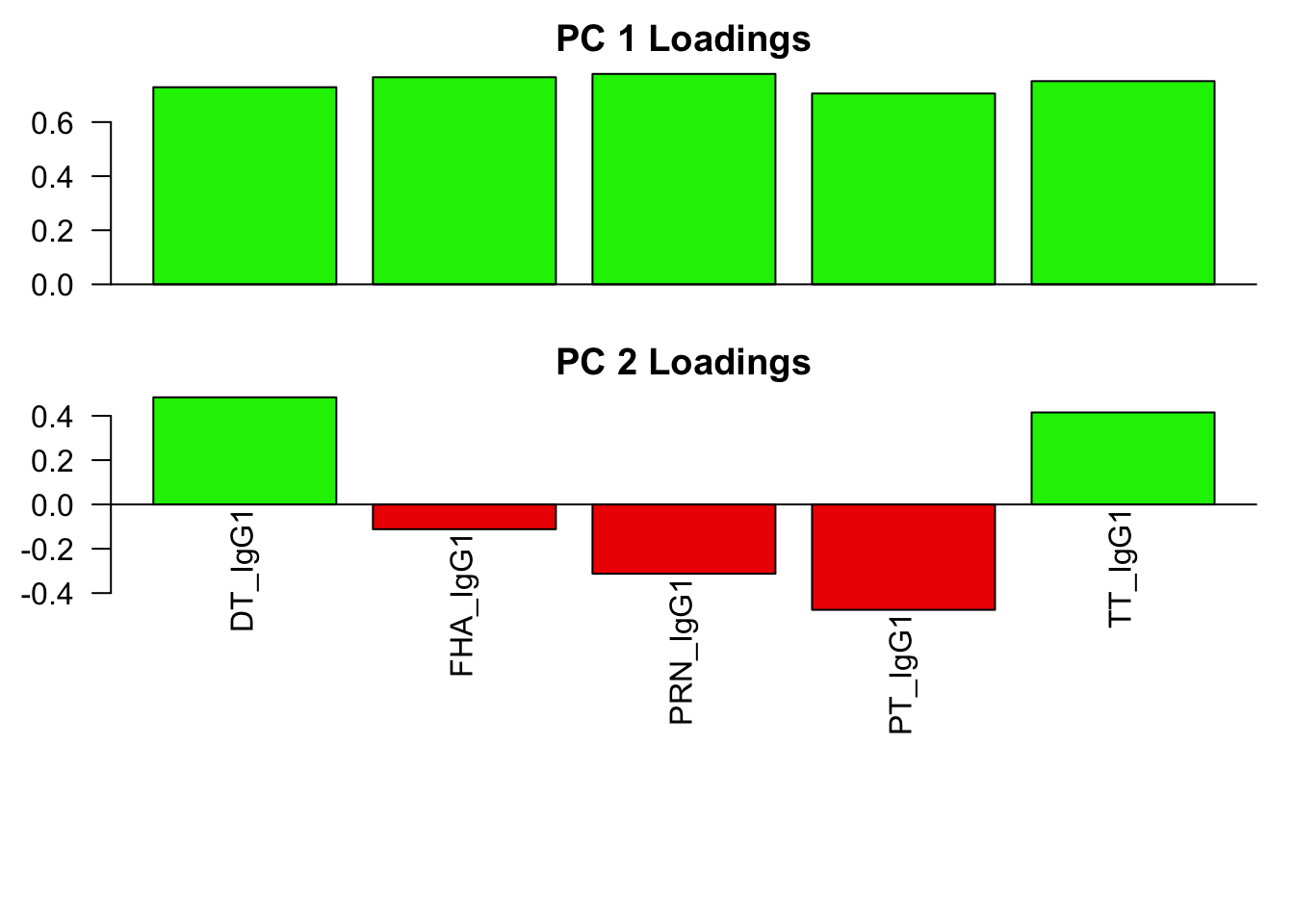

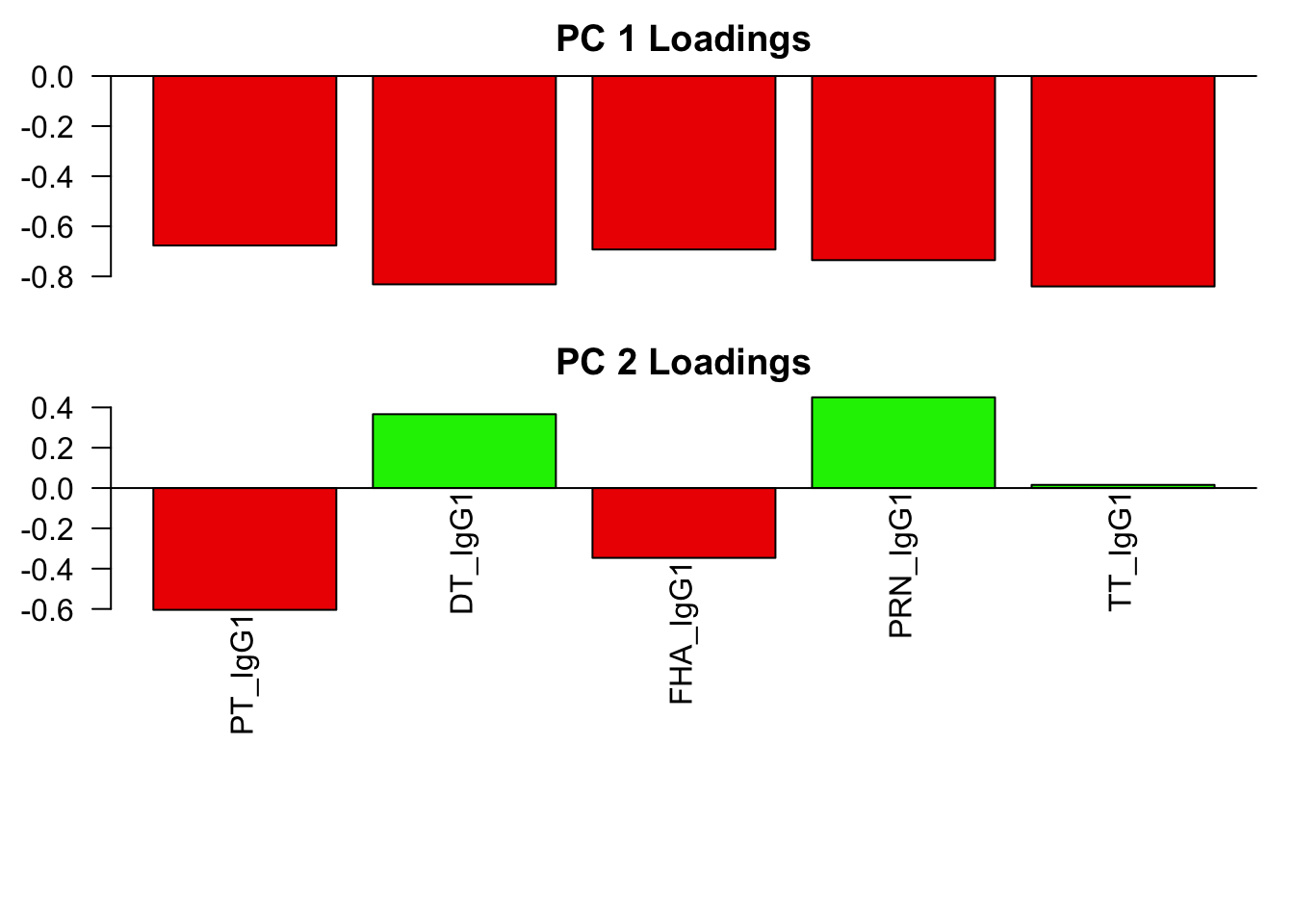

Feature Cluster: IgG1
Features: PT_IgG1, DT_IgG1, FHA_IgG1, PRN_IgG1, TT_IgG1
Proportion of Variance
summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | |
|---|---|---|---|---|---|
| Standard deviation | 1.696 | 0.907 | 0.782 | 0.673 | 0.488 |
| Proportion of Variance | 0.575 | 0.165 | 0.122 | 0.091 | 0.048 |
| Cumulative Proportion | 0.575 | 0.740 | 0.862 | 0.952 | 1.000 |

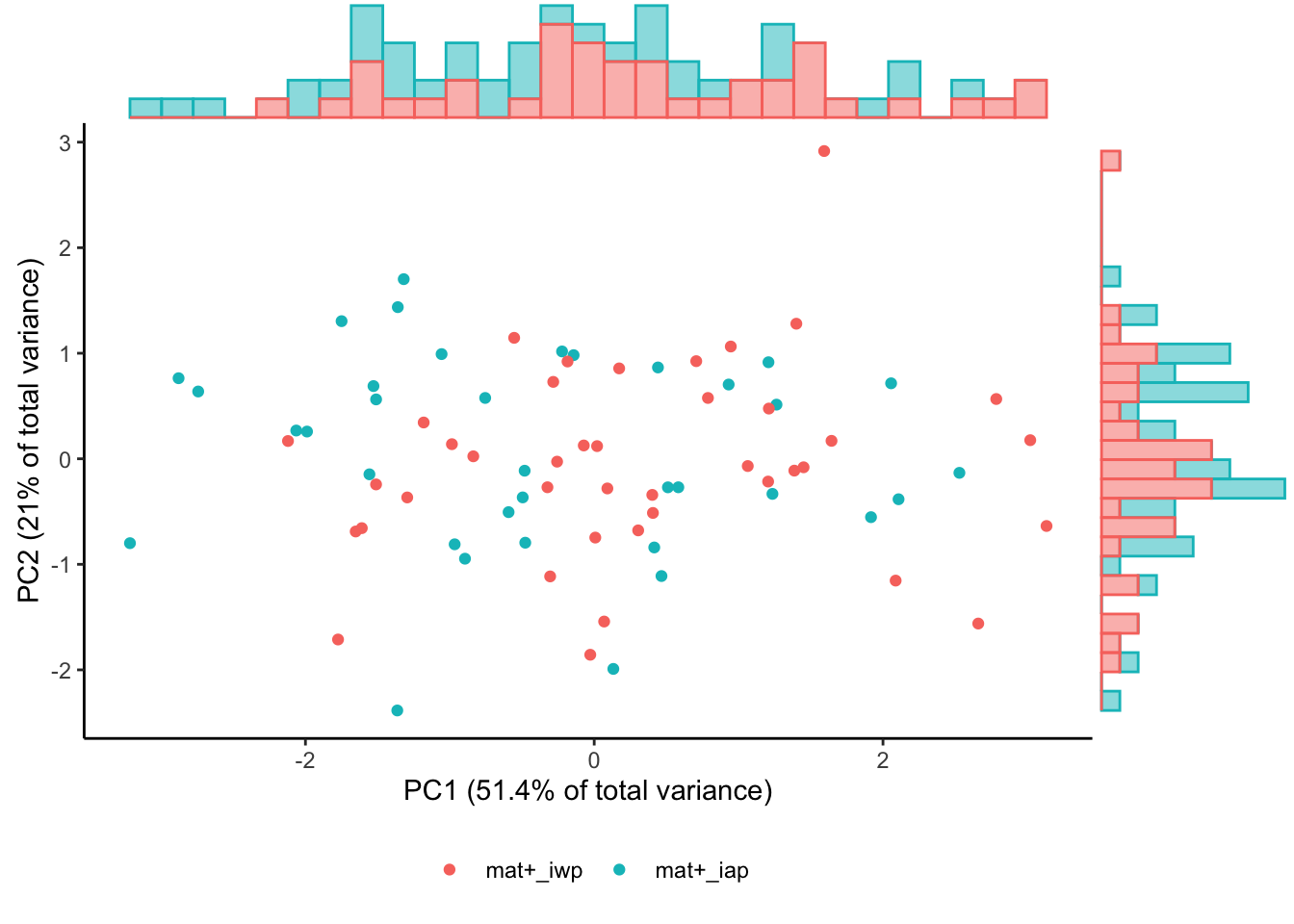

Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Infant AP vs. WP vaccinated Feature Cluster IgG1 PC1: p=.73
Infant AP vs. WP vaccinated Feature Cluster IgG1 PC2: p=.87

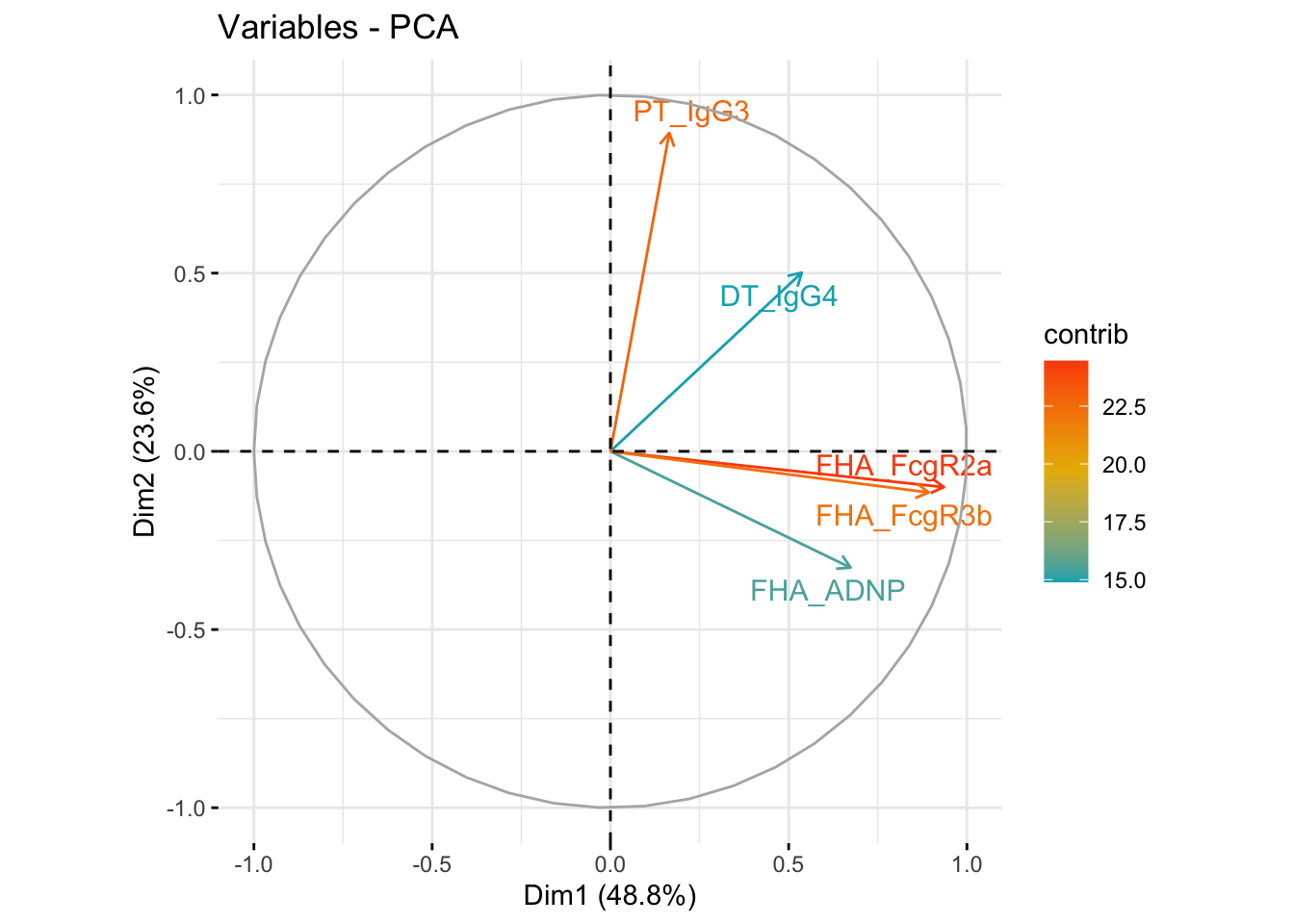

Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution
**Loadings
plot

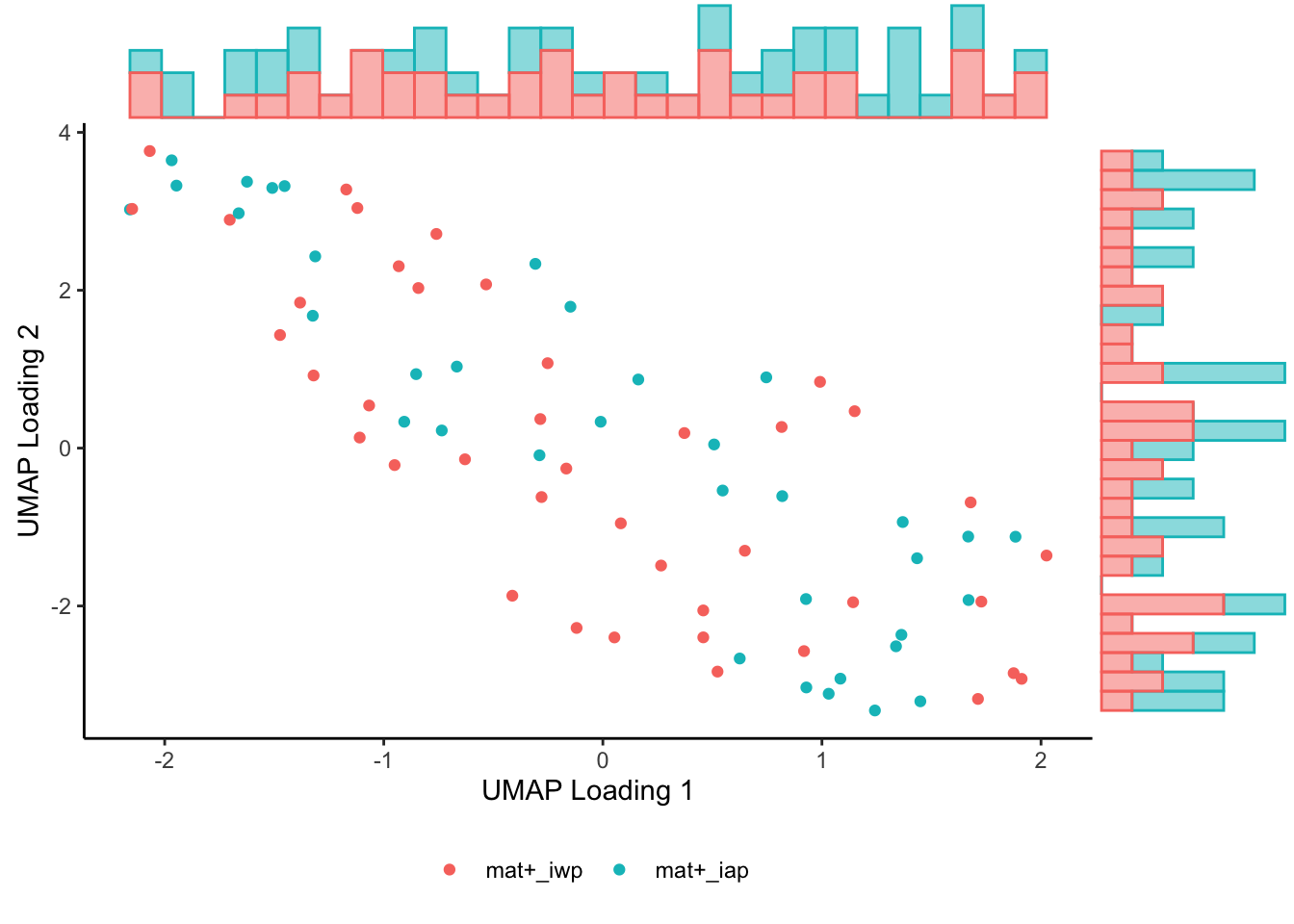

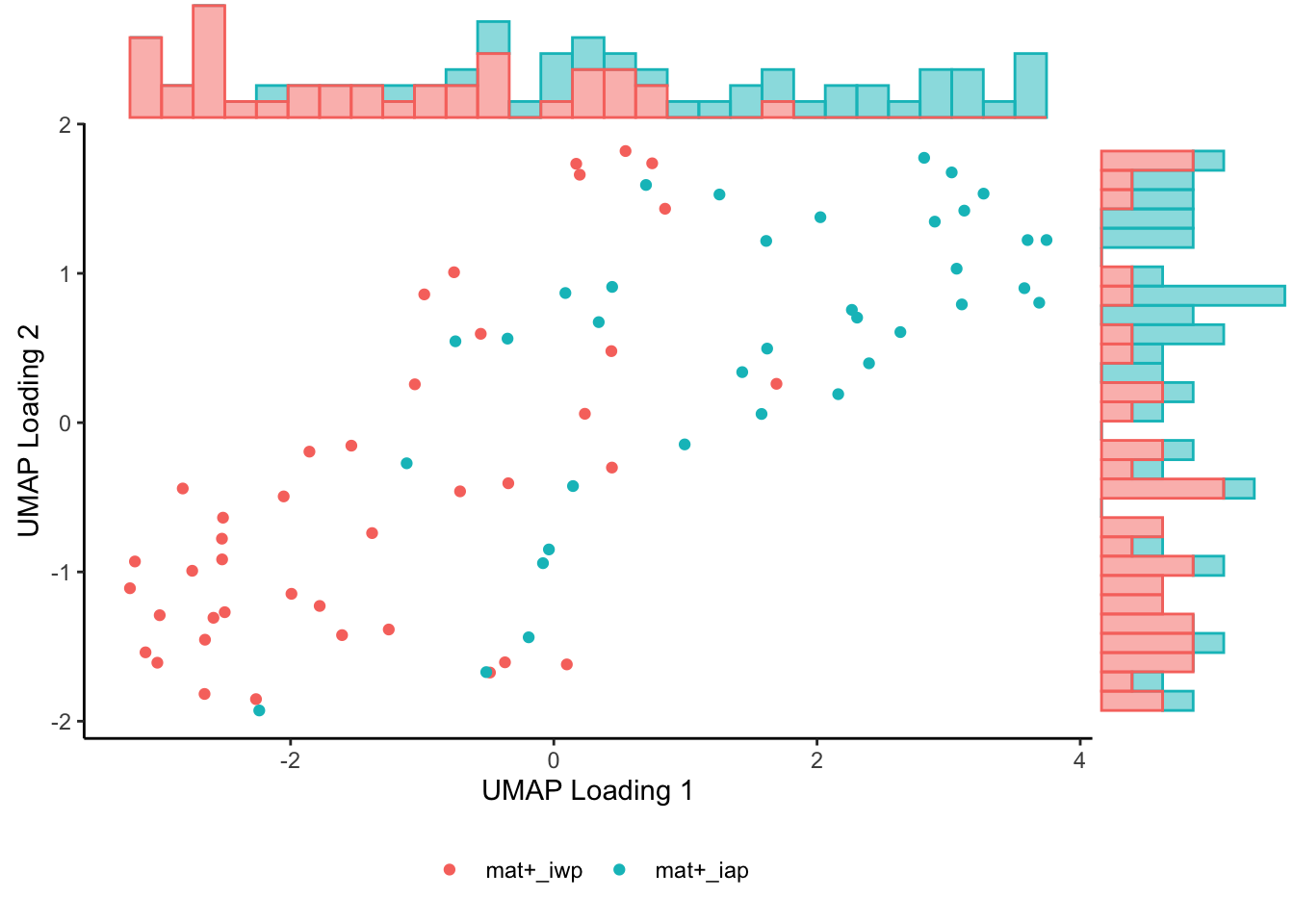

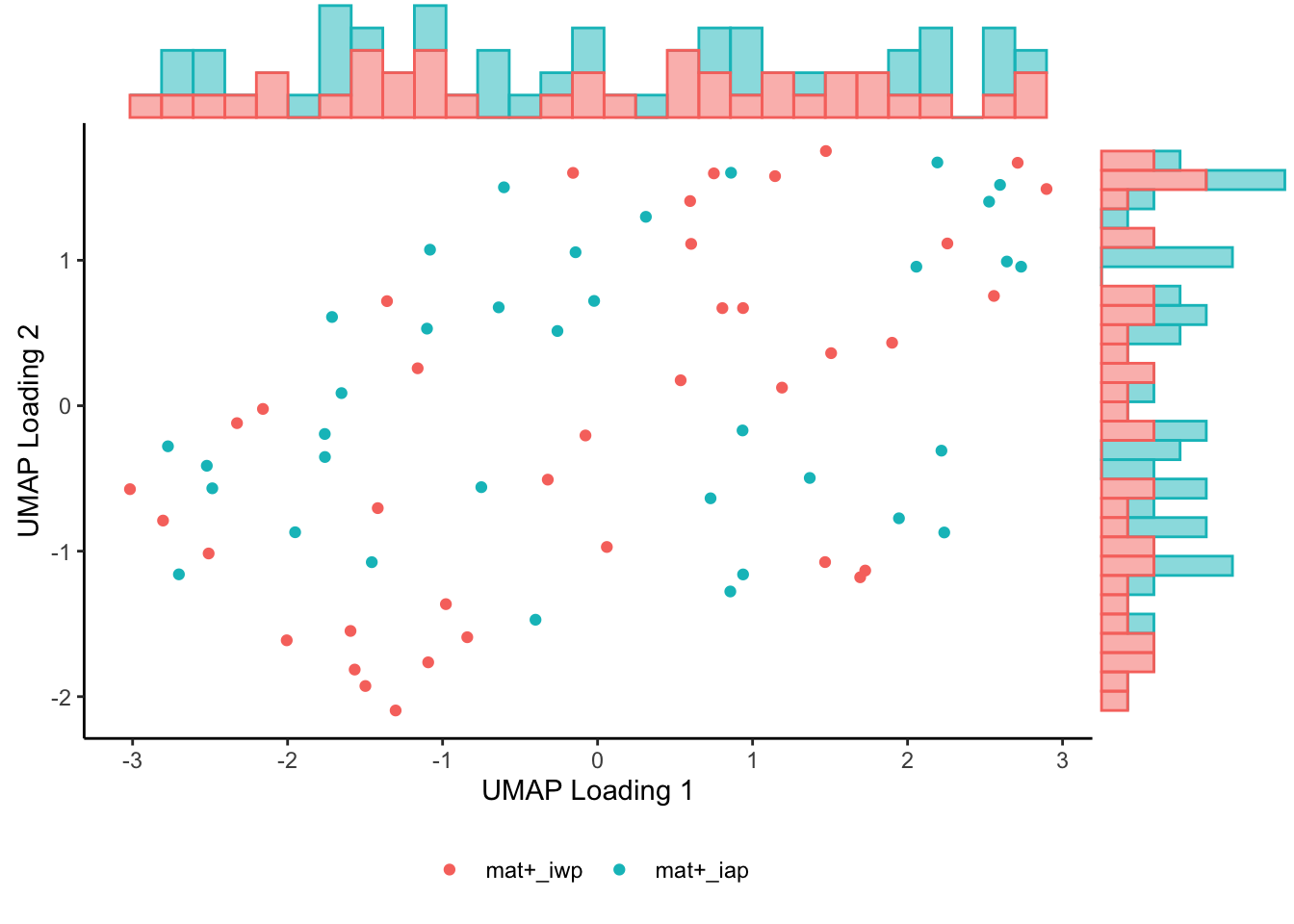

Plot of UMAP1 vs UMAP2 Loadings
Comparison of UMAP loadings by arm
Infant AP vs. WP vaccinated TT UMAP1: p=.72
Infant AP vs. WP vaccinated TT UMAP2: p=.74
Feature Cluster: IgG3
Features: DT_IgG3, FHA_IgG3, PRN_IgG3, PT_IgG3, TT_IgG3

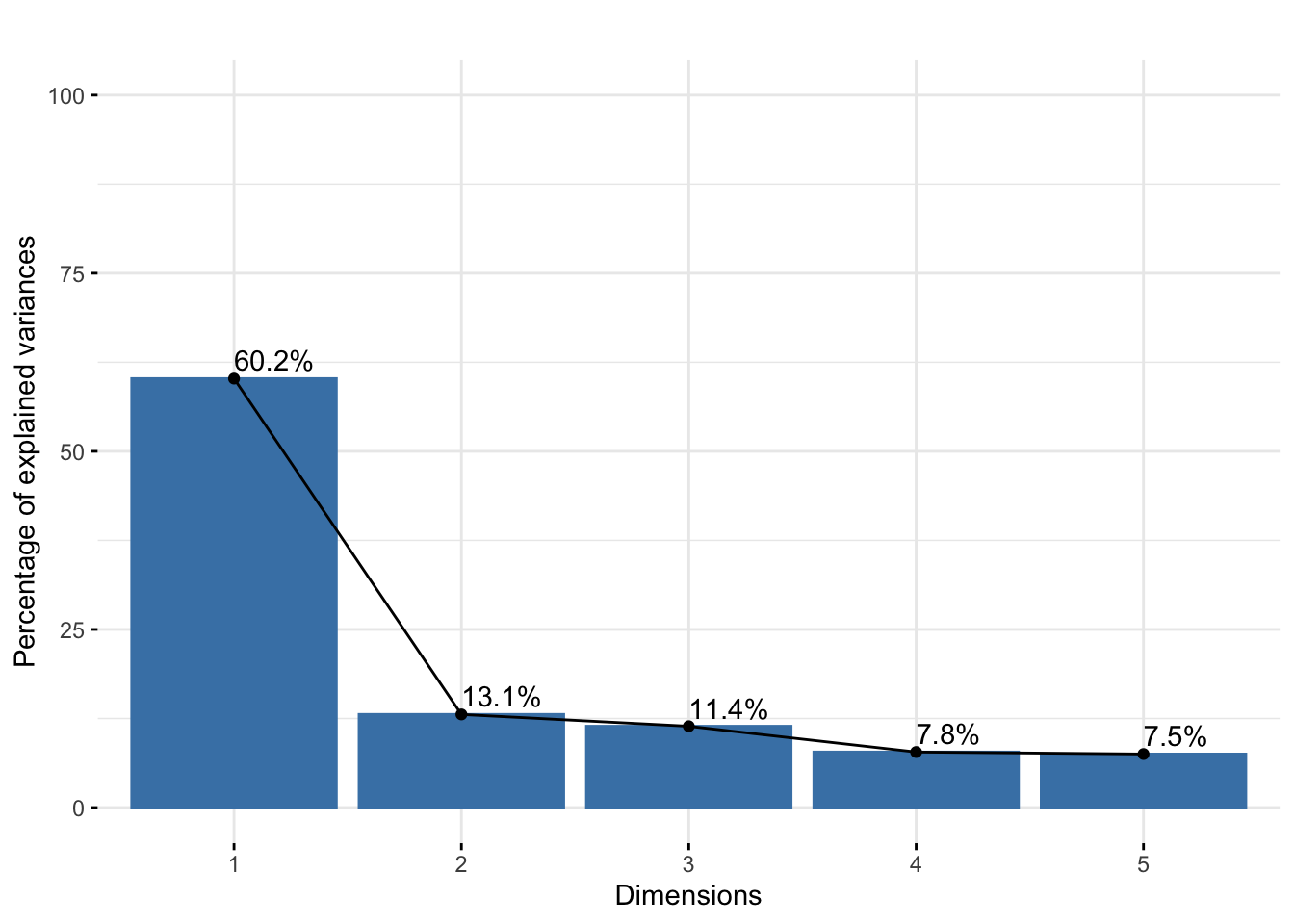

Proportion of Variance
summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | |
|---|---|---|---|---|---|
| Standard deviation | 1.735 | 0.808 | 0.755 | 0.624 | 0.613 |
| Proportion of Variance | 0.602 | 0.131 | 0.114 | 0.078 | 0.075 |
| Cumulative Proportion | 0.602 | 0.733 | 0.847 | 0.925 | 1.000 |

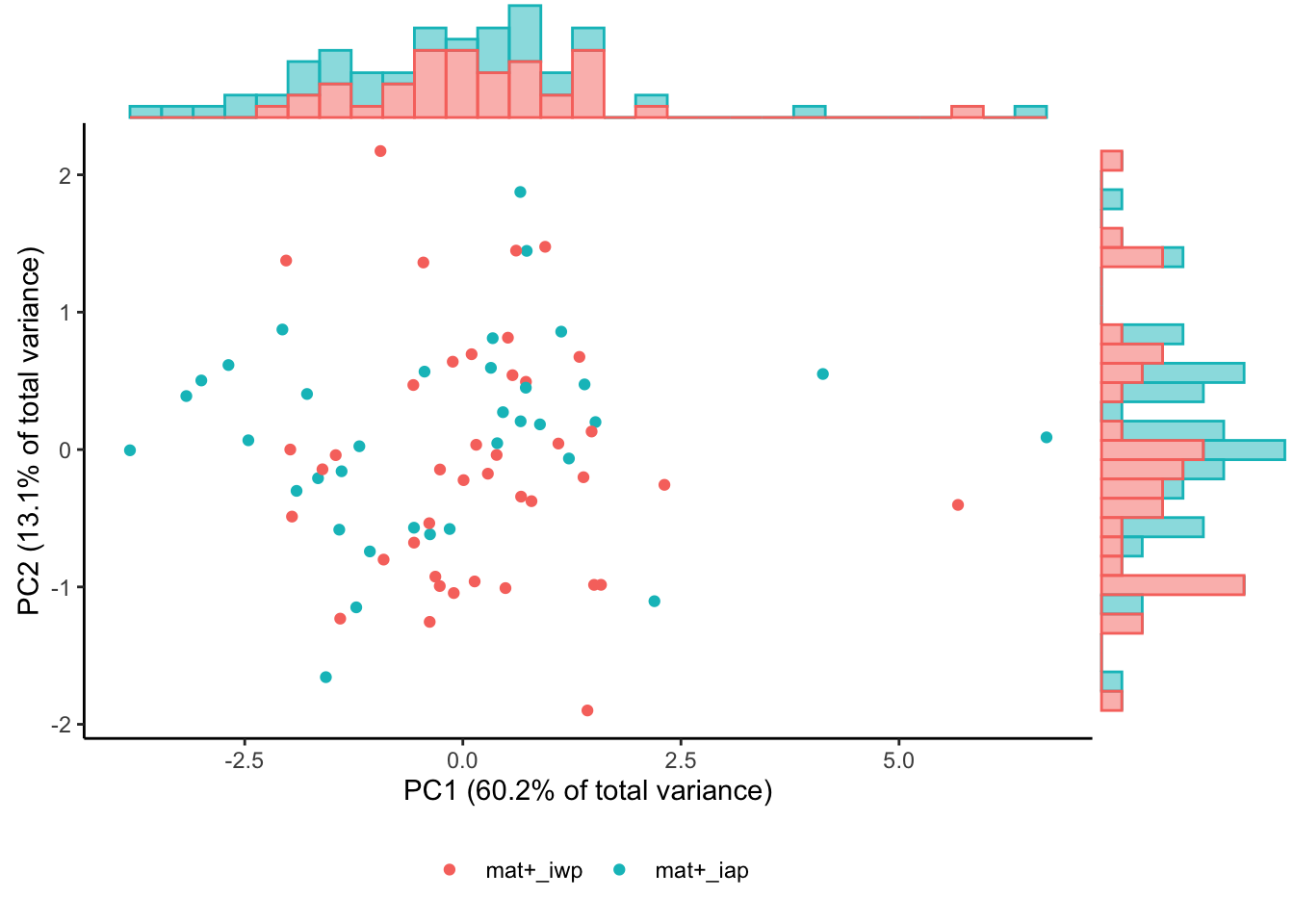

Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Infant AP vs. WP vaccinated Feature Cluster IgG3 PC1: p=.28
Infant AP vs. WP vaccinated Feature Cluster IgG3 PC2: p=.28
Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution

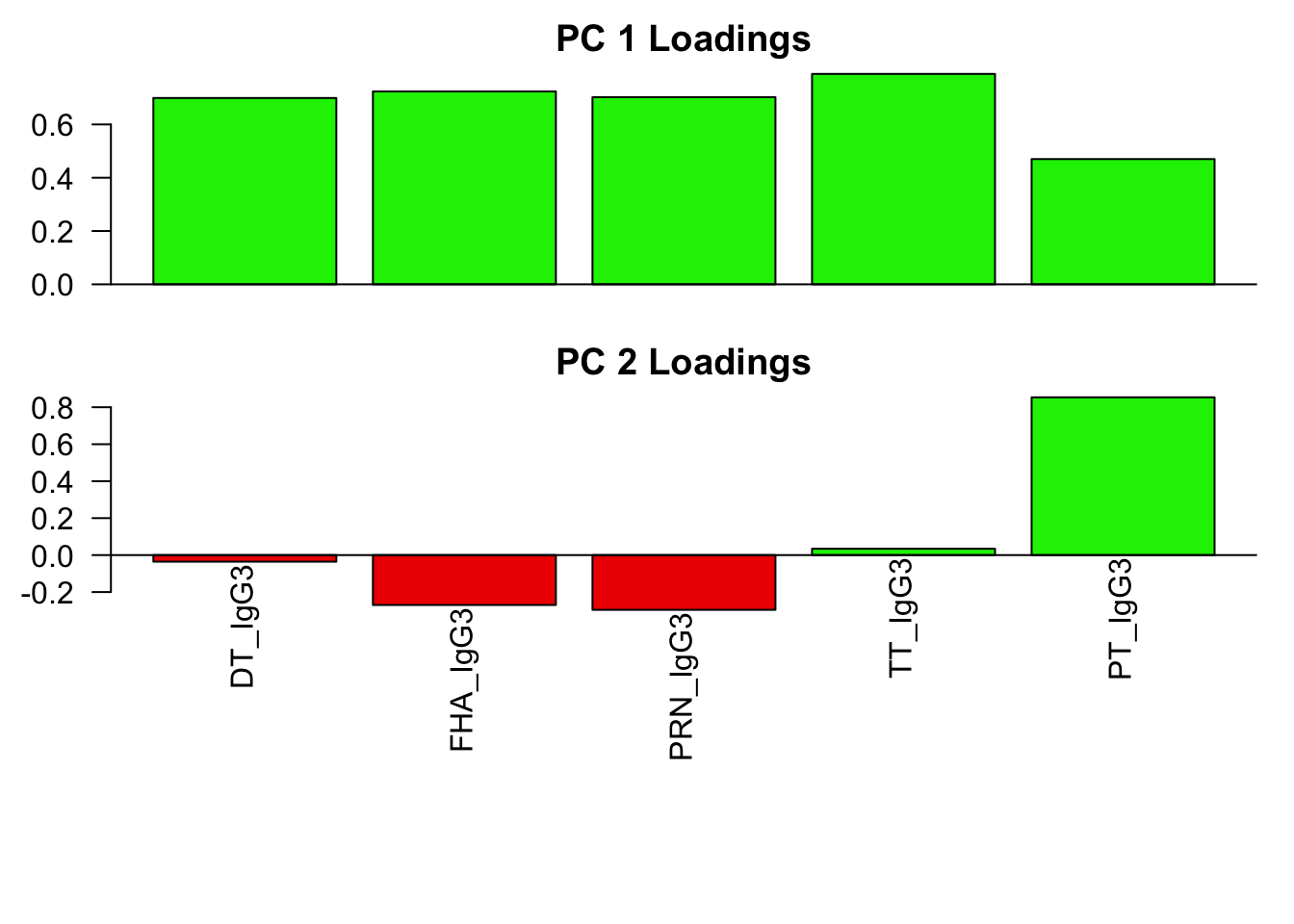

**Loadings
plot

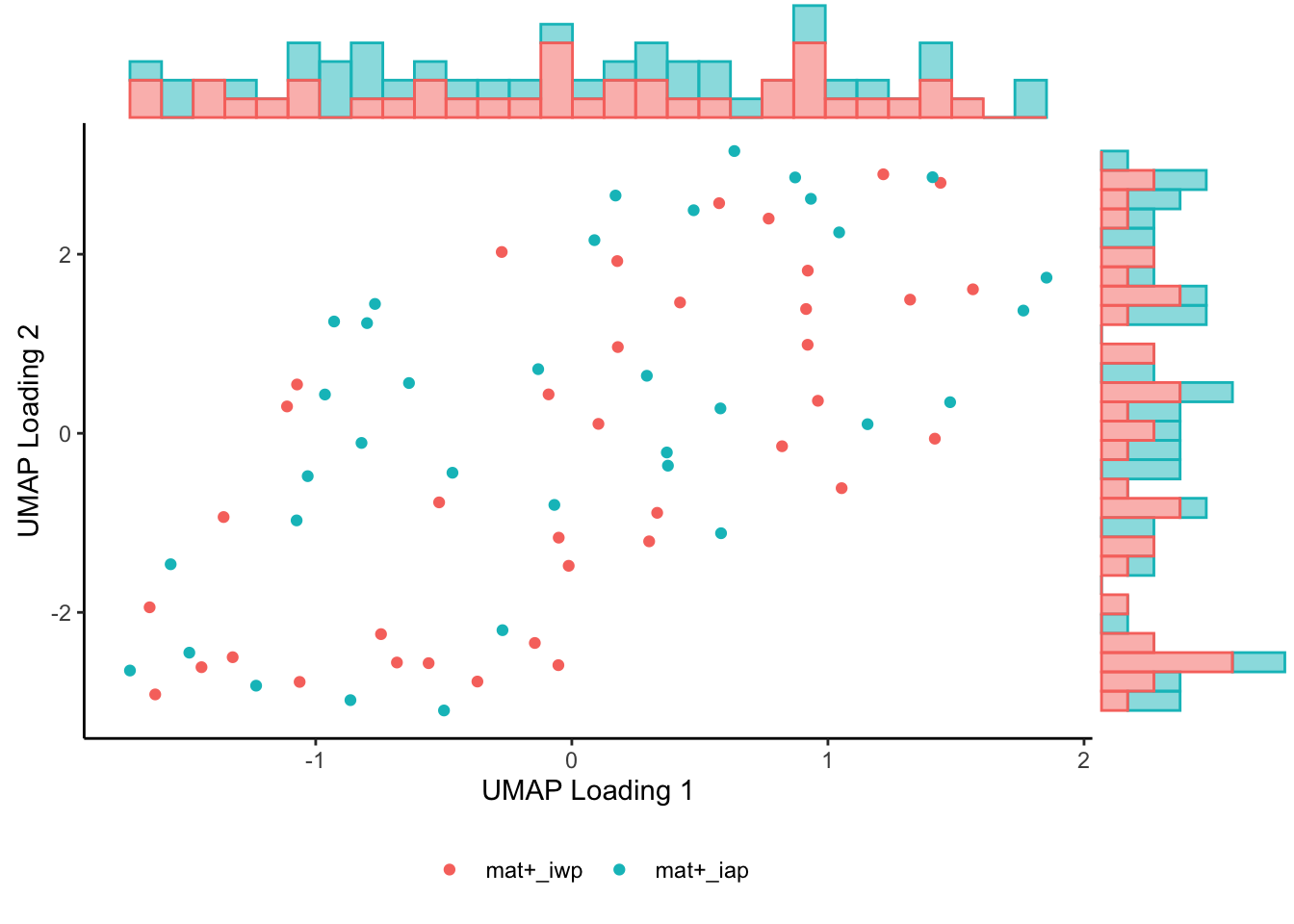

Plot of UMAP1 vs UMAP2 Loadings
Comparison of UMAP loadings by arm
Infant AP vs. WP vaccinated TT UMAP1: p=.25
Infant AP vs. WP vaccinated TT UMAP2: p=.27
Feature Cluster: IgG
Features: DT_IgG, FHA_IgG, PRN_IgG, PT_IgG, TT_IgG
Proportion of Variance
summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | |
|---|---|---|---|---|---|
| Standard deviation | 1.666 | 0.929 | 0.822 | 0.657 | 0.505 |
| Proportion of Variance | 0.555 | 0.173 | 0.135 | 0.086 | 0.051 |
| Cumulative Proportion | 0.555 | 0.728 | 0.863 | 0.949 | 1.000 |

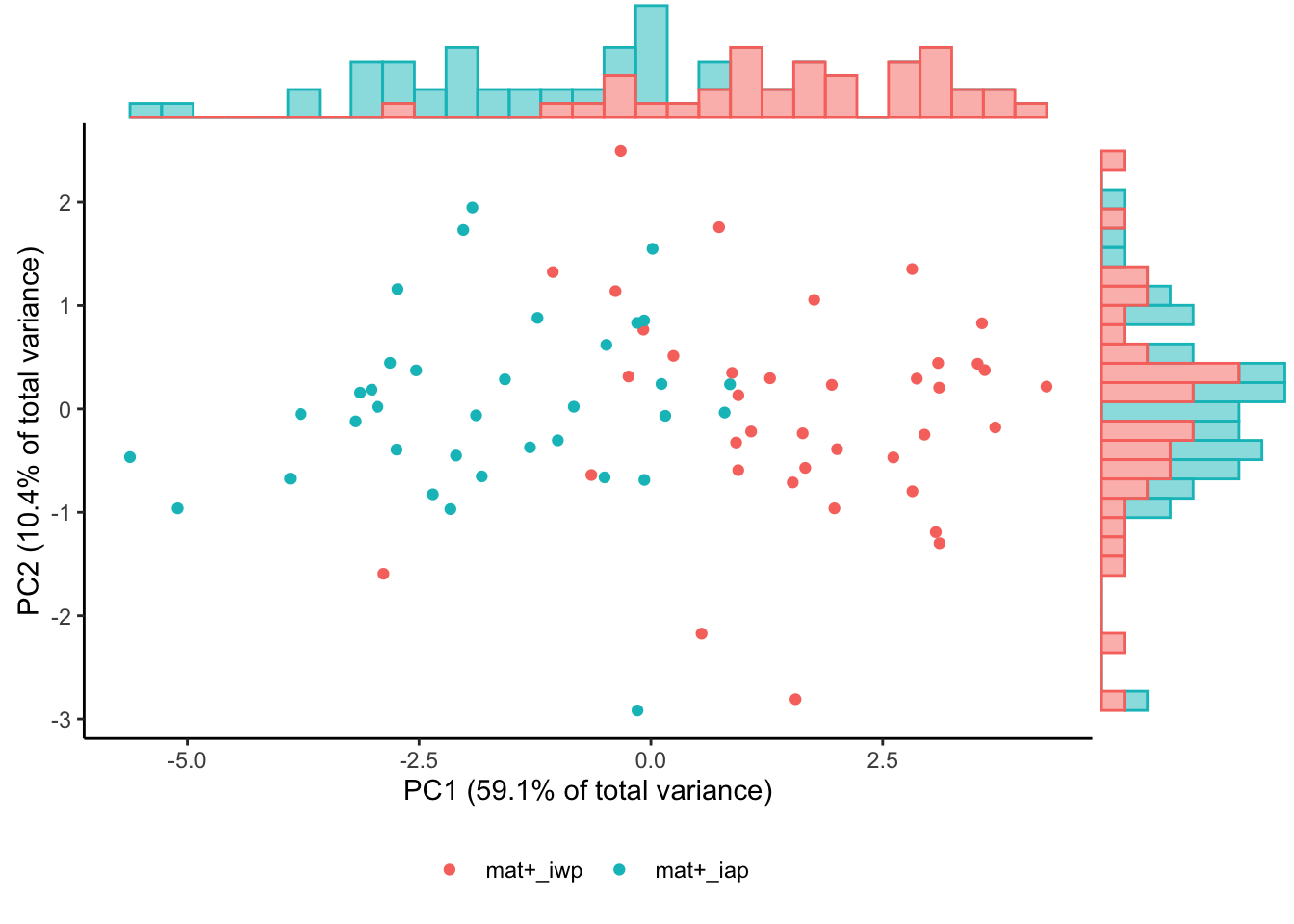

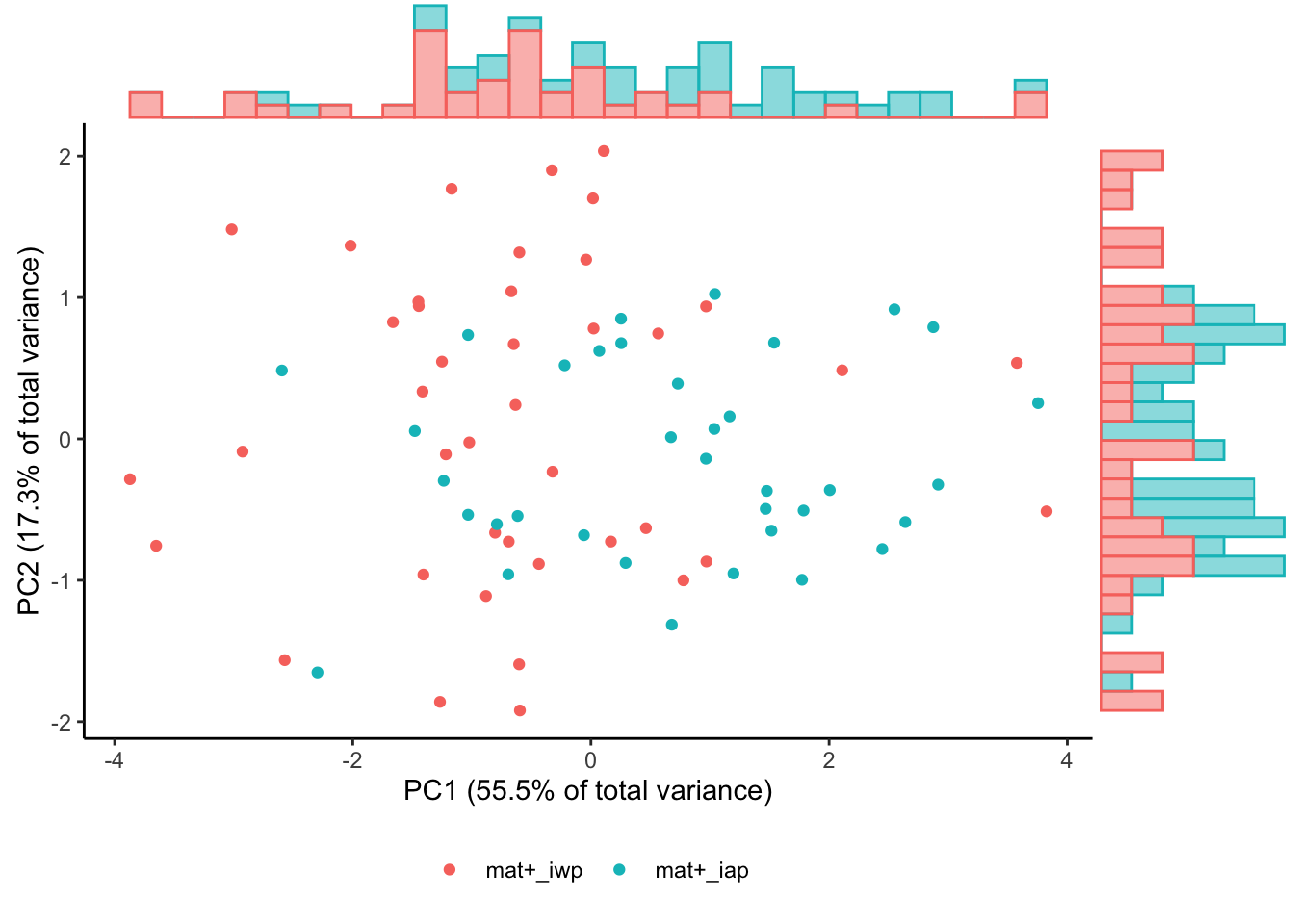

Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Infant AP vs. WP vaccinated Feature Cluster IgG PC1: p=.00038
Infant AP vs. WP vaccinated Feature Cluster IgG PC2: p=.18

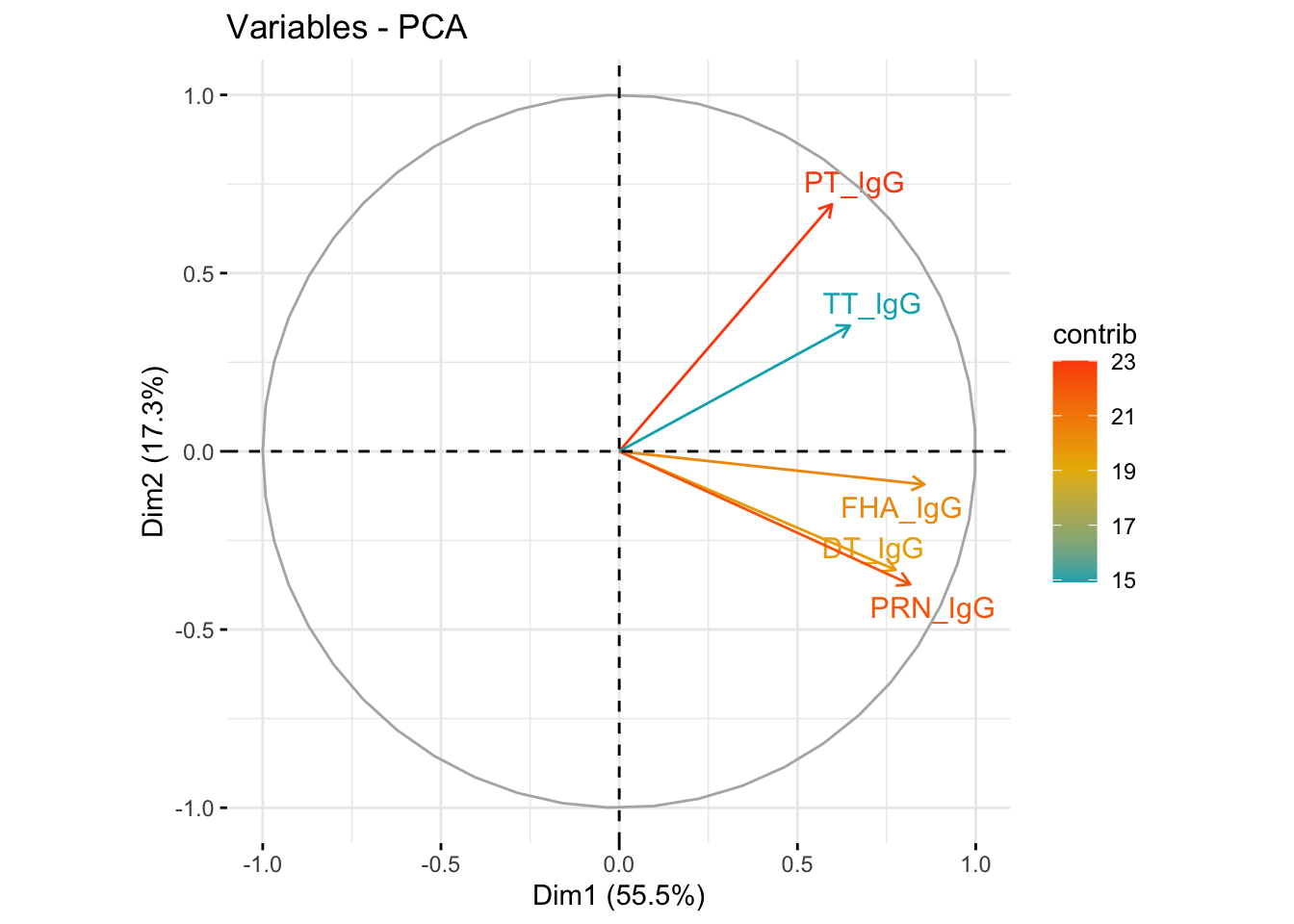

Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution

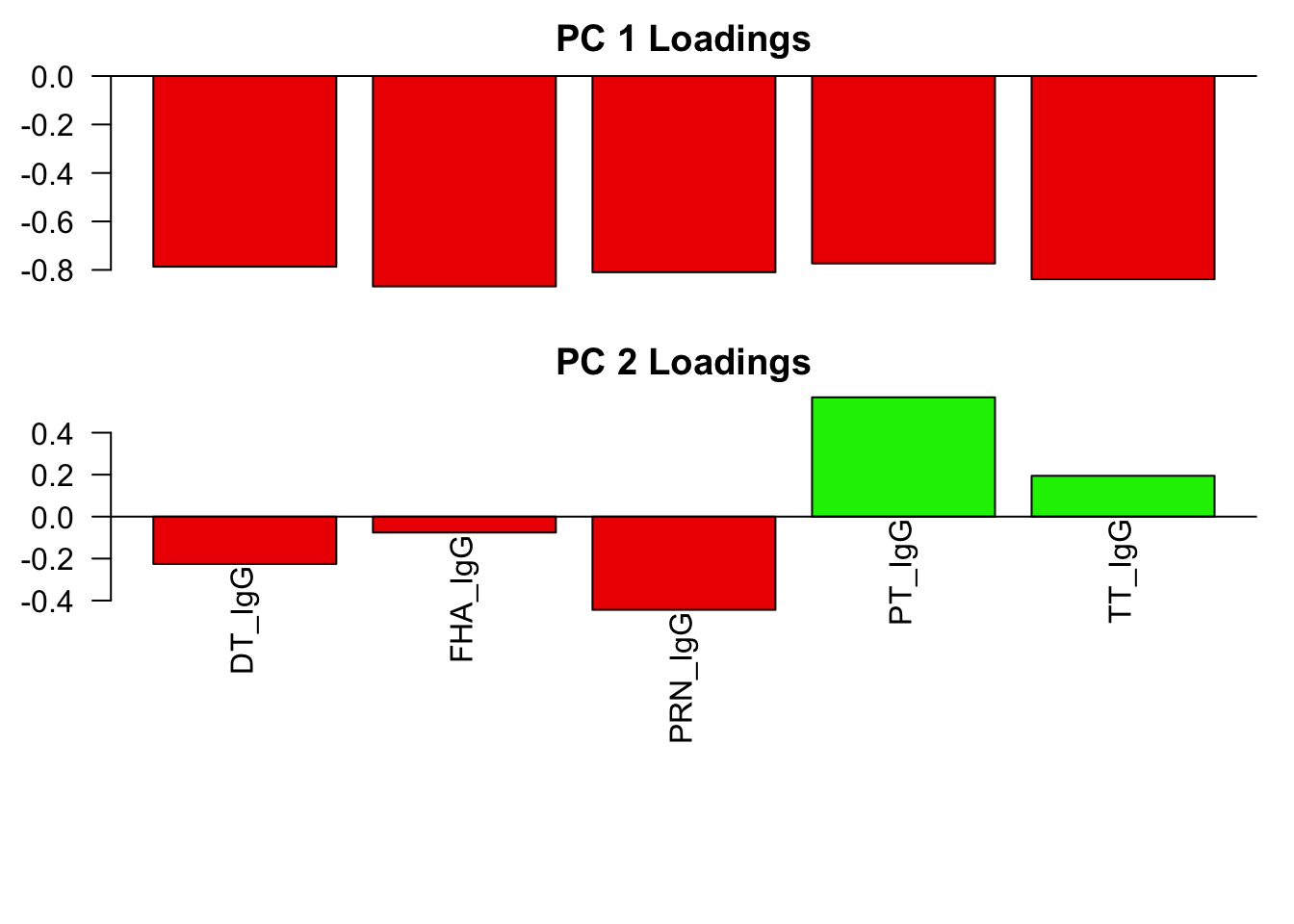

**Loadings
plot
Plot of UMAP1 vs UMAP2 Loadings
Comparison of UMAP loadings by arm
Infant AP vs. WP vaccinated TT UMAP1: p=.00025
Infant AP vs. WP vaccinated TT UMAP2: p<.0001
Response Cluster: 1
Features: DT_ADCD, DT_FcgR2a, DT_FcgR3b, FHA_ADCD, PRN_ADCD, PT_IgG1, TT_ADCD, TT_ADCP, TT_ADNP, TT_FcgR2a

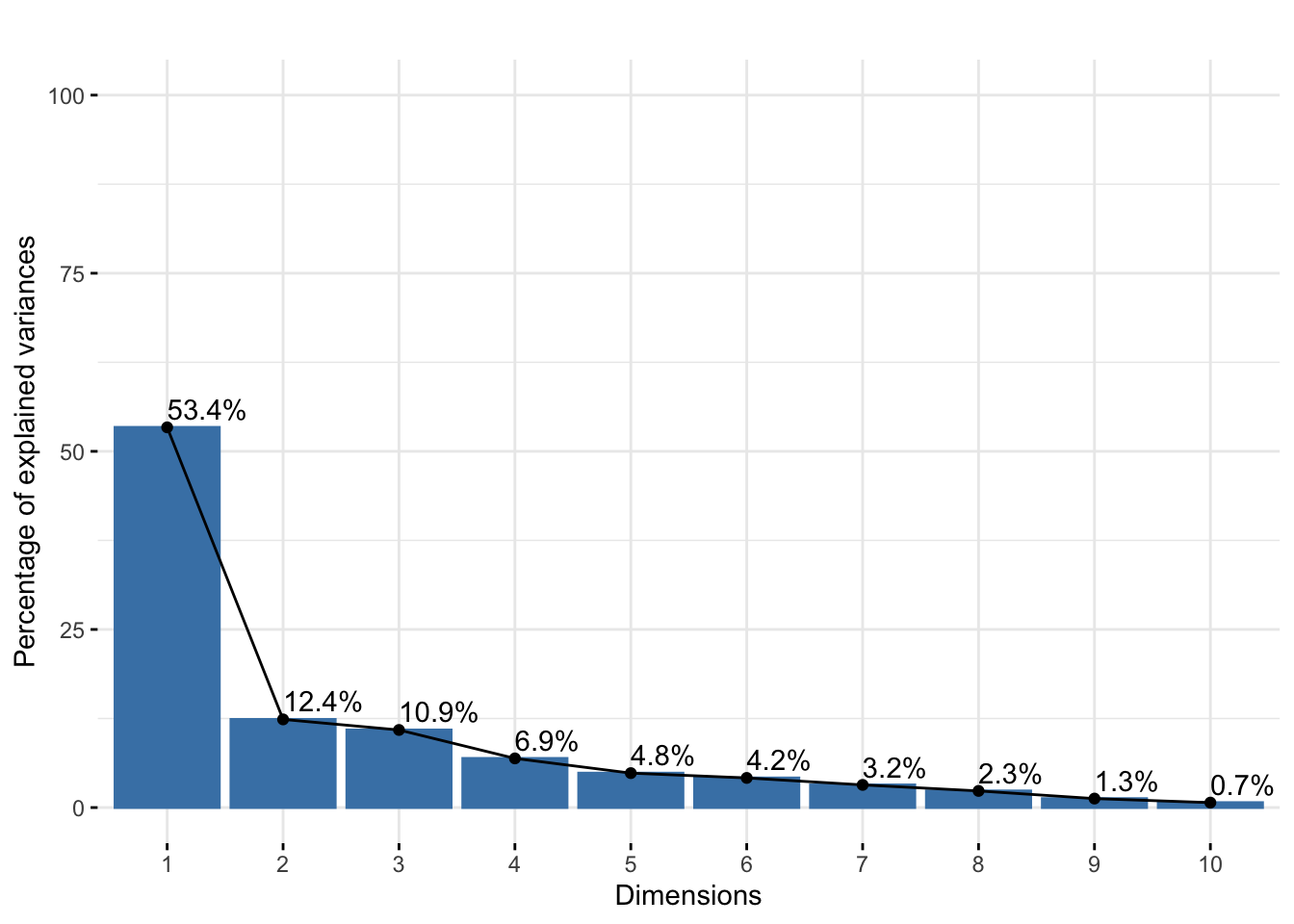

Proportion of Variance
summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | PC6 | PC7 | PC8 | PC9 | PC10 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Standard deviation | 2.310 | 1.112 | 1.044 | 0.831 | 0.695 | 0.645 | 0.564 | 0.483 | 0.355 | 0.264 |
| Proportion of Variance | 0.534 | 0.124 | 0.109 | 0.069 | 0.048 | 0.042 | 0.032 | 0.023 | 0.013 | 0.007 |
| Cumulative Proportion | 0.534 | 0.657 | 0.766 | 0.835 | 0.884 | 0.925 | 0.957 | 0.980 | 0.993 | 1.000 |

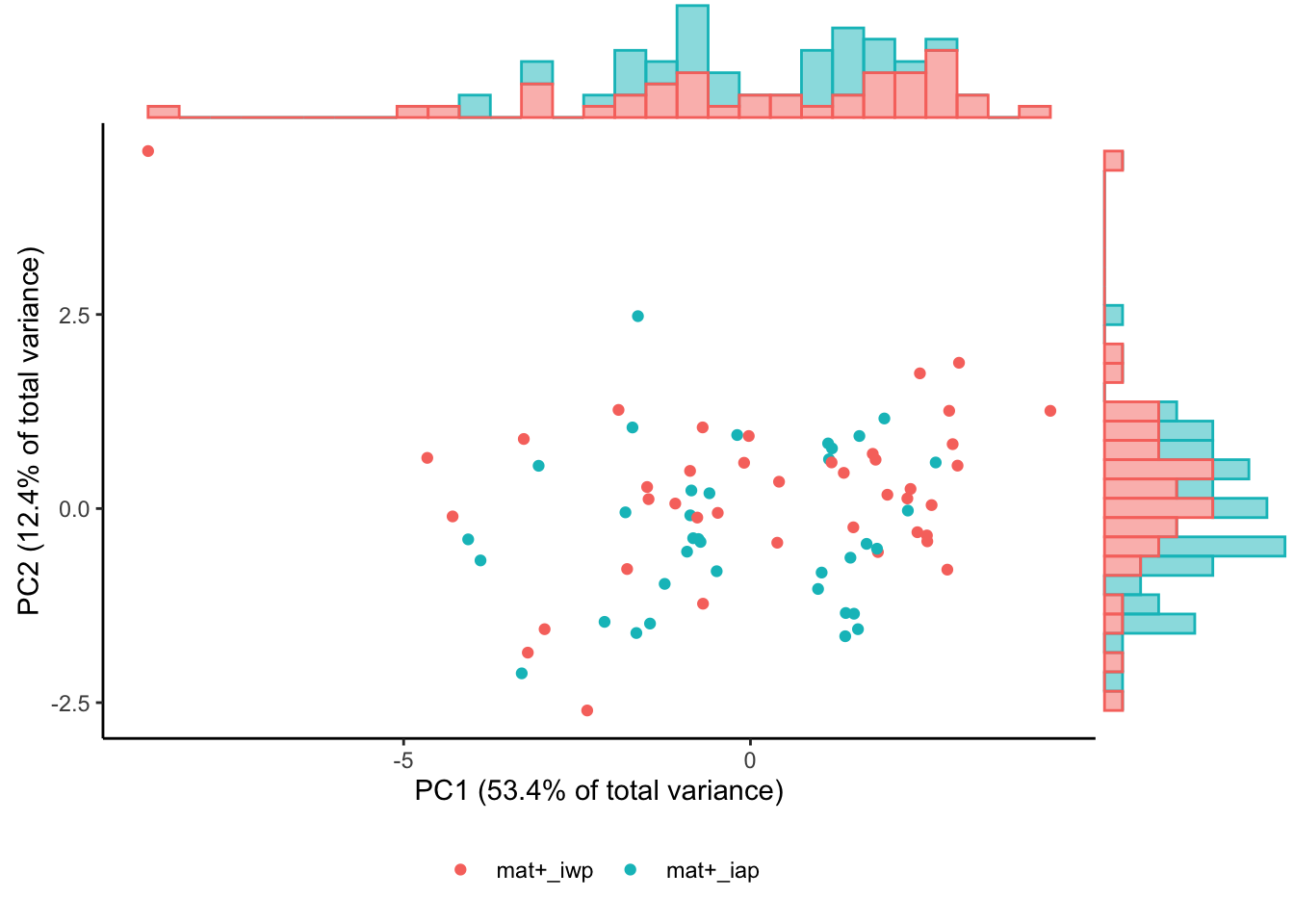

Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Infant AP vs. WP vaccinated RCluster_ 1 PC1: p=.45
Infant AP vs. WP vaccinated RCluster_ 1 PC2: p=.03

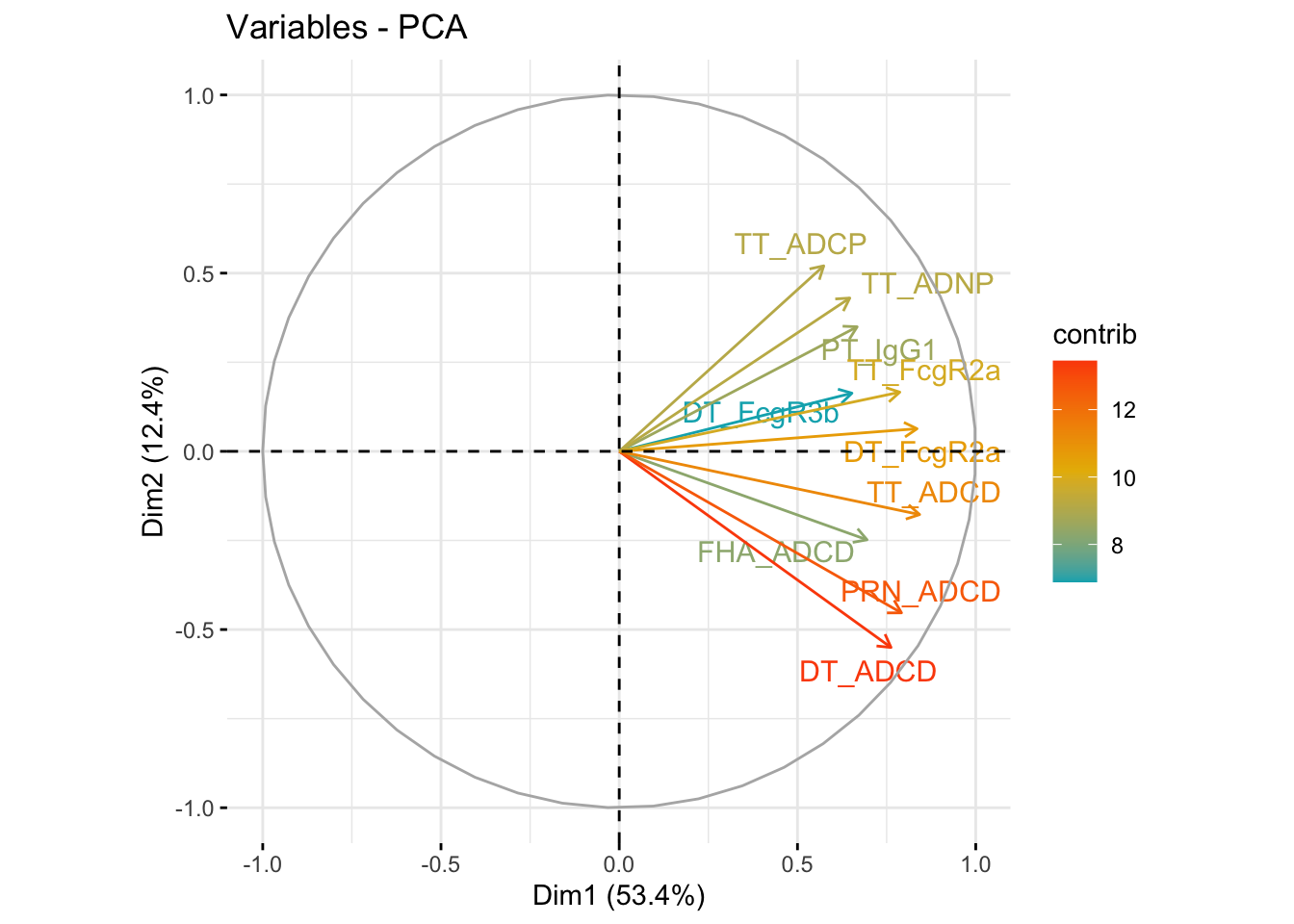

Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution

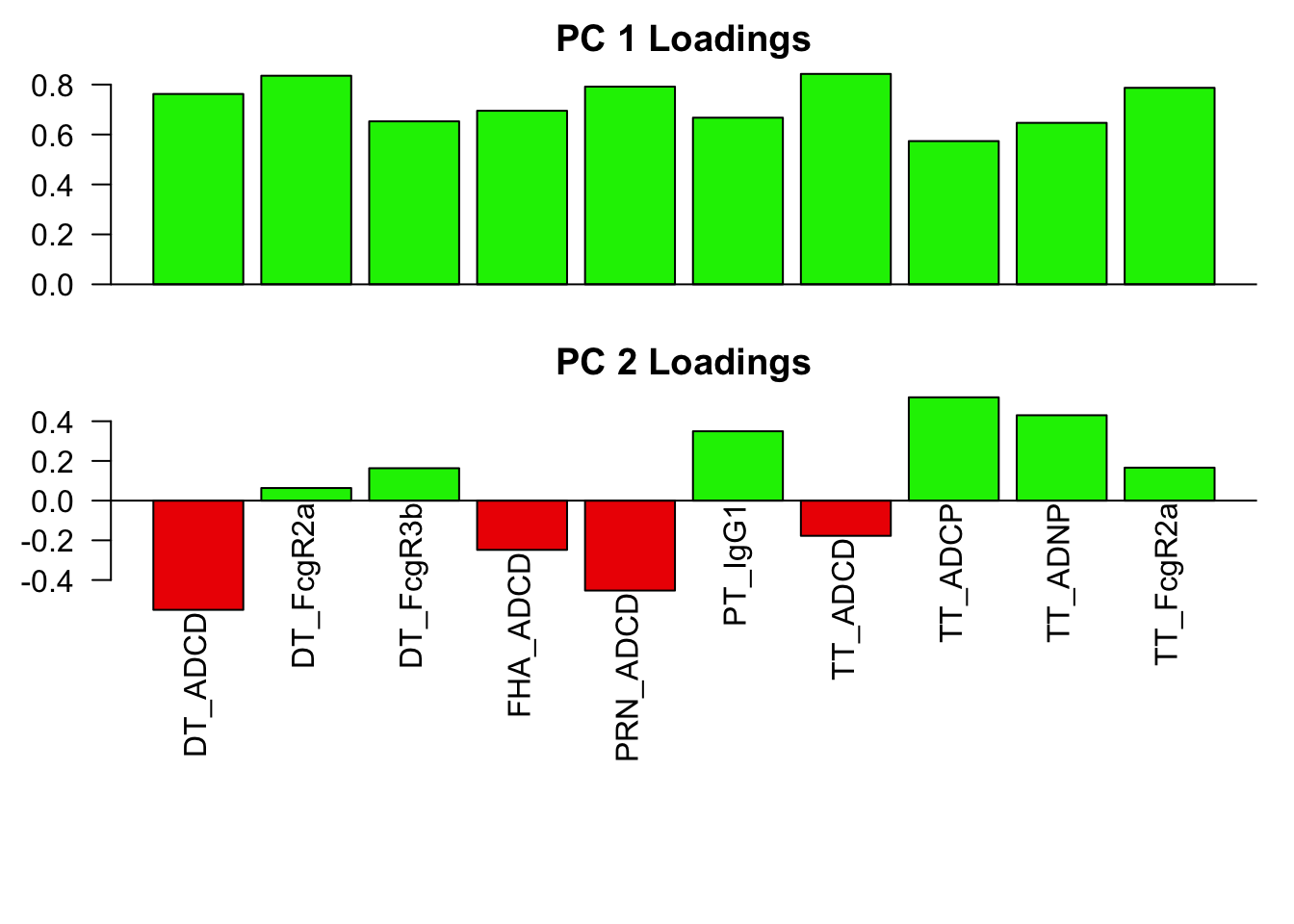

**Loadings
plot
Plot of UMAP1 vs UMAP2 Loadings
Comparison of UMAP loadings by arm
Infant AP vs. WP vaccinated TT UMAP1: p=.28
Infant AP vs. WP vaccinated TT UMAP2: p=.38
Response Cluster: 2
Features: DT_ADCP, PRN_ADNP
Proportion of Variance
summary for first 5 principal components (PC)| PC1 | PC2 | |
|---|---|---|
| Standard deviation | 1.050 | 0.947 |
| Proportion of Variance | 0.551 | 0.449 |
| Cumulative Proportion | 0.551 | 1.000 |

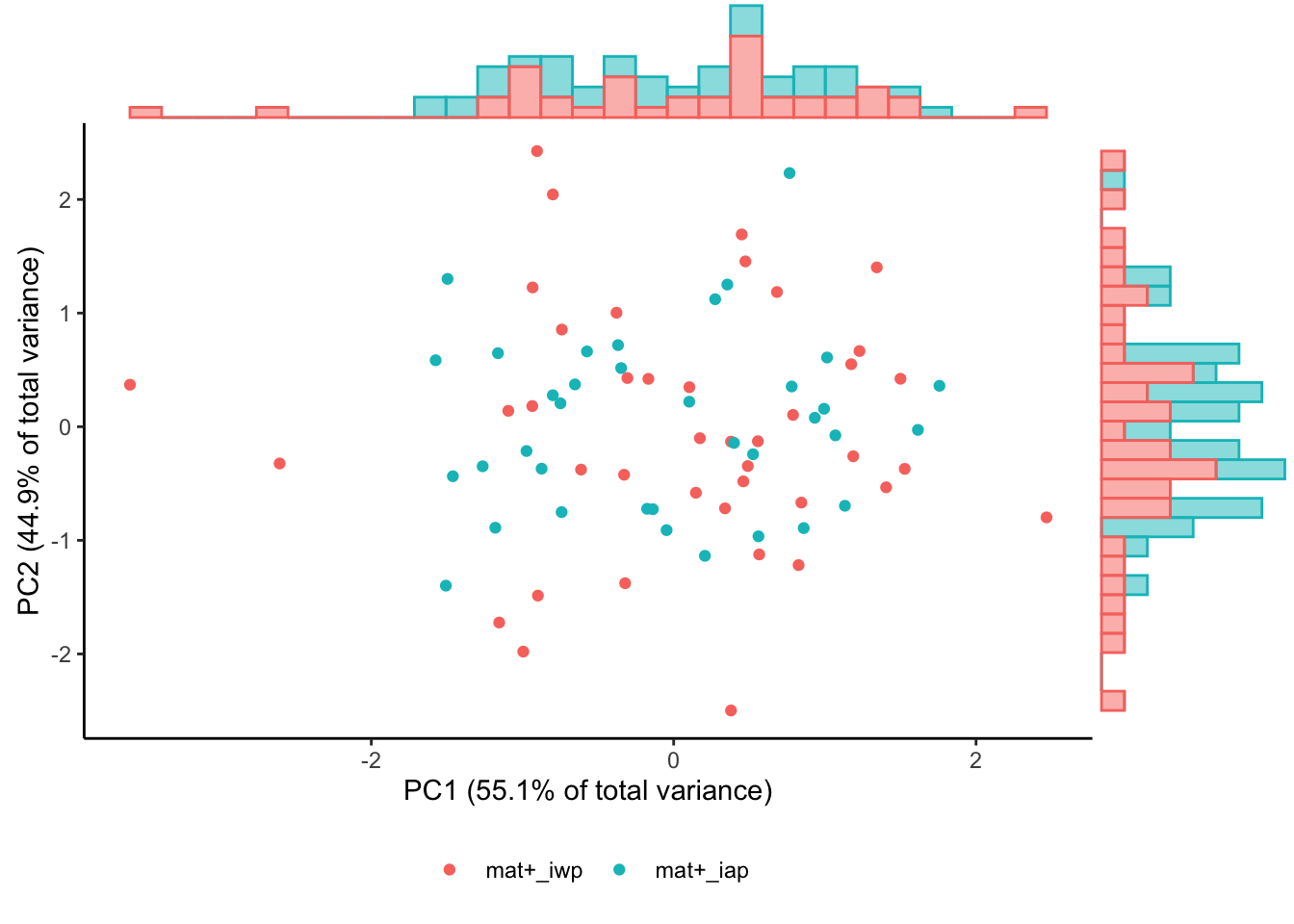

Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Infant AP vs. WP vaccinated RCluster_ 2 PC1: p=.55
Infant AP vs. WP vaccinated RCluster_ 2 PC2: p=.86
Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution
**Loadings
plot
Plot of UMAP1 vs UMAP2 Loadings
Comparison of UMAP loadings by arm
Infant AP vs. WP vaccinated TT UMAP1: p=.92
Infant AP vs. WP vaccinated TT UMAP2: p=.54
Response Cluster: 3
Features: DT_ADNP, FHA_ADCP, FHA_ADNP, PRN_ADCP
Proportion of Variance
summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | |
|---|---|---|---|---|
| Standard deviation | 1.435 | 0.917 | 0.790 | 0.690 |
| Proportion of Variance | 0.514 | 0.210 | 0.156 | 0.119 |
| Cumulative Proportion | 0.514 | 0.725 | 0.881 | 1.000 |
Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Infant AP vs. WP vaccinated RCluster_ 3 PC1: p=.031
Infant AP vs. WP vaccinated RCluster_ 3 PC2: p=.6

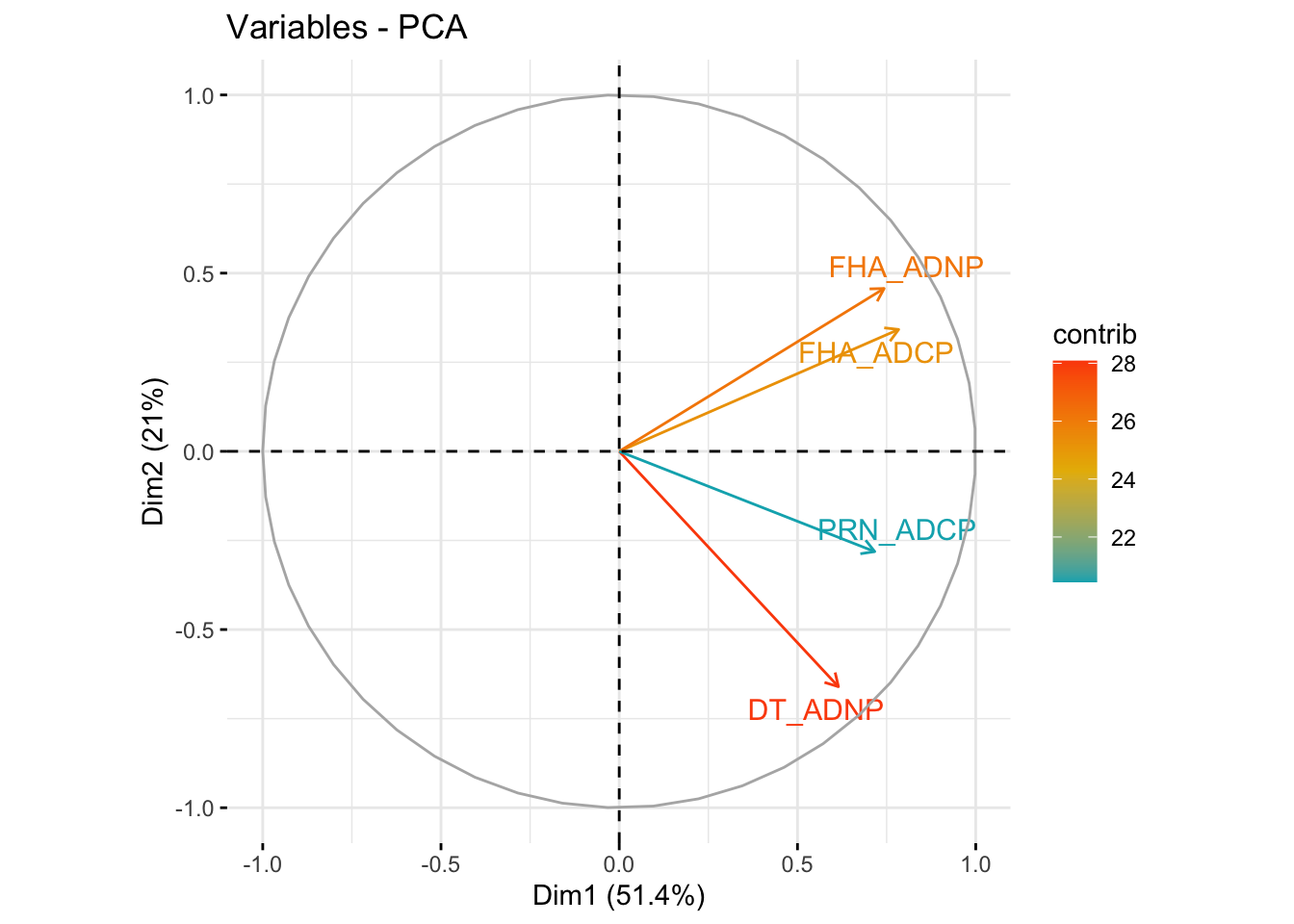

Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution

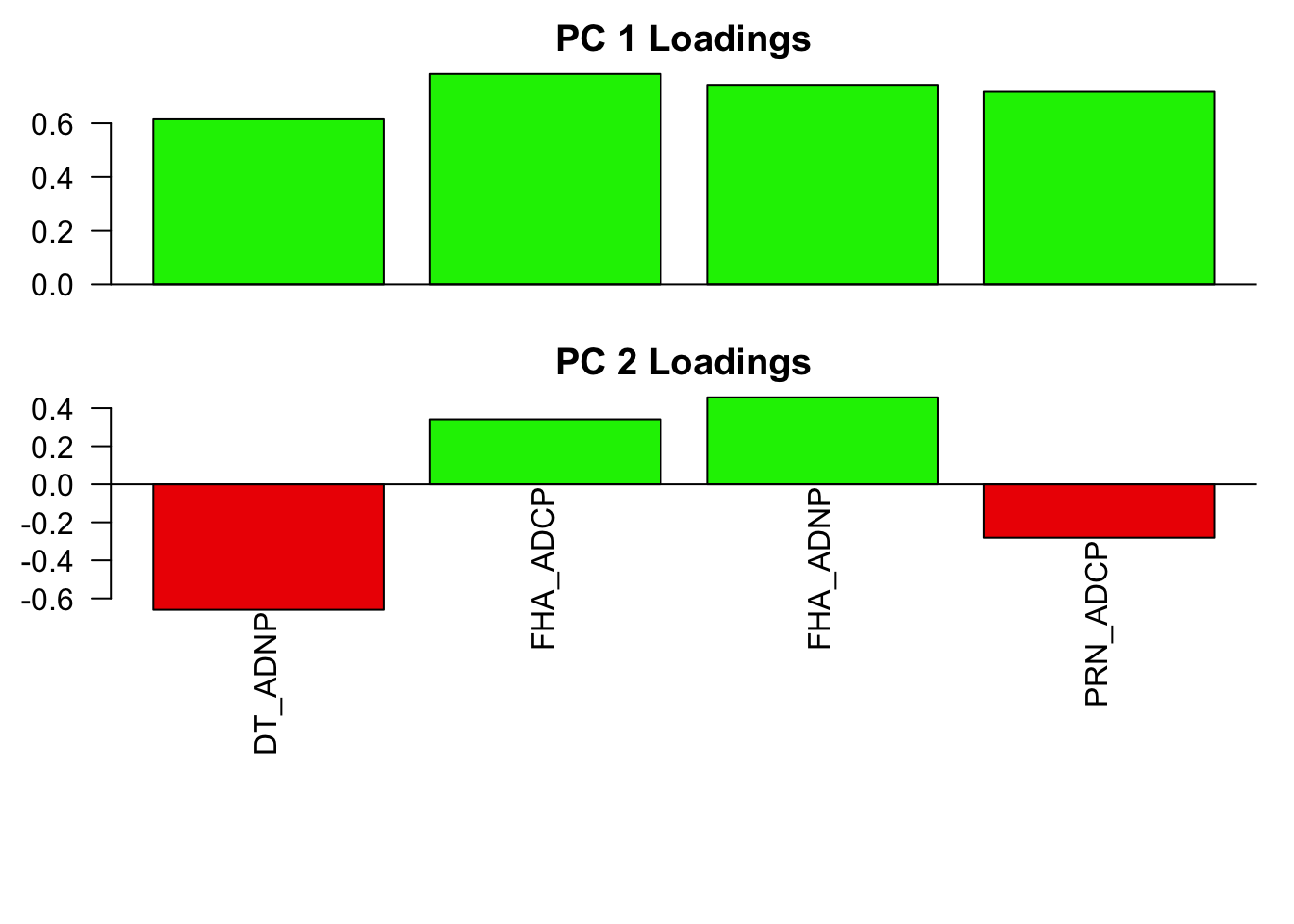

**Loadings
plot
Plot of UMAP1 vs UMAP2 Loadings
Comparison of UMAP loadings by arm
Infant AP vs. WP vaccinated TT UMAP1: p=.8
Infant AP vs. WP vaccinated TT UMAP2: p=.11
Response Cluster: 4
Features: DT_IgG, FHA_FcgR2a, FHA_FcgR3b, FHA_IgG, PRN_FcgR2a, PRN_FcgR3b, PRN_IgG, PT_IgG, TT_FcgR3b, TT_IgG

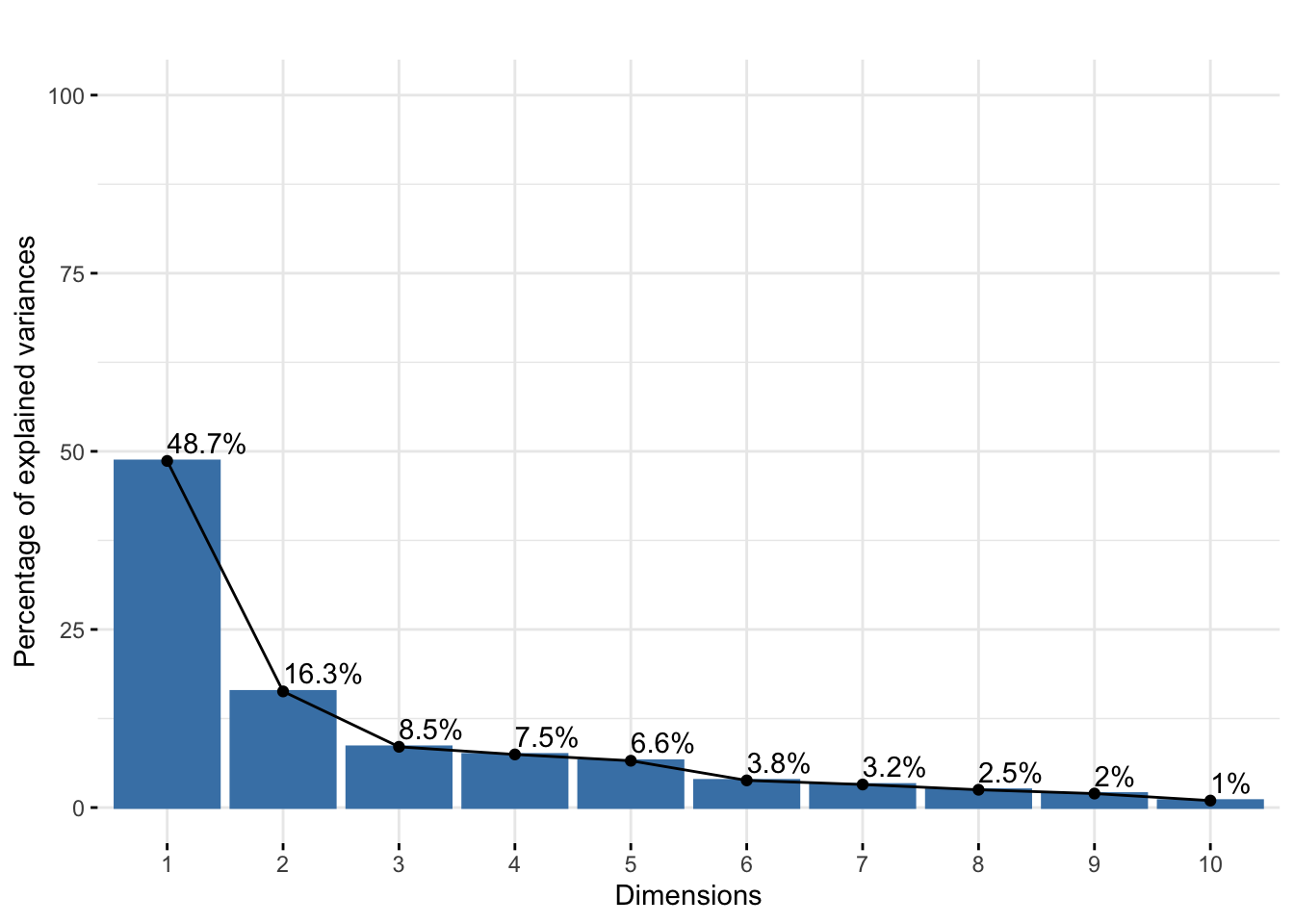

Proportion of Variance
summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | PC6 | PC7 | PC8 | PC9 | PC10 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Standard deviation | 2.206 | 1.277 | 0.923 | 0.863 | 0.811 | 0.618 | 0.569 | 0.500 | 0.443 | 0.313 |
| Proportion of Variance | 0.487 | 0.163 | 0.085 | 0.075 | 0.066 | 0.038 | 0.032 | 0.025 | 0.020 | 0.010 |
| Cumulative Proportion | 0.487 | 0.650 | 0.735 | 0.809 | 0.875 | 0.913 | 0.946 | 0.971 | 0.990 | 1.000 |
Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Infant AP vs. WP vaccinated RCluster_ 4 PC1: p=.086
Infant AP vs. WP vaccinated RCluster_ 4 PC2: p<.0001

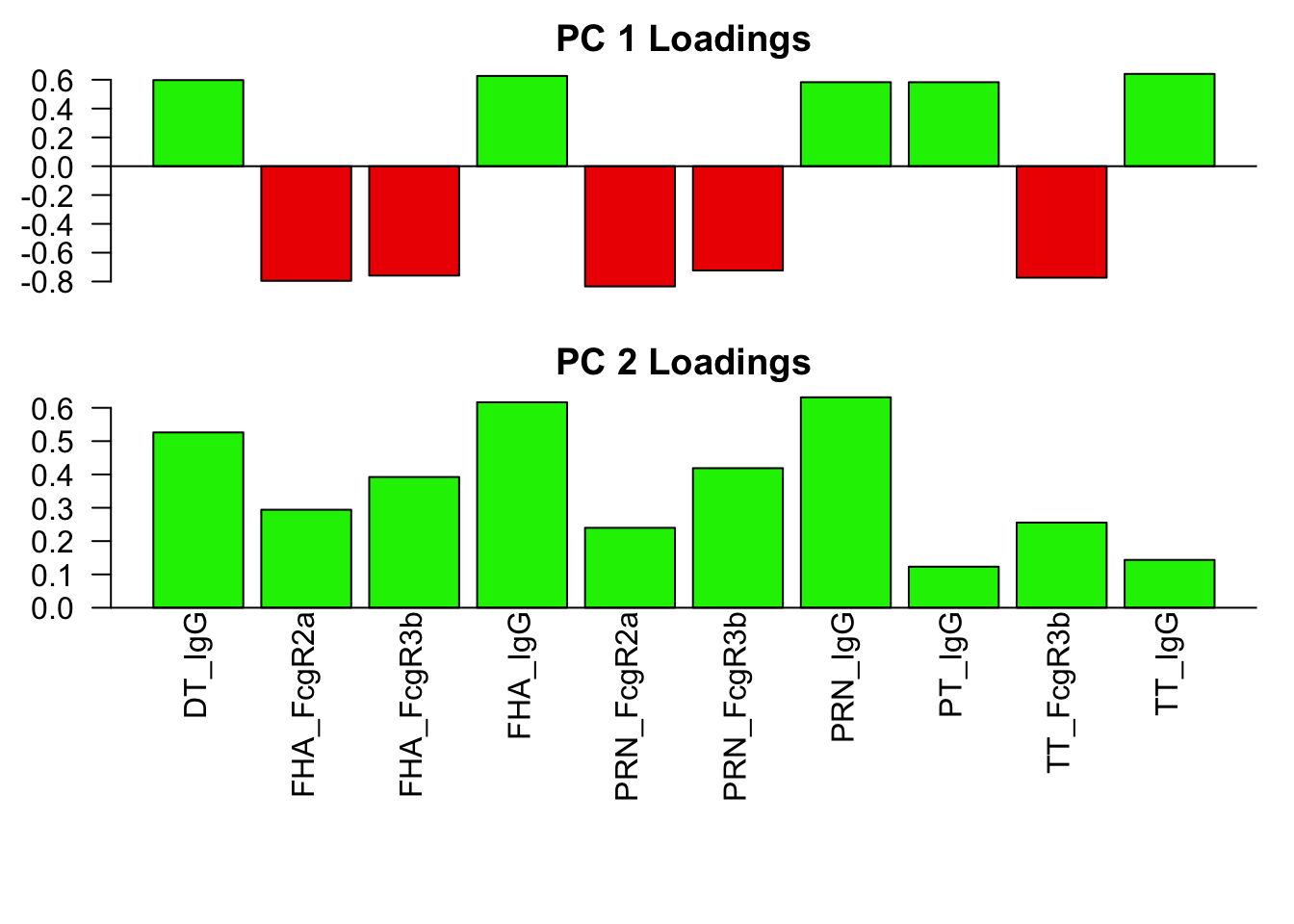

Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution
**Loadings
plot
Plot of UMAP1 vs UMAP2 Loadings
Comparison of UMAP loadings by arm
Infant AP vs. WP vaccinated TT UMAP1: p=.00041
Infant AP vs. WP vaccinated TT UMAP2: p=.23
Response Cluster: 5
Features: DT_IgG1, FHA_IgG1, PRN_IgG1, TT_IgG1
Proportion of Variance
summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | |
|---|---|---|---|---|
| Standard deviation | 1.589 | 0.818 | 0.729 | 0.526 |
| Proportion of Variance | 0.631 | 0.167 | 0.133 | 0.069 |
| Cumulative Proportion | 0.631 | 0.798 | 0.931 | 1.000 |
Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Infant AP vs. WP vaccinated RCluster_ 5 PC1: p=.81
Infant AP vs. WP vaccinated RCluster_ 5 PC2: p=.021

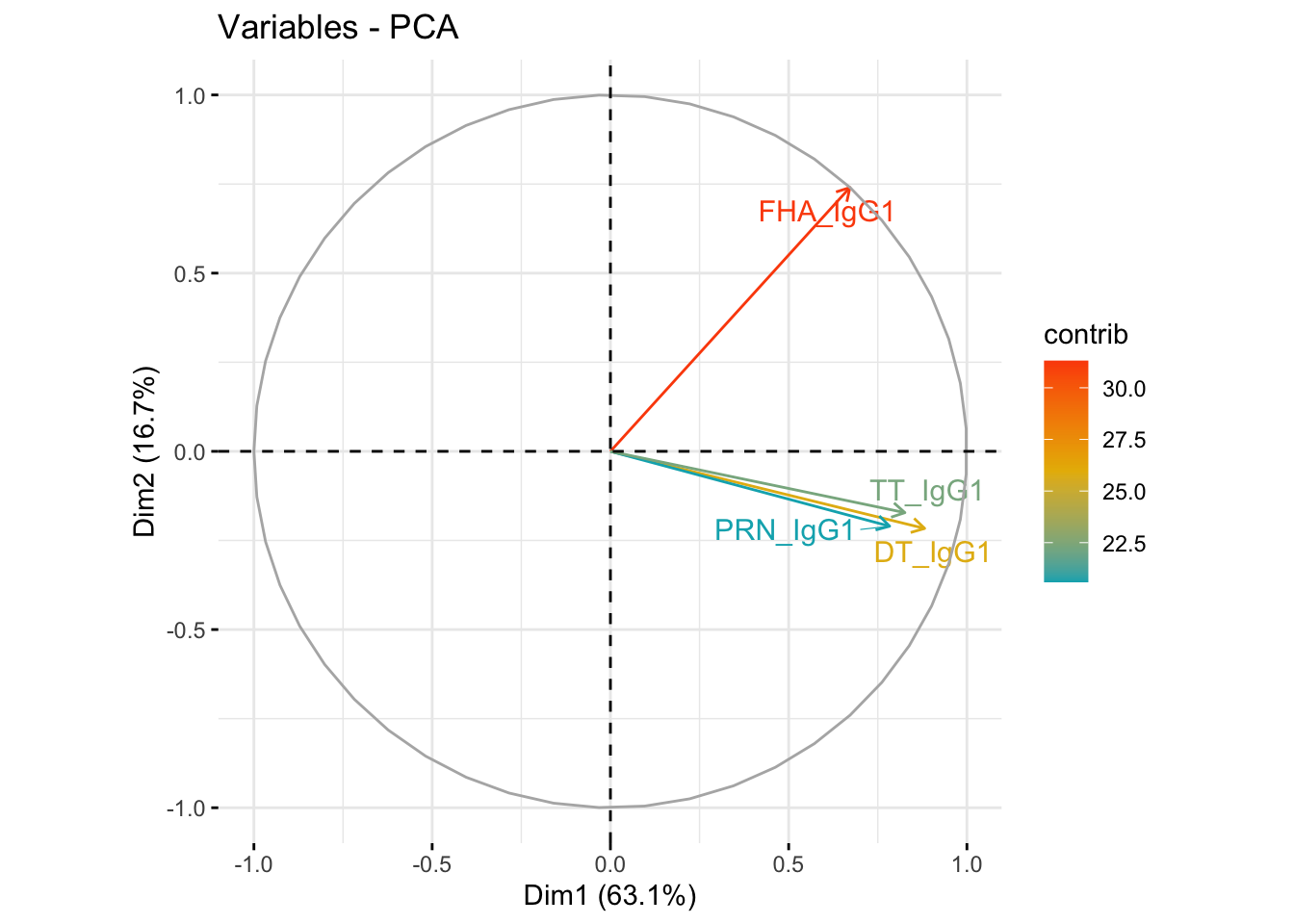

Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution

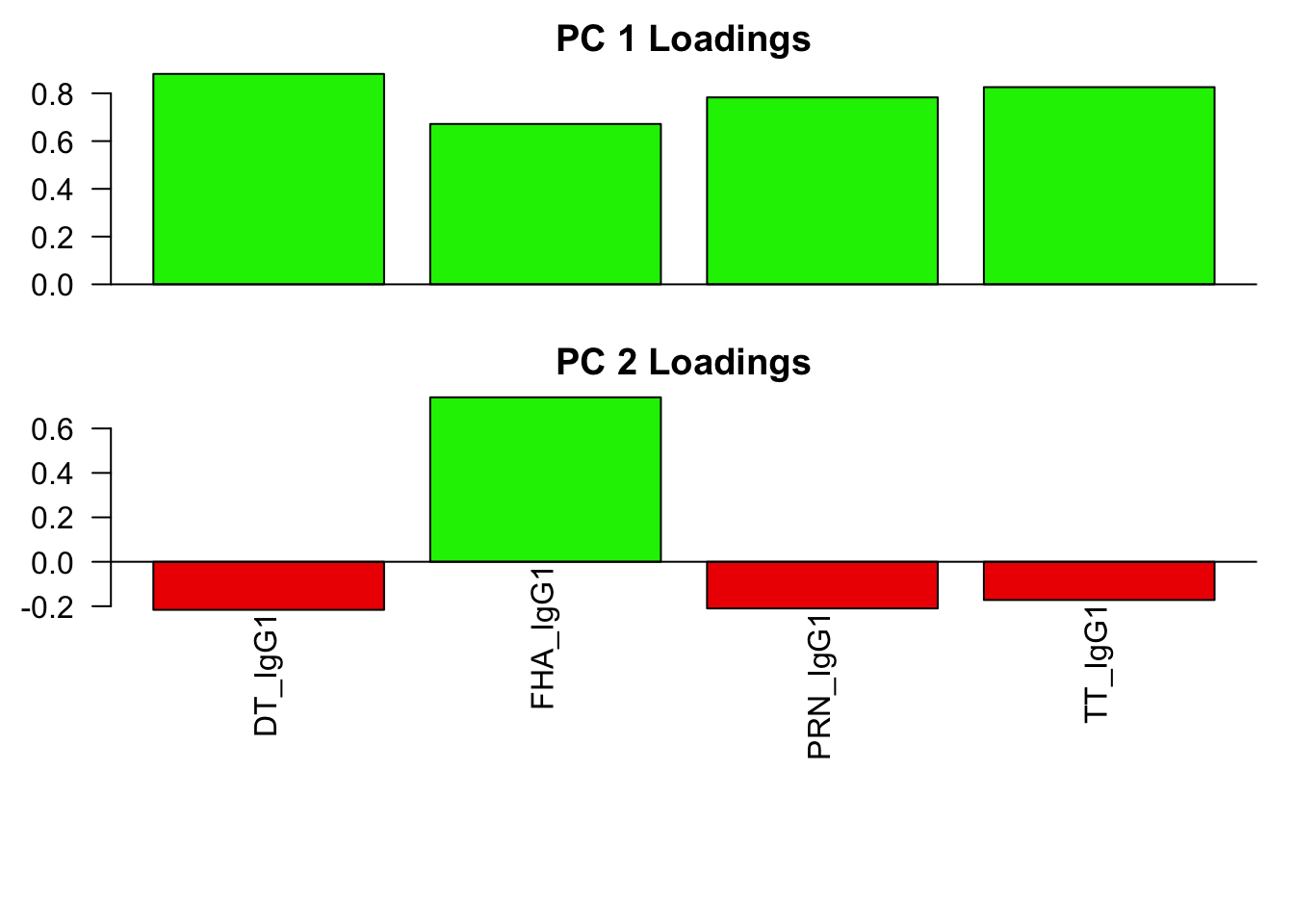

**Loadings
plot
Plot of UMAP1 vs UMAP2 Loadings
Comparison of UMAP loadings by arm
Infant AP vs. WP vaccinated TT UMAP1: p=.63
Infant AP vs. WP vaccinated TT UMAP2: p=.42
Response Cluster: 6
Features: DT_IgG2, DT_IgG4, FHA_IgG2, FHA_IgG4, PRN_IgG2, PRN_IgG4, PT_IgG2, PT_IgG4, TT_IgG2, TT_IgG4
Proportion of Variance
summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | PC6 | PC7 | PC8 | PC9 | PC10 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Standard deviation | 2.291 | 1.016 | 0.961 | 0.868 | 0.724 | 0.677 | 0.602 | 0.545 | 0.453 | 0.441 |
| Proportion of Variance | 0.525 | 0.103 | 0.092 | 0.075 | 0.052 | 0.046 | 0.036 | 0.030 | 0.021 | 0.019 |
| Cumulative Proportion | 0.525 | 0.628 | 0.721 | 0.796 | 0.848 | 0.894 | 0.930 | 0.960 | 0.981 | 1.000 |
Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Infant AP vs. WP vaccinated RCluster_ 6 PC1: p<.0001
Infant AP vs. WP vaccinated RCluster_ 6 PC2: p=.063
Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution
**Loadings
plot
Plot of UMAP1 vs UMAP2 Loadings
Comparison of UMAP loadings by arm
Infant AP vs. WP vaccinated TT UMAP1: p<.0001
Infant AP vs. WP vaccinated TT UMAP2: p<.0001
Response Cluster: 7
Features: DT_IgG3, FHA_IgG3, PRN_IgG3, PT_ADCD, PT_ADCP, PT_ADNP, PT_FcgR2a, PT_FcgR3b, PT_IgG3, TT_IgG3
Proportion of Variance

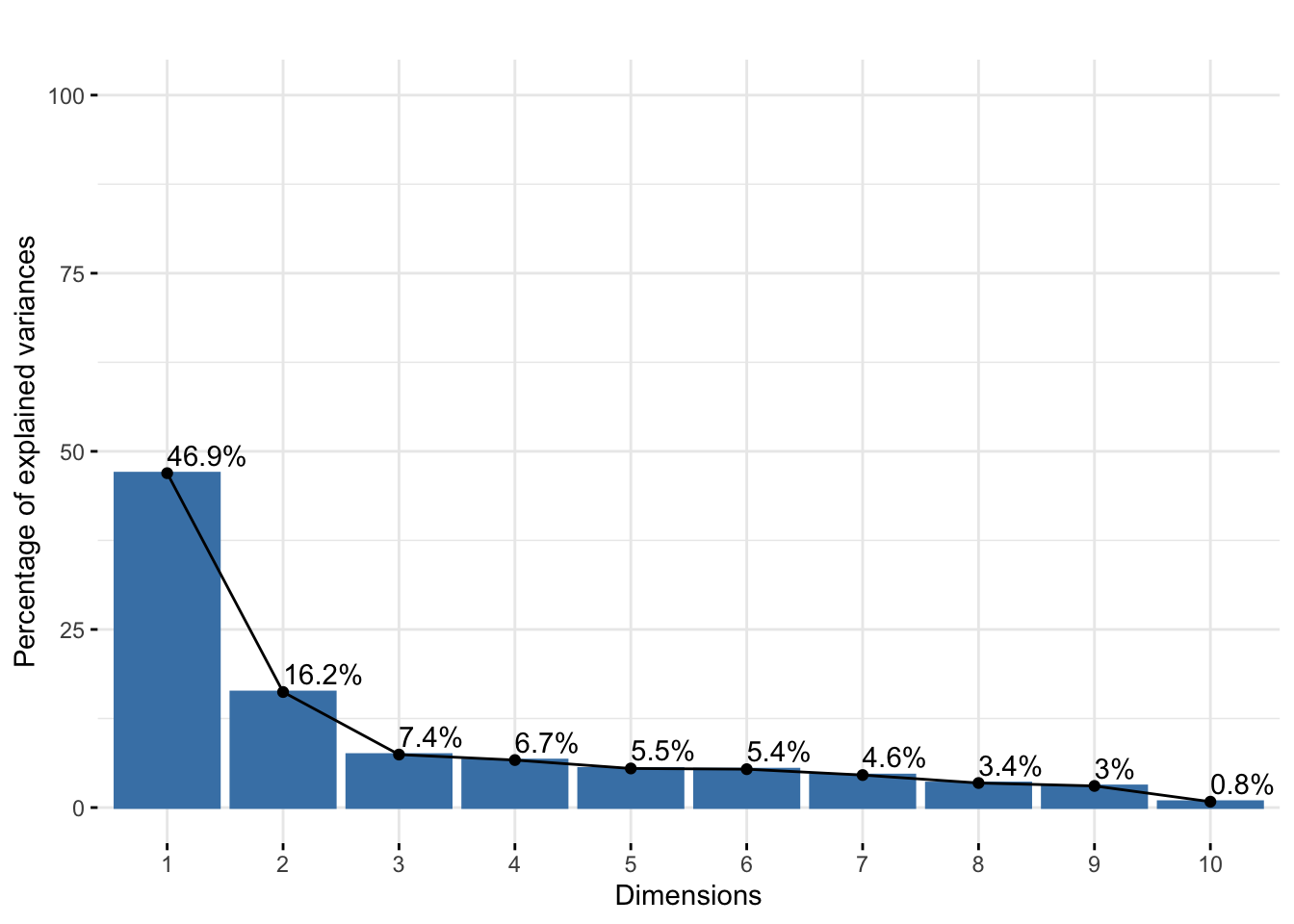

summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | PC6 | PC7 | PC8 | PC9 | PC10 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Standard deviation | 2.166 | 1.274 | 0.862 | 0.817 | 0.741 | 0.734 | 0.675 | 0.587 | 0.551 | 0.287 |
| Proportion of Variance | 0.469 | 0.162 | 0.074 | 0.067 | 0.055 | 0.054 | 0.046 | 0.034 | 0.030 | 0.008 |
| Cumulative Proportion | 0.469 | 0.632 | 0.706 | 0.773 | 0.827 | 0.881 | 0.927 | 0.961 | 0.992 | 1.000 |
Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Infant AP vs. WP vaccinated RCluster_ 7 PC1: p=.2
Infant AP vs. WP vaccinated RCluster_ 7 PC2: p=.86
Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution

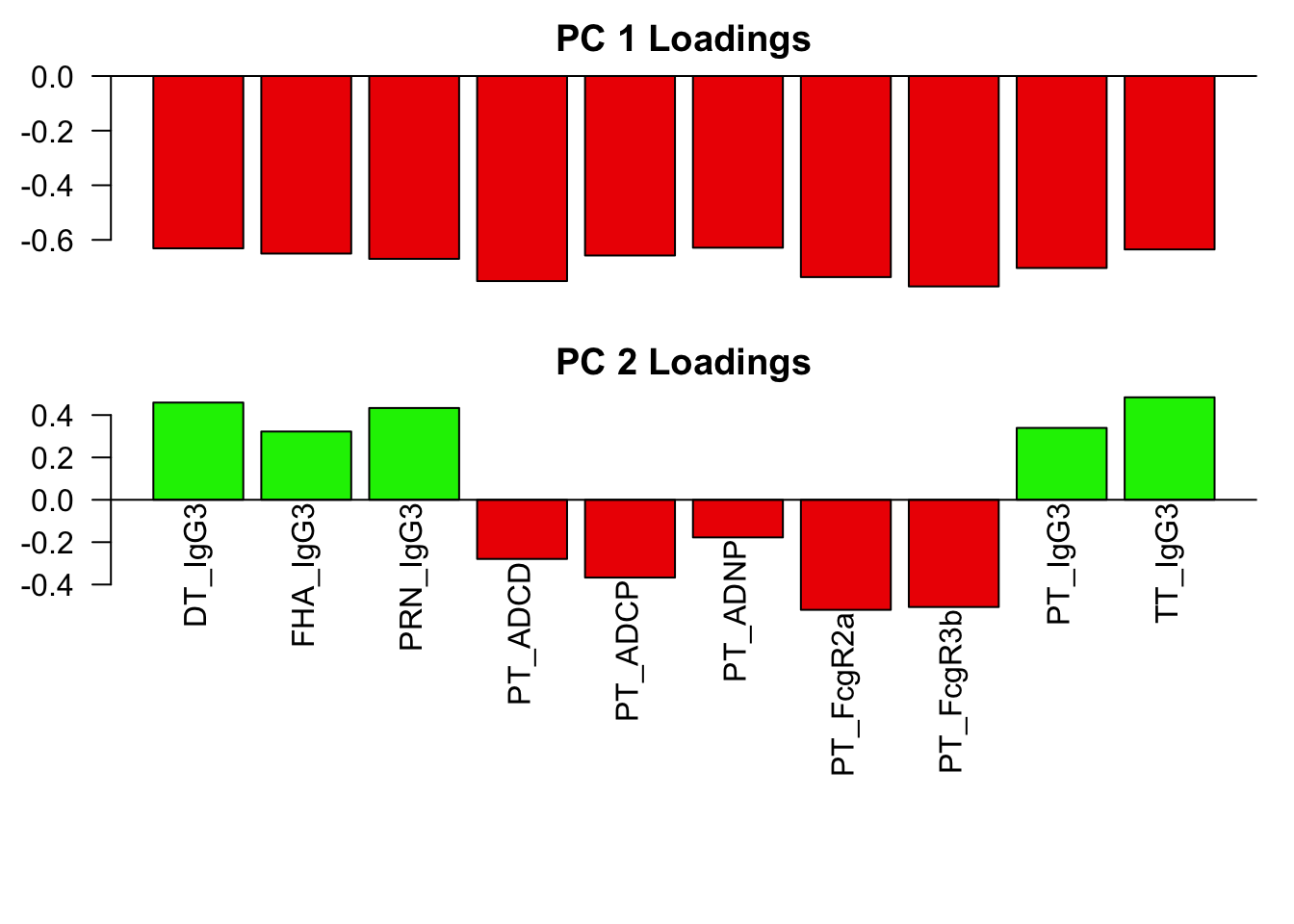

**Loadings
plot
Plot of UMAP1 vs UMAP2 Loadings
Comparison of UMAP loadings by arm
Infant AP vs. WP vaccinated TT UMAP1: p=.092
Infant AP vs. WP vaccinated TT UMAP2: p=.11
Infant AP vs. WP visit: boosted - boosted : PCA Results
Antigen: PT
Features: PT_ADCD, PT_IgG1, PT_ADCP, PT_ADNP, PT_FcgR2a, PT_FcgR3b, PT_IgG, PT_IgG2, PT_IgG4, PT_IgG3

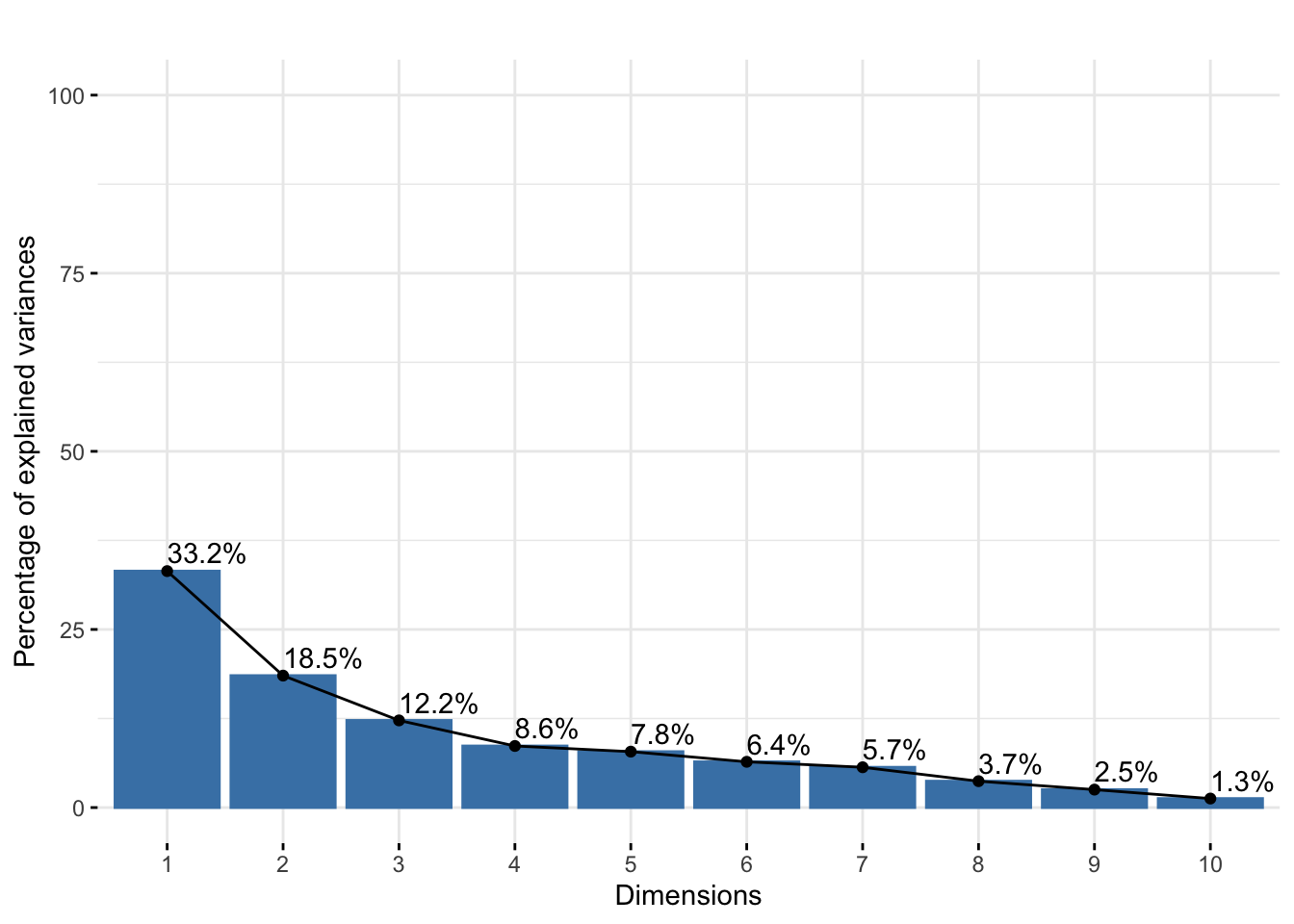

Proportion of Variance
Summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | |
|---|---|---|---|---|---|
| Standard deviation | 1.822 | 1.361 | 1.106 | 0.930 | 0.886 |
| Proportion of Variance | 0.332 | 0.185 | 0.122 | 0.086 | 0.078 |
| Cumulative Proportion | 0.332 | 0.517 | 0.639 | 0.726 | 0.804 |
Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Infant AP vs. WP boosted PT PC1: p=.00043
Infant AP vs. WP boosted PT PC2: p<.0001
Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution
**Loadings
plot
Antigen: FHA
Features: FHA_ADCD, FHA_IgG1, FHA_IgG, FHA_IgG2, FHA_IgG4, FHA_IgG3, FHA_ADNP, FHA_FcgR2a, FHA_FcgR3b, FHA_ADCP
Proportion of Variance
Summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | |
|---|---|---|---|---|---|
| Standard deviation | 1.882 | 1.186 | 1.130 | 0.972 | 0.903 |
| Proportion of Variance | 0.354 | 0.141 | 0.128 | 0.095 | 0.082 |
| Cumulative Proportion | 0.354 | 0.495 | 0.623 | 0.717 | 0.799 |
Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Infant AP vs. WP boosted FHA PC1: p=.00087
Infant AP vs. WP boosted FHA PC2: p<.0001
Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution
**Loadings
plot
Antigen: PRN
Features: PRN_ADCD, PRN_IgG1, PRN_ADNP, PRN_FcgR2a, PRN_FcgR3b, PRN_IgG, PRN_IgG2, PRN_IgG4, PRN_IgG3, PRN_ADCP
Proportion of Variance
Summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | |
|---|---|---|---|---|---|
| Standard deviation | 1.589 | 1.386 | 1.118 | 1.033 | 1.007 |
| Proportion of Variance | 0.252 | 0.192 | 0.125 | 0.107 | 0.101 |
| Cumulative Proportion | 0.252 | 0.444 | 0.569 | 0.676 | 0.778 |
Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Infant AP vs. WP boosted PRN PC1: p=.27
Infant AP vs. WP boosted PRN PC2: p<.0001
Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution
**Loadings
plot
Antigen: DT
Features: DT_ADCD, DT_ADCP, DT_ADNP, DT_IgG1, DT_FcgR2a, DT_FcgR3b, DT_IgG, DT_IgG2, DT_IgG3, DT_IgG4

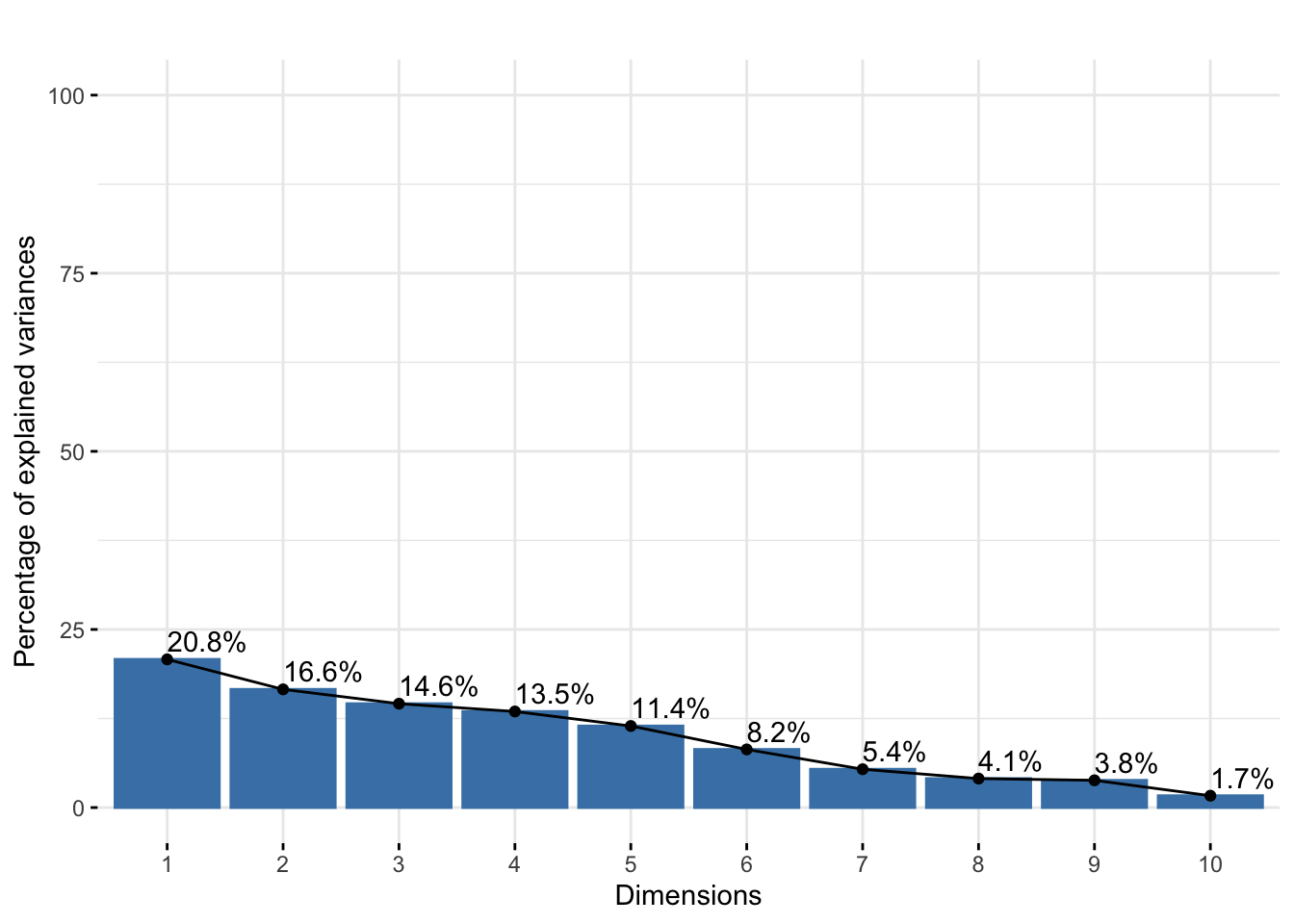

Proportion of Variance
Summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | |
|---|---|---|---|---|---|
| Standard deviation | 1.442 | 1.288 | 1.207 | 1.161 | 1.070 |
| Proportion of Variance | 0.208 | 0.166 | 0.146 | 0.135 | 0.114 |
| Cumulative Proportion | 0.208 | 0.374 | 0.520 | 0.655 | 0.769 |
| Version | Author | Date |
|---|---|---|
| 688280f | Michael S. Zens | 2024-04-24 |

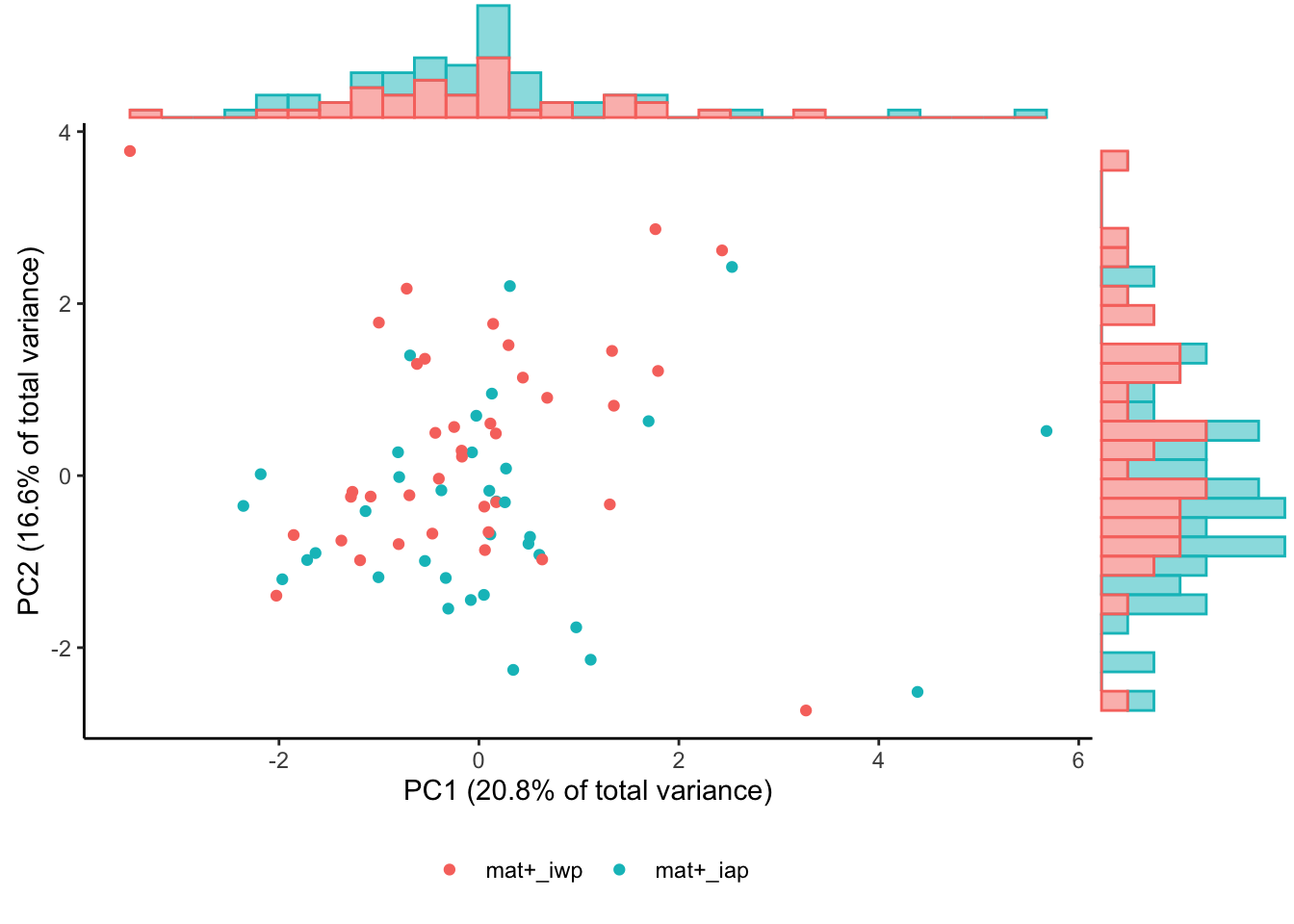

Plot of PC1 vs PC2 scores
| Version | Author | Date |
|---|---|---|
| 688280f | Michael S. Zens | 2024-04-24 |
Comparison of principle components by arm
Infant AP vs. WP boosted DT PC1: p=.55
Infant AP vs. WP boosted DT PC2: p=.0057
Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution
| Version | Author | Date |
|---|---|---|
| 688280f | Michael S. Zens | 2024-04-24 |
**Loadings
plot
| Version | Author | Date |
|---|---|---|
| 688280f | Michael S. Zens | 2024-04-24 |

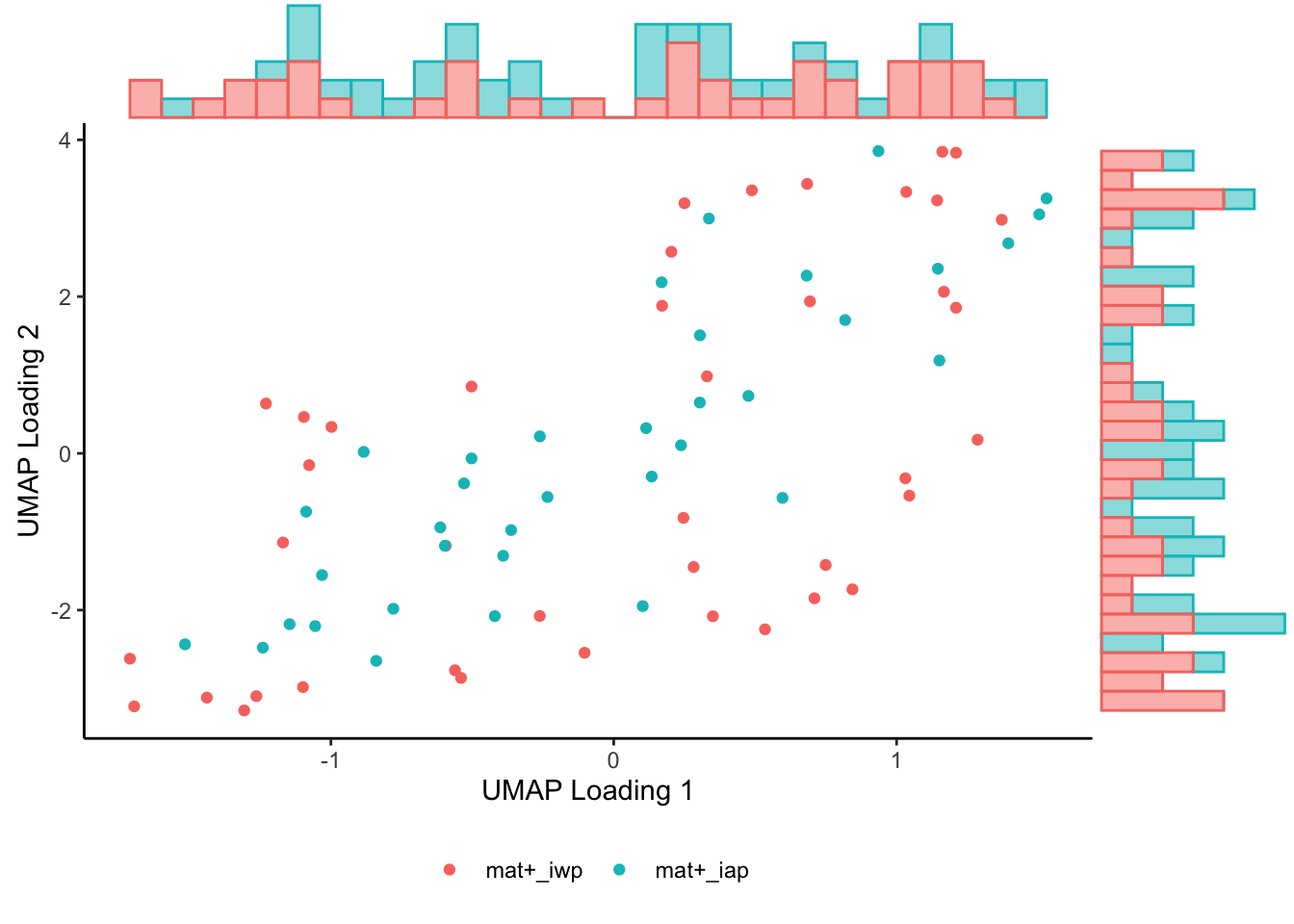

Plot of UMAP1 vs UMAP2 Loadings
| Version | Author | Date |
|---|---|---|
| 688280f | Michael S. Zens | 2024-04-24 |
Comparison of UMAP loadings by arm
Infant AP vs. WP boosted DT UMAP1: p=.0065
Infant AP vs. WP boosted DT UMAP2: p=.002
Antigen: TT
Features: TT_ADCD, TT_FcgR2a, TT_IgG1, TT_ADNP, TT_FcgR3b, TT_IgG, TT_IgG2, TT_IgG4, TT_IgG3, TT_ADCP

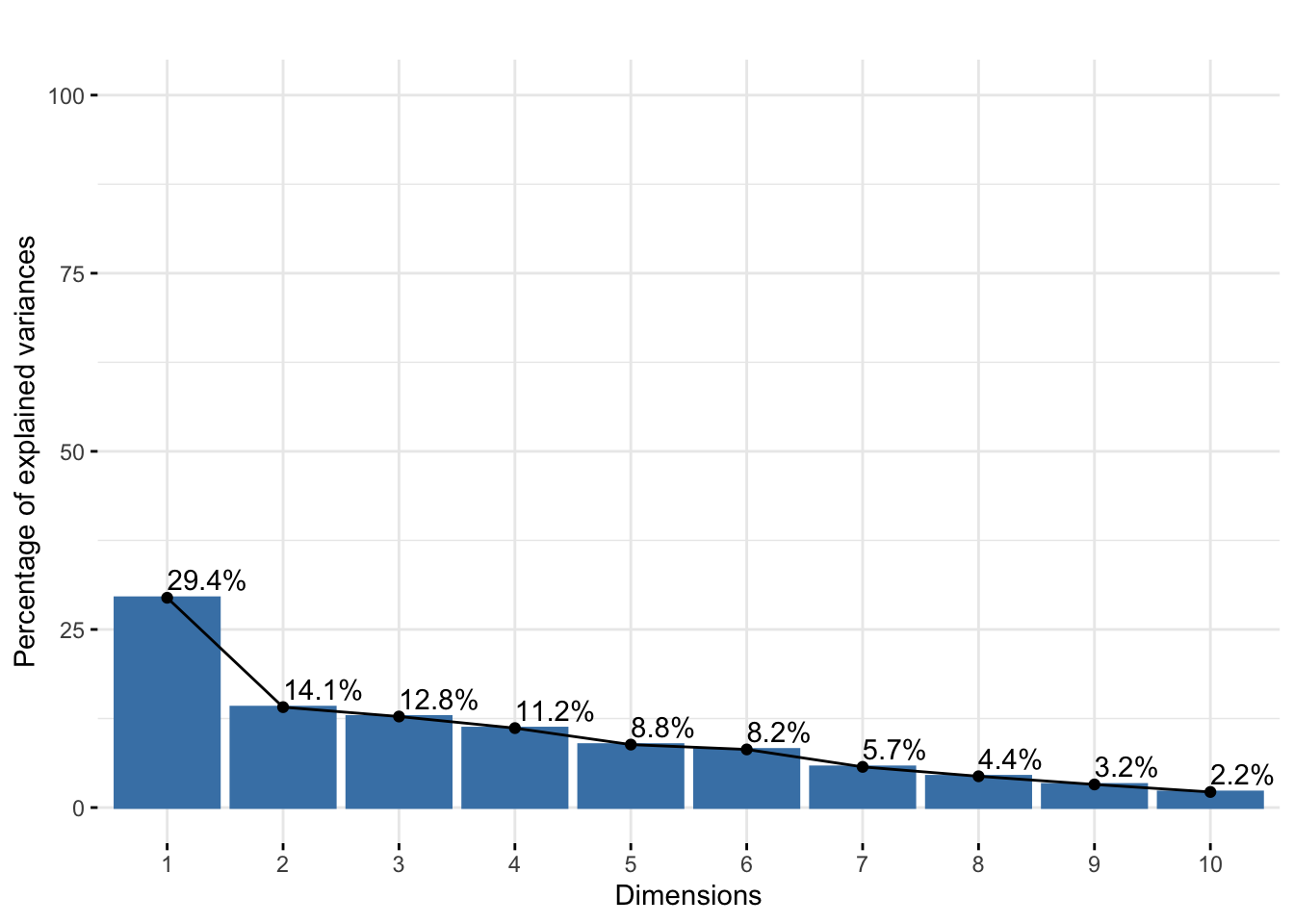

Proportion of Variance
Summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | |
|---|---|---|---|---|---|
| Standard deviation | 1.716 | 1.187 | 1.130 | 1.056 | 0.940 |
| Proportion of Variance | 0.294 | 0.141 | 0.128 | 0.112 | 0.088 |
| Cumulative Proportion | 0.294 | 0.435 | 0.563 | 0.675 | 0.763 |
| Version | Author | Date |
|---|---|---|
| 688280f | Michael S. Zens | 2024-04-24 |

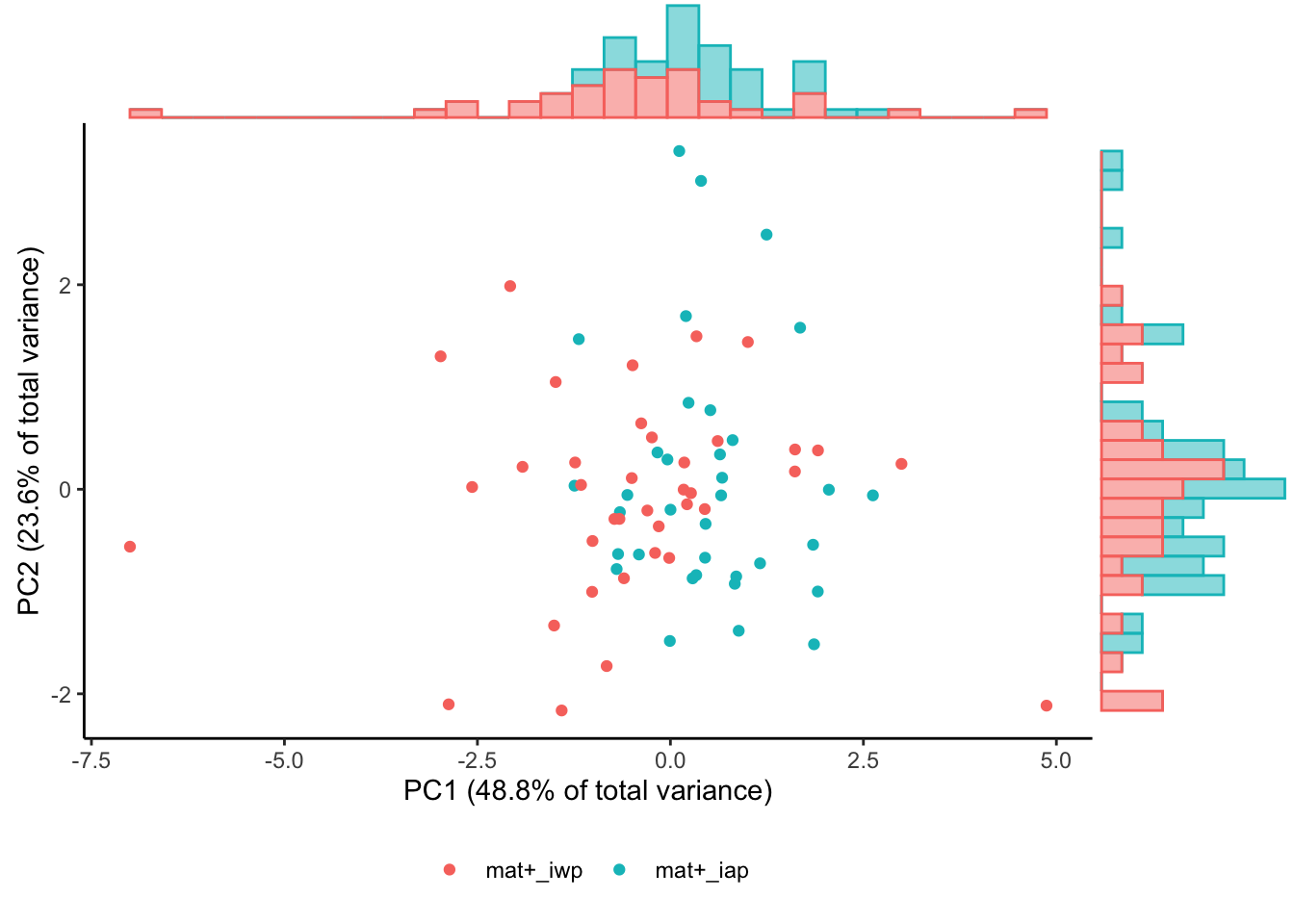

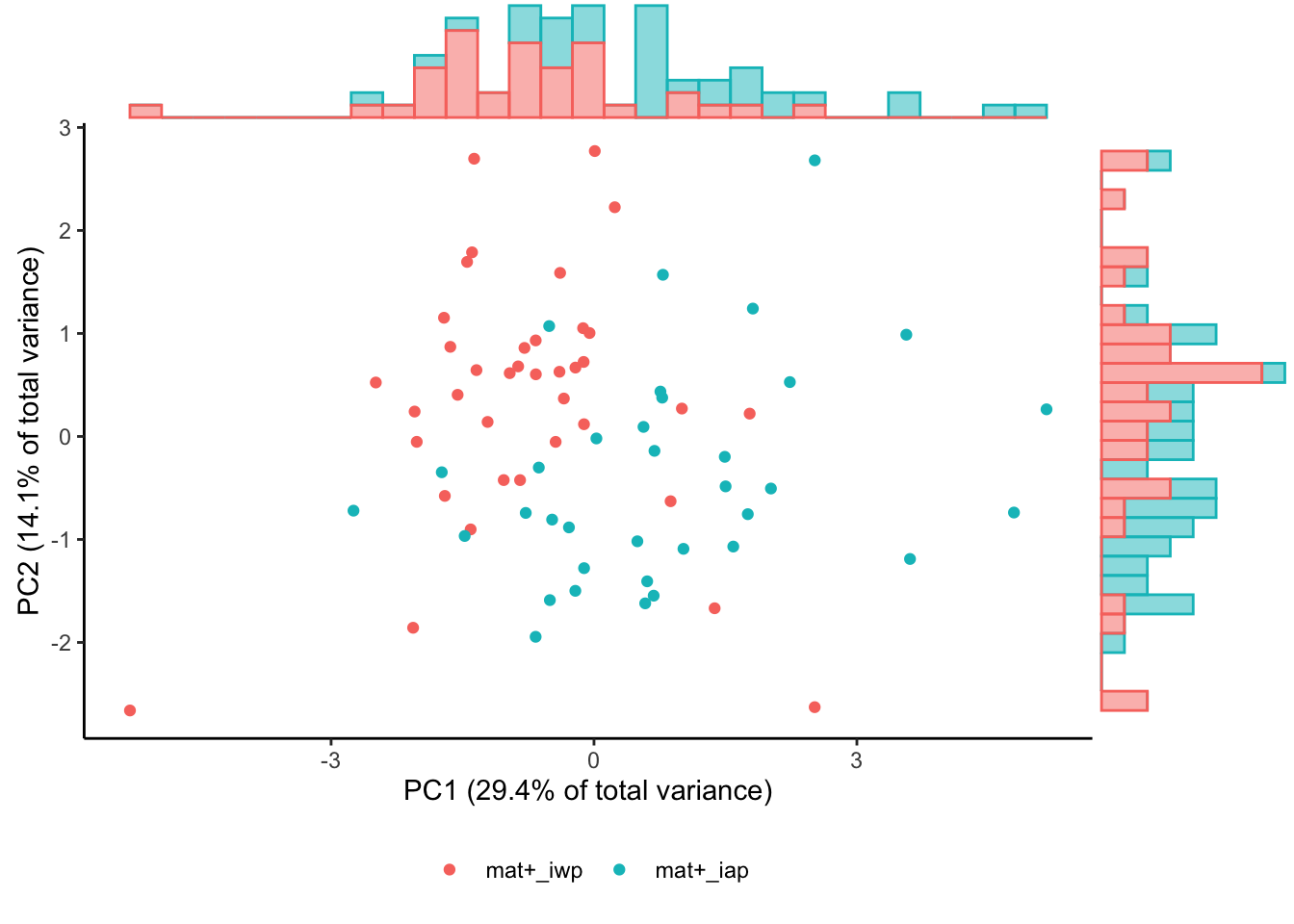

Plot of PC1 vs PC2 scores
| Version | Author | Date |
|---|---|---|
| 688280f | Michael S. Zens | 2024-04-24 |
Comparison of principle components by arm
Infant AP vs. WP boosted TT PC1: p<.0001
Infant AP vs. WP boosted TT PC2: p=.006
Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution
| Version | Author | Date |
|---|---|---|
| 688280f | Michael S. Zens | 2024-04-24 |
**Loadings
plot
| Version | Author | Date |
|---|---|---|
| 688280f | Michael S. Zens | 2024-04-24 |

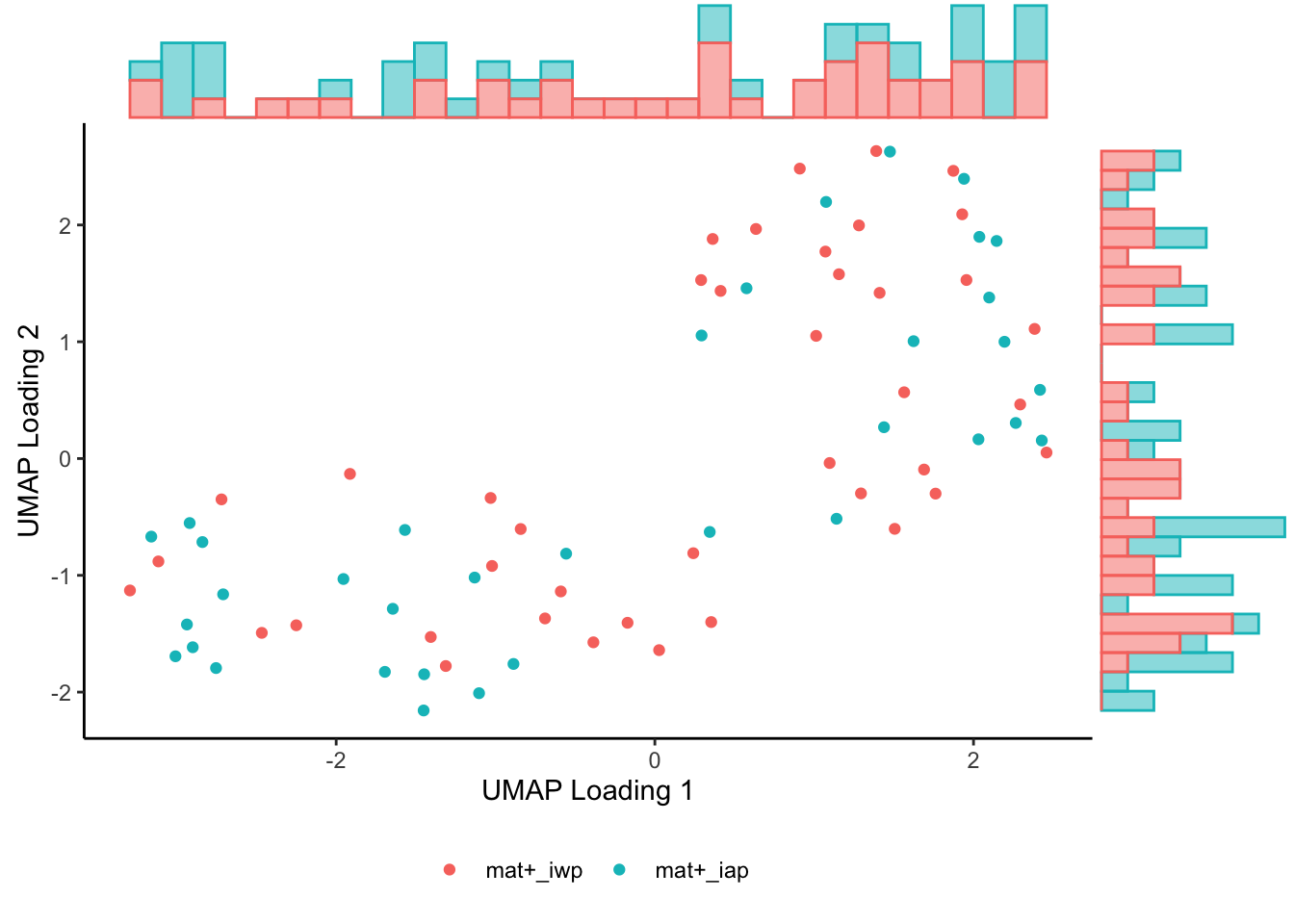

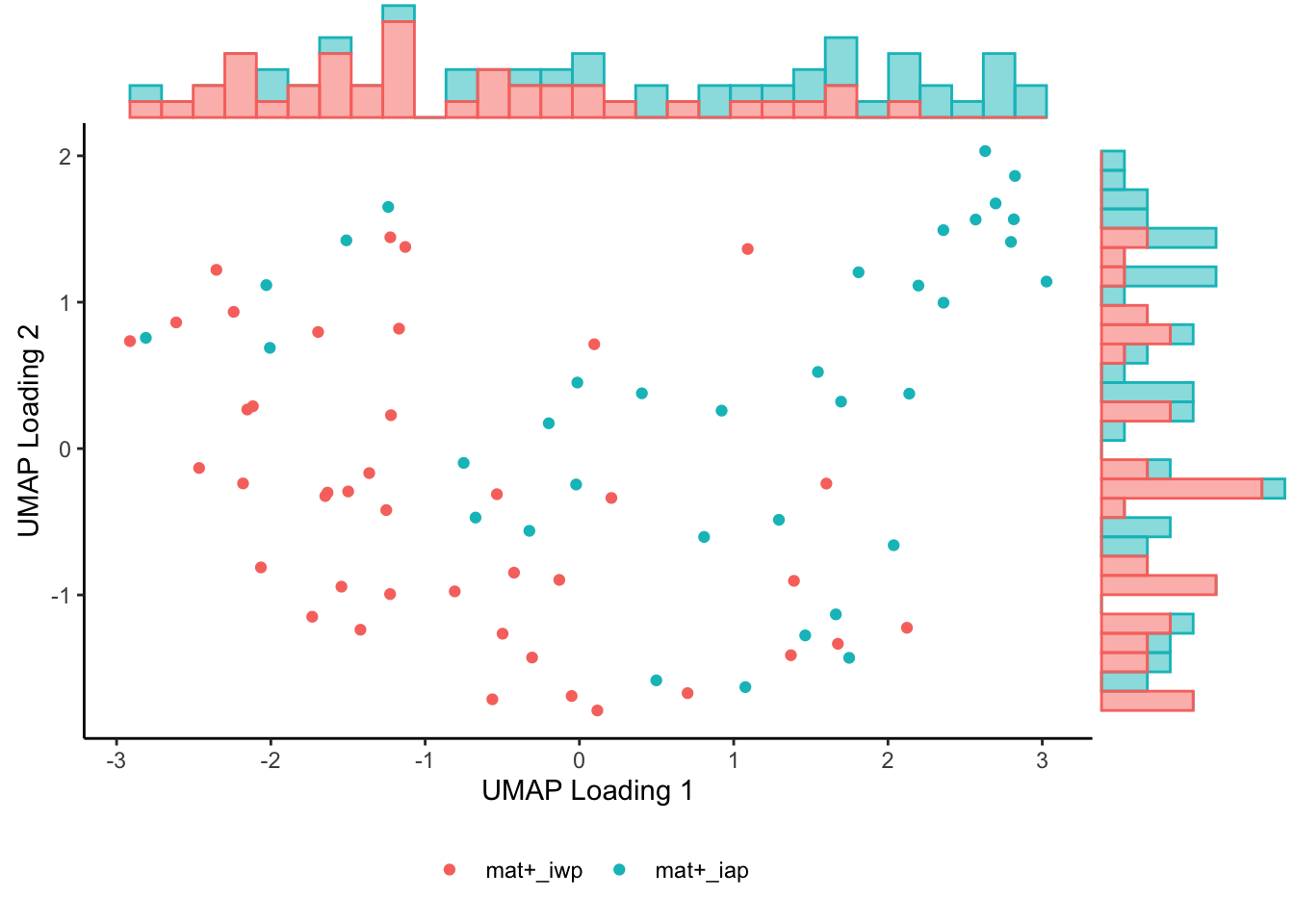

Plot of UMAP1 vs UMAP2 Loadings
| Version | Author | Date |
|---|---|---|
| 688280f | Michael S. Zens | 2024-04-24 |
Comparison of UMAP loadings by arm
Infant AP vs. WP boosted TT UMAP1: p<.0001
Infant AP vs. WP boosted TT UMAP2: p<.0001
Feature Cluster: IgG2 / IgG4
Features: DT_IgG2, FHA_IgG2, FHA_IgG4, PRN_IgG2, PRN_IgG4, PT_IgG2, PT_IgG4, TT_IgG2, TT_IgG4, DT_IgG4
Proportion of Variance
summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | PC6 | PC7 | PC8 | PC9 | PC10 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Standard deviation | 2.350 | 0.979 | 0.967 | 0.847 | 0.781 | 0.715 | 0.558 | 0.405 | 0.395 | 0.336 |
| Proportion of Variance | 0.552 | 0.096 | 0.093 | 0.072 | 0.061 | 0.051 | 0.031 | 0.016 | 0.016 | 0.011 |
| Cumulative Proportion | 0.552 | 0.648 | 0.742 | 0.813 | 0.874 | 0.926 | 0.957 | 0.973 | 0.989 | 1.000 |
| Version | Author | Date |
|---|---|---|
| 688280f | Michael S. Zens | 2024-04-24 |

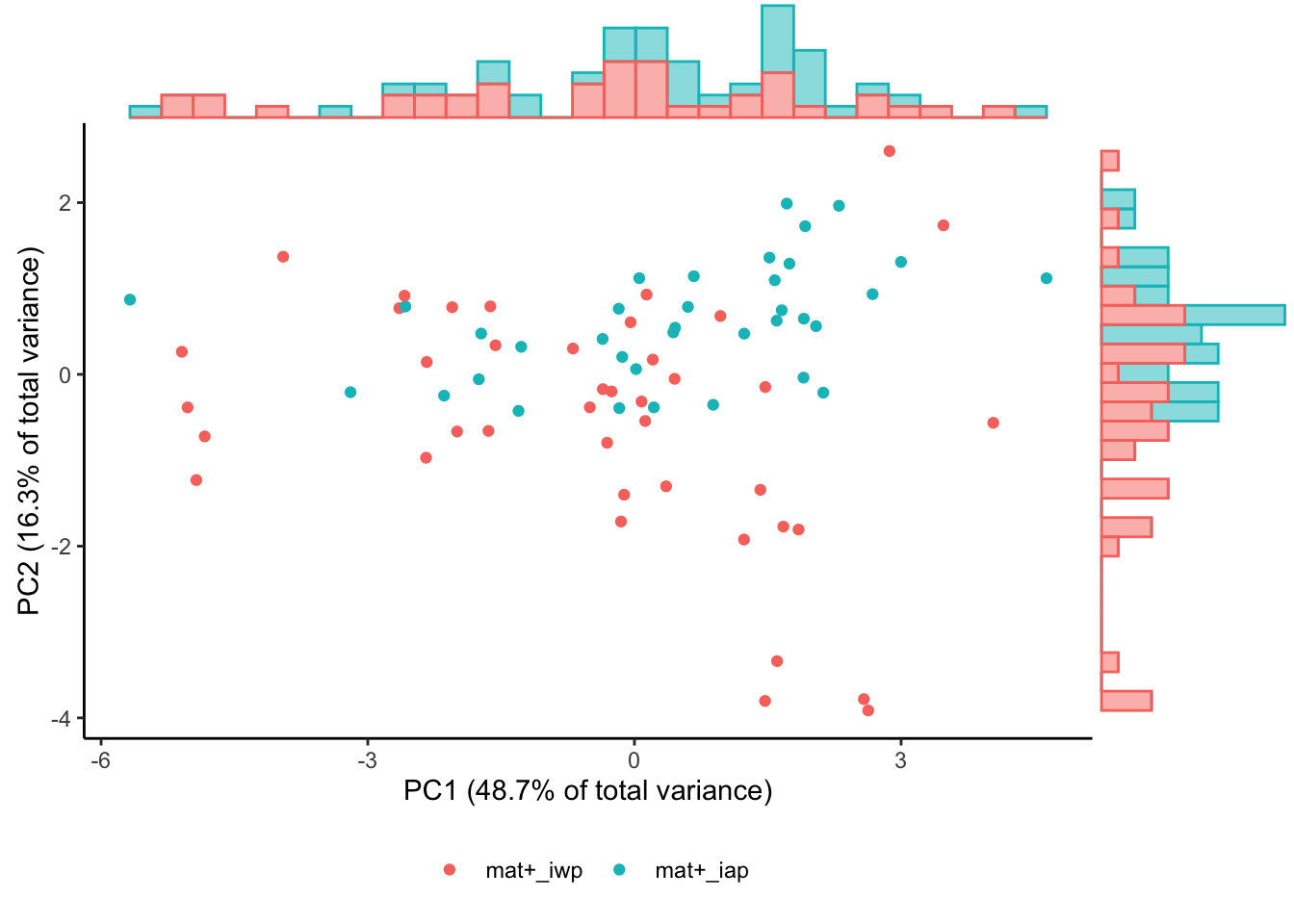

Plot of PC1 vs PC2 scores
| Version | Author | Date |
|---|---|---|
| 688280f | Michael S. Zens | 2024-04-24 |
Comparison of principle components by arm
Infant AP vs. WP boosted Feature Cluster IgG2 / IgG4 PC1:
p<.0001
Infant AP vs. WP boosted Feature Cluster IgG2 / IgG4 PC2: p=.53
Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution
| Version | Author | Date |
|---|---|---|
| 688280f | Michael S. Zens | 2024-04-24 |
**Loadings
plot
| Version | Author | Date |
|---|---|---|
| 688280f | Michael S. Zens | 2024-04-24 |

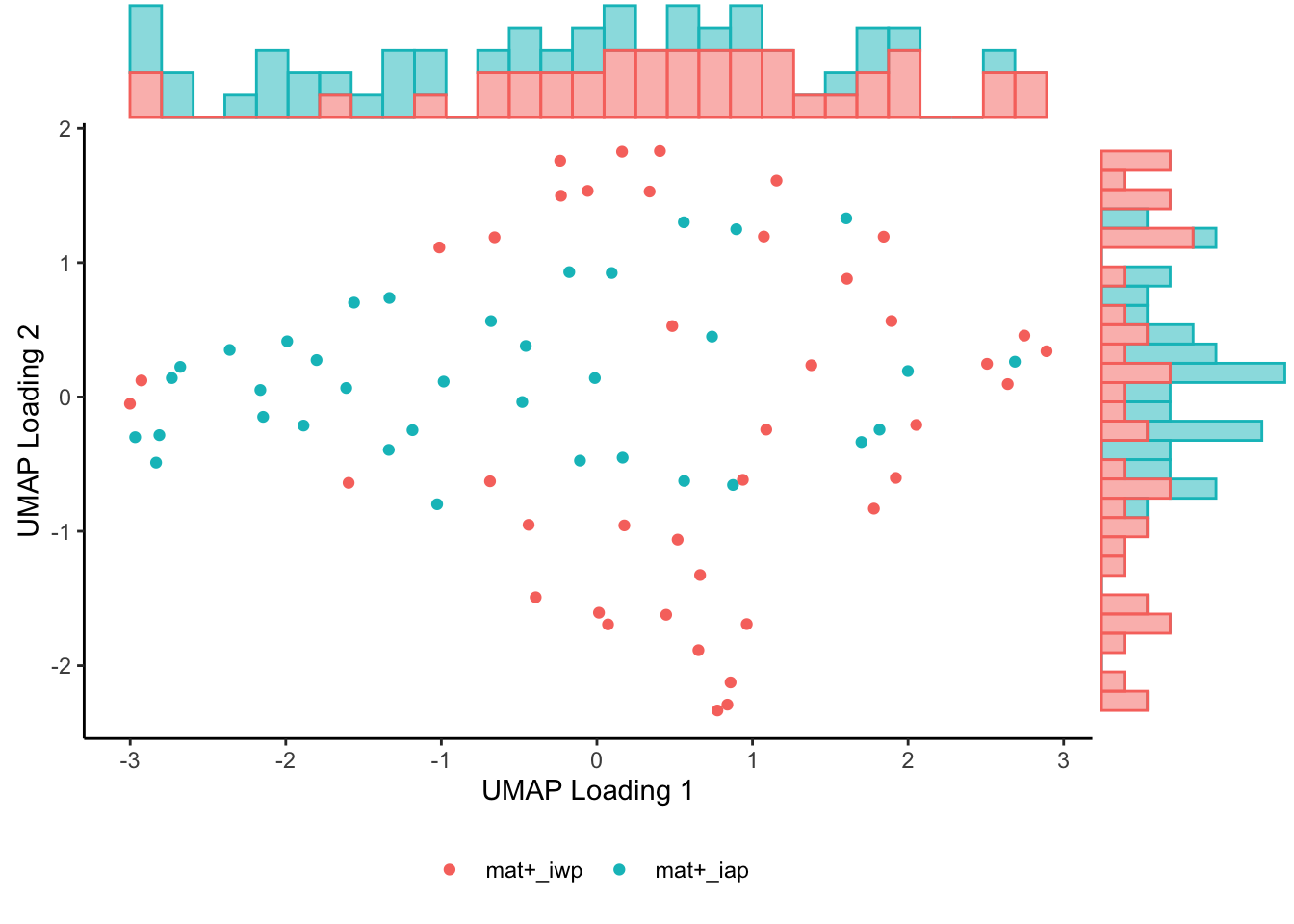

Plot of UMAP1 vs UMAP2 Loadings
| Version | Author | Date |
|---|---|---|
| 688280f | Michael S. Zens | 2024-04-24 |
Comparison of UMAP loadings by arm
Infant AP vs. WP boosted TT UMAP1: p<.0001
Infant AP vs. WP boosted TT UMAP2: p<.0001
Feature Cluster: ADCD
Features: DT_ADCD, FHA_ADCD, PRN_ADCD, PT_ADCD, TT_ADCD
Proportion of Variance
summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | |
|---|---|---|---|---|---|
| Standard deviation | 1.899 | 0.728 | 0.602 | 0.558 | 0.433 |
| Proportion of Variance | 0.722 | 0.106 | 0.073 | 0.062 | 0.038 |
| Cumulative Proportion | 0.722 | 0.828 | 0.900 | 0.962 | 1.000 |
| Version | Author | Date |
|---|---|---|
| 688280f | Michael S. Zens | 2024-04-24 |

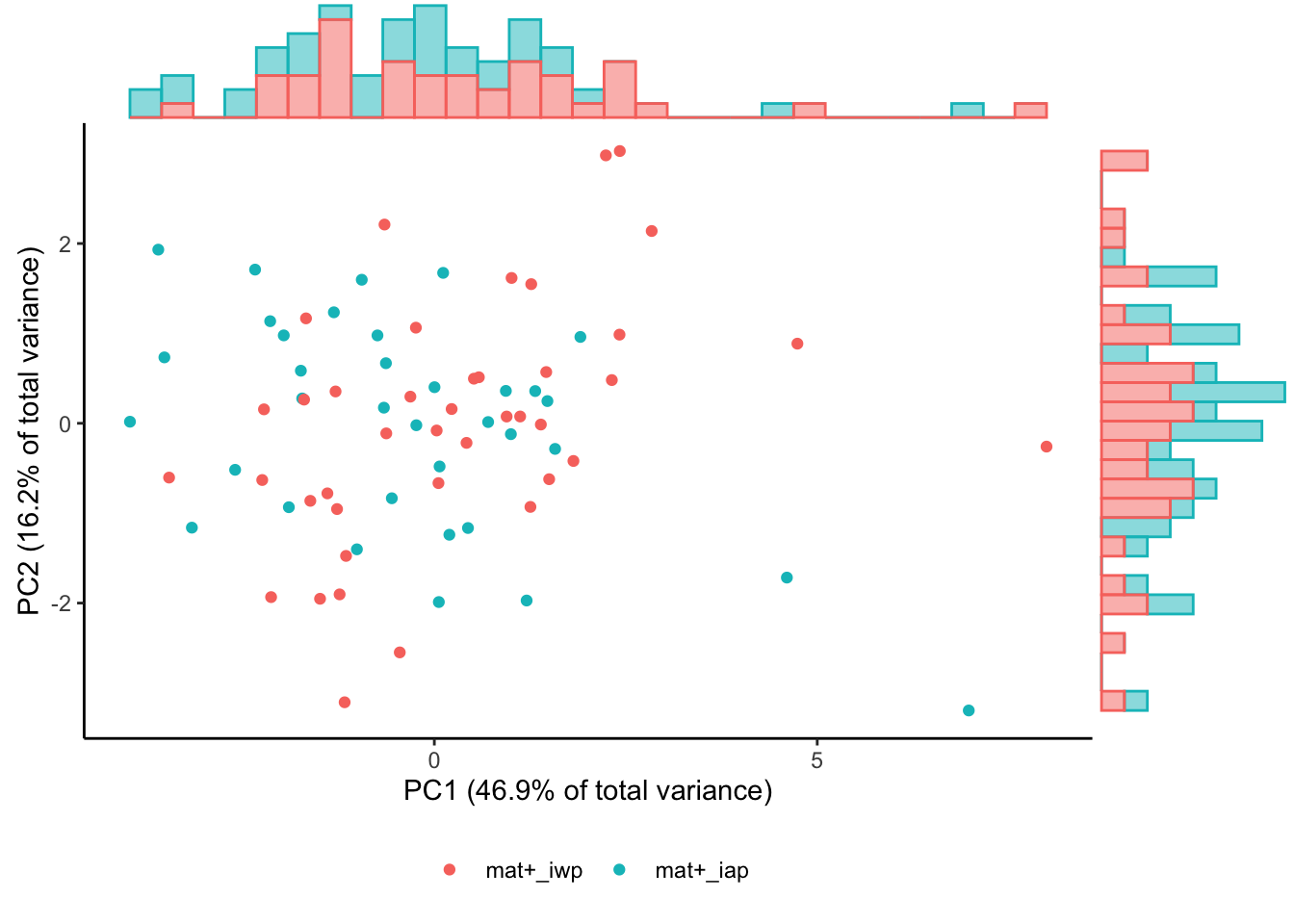

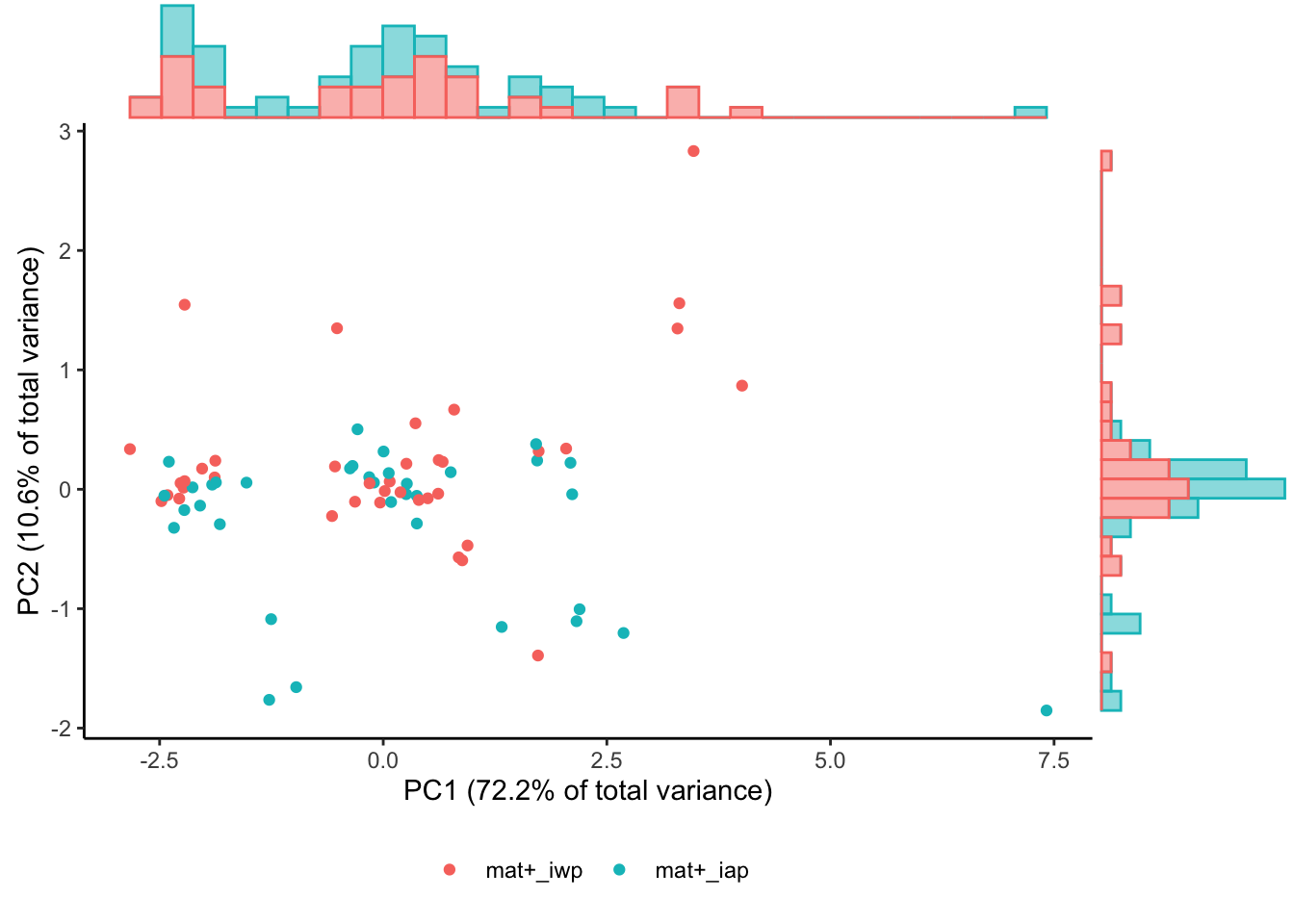

Plot of PC1 vs PC2 scores
| Version | Author | Date |
|---|---|---|
| 688280f | Michael S. Zens | 2024-04-24 |
Comparison of principle components by arm
Infant AP vs. WP boosted Feature Cluster ADCD PC1: p=.99
Infant AP vs. WP boosted Feature Cluster ADCD PC2: p=.0018
Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution
| Version | Author | Date |
|---|---|---|
| 688280f | Michael S. Zens | 2024-04-24 |
**Loadings
plot
| Version | Author | Date |
|---|---|---|
| 688280f | Michael S. Zens | 2024-04-24 |

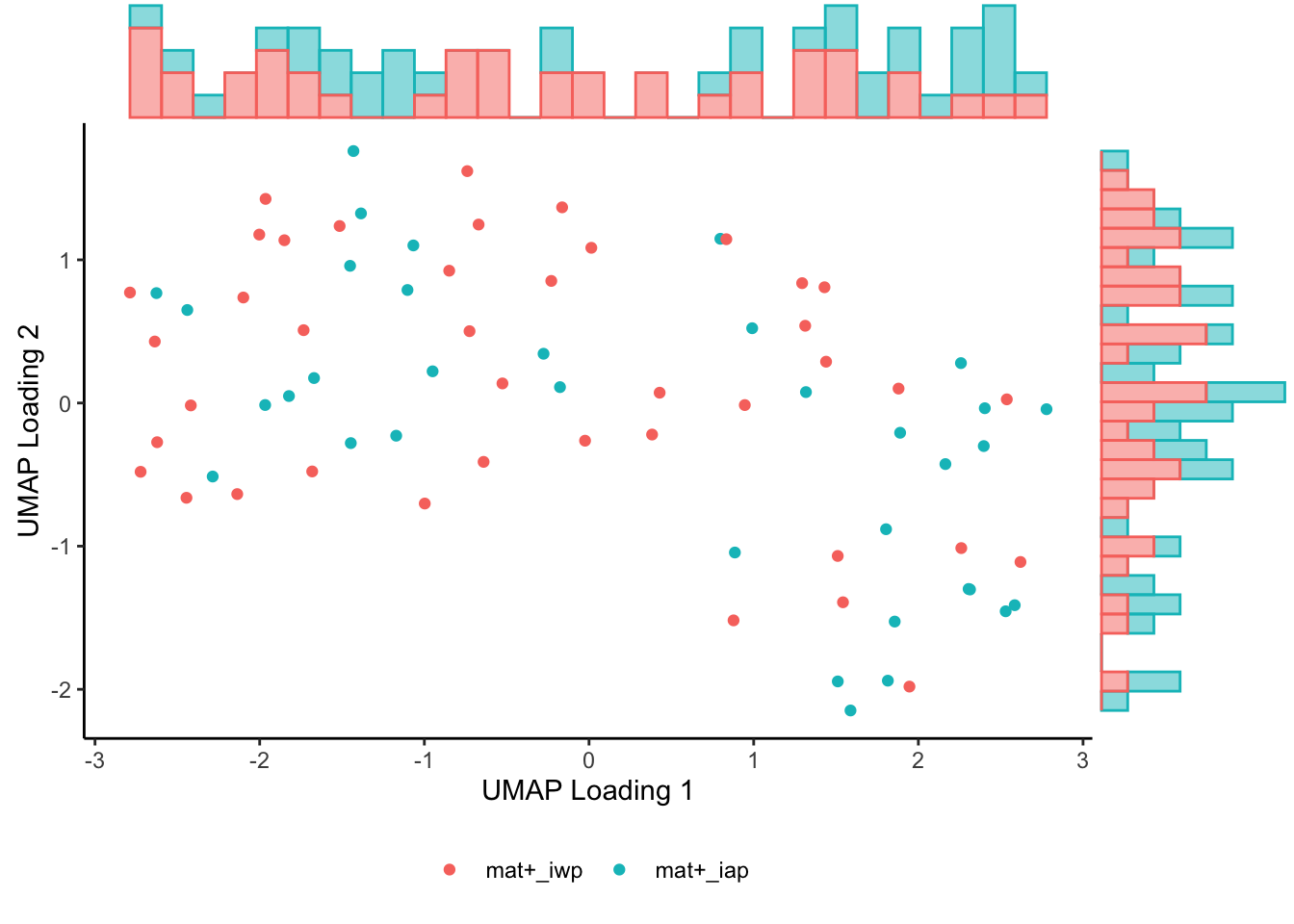

Plot of UMAP1 vs UMAP2 Loadings
| Version | Author | Date |
|---|---|---|
| 688280f | Michael S. Zens | 2024-04-24 |
Comparison of UMAP loadings by arm
Infant AP vs. WP boosted TT UMAP1: p=.62
Infant AP vs. WP boosted TT UMAP2: p=.84
Feature Cluster: ADNP / ADCP
Features: DT_ADCP, DT_ADNP, PRN_ADNP, PT_ADCP, PT_ADNP, TT_ADNP, FHA_ADNP, FHA_ADCP, PRN_ADCP, TT_ADCP
Proportion of Variance
summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | PC6 | PC7 | PC8 | PC9 | PC10 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Standard deviation | 1.717 | 1.404 | 1.195 | 0.963 | 0.851 | 0.780 | 0.705 | 0.625 | 0.544 | 0.458 |
| Proportion of Variance | 0.295 | 0.197 | 0.143 | 0.093 | 0.072 | 0.061 | 0.050 | 0.039 | 0.030 | 0.021 |
| Cumulative Proportion | 0.295 | 0.492 | 0.635 | 0.728 | 0.800 | 0.861 | 0.910 | 0.949 | 0.979 | 1.000 |
| Version | Author | Date |
|---|---|---|
| 688280f | Michael S. Zens | 2024-04-24 |

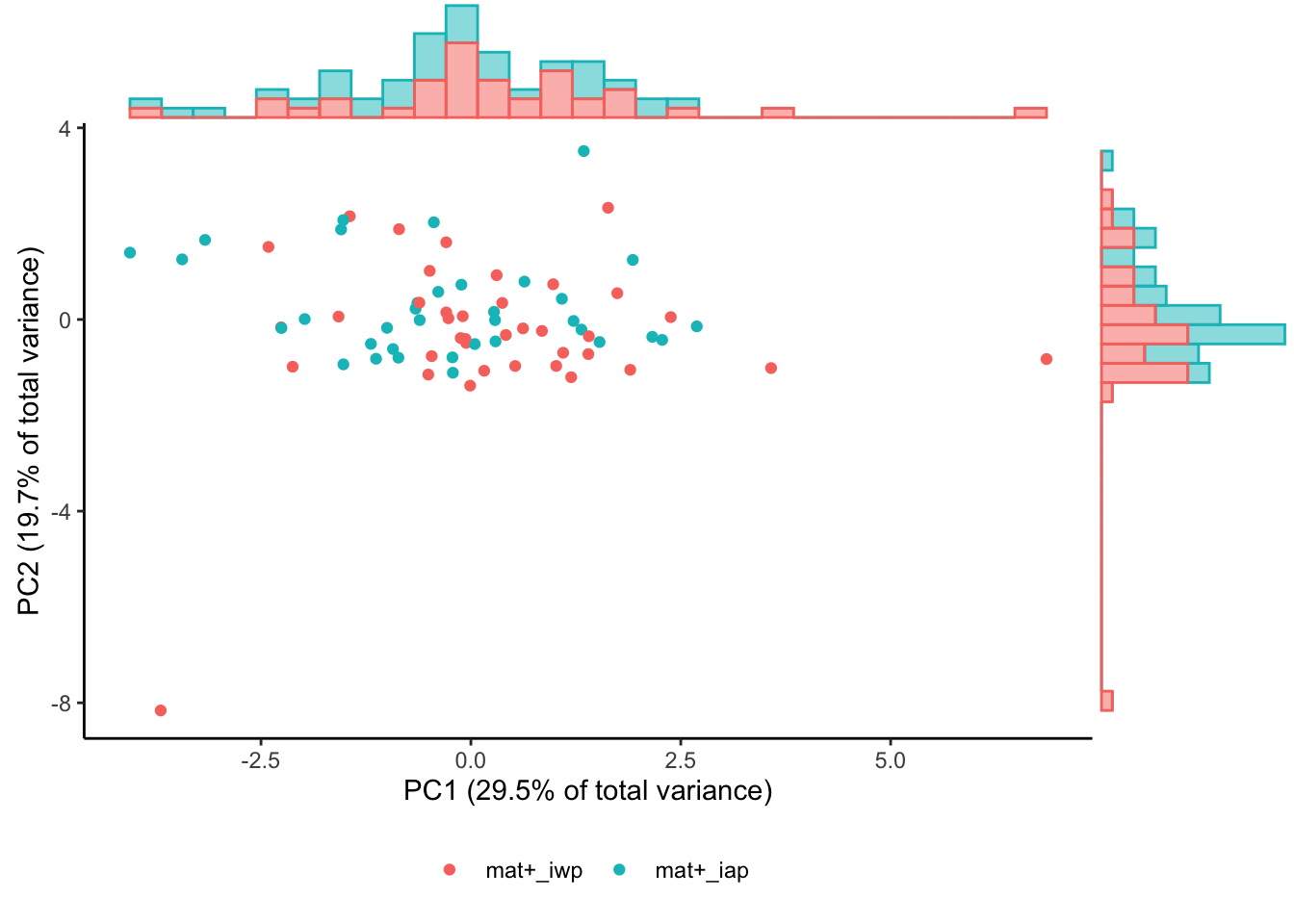

Plot of PC1 vs PC2 scores
| Version | Author | Date |
|---|---|---|
| 688280f | Michael S. Zens | 2024-04-24 |
Comparison of principle components by arm
Infant AP vs. WP boosted Feature Cluster ADNP / ADCP PC1: p=.14
Infant AP vs. WP boosted Feature Cluster ADNP / ADCP PC2: p=.099
Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution
| Version | Author | Date |
|---|---|---|
| 688280f | Michael S. Zens | 2024-04-24 |
**Loadings
plot
| Version | Author | Date |
|---|---|---|
| 688280f | Michael S. Zens | 2024-04-24 |

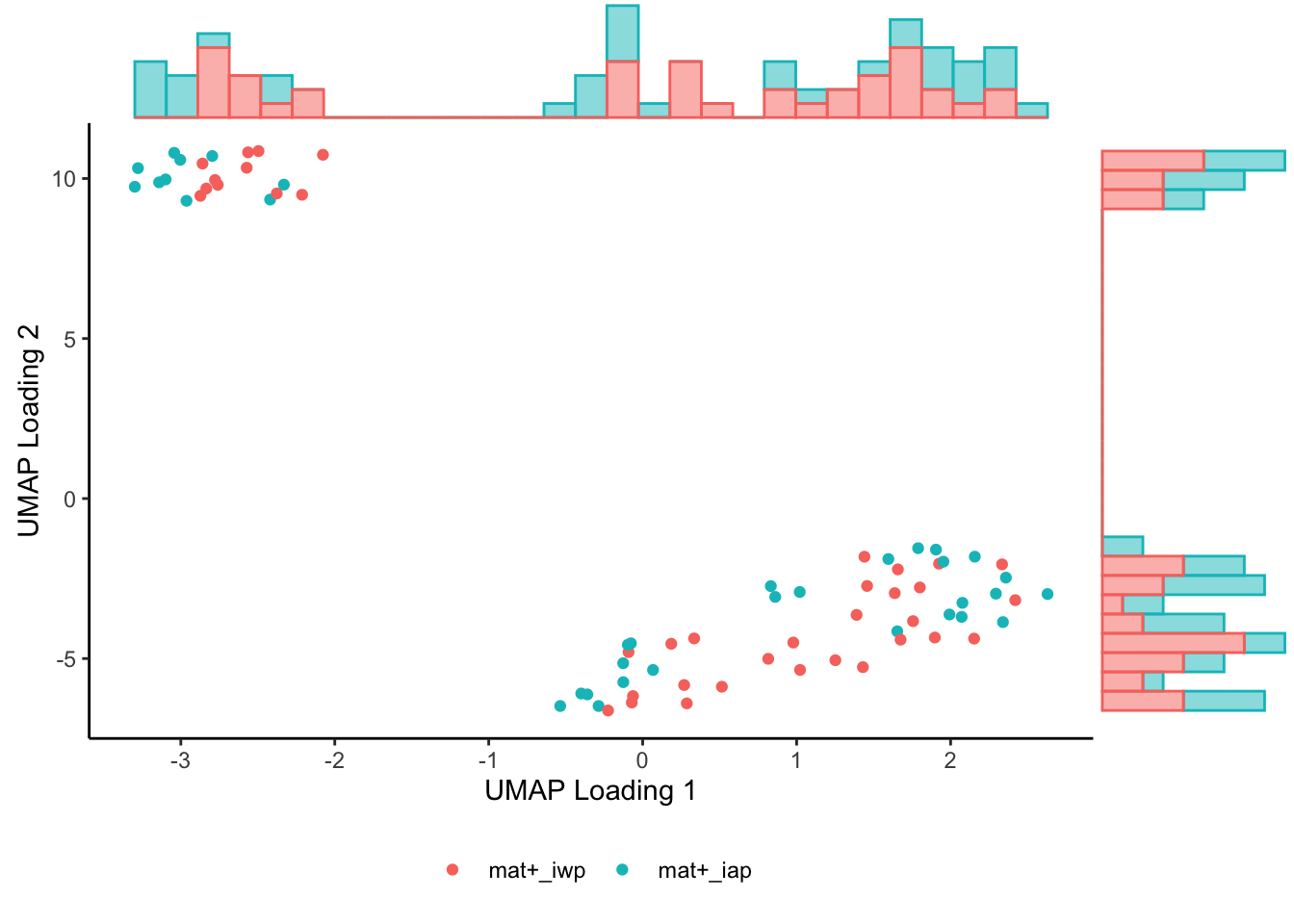

Plot of UMAP1 vs UMAP2 Loadings
| Version | Author | Date |
|---|---|---|
| 688280f | Michael S. Zens | 2024-04-24 |
Comparison of UMAP loadings by arm
Infant AP vs. WP boosted TT UMAP1: p=.75
Infant AP vs. WP boosted TT UMAP2: p=.39
Feature Cluster: FcgR2a / FcgR3b
Features: TT_FcgR2a, DT_FcgR2a, DT_FcgR3b, PRN_FcgR2a, PRN_FcgR3b, PT_FcgR2a, PT_FcgR3b, TT_FcgR3b, FHA_FcgR2a, FHA_FcgR3b
Proportion of Variance
summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | PC6 | PC7 | PC8 | PC9 | PC10 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Standard deviation | 2.136 | 1.283 | 1.087 | 0.966 | 0.843 | 0.716 | 0.436 | 0.373 | 0.290 | 0.197 |
| Proportion of Variance | 0.456 | 0.165 | 0.118 | 0.093 | 0.071 | 0.051 | 0.019 | 0.014 | 0.008 | 0.004 |
| Cumulative Proportion | 0.456 | 0.621 | 0.739 | 0.832 | 0.904 | 0.955 | 0.974 | 0.988 | 0.996 | 1.000 |
| Version | Author | Date |
|---|---|---|
| 688280f | Michael S. Zens | 2024-04-24 |
Plot of PC1 vs PC2 scores
| Version | Author | Date |
|---|---|---|
| 688280f | Michael S. Zens | 2024-04-24 |
Comparison of principle components by arm
Infant AP vs. WP boosted Feature Cluster FcgR2a / FcgR3b PC1:
p=.41
Infant AP vs. WP boosted Feature Cluster FcgR2a / FcgR3b PC2:
p=.0046
Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution
| Version | Author | Date |
|---|---|---|
| 688280f | Michael S. Zens | 2024-04-24 |
**Loadings
plot
| Version | Author | Date |
|---|---|---|
| 688280f | Michael S. Zens | 2024-04-24 |
Plot of UMAP1 vs UMAP2 Loadings
| Version | Author | Date |
|---|---|---|
| 688280f | Michael S. Zens | 2024-04-24 |
Comparison of UMAP loadings by arm
Infant AP vs. WP boosted TT UMAP1: p<.0001
Infant AP vs. WP boosted TT UMAP2: p=.44
Feature Cluster: IgG1
Features: DT_IgG1, FHA_IgG1, PRN_IgG1, PT_IgG1, TT_IgG1
Proportion of Variance
summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | |
|---|---|---|---|---|---|
| Standard deviation | 1.669 | 0.862 | 0.747 | 0.705 | 0.646 |
| Proportion of Variance | 0.557 | 0.149 | 0.112 | 0.099 | 0.084 |
| Cumulative Proportion | 0.557 | 0.706 | 0.817 | 0.916 | 1.000 |
| Version | Author | Date |
|---|---|---|
| 688280f | Michael S. Zens | 2024-04-24 |
Plot of PC1 vs PC2 scores
| Version | Author | Date |
|---|---|---|
| 688280f | Michael S. Zens | 2024-04-24 |
Comparison of principle components by arm
Infant AP vs. WP boosted Feature Cluster IgG1 PC1: p=.71
Infant AP vs. WP boosted Feature Cluster IgG1 PC2: p=.61
Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution
| Version | Author | Date |
|---|---|---|
| 688280f | Michael S. Zens | 2024-04-24 |
**Loadings
plot
| Version | Author | Date |
|---|---|---|
| 688280f | Michael S. Zens | 2024-04-24 |
Plot of UMAP1 vs UMAP2 Loadings
Comparison of UMAP loadings by arm
Infant AP vs. WP boosted TT UMAP1: p=.85
Infant AP vs. WP boosted TT UMAP2: p=.33
Feature Cluster: IgG3
Features: DT_IgG3, FHA_IgG3, PRN_IgG3, TT_IgG3, PT_IgG3
Proportion of Variance
summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | |
|---|---|---|---|---|---|
| Standard deviation | 1.533 | 0.945 | 0.814 | 0.764 | 0.714 |
| Proportion of Variance | 0.470 | 0.178 | 0.133 | 0.117 | 0.102 |
| Cumulative Proportion | 0.470 | 0.649 | 0.781 | 0.898 | 1.000 |
Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Infant AP vs. WP boosted Feature Cluster IgG3 PC1: p=.21
Infant AP vs. WP boosted Feature Cluster IgG3 PC2: p=1

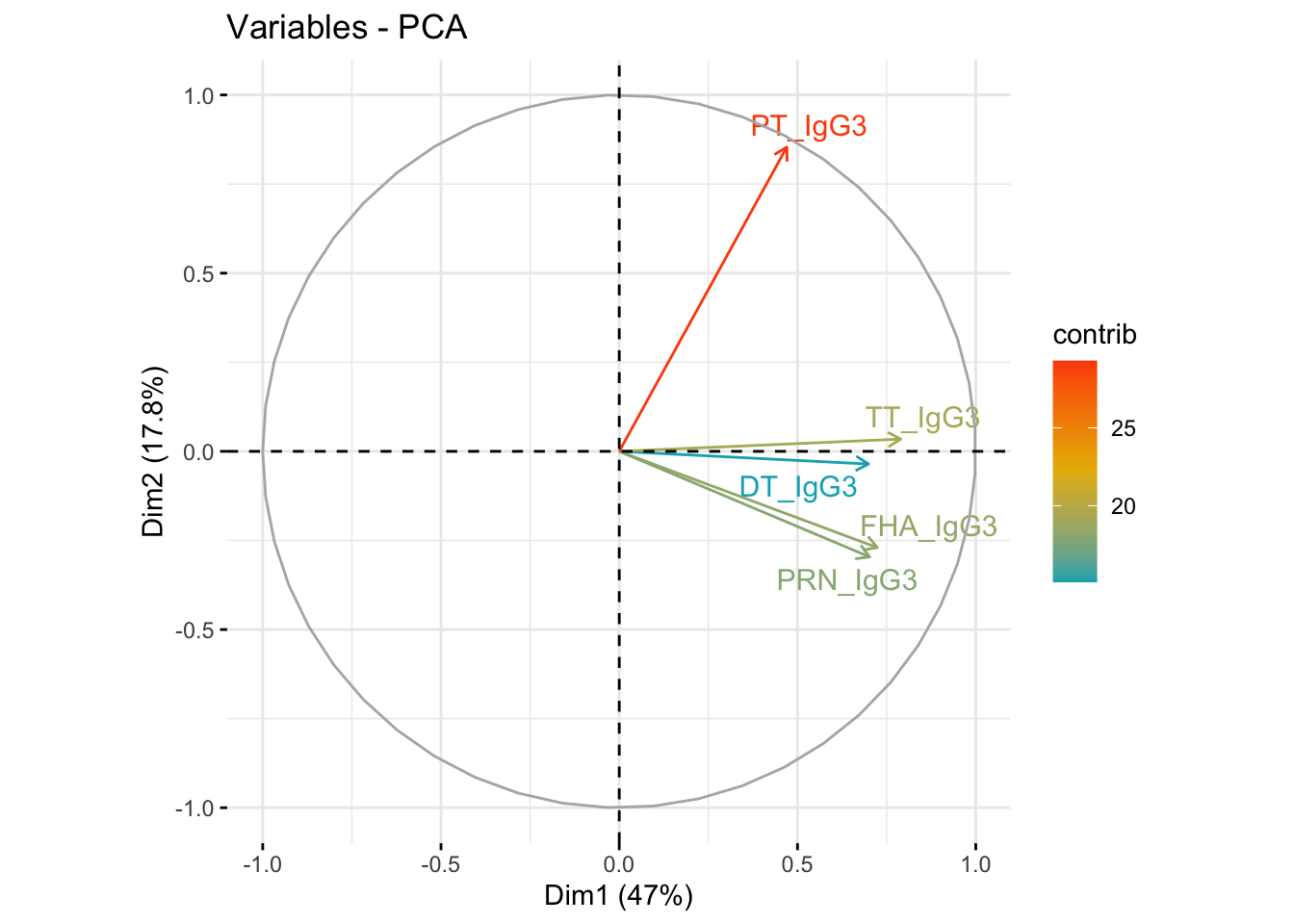

Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution
**Loadings
plot
Plot of UMAP1 vs UMAP2 Loadings
Comparison of UMAP loadings by arm
Infant AP vs. WP boosted TT UMAP1: p=.28
Infant AP vs. WP boosted TT UMAP2: p=.1
Feature Cluster: IgG
Features: DT_IgG, FHA_IgG, PRN_IgG, PT_IgG, TT_IgG
Proportion of Variance
summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | |
|---|---|---|---|---|---|
| Standard deviation | 1.825 | 0.784 | 0.736 | 0.568 | 0.437 |
| Proportion of Variance | 0.666 | 0.123 | 0.108 | 0.065 | 0.038 |
| Cumulative Proportion | 0.666 | 0.789 | 0.897 | 0.962 | 1.000 |

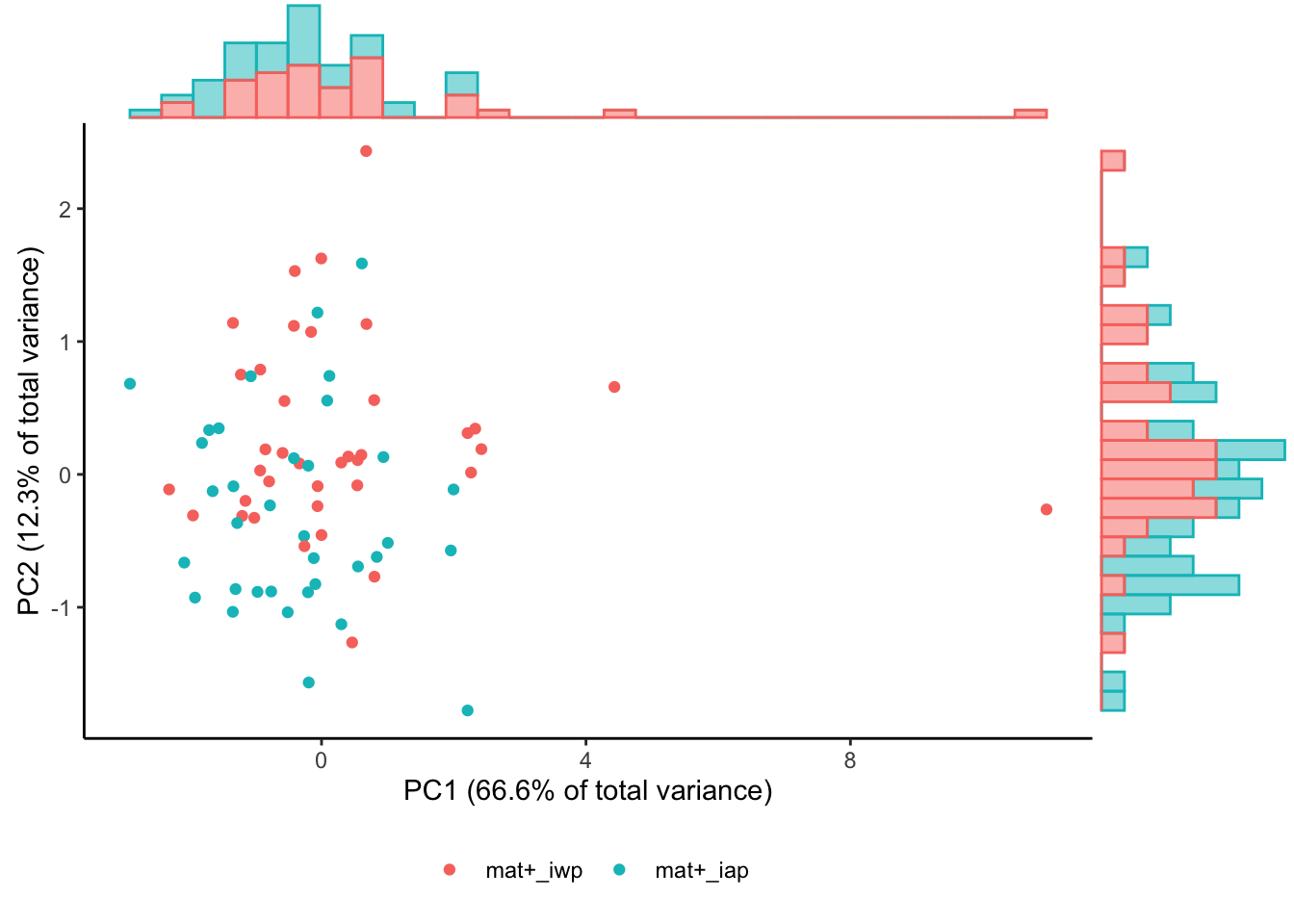

Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Infant AP vs. WP boosted Feature Cluster IgG PC1: p=.069
Infant AP vs. WP boosted Feature Cluster IgG PC2: p=.002
Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution
**Loadings
plot
Plot of UMAP1 vs UMAP2 Loadings
Comparison of UMAP loadings by arm
Infant AP vs. WP boosted TT UMAP1: p=.0035
Infant AP vs. WP boosted TT UMAP2: p=.28
Response Cluster: 1
Features: DT_ADCD, FHA_ADCD, PRN_ADCD, PT_ADCD, TT_ADCD, TT_FcgR2a
Proportion of Variance
summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | PC6 | |
|---|---|---|---|---|---|---|
| Standard deviation | 1.973 | 0.879 | 0.720 | 0.598 | 0.539 | 0.410 |
| Proportion of Variance | 0.649 | 0.129 | 0.086 | 0.060 | 0.048 | 0.028 |
| Cumulative Proportion | 0.649 | 0.778 | 0.864 | 0.924 | 0.972 | 1.000 |
Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Infant AP vs. WP boosted RCluster_ 1 PC1: p=.84
Infant AP vs. WP boosted RCluster_ 1 PC2: p=.26
Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution
**Loadings
plot
Plot of UMAP1 vs UMAP2 Loadings
Comparison of UMAP loadings by arm
Infant AP vs. WP boosted TT UMAP1: p=.83
Infant AP vs. WP boosted TT UMAP2: p=.85
Response Cluster: 2
Features: DT_ADCP, DT_ADNP, DT_IgG1, FHA_IgG1, PRN_IgG1, PT_IgG1, TT_IgG1
Proportion of Variance
summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | PC6 | PC7 | |
|---|---|---|---|---|---|---|---|
| Standard deviation | 1.702 | 1.152 | 0.884 | 0.785 | 0.730 | 0.677 | 0.624 |
| Proportion of Variance | 0.414 | 0.189 | 0.112 | 0.088 | 0.076 | 0.065 | 0.056 |
| Cumulative Proportion | 0.414 | 0.603 | 0.715 | 0.803 | 0.879 | 0.944 | 1.000 |
Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Infant AP vs. WP boosted RCluster_ 2 PC1: p=.52
Infant AP vs. WP boosted RCluster_ 2 PC2: p=.11

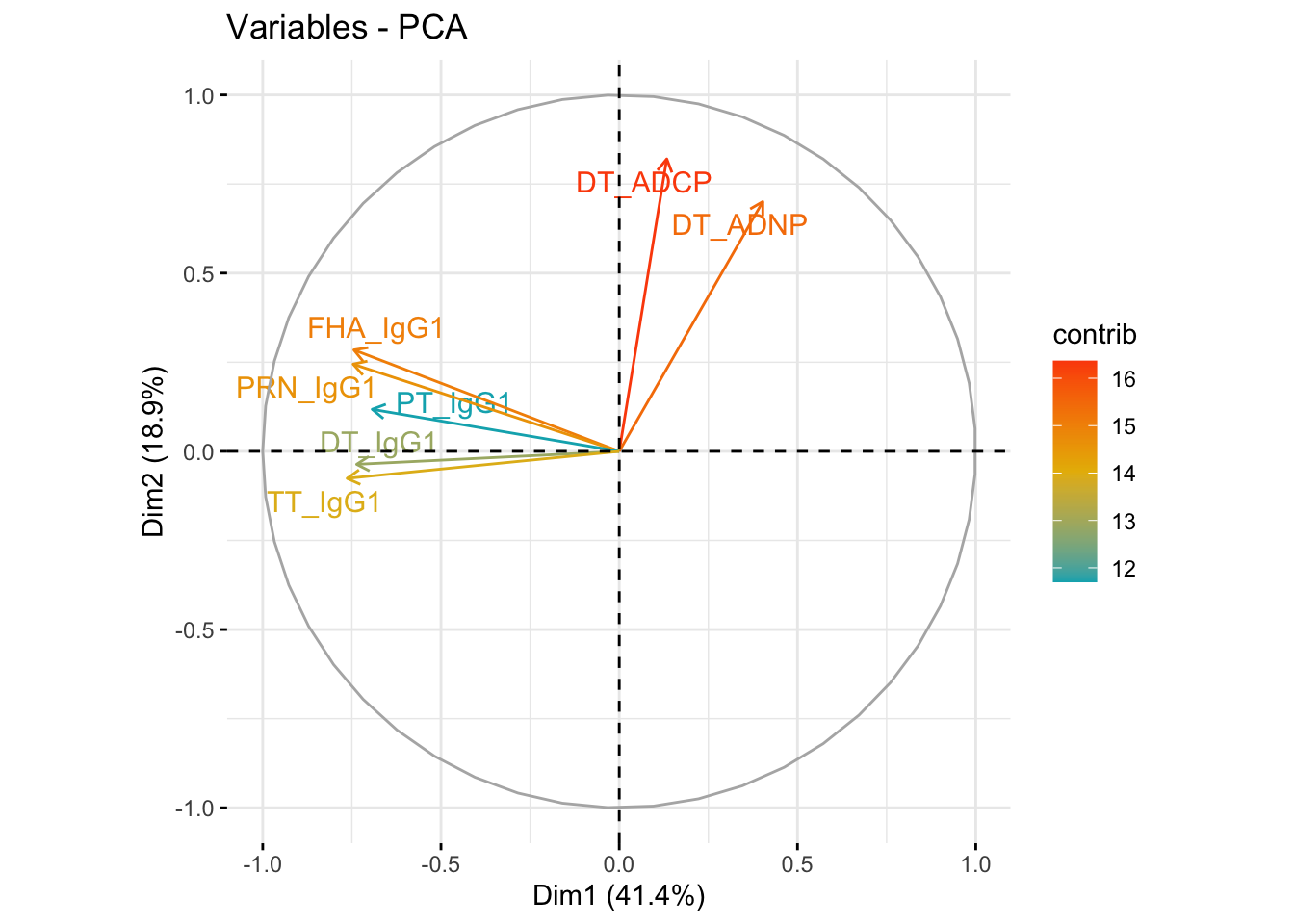

Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution

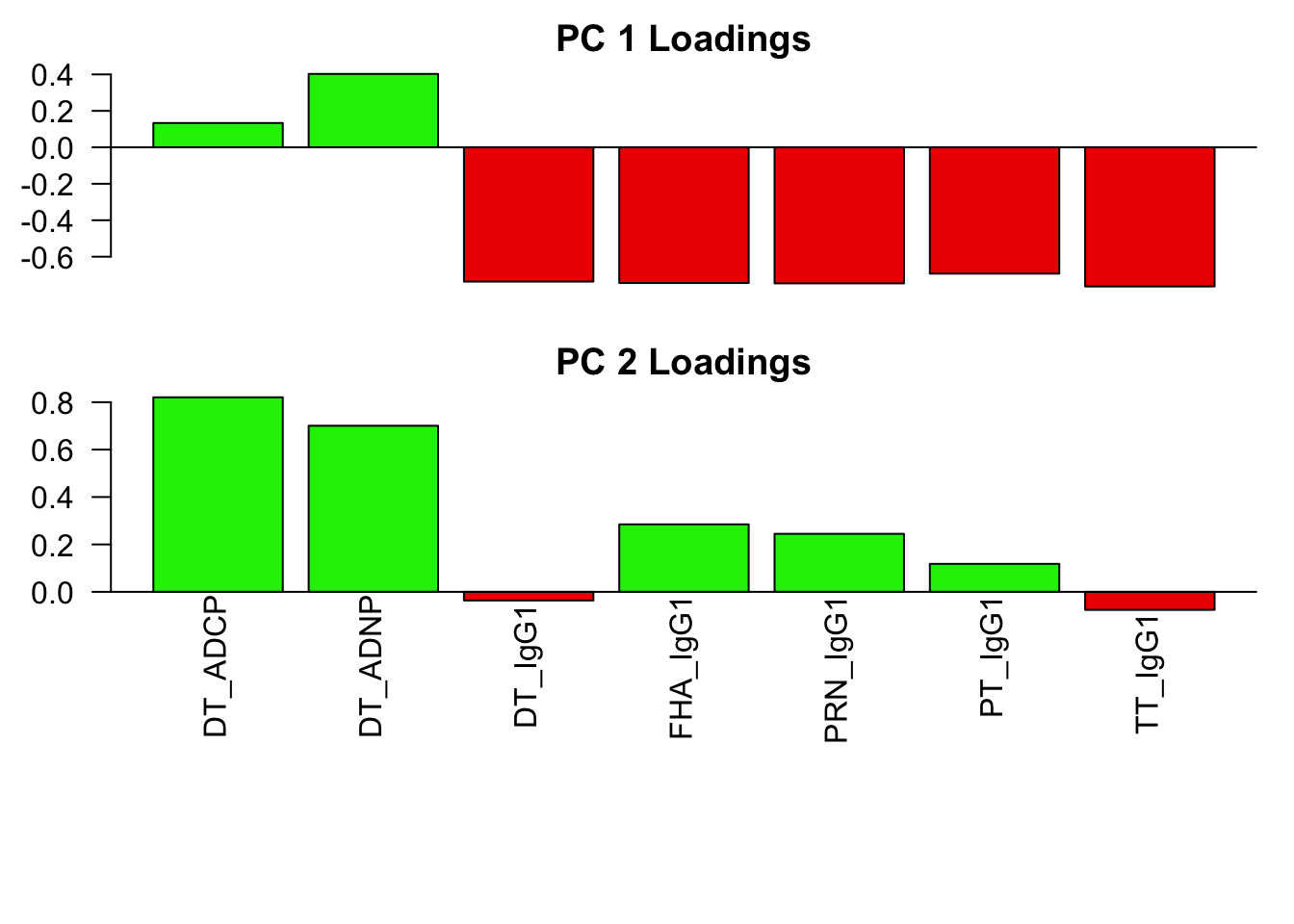

**Loadings
plot
Plot of UMAP1 vs UMAP2 Loadings
Comparison of UMAP loadings by arm
Infant AP vs. WP boosted TT UMAP1: p=.22
Infant AP vs. WP boosted TT UMAP2: p=.67
Response Cluster: 3
Features: DT_FcgR2a, DT_FcgR3b, DT_IgG, FHA_IgG, PRN_ADNP, PRN_FcgR2a, PRN_FcgR3b, PRN_IgG, PT_ADCP, PT_ADNP, PT_FcgR2a, PT_FcgR3b, PT_IgG, TT_ADNP, TT_FcgR3b, TT_IgG
Proportion of Variance
summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | PC6 | PC7 | PC8 | PC9 | PC10 | PC11 | PC12 | PC13 | PC14 | PC15 | PC16 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Standard deviation | 2.563 | 1.330 | 1.272 | 1.144 | 0.998 | 0.953 | 0.843 | 0.670 | 0.592 | 0.583 | 0.509 | 0.488 | 0.428 | 0.377 | 0.319 | 0.240 |
| Proportion of Variance | 0.411 | 0.111 | 0.101 | 0.082 | 0.062 | 0.057 | 0.044 | 0.028 | 0.022 | 0.021 | 0.016 | 0.015 | 0.011 | 0.009 | 0.006 | 0.004 |
| Cumulative Proportion | 0.411 | 0.521 | 0.622 | 0.704 | 0.766 | 0.823 | 0.867 | 0.896 | 0.917 | 0.939 | 0.955 | 0.970 | 0.981 | 0.990 | 0.996 | 1.000 |

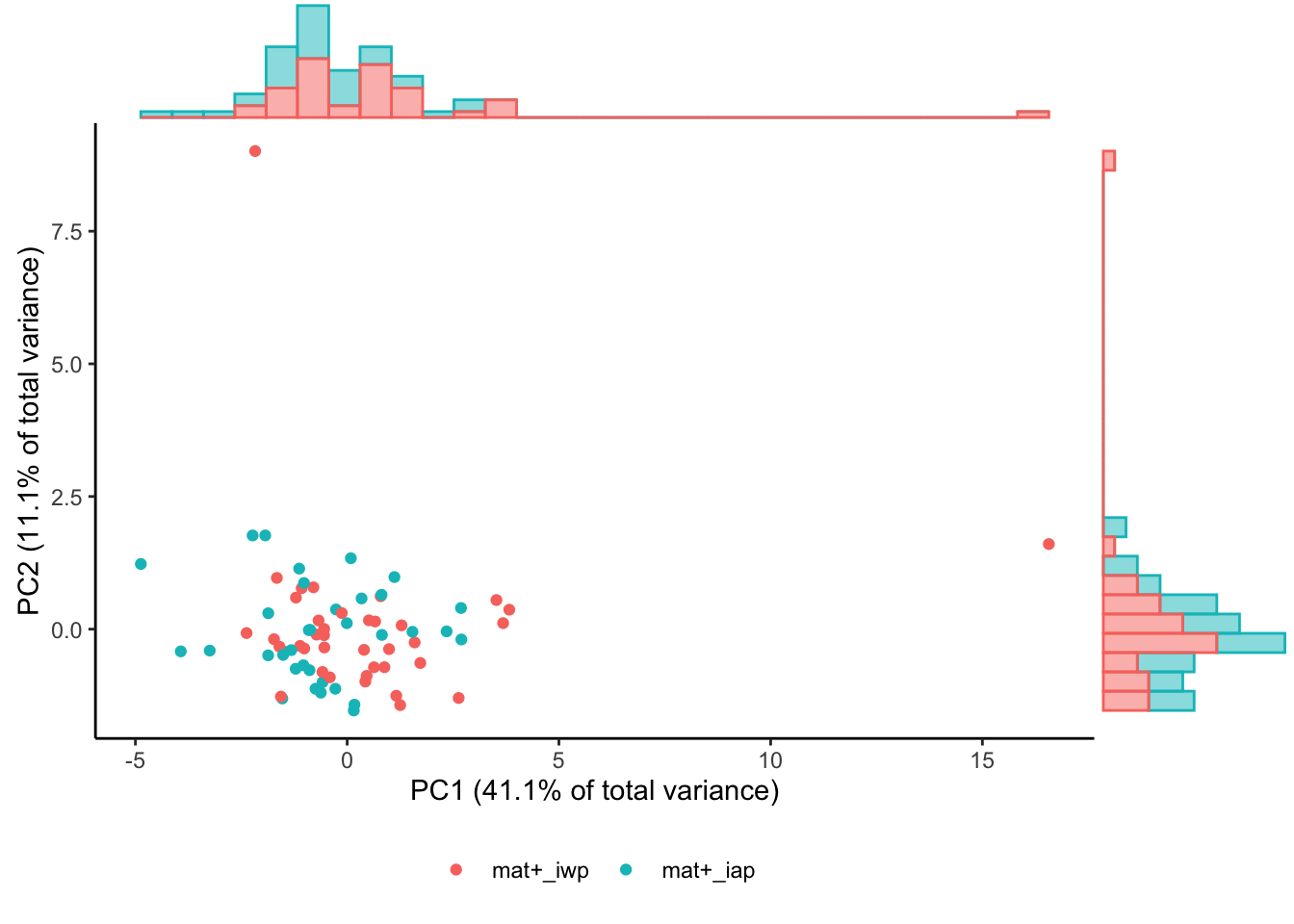

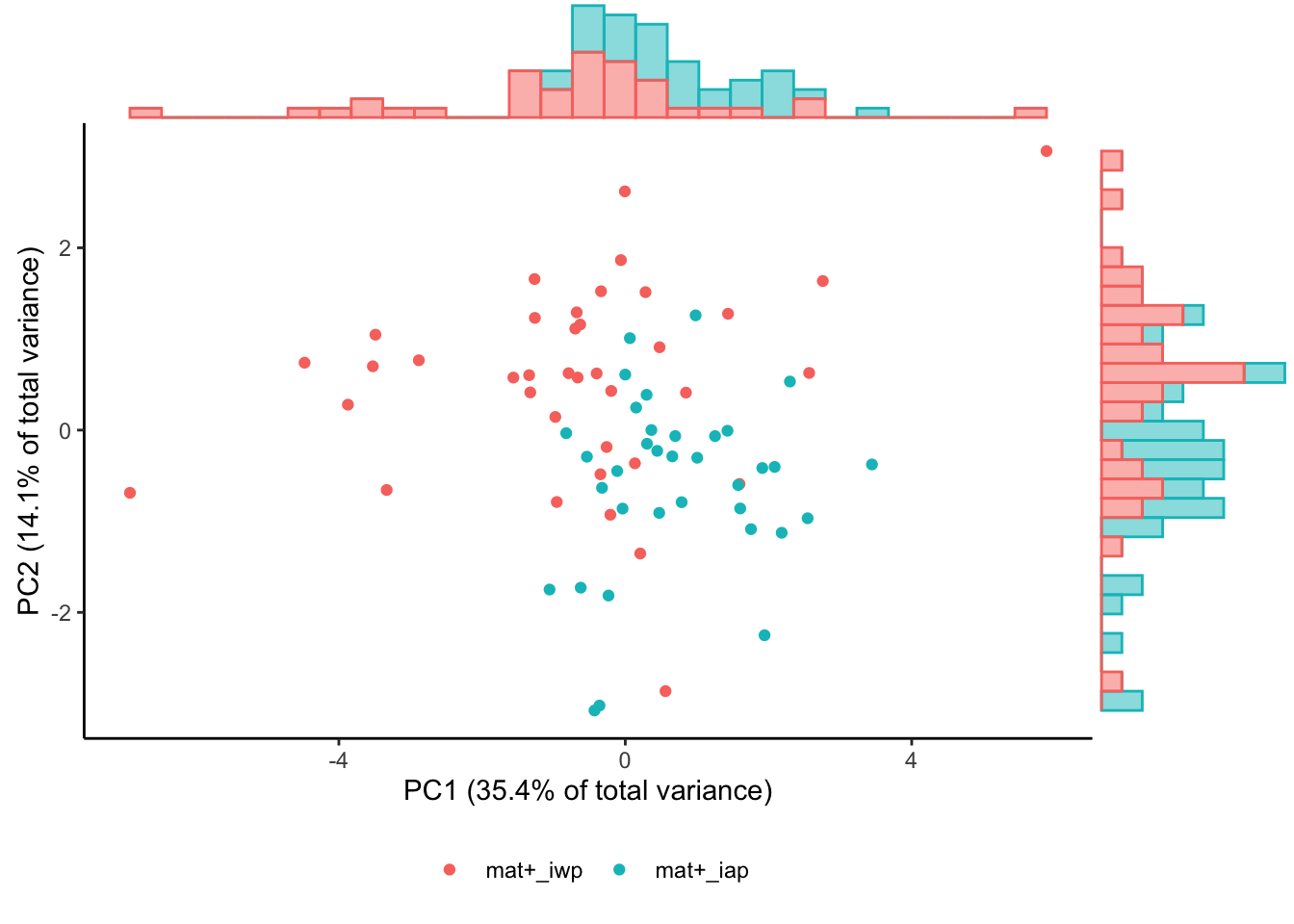

Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Infant AP vs. WP boosted RCluster_ 3 PC1: p=.035
Infant AP vs. WP boosted RCluster_ 3 PC2: p=.66
Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution
**Loadings
plot

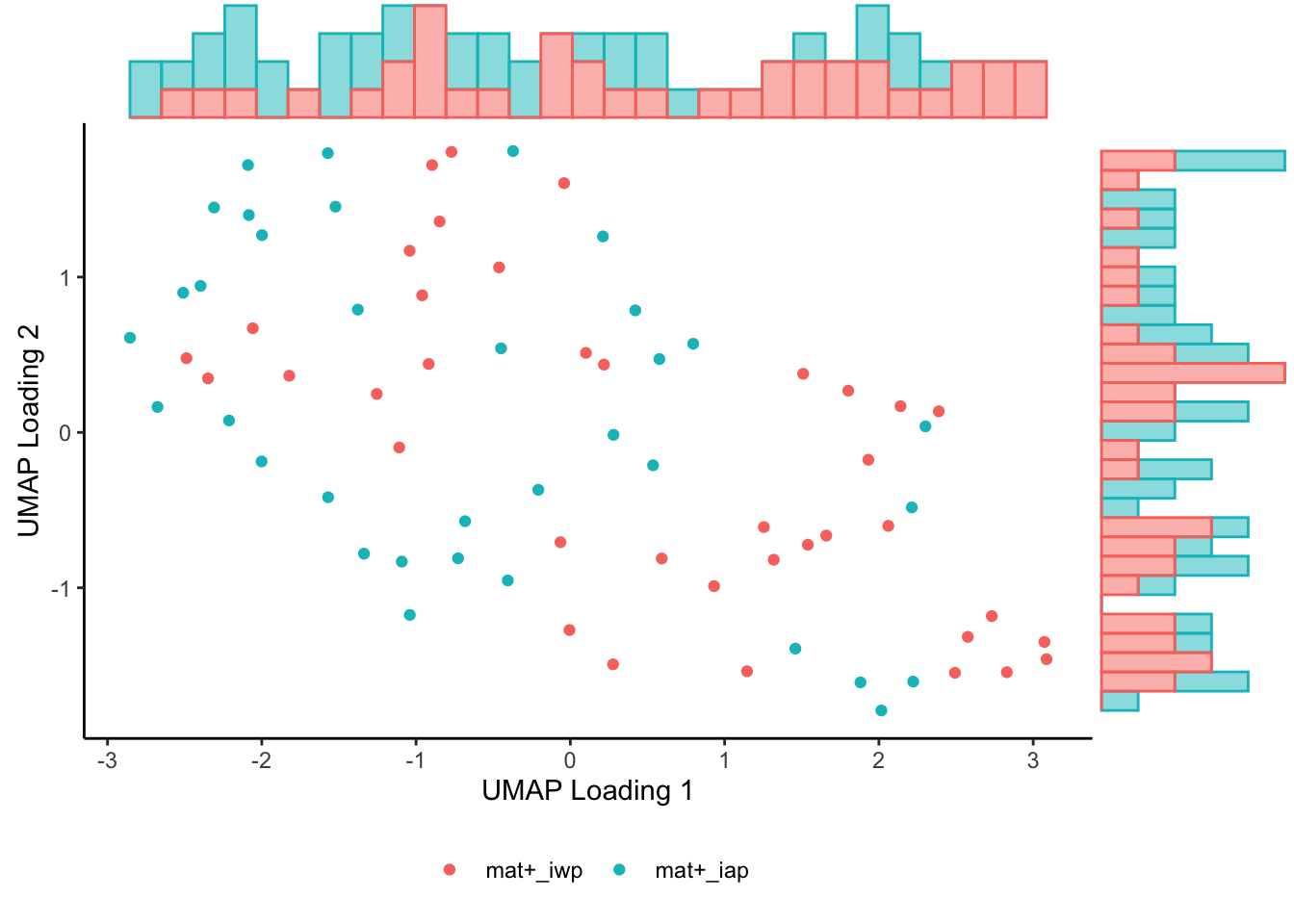

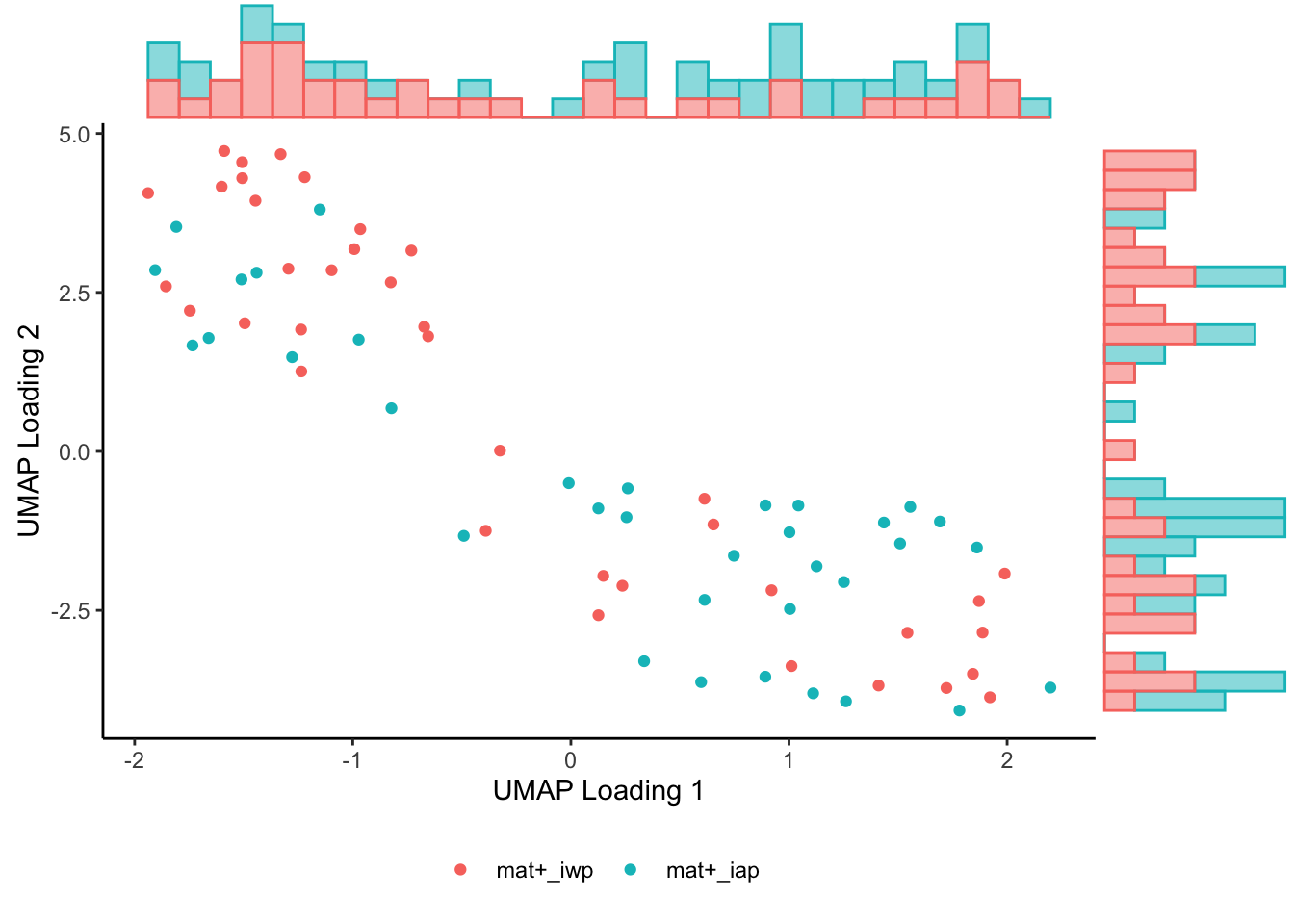

Plot of UMAP1 vs UMAP2 Loadings
Comparison of UMAP loadings by arm
Infant AP vs. WP boosted TT UMAP1: p=.012
Infant AP vs. WP boosted TT UMAP2: p<.0001
Response Cluster: 4
Features: DT_IgG2, FHA_IgG2, FHA_IgG4, PRN_IgG2, PRN_IgG4, PT_IgG2, PT_IgG4, TT_IgG2, TT_IgG4
Proportion of Variance
summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | PC6 | PC7 | PC8 | PC9 | |
|---|---|---|---|---|---|---|---|---|---|
| Standard deviation | 2.307 | 0.968 | 0.849 | 0.781 | 0.719 | 0.643 | 0.435 | 0.400 | 0.363 |
| Proportion of Variance | 0.591 | 0.104 | 0.080 | 0.068 | 0.057 | 0.046 | 0.021 | 0.018 | 0.015 |
| Cumulative Proportion | 0.591 | 0.695 | 0.775 | 0.843 | 0.901 | 0.947 | 0.968 | 0.985 | 1.000 |
Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Infant AP vs. WP boosted RCluster_ 4 PC1: p<.0001
Infant AP vs. WP boosted RCluster_ 4 PC2: p=.83
Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution
**Loadings
plot

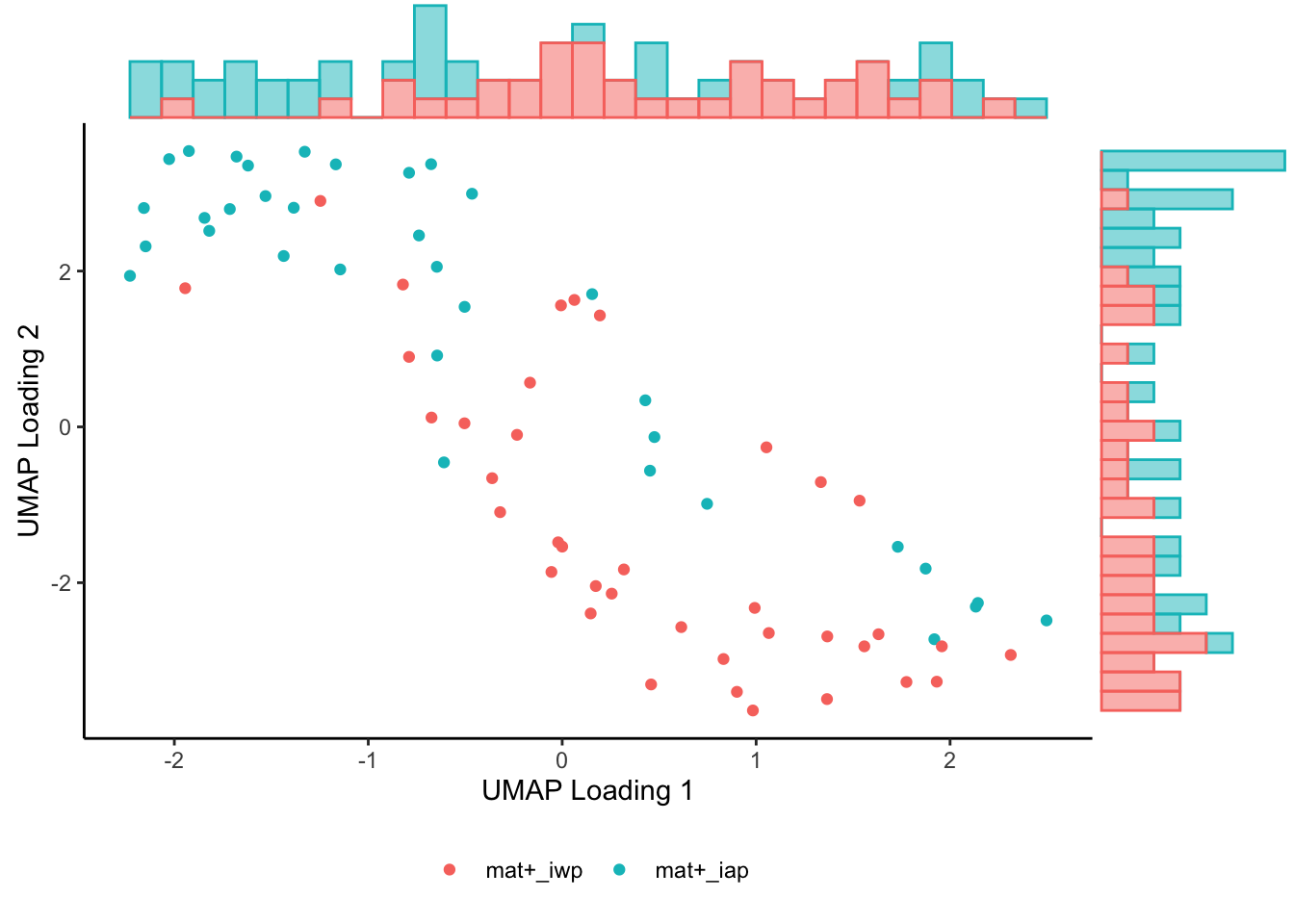

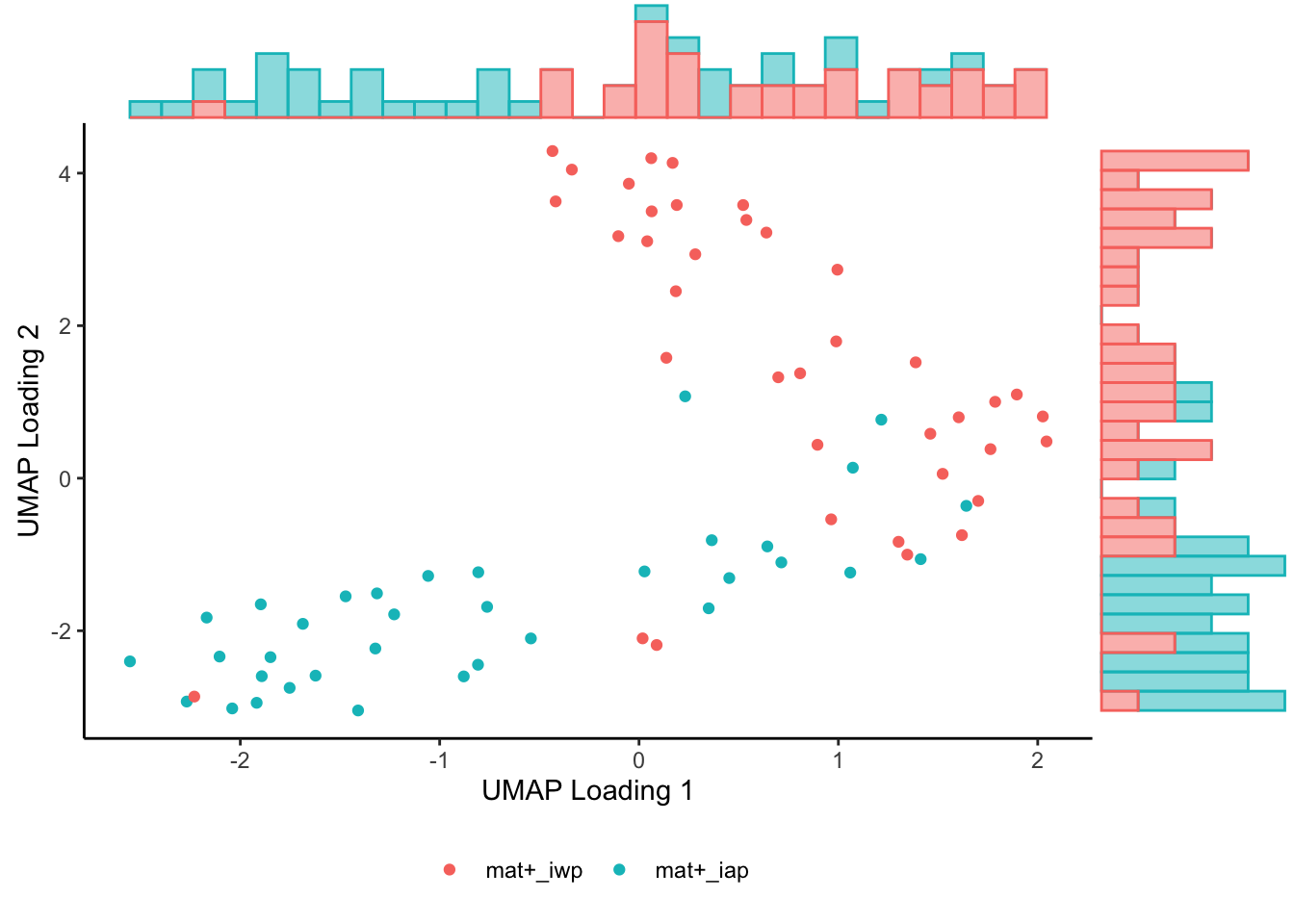

Plot of UMAP1 vs UMAP2 Loadings
Comparison of UMAP loadings by arm
Infant AP vs. WP boosted TT UMAP1: p<.0001
Infant AP vs. WP boosted TT UMAP2: p<.0001
Response Cluster: 5
Features: DT_IgG3, FHA_IgG3, PRN_IgG3, TT_IgG3
Proportion of Variance
summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | |
|---|---|---|---|---|
| Standard deviation | 1.487 | 0.820 | 0.766 | 0.729 |
| Proportion of Variance | 0.553 | 0.168 | 0.147 | 0.133 |
| Cumulative Proportion | 0.553 | 0.721 | 0.867 | 1.000 |
Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Infant AP vs. WP boosted RCluster_ 5 PC1: p=.21
Infant AP vs. WP boosted RCluster_ 5 PC2: p=.076
Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution
**Loadings
plot

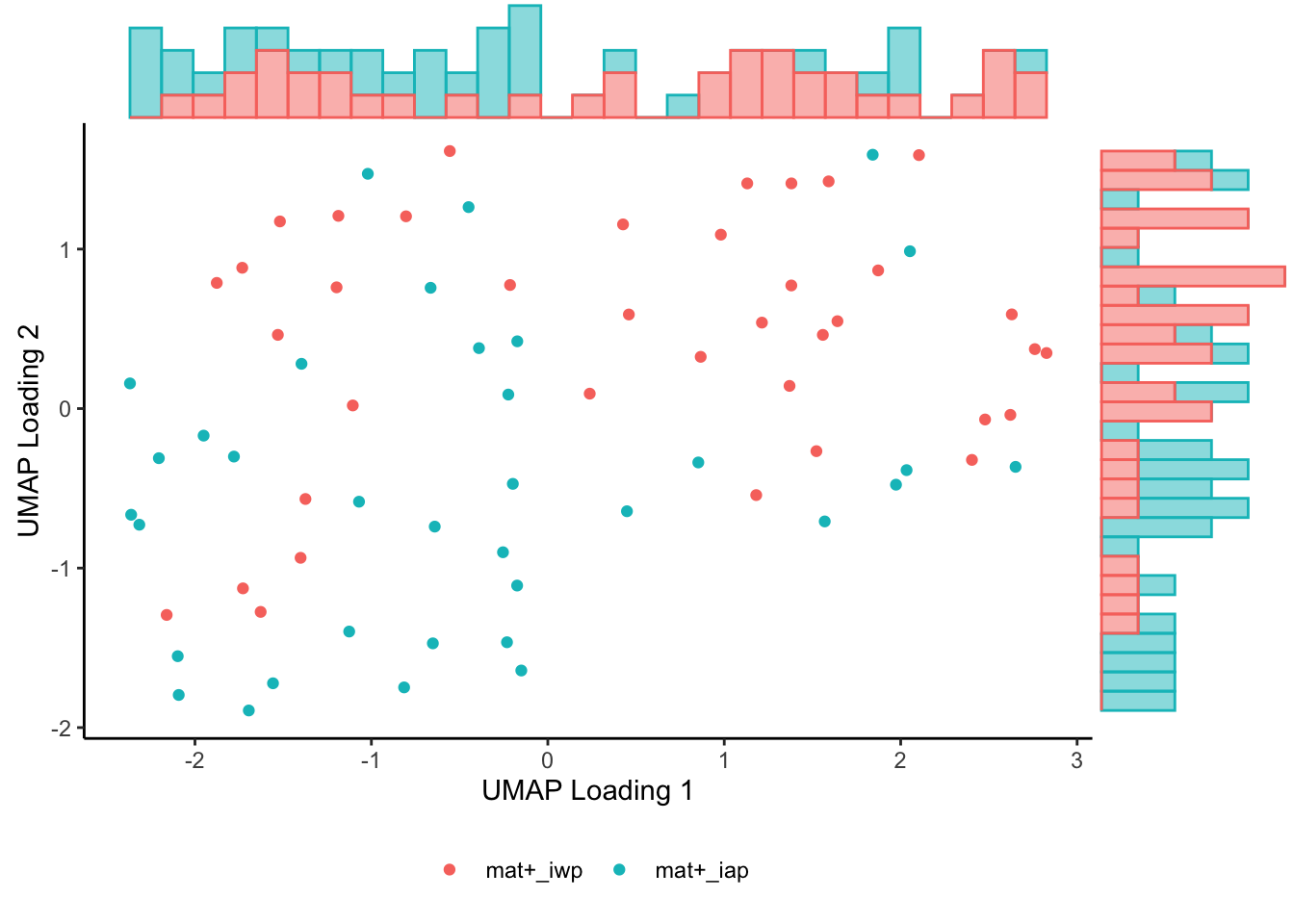

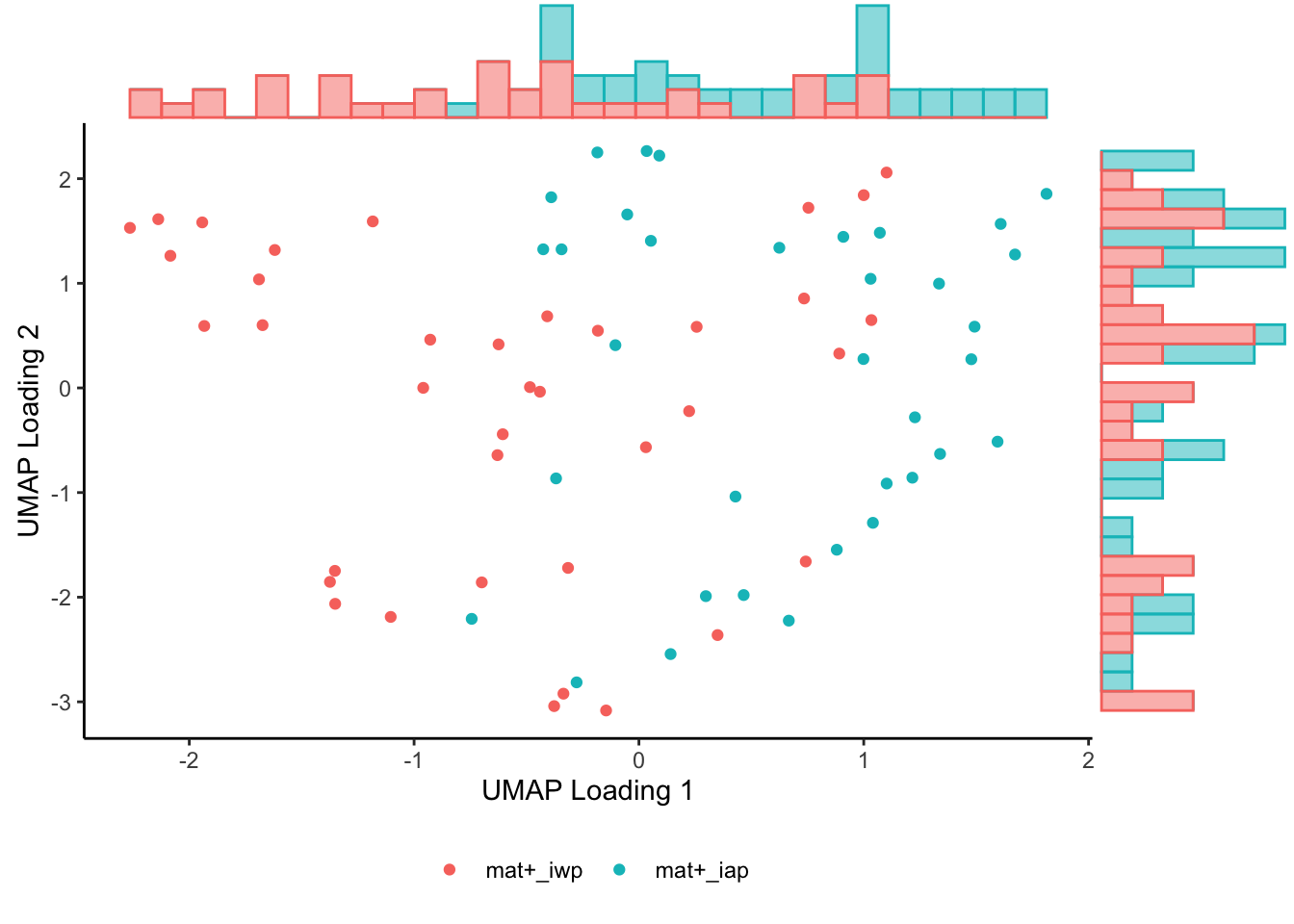

Plot of UMAP1 vs UMAP2 Loadings
Comparison of UMAP loadings by arm
Infant AP vs. WP boosted TT UMAP1: p=.76
Infant AP vs. WP boosted TT UMAP2: p=.26
Response Cluster: 6
Features: DT_IgG4, FHA_ADNP, FHA_FcgR2a, FHA_FcgR3b, PT_IgG3

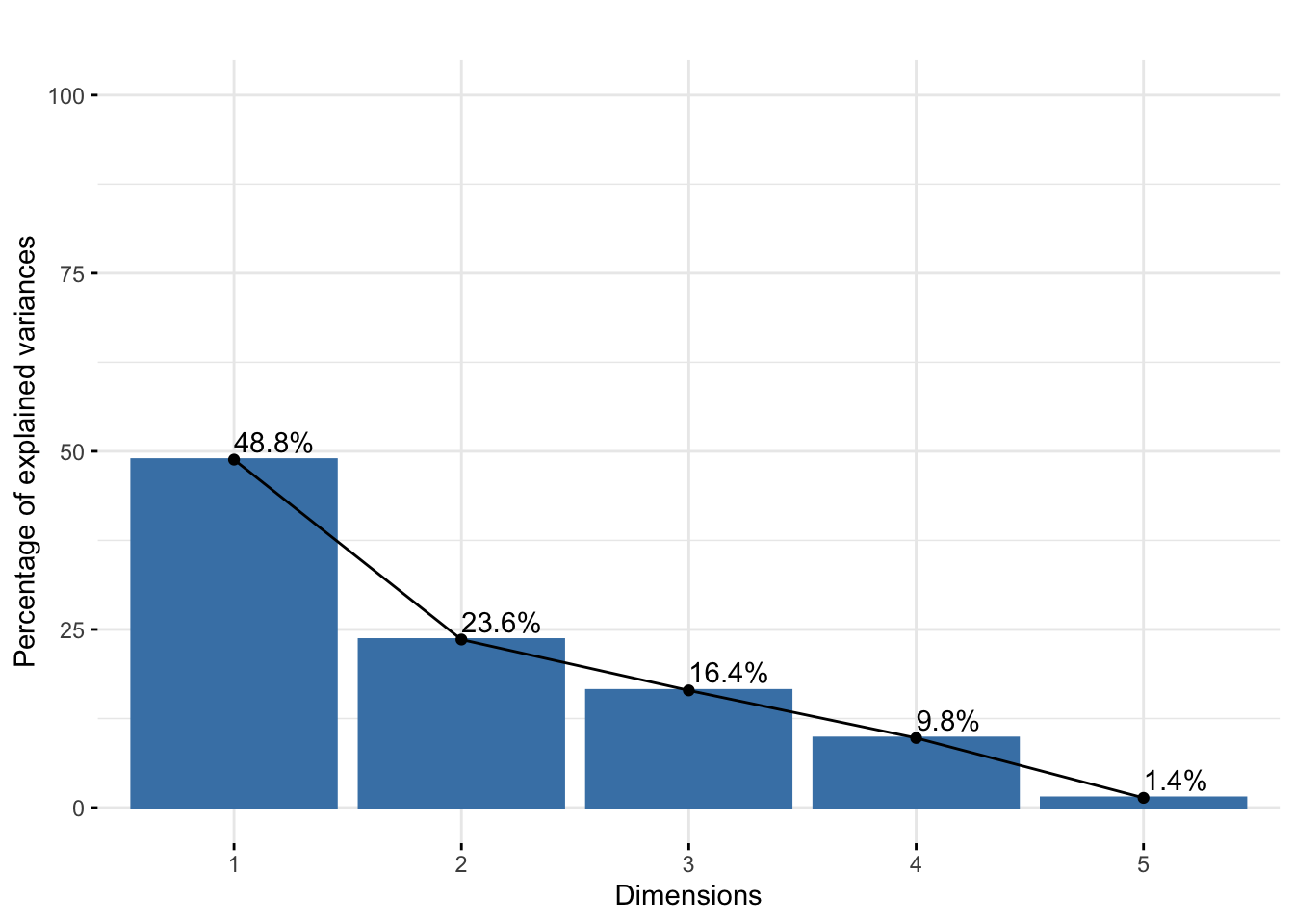

Proportion of Variance
summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | |
|---|---|---|---|---|---|
| Standard deviation | 1.563 | 1.086 | 0.907 | 0.699 | 0.261 |
| Proportion of Variance | 0.488 | 0.236 | 0.164 | 0.098 | 0.014 |
| Cumulative Proportion | 0.488 | 0.724 | 0.889 | 0.986 | 1.000 |
Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Infant AP vs. WP boosted RCluster_ 6 PC1: p=.0084
Infant AP vs. WP boosted RCluster_ 6 PC2: p=.53
Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution
**Loadings
plot

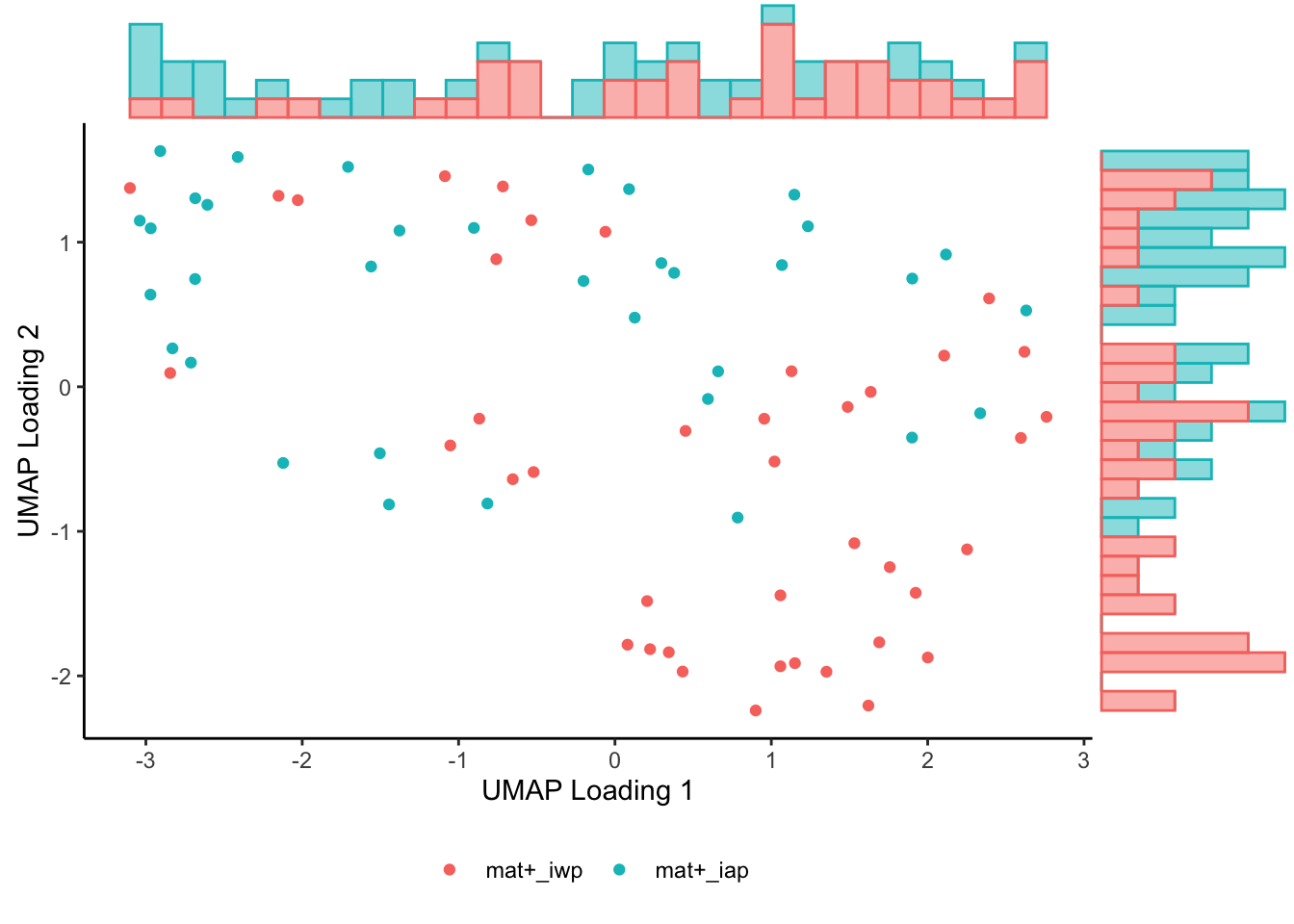

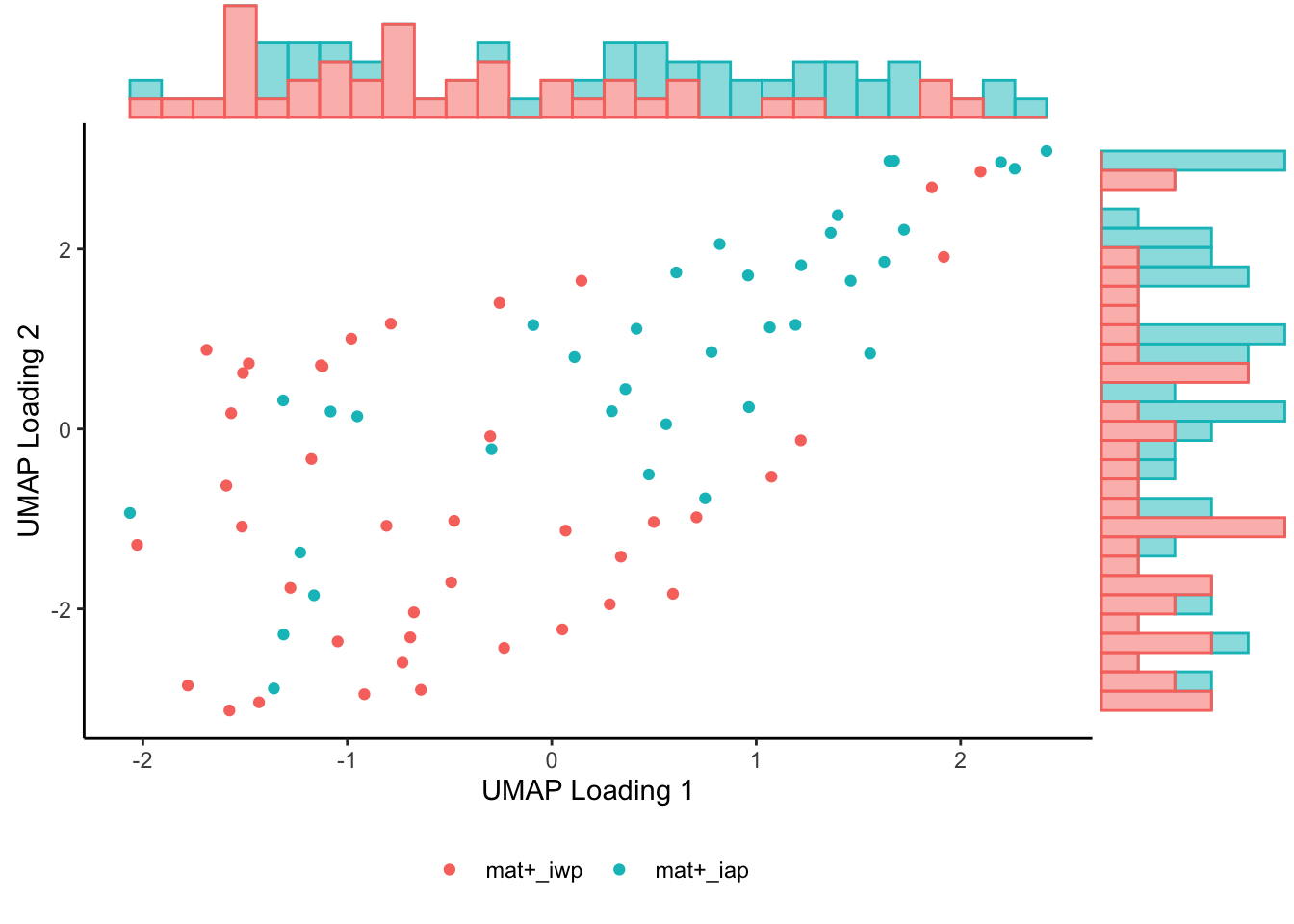

Plot of UMAP1 vs UMAP2 Loadings
Comparison of UMAP loadings by arm
Infant AP vs. WP boosted TT UMAP1: p=.076
Infant AP vs. WP boosted TT UMAP2: p=.021
Response Cluster: 7
Features: FHA_ADCP, PRN_ADCP, TT_ADCP
Proportion of Variance
summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | |
|---|---|---|---|
| Standard deviation | 1.405 | 0.765 | 0.663 |
| Proportion of Variance | 0.658 | 0.195 | 0.147 |
| Cumulative Proportion | 0.658 | 0.853 | 1.000 |

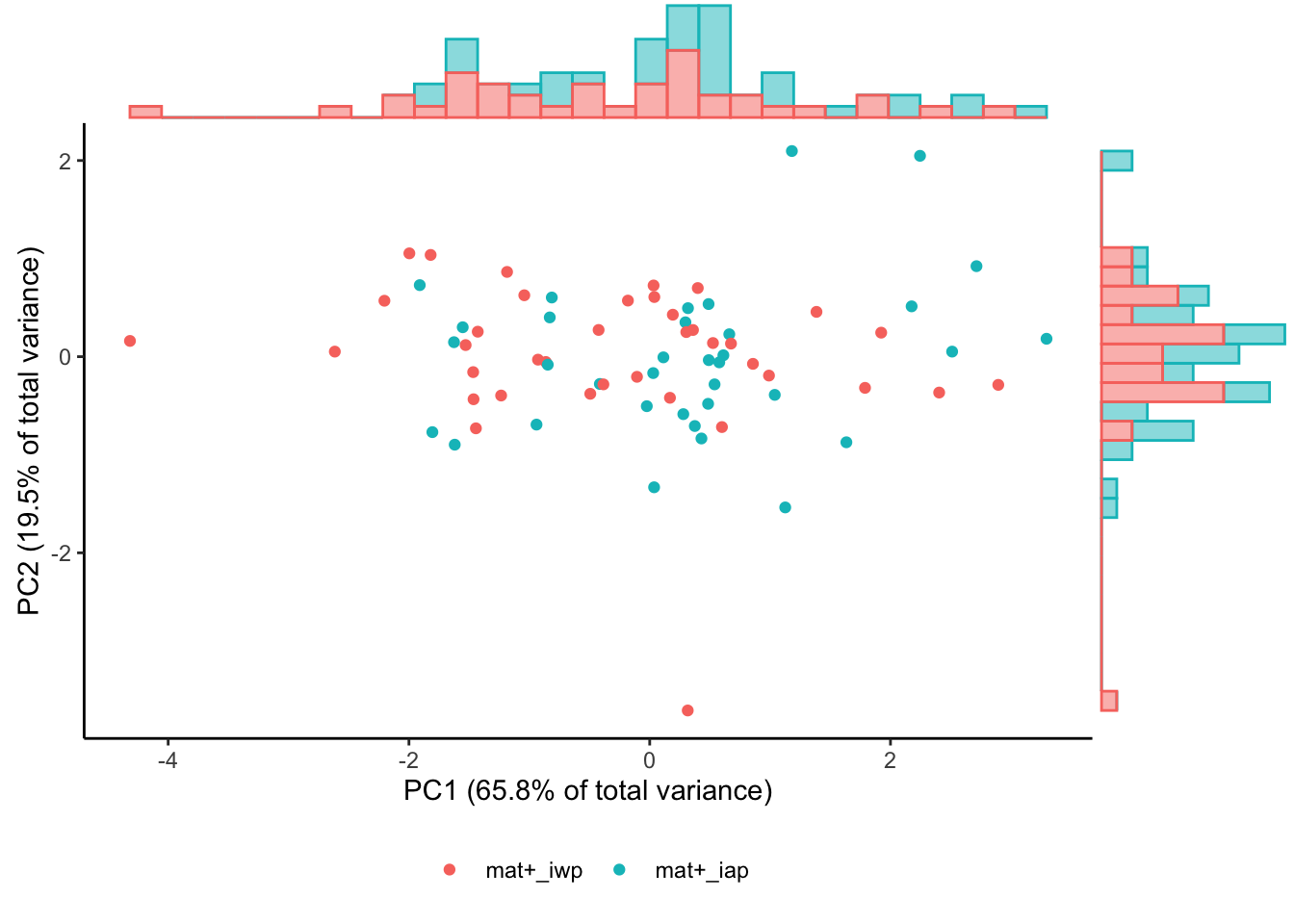

Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Infant AP vs. WP boosted RCluster_ 7 PC1: p=.059
Infant AP vs. WP boosted RCluster_ 7 PC2: p=.79
Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution
**Loadings
plot

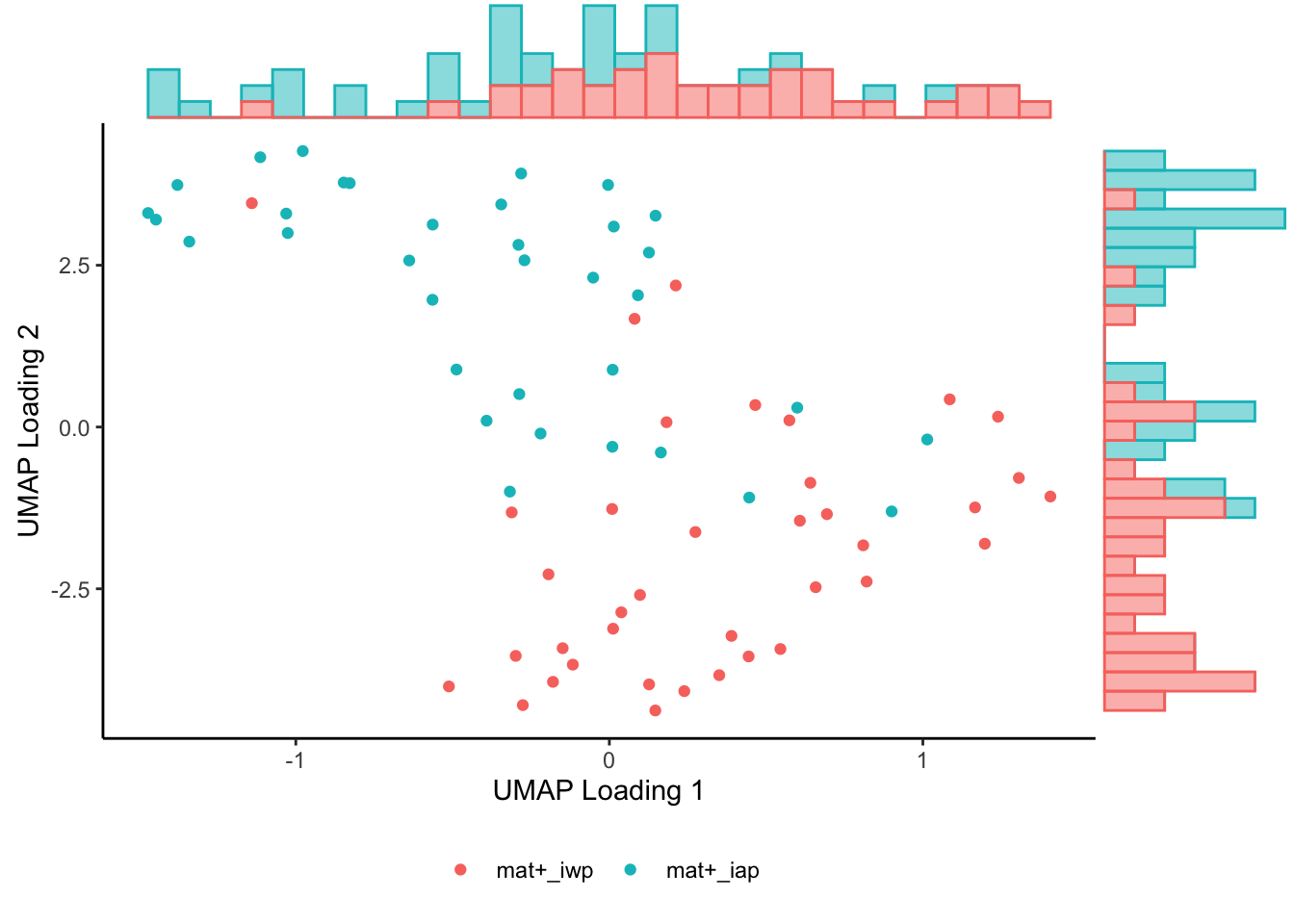

Plot of UMAP1 vs UMAP2 Loadings
Comparison of UMAP loadings by arm
Infant AP vs. WP boosted TT UMAP1: p=.59
Infant AP vs. WP boosted TT UMAP2: p=.099
sessionInfo()R version 4.4.2 (2024-10-31)
Platform: aarch64-apple-darwin20
Running under: macOS Sequoia 15.1.1
Matrix products: default
BLAS: /Library/Frameworks/R.framework/Versions/4.4-arm64/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/4.4-arm64/Resources/lib/libRlapack.dylib; LAPACK version 3.12.0
locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8
time zone: America/New_York
tzcode source: internal
attached base packages:
[1] stats graphics grDevices utils datasets methods base
other attached packages:
[1] e1071_1.7-16 glue_1.8.0 RPostgres_1.4.7
[4] magrittr_2.0.3 broom.helpers_1.17.0 broom_1.0.7
[7] RColorBrewer_1.1-3 skimr_2.1.5 rmarkdown_2.28
[10] papeR_1.0-5 xtable_1.8-4 car_3.1-3
[13] carData_3.0-5 corrplot_0.94 rempsyc_0.1.8
[16] FactoMineR_2.11 factoextra_1.0.7 rstatix_0.7.2
[19] umap_0.2.10.0 pracma_2.4.4 PCAmixdata_3.1
[22] qgraph_1.9.8 kableExtra_1.4.0 gtsummary_2.0.3
[25] gtExtras_0.5.0 gt_0.11.1 ggfortify_0.4.17
[28] ggpubr_0.6.0 ggExtra_0.10.1 ggrepel_0.9.6
[31] janitor_2.2.0 here_1.0.1 data.table_1.16.2
[34] DT_0.33 DBI_1.2.3 fpc_2.2-13
[37] lubridate_1.9.3 forcats_1.0.0 stringr_1.5.1
[40] dplyr_1.1.4 purrr_1.0.2 readr_2.1.5
[43] tidyr_1.3.1 tibble_3.2.1 ggplot2_3.5.1
[46] tidyverse_2.0.0
loaded via a namespace (and not attached):
[1] splines_4.4.2 later_1.3.2 rpart_4.1.23
[4] lifecycle_1.0.4 rprojroot_2.0.4 lattice_0.22-6
[7] prabclus_2.3-4 MASS_7.3-61 flashClust_1.01-2
[10] backports_1.5.0 Hmisc_5.1-3 sass_0.4.9
[13] jquerylib_0.1.4 yaml_2.3.10 httpuv_1.6.15
[16] flexmix_2.3-19 askpass_1.2.1 reticulate_1.39.0
[19] pbapply_1.7-2 multcomp_1.4-26 abind_1.4-8
[22] quadprog_1.5-8 TH.data_1.1-2 nnet_7.3-19
[25] sandwich_3.1-1 git2r_0.33.0 gmodels_2.19.1
[28] gdata_3.0.0 RSpectra_0.16-2 svglite_2.1.3
[31] codetools_0.2-20 xml2_1.3.6 tidyselect_1.2.1
[34] farver_2.1.2 stats4_4.4.2 base64enc_0.1-3
[37] jsonlite_1.8.9 Formula_1.2-5 survival_3.7-0
[40] emmeans_1.10.4 systemfonts_1.1.0 tools_4.4.2
[43] Rcpp_1.0.13 mnormt_2.1.1 gridExtra_2.3
[46] xfun_0.48 withr_3.0.1 fastmap_1.2.0
[49] fansi_1.0.6 openssl_2.2.2 digest_0.6.37
[52] timechange_0.3.0 R6_2.5.1 mime_0.12
[55] estimability_1.5.1 colorspace_2.1-1 gtools_3.9.5
[58] jpeg_0.1-10 diptest_0.77-1 utf8_1.2.4
[61] generics_0.1.3 corpcor_1.6.10 robustbase_0.99-4-1
[64] class_7.3-22 htmlwidgets_1.6.4 scatterplot3d_0.3-44
[67] whisker_0.4.1 pkgconfig_2.0.3 gtable_0.3.5
[70] modeltools_0.2-23 blob_1.2.4 workflowr_1.7.1
[73] htmltools_0.5.8.1 lavaan_0.6-19 multcompView_0.1-10
[76] scales_1.3.0 leaps_3.2 png_0.1-8
[79] snakecase_0.11.1 knitr_1.48.1 rstudioapi_0.16.0
[82] tzdb_0.4.0 reshape2_1.4.4 coda_0.19-4.1
[85] checkmate_2.3.2 nlme_3.1-166 proxy_0.4-27
[88] repr_1.1.7 zoo_1.8-12 cachem_1.1.0
[91] parallel_4.4.2 miniUI_0.1.1.1 foreign_0.8-87
[94] pillar_1.9.0 grid_4.4.2 vctrs_0.6.5
[97] promises_1.3.0 cluster_2.1.6 htmlTable_2.4.3
[100] paletteer_1.6.0 evaluate_1.0.1 pbivnorm_0.6.0
[103] mvtnorm_1.3-1 cli_3.6.3 compiler_4.4.2
[106] rlang_1.1.4 ggsignif_0.6.4 labeling_0.4.3
[109] fdrtool_1.2.18 mclust_6.1.1 rematch2_2.1.2
[112] plyr_1.8.9 fs_1.6.4 stringi_1.8.4
[115] psych_2.4.6.26 viridisLite_0.4.2 munsell_0.5.1
[118] Matrix_1.7-1 hms_1.1.3 glasso_1.11
[121] bit64_4.5.2 shiny_1.9.1 highr_0.11
[124] kernlab_0.9-33 fontawesome_0.5.2 igraph_2.0.3
[127] bslib_0.8.0 bit_4.5.0 DEoptimR_1.1-3
