Principle Components Analysis - Maternal Tdap+ vs. mTdap-
Excluding ELISA-based total IgG - IgG Standardized - 7 response clusters
Lisa Gallagher, David Kook, Alec Buetow, Scot Zens
Last updated: 2024-12-02
Checks: 7 0
Knit directory:
madi-biostat-project3-SDY8003-Thailand/
This reproducible R Markdown analysis was created with workflowr (version 1.7.1). The Checks tab describes the reproducibility checks that were applied when the results were created. The Past versions tab lists the development history.
Great! Since the R Markdown file has been committed to the Git repository, you know the exact version of the code that produced these results.
Great job! The global environment was empty. Objects defined in the global environment can affect the analysis in your R Markdown file in unknown ways. For reproduciblity it’s best to always run the code in an empty environment.
The command set.seed(20231106) was run prior to running
the code in the R Markdown file. Setting a seed ensures that any results
that rely on randomness, e.g. subsampling or permutations, are
reproducible.
Great job! Recording the operating system, R version, and package versions is critical for reproducibility.
Nice! There were no cached chunks for this analysis, so you can be confident that you successfully produced the results during this run.
Great job! Using relative paths to the files within your workflowr project makes it easier to run your code on other machines.
Great! You are using Git for version control. Tracking code development and connecting the code version to the results is critical for reproducibility.
The results in this page were generated with repository version 03a267b. See the Past versions tab to see a history of the changes made to the R Markdown and HTML files.
Note that you need to be careful to ensure that all relevant files for
the analysis have been committed to Git prior to generating the results
(you can use wflow_publish or
wflow_git_commit). workflowr only checks the R Markdown
file, but you know if there are other scripts or data files that it
depends on. Below is the status of the Git repository when the results
were generated:
Ignored files:
Ignored: .DS_Store
Ignored: .RData
Ignored: .Rhistory
Ignored: .Rproj.user/
Ignored: analysis/.DS_Store
Ignored: data/.DS_Store
Ignored: figure/
Note that any generated files, e.g. HTML, png, CSS, etc., are not included in this status report because it is ok for generated content to have uncommitted changes.
These are the previous versions of the repository in which changes were
made to the R Markdown
(analysis/loop_pca_sigg_matpm_noEL7.Rmd) and HTML
(docs/loop_pca_sigg_matpm_noEL7.html) files. If you’ve
configured a remote Git repository (see ?wflow_git_remote),
click on the hyperlinks in the table below to view the files as they
were in that past version.
| File | Version | Author | Date | Message |
|---|---|---|---|---|
| Rmd | 03a267b | alecbuetow | 2024-12-02 | updated loops with feature clusters |
| Rmd | c432a7f | Michael S. Zens | 2024-09-16 | added feature_comparisions and fixed the deimension reduction for 6 variations of clustering for each manuscript. |
| html | 9d33ff3 | f006zvn1 | 2024-08-19 | dimensionality reduction executed, pngs and html updated |
| Rmd | 5261902 | f006zvn1 | 2024-08-14 | UMAP added to dimensionality reduction for matpm analyses |
| html | 358003a | Michael S. Zens | 2024-06-18 | more supporting files for the Maternal Tdap+ vs. Tdap- |
| Rmd | ffc6428 | Michael S. Zens | 2024-06-18 | big set of maternal Tdap+ vs Tdap- results |
Maternal Tdap+ vs. Tdap- visit:vaccinated - vaccinated : PCA Results
Antigen: PT
Features: PT_ADCD, PT_ADCP, PT_ADNP, PT_FcgR2a, PT_FcgR3b, PT_IgG1, PT_IgG3, PT_IgG2, PT_IgG4, PT_IgG

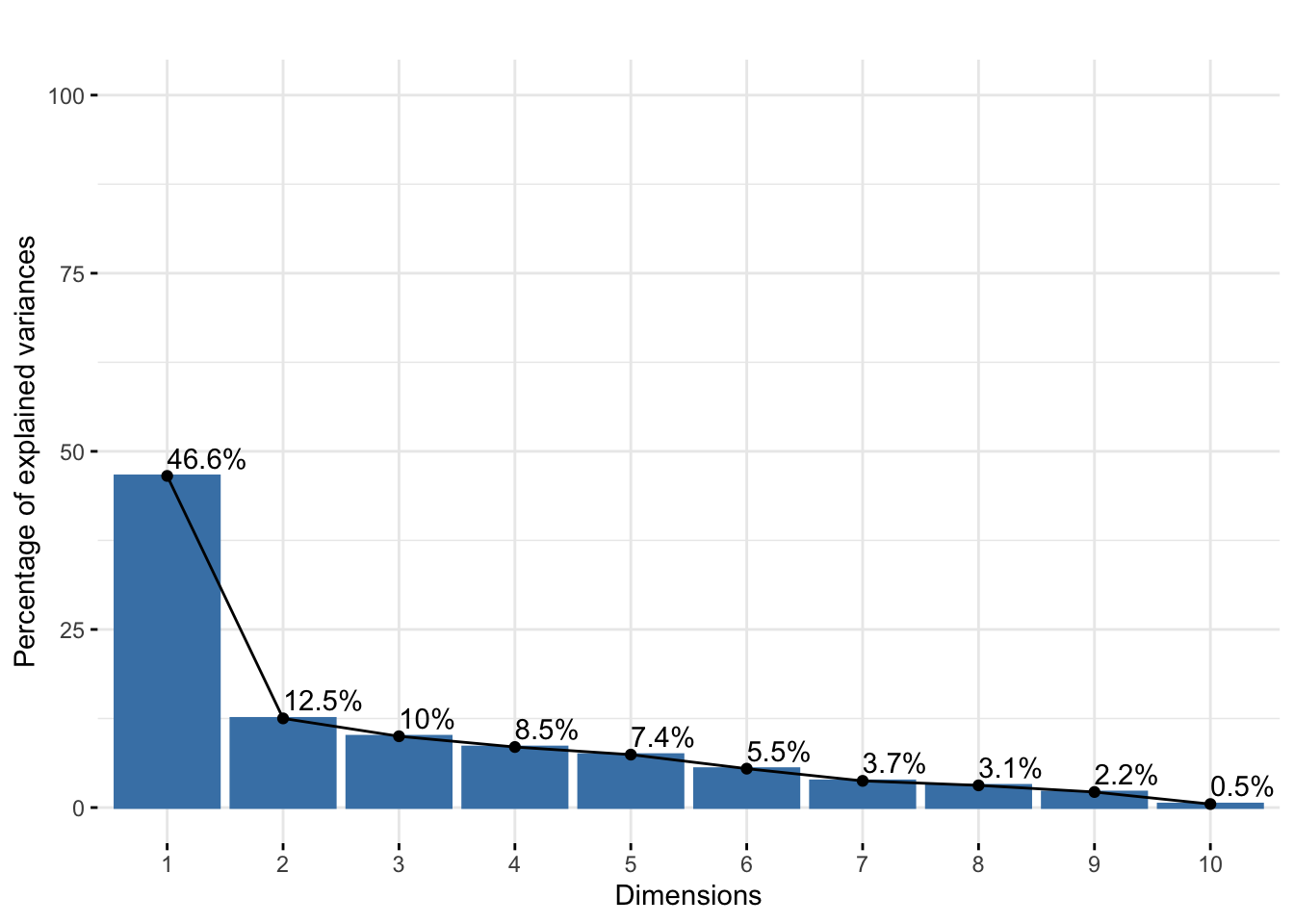

Proportion of Variance
Summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | |
|---|---|---|---|---|---|
| Standard deviation | 2.158 | 1.119 | 1.000 | 0.922 | 0.862 |
| Proportion of Variance | 0.466 | 0.125 | 0.100 | 0.085 | 0.074 |
| Cumulative Proportion | 0.466 | 0.591 | 0.691 | 0.776 | 0.850 |

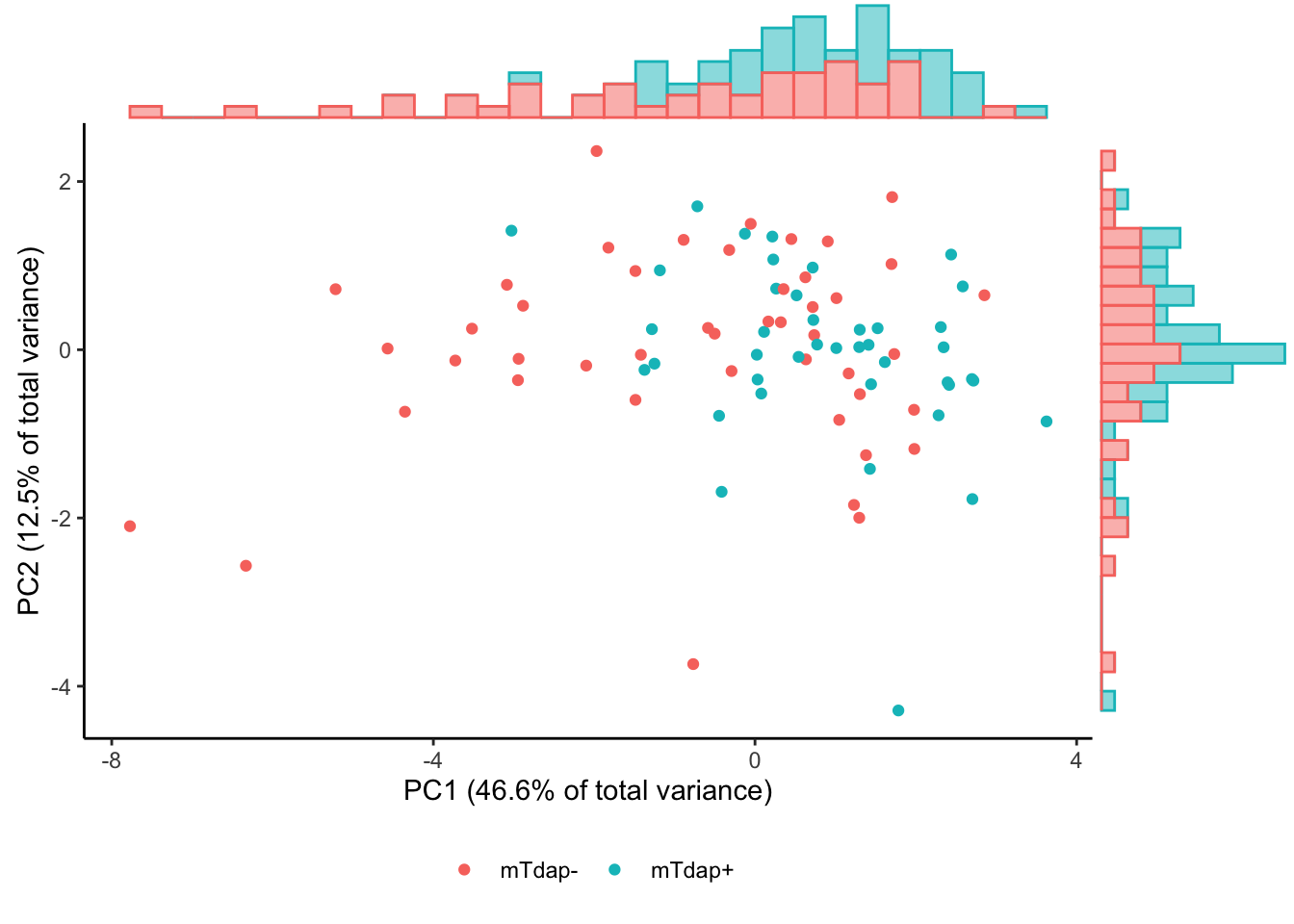

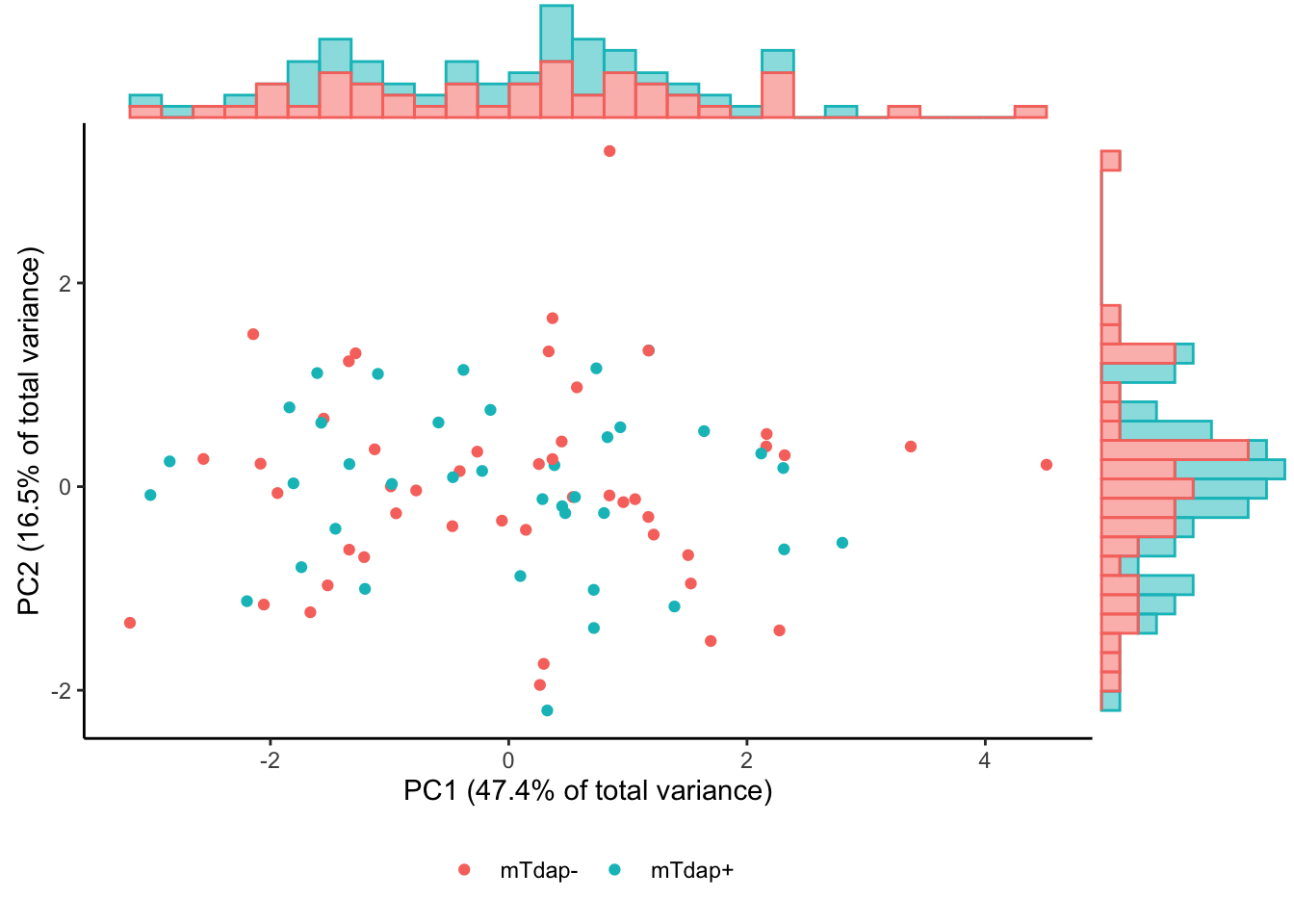

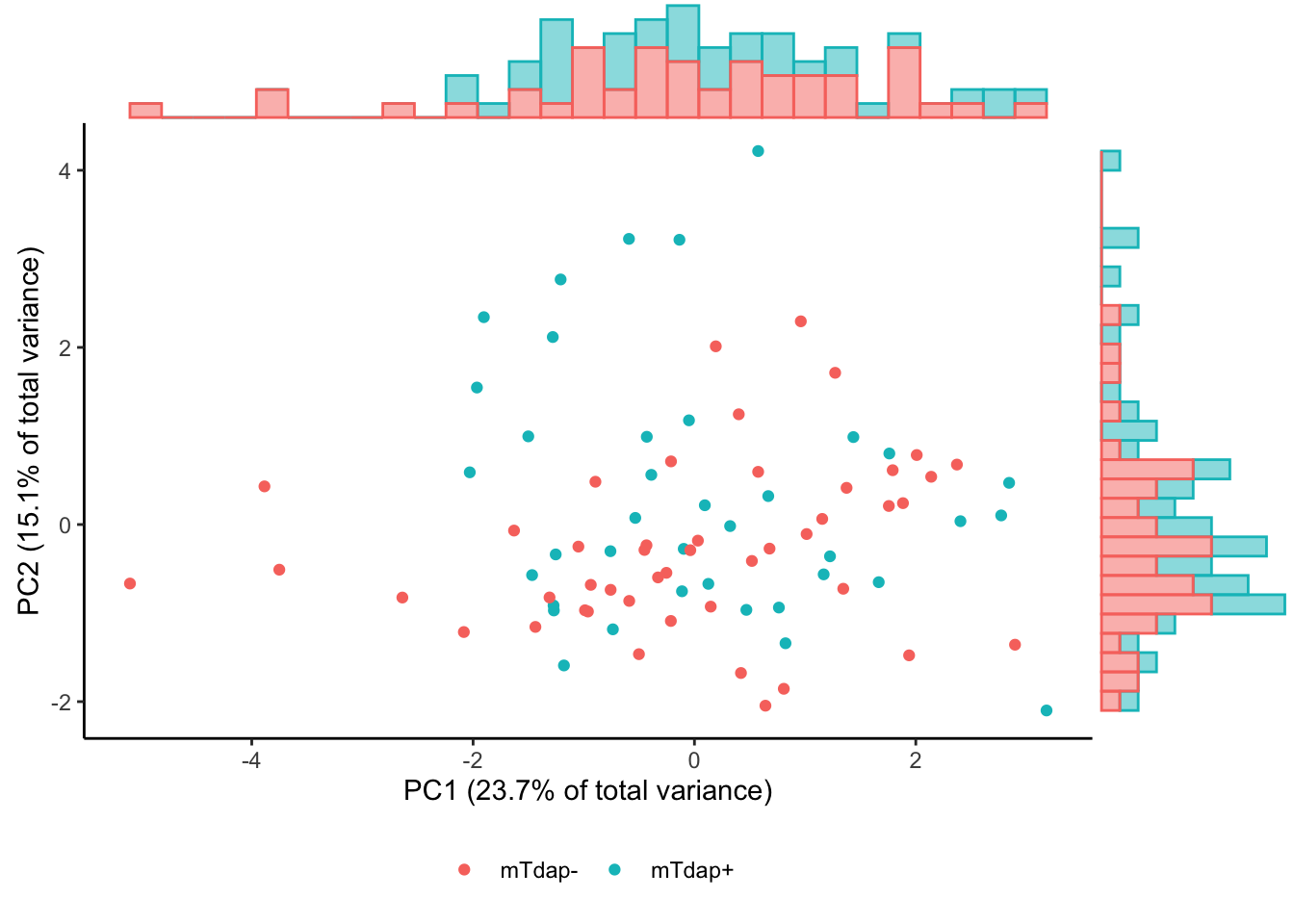

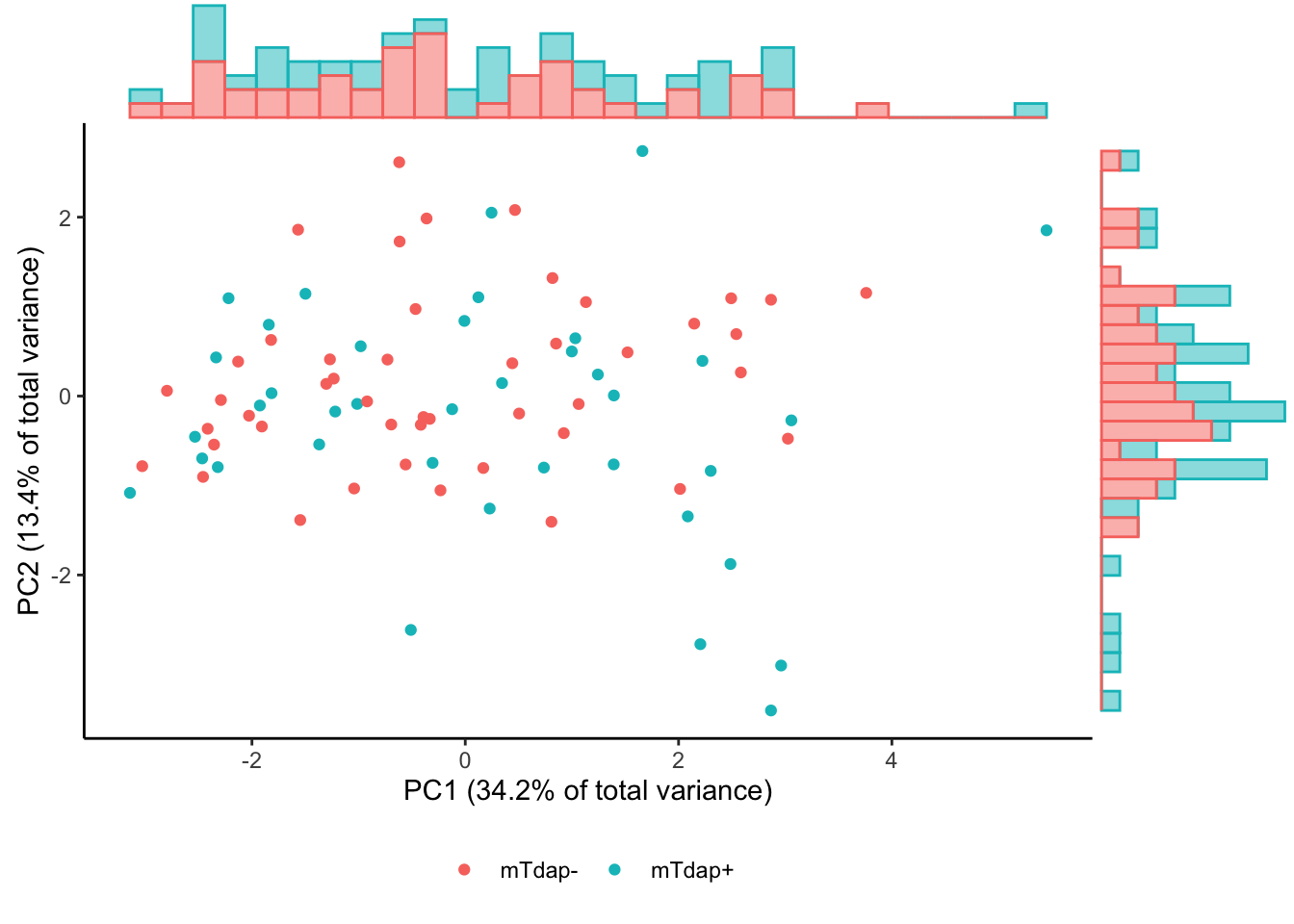

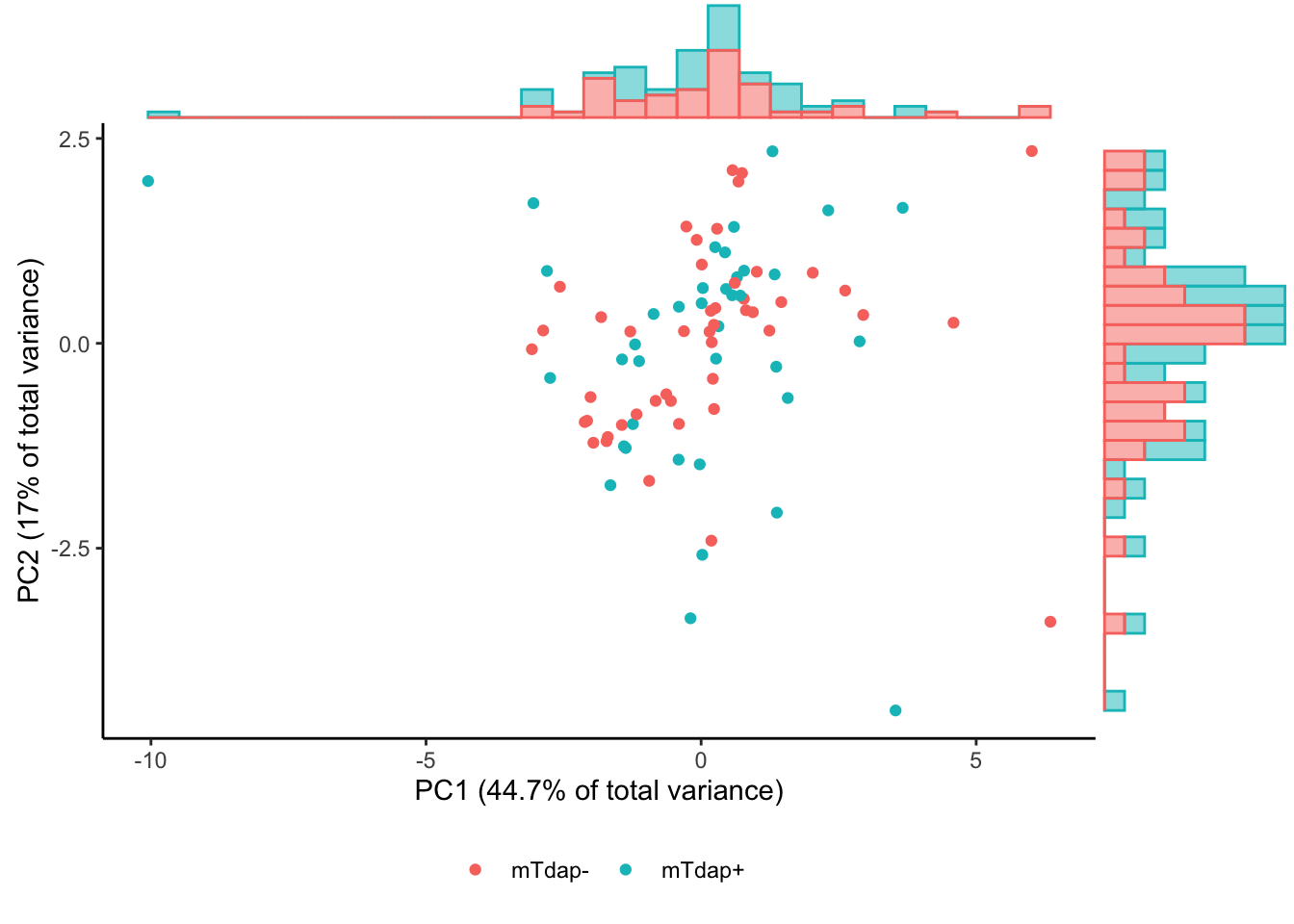

Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Maternal Tdap+ vs. Tdap- vaccinated PT PC1: p=.00018
Maternal Tdap+ vs. Tdap- vaccinated PT PC2: p=.82

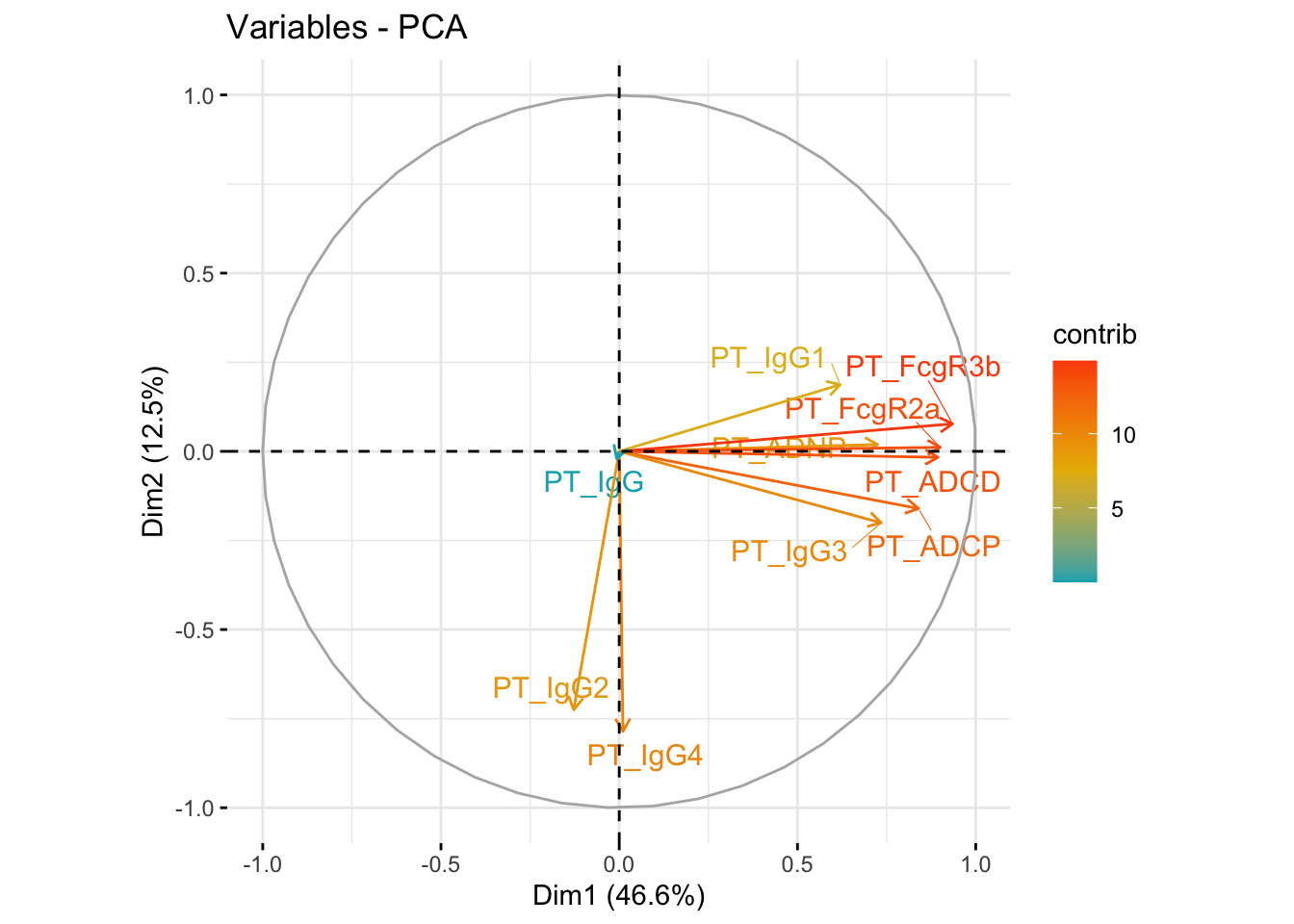

Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution

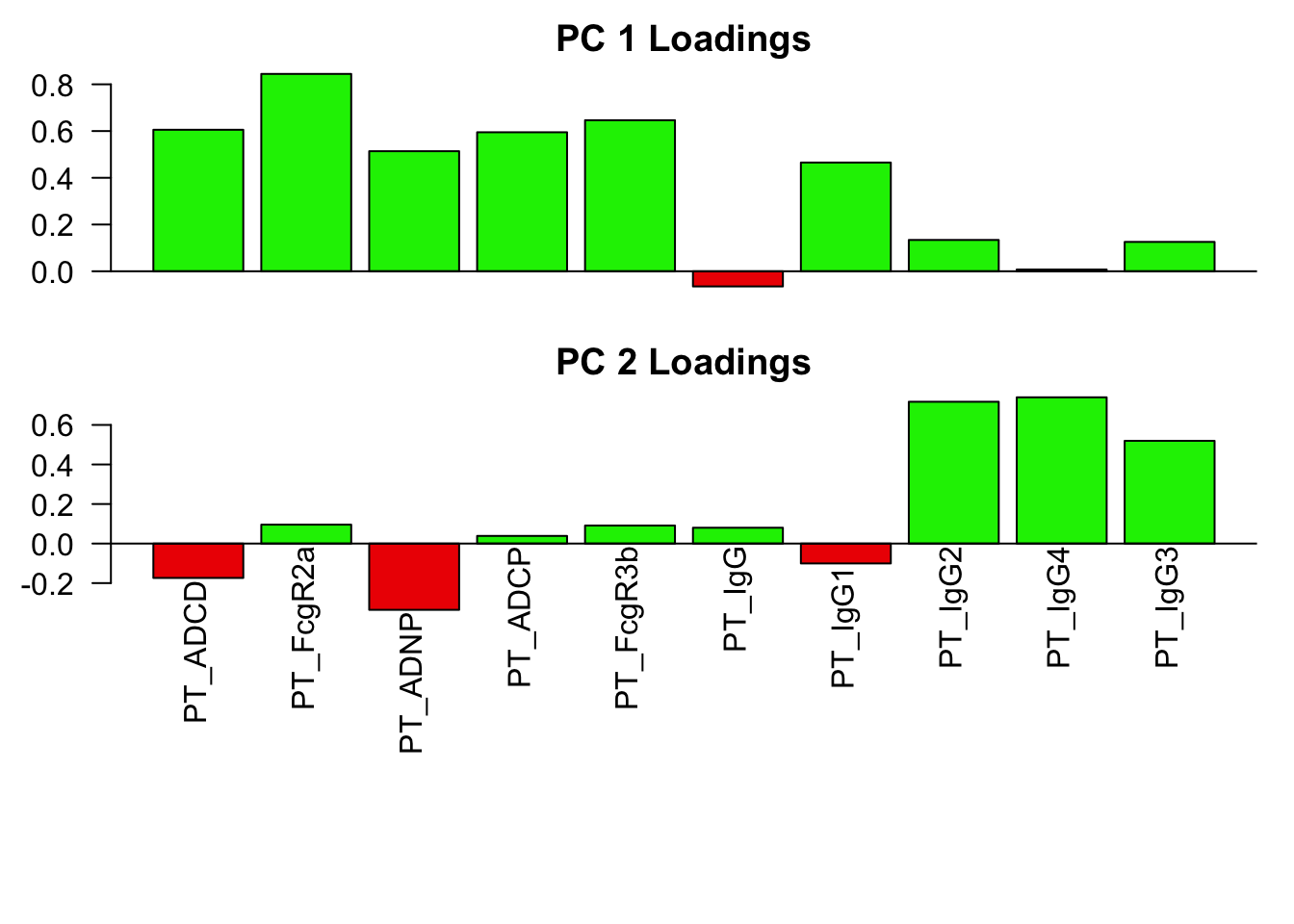

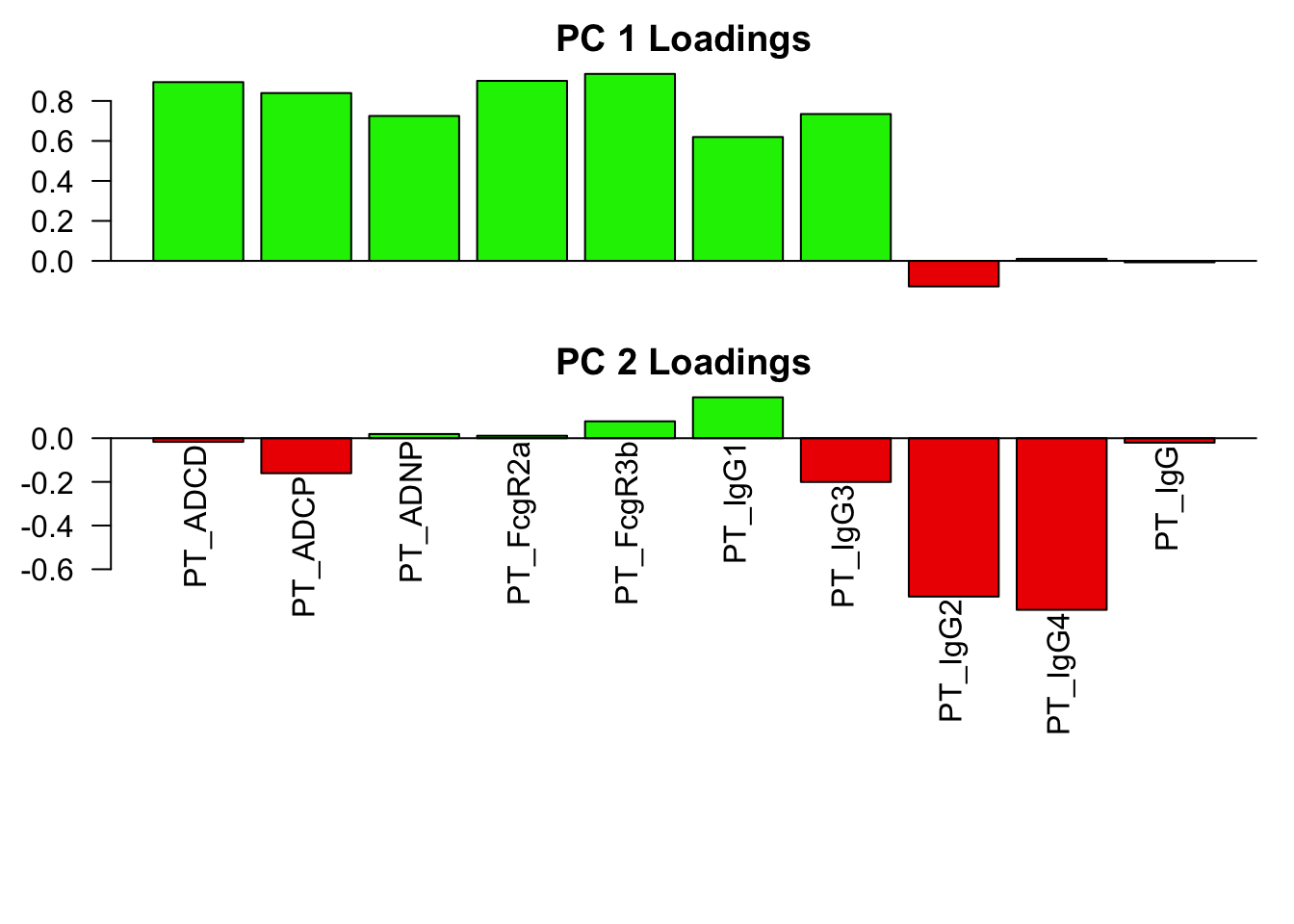

**Loadings
plot
Antigen: FHA
Features: FHA_ADCD, FHA_ADNP, FHA_FcgR2a, FHA_FcgR3b, FHA_IgG1, FHA_IgG3, FHA_ADCP, FHA_IgG, FHA_IgG2, FHA_IgG4

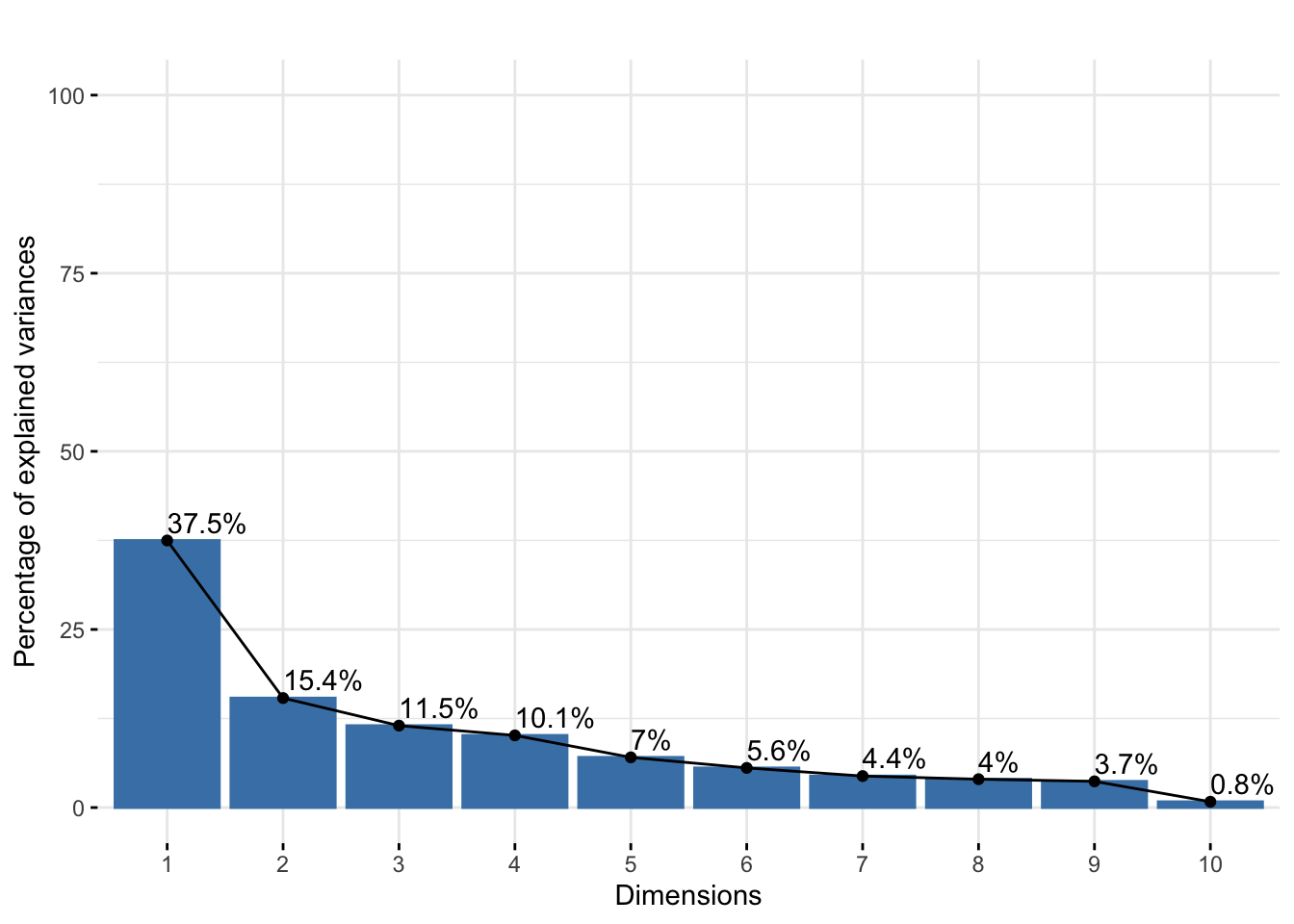

Proportion of Variance
Summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | |
|---|---|---|---|---|---|
| Standard deviation | 1.936 | 1.240 | 1.072 | 1.007 | 0.840 |
| Proportion of Variance | 0.375 | 0.154 | 0.115 | 0.101 | 0.070 |
| Cumulative Proportion | 0.375 | 0.529 | 0.644 | 0.745 | 0.815 |

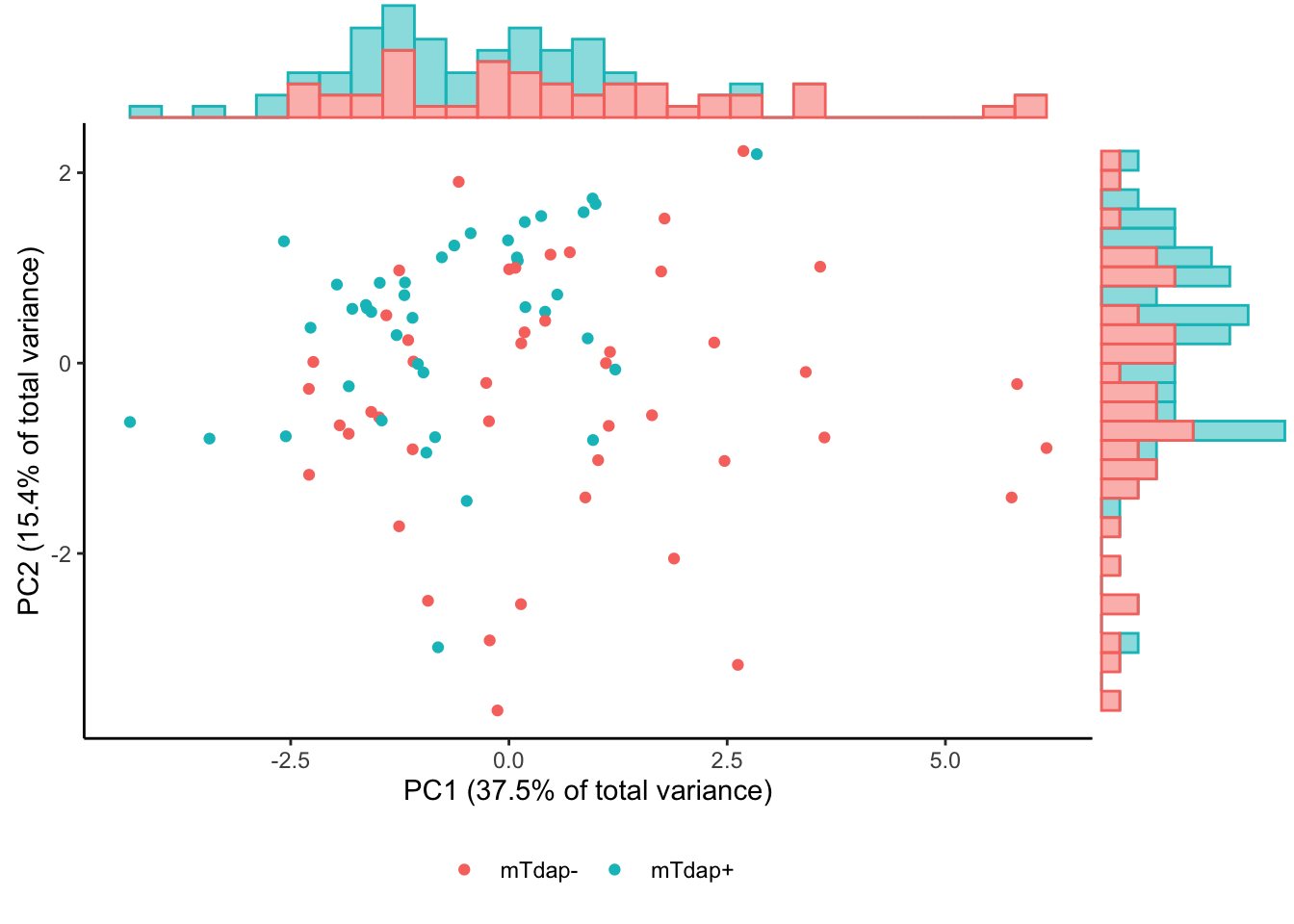

Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Maternal Tdap+ vs. Tdap- vaccinated FHA PC1: p=.00059
Maternal Tdap+ vs. Tdap- vaccinated FHA PC2: p=.002

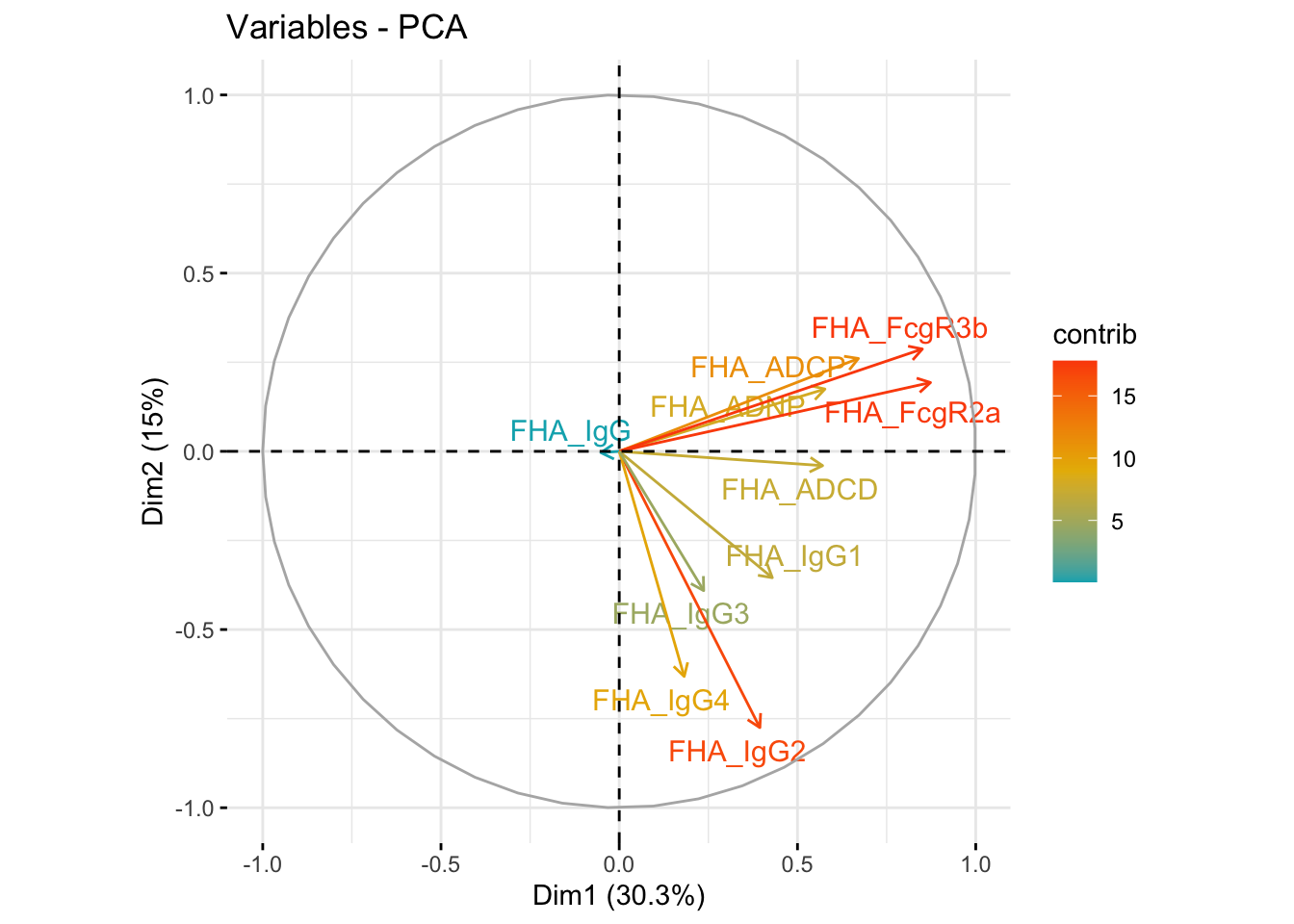

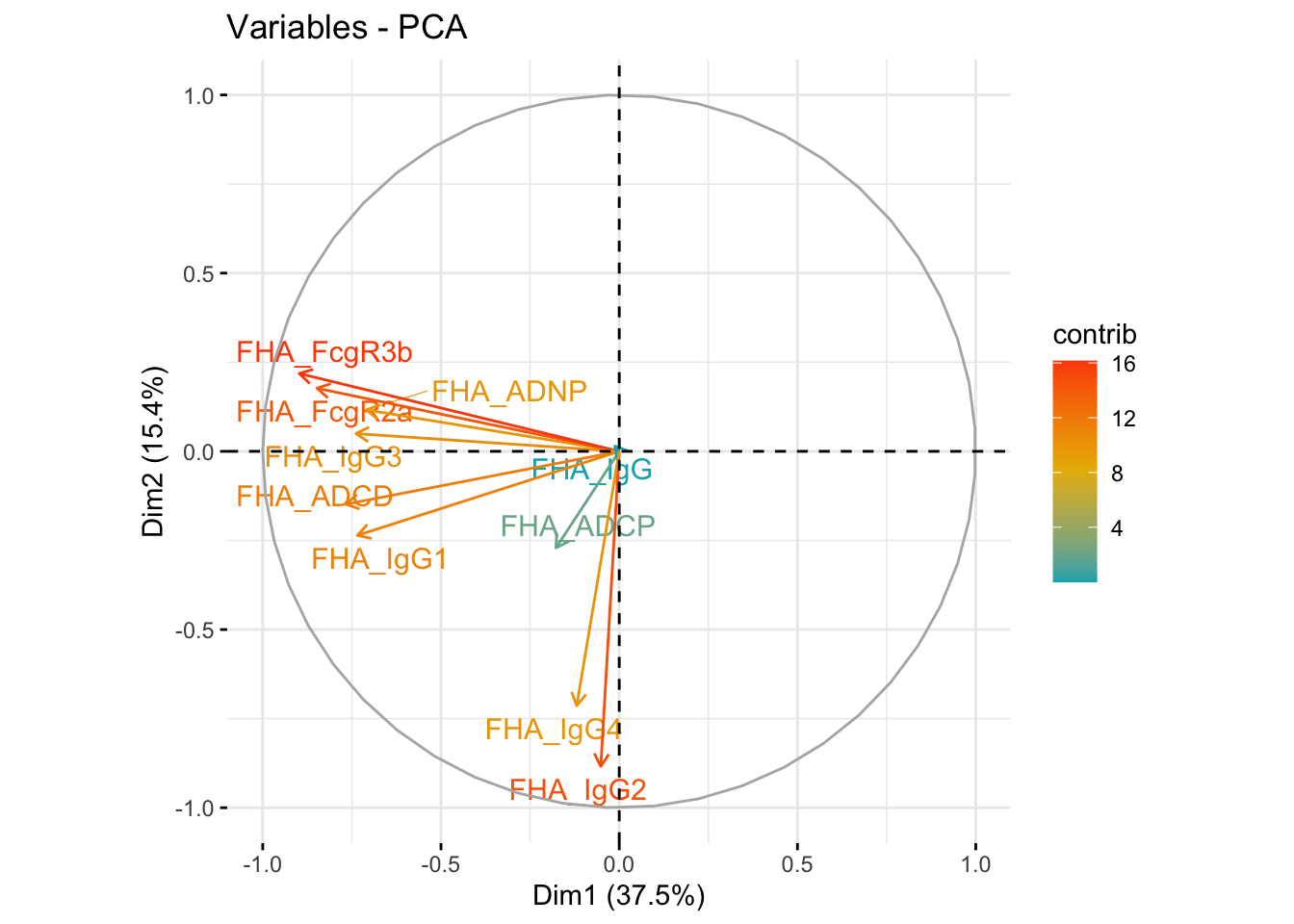

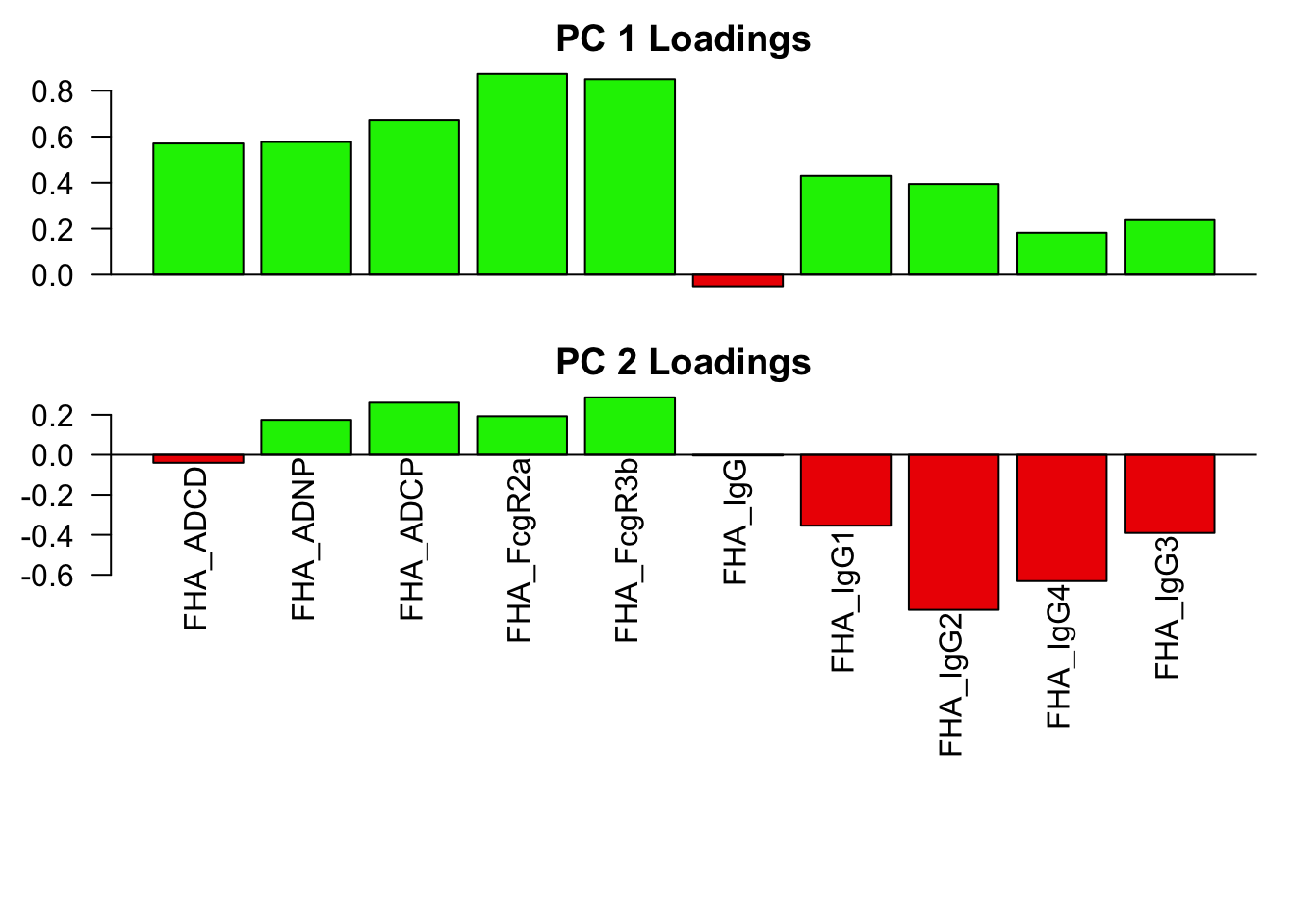

Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution

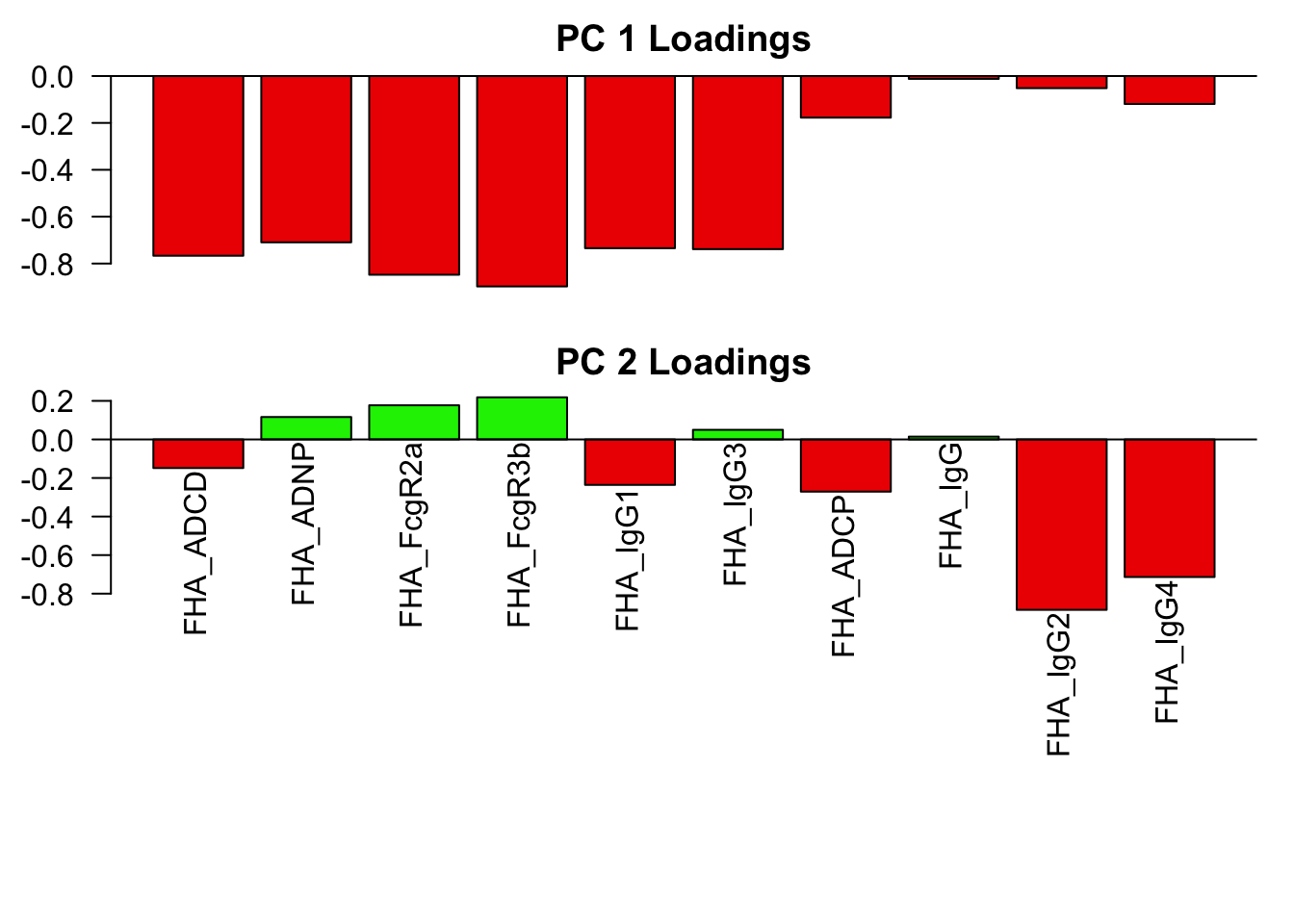

**Loadings
plot
Antigen: PRN
Features: PRN_ADCD, PRN_FcgR2a, PRN_FcgR3b, PRN_IgG1, PRN_IgG3, PRN_ADCP, PRN_IgG, PRN_IgG4, PRN_ADNP, PRN_IgG2

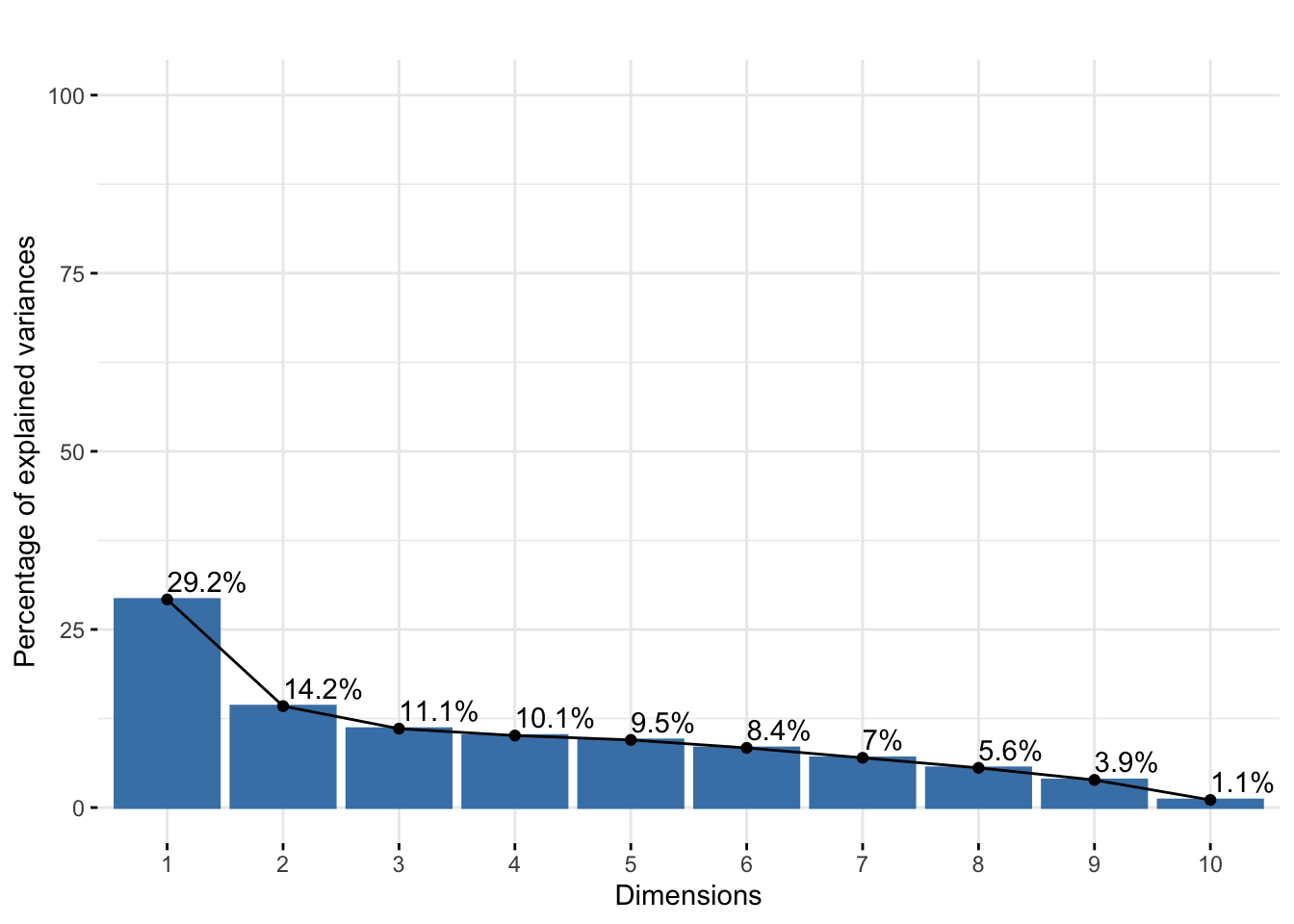

Proportion of Variance
Summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | |
|---|---|---|---|---|---|
| Standard deviation | 1.709 | 1.193 | 1.052 | 1.005 | 0.974 |
| Proportion of Variance | 0.292 | 0.142 | 0.111 | 0.101 | 0.095 |
| Cumulative Proportion | 0.292 | 0.434 | 0.545 | 0.646 | 0.741 |

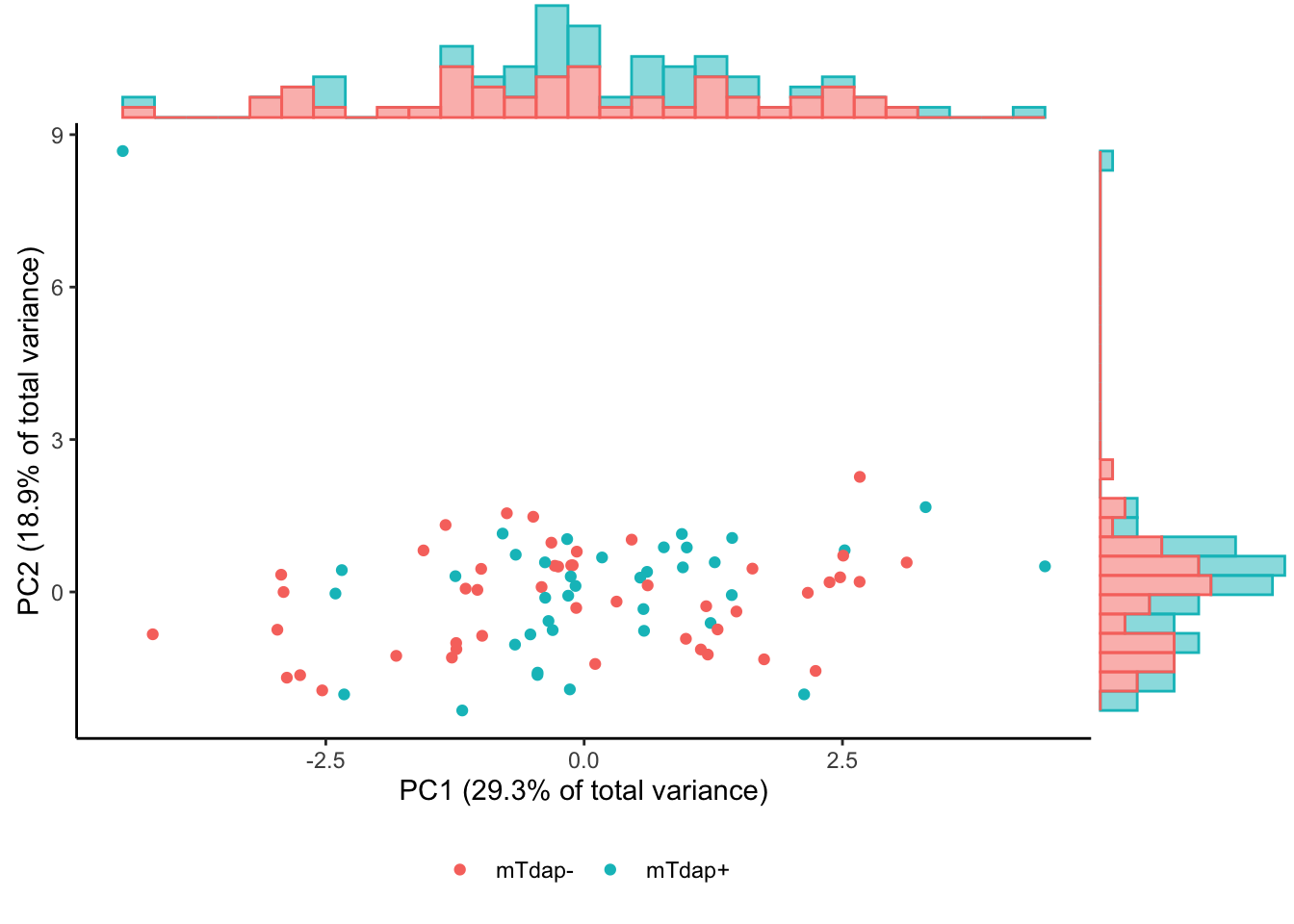

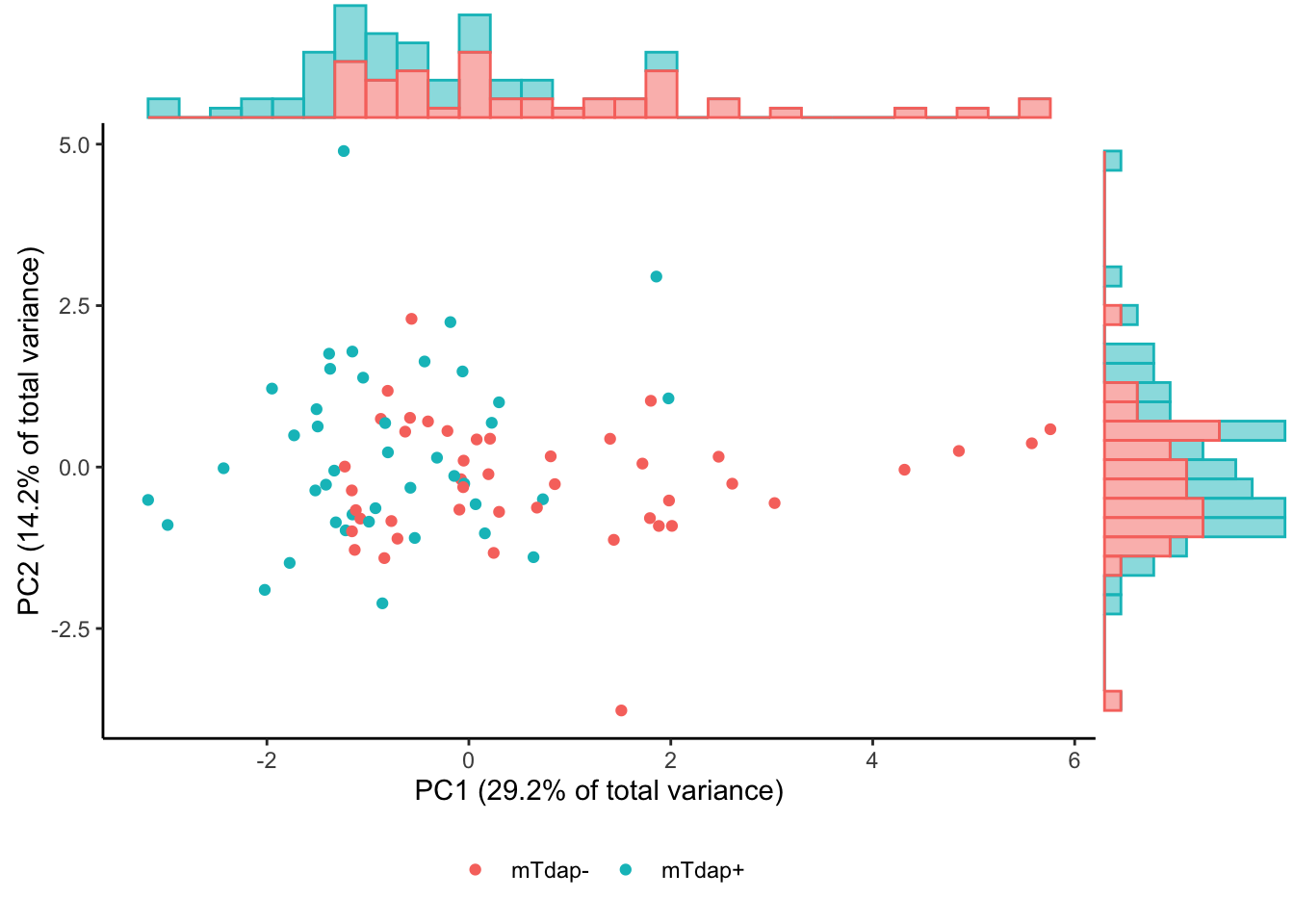

Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Maternal Tdap+ vs. Tdap- vaccinated PRN PC1: p<.0001
Maternal Tdap+ vs. Tdap- vaccinated PRN PC2: p=.082

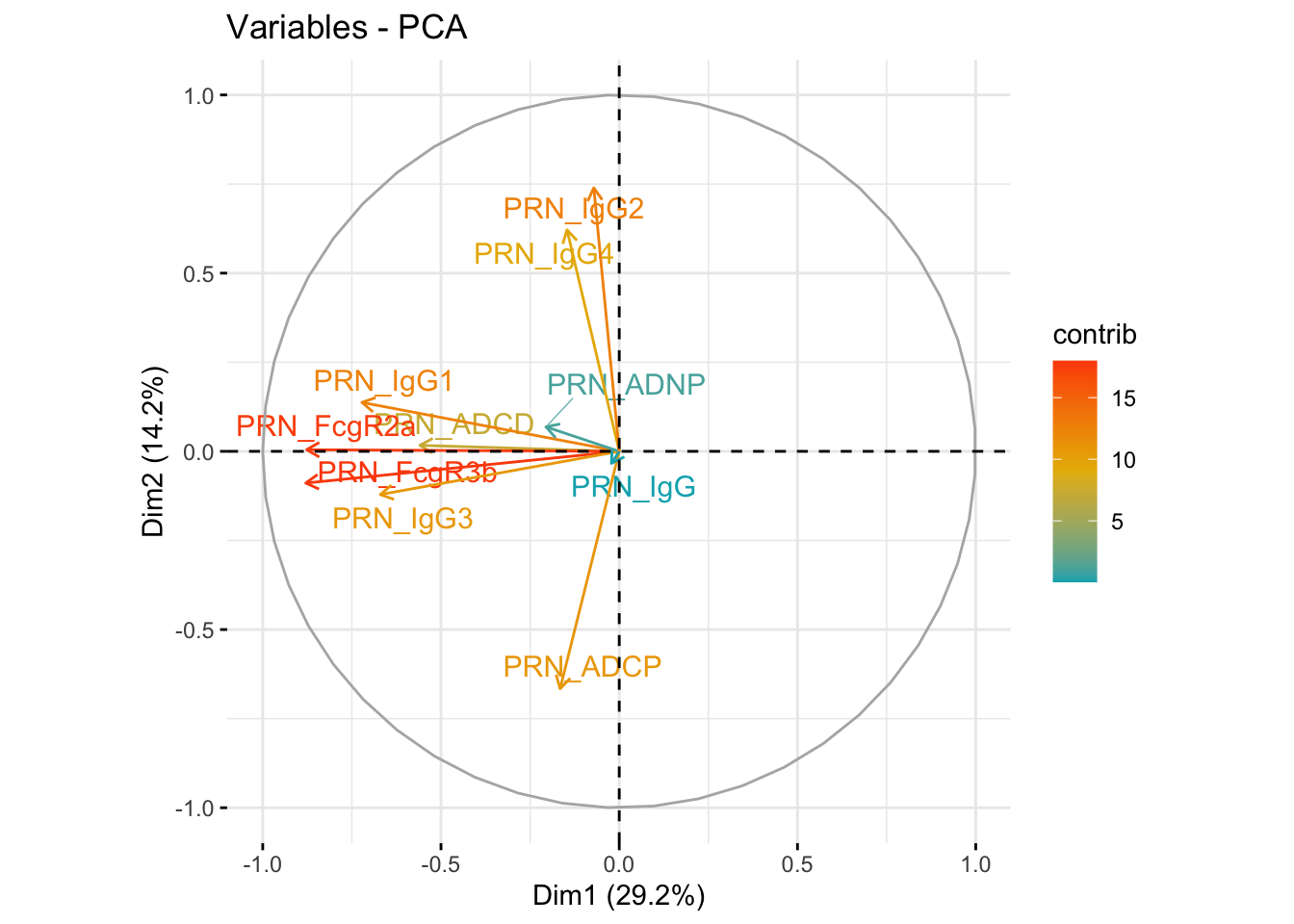

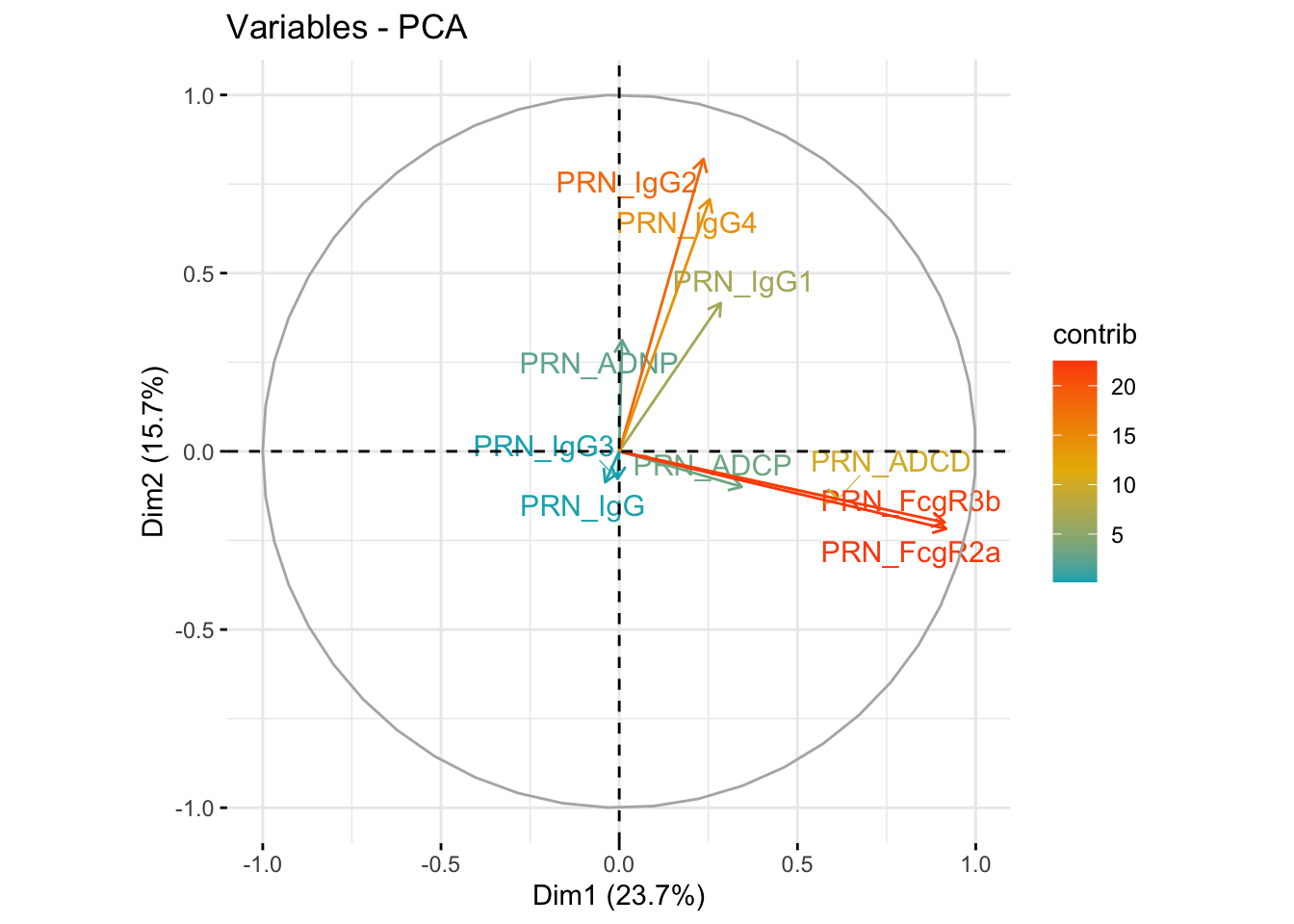

Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution
**Loadings
plot
Antigen: DT
Features: DT_ADCD, DT_FcgR2a, DT_FcgR3b, DT_IgG1, DT_IgG3, DT_ADCP, DT_ADNP, DT_IgG, DT_IgG2, DT_IgG4

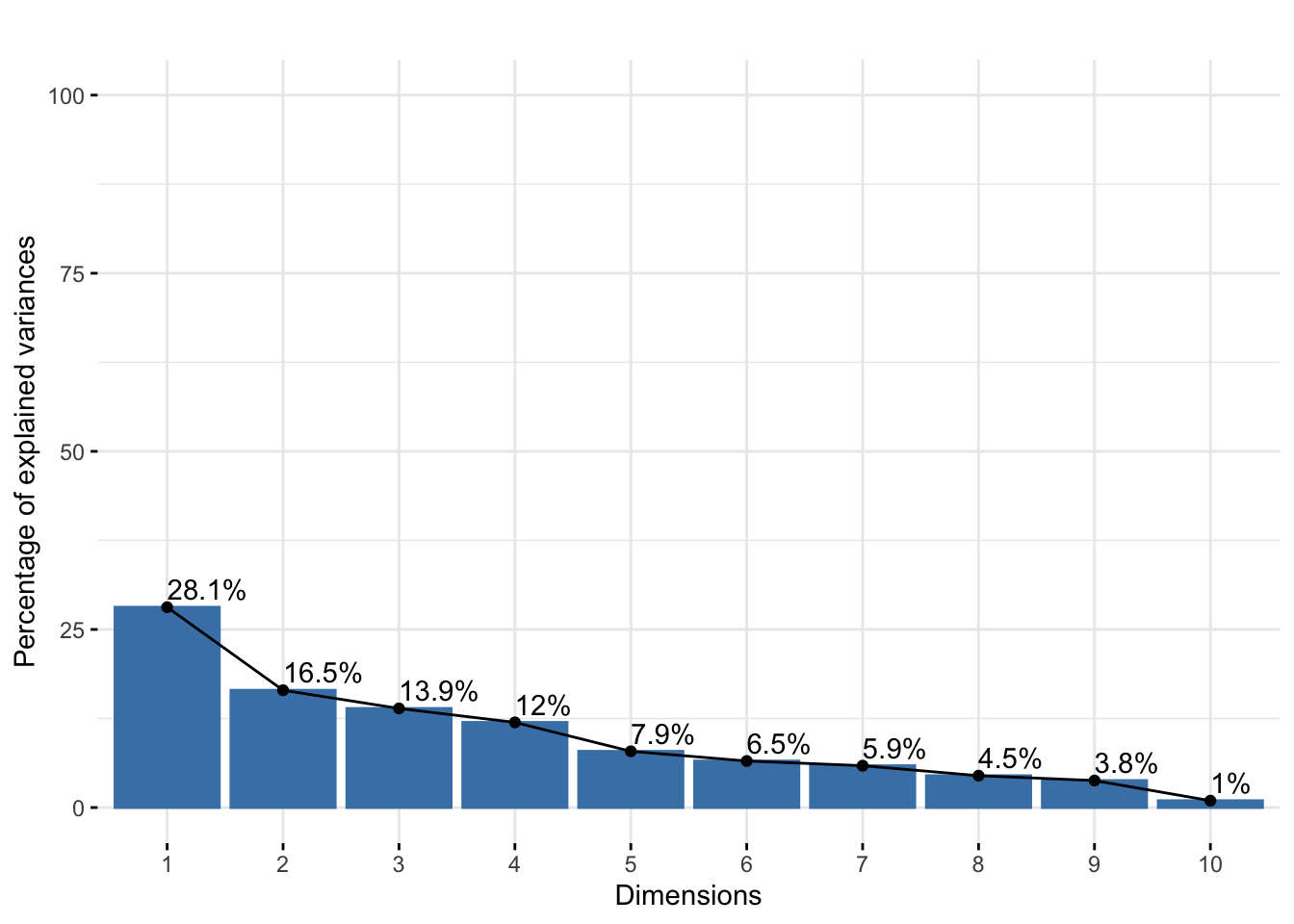

Proportion of Variance
Summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | |
|---|---|---|---|---|---|
| Standard deviation | 1.677 | 1.283 | 1.180 | 1.093 | 0.889 |
| Proportion of Variance | 0.281 | 0.165 | 0.139 | 0.120 | 0.079 |
| Cumulative Proportion | 0.281 | 0.446 | 0.585 | 0.705 | 0.784 |

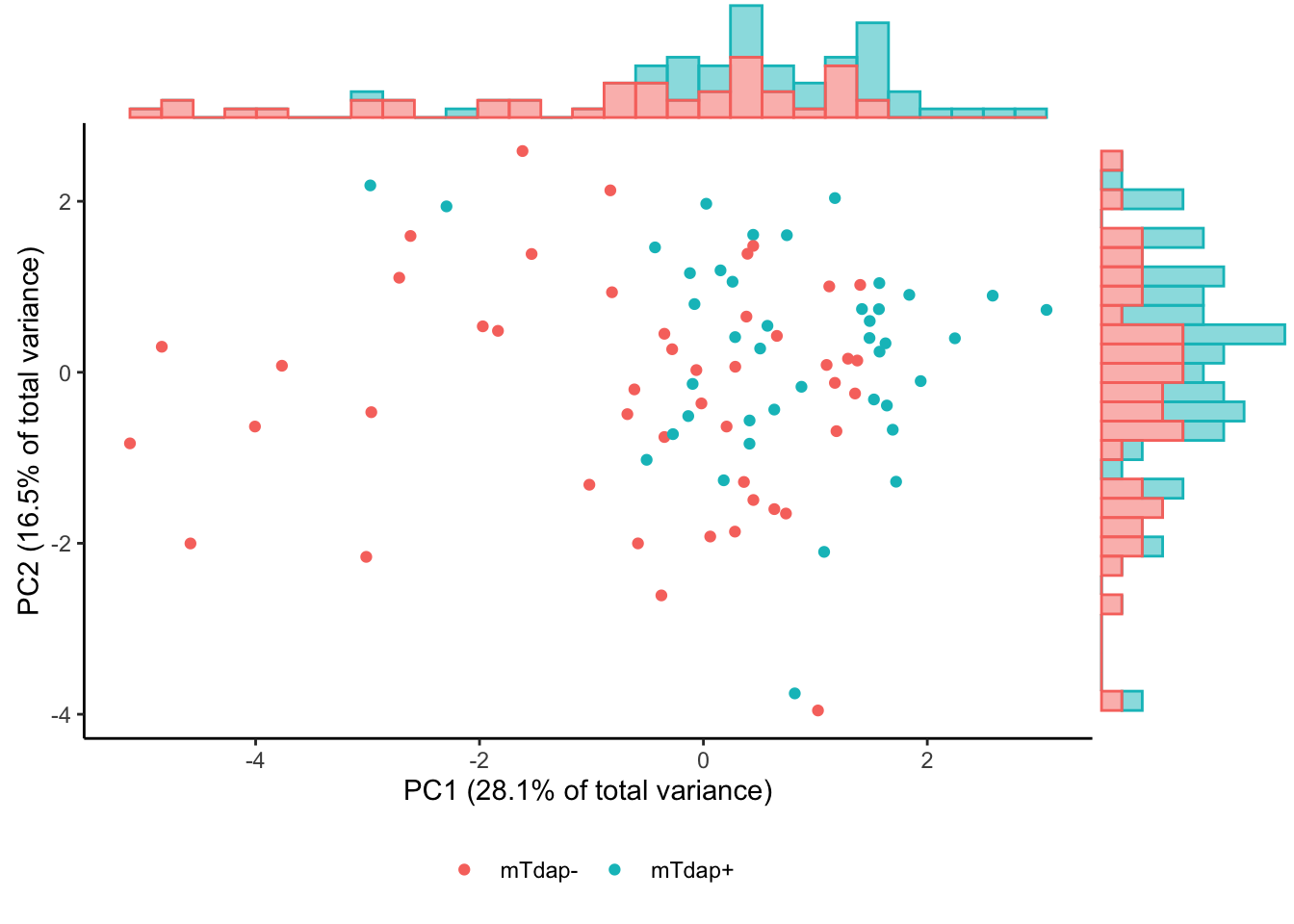

Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Maternal Tdap+ vs. Tdap- vaccinated DT PC1: p<.0001
Maternal Tdap+ vs. Tdap- vaccinated DT PC2: p=.064

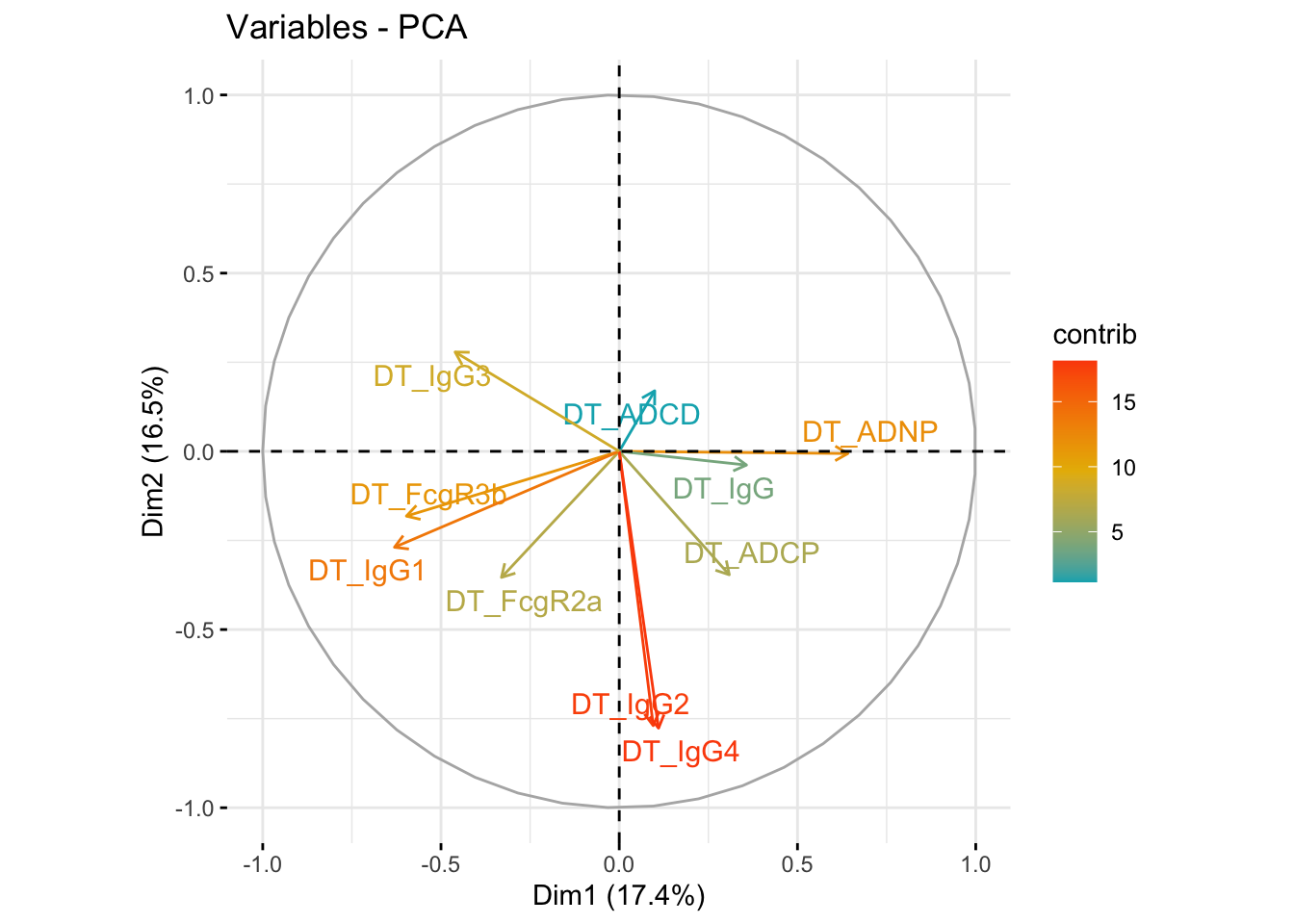

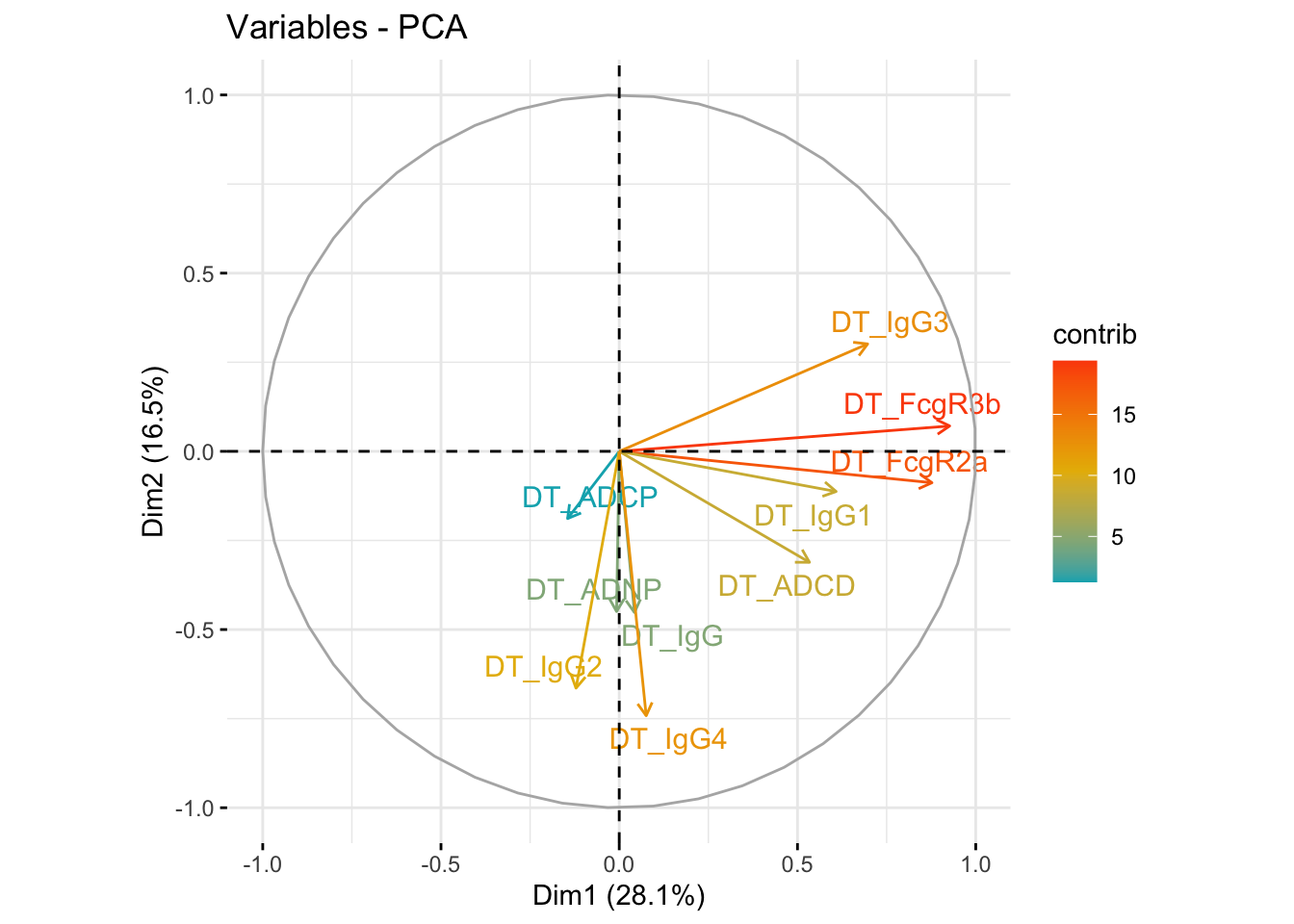

Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution

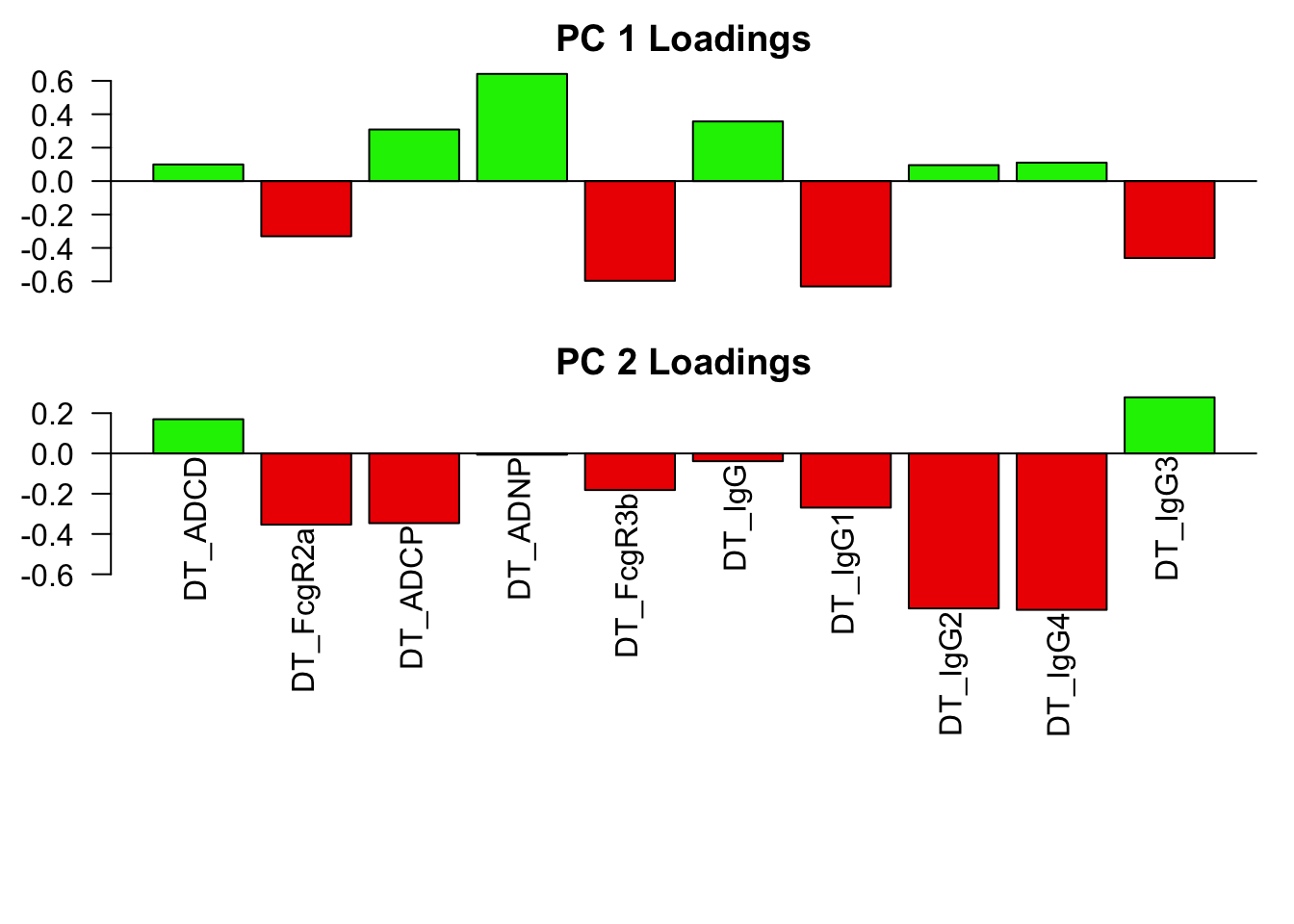

**Loadings
plot
Antigen: TT
Features: TT_ADCD, TT_ADCP, TT_ADNP, TT_FcgR2a, TT_FcgR3b, TT_IgG1, TT_IgG3, TT_IgG, TT_IgG2, TT_IgG4
Proportion of Variance
Summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | |
|---|---|---|---|---|---|
| Standard deviation | 1.978 | 1.214 | 1.017 | 0.972 | 0.872 |
| Proportion of Variance | 0.391 | 0.147 | 0.103 | 0.095 | 0.076 |
| Cumulative Proportion | 0.391 | 0.539 | 0.642 | 0.737 | 0.813 |

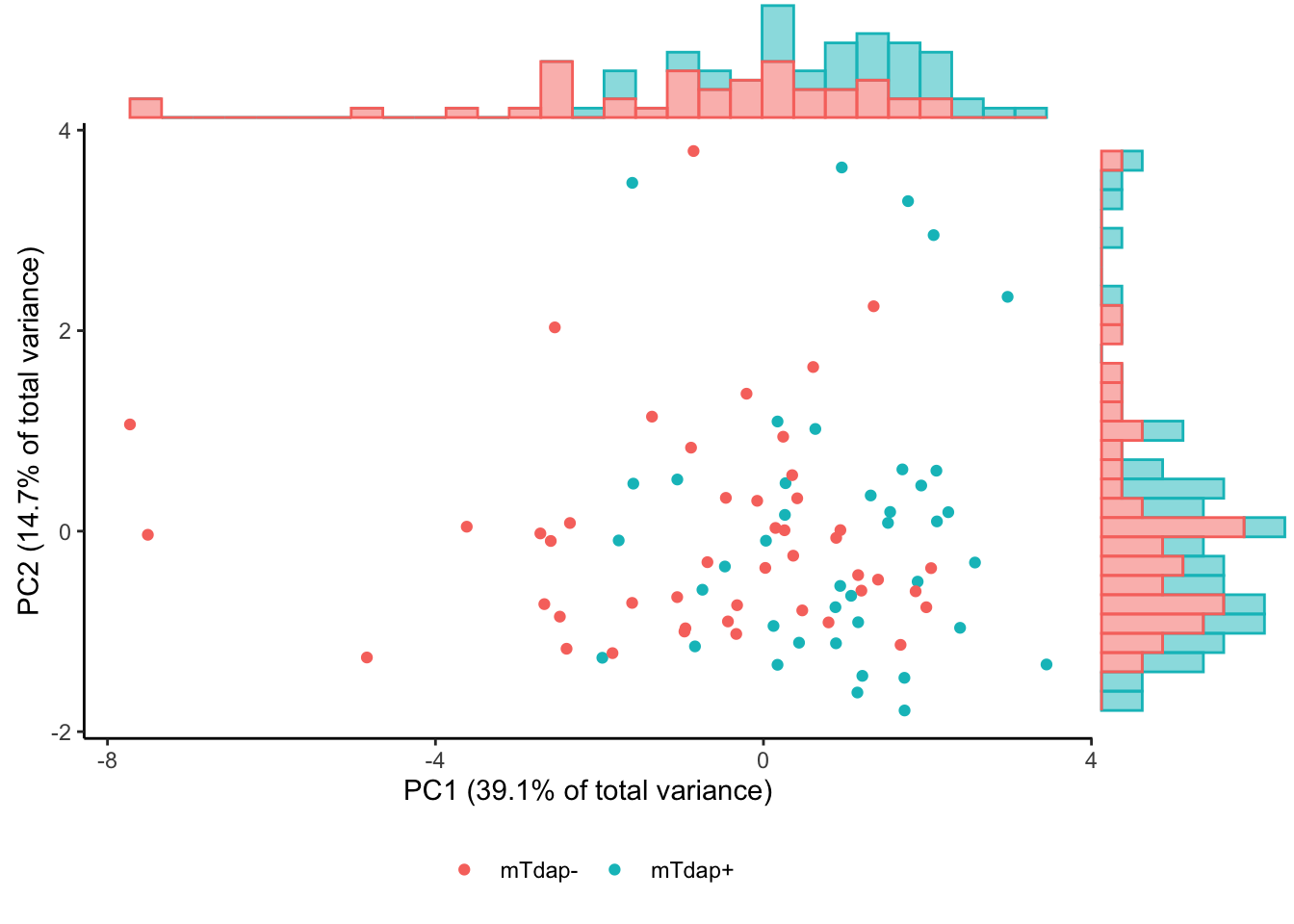

Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Maternal Tdap+ vs. Tdap- vaccinated TT PC1: p<.0001
Maternal Tdap+ vs. Tdap- vaccinated TT PC2: p=.77

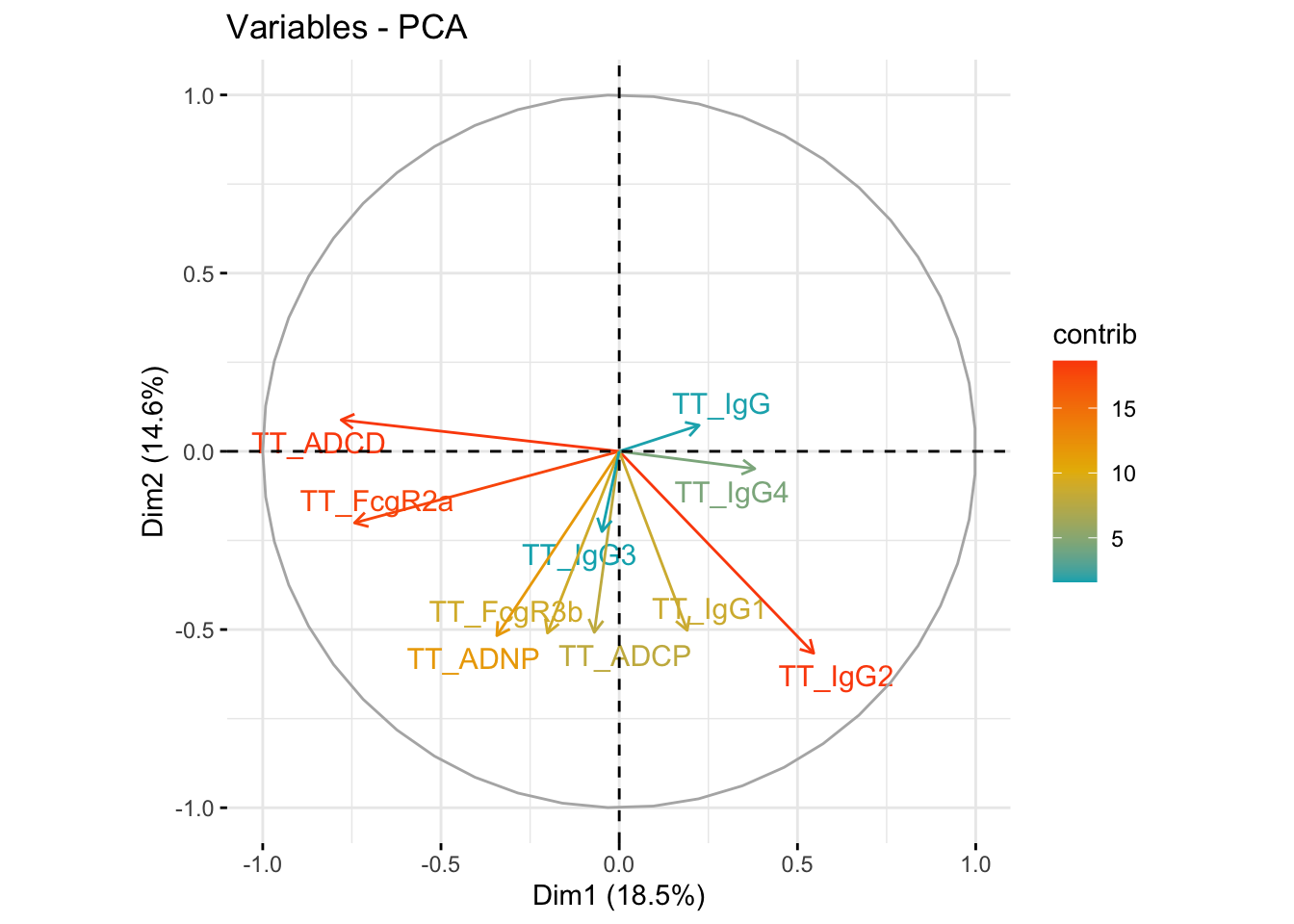

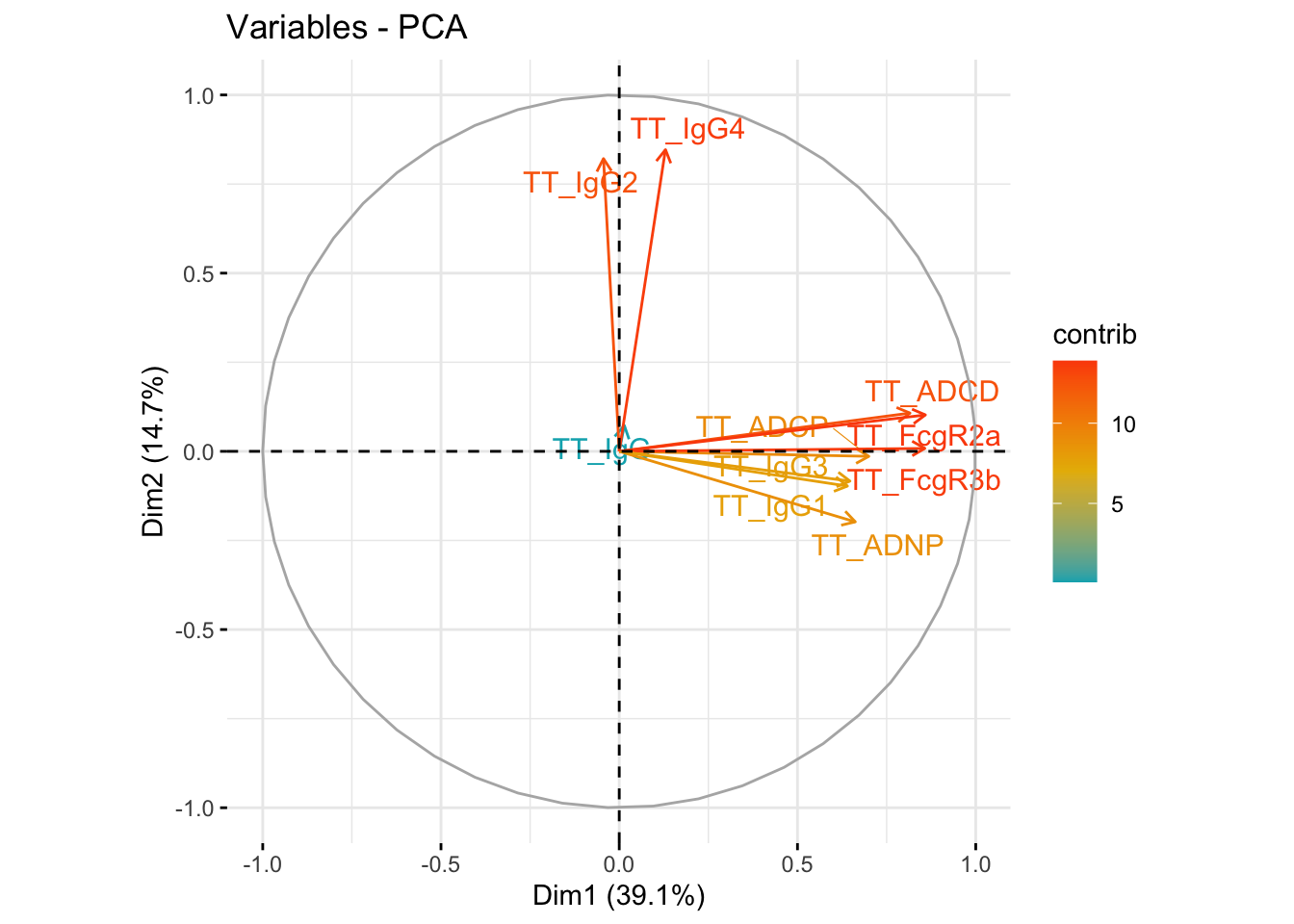

Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution
**Loadings
plot
Feature Cluster: IgG2 / IgG4
Features: PT_IgG2, PRN_IgG4, DT_IgG2, DT_IgG4, FHA_IgG2, FHA_IgG4, PT_IgG4, TT_IgG2, TT_IgG4, PRN_IgG2

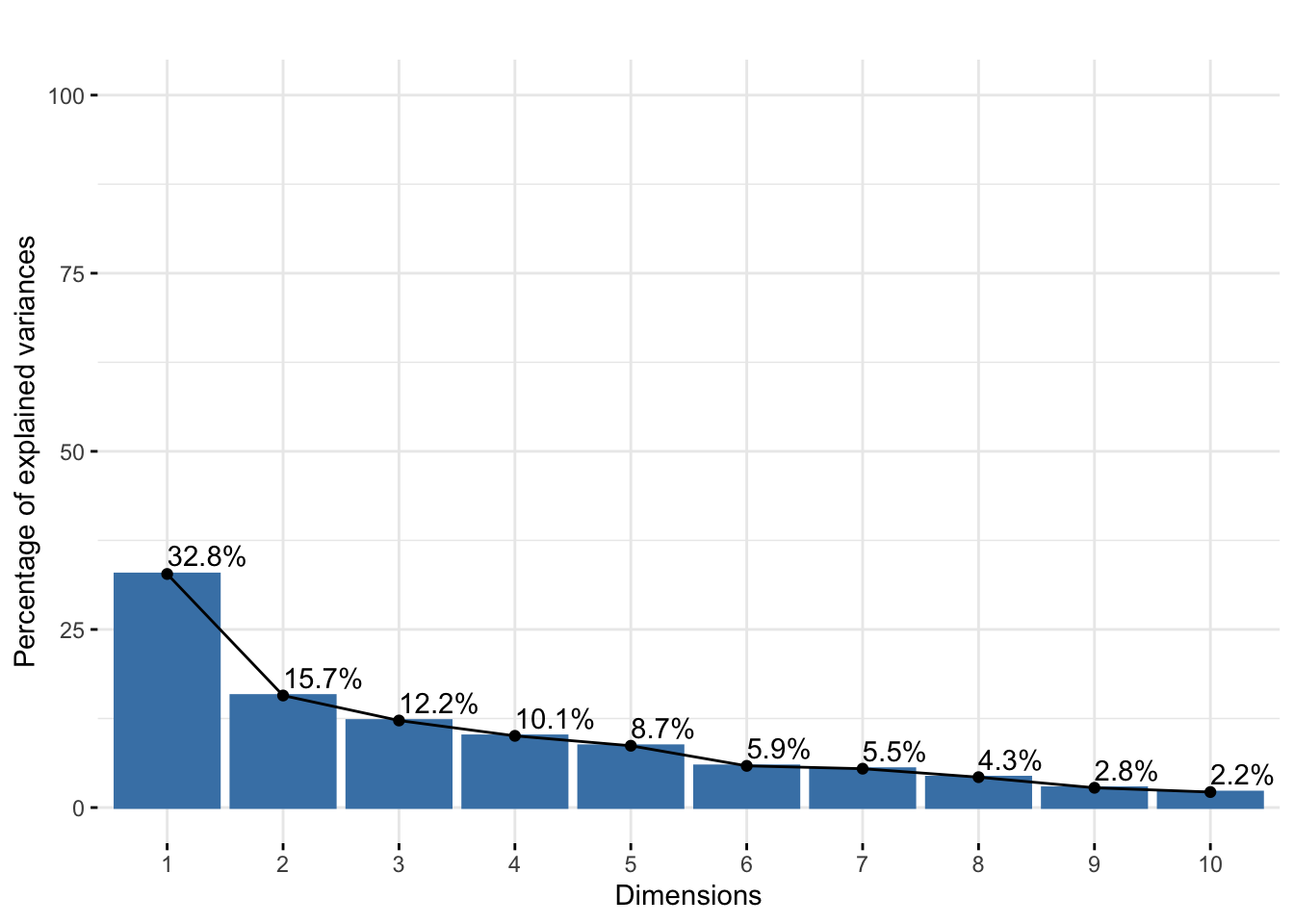

Proportion of Variance
summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | PC6 | PC7 | PC8 | PC9 | PC10 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Standard deviation | 1.811 | 1.254 | 1.105 | 1.003 | 0.931 | 0.765 | 0.739 | 0.653 | 0.527 | 0.466 |
| Proportion of Variance | 0.328 | 0.157 | 0.122 | 0.101 | 0.087 | 0.059 | 0.055 | 0.043 | 0.028 | 0.022 |
| Cumulative Proportion | 0.328 | 0.485 | 0.607 | 0.708 | 0.795 | 0.853 | 0.908 | 0.950 | 0.978 | 1.000 |

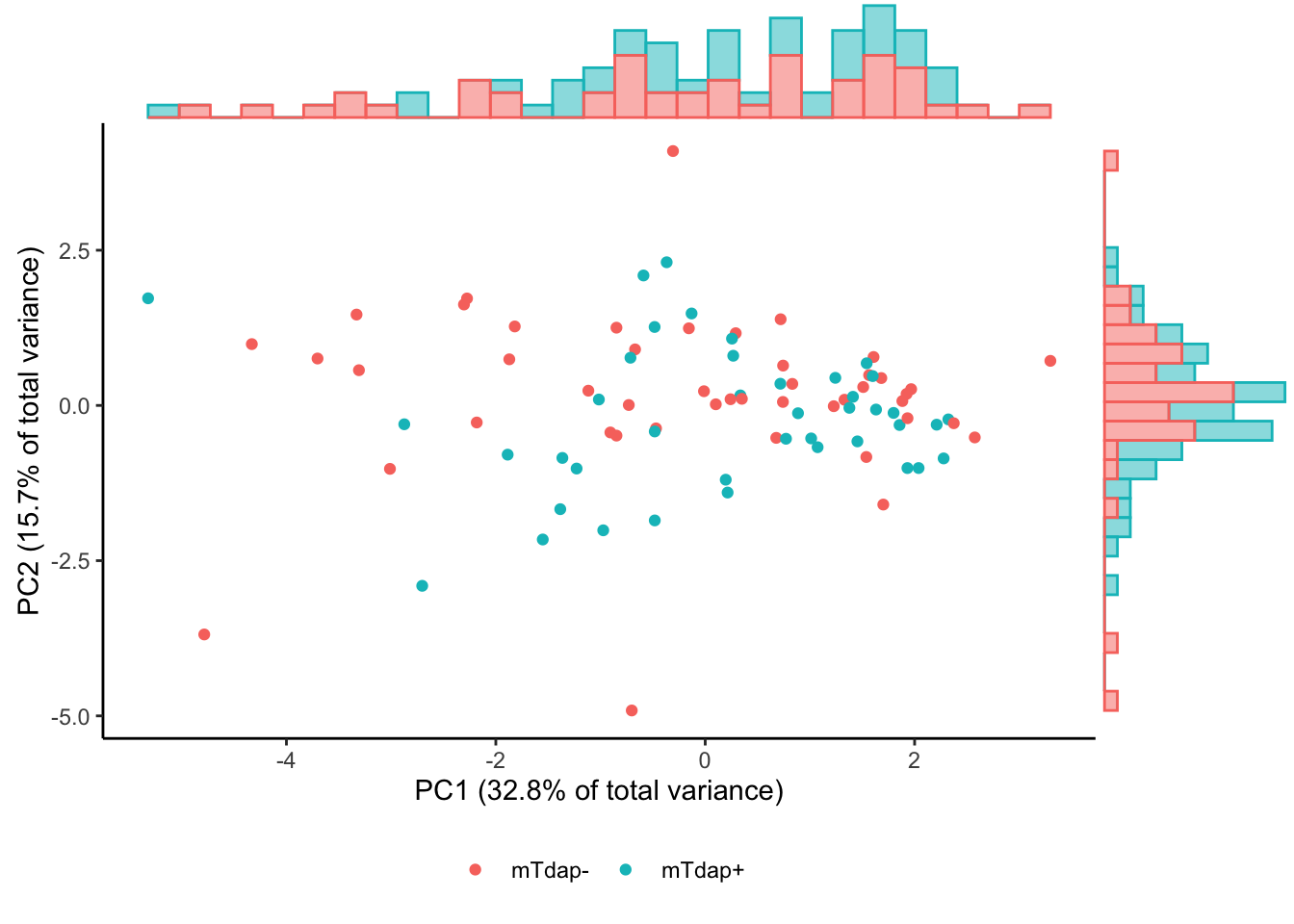

Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Maternal Tdap+ vs. Tdap- vaccinated Feature Cluster IgG2 / IgG4 PC1:
p=.41
Maternal Tdap+ vs. Tdap- vaccinated Feature Cluster IgG2 / IgG4 PC2:
p=.12

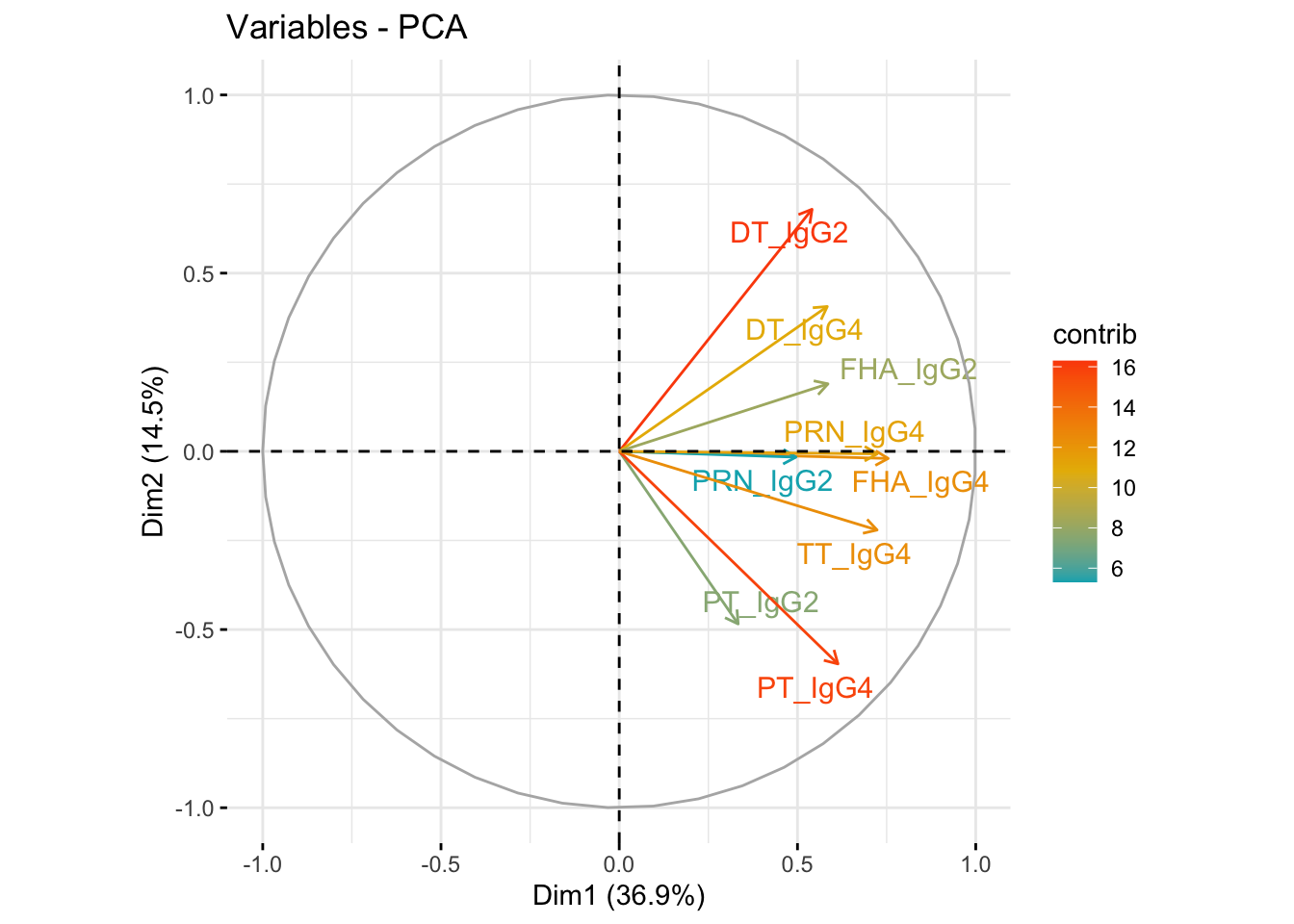

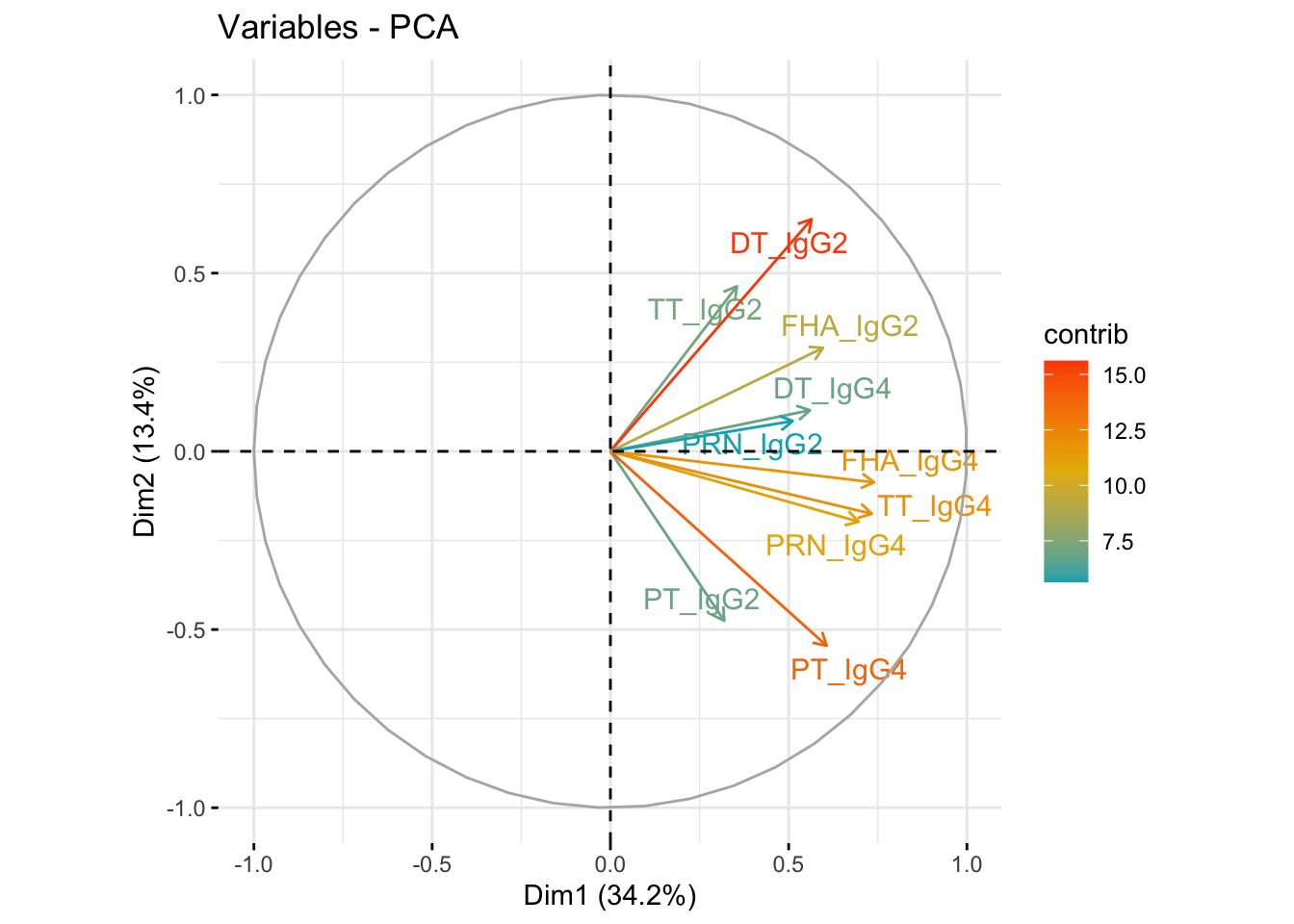

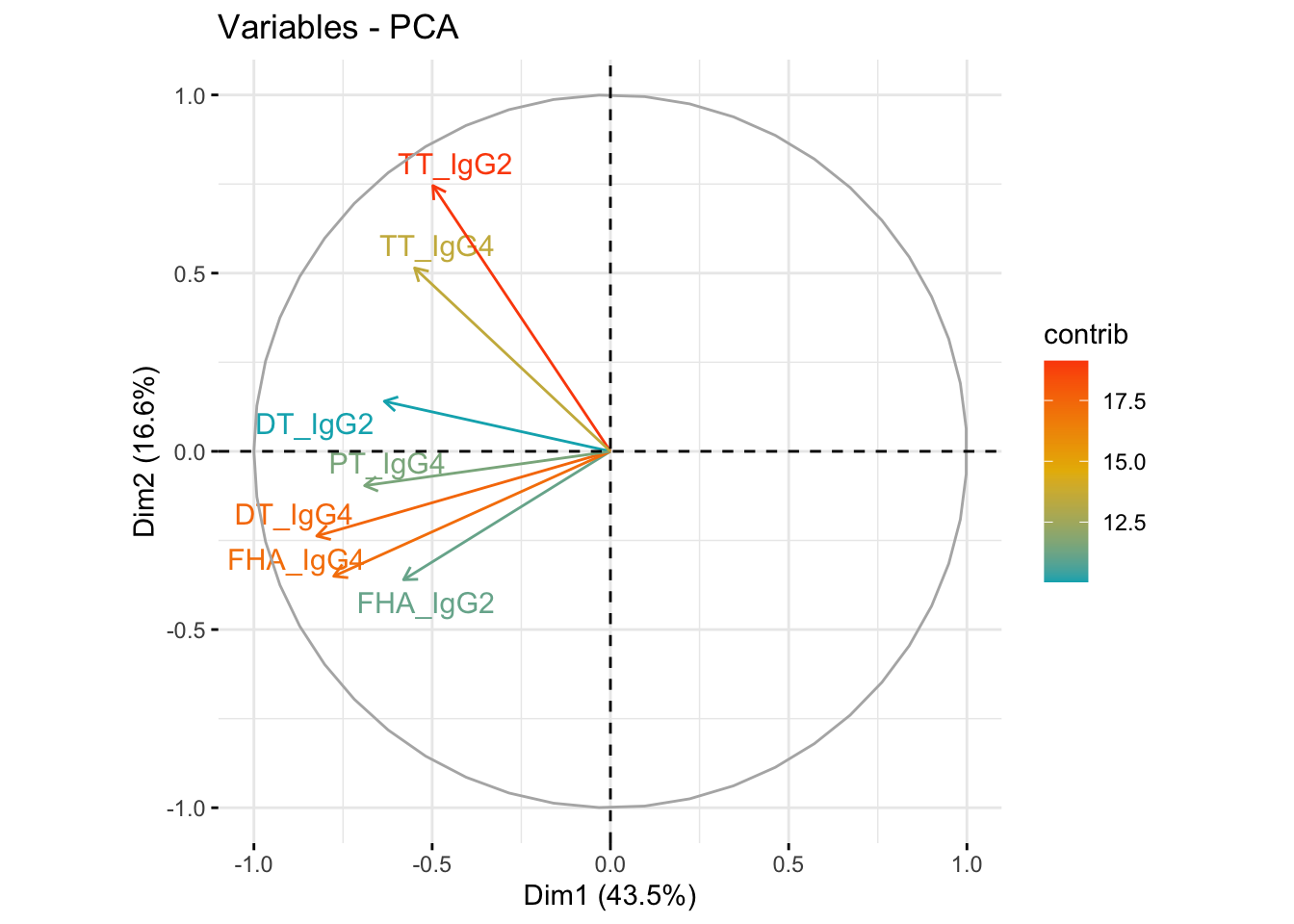

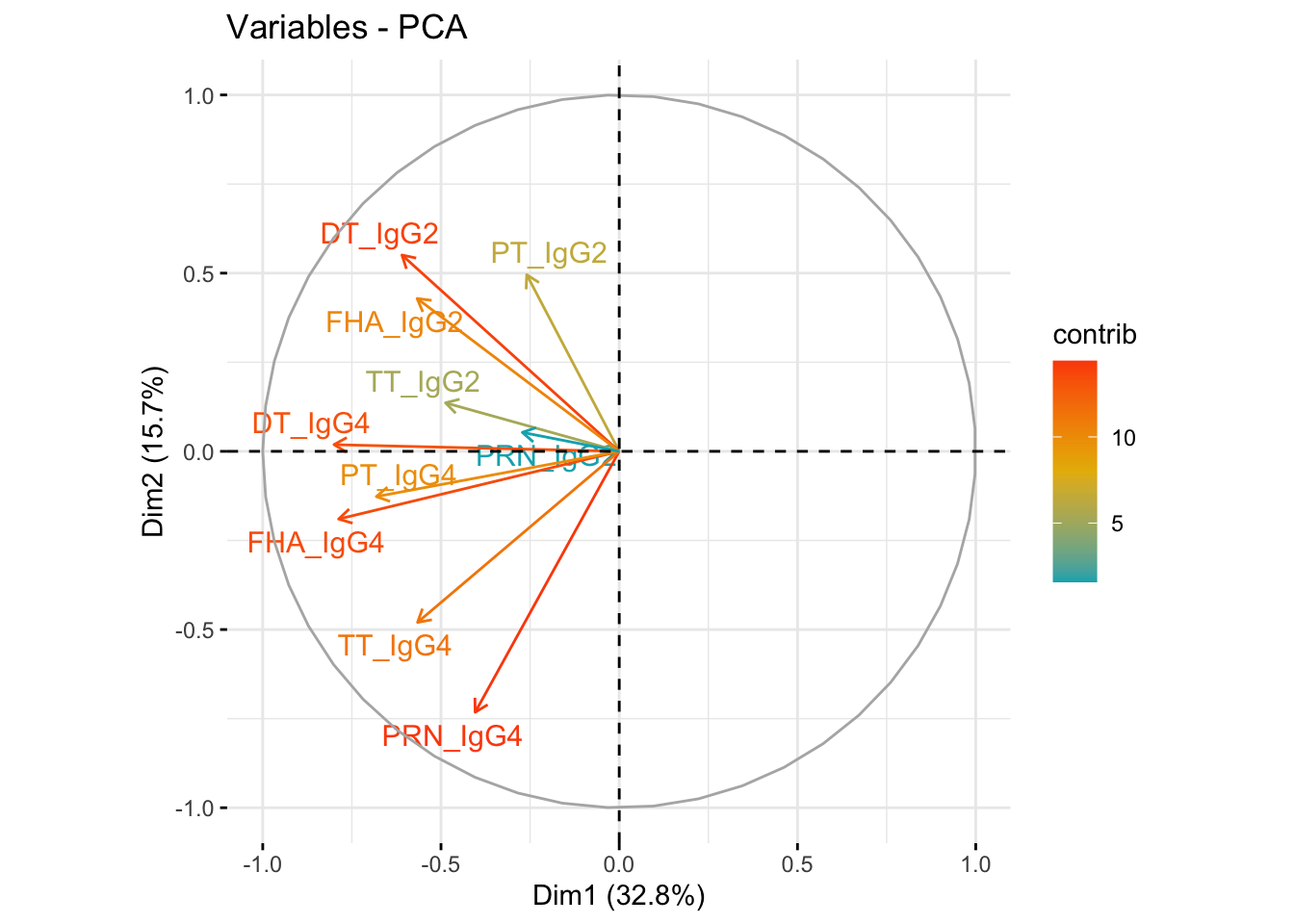

Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution

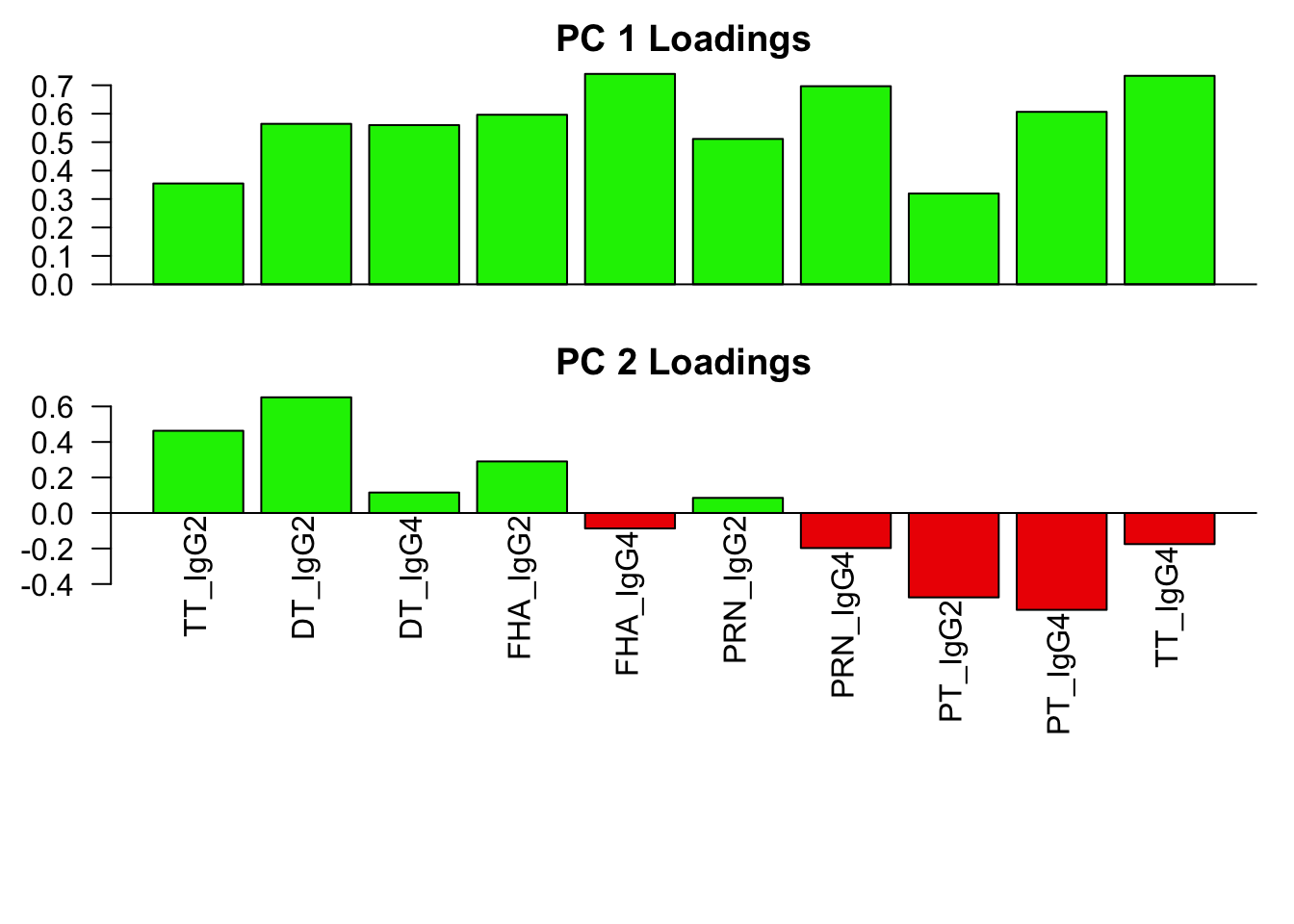

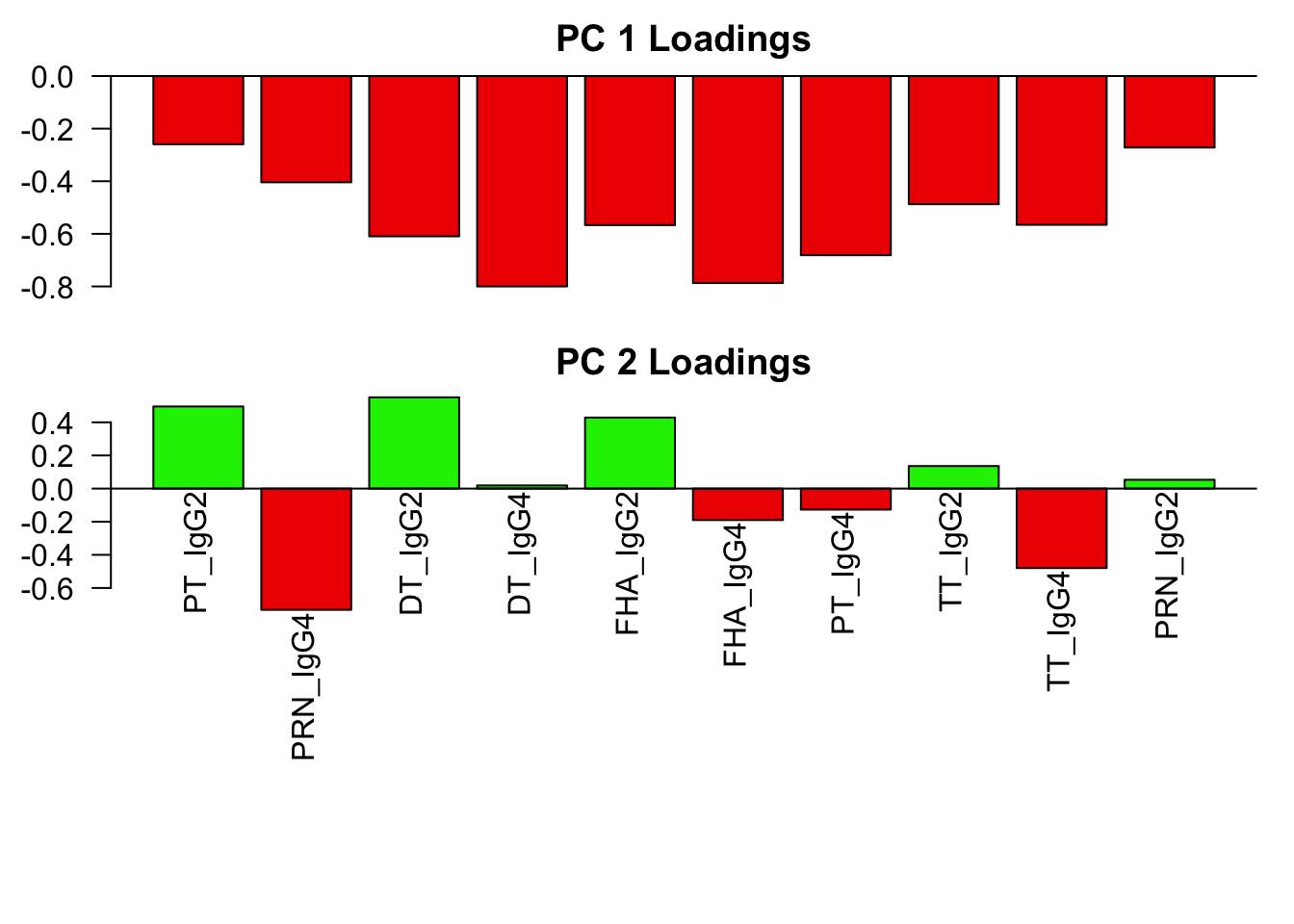

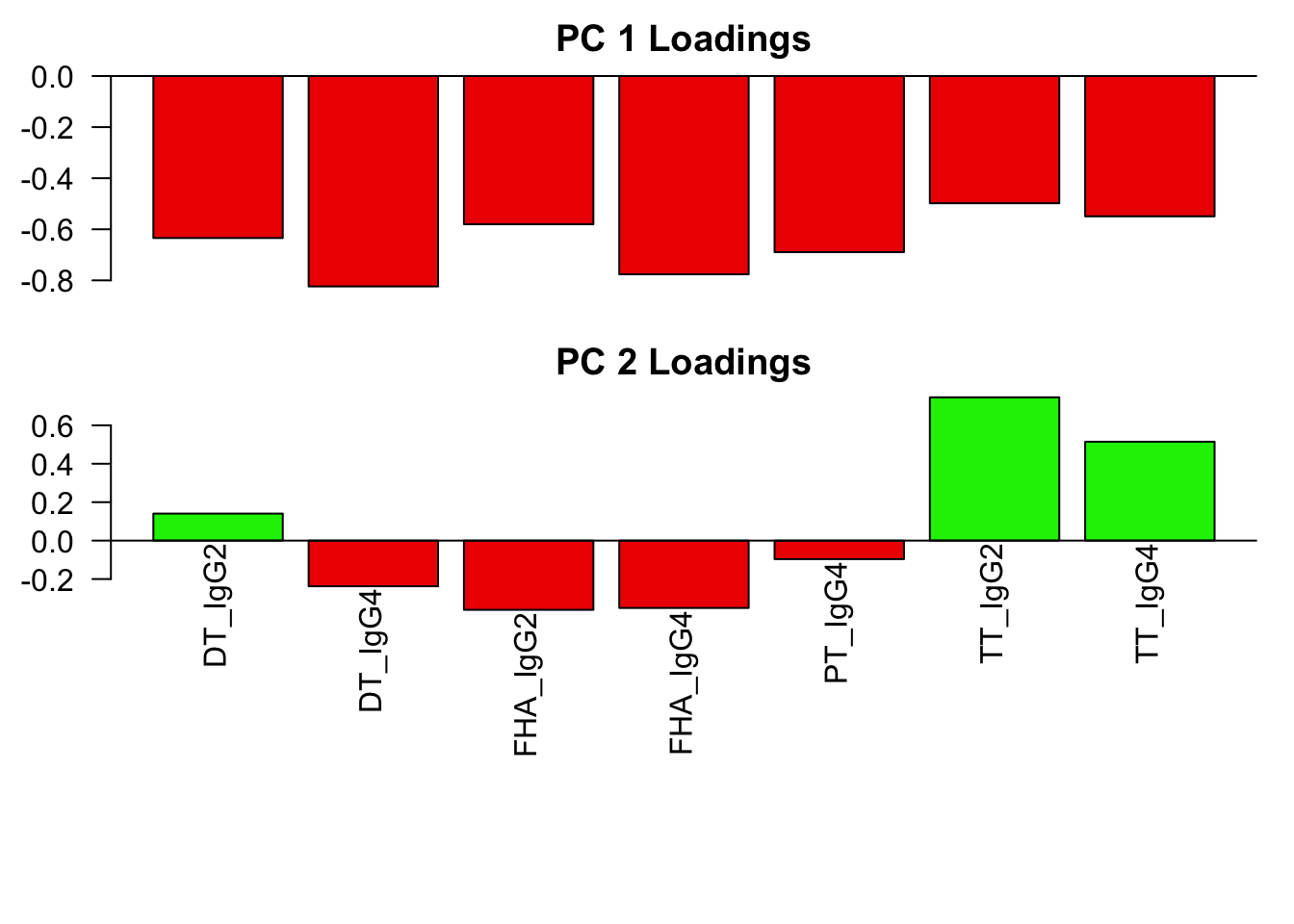

**Loadings
plot
Feature Cluster: ADCD
Features: DT_ADCD, FHA_ADCD, PRN_ADCD, PT_ADCD, TT_ADCD

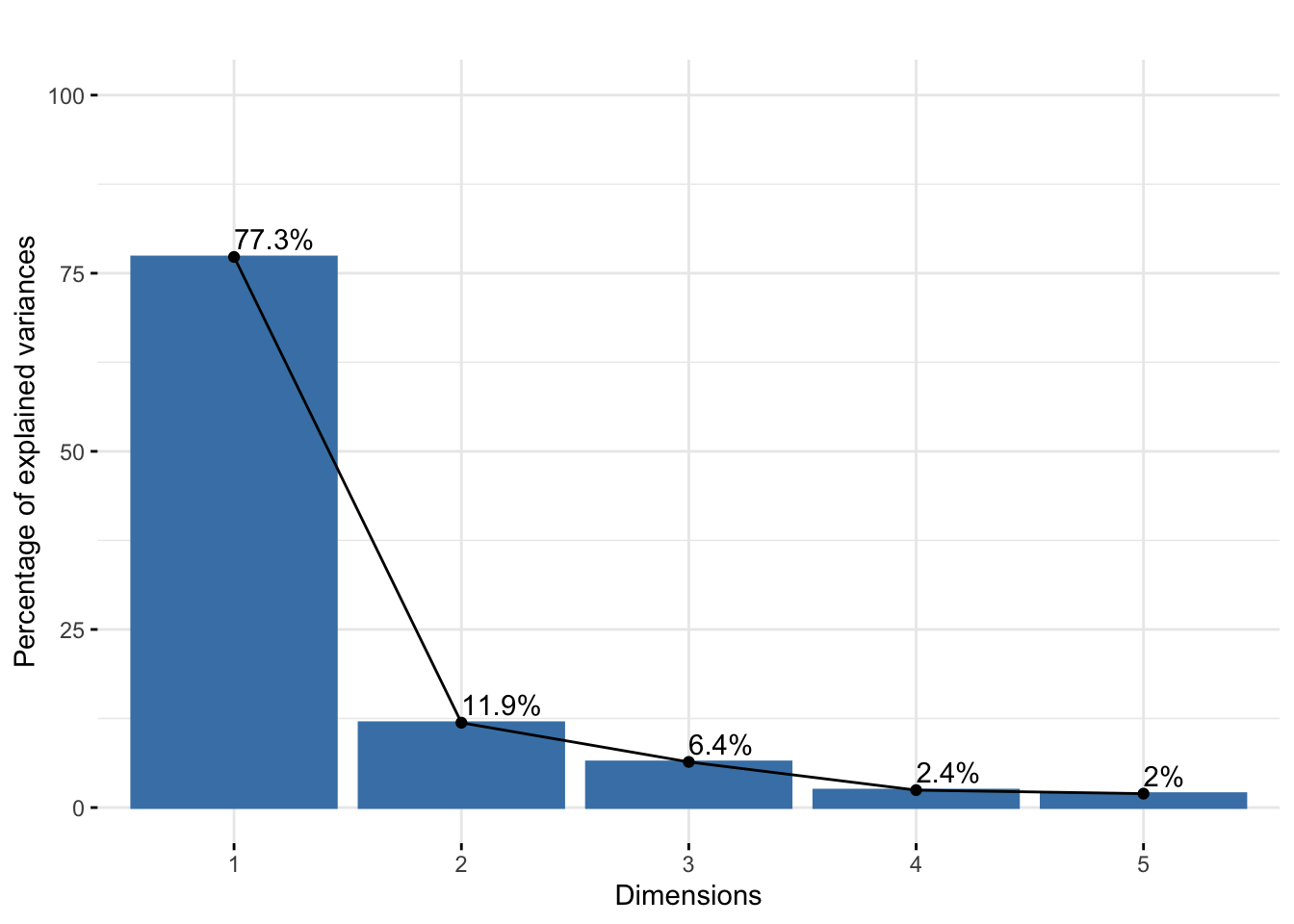

Proportion of Variance
summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | |
|---|---|---|---|---|---|
| Standard deviation | 1.966 | 0.772 | 0.566 | 0.350 | 0.313 |
| Proportion of Variance | 0.773 | 0.119 | 0.064 | 0.024 | 0.020 |
| Cumulative Proportion | 0.773 | 0.892 | 0.956 | 0.980 | 1.000 |

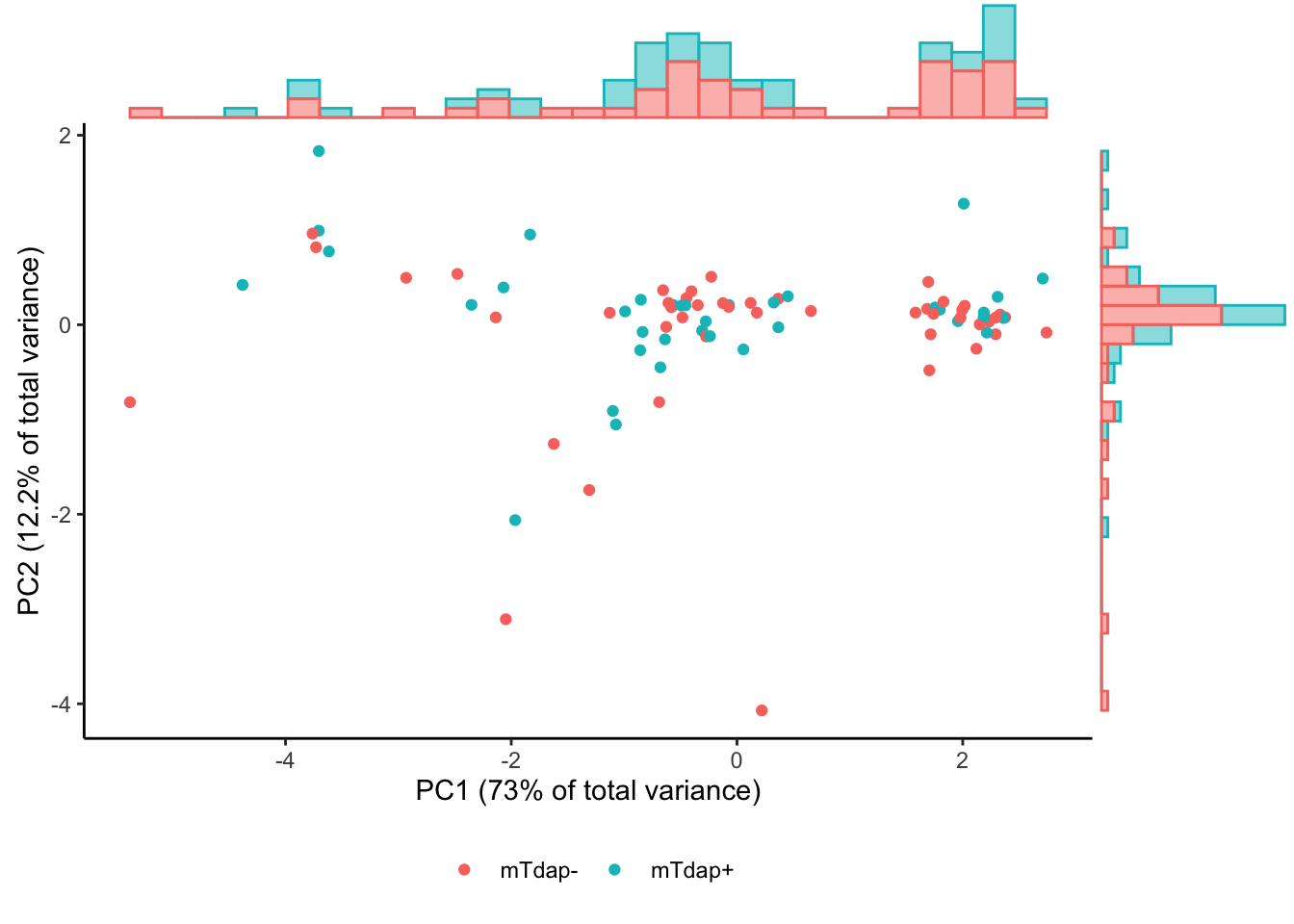

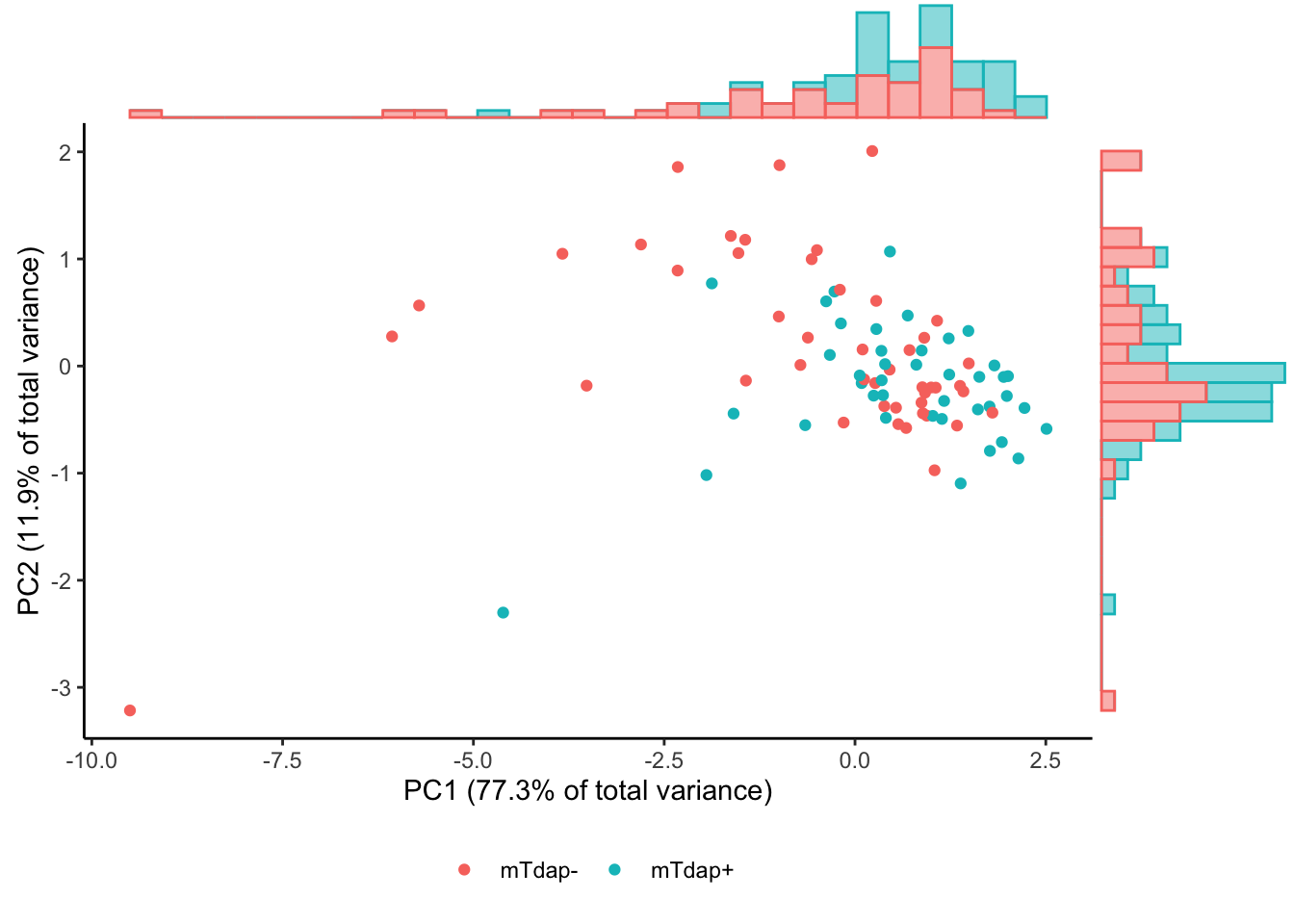

Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Maternal Tdap+ vs. Tdap- vaccinated Feature Cluster ADCD PC1:
p=.0038
Maternal Tdap+ vs. Tdap- vaccinated Feature Cluster ADCD PC2: p=.032

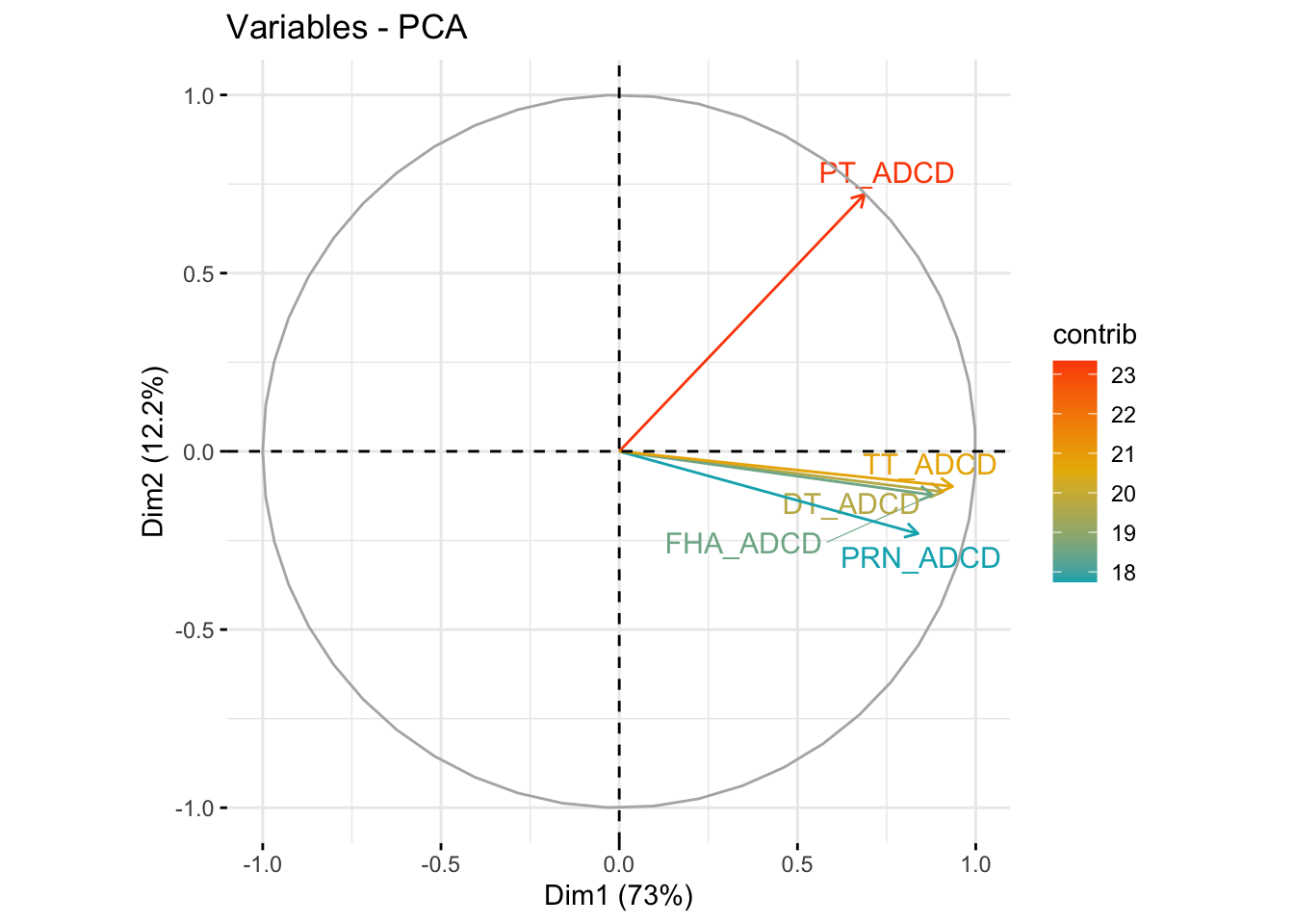

Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution

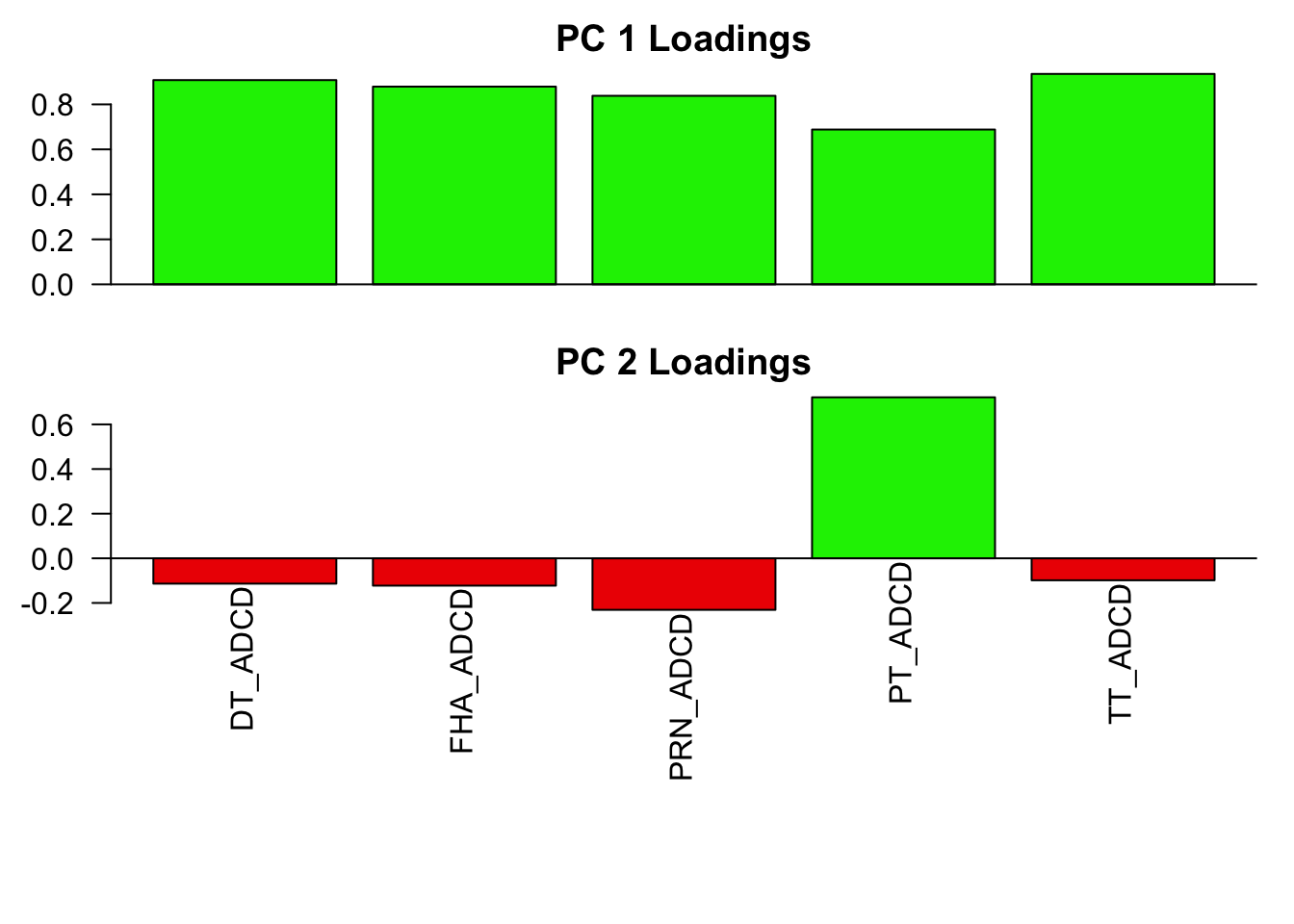

**Loadings
plot
Feature Cluster: ADNP / ADCP
Features: FHA_ADNP, PT_ADCP, PT_ADNP, TT_ADCP, TT_ADNP, DT_ADCP, FHA_ADCP, PRN_ADCP, DT_ADNP, PRN_ADNP

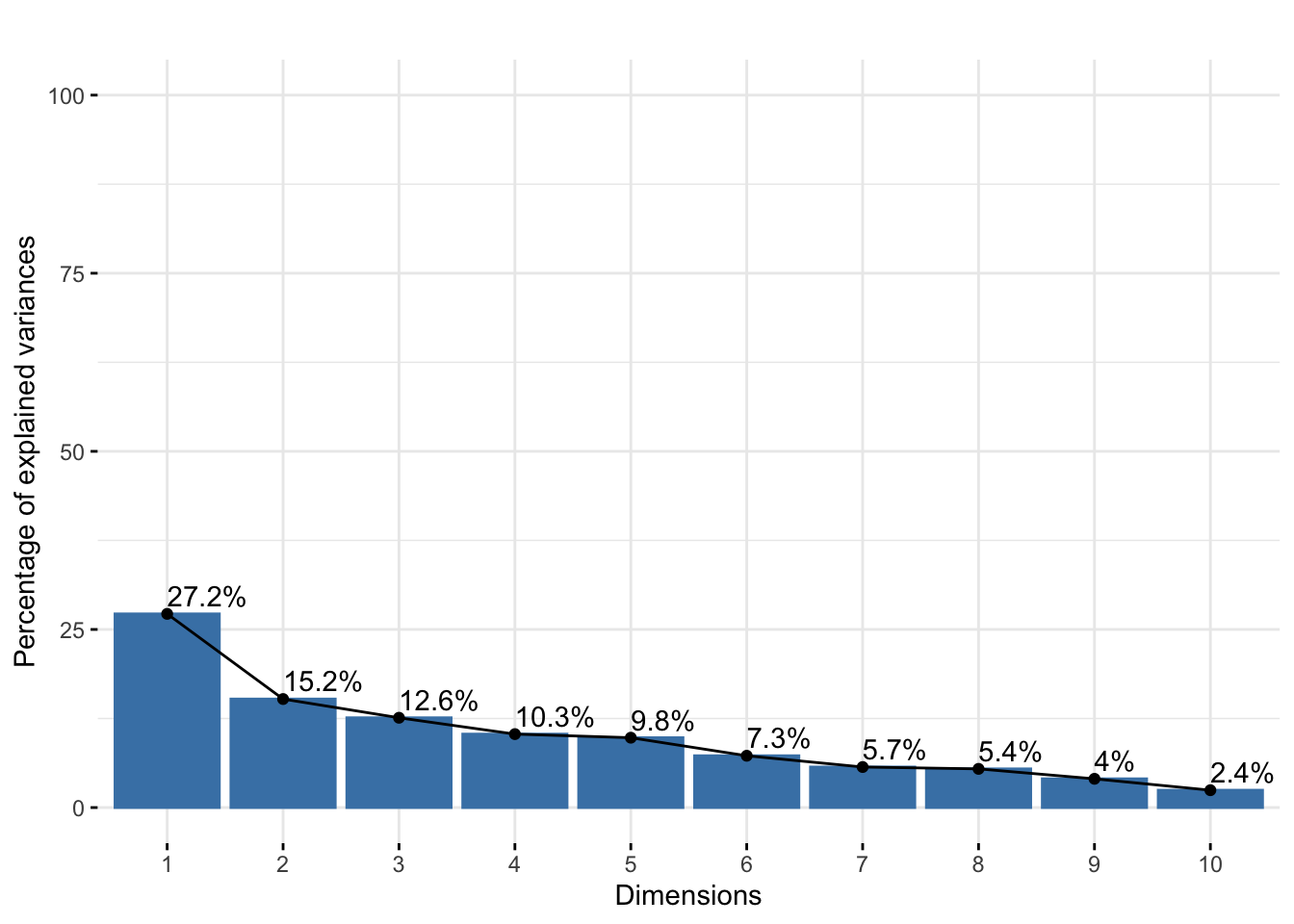

Proportion of Variance
summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | PC6 | PC7 | PC8 | PC9 | PC10 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Standard deviation | 1.649 | 1.234 | 1.123 | 1.015 | 0.990 | 0.853 | 0.754 | 0.737 | 0.635 | 0.494 |
| Proportion of Variance | 0.272 | 0.152 | 0.126 | 0.103 | 0.098 | 0.073 | 0.057 | 0.054 | 0.040 | 0.024 |
| Cumulative Proportion | 0.272 | 0.424 | 0.550 | 0.653 | 0.751 | 0.824 | 0.881 | 0.935 | 0.976 | 1.000 |

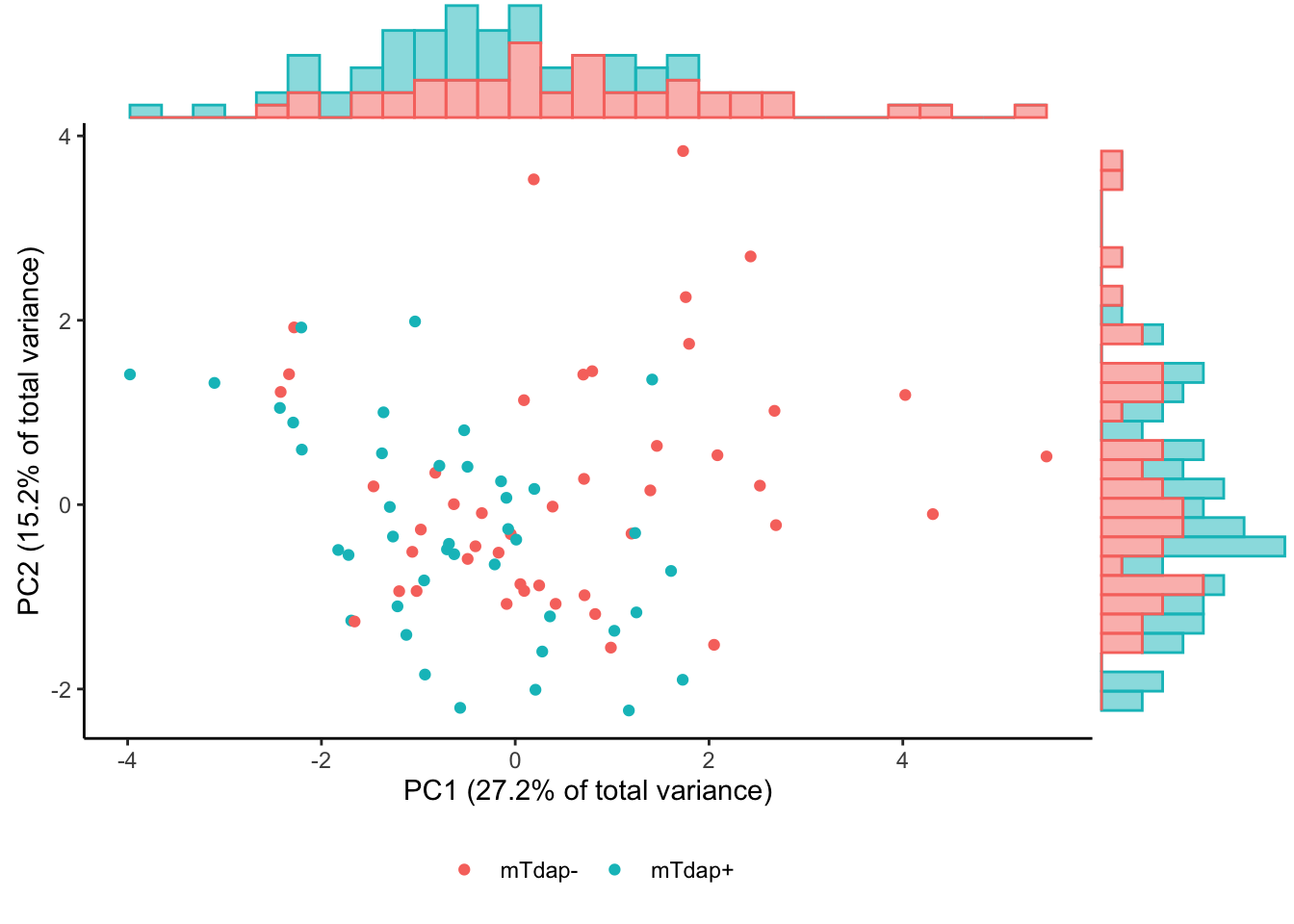

Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Maternal Tdap+ vs. Tdap- vaccinated Feature Cluster ADNP / ADCP PC1:
p=.00032
Maternal Tdap+ vs. Tdap- vaccinated Feature Cluster ADNP / ADCP PC2:
p=.051

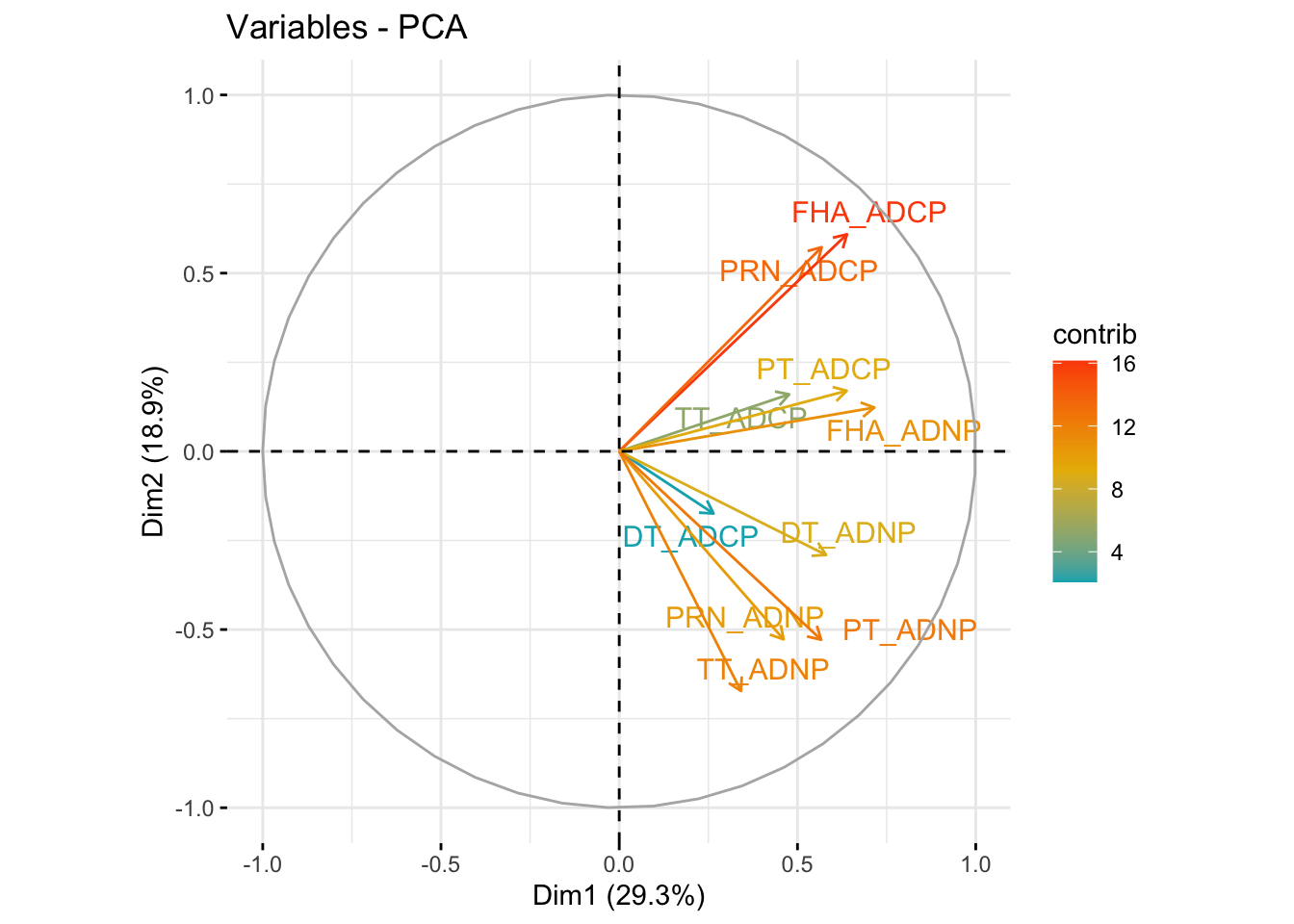

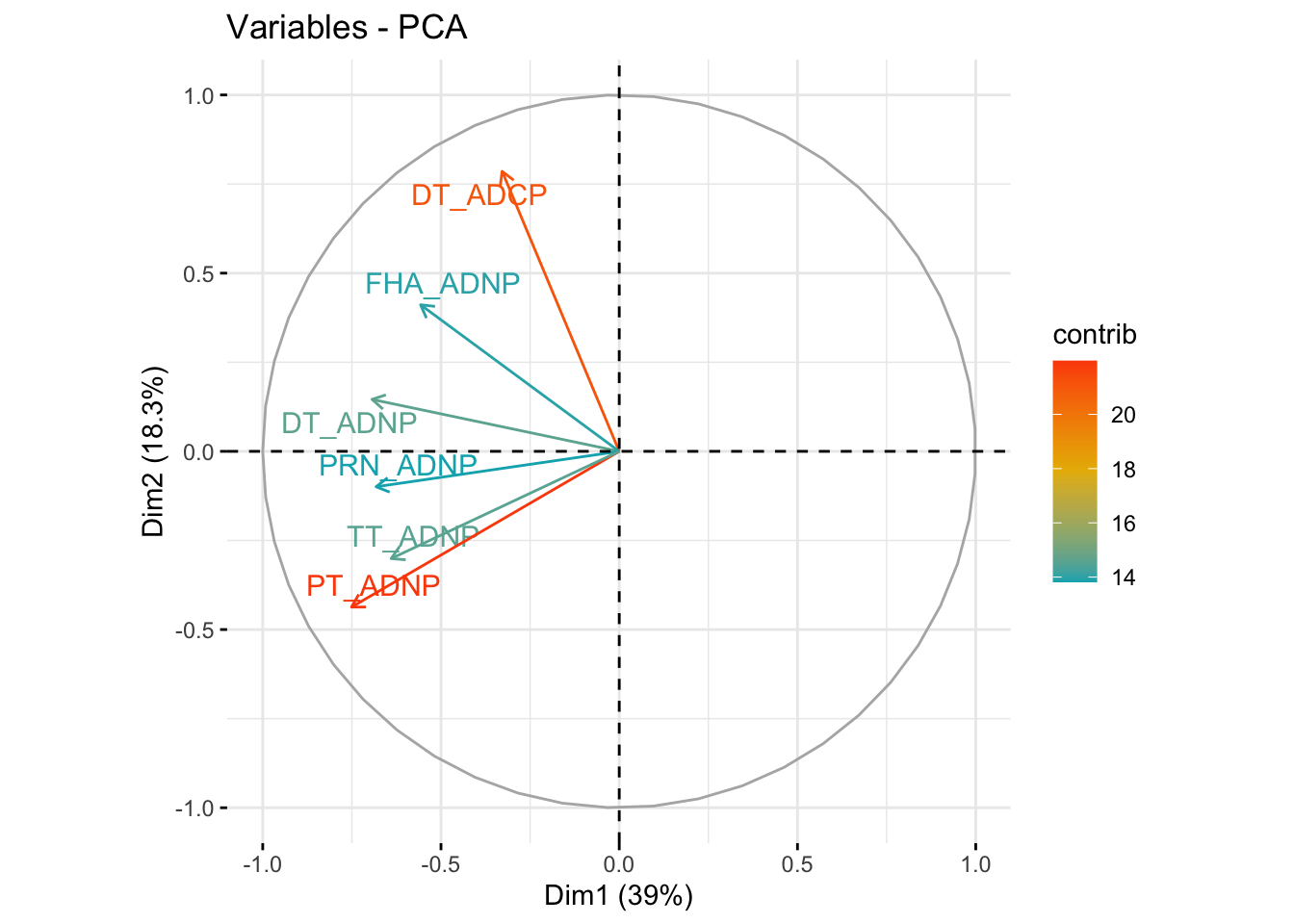

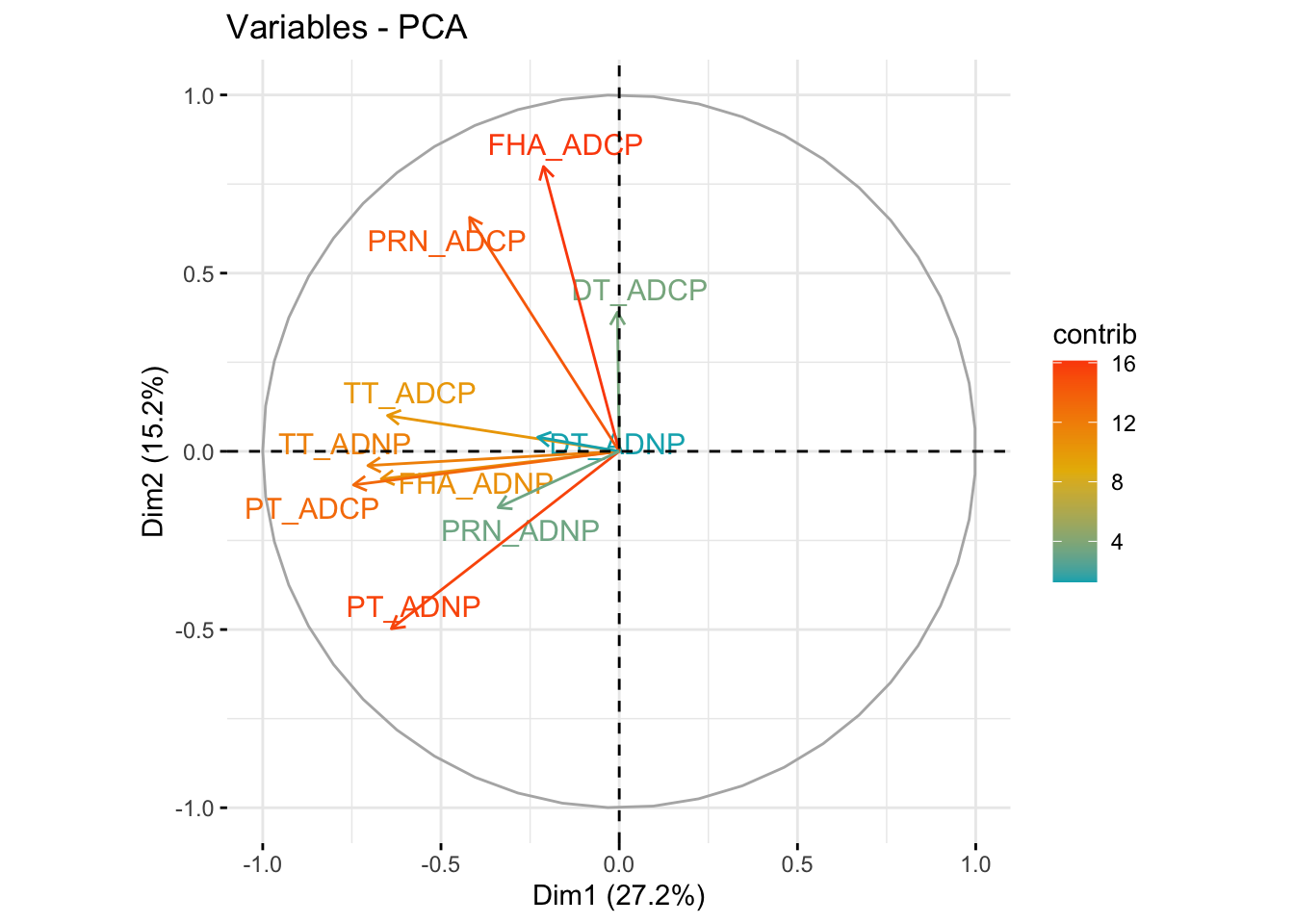

Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution
**Loadings
plot
Feature Cluster: FcgR2a / FcgR3b
Features: DT_FcgR2a, DT_FcgR3b, FHA_FcgR2a, FHA_FcgR3b, PRN_FcgR2a, PRN_FcgR3b, PT_FcgR2a, PT_FcgR3b, TT_FcgR2a, TT_FcgR3b

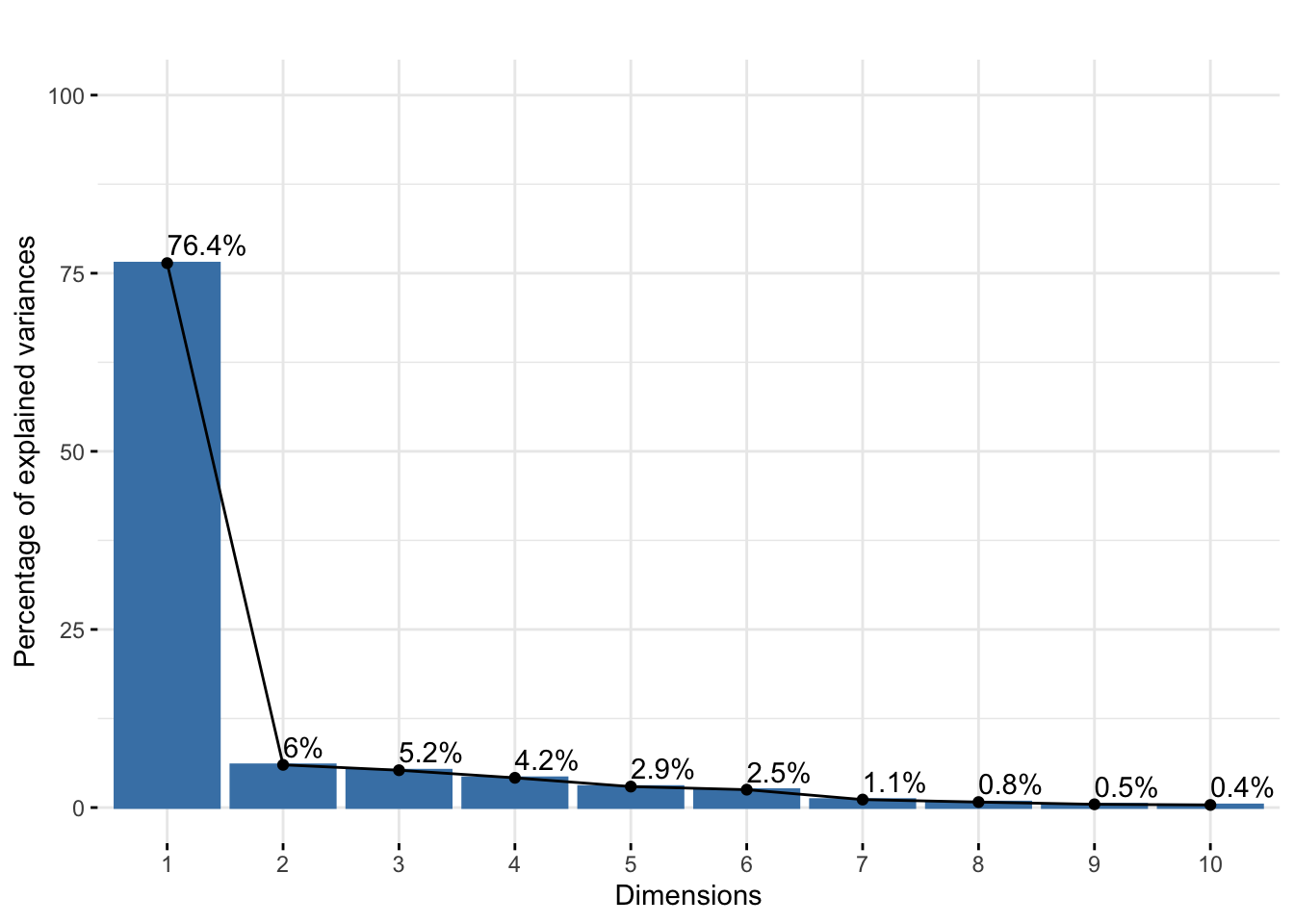

Proportion of Variance
summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | PC6 | PC7 | PC8 | PC9 | PC10 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Standard deviation | 2.764 | 0.774 | 0.724 | 0.646 | 0.543 | 0.501 | 0.335 | 0.277 | 0.214 | 0.191 |
| Proportion of Variance | 0.764 | 0.060 | 0.052 | 0.042 | 0.029 | 0.025 | 0.011 | 0.008 | 0.005 | 0.004 |
| Cumulative Proportion | 0.764 | 0.824 | 0.877 | 0.918 | 0.948 | 0.973 | 0.984 | 0.992 | 0.996 | 1.000 |

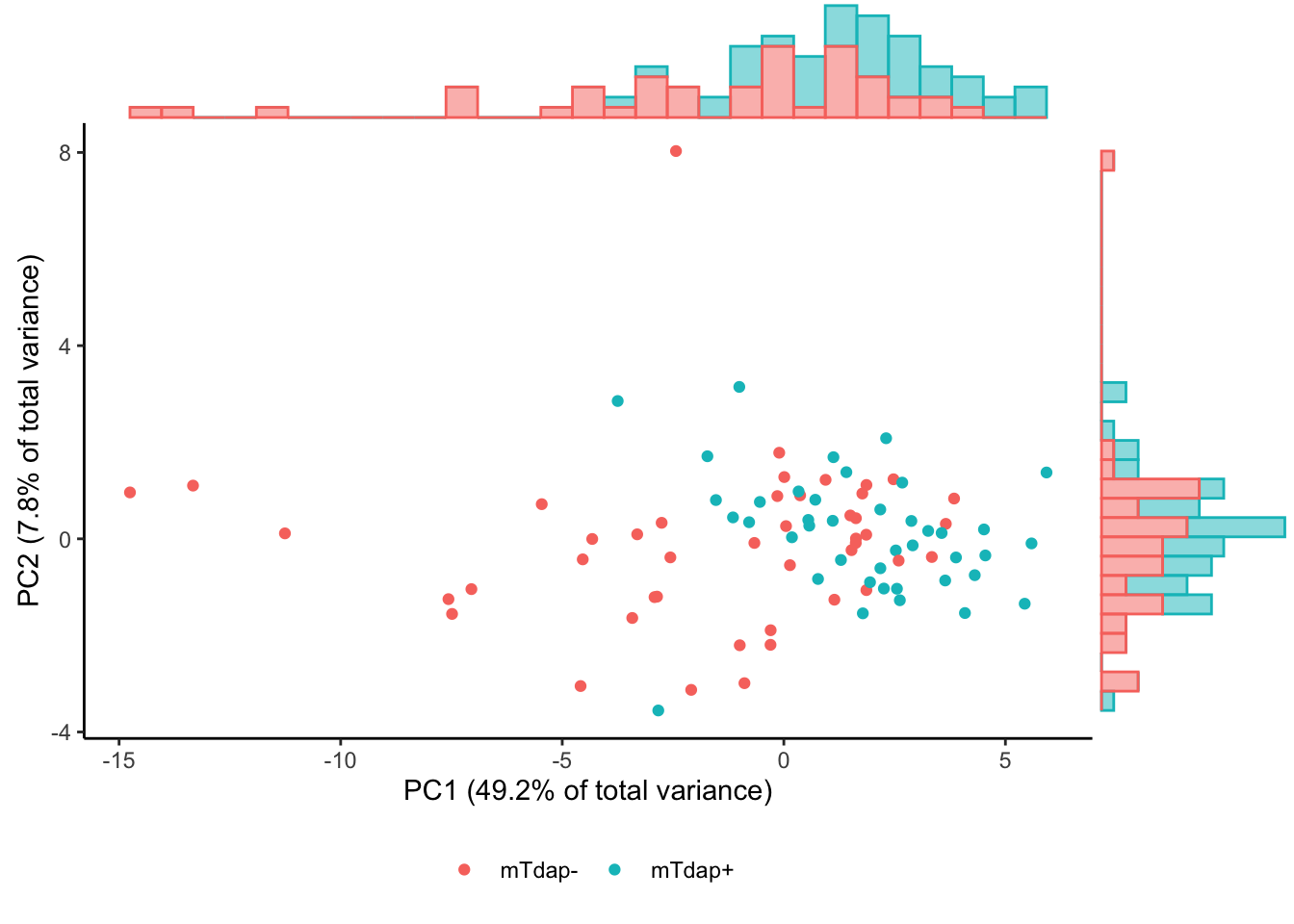

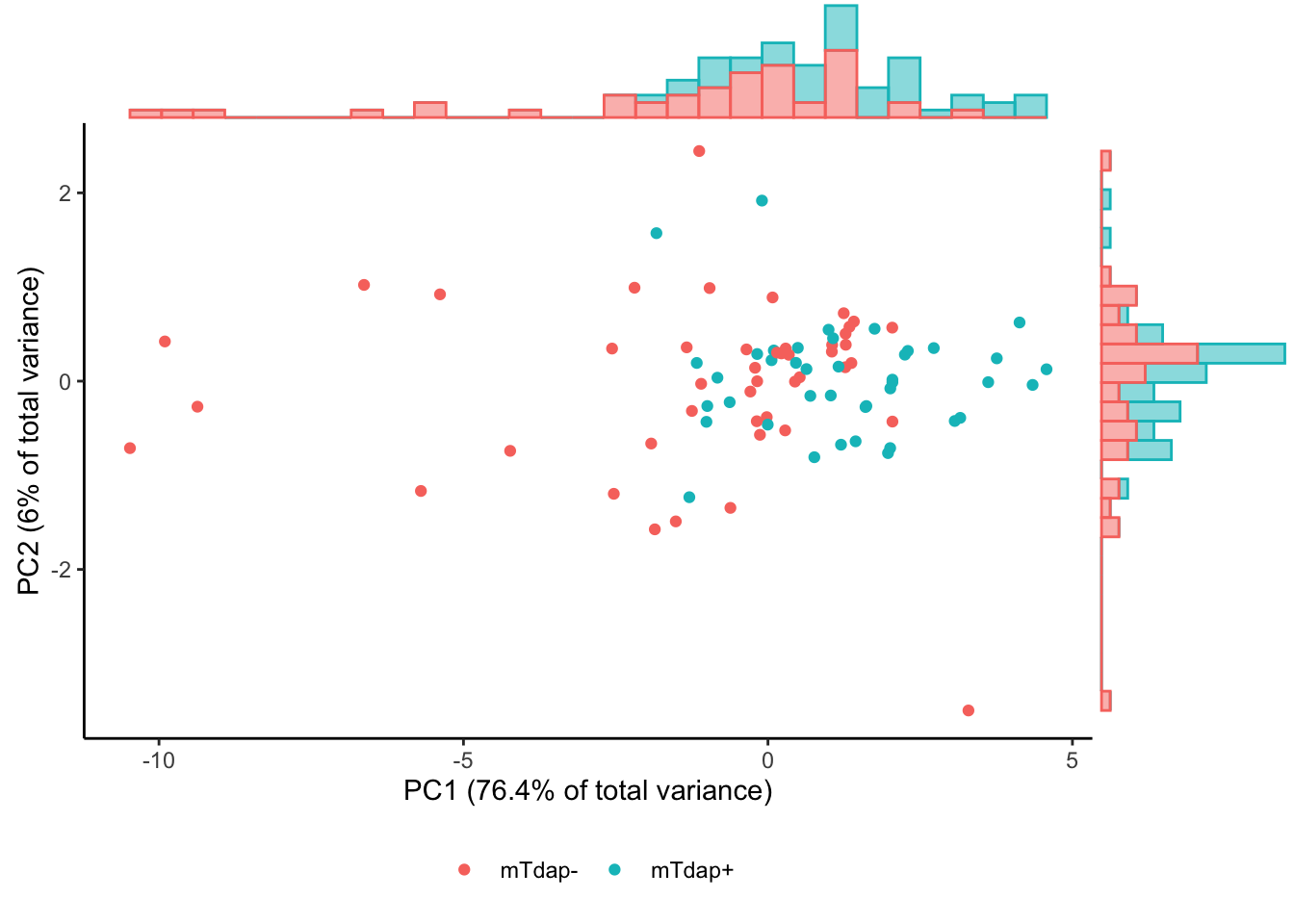

Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Maternal Tdap+ vs. Tdap- vaccinated Feature Cluster FcgR2a / FcgR3b PC1:
p<.0001
Maternal Tdap+ vs. Tdap- vaccinated Feature Cluster FcgR2a / FcgR3b PC2:
p=.8

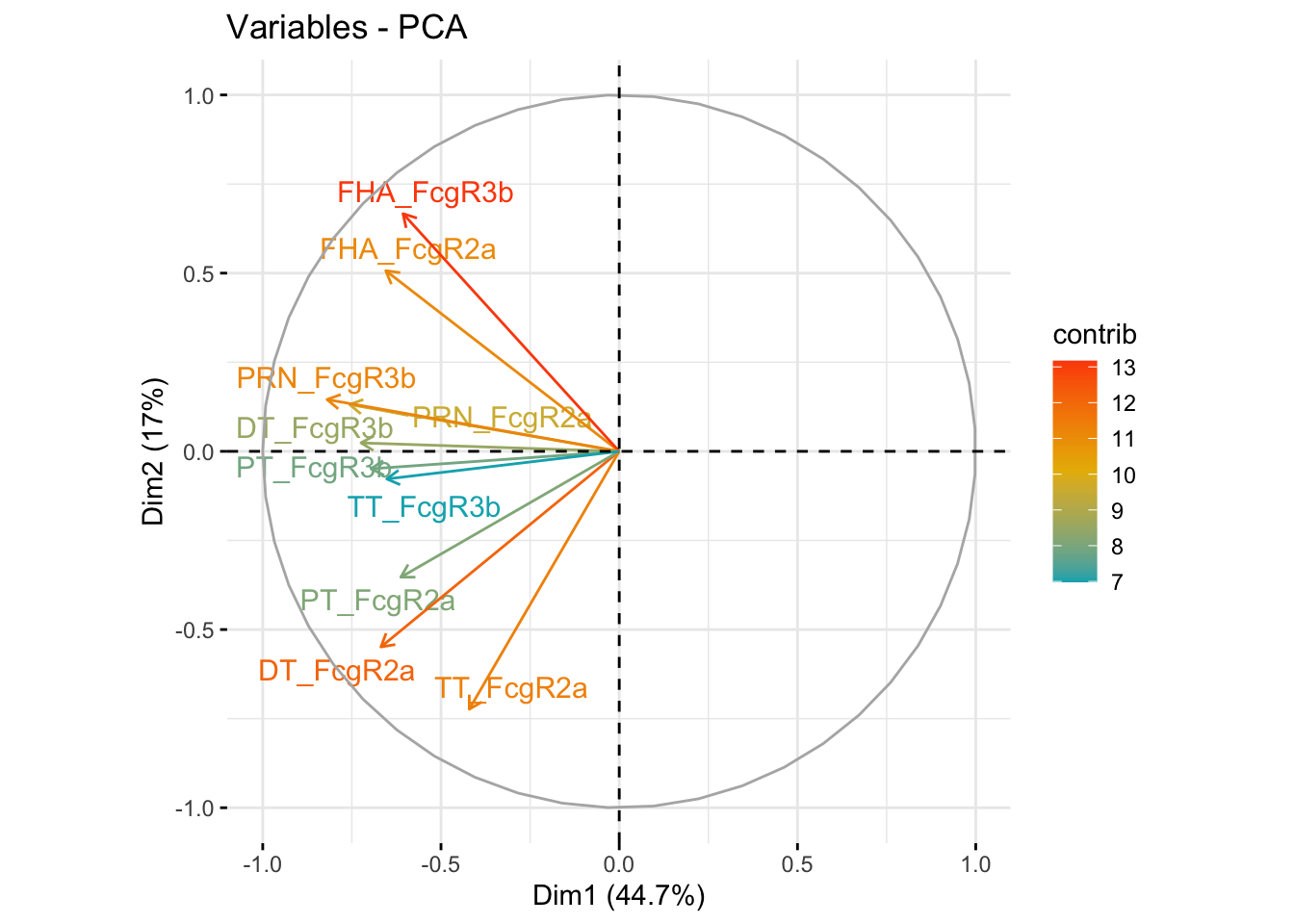

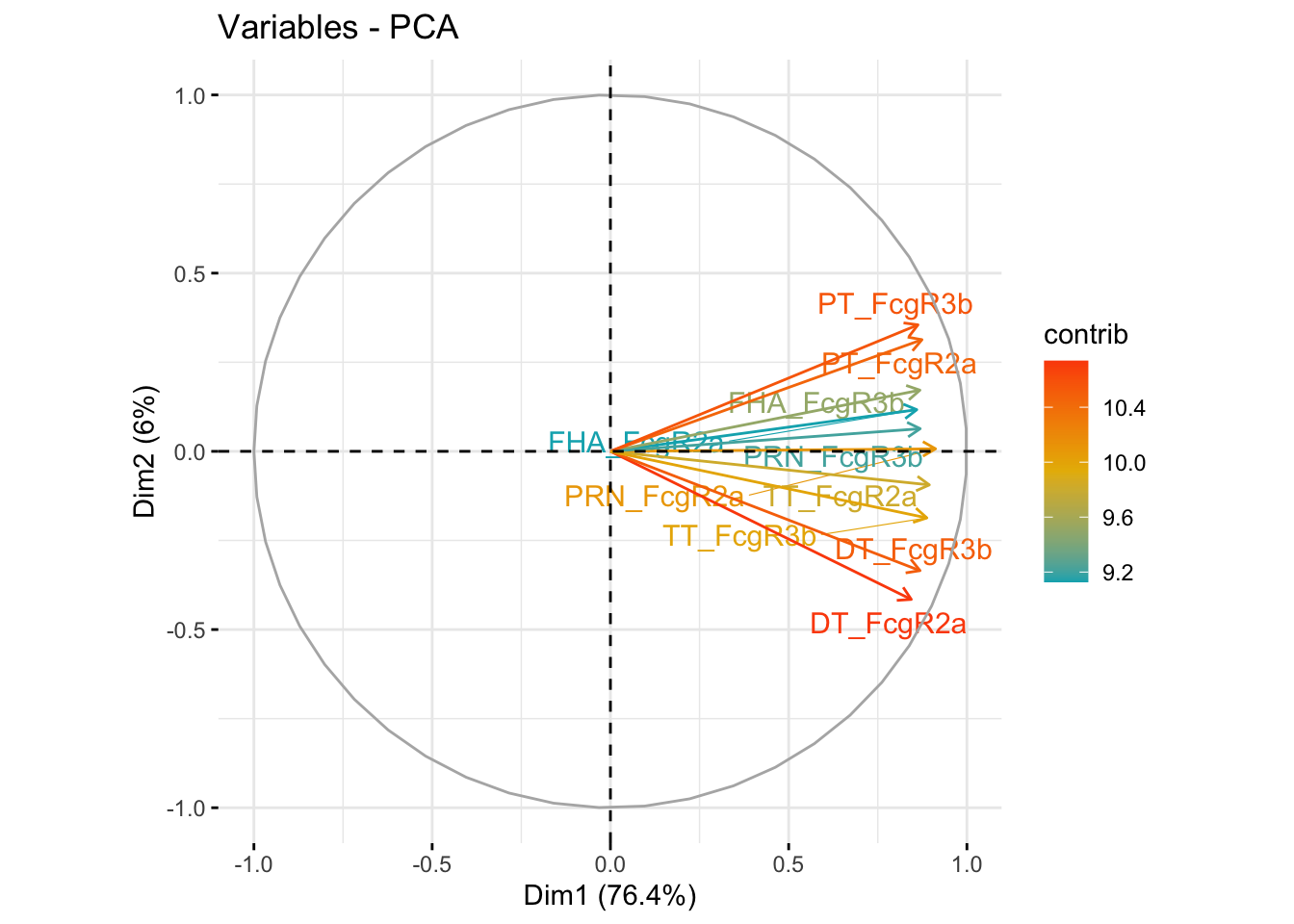

Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution
**Loadings
plot
Feature Cluster: IgG1
Features: DT_IgG1, FHA_IgG1, PRN_IgG1, PT_IgG1, TT_IgG1

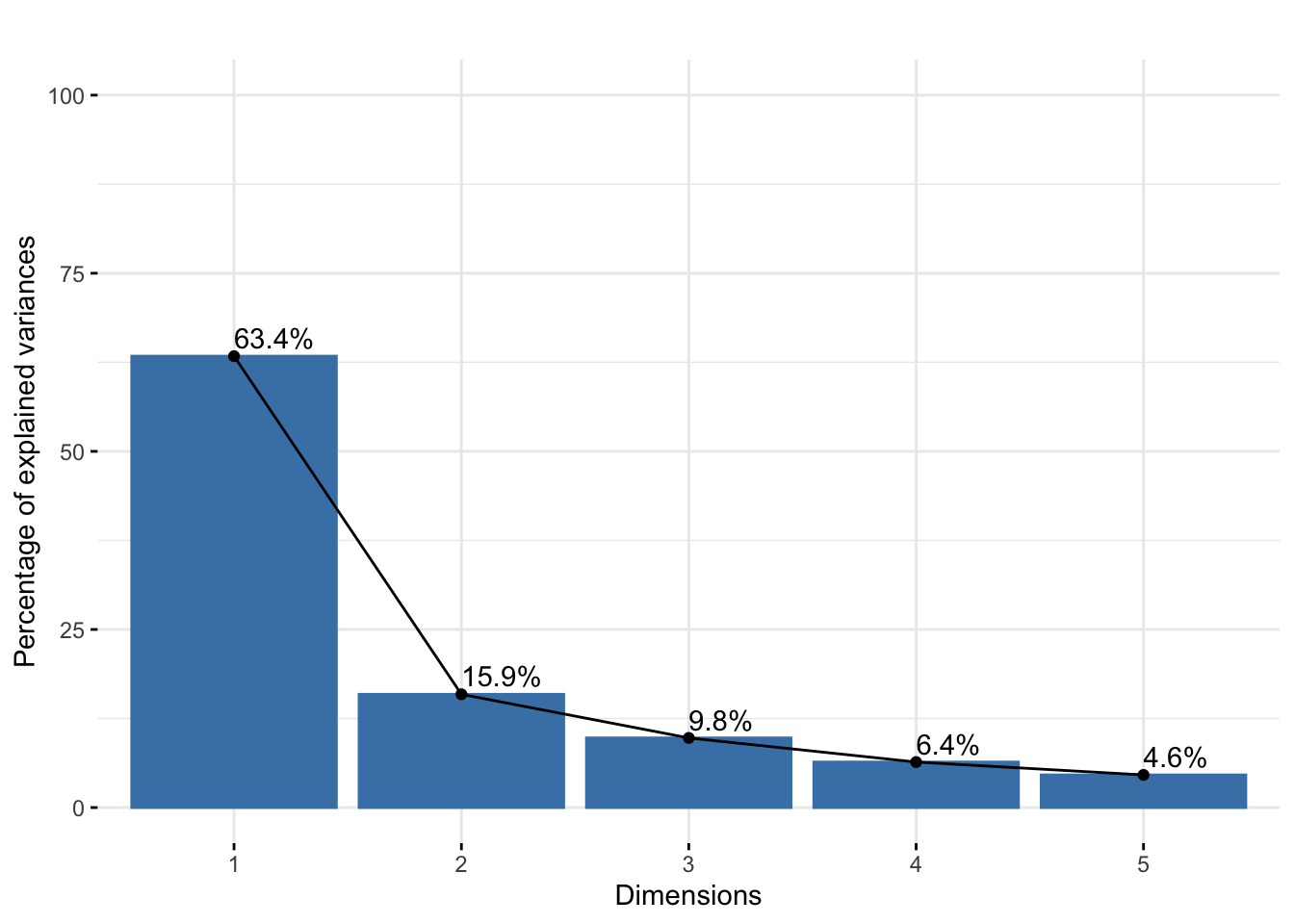

Proportion of Variance
summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | |
|---|---|---|---|---|---|
| Standard deviation | 1.781 | 0.895 | 0.655 | 0.571 | 0.521 |
| Proportion of Variance | 0.634 | 0.160 | 0.086 | 0.065 | 0.054 |
| Cumulative Proportion | 0.634 | 0.795 | 0.880 | 0.946 | 1.000 |

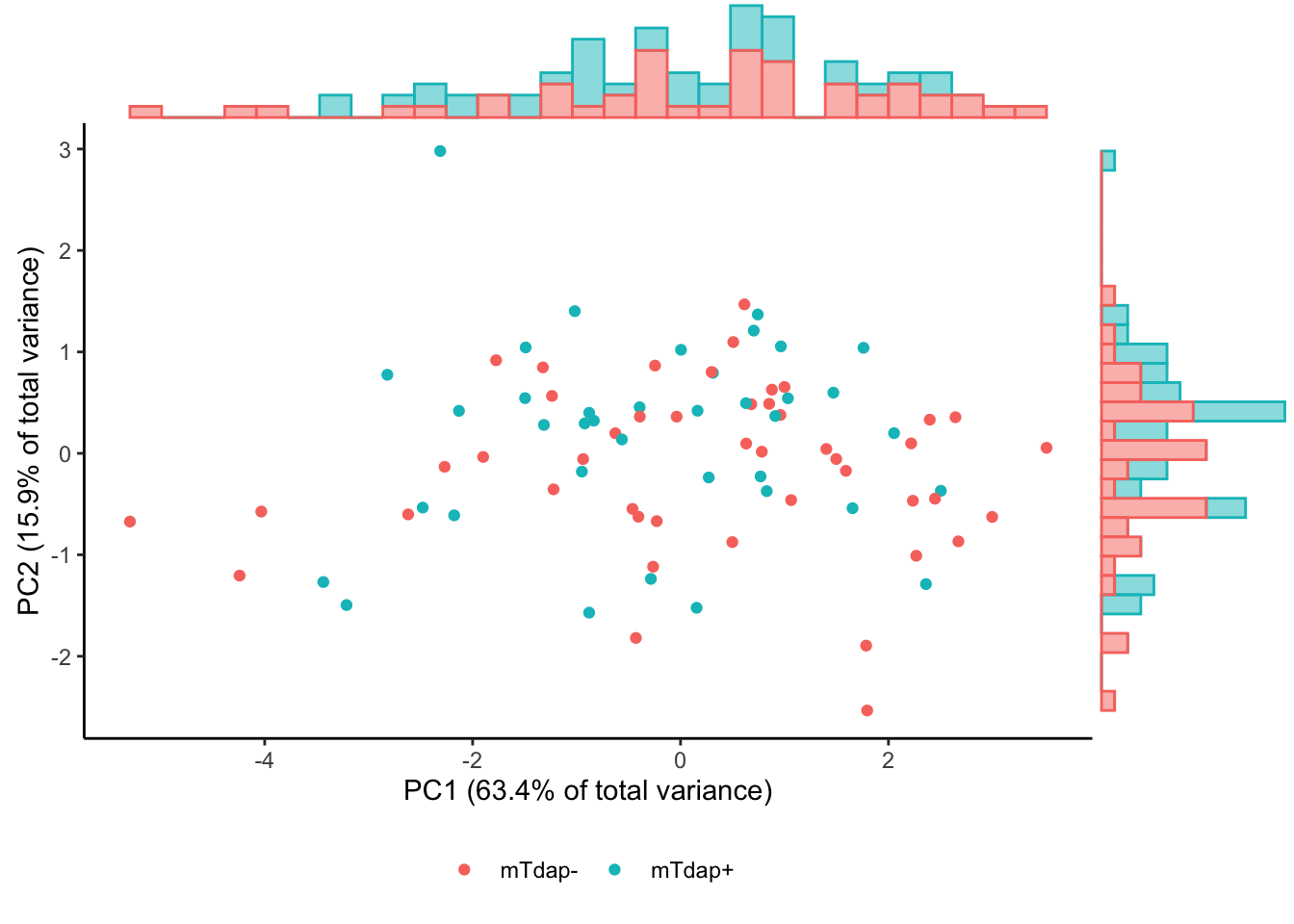

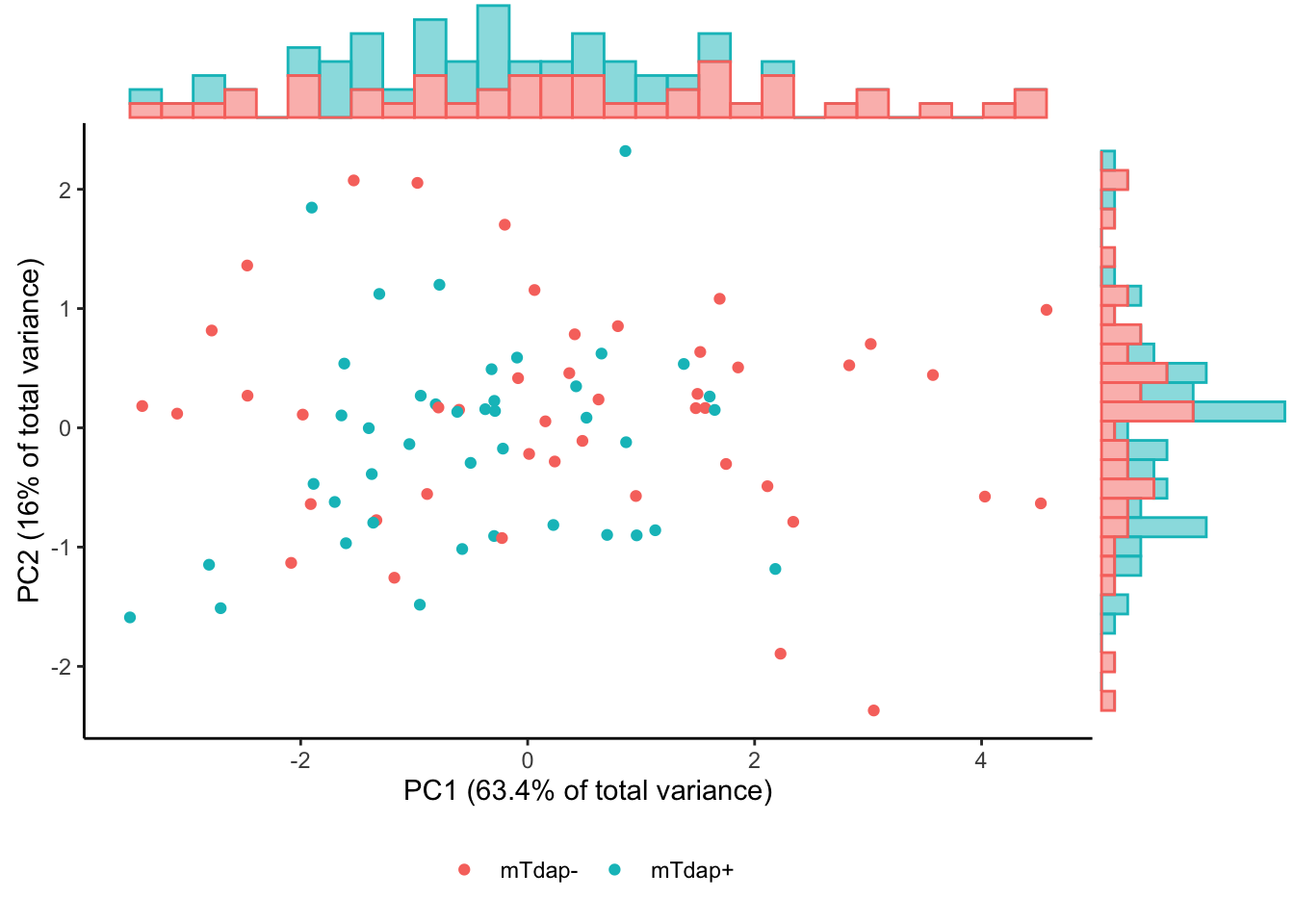

Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Maternal Tdap+ vs. Tdap- vaccinated Feature Cluster IgG1 PC1:
p=.014
Maternal Tdap+ vs. Tdap- vaccinated Feature Cluster IgG1 PC2: p=.23

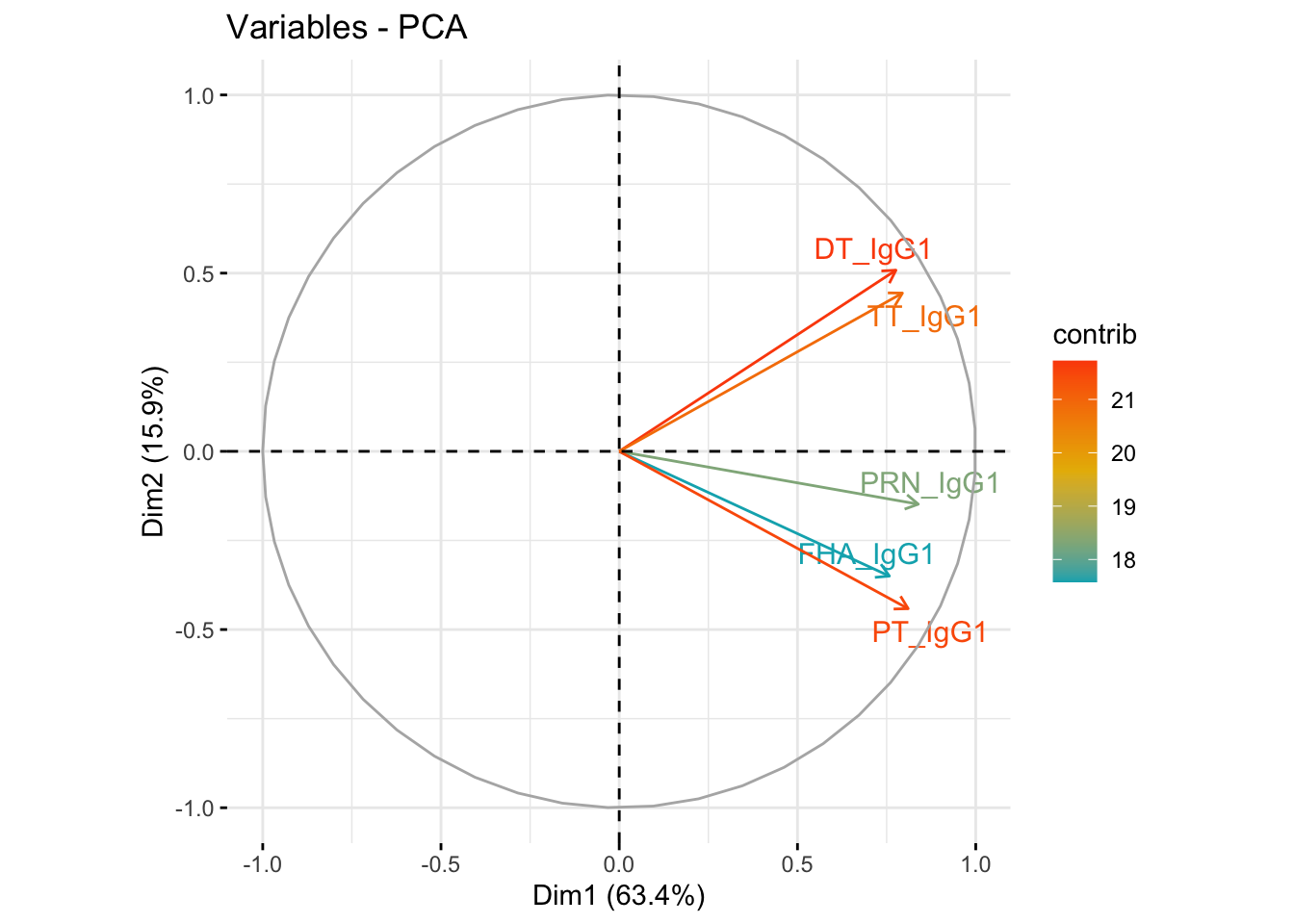

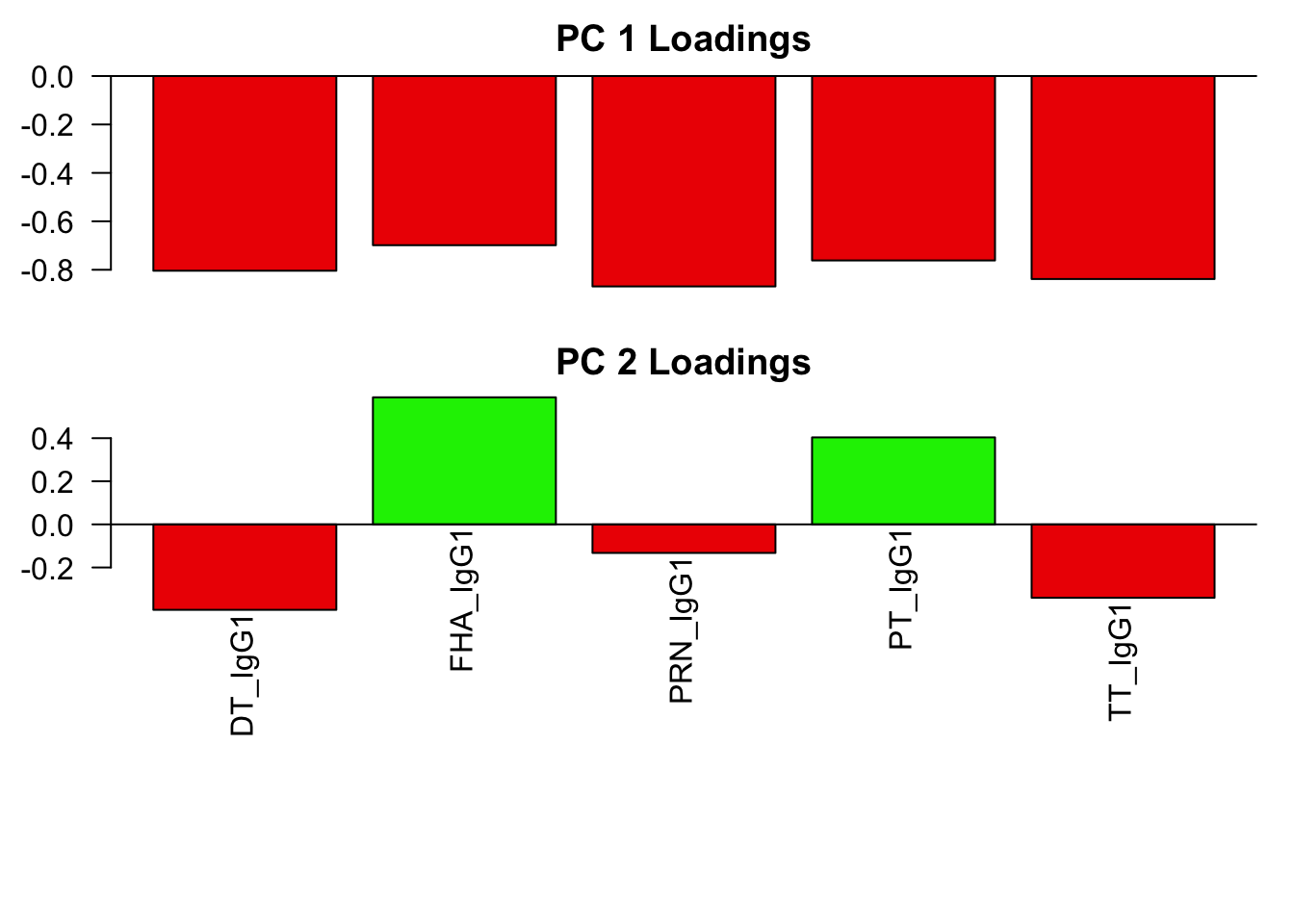

Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution

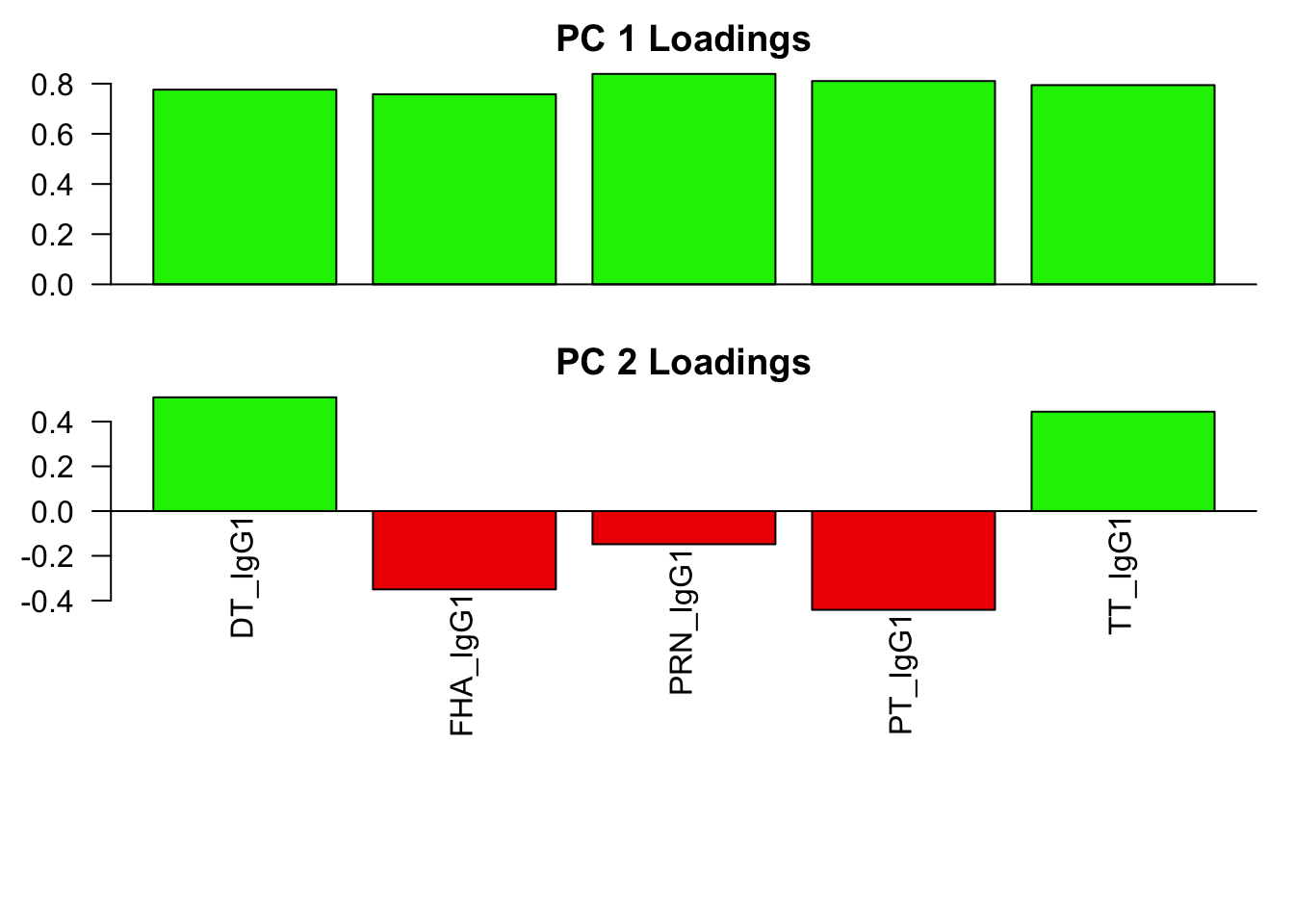

**Loadings
plot
Feature Cluster: IgG3
Features: DT_IgG3, FHA_IgG3, PRN_IgG3, PT_IgG3, TT_IgG3

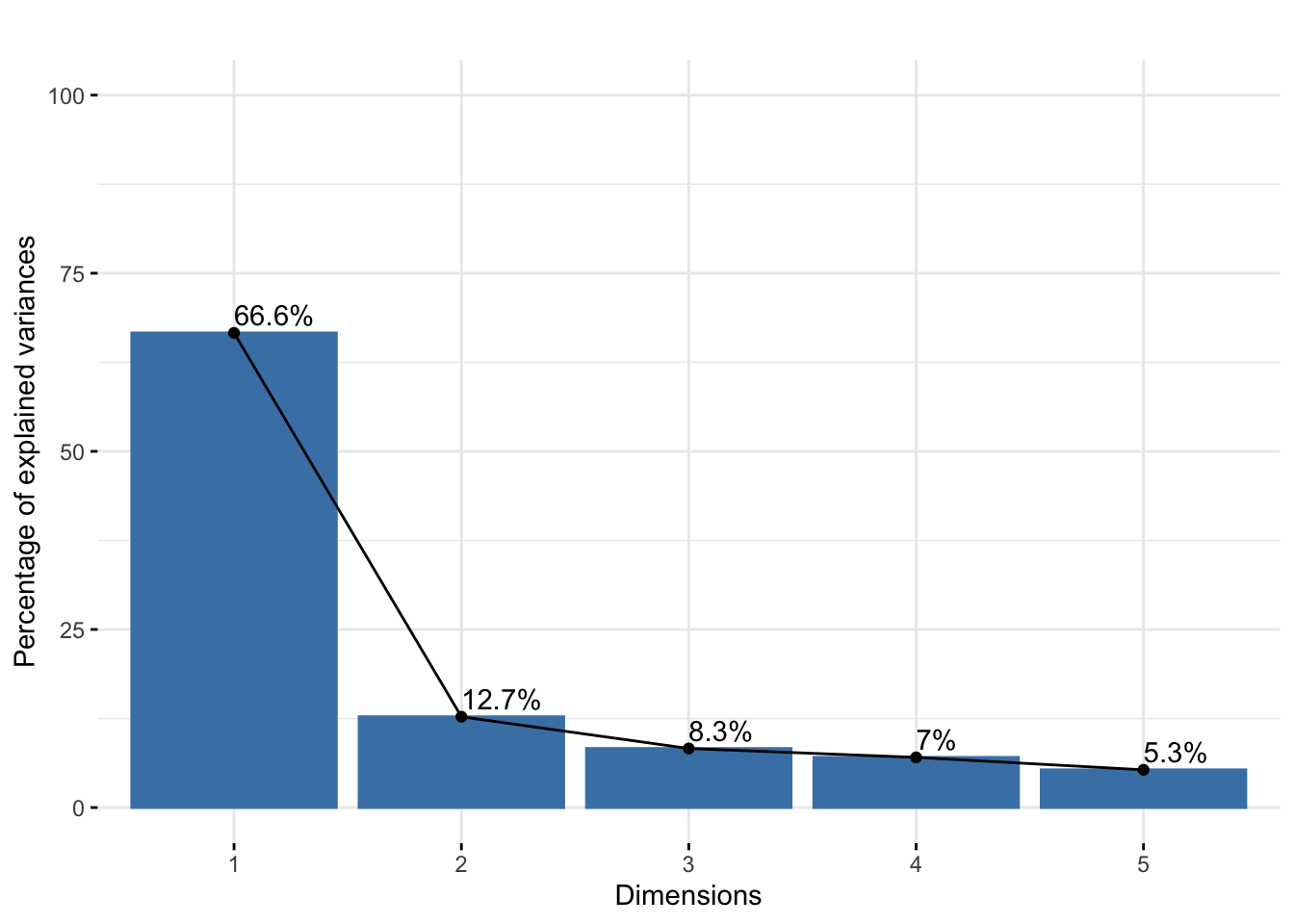

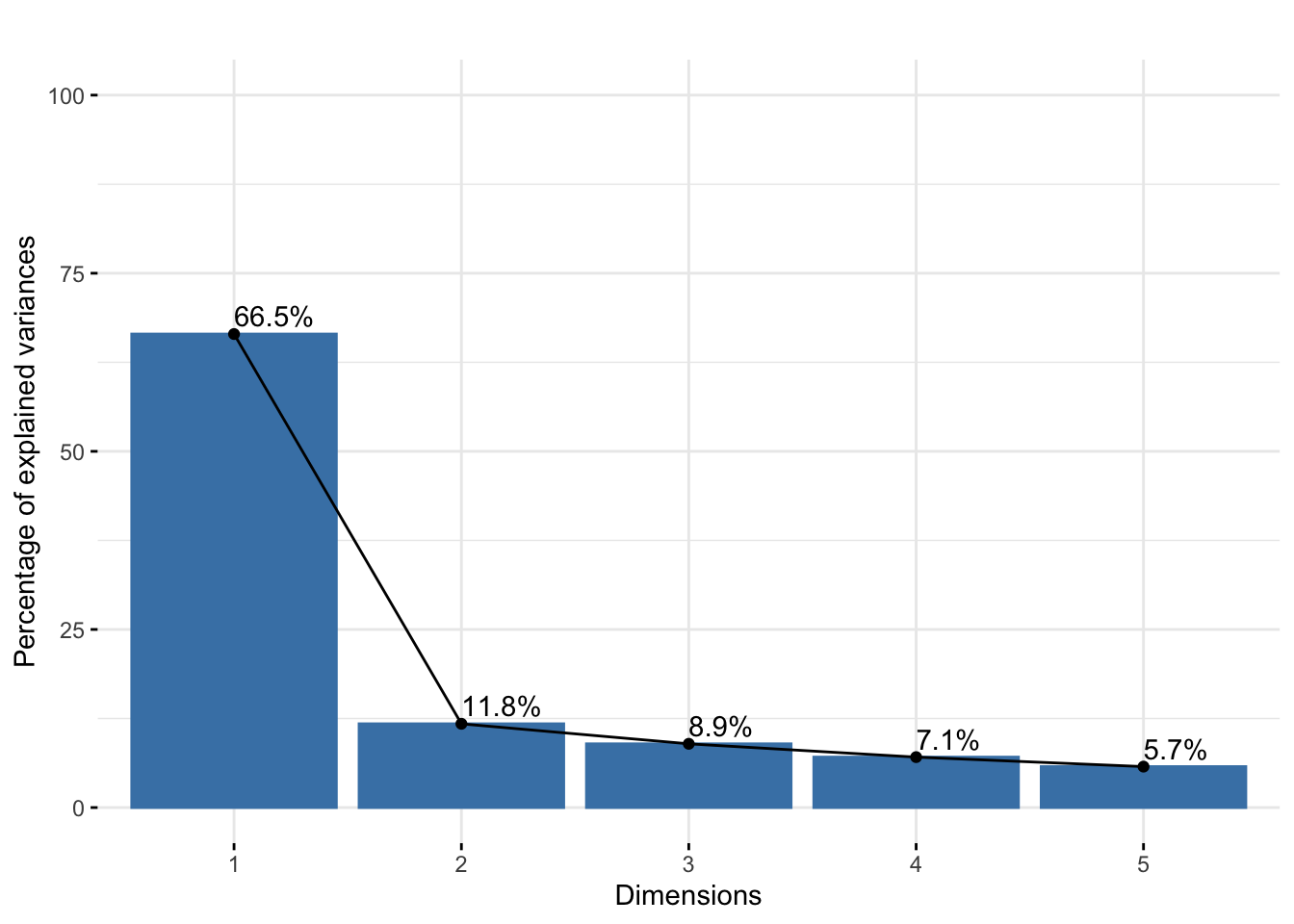

Proportion of Variance
summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | |
|---|---|---|---|---|---|
| Standard deviation | 1.823 | 0.767 | 0.669 | 0.595 | 0.536 |
| Proportion of Variance | 0.665 | 0.118 | 0.089 | 0.071 | 0.057 |
| Cumulative Proportion | 0.665 | 0.782 | 0.872 | 0.943 | 1.000 |
Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Maternal Tdap+ vs. Tdap- vaccinated Feature Cluster IgG3 PC1:
p=.00052
Maternal Tdap+ vs. Tdap- vaccinated Feature Cluster IgG3 PC2: p=.66

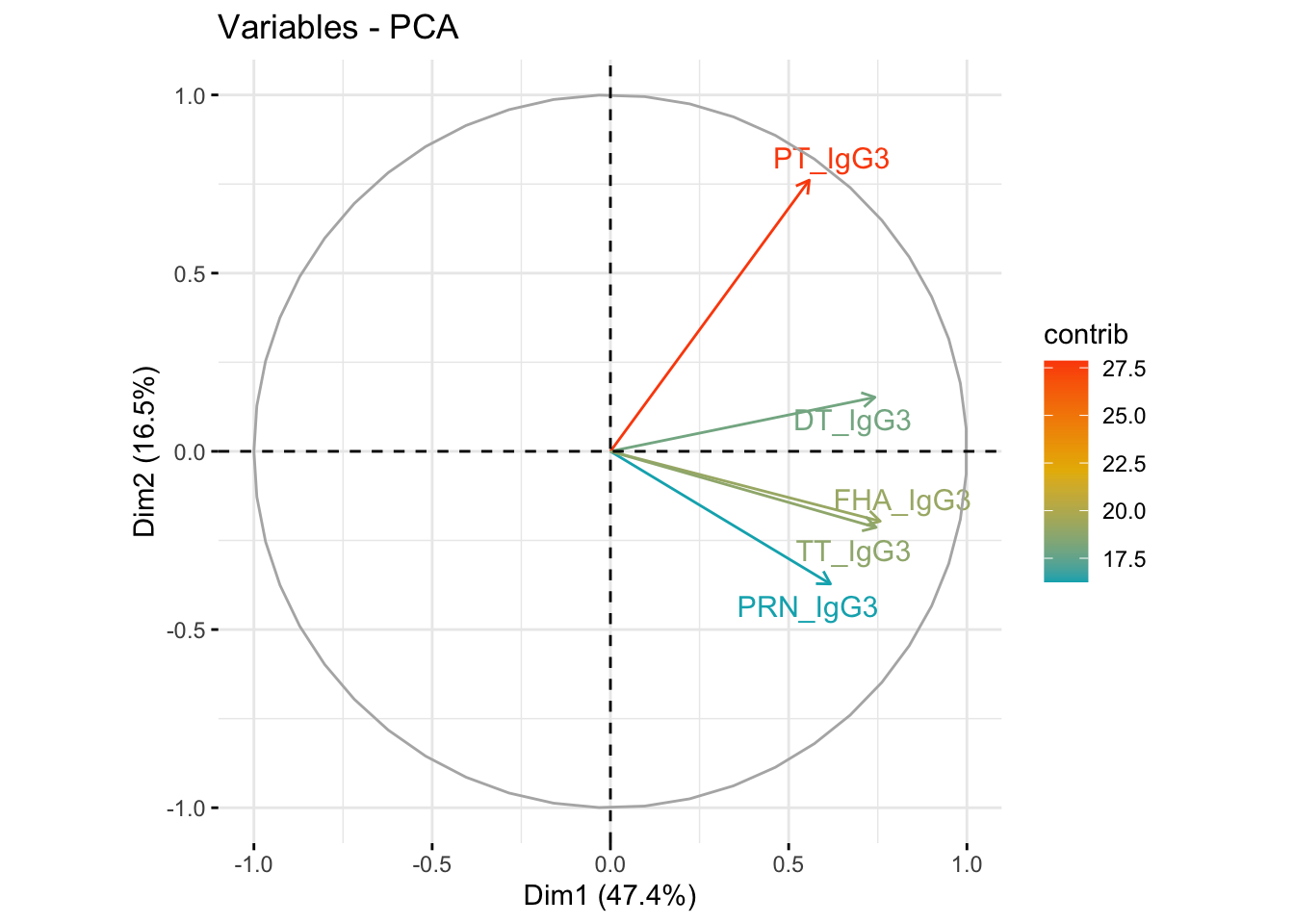

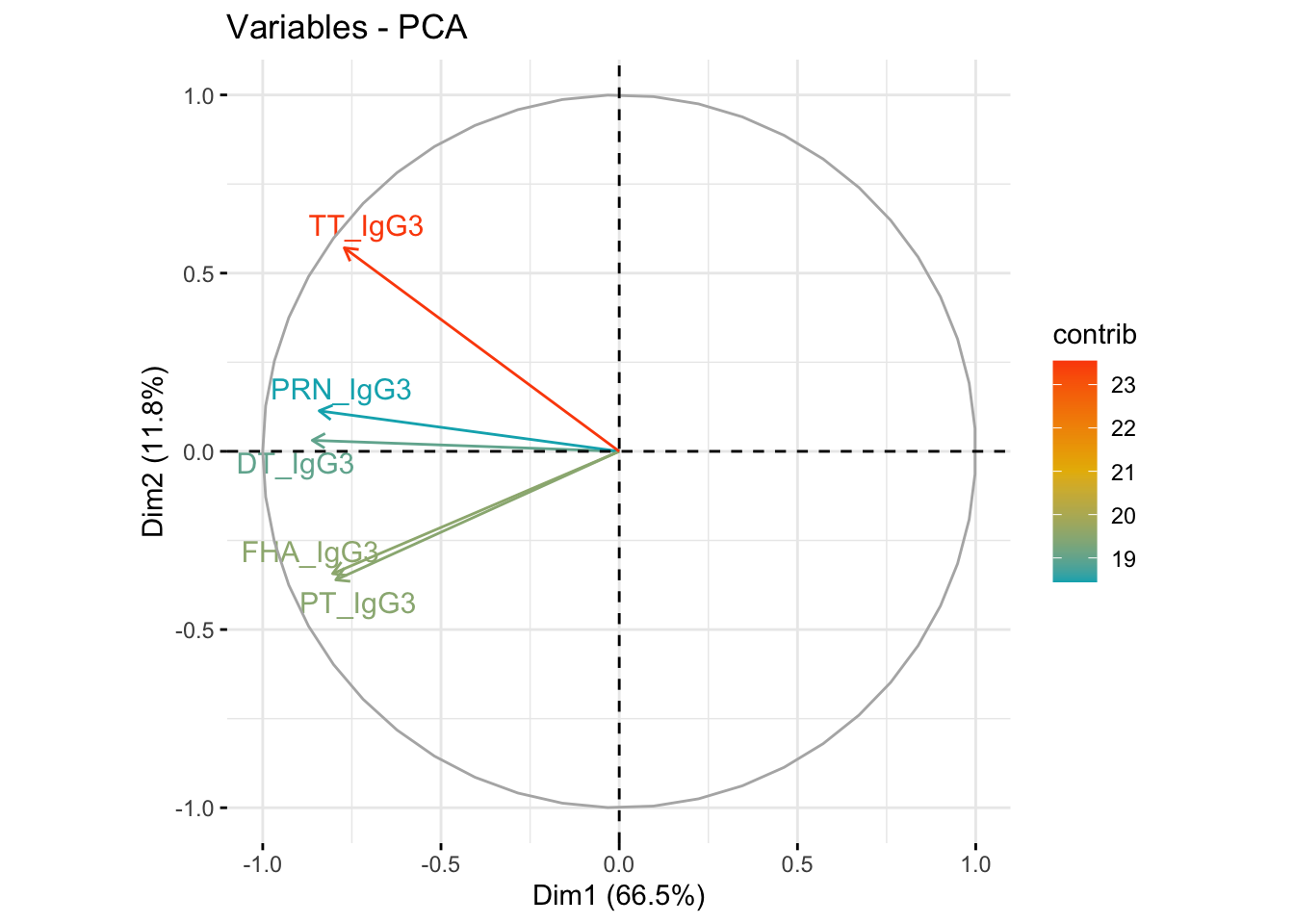

Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution

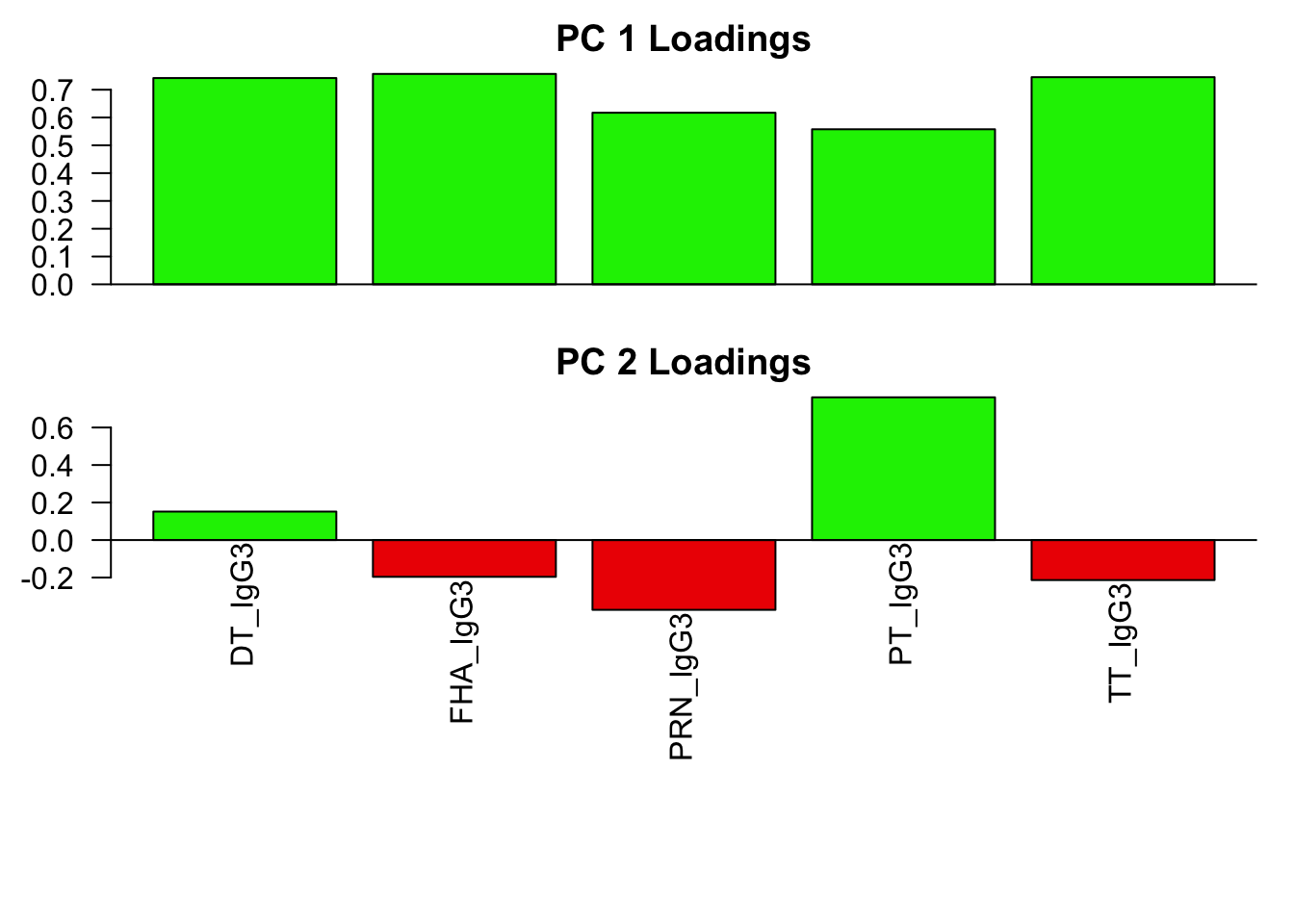

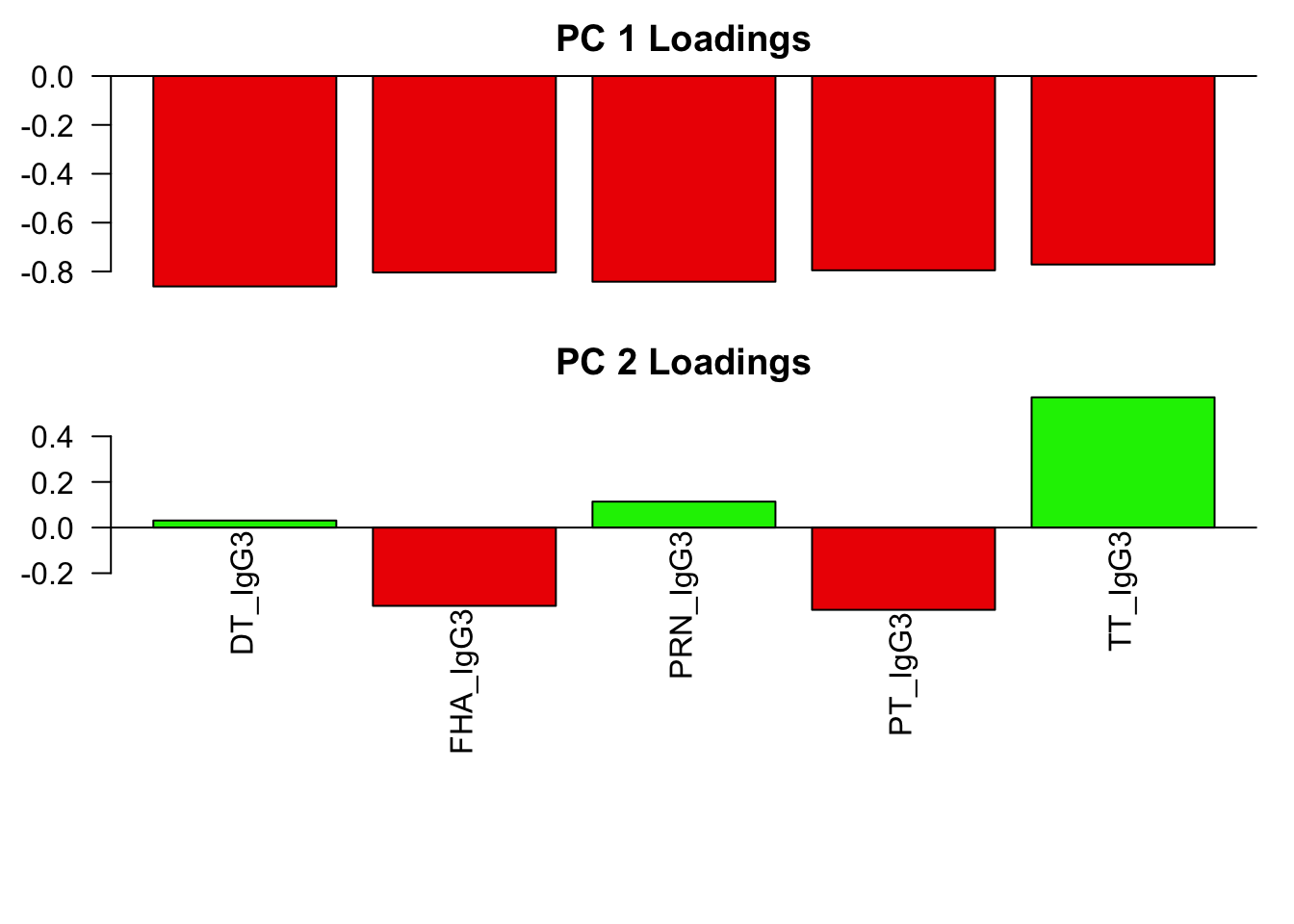

**Loadings
plot
Feature Cluster: IgG
Features: DT_IgG, FHA_IgG, PRN_IgG, TT_IgG, PT_IgG

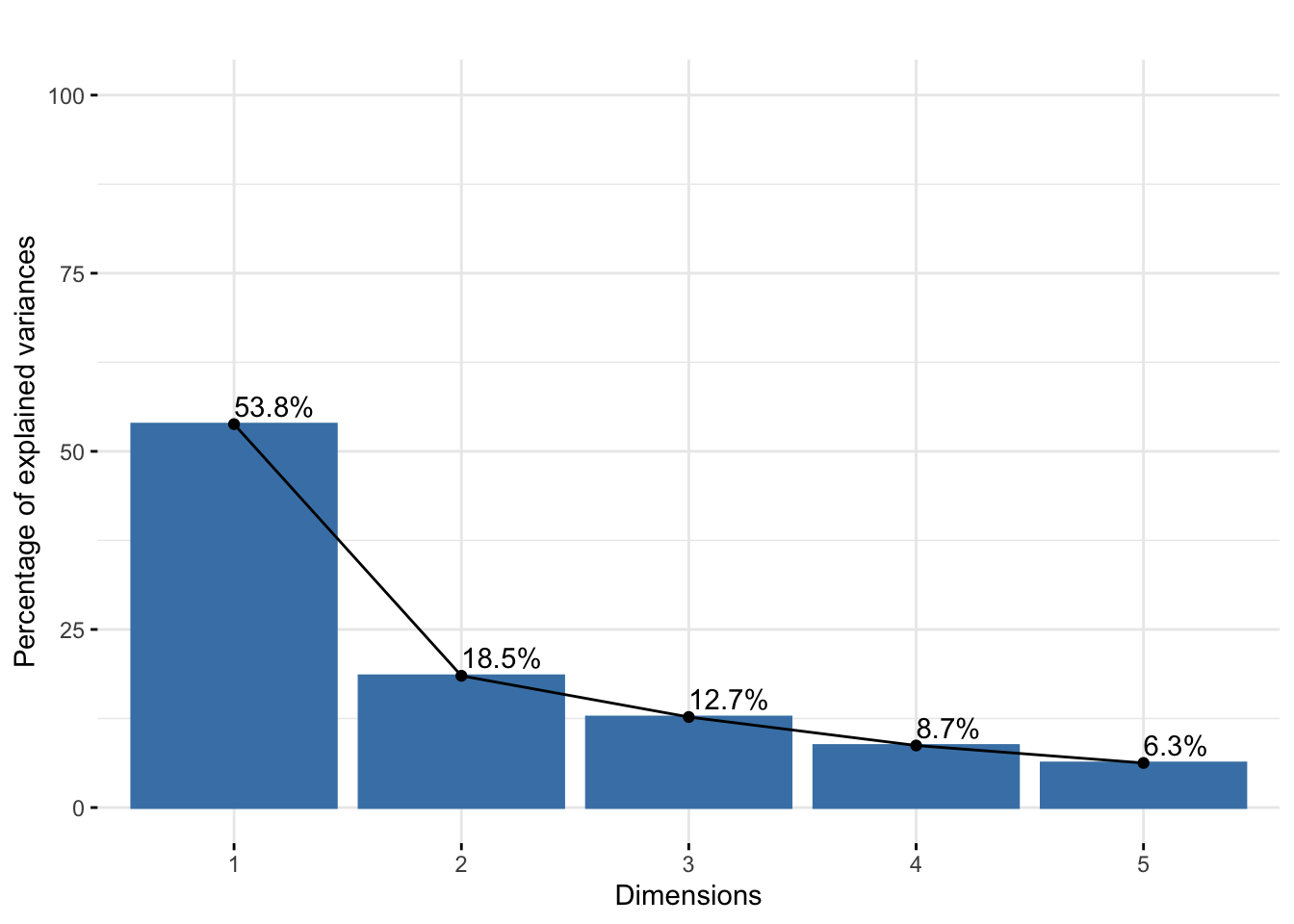

Proportion of Variance
summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | |
|---|---|---|---|---|---|
| Standard deviation | 1.640 | 0.962 | 0.797 | 0.660 | 0.559 |
| Proportion of Variance | 0.538 | 0.185 | 0.127 | 0.087 | 0.063 |
| Cumulative Proportion | 0.538 | 0.723 | 0.850 | 0.937 | 1.000 |

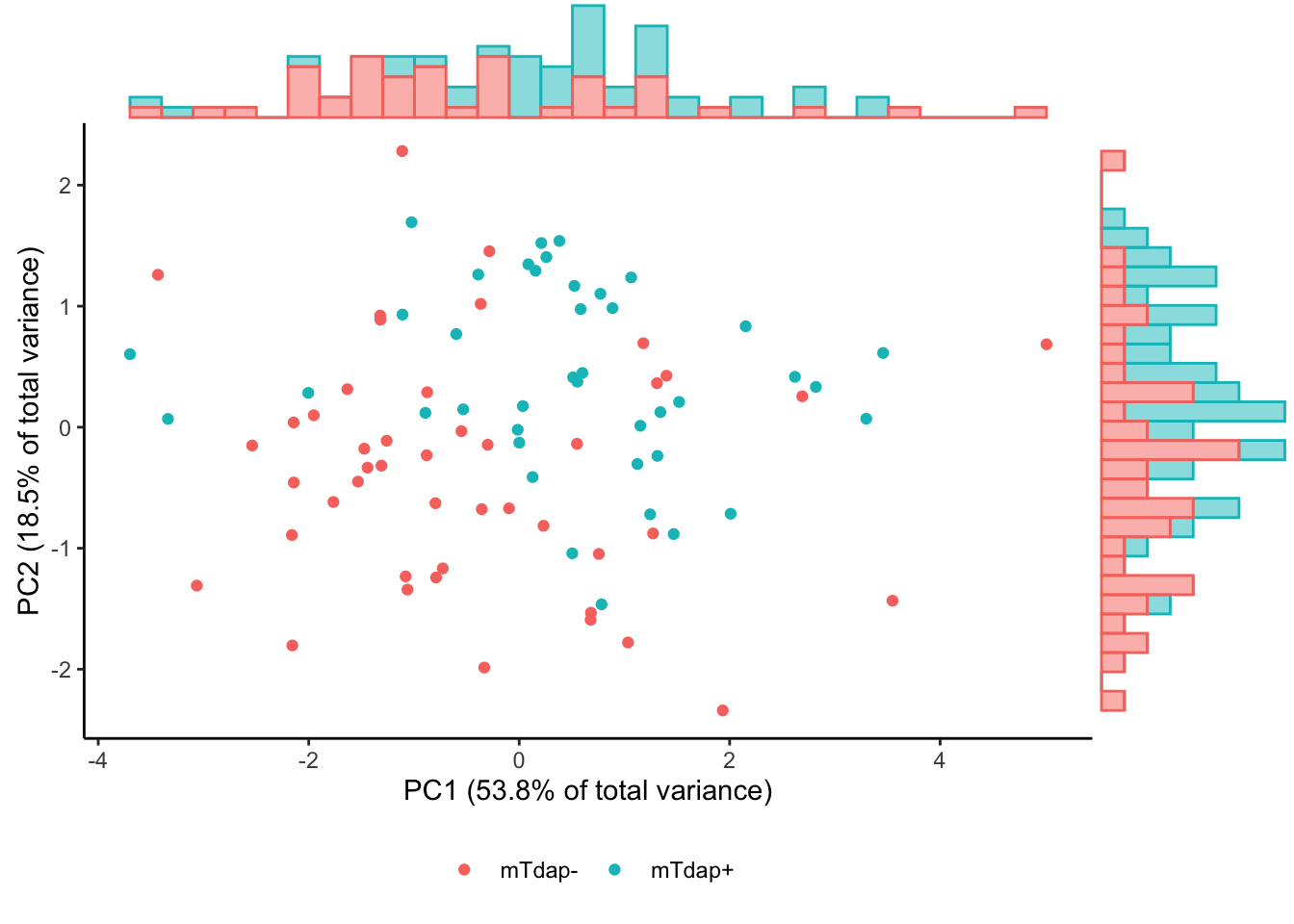

Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Maternal Tdap+ vs. Tdap- vaccinated Feature Cluster IgG PC1:
p=.0077
Maternal Tdap+ vs. Tdap- vaccinated Feature Cluster IgG PC2:
p=.00011

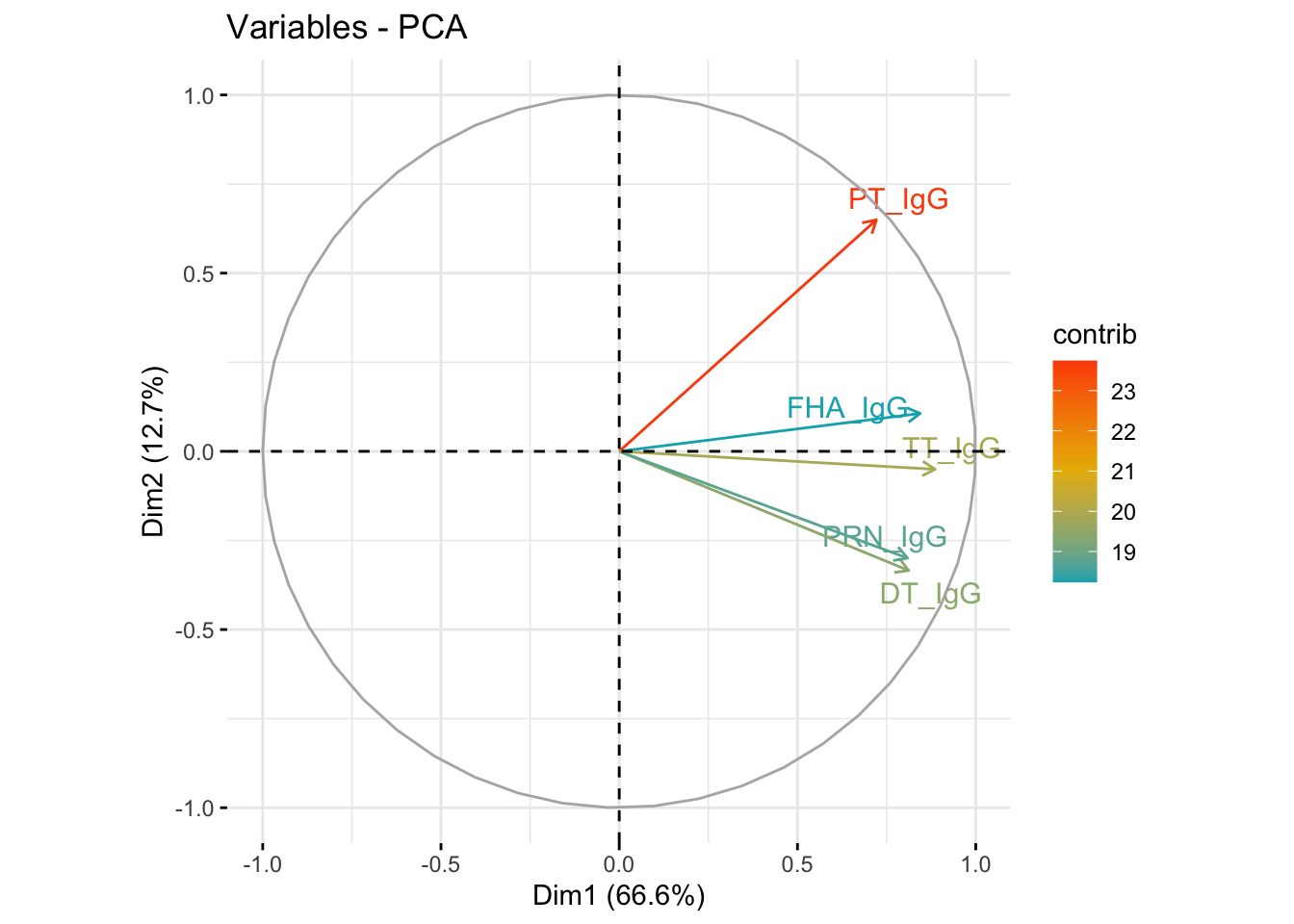

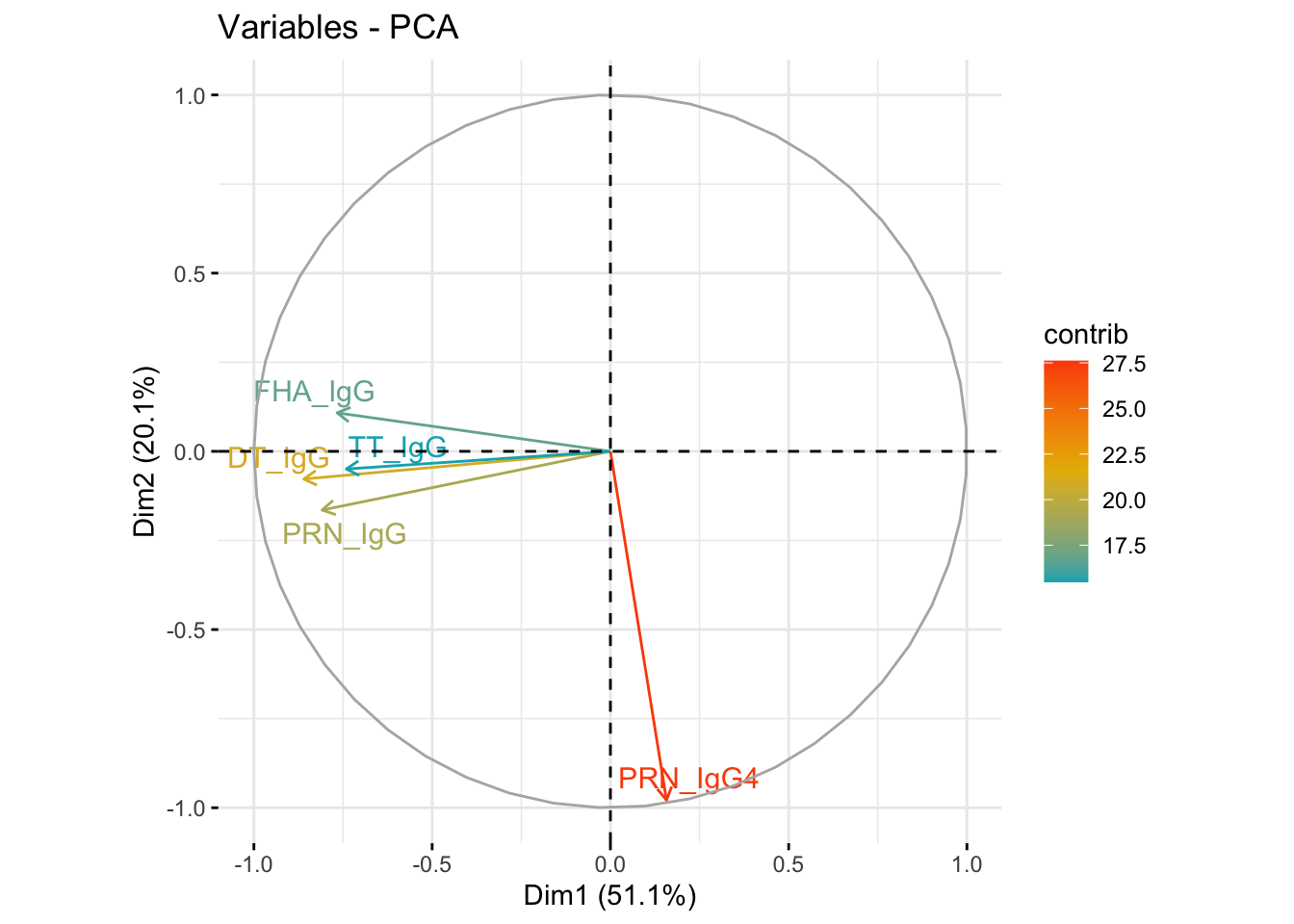

Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution
**Loadings
plot
Response Cluster: 1
Features: DT_ADCD, DT_FcgR2a, DT_FcgR3b, DT_IgG1, DT_IgG3, FHA_ADCD, FHA_ADNP, FHA_FcgR2a, FHA_FcgR3b, FHA_IgG1, FHA_IgG3, PRN_ADCD, PRN_FcgR2a, PRN_FcgR3b, PRN_IgG1, PRN_IgG3, PT_ADCD, PT_ADCP, PT_ADNP, PT_FcgR2a, PT_FcgR3b, PT_IgG1, PT_IgG3, TT_ADCD, TT_ADCP, TT_ADNP, TT_FcgR2a, TT_FcgR3b, TT_IgG1, TT_IgG3
Proportion of Variance
summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | PC6 | PC7 | PC8 | PC9 | PC10 | PC11 | PC12 | PC13 | PC14 | PC15 | PC16 | PC17 | PC18 | PC19 | PC20 | PC21 | PC22 | PC23 | PC24 | PC25 | PC26 | PC27 | PC28 | PC29 | PC30 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Standard deviation | 3.843 | 1.533 | 1.391 | 1.378 | 1.111 | 1.025 | 0.962 | 0.847 | 0.808 | 0.738 | 0.689 | 0.646 | 0.639 | 0.605 | 0.569 | 0.556 | 0.524 | 0.485 | 0.452 | 0.429 | 0.365 | 0.347 | 0.311 | 0.307 | 0.277 | 0.265 | 0.239 | 0.184 | 0.170 | 0.133 |

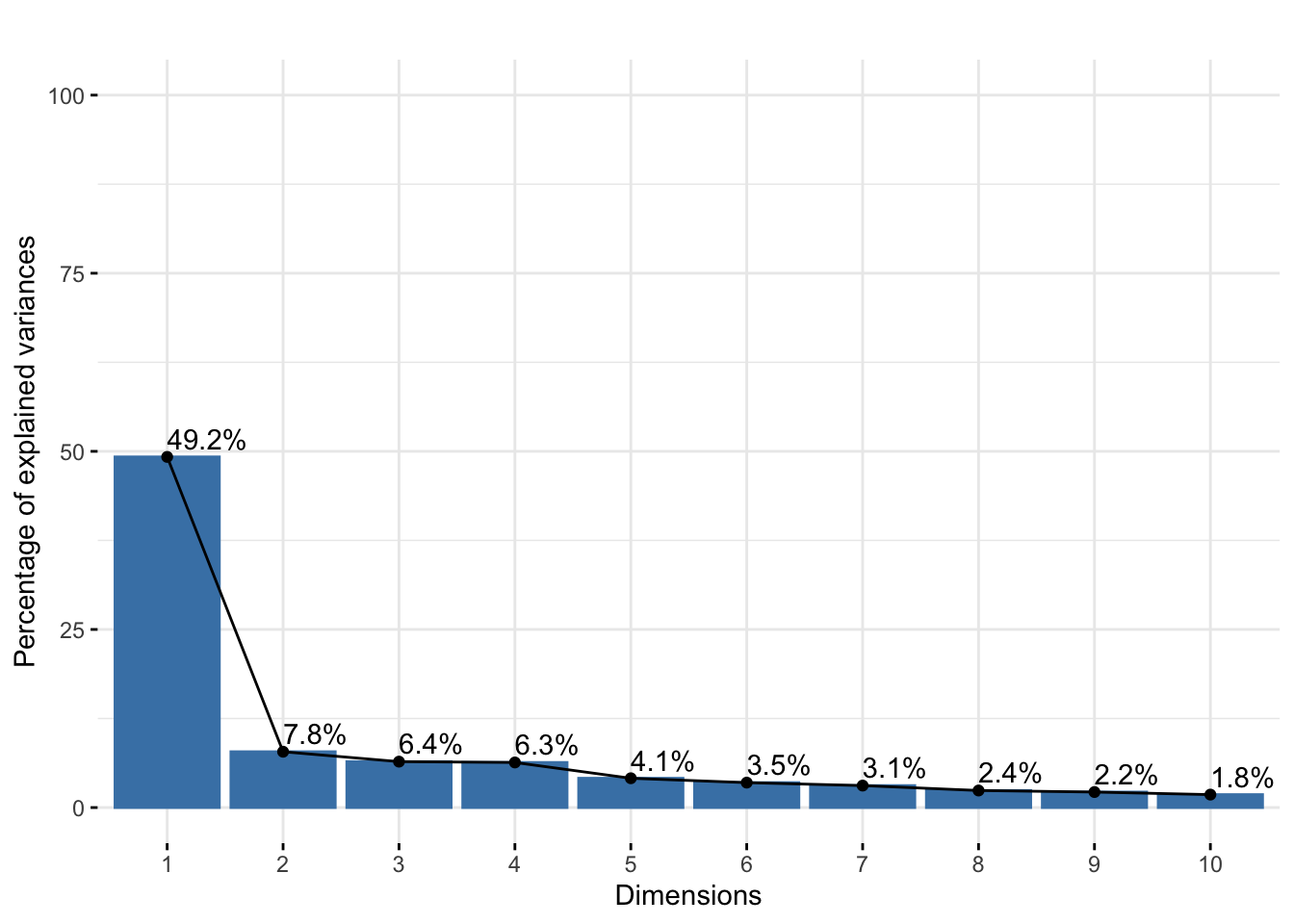

| Proportion of Variance | 0.492 | 0.078 | 0.064 | 0.063 | 0.041 | 0.035 | 0.031 | 0.024 | 0.022 | 0.018 | 0.016 | 0.014 | 0.014 | 0.012 | 0.011 | 0.010 | 0.009 | 0.008 | 0.007 | 0.006 | 0.004 | 0.004 | 0.003 | 0.003 | 0.003 | 0.002 | 0.002 | 0.001 | 0.001 | 0.001 |
| Cumulative Proportion | 0.492 | 0.571 | 0.635 | 0.698 | 0.739 | 0.774 | 0.805 | 0.829 | 0.851 | 0.869 | 0.885 | 0.899 | 0.912 | 0.925 | 0.935 | 0.946 | 0.955 | 0.963 | 0.970 | 0.976 | 0.980 | 0.984 | 0.987 | 0.991 | 0.993 | 0.995 | 0.997 | 0.998 | 0.999 | 1.000 |
Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Maternal Tdap+ vs. Tdap- vaccinated RCluster_ 1 PC1: p<.0001
Maternal Tdap+ vs. Tdap- vaccinated RCluster_ 1 PC2: p=.46
Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution
**Loadings
plot
Response Cluster: 2
Features: DT_ADCP, FHA_ADCP, PRN_ADCP

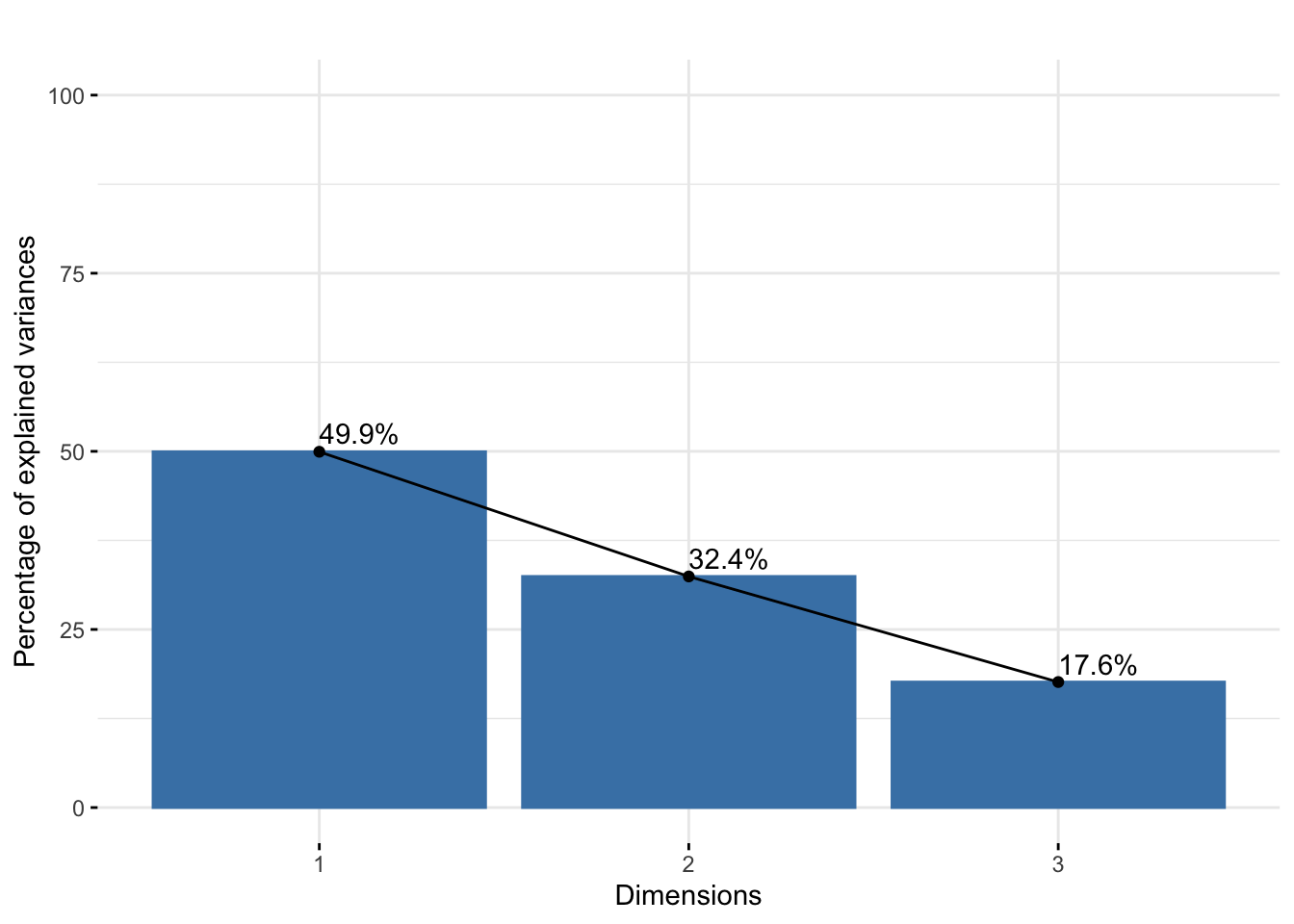

Proportion of Variance
summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | |
|---|---|---|---|
| Standard deviation | 1.224 | 0.986 | 0.727 |
| Proportion of Variance | 0.499 | 0.324 | 0.176 |
| Cumulative Proportion | 0.499 | 0.824 | 1.000 |

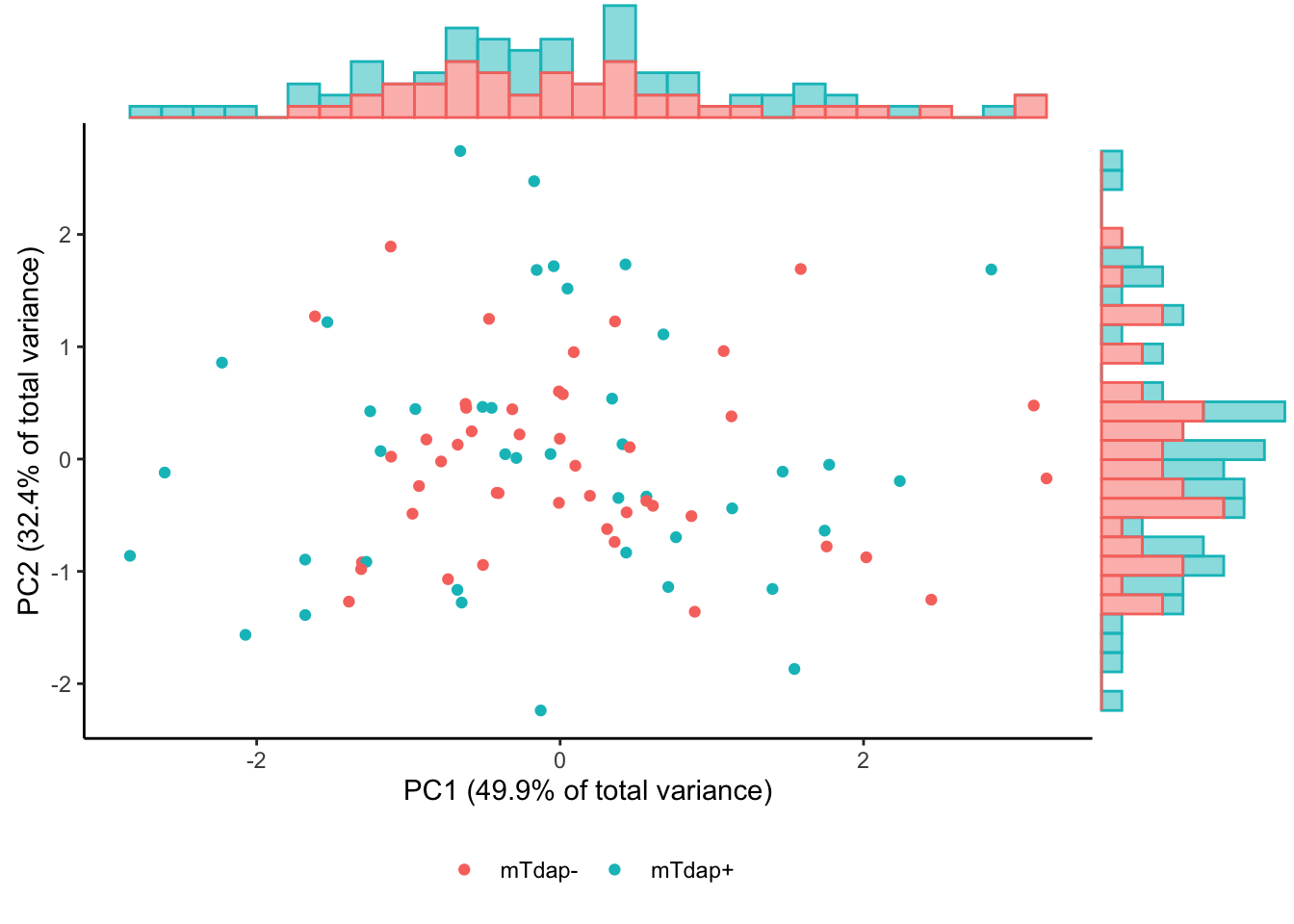

Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Maternal Tdap+ vs. Tdap- vaccinated RCluster_ 2 PC1: p=.43
Maternal Tdap+ vs. Tdap- vaccinated RCluster_ 2 PC2: p=.81

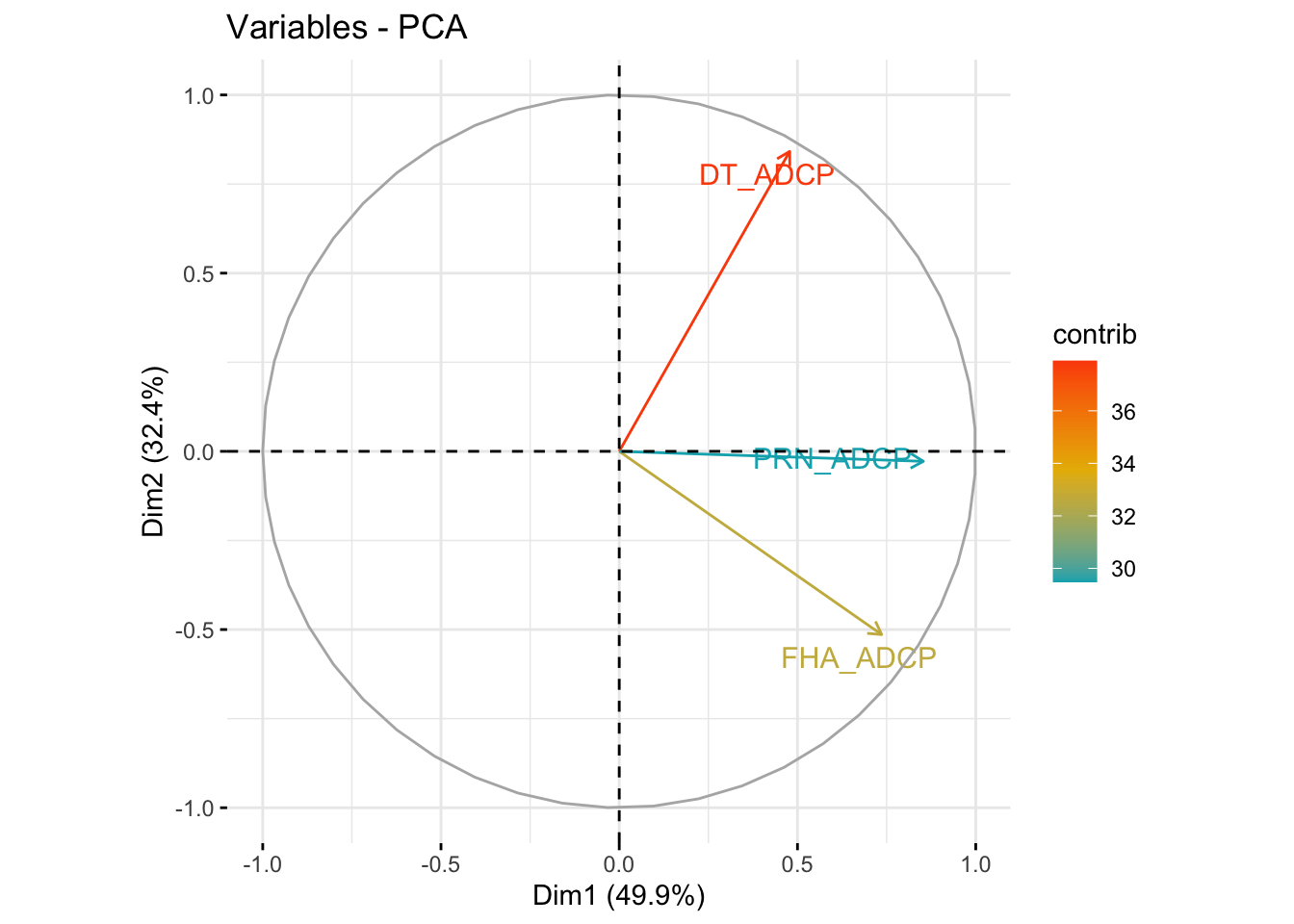

Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution
**Loadings
plot
Response Cluster: 3
Features: DT_ADNP, PT_IgG2

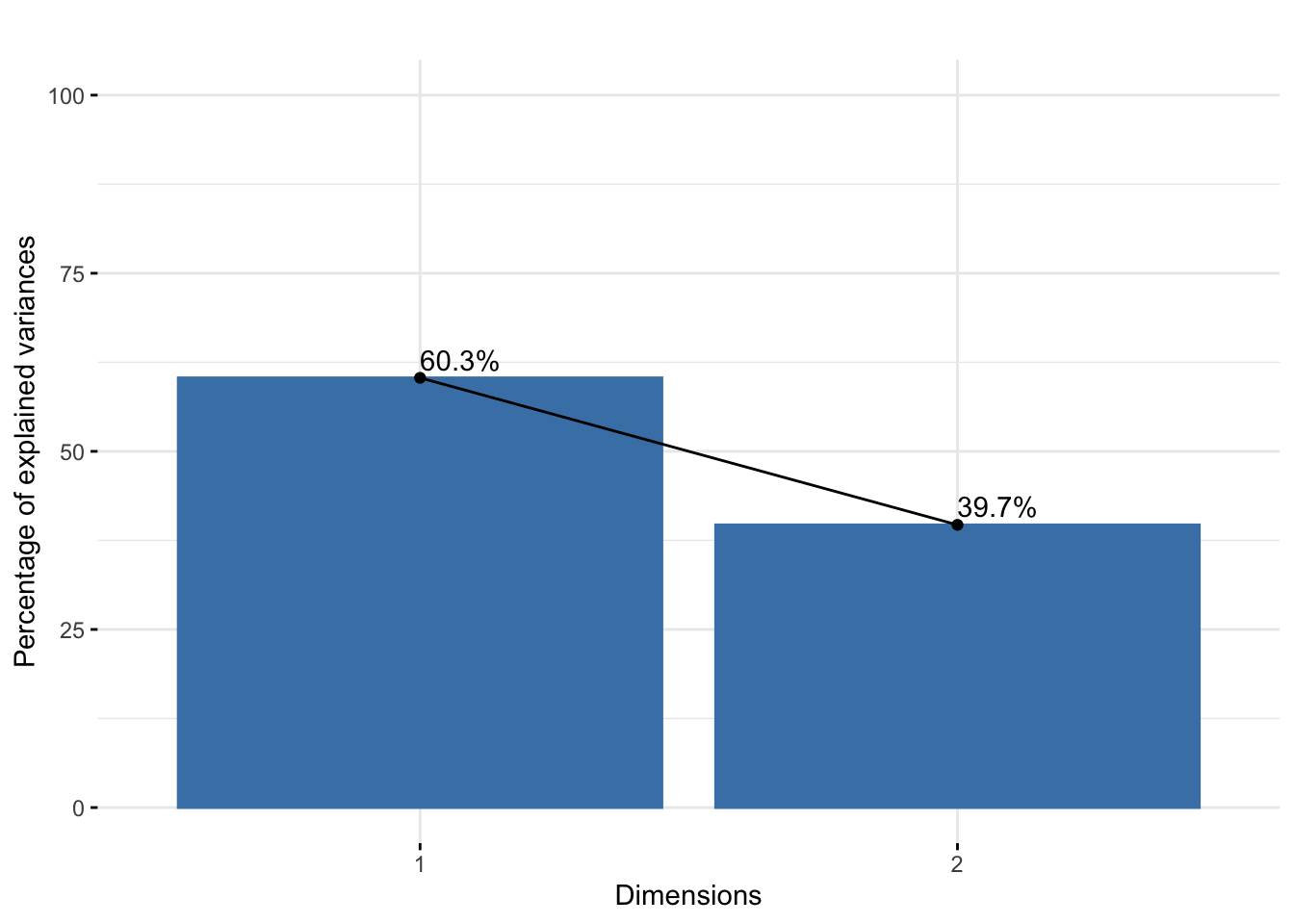

Proportion of Variance
summary for first 5 principal components (PC)| PC1 | PC2 | |
|---|---|---|
| Standard deviation | 1.098 | 0.891 |
| Proportion of Variance | 0.603 | 0.397 |
| Cumulative Proportion | 0.603 | 1.000 |

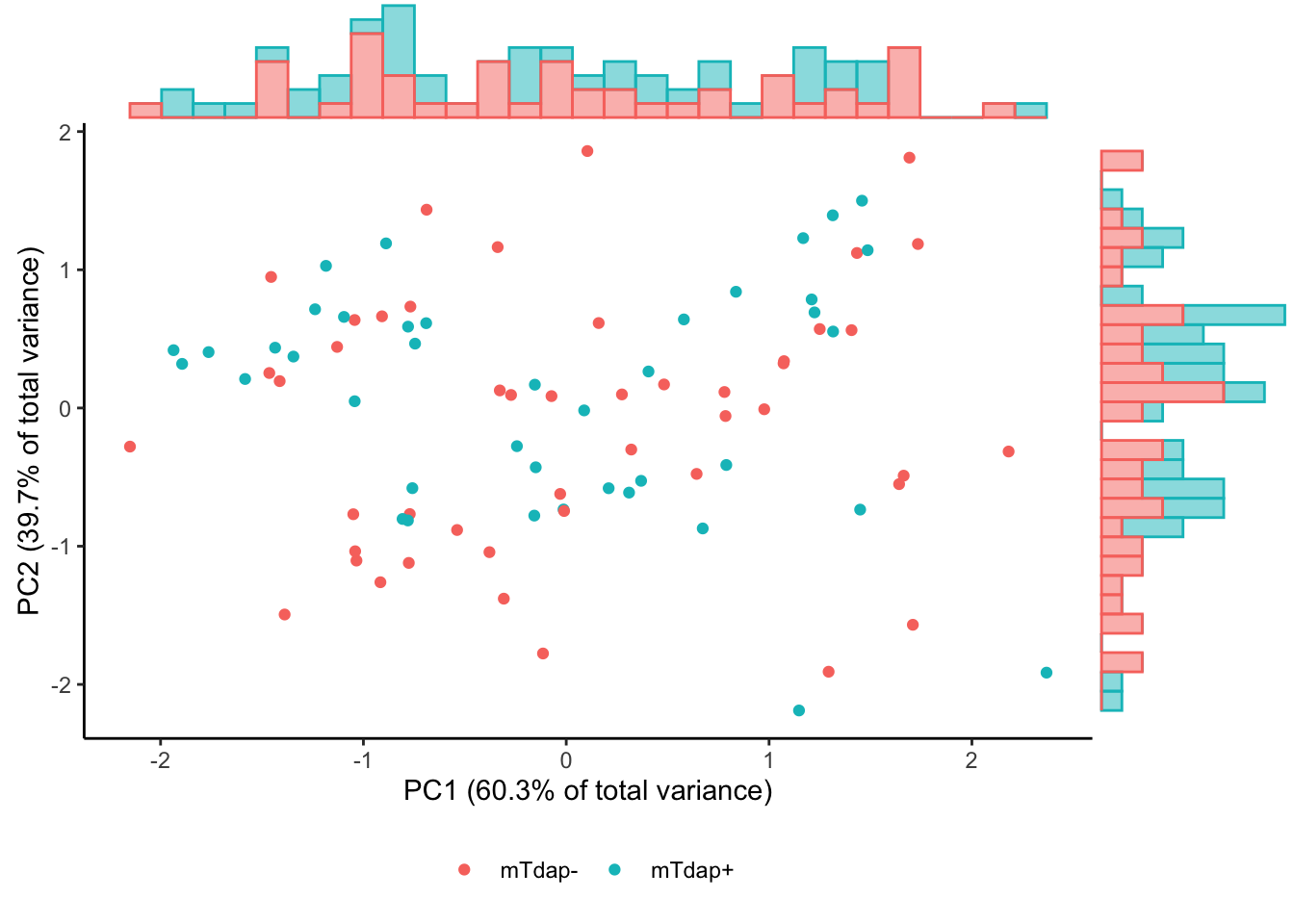

Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Maternal Tdap+ vs. Tdap- vaccinated RCluster_ 3 PC1: p=.66
Maternal Tdap+ vs. Tdap- vaccinated RCluster_ 3 PC2: p=.29

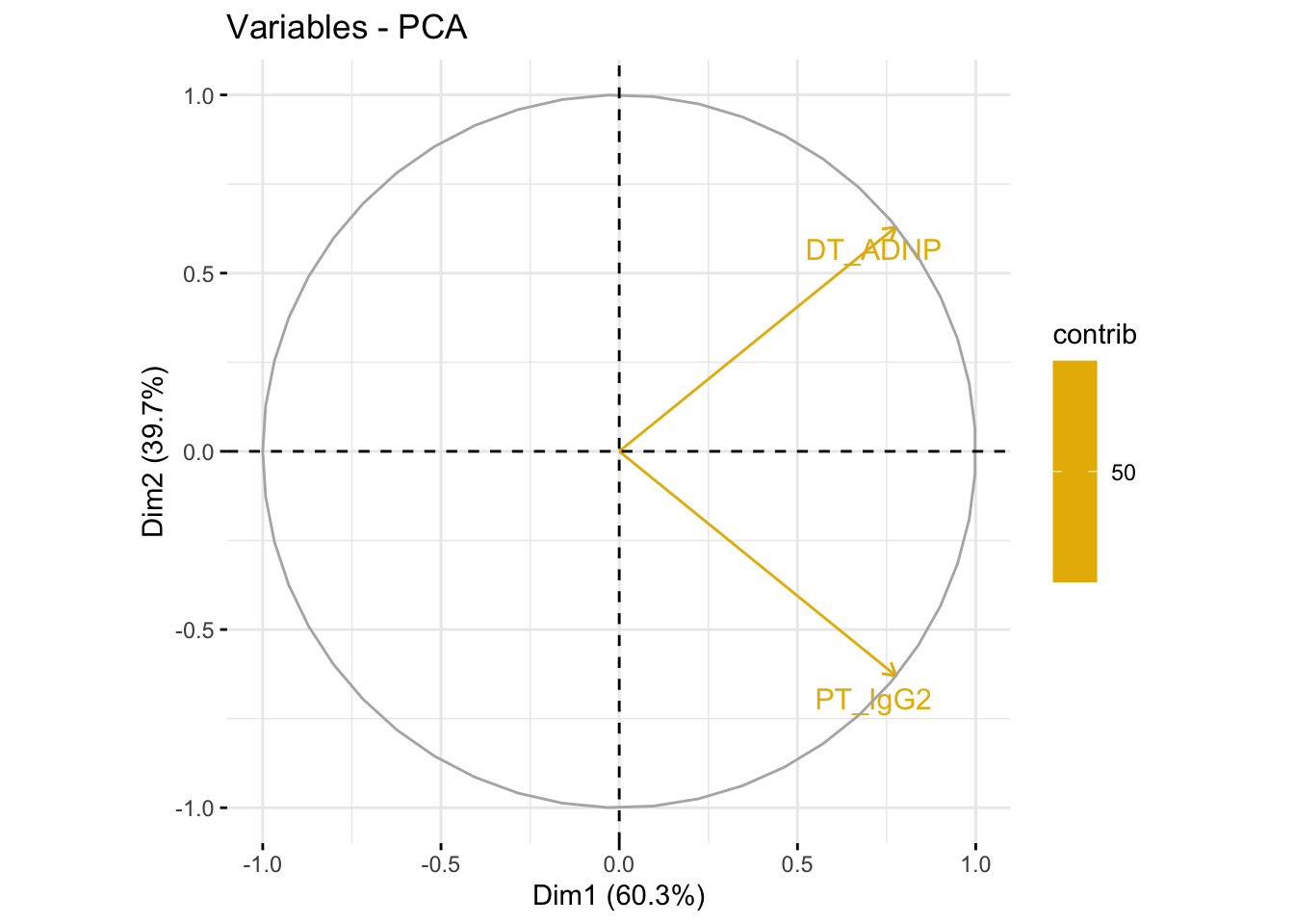

Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution
**Loadings
plot
Response Cluster: 4
Features: DT_IgG, FHA_IgG, PRN_IgG, PRN_IgG4, TT_IgG
Proportion of Variance
summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | |
|---|---|---|---|---|---|
| Standard deviation | 1.599 | 1.003 | 0.819 | 0.666 | 0.570 |
| Proportion of Variance | 0.511 | 0.201 | 0.134 | 0.089 | 0.065 |
| Cumulative Proportion | 0.511 | 0.712 | 0.846 | 0.935 | 1.000 |

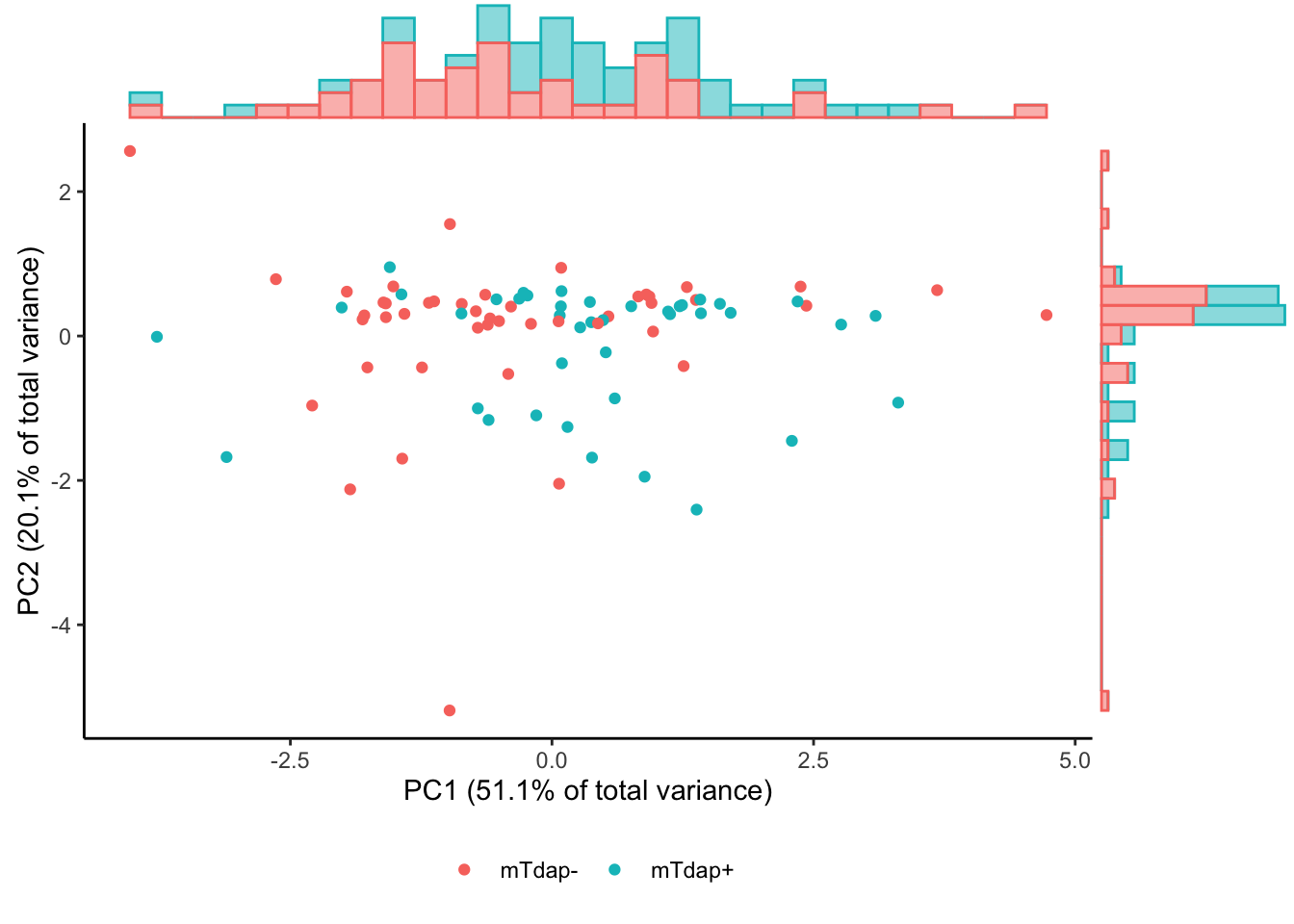

Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Maternal Tdap+ vs. Tdap- vaccinated RCluster_ 4 PC1: p=.034
Maternal Tdap+ vs. Tdap- vaccinated RCluster_ 4 PC2: p=.28
Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution
**Loadings
plot
Response Cluster: 5
Features: DT_IgG2, DT_IgG4, FHA_IgG2, FHA_IgG4, PT_IgG4, TT_IgG2, TT_IgG4
Proportion of Variance
summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | PC6 | PC7 | |
|---|---|---|---|---|---|---|---|
| Standard deviation | 1.745 | 1.077 | 1.033 | 0.764 | 0.734 | 0.592 | 0.508 |
| Proportion of Variance | 0.435 | 0.166 | 0.152 | 0.083 | 0.077 | 0.050 | 0.037 |
| Cumulative Proportion | 0.435 | 0.601 | 0.753 | 0.836 | 0.913 | 0.963 | 1.000 |

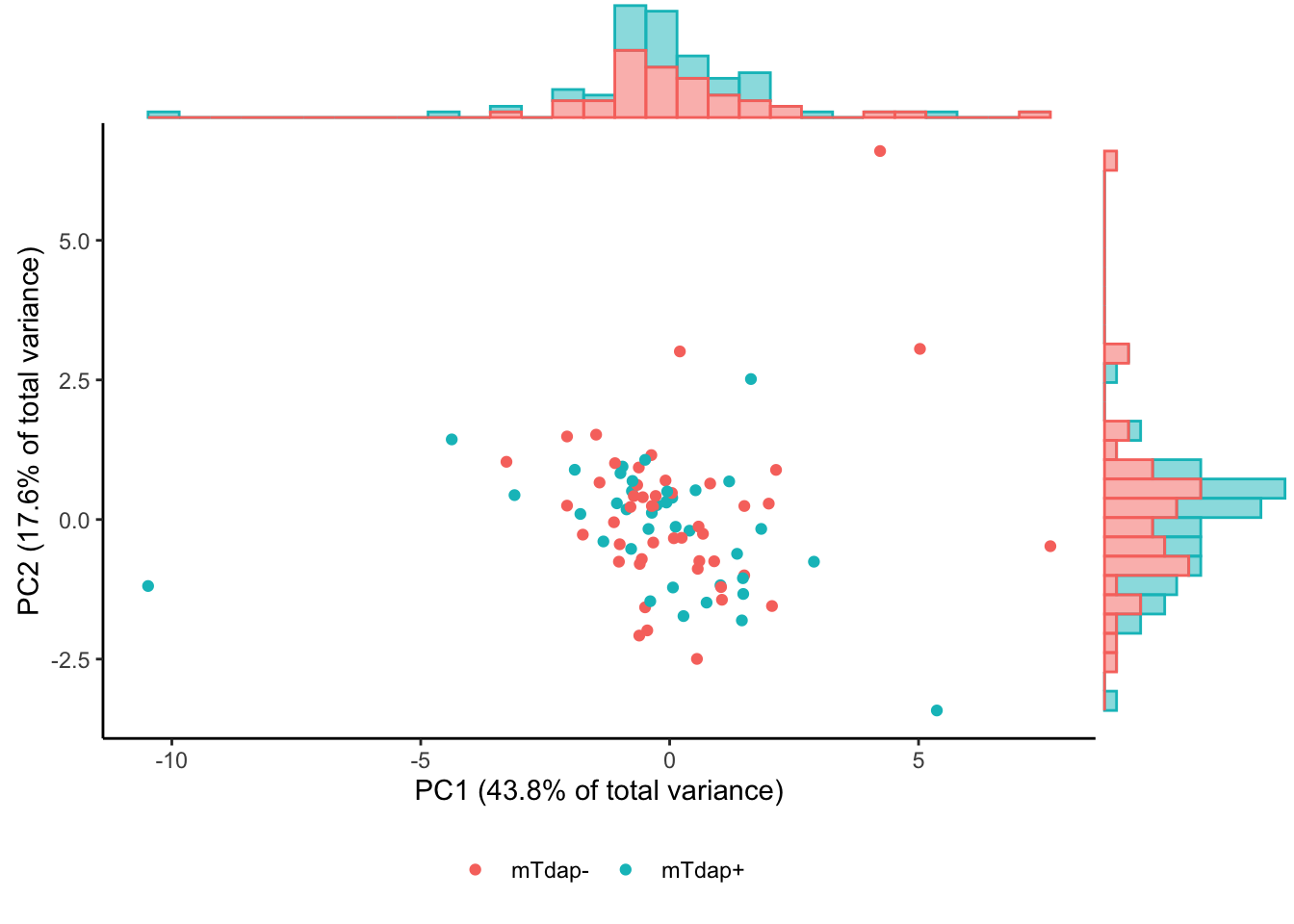

Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Maternal Tdap+ vs. Tdap- vaccinated RCluster_ 5 PC1: p=.28
Maternal Tdap+ vs. Tdap- vaccinated RCluster_ 5 PC2: p=.09
Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution
**Loadings
plot
Response Cluster: 6
Features: PRN_ADNP
Response Cluster: 7
Features: PRN_IgG2, PT_IgG
Proportion of Variance
summary for first 5 principal components (PC)| PC1 | PC2 | |
|---|---|---|
| Standard deviation | 1.110 | 0.877 |
| Proportion of Variance | 0.616 | 0.384 |
| Cumulative Proportion | 0.616 | 1.000 |
Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Maternal Tdap+ vs. Tdap- vaccinated RCluster_ 7 PC1: p<.0001
Maternal Tdap+ vs. Tdap- vaccinated RCluster_ 7 PC2: p=.15

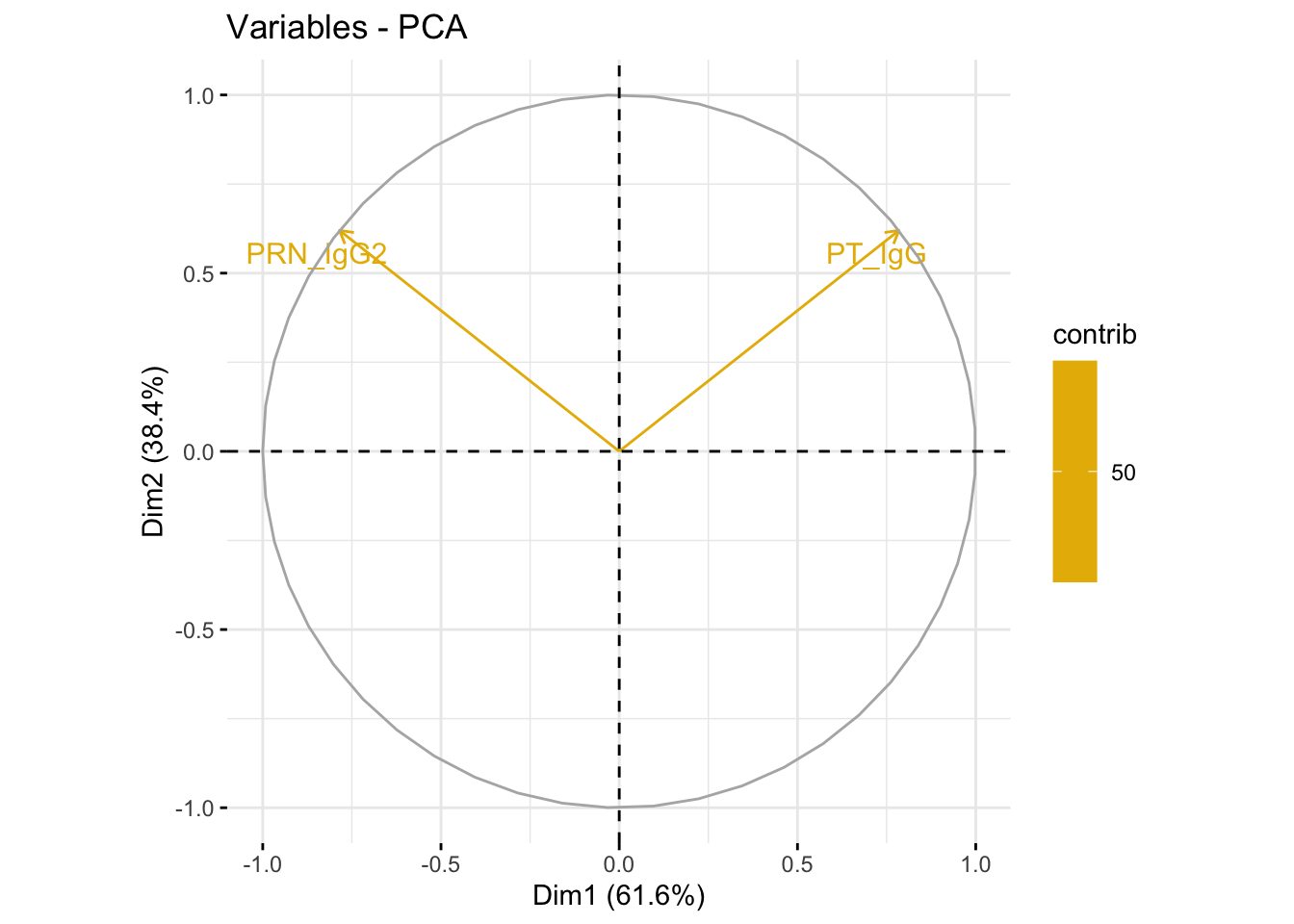

Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution

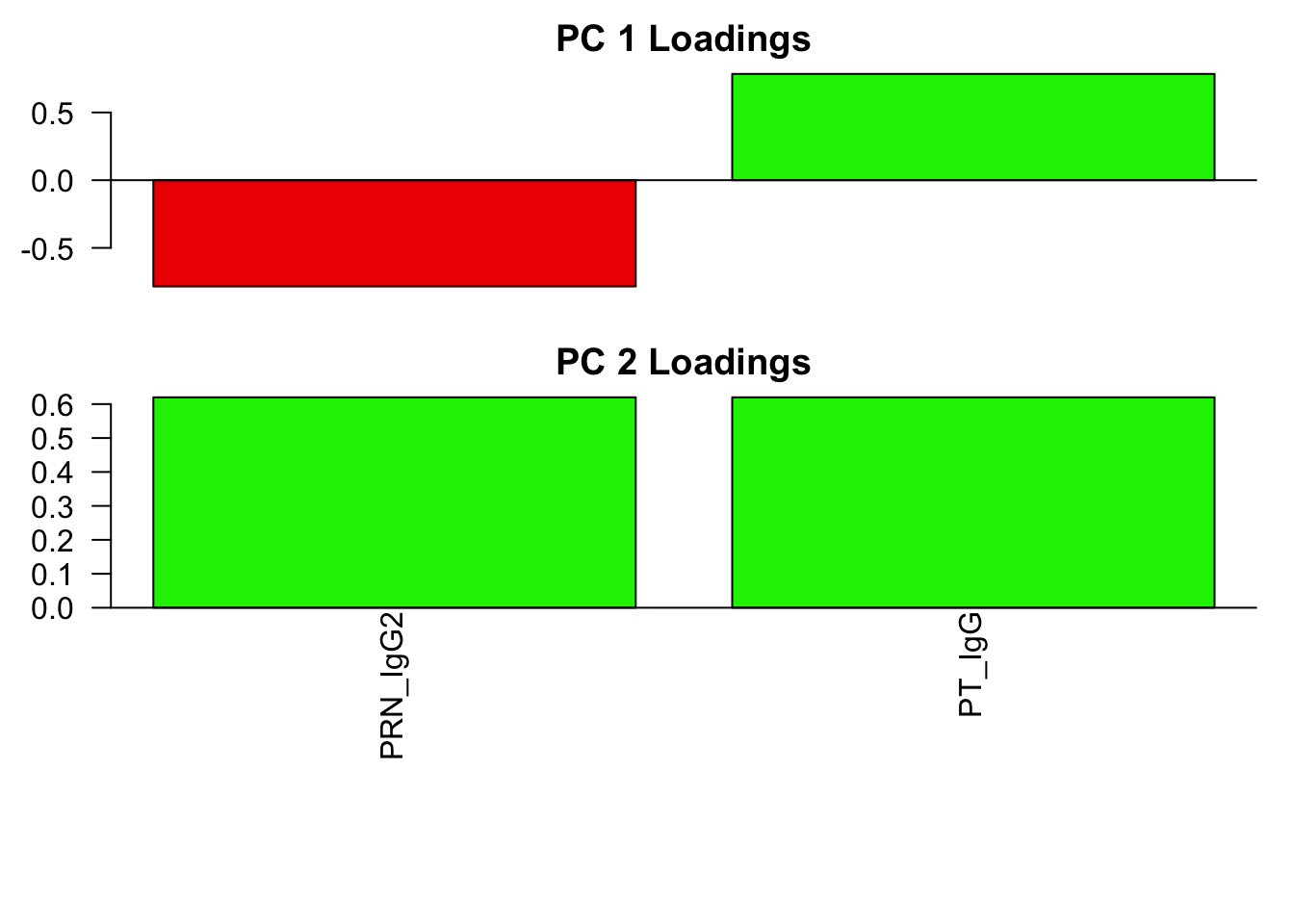

**Loadings
plot
Maternal Tdap+ vs. Tdap- visit: boosted - boosted : PCA Results
Antigen: PT
Features: PT_ADCD, PT_FcgR2a, PT_ADNP, PT_ADCP, PT_FcgR3b, PT_IgG, PT_IgG1, PT_IgG2, PT_IgG4, PT_IgG3
Proportion of Variance
Summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | |
|---|---|---|---|---|---|
| Standard deviation | 1.539 | 1.229 | 1.086 | 1.021 | 0.959 |
| Proportion of Variance | 0.237 | 0.151 | 0.118 | 0.104 | 0.092 |
| Cumulative Proportion | 0.237 | 0.388 | 0.506 | 0.610 | 0.702 |

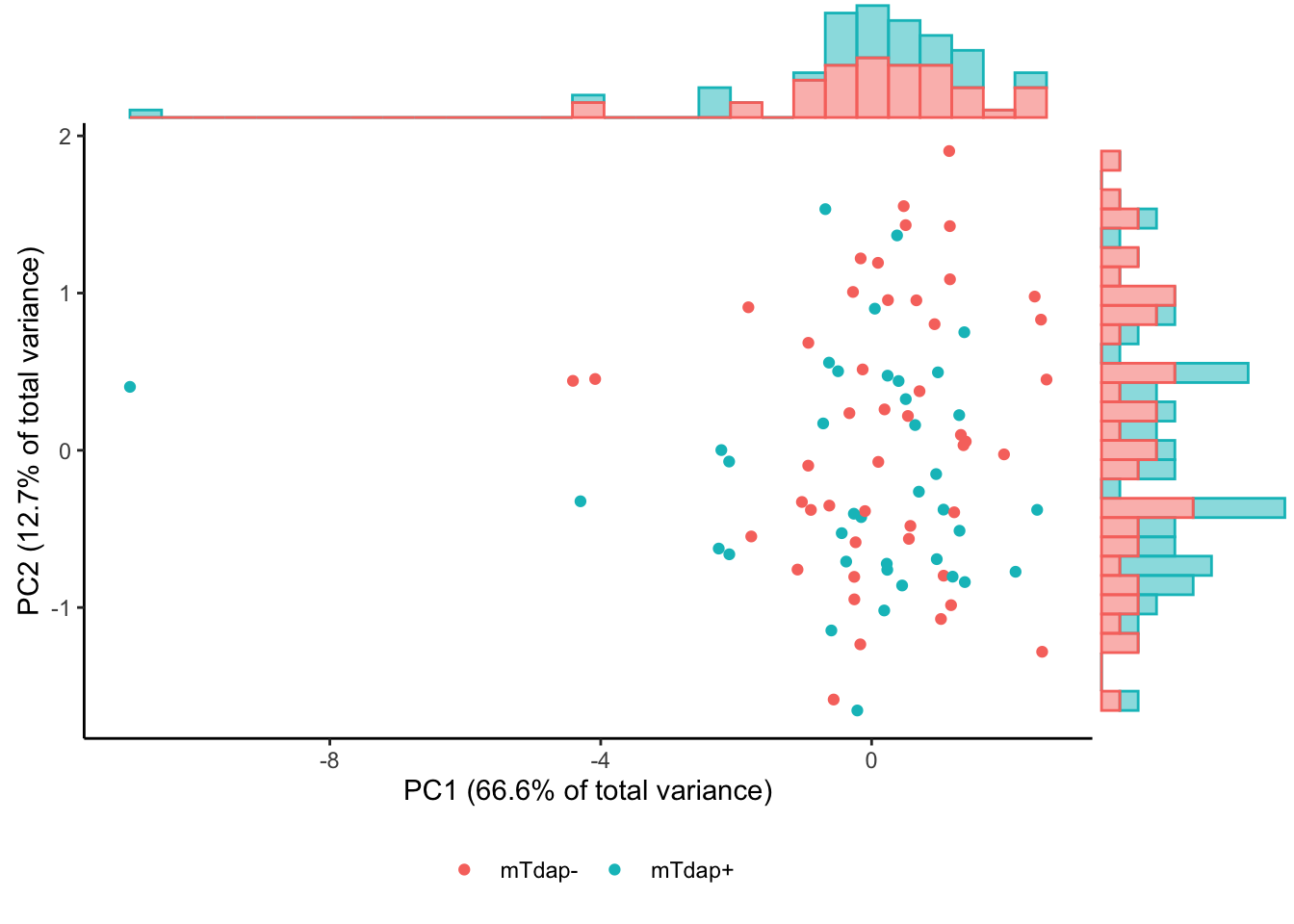

Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Maternal Tdap+ vs. Tdap- boosted PT PC1: p=.76
Maternal Tdap+ vs. Tdap- boosted PT PC2: p=.036

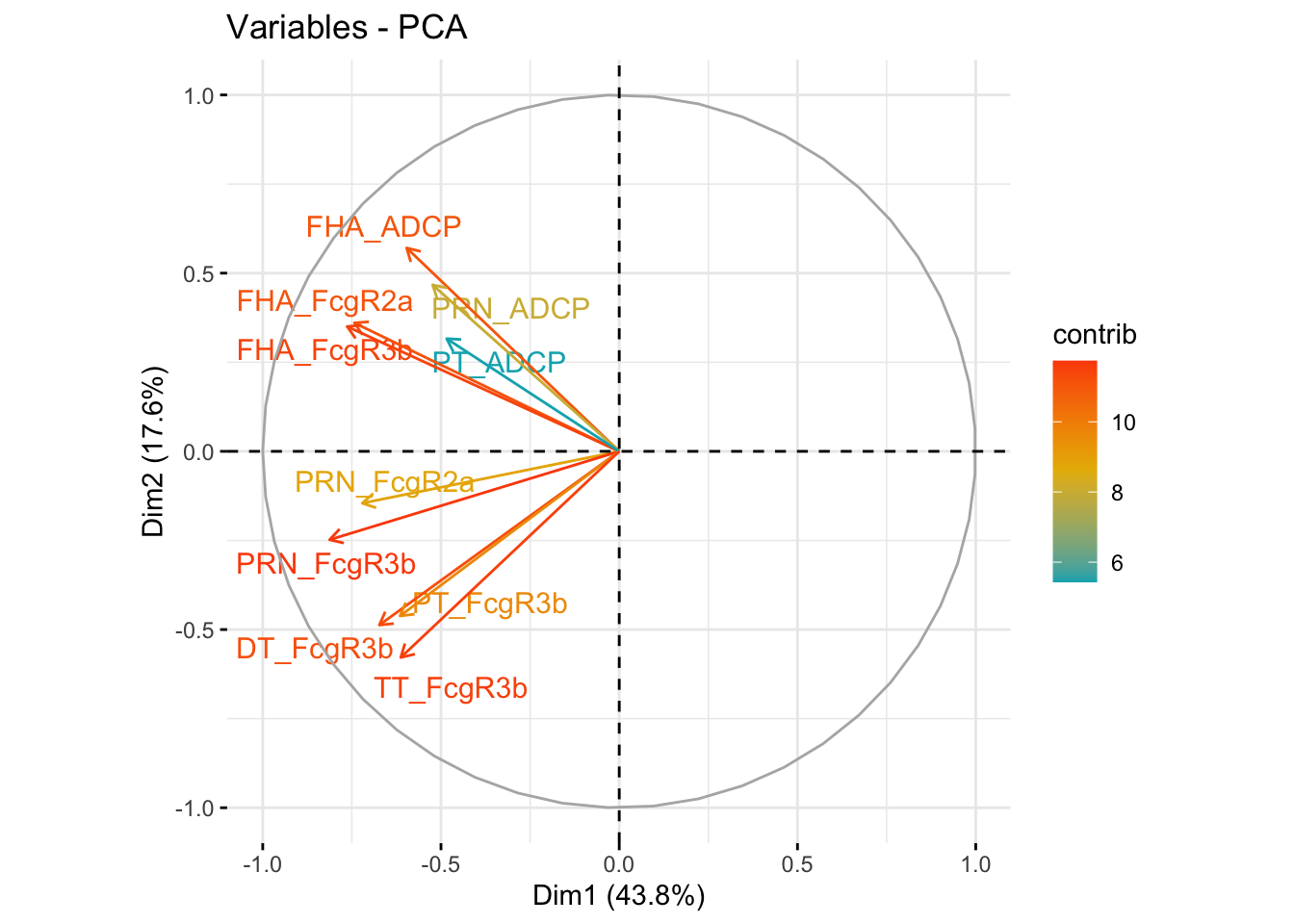

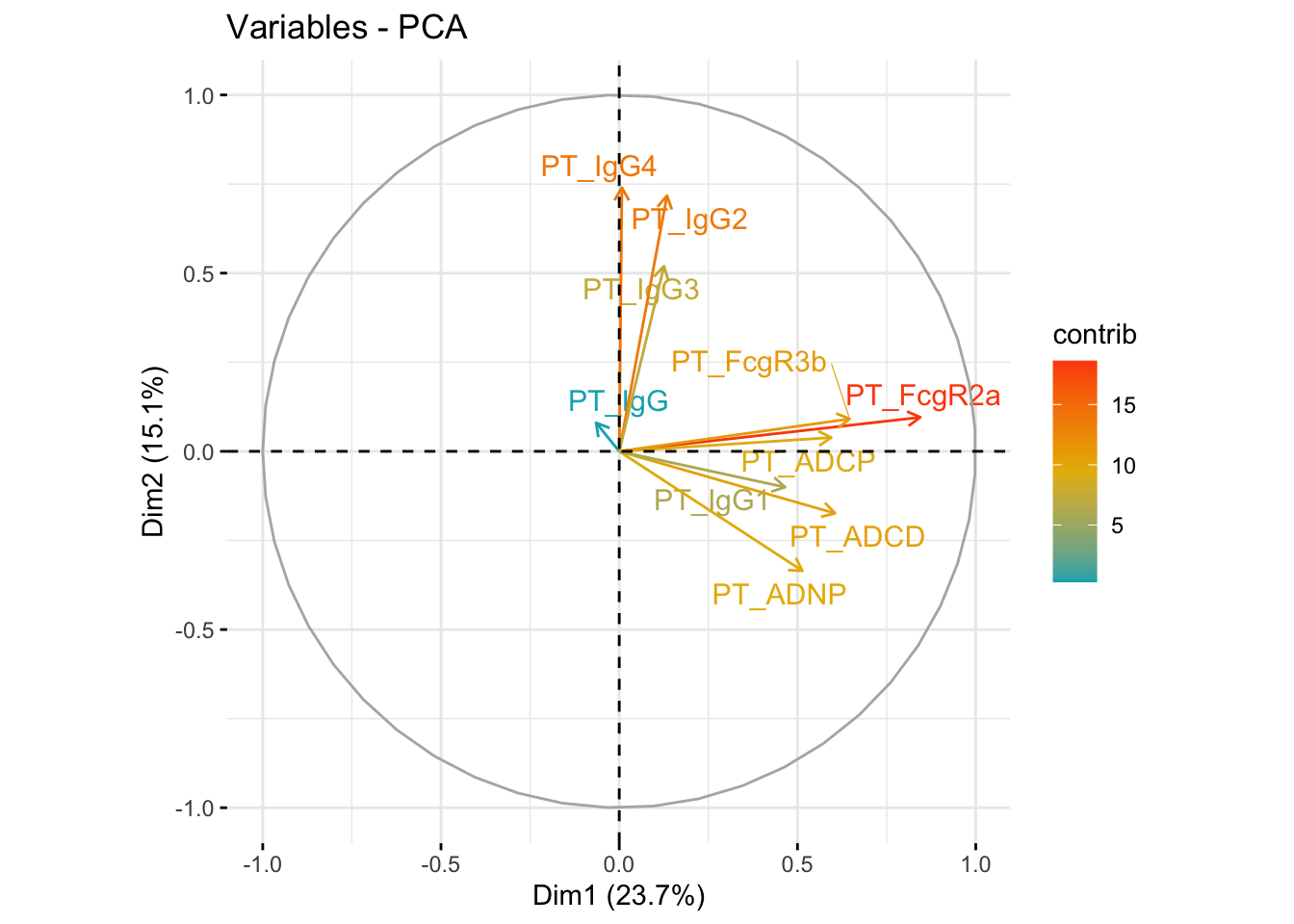

Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution
| Version | Author | Date |
|---|---|---|
| 9d33ff3 | f006zvn1 | 2024-08-19 |
**Loadings
plot
| Version | Author | Date |
|---|---|---|
| 9d33ff3 | f006zvn1 | 2024-08-19 |

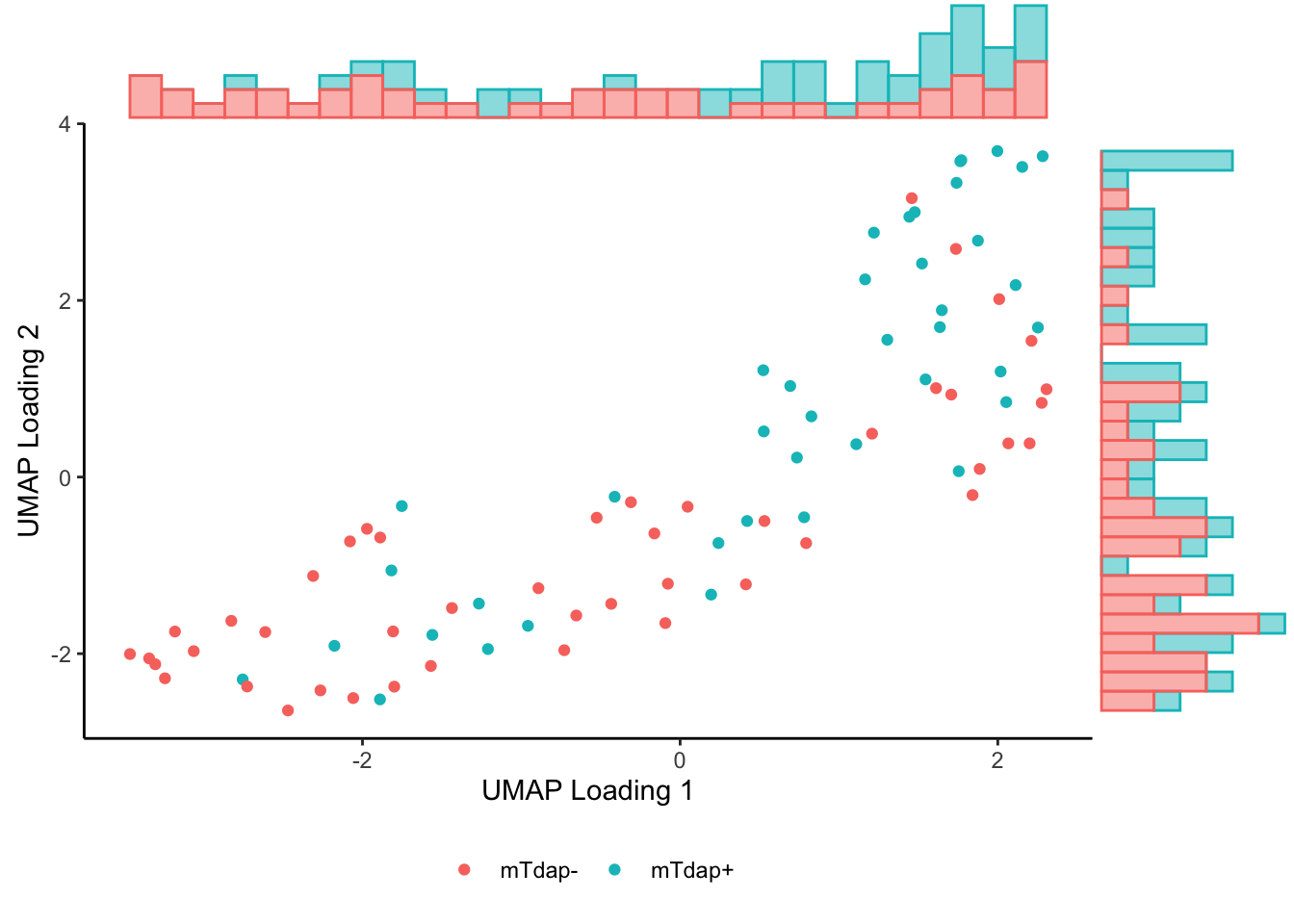

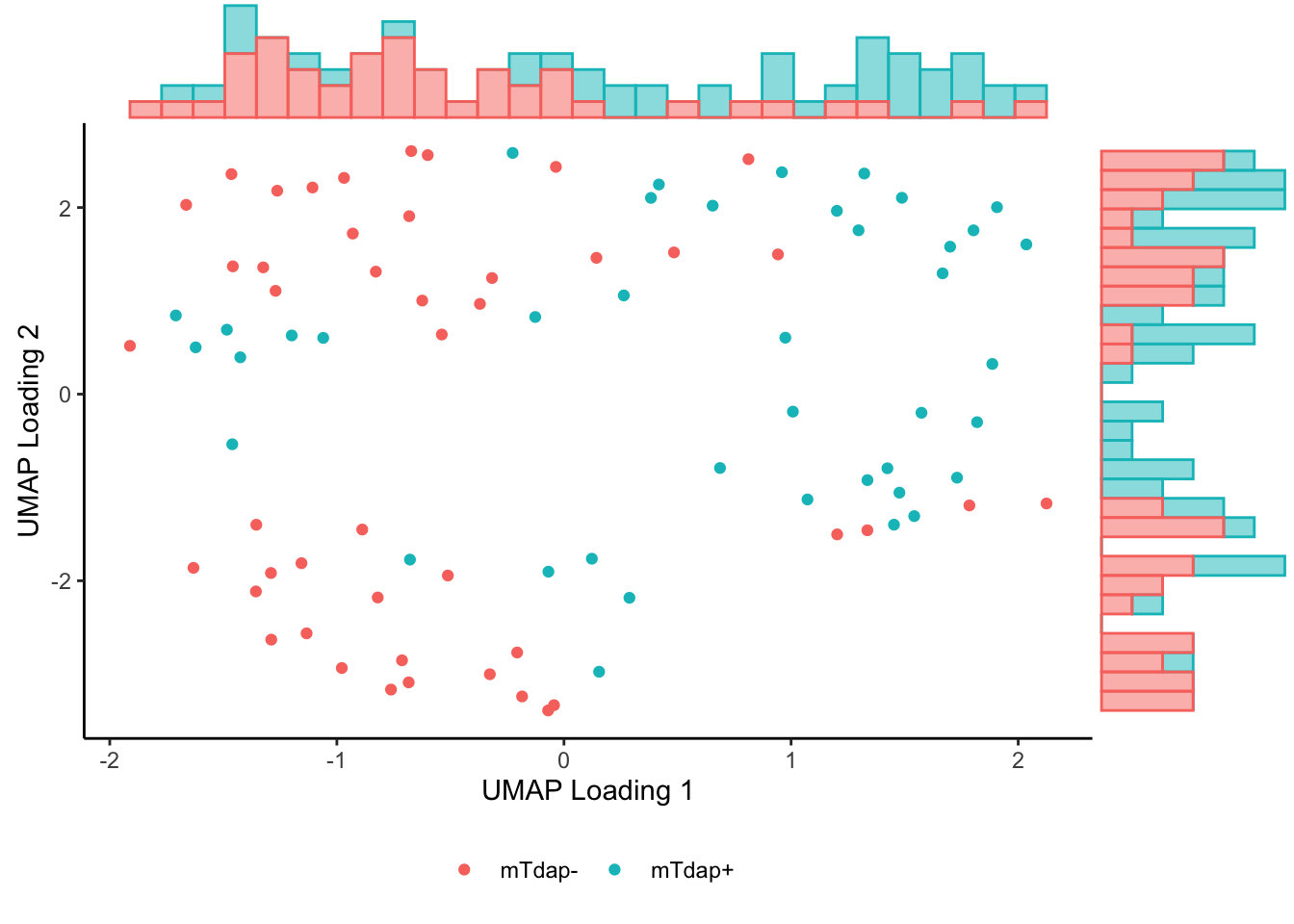

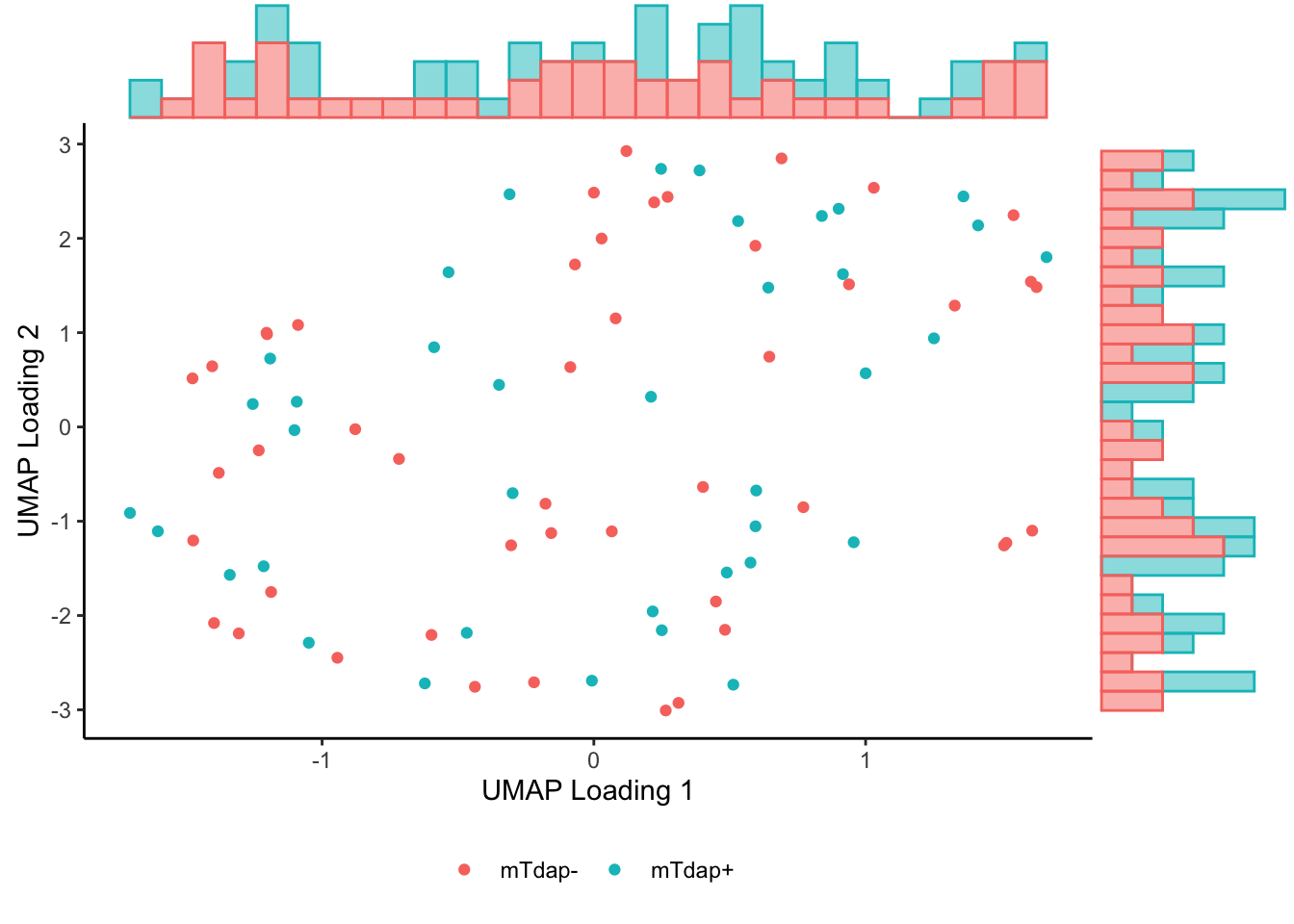

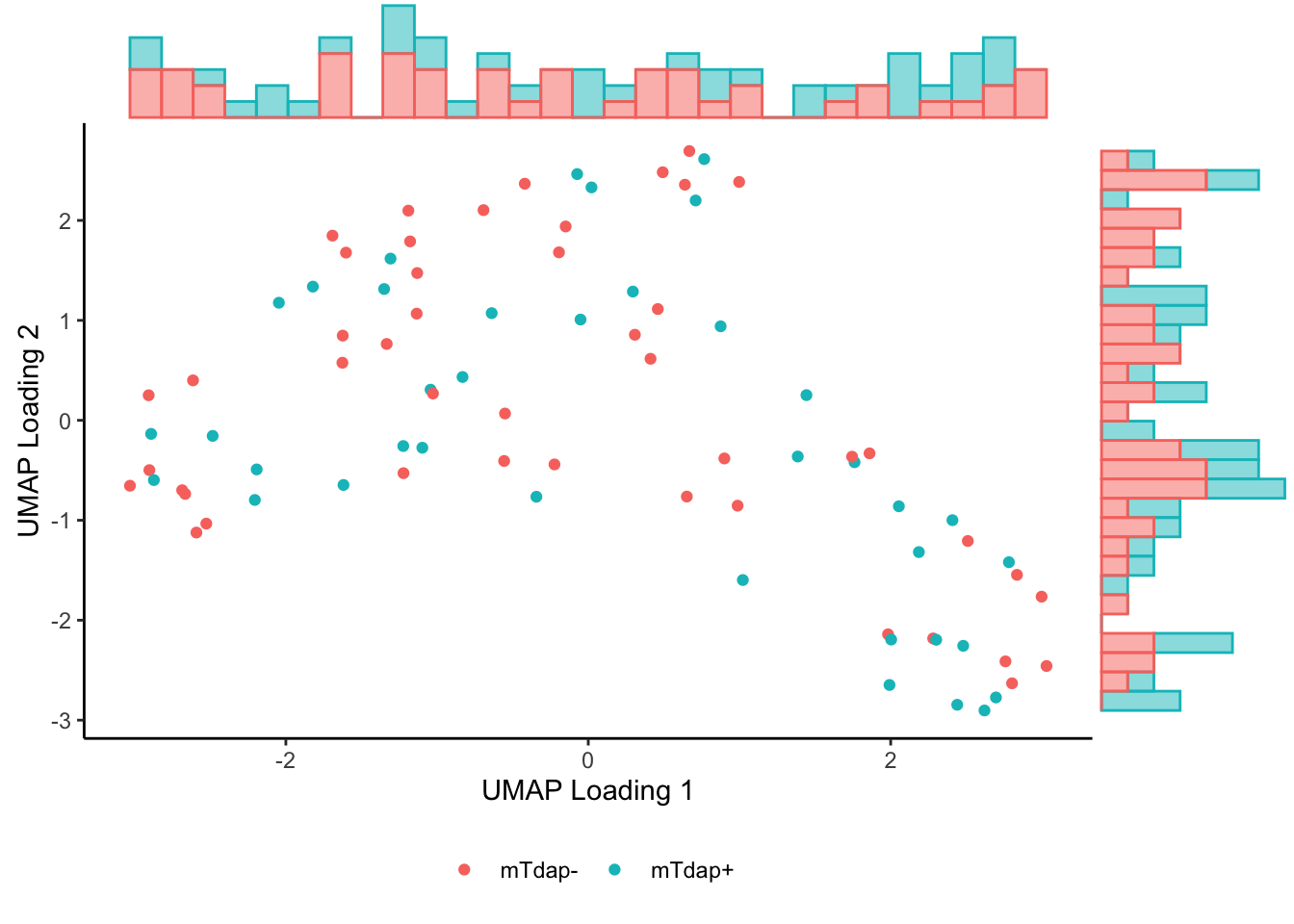

Plot of UMAP1 vs UMAP2 Loadings
| Version | Author | Date |
|---|---|---|
| 9d33ff3 | f006zvn1 | 2024-08-19 |
Comparison of UMAP loadings by arm
Maternal Tdap+ vs. Tdap- boosted PT UMAP1: p=.042
Maternal Tdap+ vs. Tdap- boosted PT UMAP2: p=.061
Antigen: FHA
Features: FHA_ADCD, FHA_ADNP, FHA_ADCP, FHA_FcgR2a, FHA_FcgR3b, FHA_IgG, FHA_IgG1, FHA_IgG2, FHA_IgG4, FHA_IgG3
Proportion of Variance
Summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | |
|---|---|---|---|---|---|
| Standard deviation | 1.739 | 1.224 | 1.128 | 1.051 | 1.006 |
| Proportion of Variance | 0.303 | 0.150 | 0.127 | 0.110 | 0.101 |
| Cumulative Proportion | 0.303 | 0.452 | 0.580 | 0.690 | 0.791 |
| Version | Author | Date |
|---|---|---|
| 9d33ff3 | f006zvn1 | 2024-08-19 |
Plot of PC1 vs PC2 scores
| Version | Author | Date |
|---|---|---|
| 9d33ff3 | f006zvn1 | 2024-08-19 |
Comparison of principle components by arm
Maternal Tdap+ vs. Tdap- boosted FHA PC1: p=.3
Maternal Tdap+ vs. Tdap- boosted FHA PC2: p=.28
Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution
| Version | Author | Date |
|---|---|---|
| 9d33ff3 | f006zvn1 | 2024-08-19 |
**Loadings
plot
| Version | Author | Date |
|---|---|---|
| 9d33ff3 | f006zvn1 | 2024-08-19 |

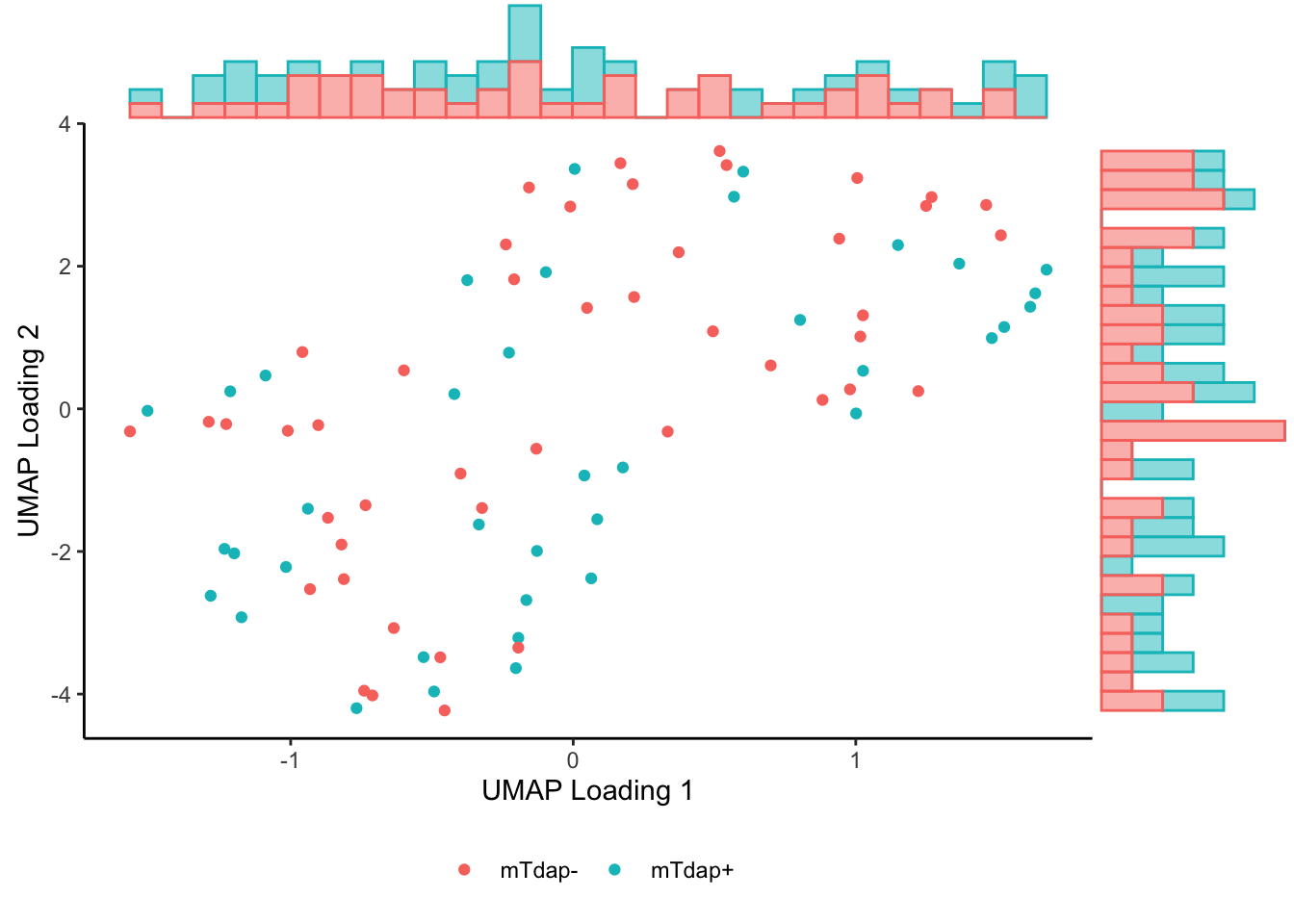

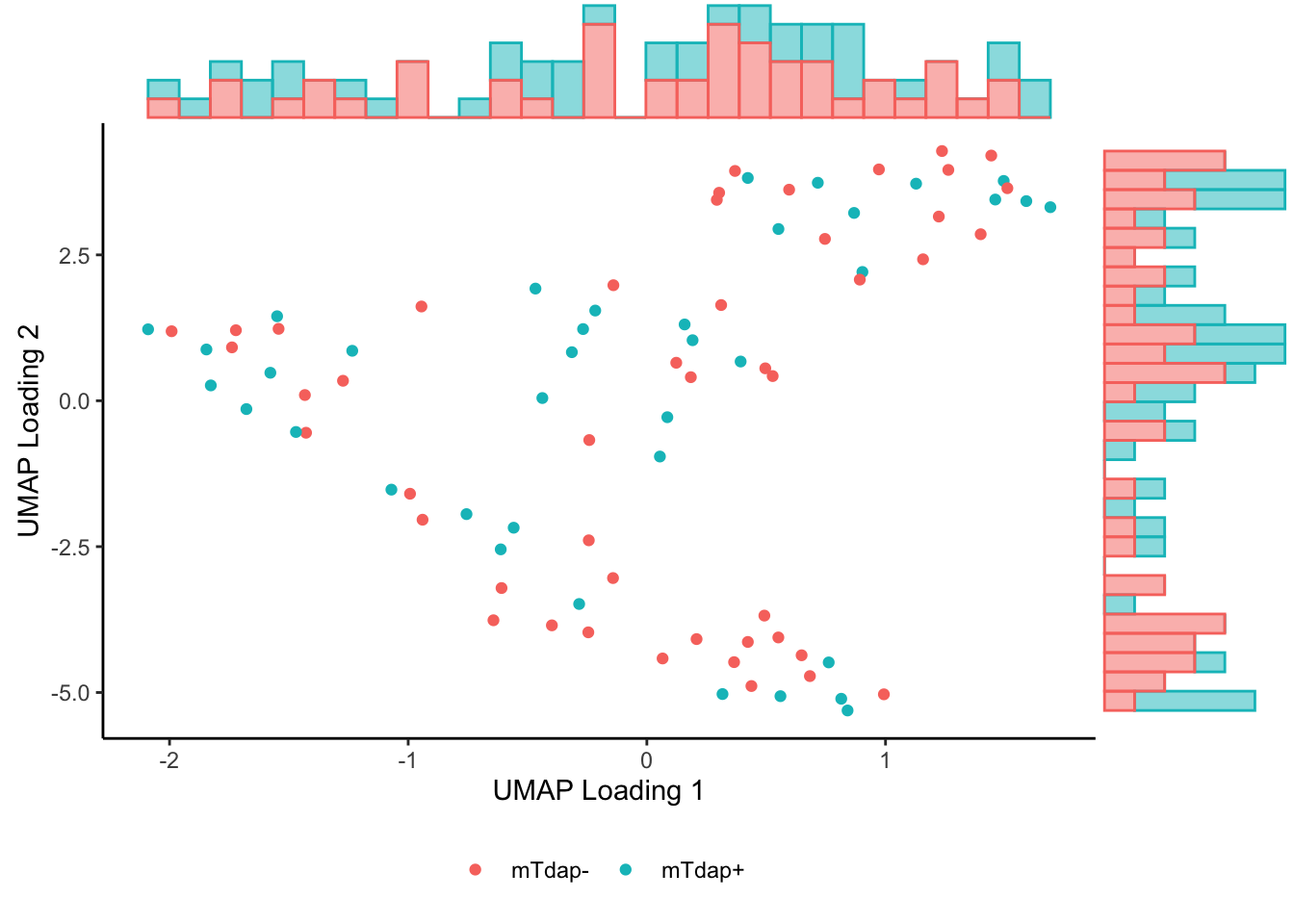

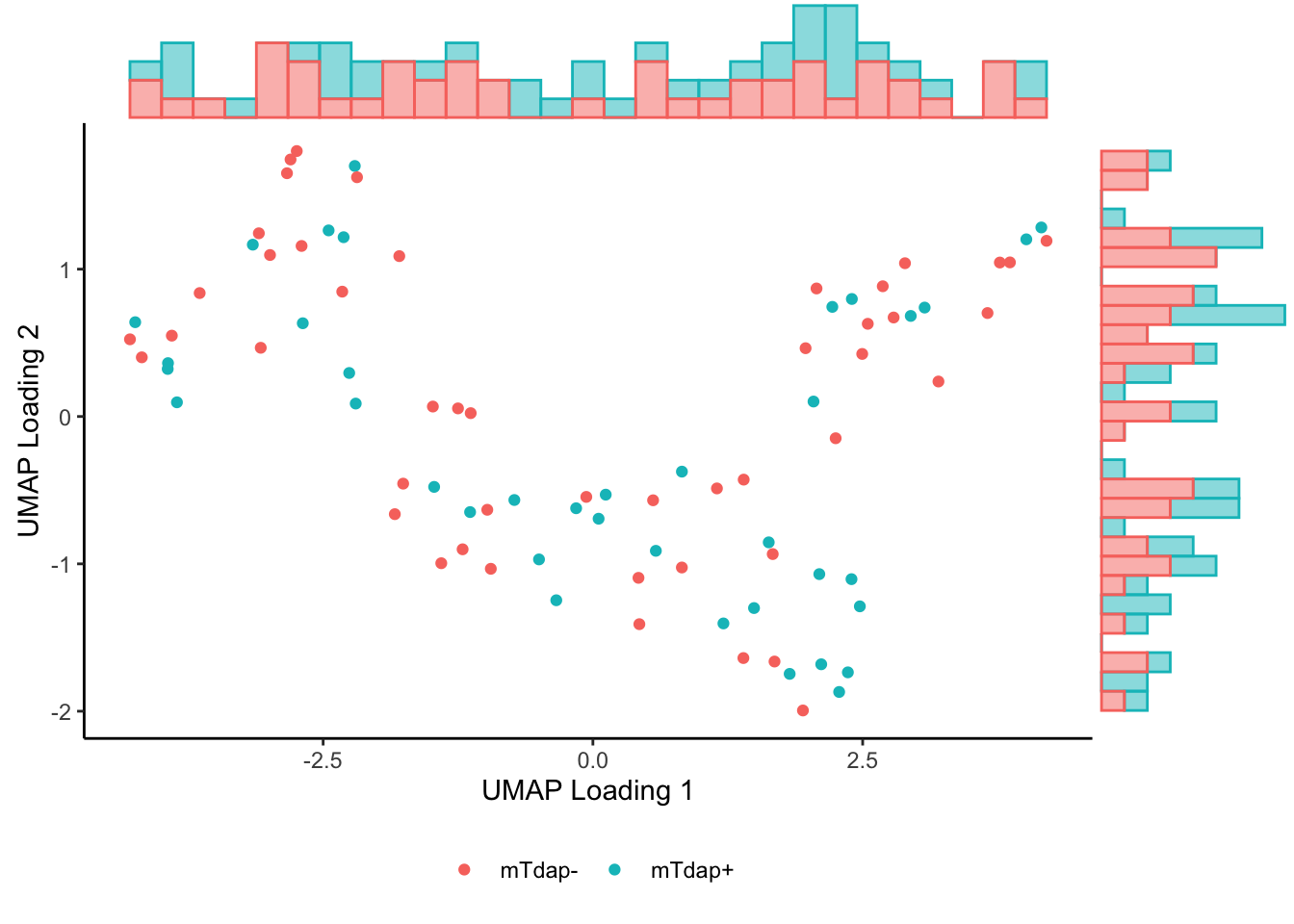

Plot of UMAP1 vs UMAP2 Loadings
| Version | Author | Date |
|---|---|---|
| 9d33ff3 | f006zvn1 | 2024-08-19 |
Comparison of UMAP loadings by arm
Maternal Tdap+ vs. Tdap- boosted FHA UMAP1: p=.81
Maternal Tdap+ vs. Tdap- boosted FHA UMAP2: p=.022
Antigen: PRN
Features: PRN_ADCD, PRN_ADNP, PRN_ADCP, PRN_FcgR2a, PRN_FcgR3b, PRN_IgG, PRN_IgG1, PRN_IgG2, PRN_IgG4, PRN_IgG3

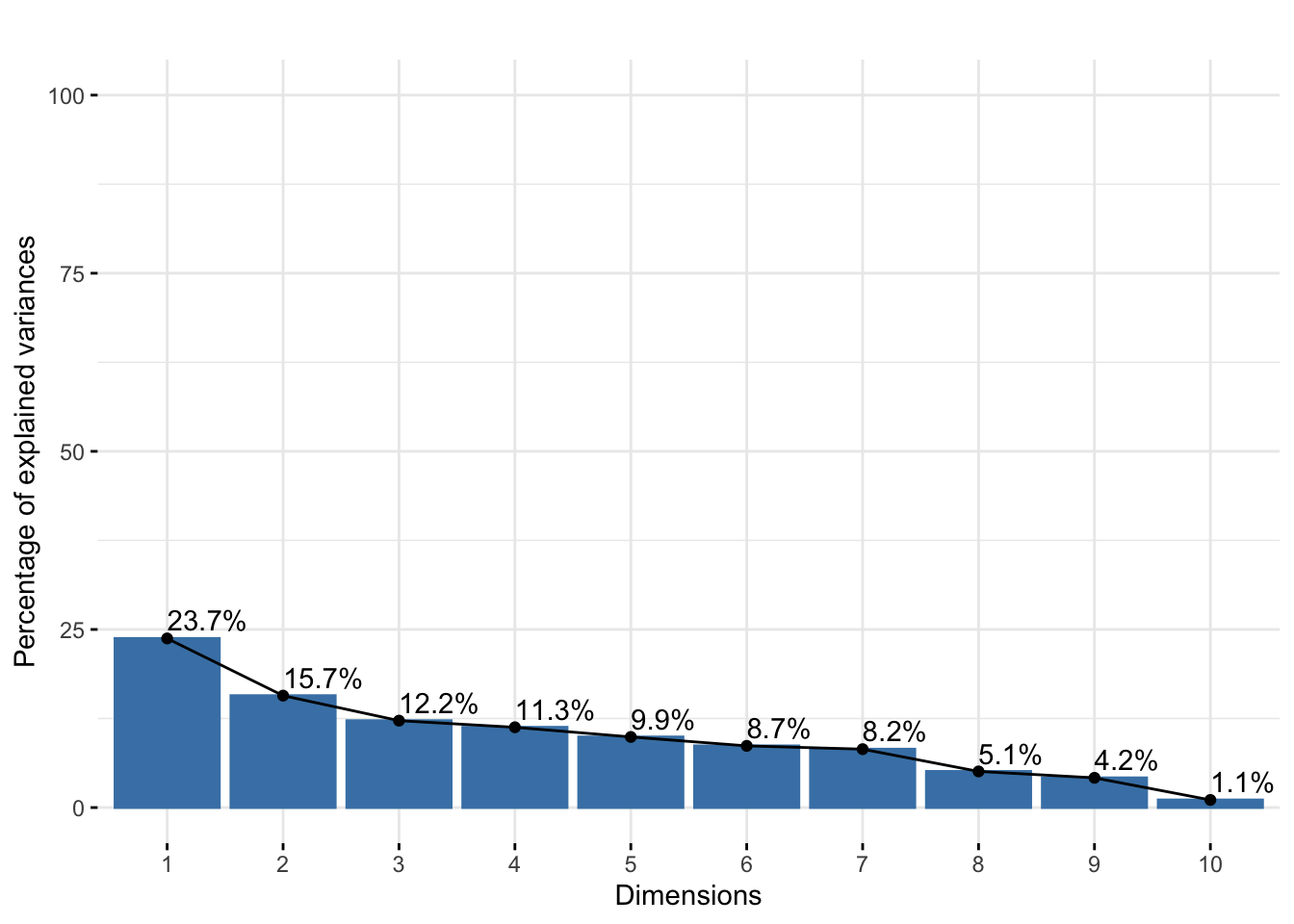

Proportion of Variance
Summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | |
|---|---|---|---|---|---|
| Standard deviation | 1.541 | 1.253 | 1.104 | 1.062 | 0.996 |
| Proportion of Variance | 0.237 | 0.157 | 0.122 | 0.113 | 0.099 |
| Cumulative Proportion | 0.237 | 0.394 | 0.516 | 0.629 | 0.728 |
| Version | Author | Date |
|---|---|---|
| 9d33ff3 | f006zvn1 | 2024-08-19 |
Plot of PC1 vs PC2 scores
| Version | Author | Date |
|---|---|---|
| 9d33ff3 | f006zvn1 | 2024-08-19 |
Comparison of principle components by arm
Maternal Tdap+ vs. Tdap- boosted PRN PC1: p=.8
Maternal Tdap+ vs. Tdap- boosted PRN PC2: p=.9
Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution
| Version | Author | Date |
|---|---|---|
| 9d33ff3 | f006zvn1 | 2024-08-19 |
**Loadings
plot
| Version | Author | Date |
|---|---|---|
| 9d33ff3 | f006zvn1 | 2024-08-19 |

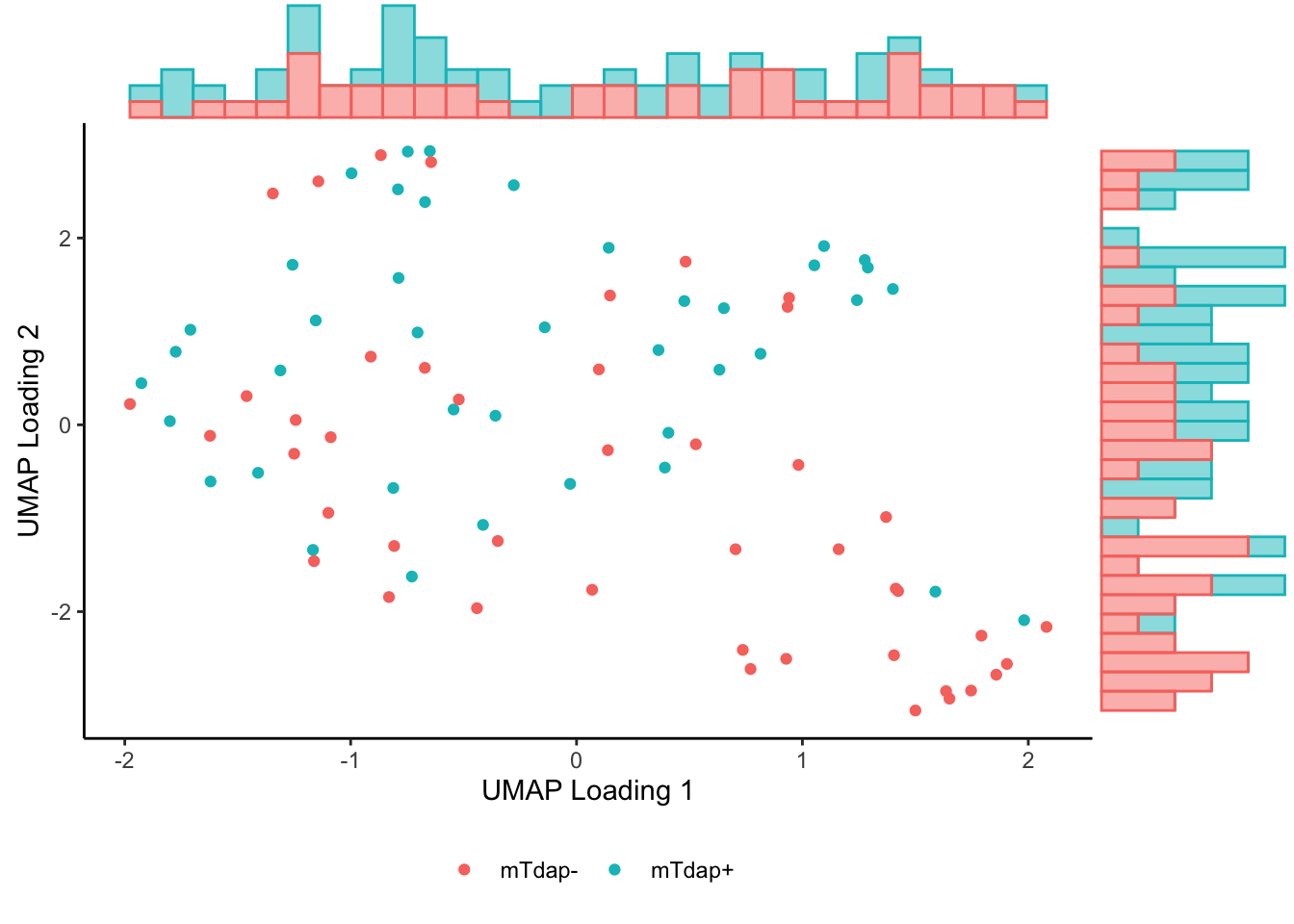

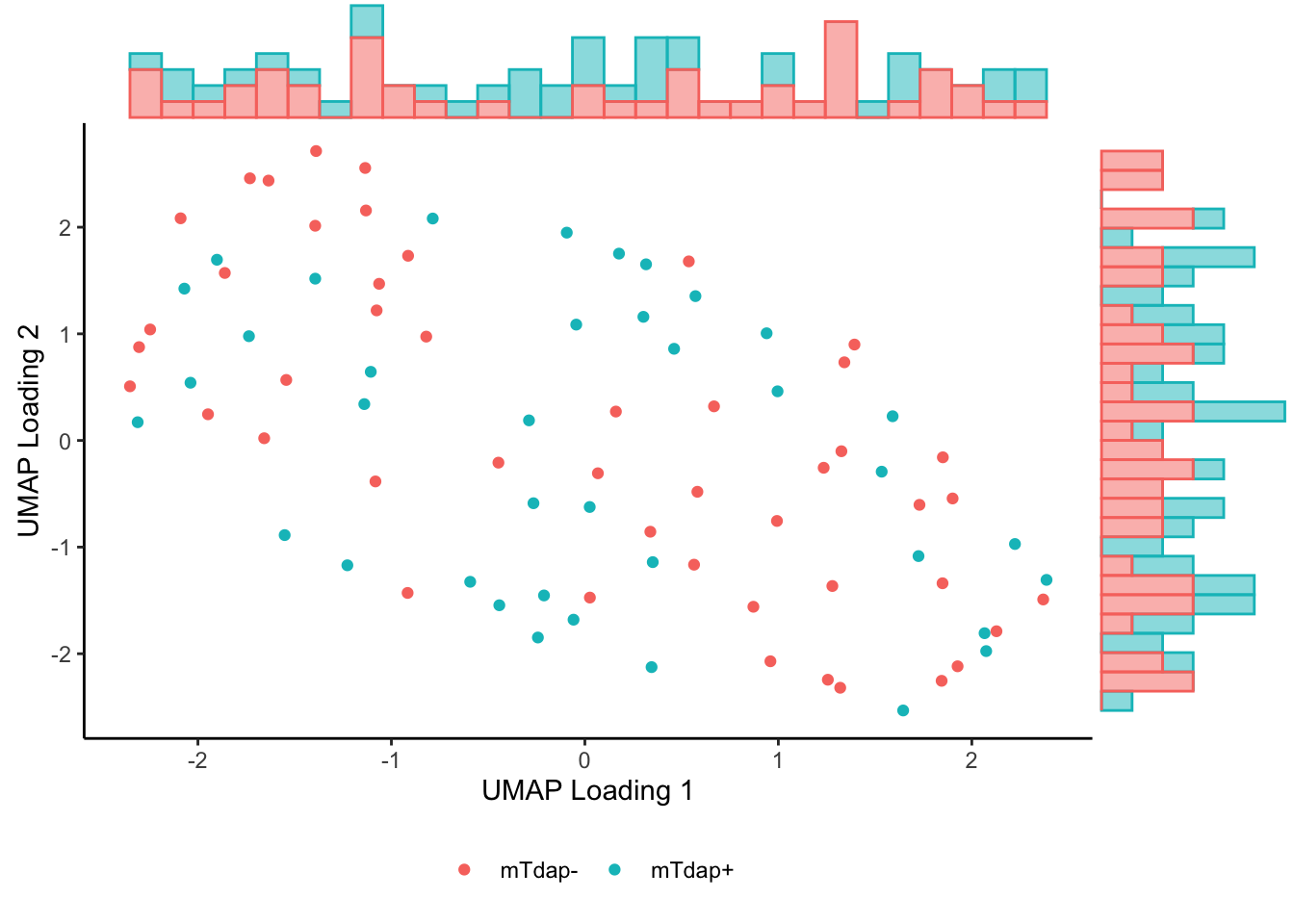

Plot of UMAP1 vs UMAP2 Loadings
| Version | Author | Date |
|---|---|---|
| 9d33ff3 | f006zvn1 | 2024-08-19 |
Comparison of UMAP loadings by arm
Maternal Tdap+ vs. Tdap- boosted PRN UMAP1: p=.33
Maternal Tdap+ vs. Tdap- boosted PRN UMAP2: p=.23
Antigen: DT
Features: DT_ADCD, DT_FcgR2a, DT_ADCP, DT_ADNP, DT_FcgR3b, DT_IgG, DT_IgG1, DT_IgG2, DT_IgG4, DT_IgG3

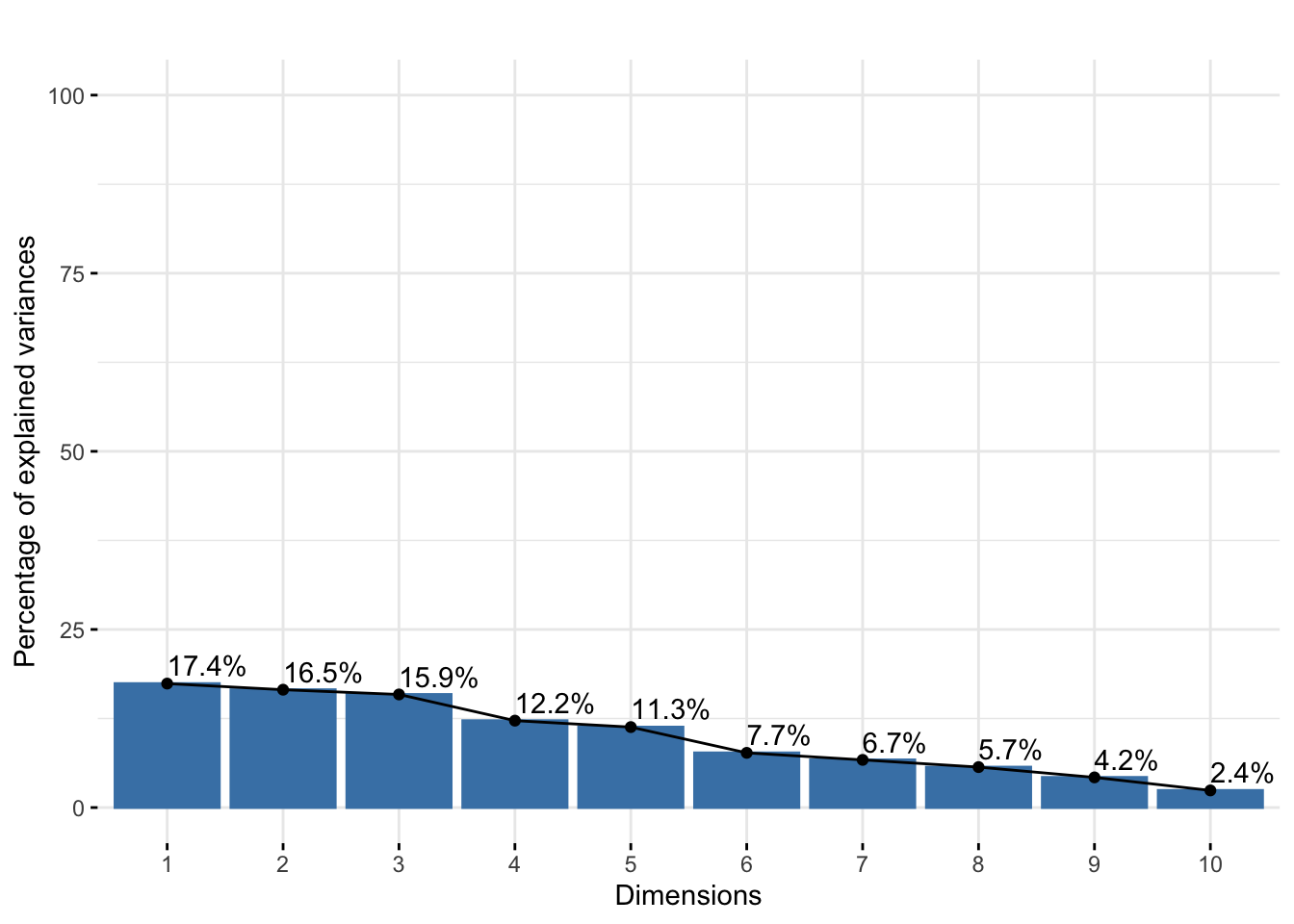

Proportion of Variance
Summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | |
|---|---|---|---|---|---|
| Standard deviation | 1.319 | 1.286 | 1.260 | 1.104 | 1.063 |
| Proportion of Variance | 0.174 | 0.165 | 0.159 | 0.122 | 0.113 |
| Cumulative Proportion | 0.174 | 0.339 | 0.498 | 0.620 | 0.733 |
| Version | Author | Date |
|---|---|---|
| 9d33ff3 | f006zvn1 | 2024-08-19 |

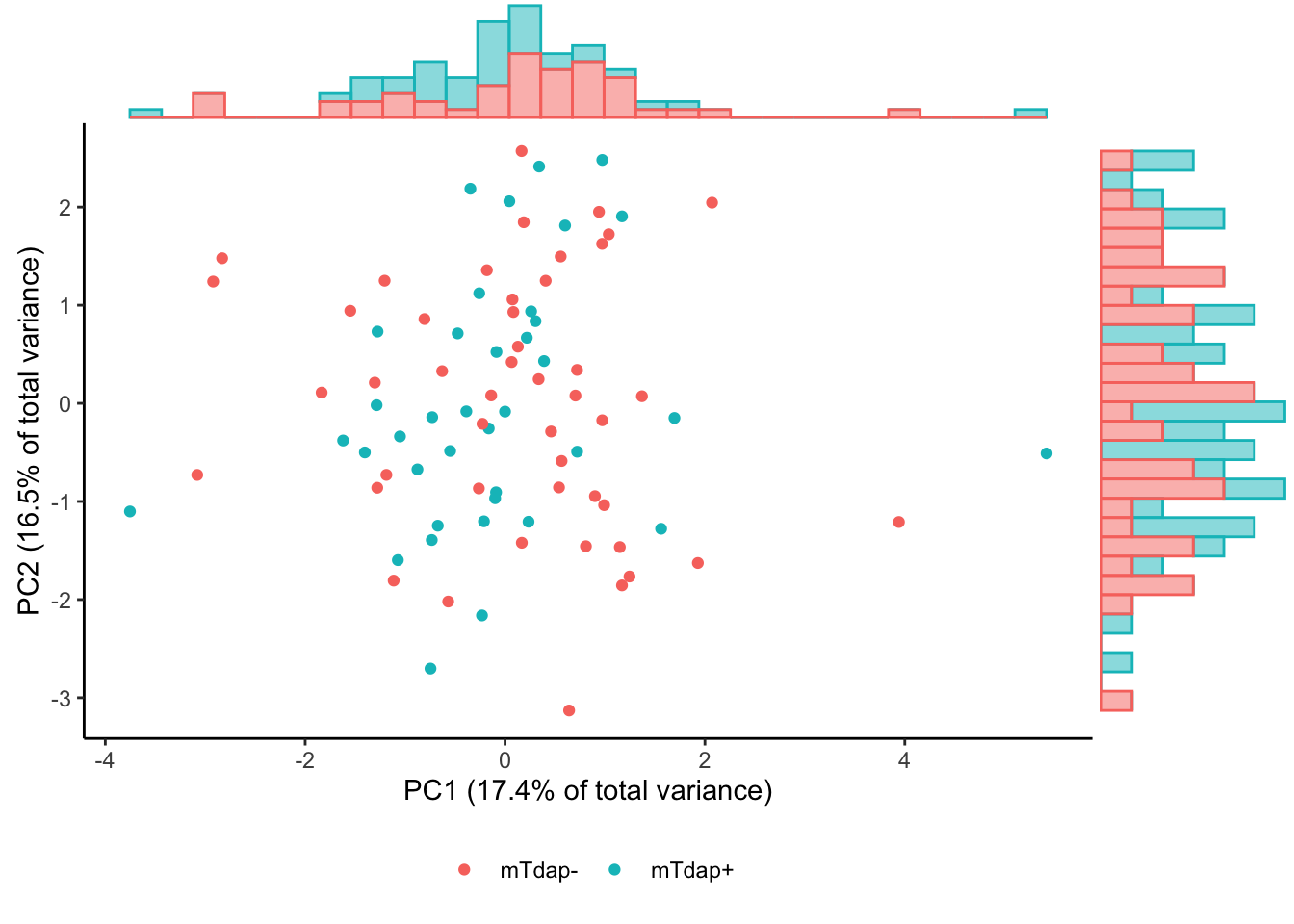

Plot of PC1 vs PC2 scores
| Version | Author | Date |
|---|---|---|
| 9d33ff3 | f006zvn1 | 2024-08-19 |
Comparison of principle components by arm
Maternal Tdap+ vs. Tdap- boosted DT PC1: p=.49
Maternal Tdap+ vs. Tdap- boosted DT PC2: p=.86
Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution
| Version | Author | Date |
|---|---|---|
| 9d33ff3 | f006zvn1 | 2024-08-19 |
**Loadings
plot
| Version | Author | Date |
|---|---|---|
| 9d33ff3 | f006zvn1 | 2024-08-19 |

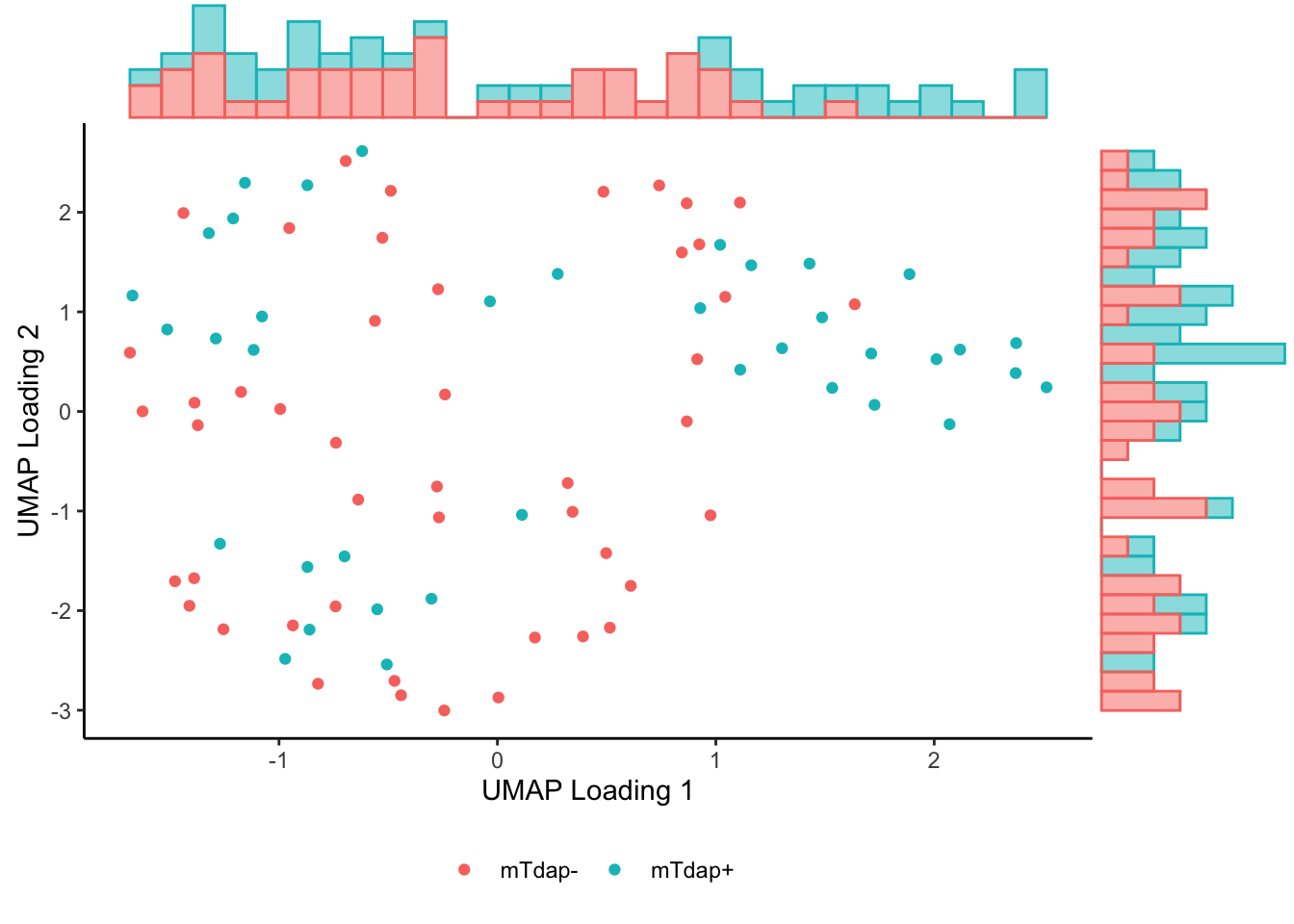

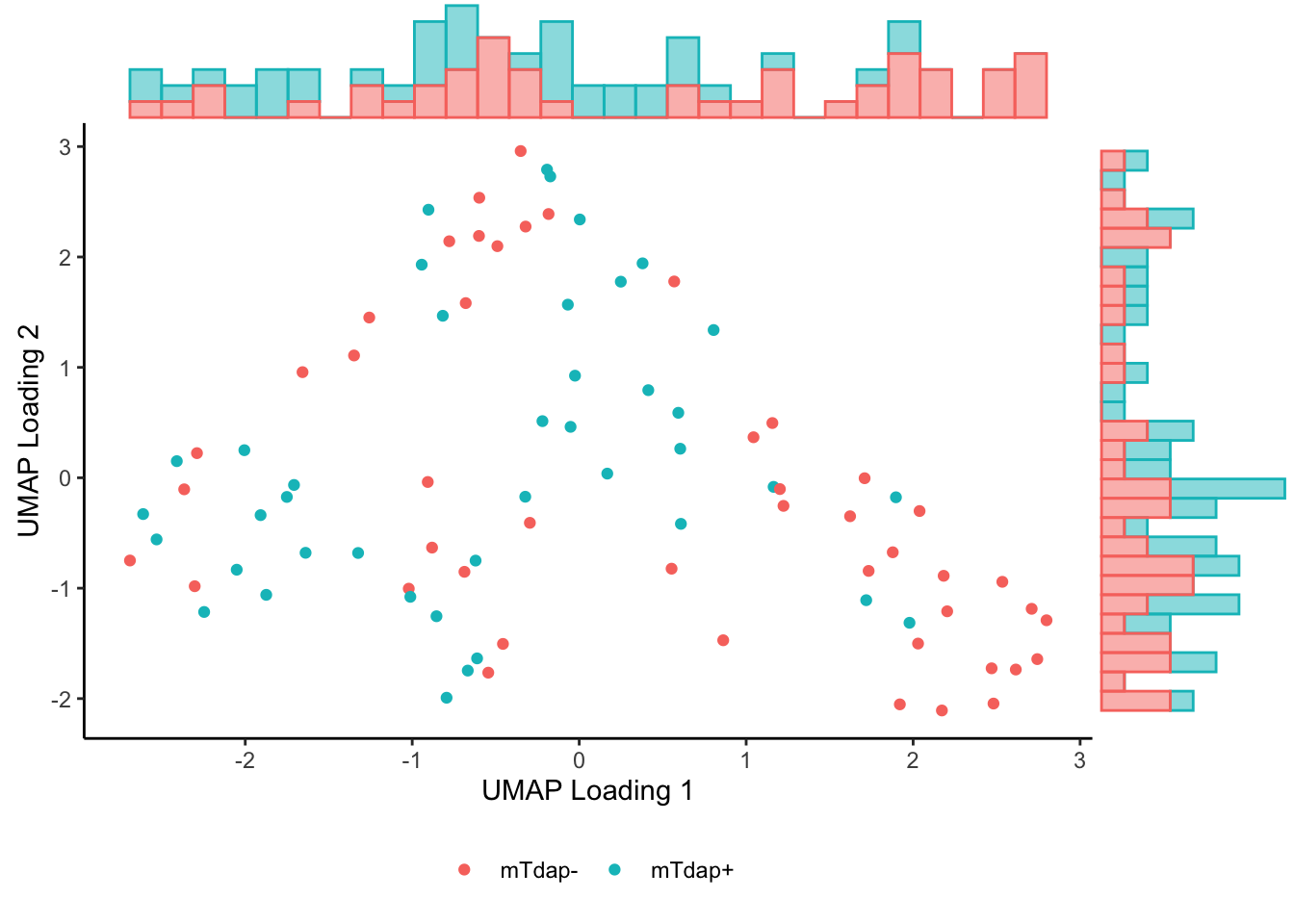

Plot of UMAP1 vs UMAP2 Loadings
| Version | Author | Date |
|---|---|---|
| 9d33ff3 | f006zvn1 | 2024-08-19 |
Comparison of UMAP loadings by arm
Maternal Tdap+ vs. Tdap- boosted DT UMAP1: p=.42
Maternal Tdap+ vs. Tdap- boosted DT UMAP2: p=.84
Antigen: TT
Features: TT_ADCD, TT_ADCP, TT_FcgR2a, TT_IgG2, TT_ADNP, TT_FcgR3b, TT_IgG, TT_IgG1, TT_IgG4, TT_IgG3

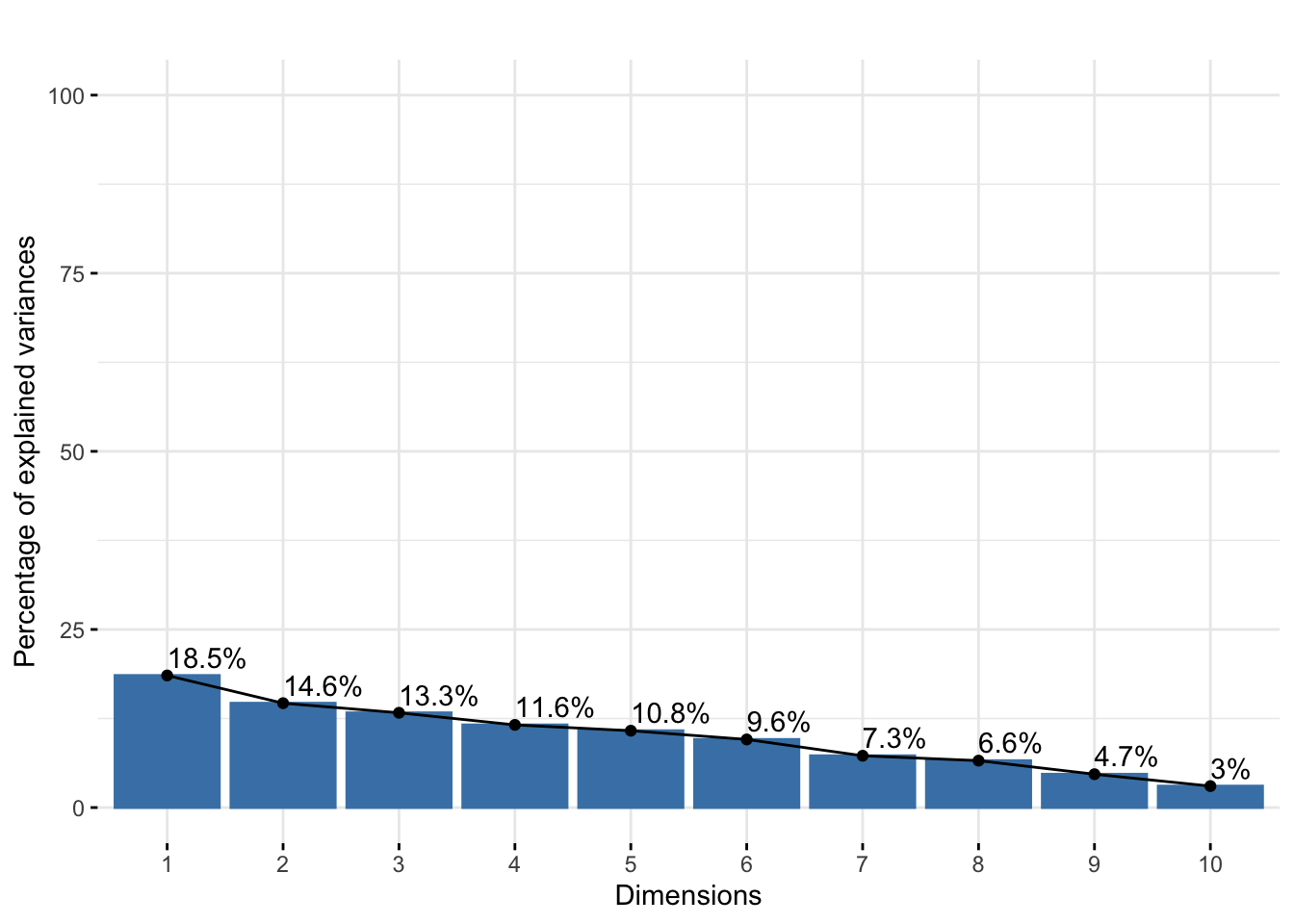

Proportion of Variance
Summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | |
|---|---|---|---|---|---|
| Standard deviation | 1.362 | 1.210 | 1.153 | 1.077 | 1.039 |
| Proportion of Variance | 0.185 | 0.146 | 0.133 | 0.116 | 0.108 |
| Cumulative Proportion | 0.185 | 0.332 | 0.465 | 0.581 | 0.689 |
| Version | Author | Date |
|---|---|---|
| 9d33ff3 | f006zvn1 | 2024-08-19 |

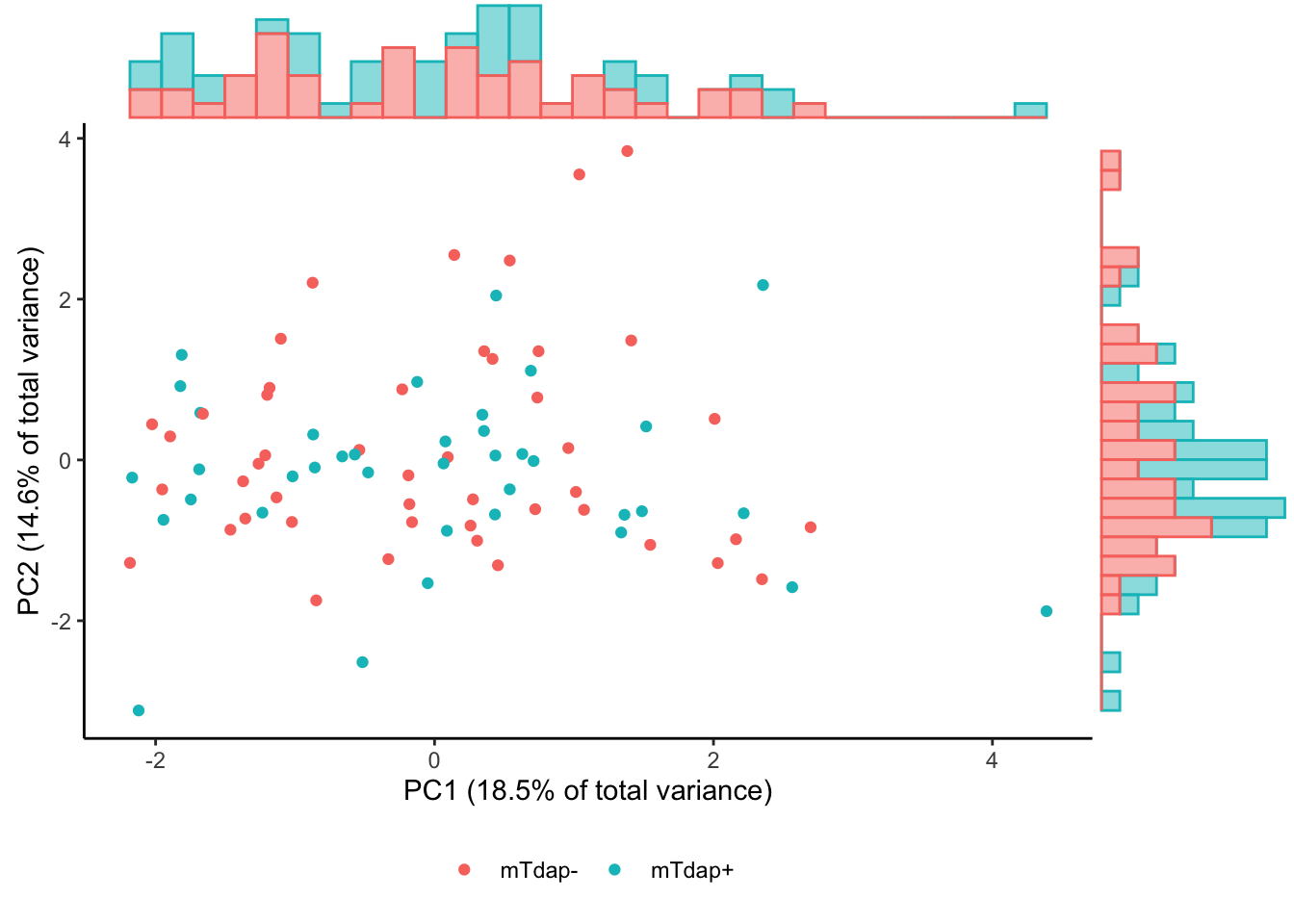

Plot of PC1 vs PC2 scores
| Version | Author | Date |
|---|---|---|
| 9d33ff3 | f006zvn1 | 2024-08-19 |
Comparison of principle components by arm
Maternal Tdap+ vs. Tdap- boosted TT PC1: p=.92
Maternal Tdap+ vs. Tdap- boosted TT PC2: p=.2
Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution
| Version | Author | Date |
|---|---|---|
| 9d33ff3 | f006zvn1 | 2024-08-19 |

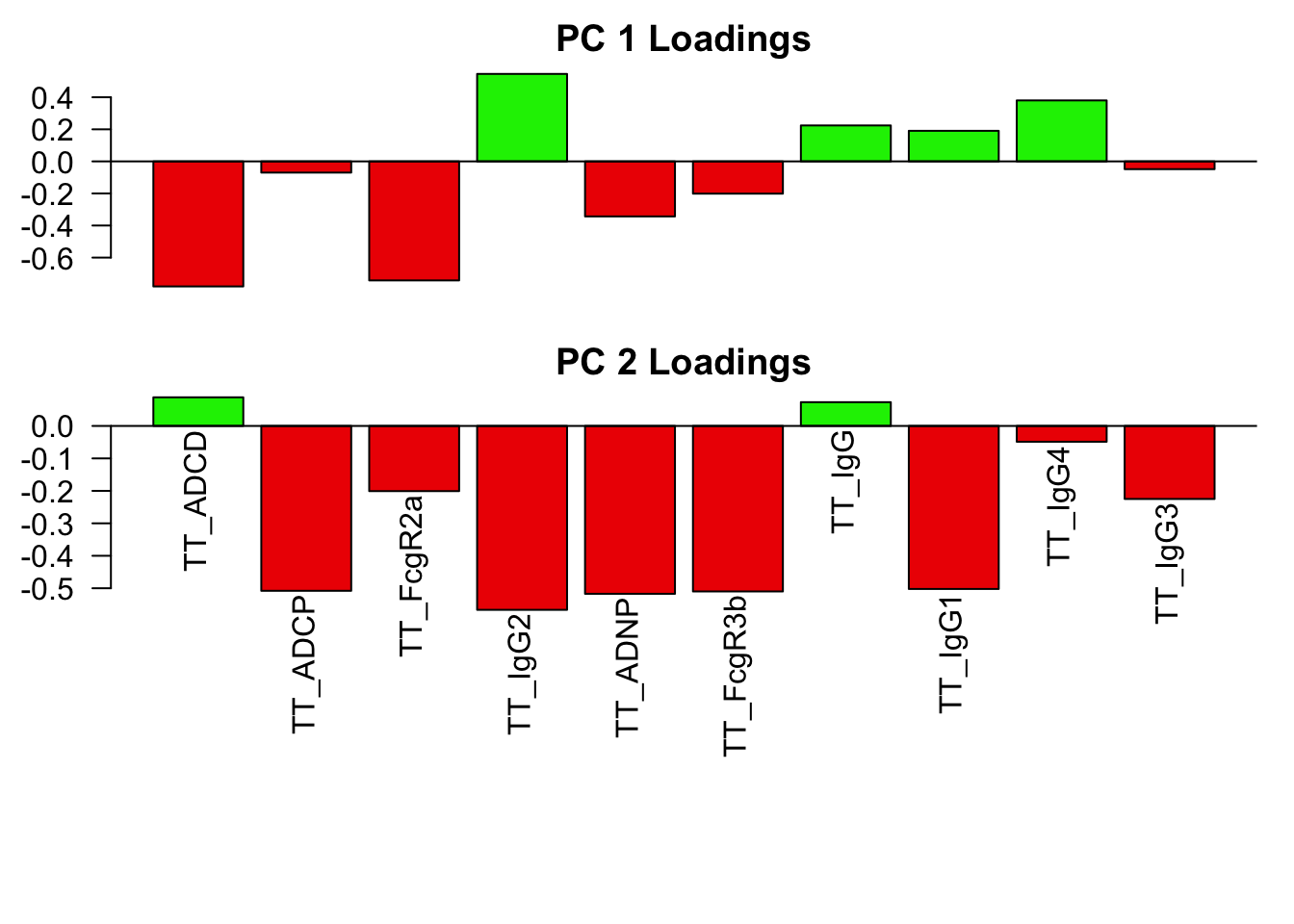

**Loadings
plot
| Version | Author | Date |
|---|---|---|
| 9d33ff3 | f006zvn1 | 2024-08-19 |

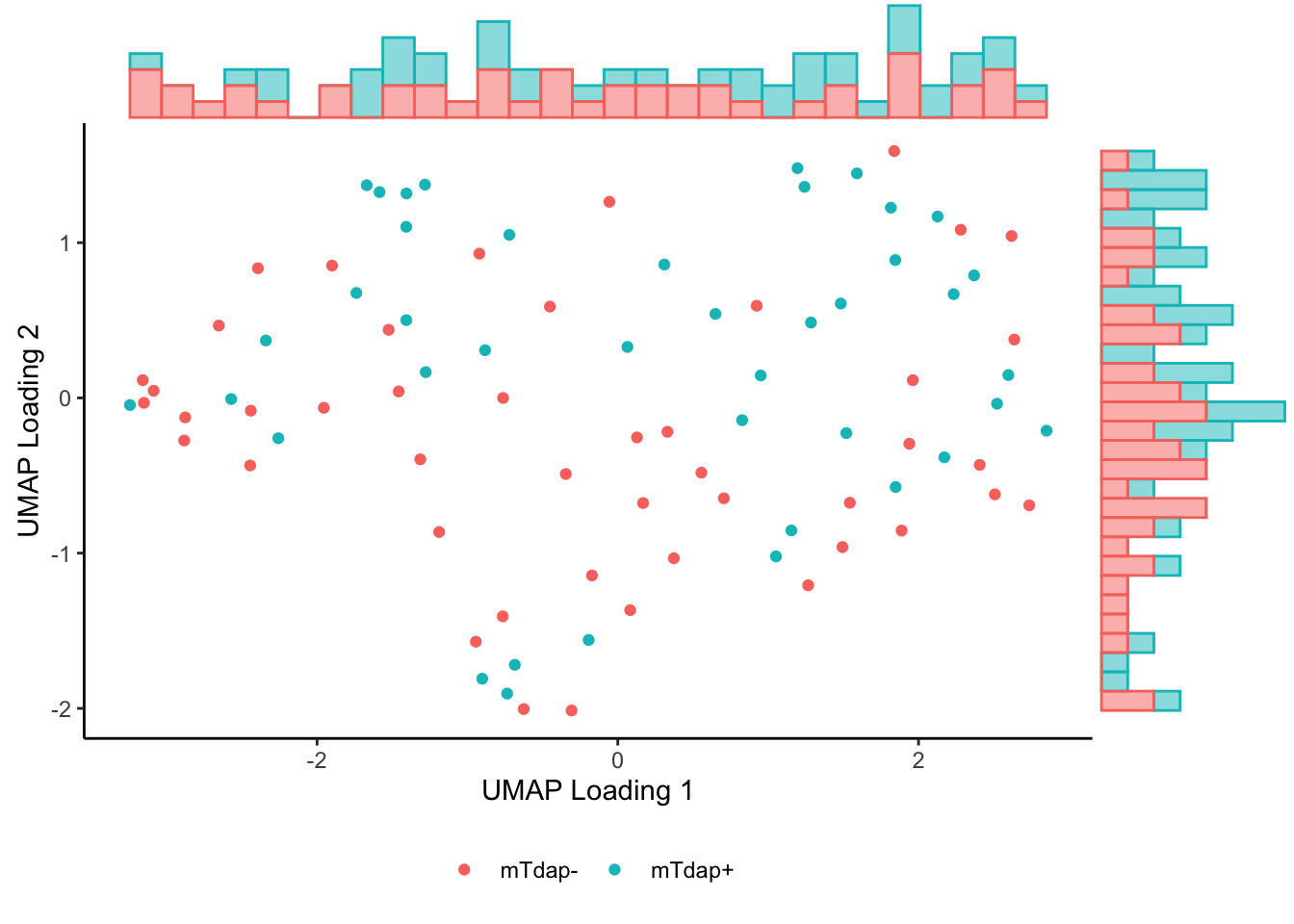

Plot of UMAP1 vs UMAP2 Loadings
| Version | Author | Date |
|---|---|---|
| 9d33ff3 | f006zvn1 | 2024-08-19 |
Comparison of UMAP loadings by arm
Maternal Tdap+ vs. Tdap- boosted TT UMAP1: p=.62
Maternal Tdap+ vs. Tdap- boosted TT UMAP2: p=.35
Feature Cluster: IgG2 / IgG4
Features: TT_IgG2, DT_IgG2, DT_IgG4, FHA_IgG2, FHA_IgG4, PRN_IgG2, PRN_IgG4, PT_IgG2, PT_IgG4, TT_IgG4
Proportion of Variance
summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | PC6 | PC7 | PC8 | PC9 | PC10 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Standard deviation | 1.848 | 1.159 | 1.096 | 1.038 | 0.913 | 0.889 | 0.668 | 0.566 | 0.547 | 0.522 |
| Proportion of Variance | 0.342 | 0.134 | 0.120 | 0.108 | 0.083 | 0.079 | 0.045 | 0.032 | 0.030 | 0.027 |
| Cumulative Proportion | 0.342 | 0.476 | 0.596 | 0.704 | 0.787 | 0.866 | 0.911 | 0.943 | 0.973 | 1.000 |

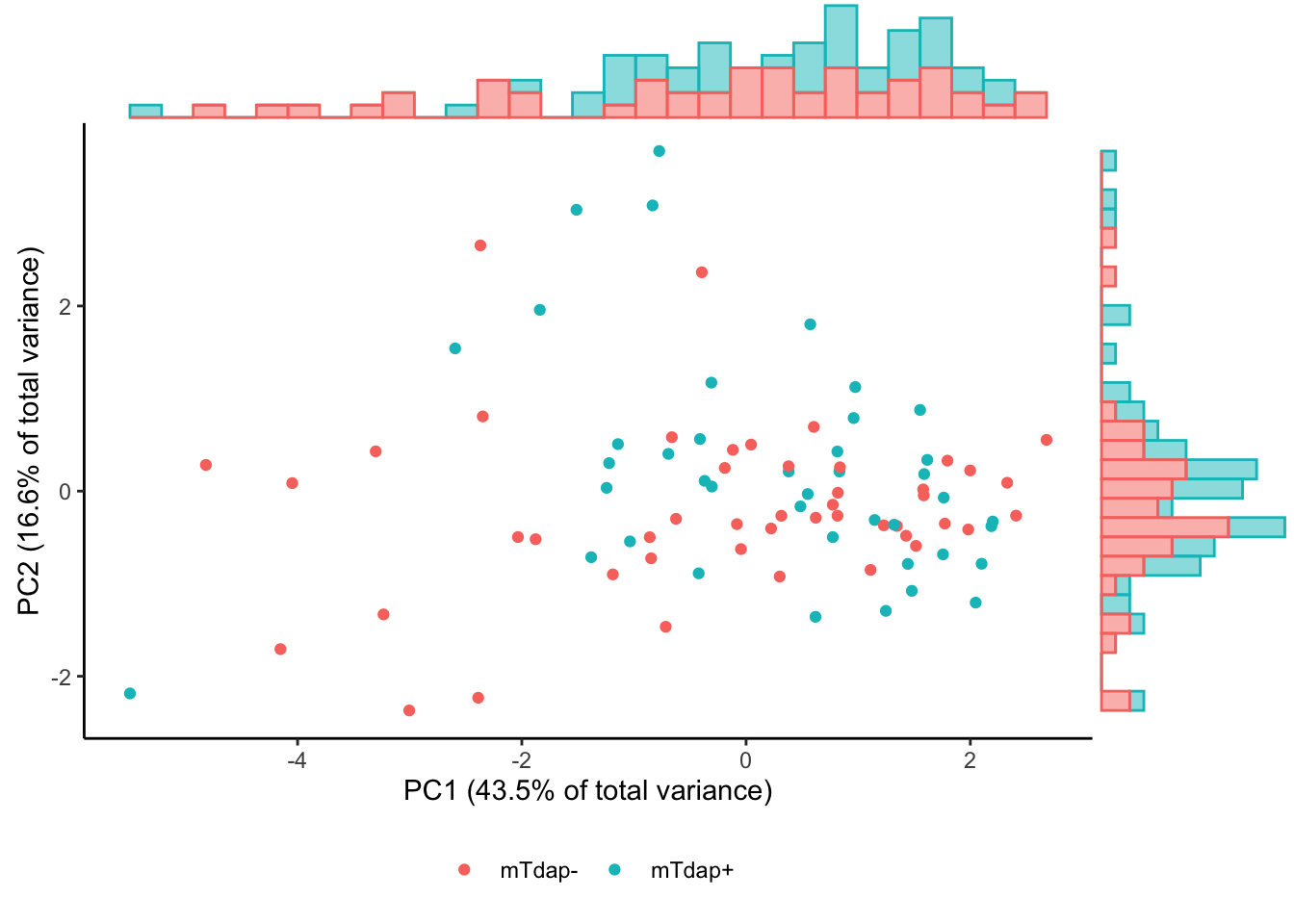

Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Maternal Tdap+ vs. Tdap- boosted Feature Cluster IgG2 / IgG4 PC1:
p=.39
Maternal Tdap+ vs. Tdap- boosted Feature Cluster IgG2 / IgG4 PC2:
p=.092
Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution
**Loadings
plot
Plot of UMAP1 vs UMAP2 Loadings
Comparison of UMAP loadings by arm
Maternal Tdap+ vs. Tdap- boosted TT UMAP1: p=.33
Maternal Tdap+ vs. Tdap- boosted TT UMAP2: p=.14
Feature Cluster: ADCD
Features: DT_ADCD, FHA_ADCD, PRN_ADCD, PT_ADCD, TT_ADCD
Proportion of Variance
summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | |
|---|---|---|---|---|---|
| Standard deviation | 1.91 | 0.782 | 0.598 | 0.521 | 0.334 |
| Proportion of Variance | 0.73 | 0.122 | 0.072 | 0.054 | 0.022 |
| Cumulative Proportion | 0.73 | 0.852 | 0.923 | 0.978 | 1.000 |
Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Maternal Tdap+ vs. Tdap- boosted Feature Cluster ADCD PC1: p=.35
Maternal Tdap+ vs. Tdap- boosted Feature Cluster ADCD PC2: p=.18
Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution
**Loadings
plot
Plot of UMAP1 vs UMAP2 Loadings
Comparison of UMAP loadings by arm
Maternal Tdap+ vs. Tdap- boosted TT UMAP1: p=.39
Maternal Tdap+ vs. Tdap- boosted TT UMAP2: p=.37
Feature Cluster: ADNP / ADCP
Features: TT_ADCP, DT_ADCP, DT_ADNP, FHA_ADNP, PRN_ADNP, PT_ADNP, TT_ADNP, FHA_ADCP, PRN_ADCP, PT_ADCP
Proportion of Variance
summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | PC6 | PC7 | PC8 | PC9 | PC10 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Standard deviation | 1.713 | 1.376 | 1.047 | 0.994 | 0.918 | 0.792 | 0.749 | 0.731 | 0.539 | 0.482 |
| Proportion of Variance | 0.293 | 0.189 | 0.110 | 0.099 | 0.084 | 0.063 | 0.056 | 0.053 | 0.029 | 0.023 |
| Cumulative Proportion | 0.293 | 0.483 | 0.592 | 0.691 | 0.775 | 0.838 | 0.894 | 0.948 | 0.977 | 1.000 |
Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Maternal Tdap+ vs. Tdap- boosted Feature Cluster ADNP / ADCP PC1:
p=.58
Maternal Tdap+ vs. Tdap- boosted Feature Cluster ADNP / ADCP PC2:
p=.37
Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution
**Loadings
plot
Plot of UMAP1 vs UMAP2 Loadings
Comparison of UMAP loadings by arm
Maternal Tdap+ vs. Tdap- boosted TT UMAP1: p=.84
Maternal Tdap+ vs. Tdap- boosted TT UMAP2: p=.83
Feature Cluster: FcgR2a / FcgR3b
Features: DT_FcgR2a, PT_FcgR2a, TT_FcgR2a, DT_FcgR3b, FHA_FcgR2a, FHA_FcgR3b, PRN_FcgR2a, PRN_FcgR3b, PT_FcgR3b, TT_FcgR3b
Proportion of Variance
summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | PC6 | PC7 | PC8 | PC9 | PC10 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Standard deviation | 2.115 | 1.303 | 1.148 | 1.055 | 0.747 | 0.662 | 0.416 | 0.350 | 0.243 | 0.218 |
| Proportion of Variance | 0.447 | 0.170 | 0.132 | 0.111 | 0.056 | 0.044 | 0.017 | 0.012 | 0.006 | 0.005 |
| Cumulative Proportion | 0.447 | 0.617 | 0.749 | 0.860 | 0.916 | 0.960 | 0.977 | 0.989 | 0.995 | 1.000 |
Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Maternal Tdap+ vs. Tdap- boosted Feature Cluster FcgR2a / FcgR3b PC1:
p=.58
Maternal Tdap+ vs. Tdap- boosted Feature Cluster FcgR2a / FcgR3b PC2:
p=.73
Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution
**Loadings
plot
Plot of UMAP1 vs UMAP2 Loadings
Comparison of UMAP loadings by arm
Maternal Tdap+ vs. Tdap- boosted TT UMAP1: p=.68
Maternal Tdap+ vs. Tdap- boosted TT UMAP2: p=.097
Feature Cluster: IgG1
Features: DT_IgG1, FHA_IgG1, PRN_IgG1, PT_IgG1, TT_IgG1
Proportion of Variance
summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | |
|---|---|---|---|---|---|
| Standard deviation | 1.780 | 0.892 | 0.699 | 0.565 | 0.479 |
| Proportion of Variance | 0.634 | 0.159 | 0.098 | 0.064 | 0.046 |
| Cumulative Proportion | 0.634 | 0.793 | 0.890 | 0.954 | 1.000 |
Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Maternal Tdap+ vs. Tdap- boosted Feature Cluster IgG1 PC1: p=.2
Maternal Tdap+ vs. Tdap- boosted Feature Cluster IgG1 PC2: p=.11
Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution
**Loadings
plot
Plot of UMAP1 vs UMAP2 Loadings
Comparison of UMAP loadings by arm
Maternal Tdap+ vs. Tdap- boosted TT UMAP1: p=.96
Maternal Tdap+ vs. Tdap- boosted TT UMAP2: p=.14
Feature Cluster: IgG3
Features: DT_IgG3, FHA_IgG3, PRN_IgG3, PT_IgG3, TT_IgG3
Proportion of Variance
summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | |
|---|---|---|---|---|---|
| Standard deviation | 1.540 | 0.908 | 0.855 | 0.746 | 0.720 |
| Proportion of Variance | 0.474 | 0.165 | 0.146 | 0.111 | 0.104 |
| Cumulative Proportion | 0.474 | 0.639 | 0.785 | 0.896 | 1.000 |
Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Maternal Tdap+ vs. Tdap- boosted Feature Cluster IgG3 PC1: p=.62
Maternal Tdap+ vs. Tdap- boosted Feature Cluster IgG3 PC2: p=.92
Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution
**Loadings
plot
Plot of UMAP1 vs UMAP2 Loadings
Comparison of UMAP loadings by arm
Maternal Tdap+ vs. Tdap- boosted TT UMAP1: p=.85
Maternal Tdap+ vs. Tdap- boosted TT UMAP2: p=.84
Feature Cluster: IgG
Features: DT_IgG, FHA_IgG, PRN_IgG, PT_IgG, TT_IgG
Proportion of Variance
summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | |
|---|---|---|---|---|---|
| Standard deviation | 1.825 | 0.798 | 0.644 | 0.593 | 0.515 |
| Proportion of Variance | 0.666 | 0.127 | 0.083 | 0.070 | 0.053 |
| Cumulative Proportion | 0.666 | 0.794 | 0.877 | 0.947 | 1.000 |

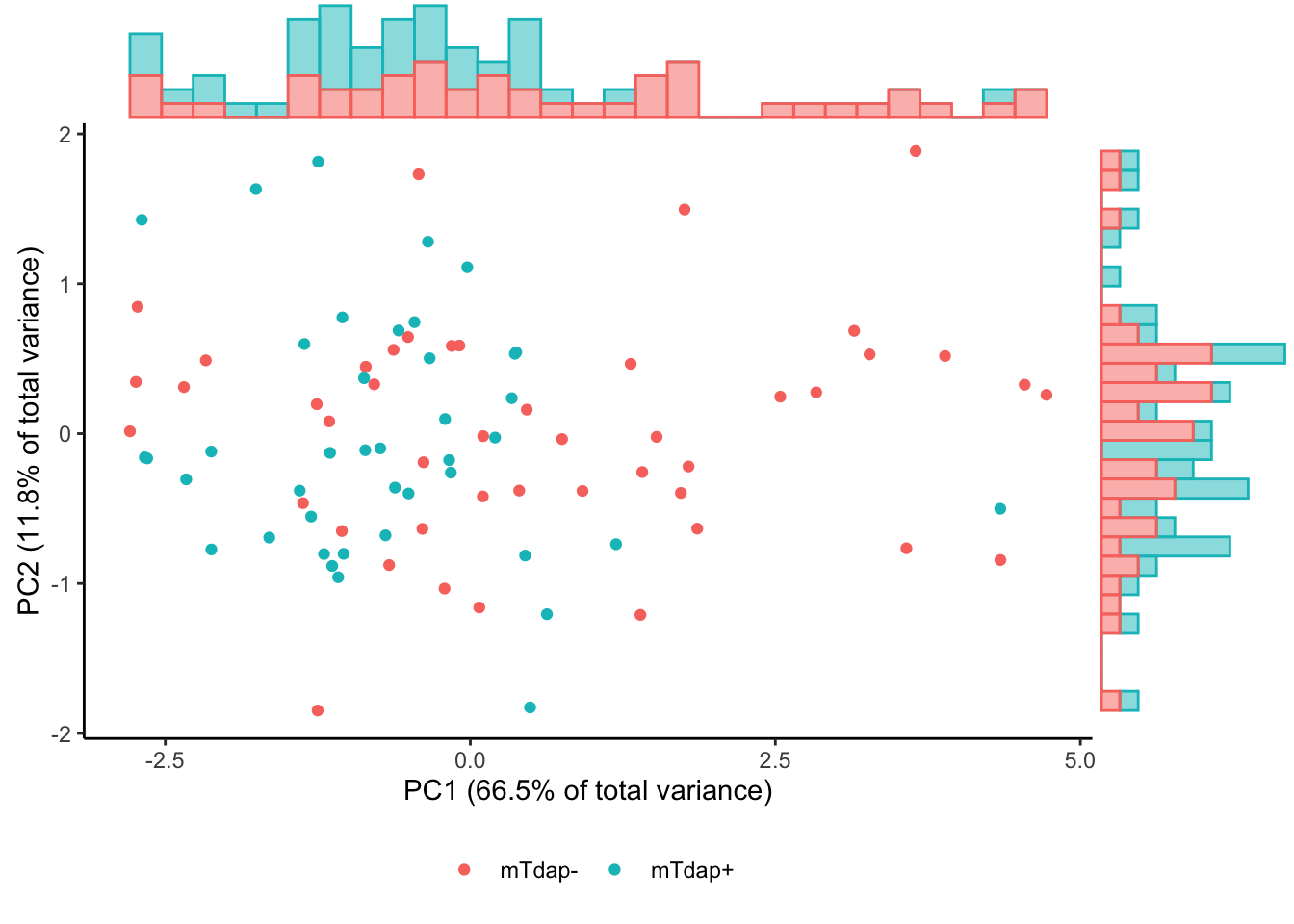

Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Maternal Tdap+ vs. Tdap- boosted Feature Cluster IgG PC1: p=.28
Maternal Tdap+ vs. Tdap- boosted Feature Cluster IgG PC2: p=.075
Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution
**Loadings
plot
Plot of UMAP1 vs UMAP2 Loadings
Comparison of UMAP loadings by arm
Maternal Tdap+ vs. Tdap- boosted TT UMAP1: p=.97
Maternal Tdap+ vs. Tdap- boosted TT UMAP2: p=.22
Response Cluster: 1
Features: DT_ADCD, DT_FcgR2a, FHA_ADCD, PRN_ADCD, PT_ADCD, PT_FcgR2a, TT_ADCD, TT_ADCP, TT_FcgR2a, TT_IgG2
Proportion of Variance
summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | PC6 | PC7 | PC8 | PC9 | PC10 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Standard deviation | 2.181 | 1.156 | 0.998 | 0.956 | 0.797 | 0.649 | 0.645 | 0.500 | 0.449 | 0.269 |
| Proportion of Variance | 0.476 | 0.134 | 0.100 | 0.091 | 0.064 | 0.042 | 0.042 | 0.025 | 0.020 | 0.007 |
| Cumulative Proportion | 0.476 | 0.609 | 0.709 | 0.800 | 0.864 | 0.906 | 0.948 | 0.973 | 0.993 | 1.000 |

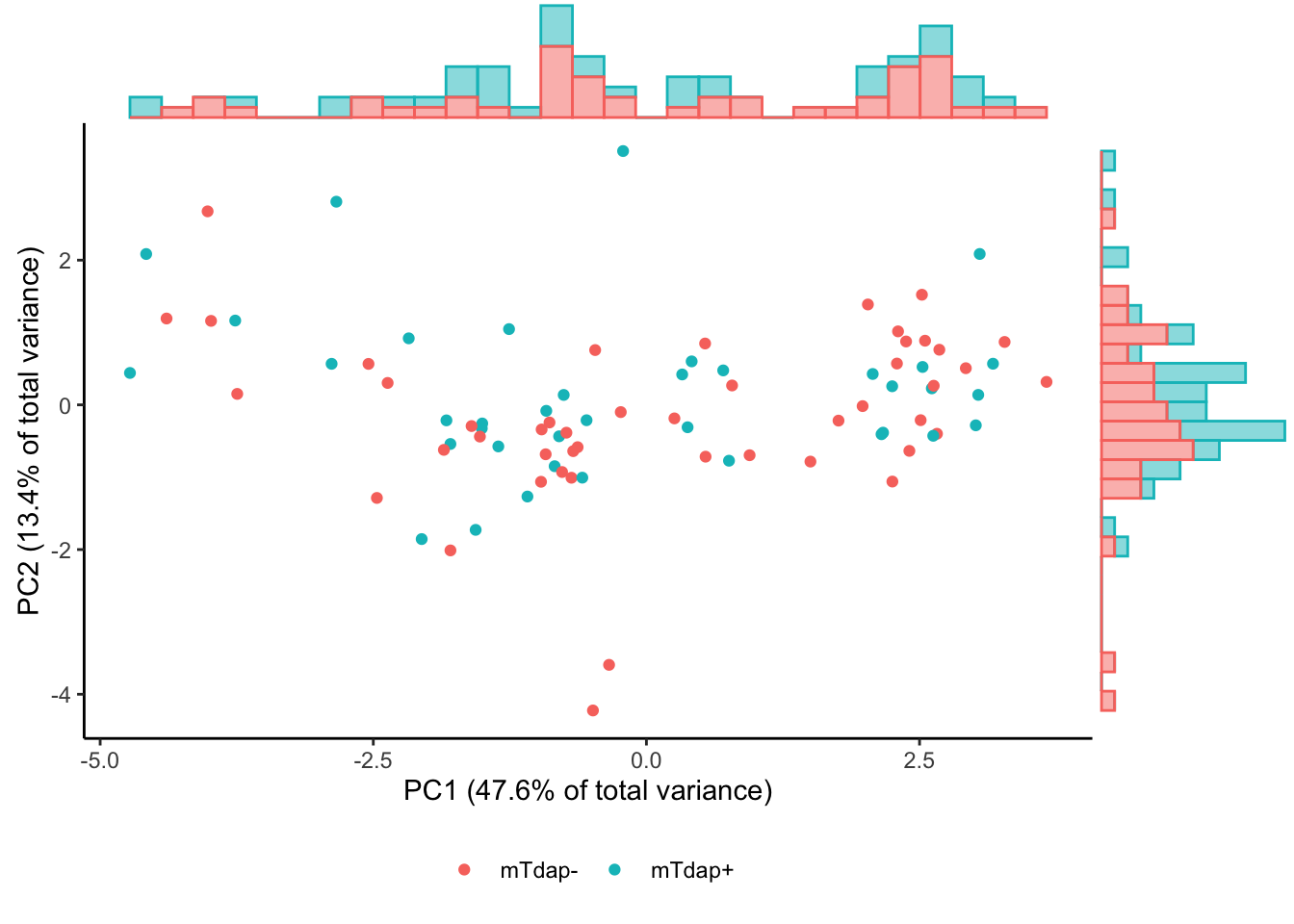

Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Maternal Tdap+ vs. Tdap- boosted RCluster_ 1 PC1: p=.41
Maternal Tdap+ vs. Tdap- boosted RCluster_ 1 PC2: p=.22
Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution
**Loadings
plot
Plot of UMAP1 vs UMAP2 Loadings
Comparison of UMAP loadings by arm
Maternal Tdap+ vs. Tdap- boosted TT UMAP1: p=.48
Maternal Tdap+ vs. Tdap- boosted TT UMAP2: p=.52
Response Cluster: 2
Features: DT_ADCP, DT_ADNP, FHA_ADNP, PRN_ADNP, PT_ADNP, TT_ADNP

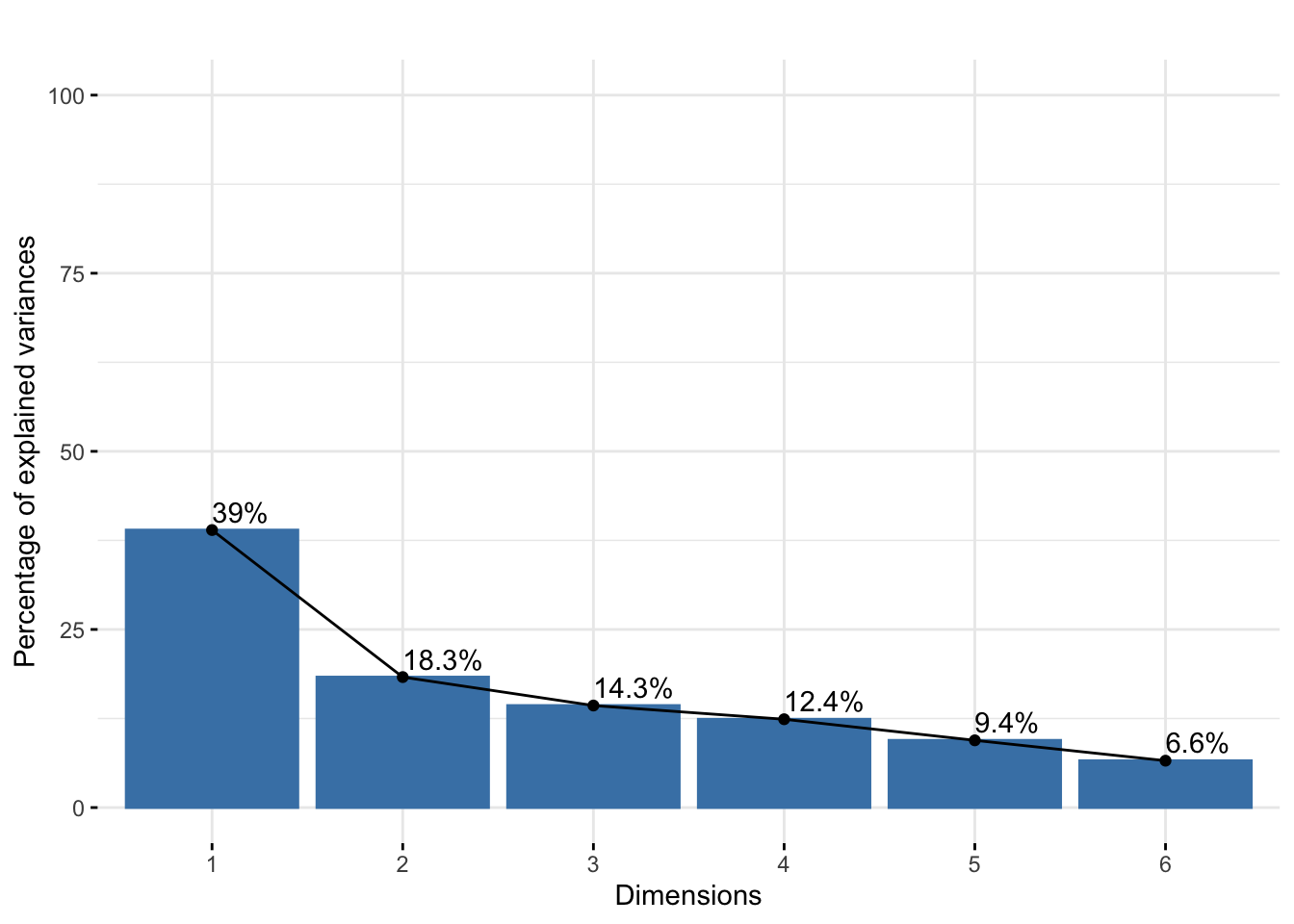

Proportion of Variance
summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | PC6 | |
|---|---|---|---|---|---|---|
| Standard deviation | 1.529 | 1.048 | 0.927 | 0.862 | 0.752 | 0.628 |
| Proportion of Variance | 0.390 | 0.183 | 0.143 | 0.124 | 0.094 | 0.066 |
| Cumulative Proportion | 0.390 | 0.573 | 0.716 | 0.840 | 0.934 | 1.000 |
Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Maternal Tdap+ vs. Tdap- boosted RCluster_ 2 PC1: p=.7
Maternal Tdap+ vs. Tdap- boosted RCluster_ 2 PC2: p=.39
Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution
**Loadings
plot
Plot of UMAP1 vs UMAP2 Loadings
Comparison of UMAP loadings by arm
Maternal Tdap+ vs. Tdap- boosted TT UMAP1: p=.97
Maternal Tdap+ vs. Tdap- boosted TT UMAP2: p=.61
Response Cluster: 3
Features: DT_FcgR3b, FHA_ADCP, FHA_FcgR2a, FHA_FcgR3b, PRN_ADCP, PRN_FcgR2a, PRN_FcgR3b, PT_ADCP, PT_FcgR3b, TT_FcgR3b

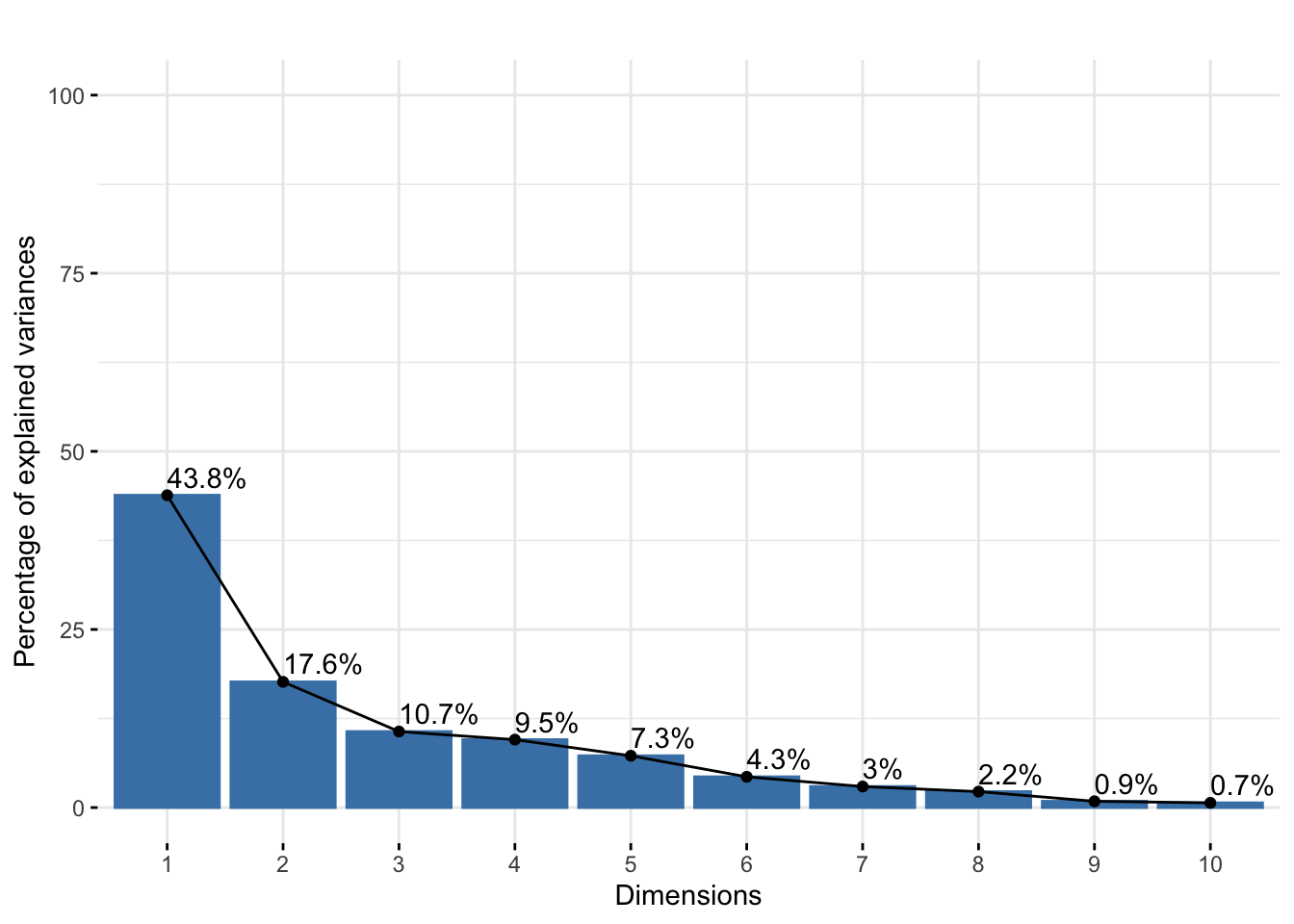

Proportion of Variance
summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | PC6 | PC7 | PC8 | PC9 | PC10 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Standard deviation | 2.094 | 1.328 | 1.033 | 0.976 | 0.853 | 0.657 | 0.543 | 0.473 | 0.297 | 0.257 |
| Proportion of Variance | 0.438 | 0.176 | 0.107 | 0.095 | 0.073 | 0.043 | 0.030 | 0.022 | 0.009 | 0.007 |
| Cumulative Proportion | 0.438 | 0.615 | 0.722 | 0.817 | 0.890 | 0.933 | 0.962 | 0.985 | 0.993 | 1.000 |
Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Maternal Tdap+ vs. Tdap- boosted RCluster_ 3 PC1: p=.35
Maternal Tdap+ vs. Tdap- boosted RCluster_ 3 PC2: p=.33
Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution
**Loadings
plot
Plot of UMAP1 vs UMAP2 Loadings
Comparison of UMAP loadings by arm
Maternal Tdap+ vs. Tdap- boosted TT UMAP1: p=.87
Maternal Tdap+ vs. Tdap- boosted TT UMAP2: p=.72
Response Cluster: 4
Features: DT_IgG, FHA_IgG, PRN_IgG, PT_IgG, TT_IgG
Proportion of Variance
summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | |
|---|---|---|---|---|---|
| Standard deviation | 1.825 | 0.798 | 0.644 | 0.593 | 0.515 |
| Proportion of Variance | 0.666 | 0.127 | 0.083 | 0.070 | 0.053 |
| Cumulative Proportion | 0.666 | 0.794 | 0.877 | 0.947 | 1.000 |
Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Maternal Tdap+ vs. Tdap- boosted RCluster_ 4 PC1: p=.28
Maternal Tdap+ vs. Tdap- boosted RCluster_ 4 PC2: p=.075
Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution
**Loadings
plot
Plot of UMAP1 vs UMAP2 Loadings
Comparison of UMAP loadings by arm
Maternal Tdap+ vs. Tdap- boosted TT UMAP1: p=.97
Maternal Tdap+ vs. Tdap- boosted TT UMAP2: p=.22
Response Cluster: 5
Features: DT_IgG1, FHA_IgG1, PRN_IgG1, PT_IgG1, TT_IgG1
Proportion of Variance
summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | |
|---|---|---|---|---|---|
| Standard deviation | 1.780 | 0.892 | 0.699 | 0.565 | 0.479 |
| Proportion of Variance | 0.634 | 0.159 | 0.098 | 0.064 | 0.046 |
| Cumulative Proportion | 0.634 | 0.793 | 0.890 | 0.954 | 1.000 |
Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Maternal Tdap+ vs. Tdap- boosted RCluster_ 5 PC1: p=.2
Maternal Tdap+ vs. Tdap- boosted RCluster_ 5 PC2: p=.11
Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution
**Loadings
plot
Plot of UMAP1 vs UMAP2 Loadings
Comparison of UMAP loadings by arm
Maternal Tdap+ vs. Tdap- boosted TT UMAP1: p=.96
Maternal Tdap+ vs. Tdap- boosted TT UMAP2: p=.14
Response Cluster: 6
Features: DT_IgG2, DT_IgG4, FHA_IgG2, FHA_IgG4, PRN_IgG2, PRN_IgG4, PT_IgG2, PT_IgG4, TT_IgG4

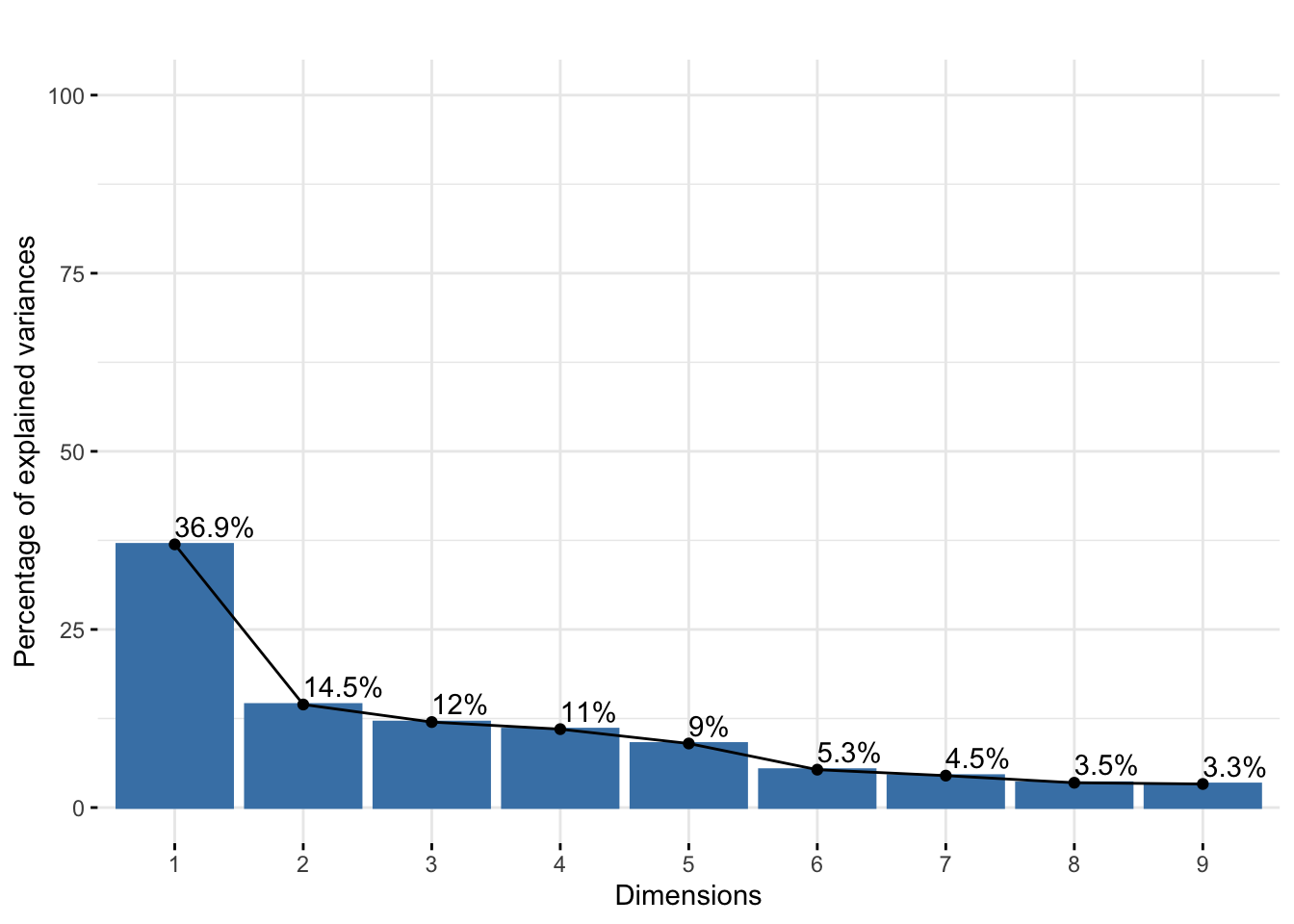

Proportion of Variance
summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | PC6 | PC7 | PC8 | PC9 | |
|---|---|---|---|---|---|---|---|---|---|
| Standard deviation | 1.823 | 1.141 | 1.039 | 0.995 | 0.900 | 0.692 | 0.635 | 0.560 | 0.546 |
| Proportion of Variance | 0.369 | 0.145 | 0.120 | 0.110 | 0.090 | 0.053 | 0.045 | 0.035 | 0.033 |
| Cumulative Proportion | 0.369 | 0.514 | 0.634 | 0.744 | 0.834 | 0.887 | 0.932 | 0.967 | 1.000 |

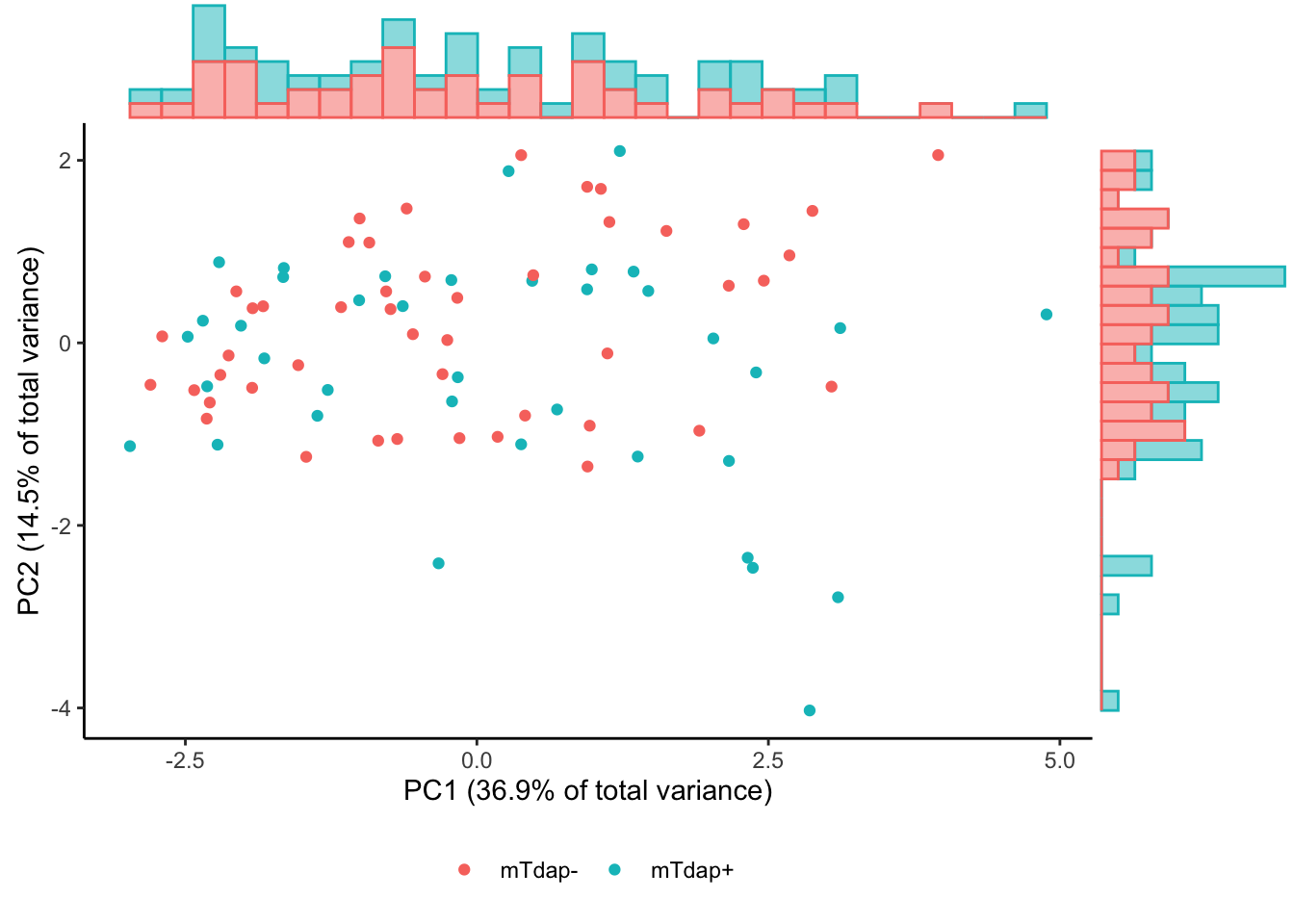

Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Maternal Tdap+ vs. Tdap- boosted RCluster_ 6 PC1: p=.43
Maternal Tdap+ vs. Tdap- boosted RCluster_ 6 PC2: p=.044
Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution
**Loadings
plot
Plot of UMAP1 vs UMAP2 Loadings
Comparison of UMAP loadings by arm
Maternal Tdap+ vs. Tdap- boosted TT UMAP1: p=.79
Maternal Tdap+ vs. Tdap- boosted TT UMAP2: p=.12
Response Cluster: 7
Features: DT_IgG3, FHA_IgG3, PRN_IgG3, PT_IgG3, TT_IgG3
Proportion of Variance
summary for first 5 principal components (PC)| PC1 | PC2 | PC3 | PC4 | PC5 | |
|---|---|---|---|---|---|
| Standard deviation | 1.540 | 0.908 | 0.855 | 0.746 | 0.720 |
| Proportion of Variance | 0.474 | 0.165 | 0.146 | 0.111 | 0.104 |
| Cumulative Proportion | 0.474 | 0.639 | 0.785 | 0.896 | 1.000 |
Plot of PC1 vs PC2 scores
Comparison of principle components by arm
Maternal Tdap+ vs. Tdap- boosted RCluster_ 7 PC1: p=.62
Maternal Tdap+ vs. Tdap- boosted RCluster_ 7 PC2: p=.92
Plot of PCA Eigen Vectors
Correlation between features and each PC score - colored by
variance contribution
**Loadings
plot
Plot of UMAP1 vs UMAP2 Loadings
Comparison of UMAP loadings by arm
Maternal Tdap+ vs. Tdap- boosted TT UMAP1: p=.85
Maternal Tdap+ vs. Tdap- boosted TT UMAP2: p=.84
sessionInfo()R version 4.4.2 (2024-10-31)
Platform: aarch64-apple-darwin20
Running under: macOS Sequoia 15.1.1
Matrix products: default
BLAS: /Library/Frameworks/R.framework/Versions/4.4-arm64/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/4.4-arm64/Resources/lib/libRlapack.dylib; LAPACK version 3.12.0
locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8
time zone: America/New_York
tzcode source: internal
attached base packages:
[1] stats graphics grDevices utils datasets methods base
other attached packages:
[1] e1071_1.7-16 glue_1.8.0 RPostgres_1.4.7
[4] magrittr_2.0.3 broom.helpers_1.17.0 broom_1.0.7
[7] RColorBrewer_1.1-3 skimr_2.1.5 rmarkdown_2.28
[10] papeR_1.0-5 xtable_1.8-4 car_3.1-3
[13] carData_3.0-5 corrplot_0.94 rempsyc_0.1.8
[16] FactoMineR_2.11 factoextra_1.0.7 rstatix_0.7.2
[19] umap_0.2.10.0 pracma_2.4.4 PCAmixdata_3.1
[22] qgraph_1.9.8 kableExtra_1.4.0 gtsummary_2.0.3
[25] gtExtras_0.5.0 gt_0.11.1 ggfortify_0.4.17
[28] ggpubr_0.6.0 ggExtra_0.10.1 ggrepel_0.9.6
[31] janitor_2.2.0 here_1.0.1 data.table_1.16.2
[34] DT_0.33 DBI_1.2.3 fpc_2.2-13
[37] lubridate_1.9.3 forcats_1.0.0 stringr_1.5.1
[40] dplyr_1.1.4 purrr_1.0.2 readr_2.1.5
[43] tidyr_1.3.1 tibble_3.2.1 ggplot2_3.5.1
[46] tidyverse_2.0.0
loaded via a namespace (and not attached):
[1] splines_4.4.2 later_1.3.2 rpart_4.1.23
[4] lifecycle_1.0.4 rprojroot_2.0.4 lattice_0.22-6
[7] prabclus_2.3-4 MASS_7.3-61 flashClust_1.01-2
[10] backports_1.5.0 Hmisc_5.1-3 sass_0.4.9
[13] jquerylib_0.1.4 yaml_2.3.10 httpuv_1.6.15
[16] flexmix_2.3-19 askpass_1.2.1 reticulate_1.39.0
[19] pbapply_1.7-2 multcomp_1.4-26 abind_1.4-8
[22] quadprog_1.5-8 TH.data_1.1-2 nnet_7.3-19
[25] sandwich_3.1-1 git2r_0.33.0 gmodels_2.19.1
[28] gdata_3.0.0 RSpectra_0.16-2 svglite_2.1.3
[31] codetools_0.2-20 xml2_1.3.6 tidyselect_1.2.1
[34] farver_2.1.2 stats4_4.4.2 base64enc_0.1-3
[37] jsonlite_1.8.9 Formula_1.2-5 survival_3.7-0
[40] emmeans_1.10.4 systemfonts_1.1.0 tools_4.4.2
[43] Rcpp_1.0.13 mnormt_2.1.1 gridExtra_2.3
[46] xfun_0.48 withr_3.0.1 fastmap_1.2.0
[49] fansi_1.0.6 openssl_2.2.2 digest_0.6.37
[52] timechange_0.3.0 R6_2.5.1 mime_0.12
[55] estimability_1.5.1 colorspace_2.1-1 gtools_3.9.5
[58] jpeg_0.1-10 diptest_0.77-1 utf8_1.2.4
[61] generics_0.1.3 corpcor_1.6.10 robustbase_0.99-4-1
[64] class_7.3-22 htmlwidgets_1.6.4 scatterplot3d_0.3-44
[67] whisker_0.4.1 pkgconfig_2.0.3 gtable_0.3.5
[70] modeltools_0.2-23 blob_1.2.4 workflowr_1.7.1
[73] htmltools_0.5.8.1 lavaan_0.6-19 multcompView_0.1-10
[76] scales_1.3.0 leaps_3.2 png_0.1-8
[79] snakecase_0.11.1 knitr_1.48.1 rstudioapi_0.16.0
[82] tzdb_0.4.0 reshape2_1.4.4 coda_0.19-4.1
[85] checkmate_2.3.2 nlme_3.1-166 proxy_0.4-27
[88] repr_1.1.7 zoo_1.8-12 cachem_1.1.0
[91] parallel_4.4.2 miniUI_0.1.1.1 foreign_0.8-87
[94] pillar_1.9.0 grid_4.4.2 vctrs_0.6.5
[97] promises_1.3.0 cluster_2.1.6 htmlTable_2.4.3
[100] paletteer_1.6.0 evaluate_1.0.1 pbivnorm_0.6.0
[103] mvtnorm_1.3-1 cli_3.6.3 compiler_4.4.2
[106] rlang_1.1.4 ggsignif_0.6.4 labeling_0.4.3
[109] fdrtool_1.2.18 mclust_6.1.1 rematch2_2.1.2
[112] plyr_1.8.9 fs_1.6.4 stringi_1.8.4
[115] psych_2.4.6.26 viridisLite_0.4.2 munsell_0.5.1
[118] Matrix_1.7-1 hms_1.1.3 glasso_1.11
[121] bit64_4.5.2 shiny_1.9.1 highr_0.11
[124] kernlab_0.9-33 fontawesome_0.5.2 igraph_2.0.3
[127] bslib_0.8.0 bit_4.5.0 DEoptimR_1.1-3
